65-1542 150W SELECTABLE FLOOD LIGHT

Description

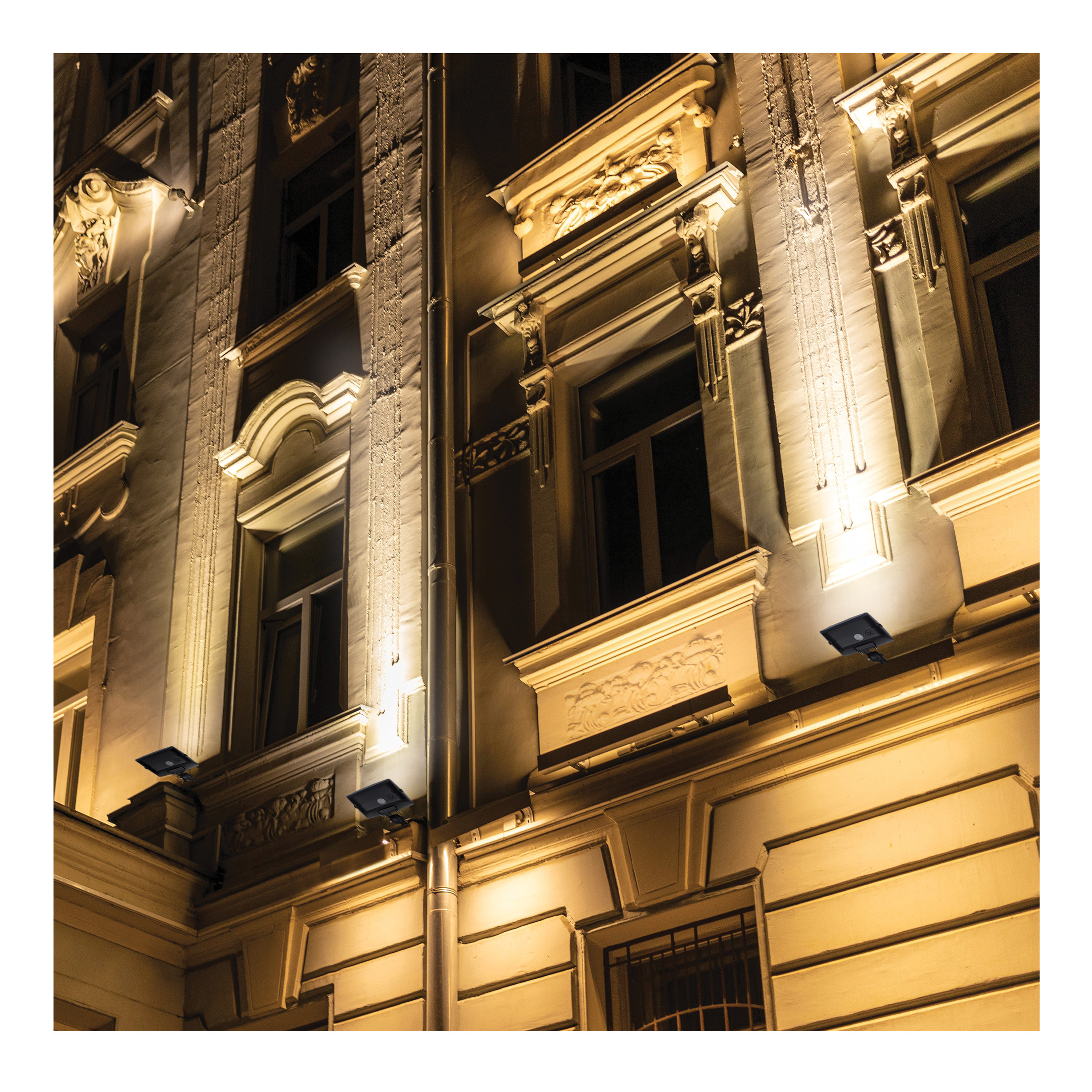

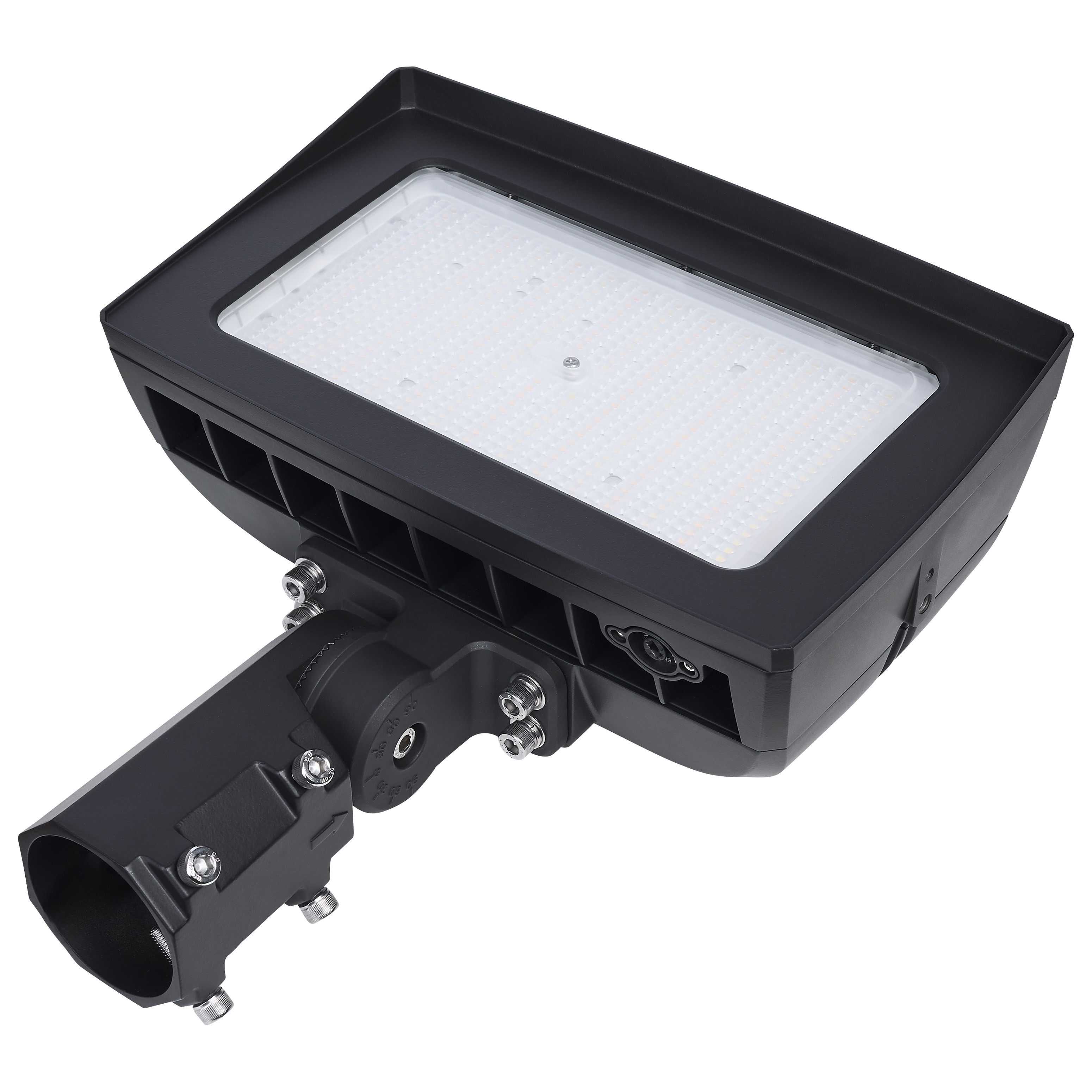

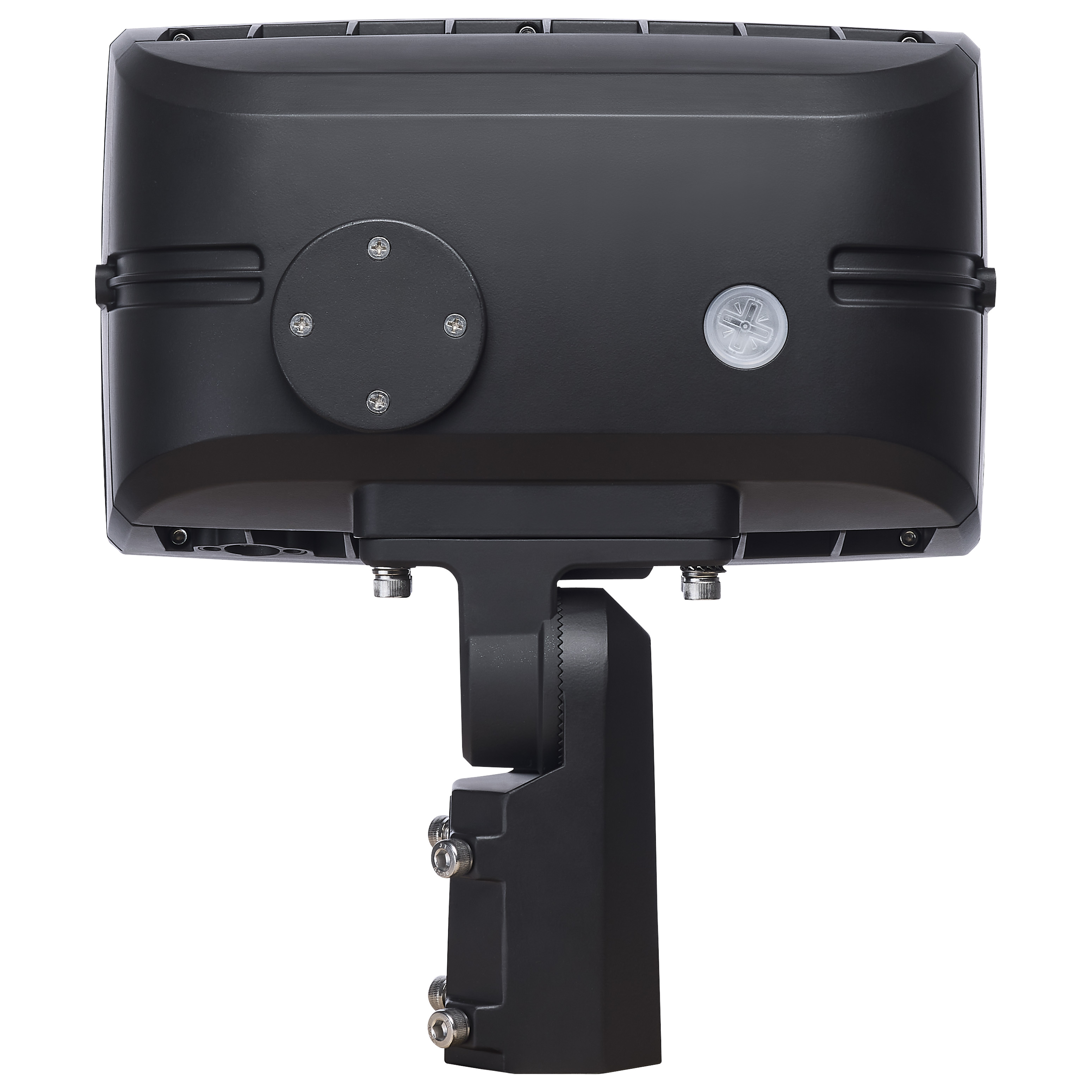

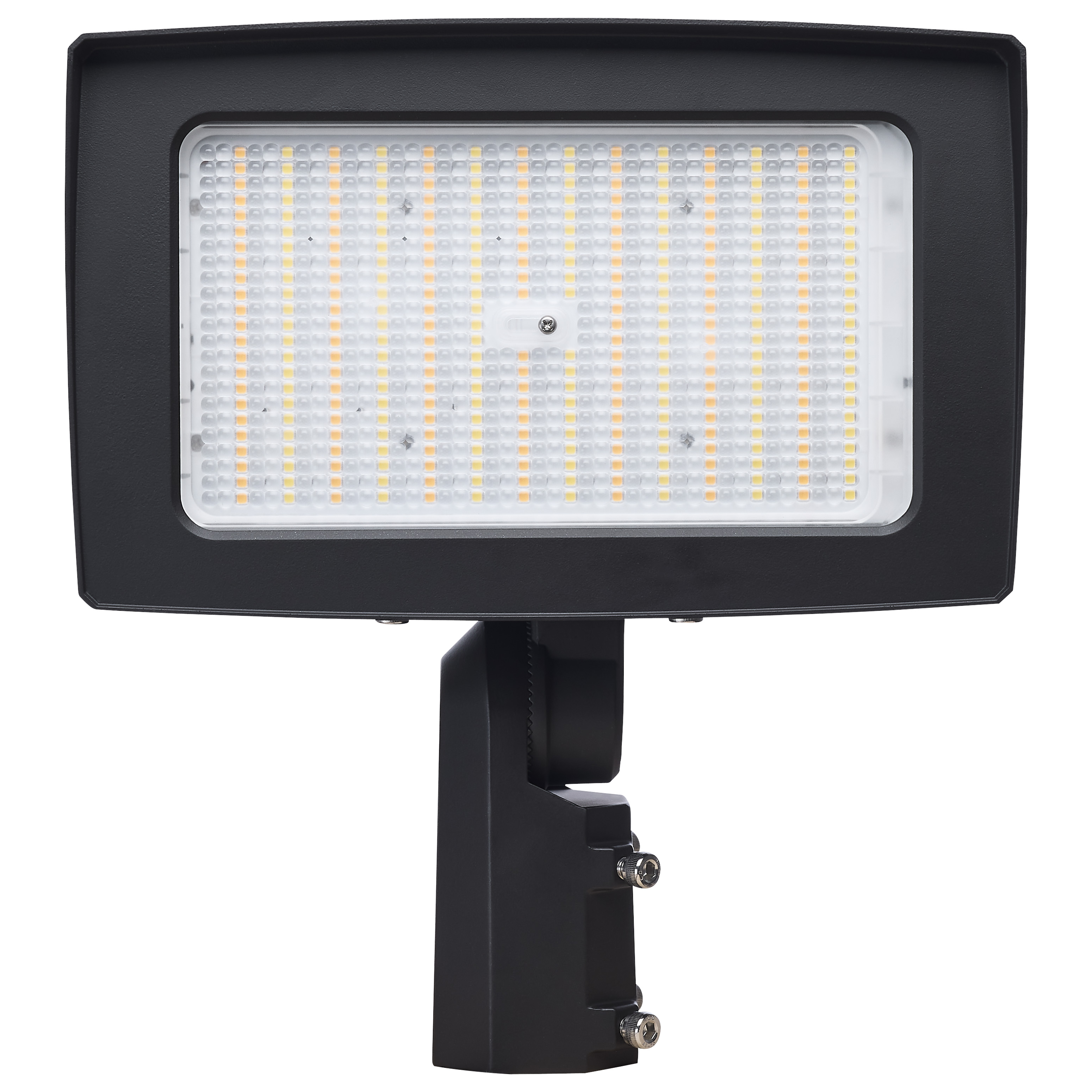

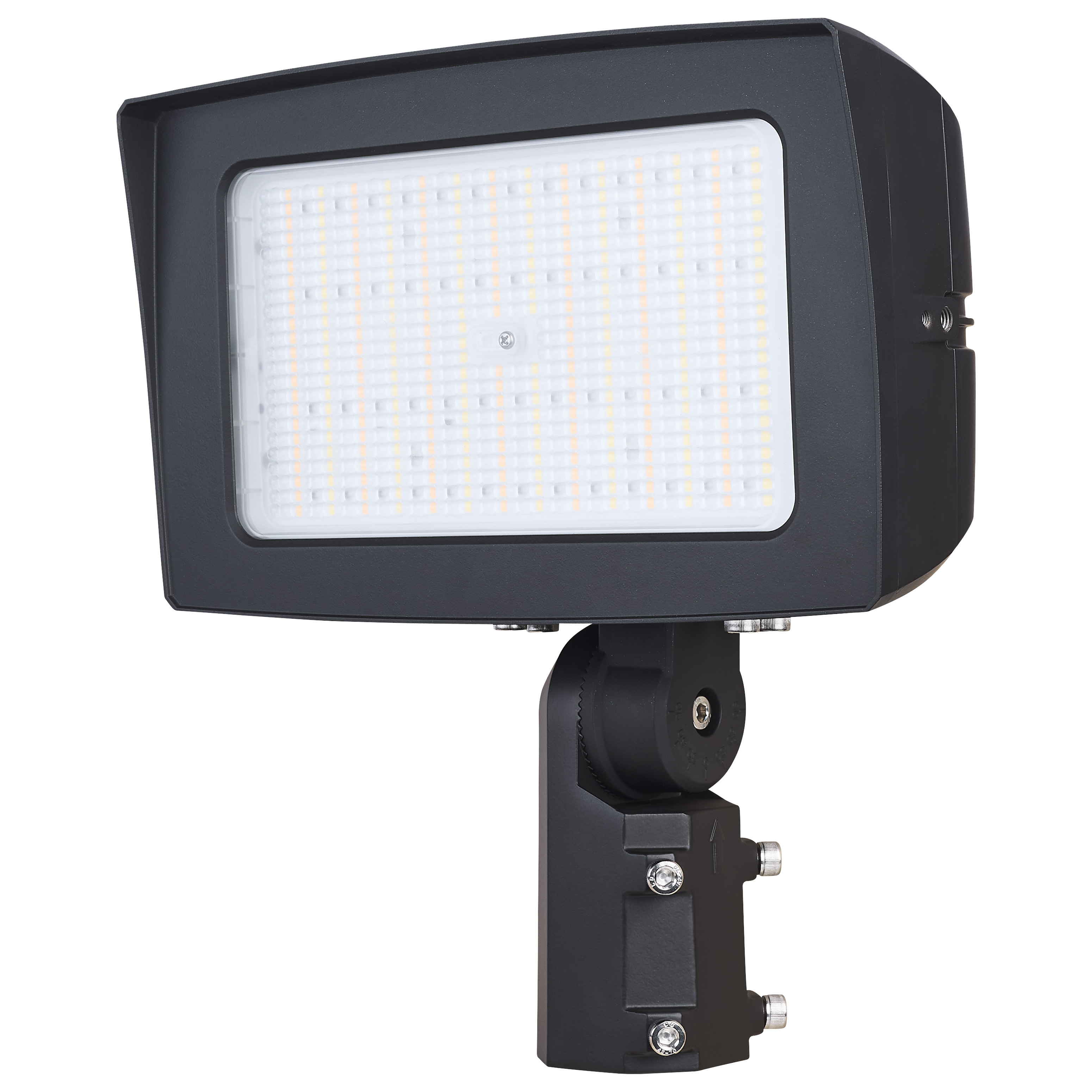

The SATCO NUVO 65-1542 LED Beam Selectable Flood Light delivers powerful, configurable illumination for larger outdoor areas. Selectable beam distributions of 135x125, 120x120, or 90x90 offer flexible coverage. Field-selectable wattage of 100W, 125W, or 150W produces 15,024 to 22,754 lumens with efficacy up to 151 LPW, with selectable CCTs of 3000K, 4000K, and 5000K. Constructed with a durable die-cast aluminum housing and glass lens in a bronze finish, it operates on a universal 120–347V input and includes an integrated bypassable photocell. IP65 and IK07 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Material	Die-cast Aluminum
Fixture Type	Flood Light
Product Notes	Default Wattage: 150W
Status	Active
Style	Utility
Surge Protection	Built-in surge protection - 6KV
Total Harmonic Distortion	<20%
Wire Color	Black

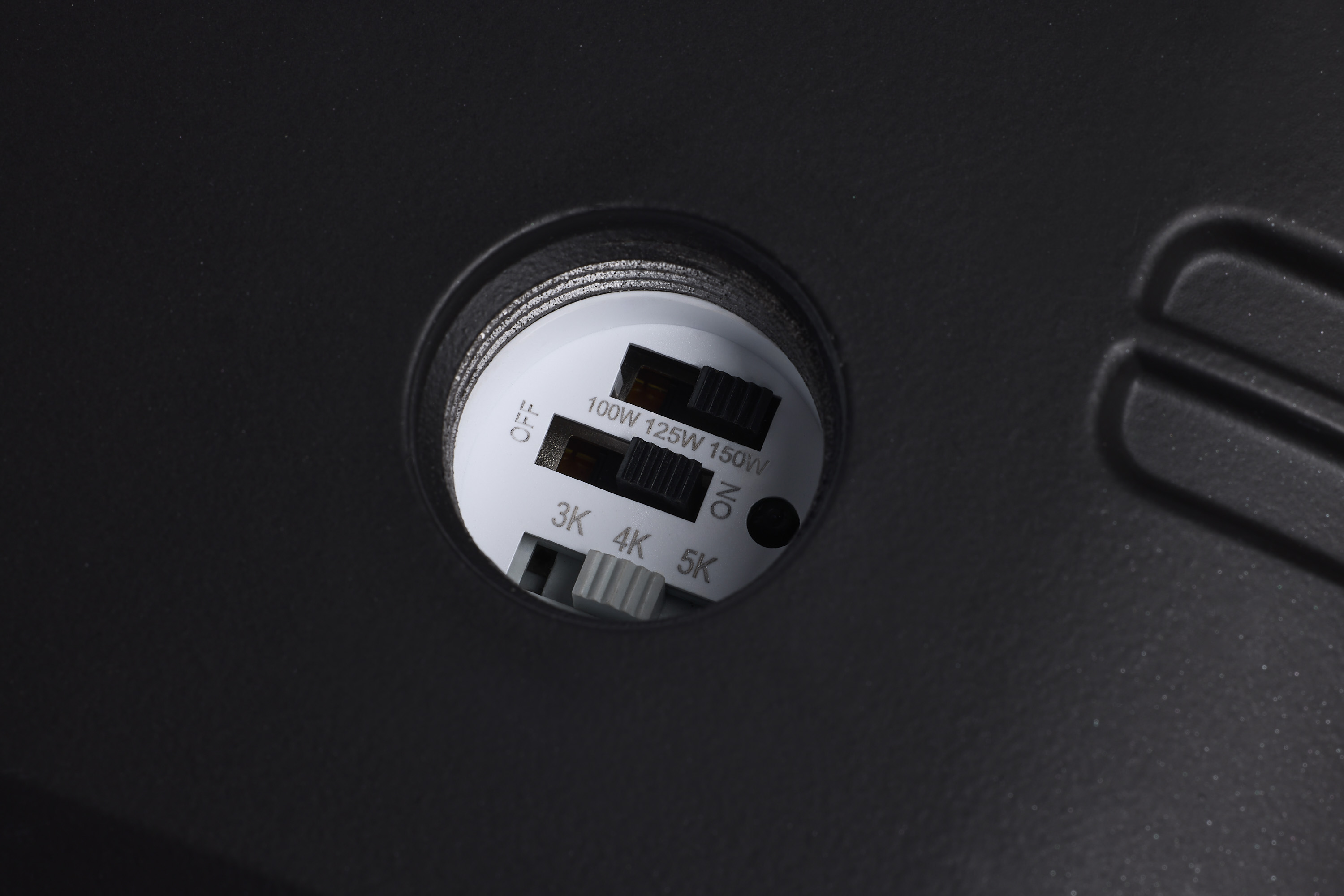

CCT Selectable	Yes
Wattage Selectable	Yes
Finish Family	Bronze
Amps	1.250-0.430/1.040-0.360/0.830-0.290A
Integrated Features	Integrated Photocell
Lens Finish	Clear
Lens Material	Glass
Lensed	Yes
Starfish Operational Humidity	20% to 90% R.H.
Photo Cell	Has Photocell
Power Factor	>0.9
Indoor Outdoor	Outdoor
Product Technology	LED
Incandescent Equivalent	350W-500W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	135x125/120x120/90x90
Color Temp	Soft White to Natural Light
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50/60Hz
Operating Temp	-40F to +122F (-40C to +50C)
HID Equivalent	400W-600W
Lumens	15024L-22754L
Volts	120V-347V
Watts	150W/125W/100W
Max Lumens	22754L

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED
Fixture Shape	Rectangle

Additional Info

Warranty	5-Years

Documents

LED FLOOD LIGHTS BEAM SELECTABLE|FIELD SELECTABLE

65-1542 Specifications

65-1542_EPA_Rating_Report.pdf

65-1542_Instructions.pdf

Compliance

Bug Rating	B4-U0-G5
CA Prop 65	Lead
DLC ID	S-CYKVFG
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cULus - Listed
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923412608
Case Cube	1.2288
Case Height	8.74
Case Length	16.46
Case Quantity	1
Case UPC	10045923412605
Case Weight	12.76
Case Width	14.76
EA Cube	1.2288
EA Height	8.74
EA Length	16.46
EA Quantity	1
EA Weight	12.76
EA Width	14.76
Pack Type	Box

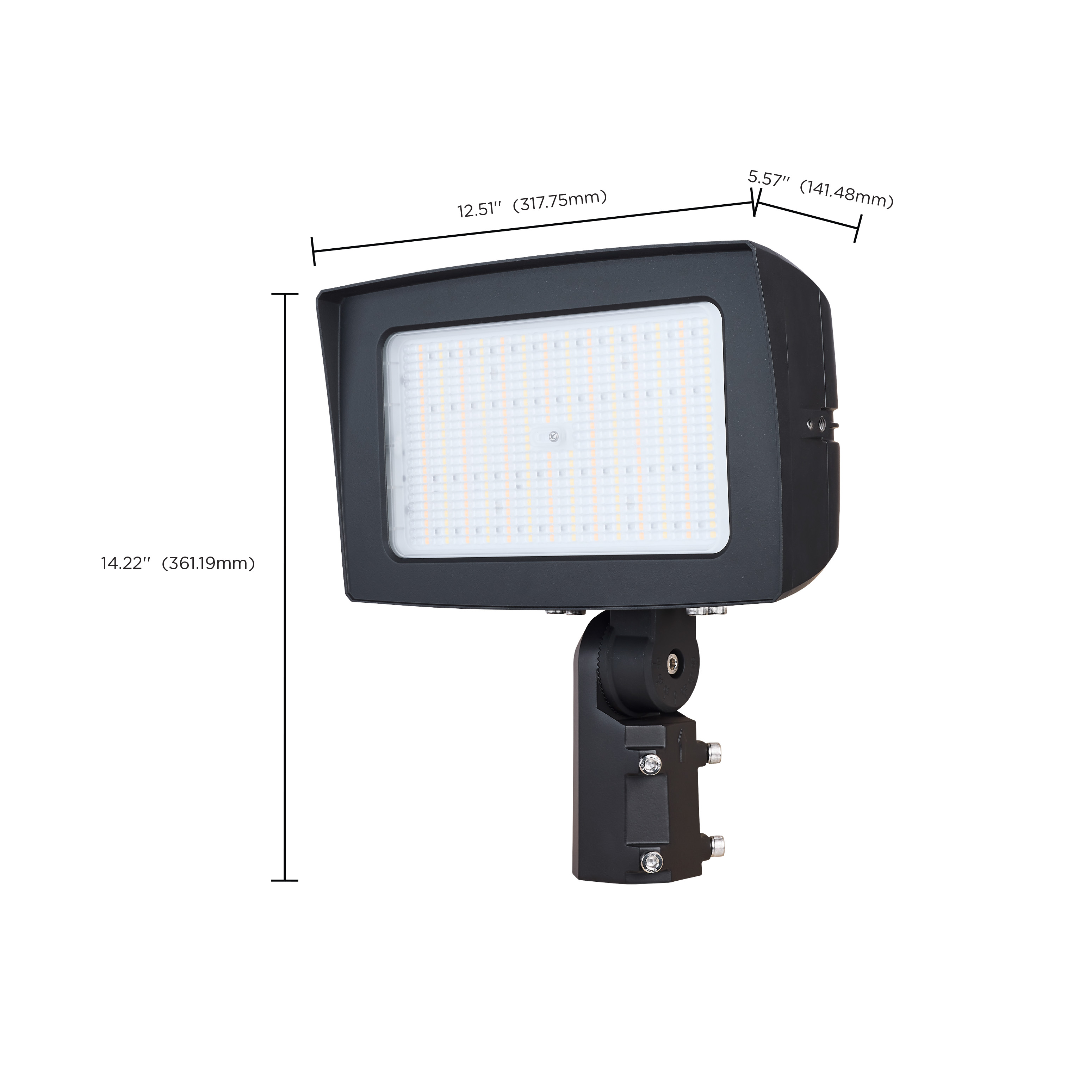

Web Height	14.22
Web Length	12.51
Web Width	5.57
