| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Steel |

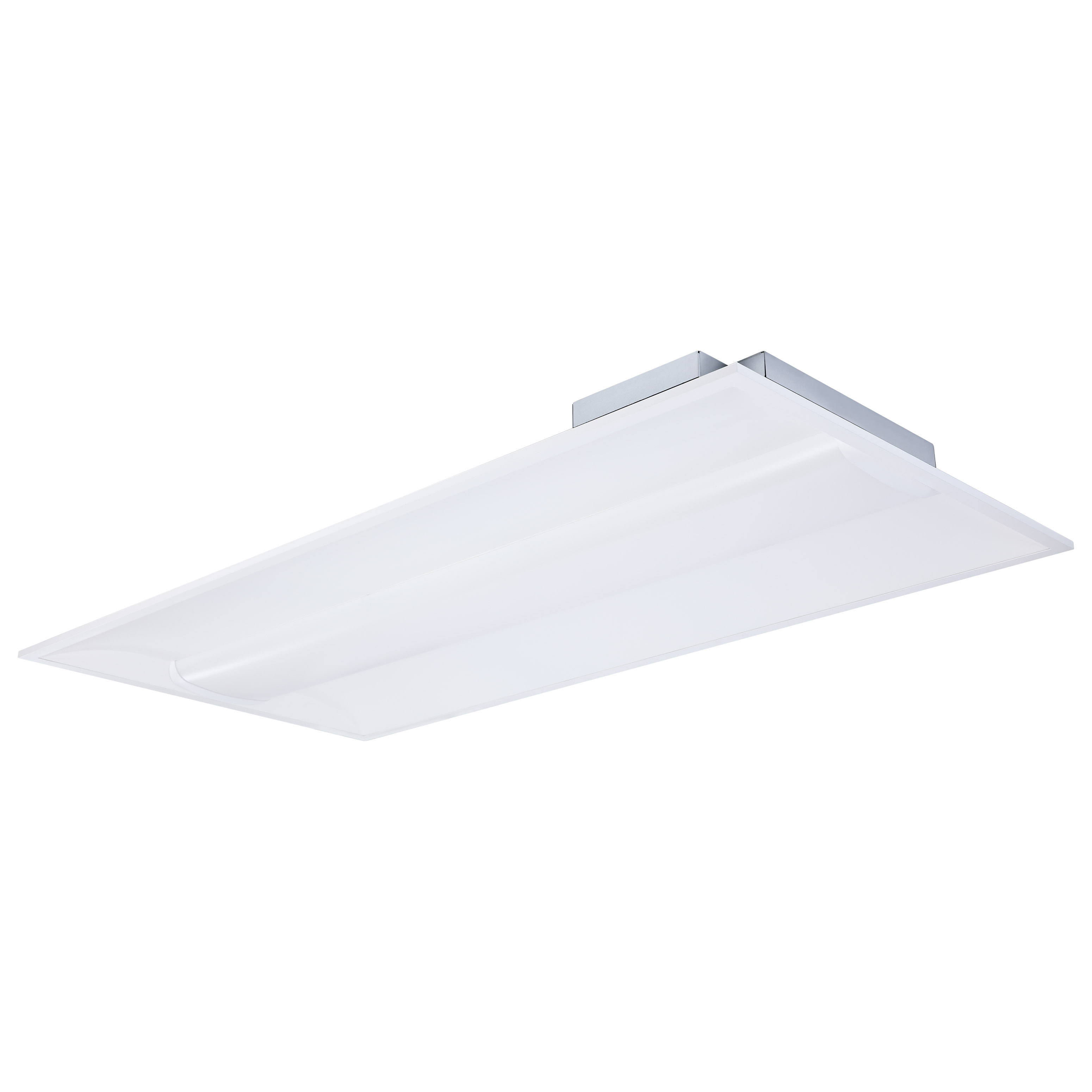

| Fixture Type | Troffer |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | <20% |

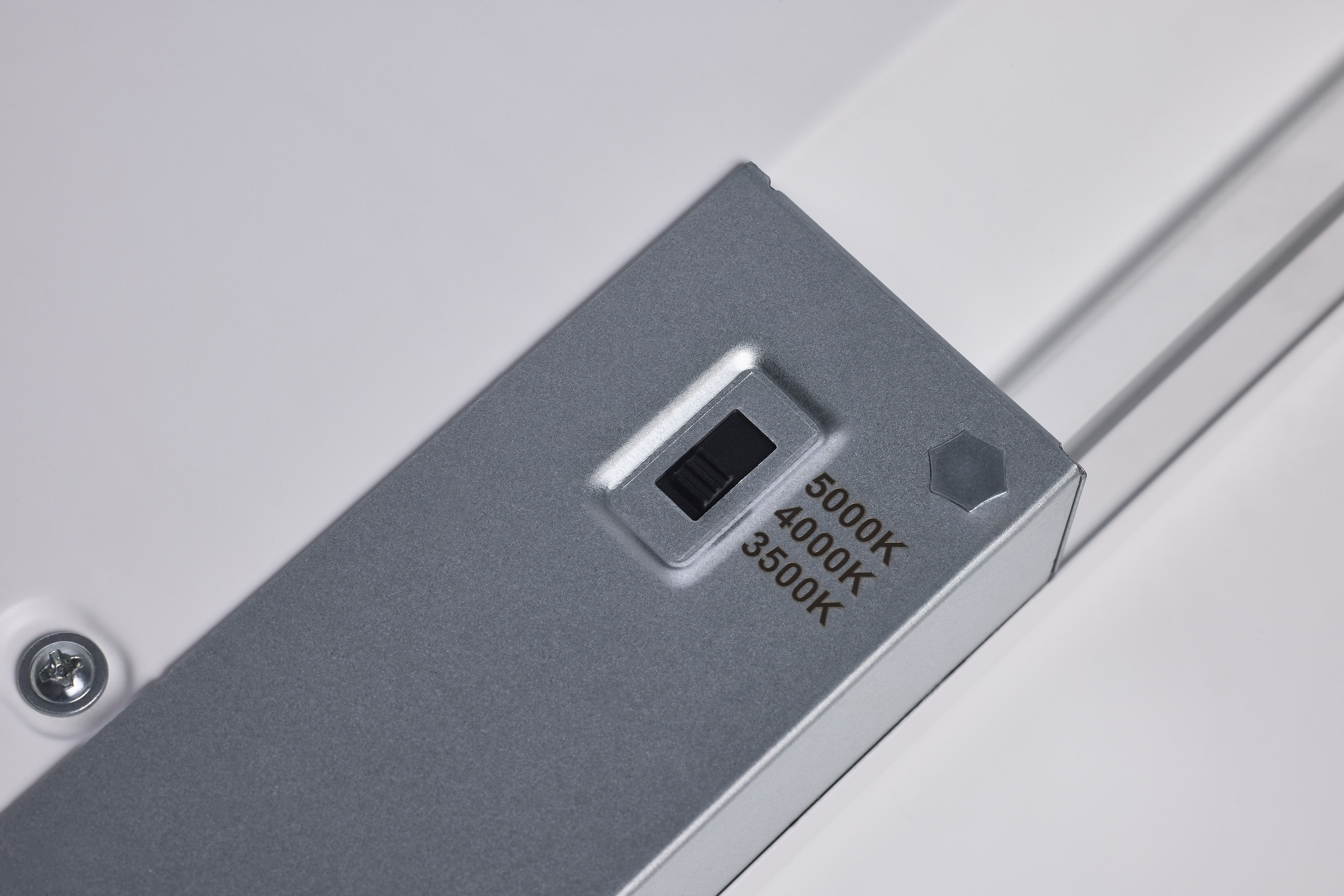

| CCT Selectable | Yes |

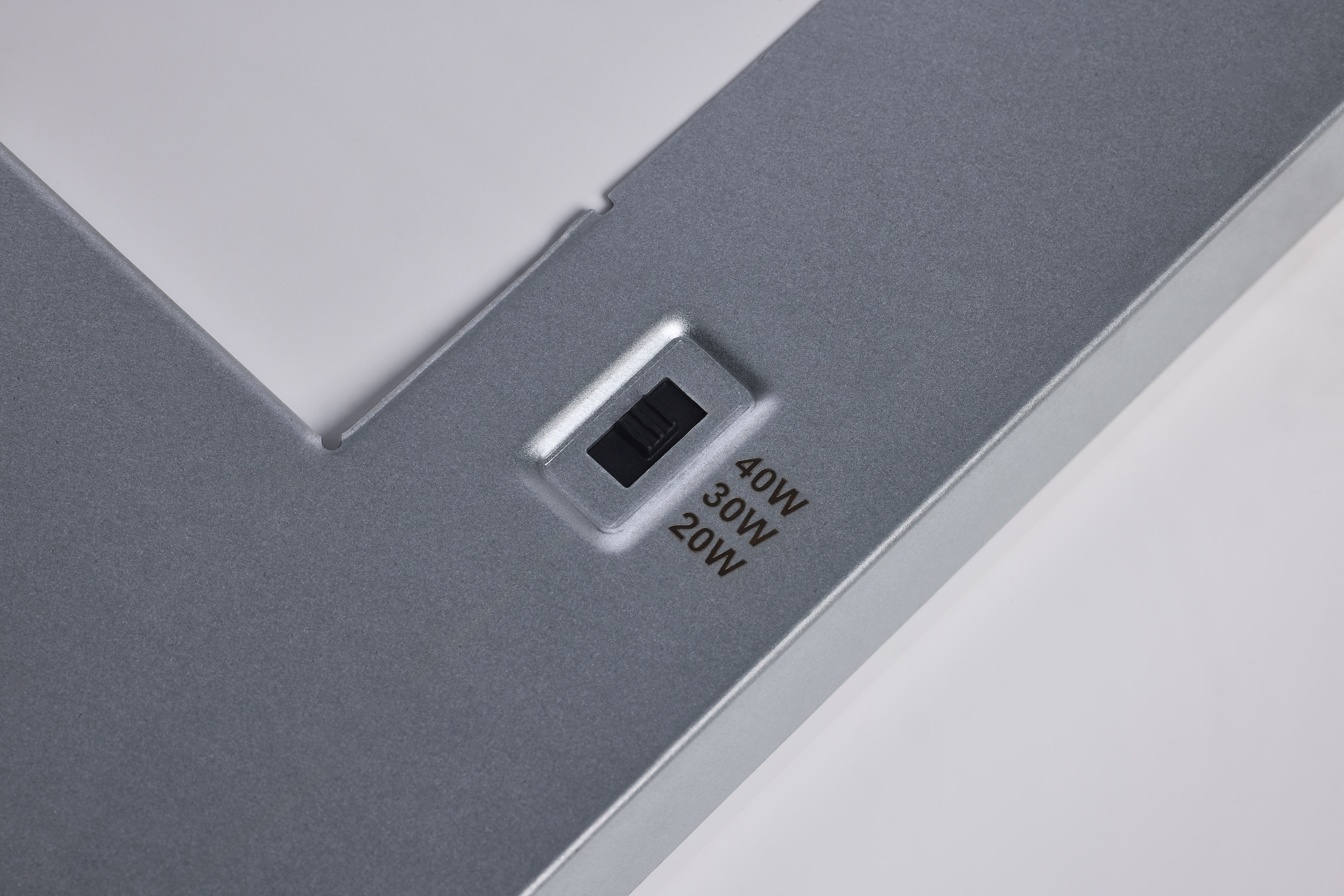

| Wattage Selectable | Yes |
| Finish Family | White |
| Amps | 0.100-0.420A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Lensed | Yes |
| Power Factor | 0.9 |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 250W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Neutral White to Natural Light |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 3750L/4500L/6250L |
| Volts | 120V-277V |
| Watts | 30W/40W/50W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | S-6B6JV2; S-M3Y2KM |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923516016 |
|---|---|
| Case Cube | 1.9855 |
| Case Height | 24.33 |
| Case Length | 48.46 |
| Case Quantity | 2 |
| Case UPC | 10045923516013 |
| Case Weight | 16.99 |
| Case Width | 2.91 |
| EA Cube | 1.9855 |
| EA Height | 24.33 |
| EA Length | 48.46 |
| EA Quantity | 1 |
| EA Weight | 16.99 |
| EA Width | 2.91 |
| Pack Type | Box |

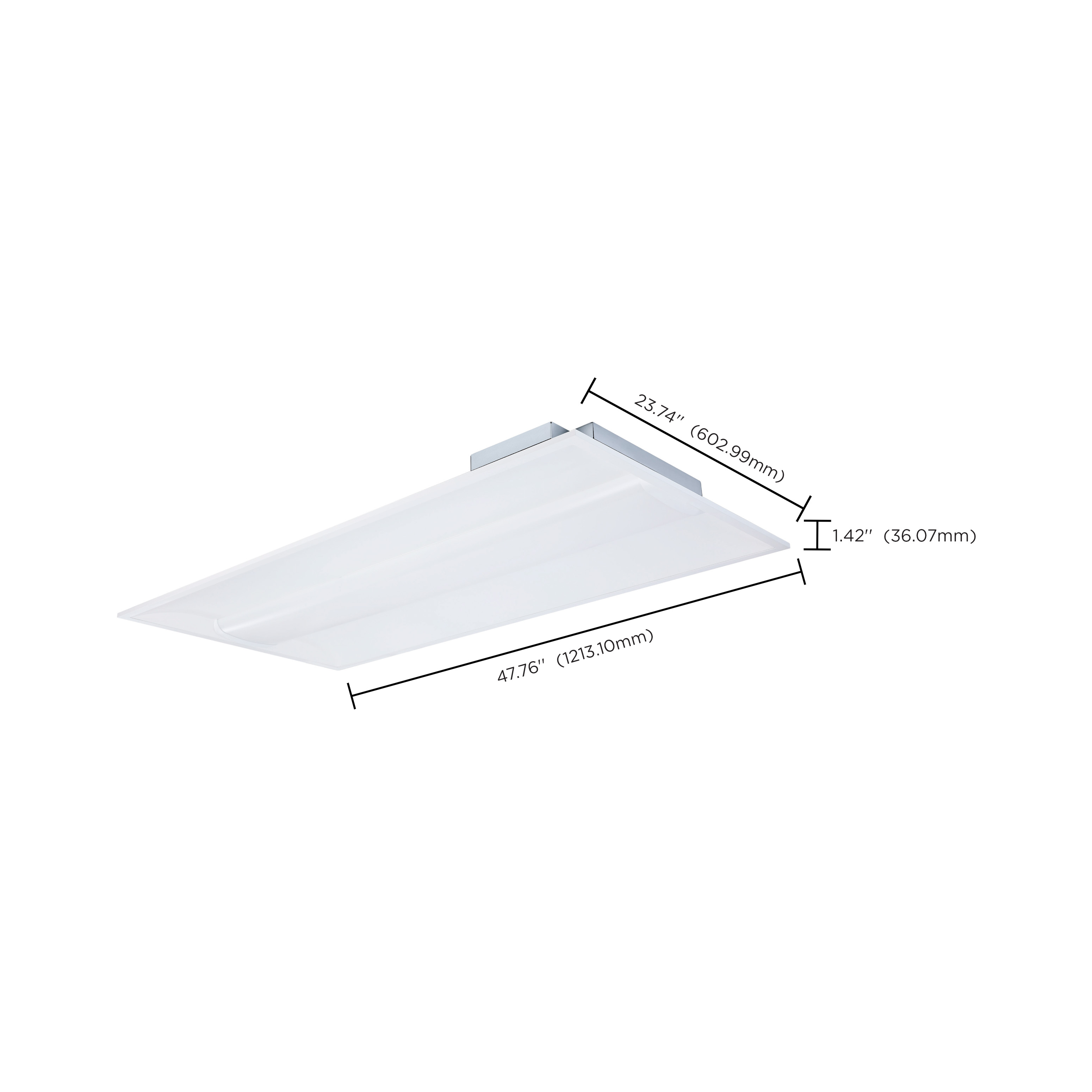

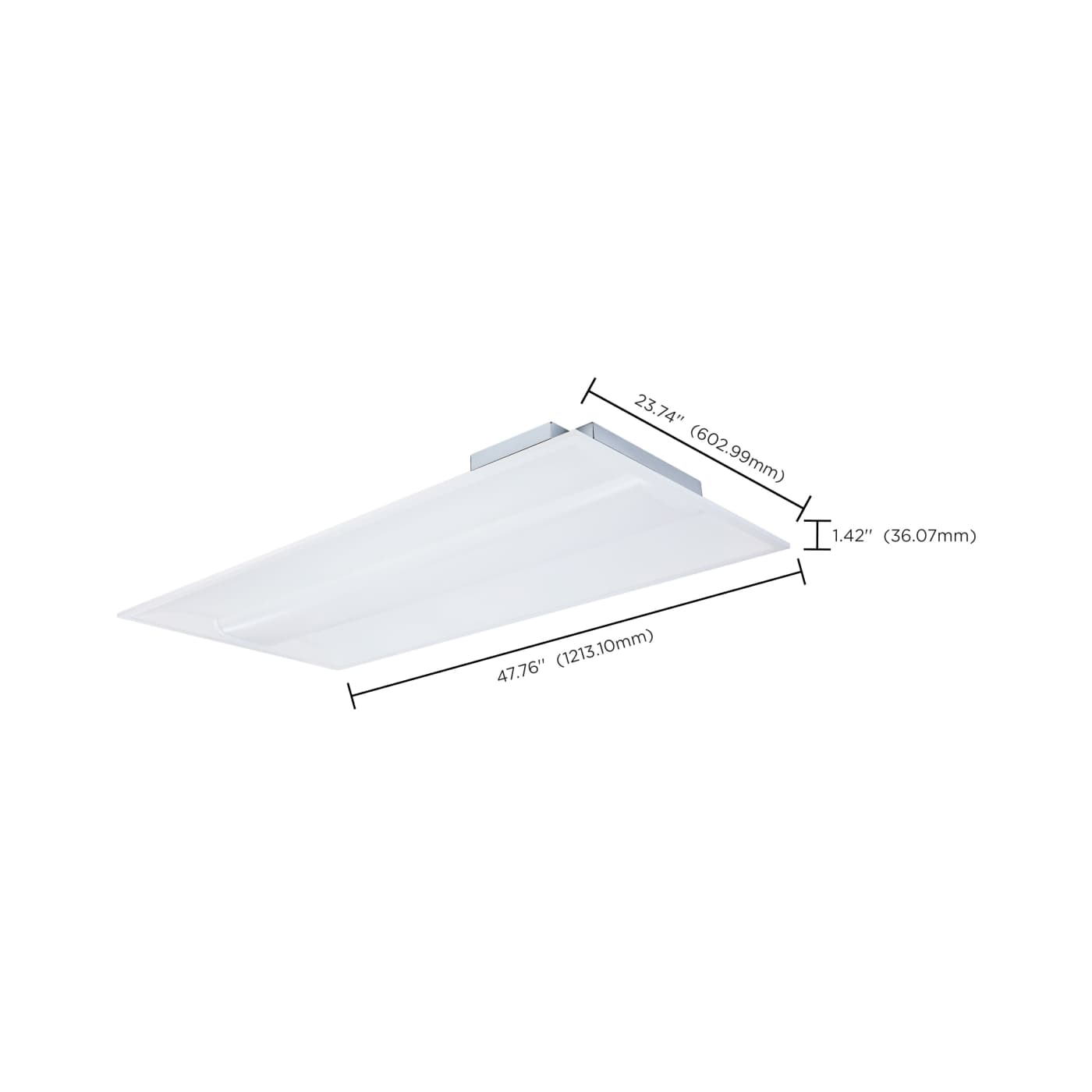

| Web Height | 1.42 |
| Web Length | 47.76 |
| Web Width | 23.74 |
