65-1603

2X2 EM SINGLE BASKET TROFFER

  • 2X2 LED Single Basket Troffer
  • Emergency Battery
  • Field Selectable
  • 120-277 Volt
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-1603 Specifications65-1603 Instructions.pdf
Tools
Lighting Layout Analysis For 65-1603
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

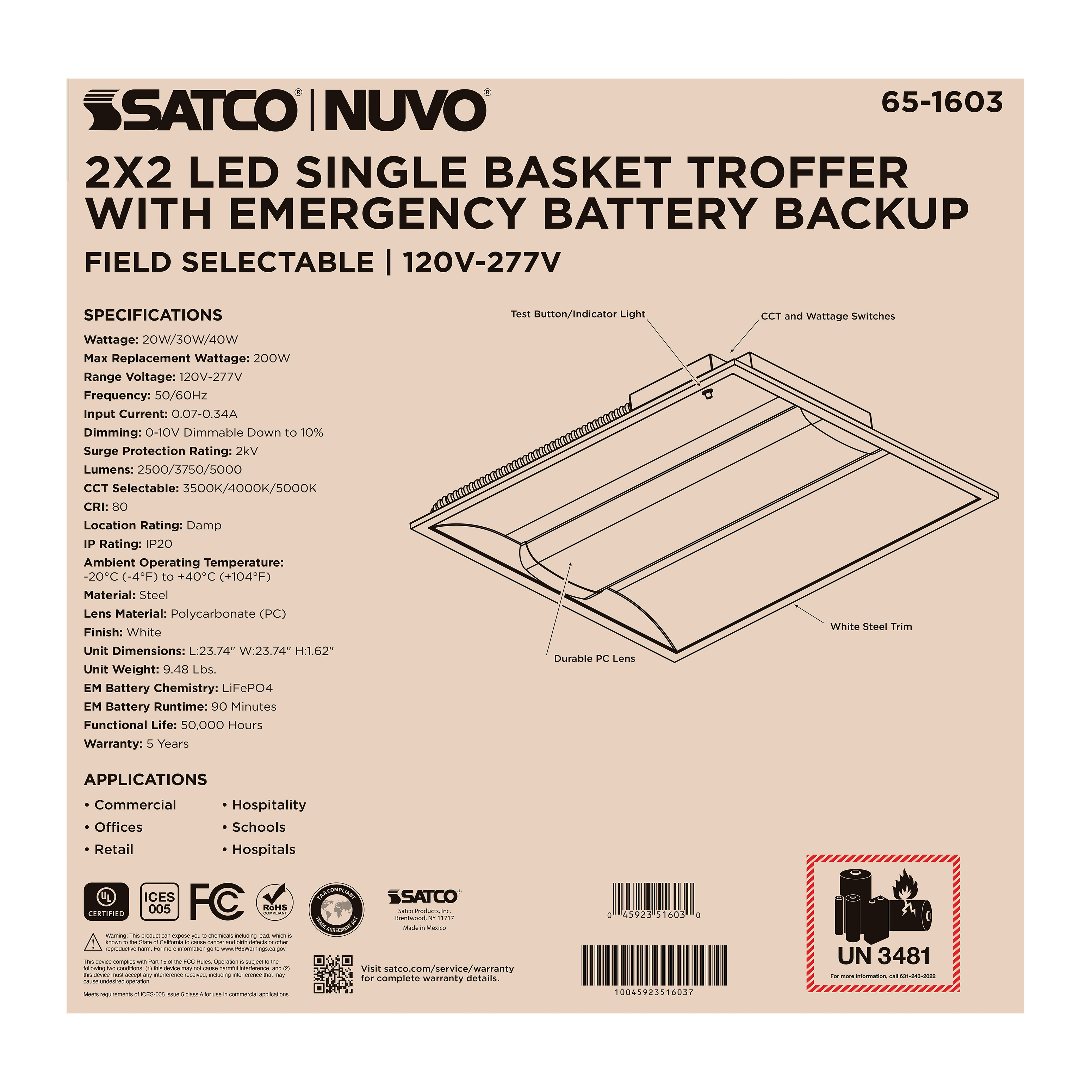

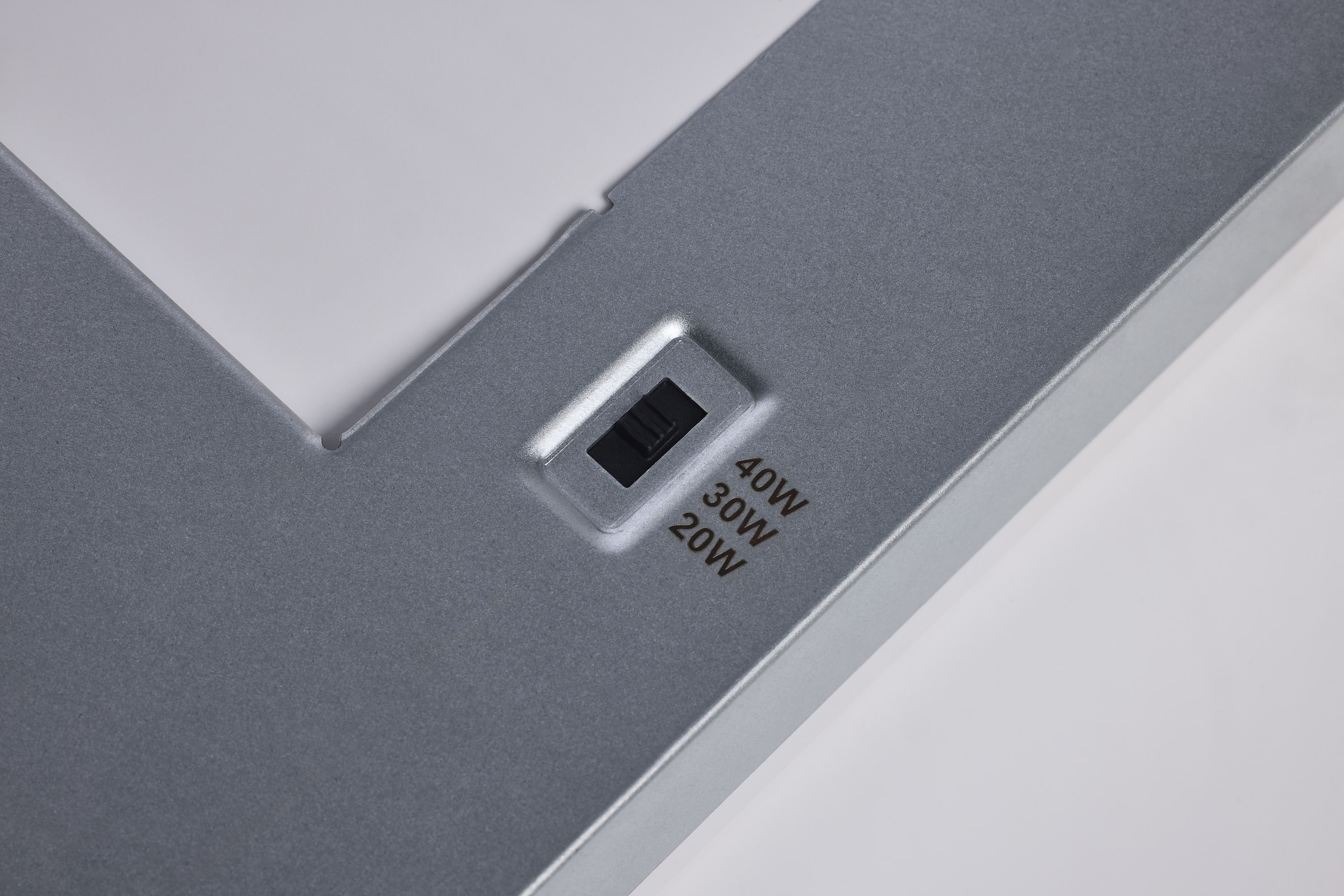

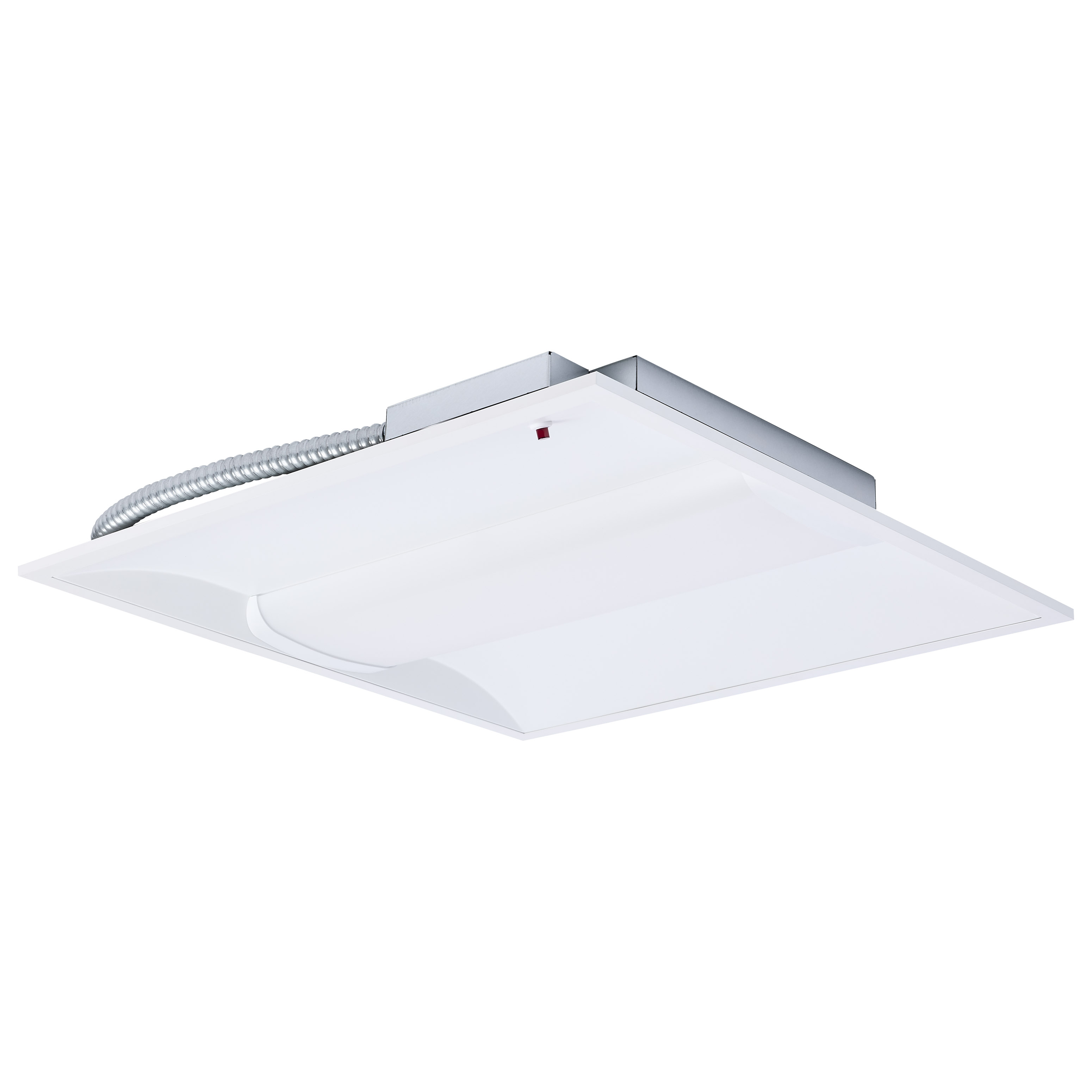

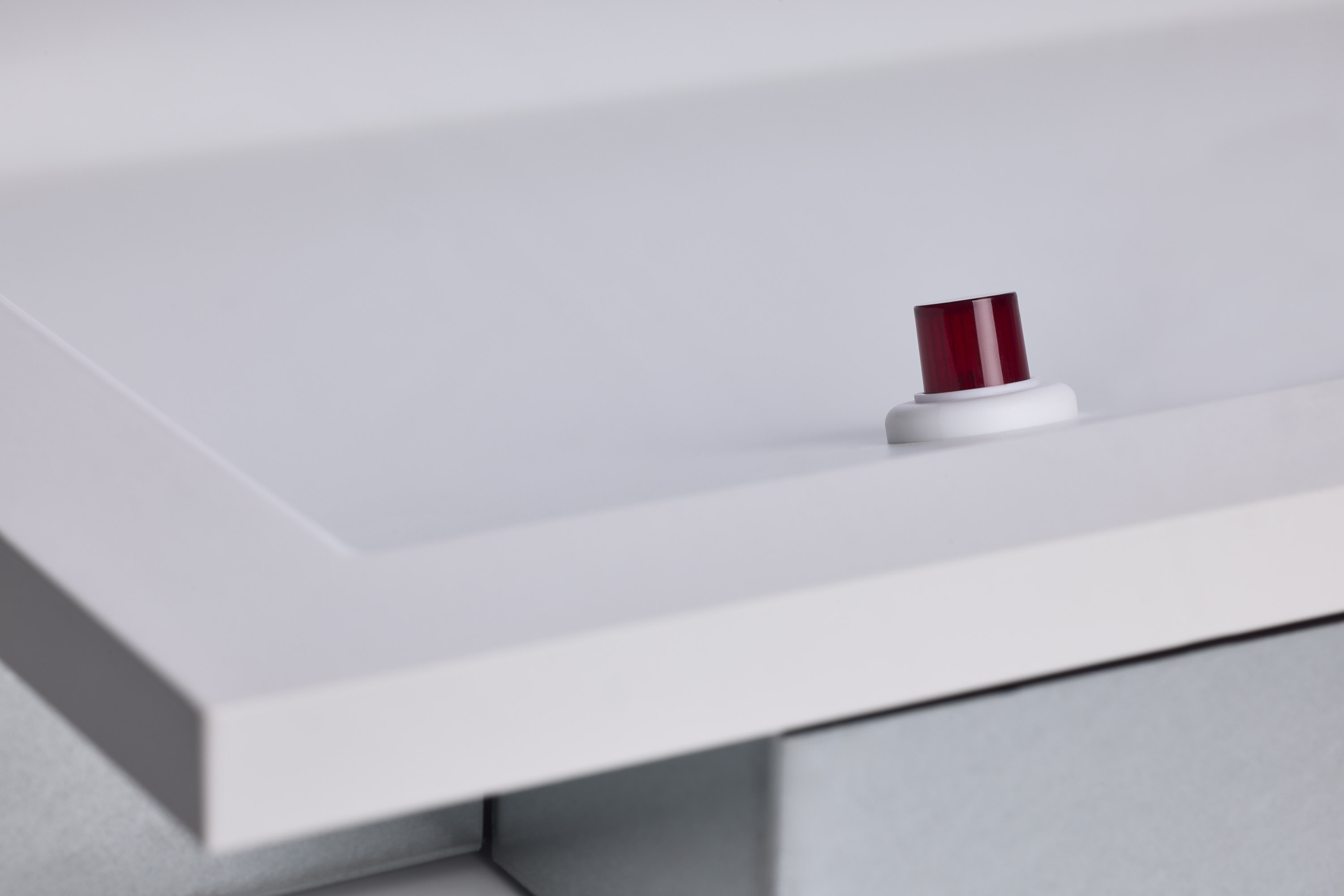

The SATCO NUVO 65-1603 Single Basket LED Troffer combines configurable performance with integrated emergency capability in a 2x2 design. Featuring selectable wattage (20W/30W/40W) and selectable CCT (3500K/4000K/5000K), it delivers 2500 to 5000 lumens during normal operation. An integrated LiFePO4 emergency battery provides 90 minutes of backup power and includes a test button and indicator light. Additional features include a steel housing, polycarbonate lens, 0–10V dimming to 10%, IP20 damp location rating, 50,000-hour rated life, and 5-year warranty.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialSteel
Fixture TypeTroffer
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.070-0.340A
Has CameraNo
Integrated FeaturesIntergrated Battery Backup
IOT EnabledNo
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
LensedYes
Power Factor0.9
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical

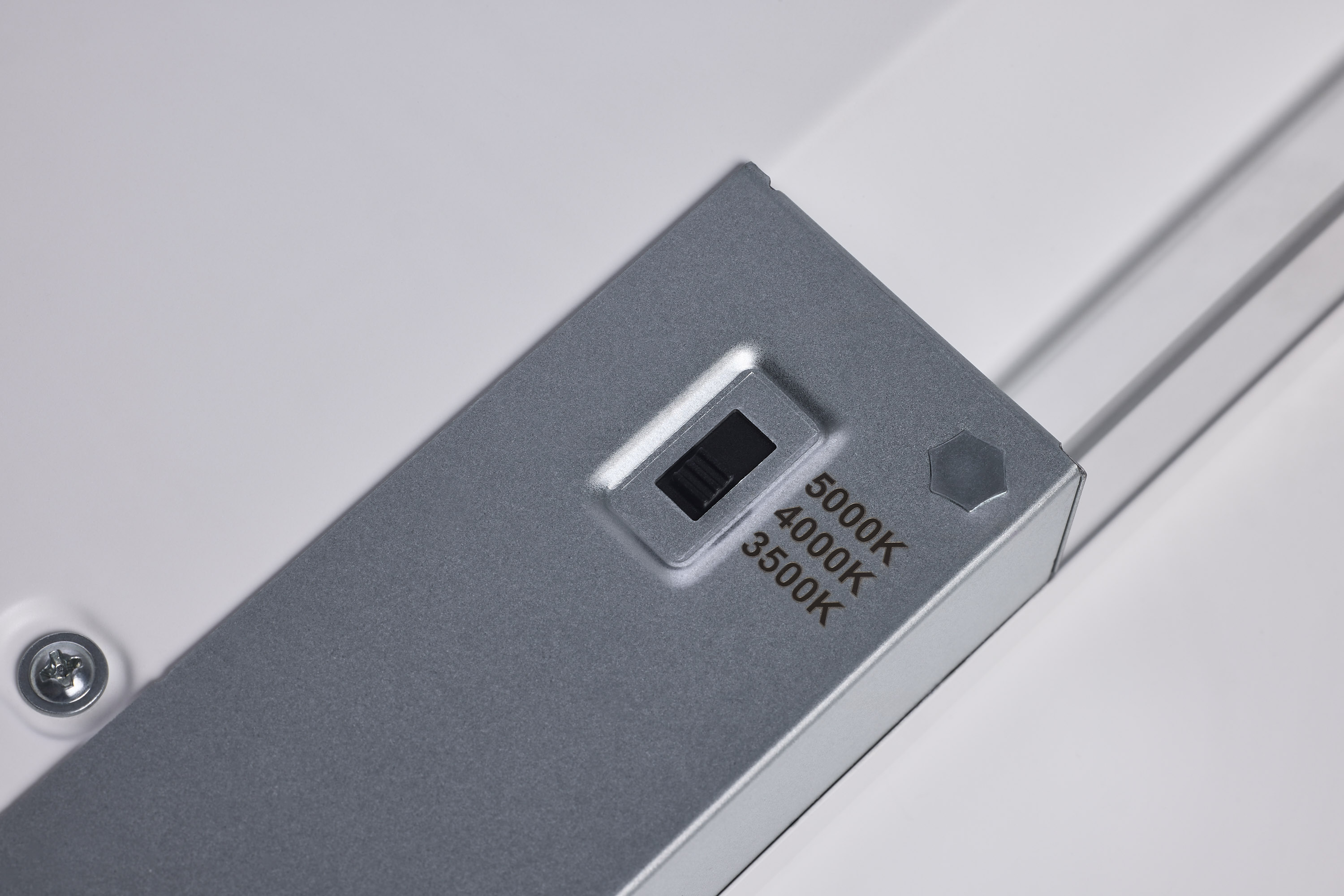

CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens2500L/3750L/5000L
Volts120V-277V
Watts20W/30W/40W
Max Lumens5000L
ConnectionHardwire
Charge Time24hr
Battery ChemistryLiFePO4
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
DLC IDS-0TM900; S-B6YMG0
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923516030
Case Cube0.6133
Case Height24.33
Case Length24.61
Case Quantity1
Case UPC10045923516037
Case Weight10.54
Case Width1.77
EA Cube0.6133
EA Height24.33
EA Length24.61
EA Quantity1
EA Weight10.54
EA Width1.77
Pack TypeBox

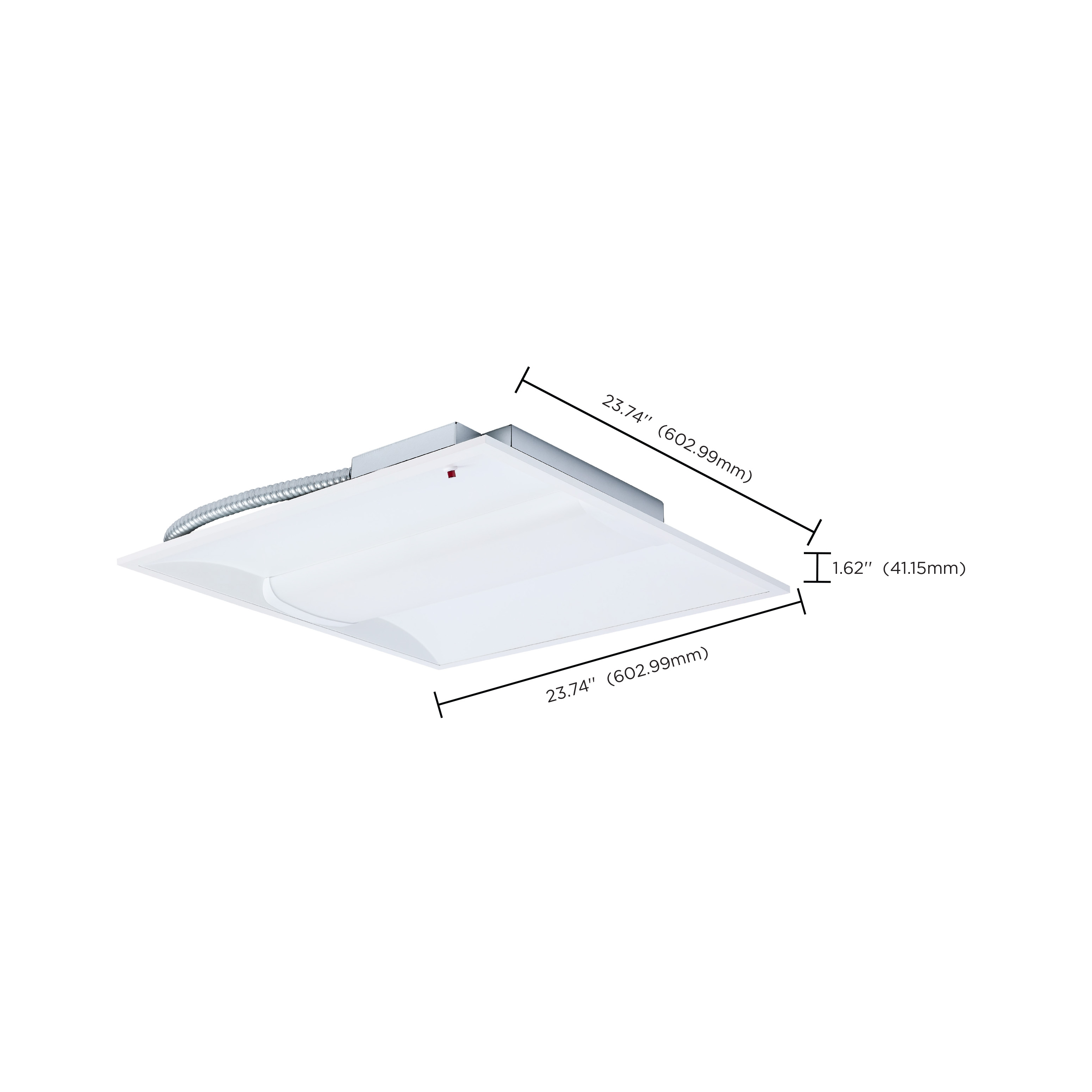

Web Height1.62
Web Length23.74
Web Width23.74
