65-1605 1X4 EM SINGLE BASKET TROFFER

Description

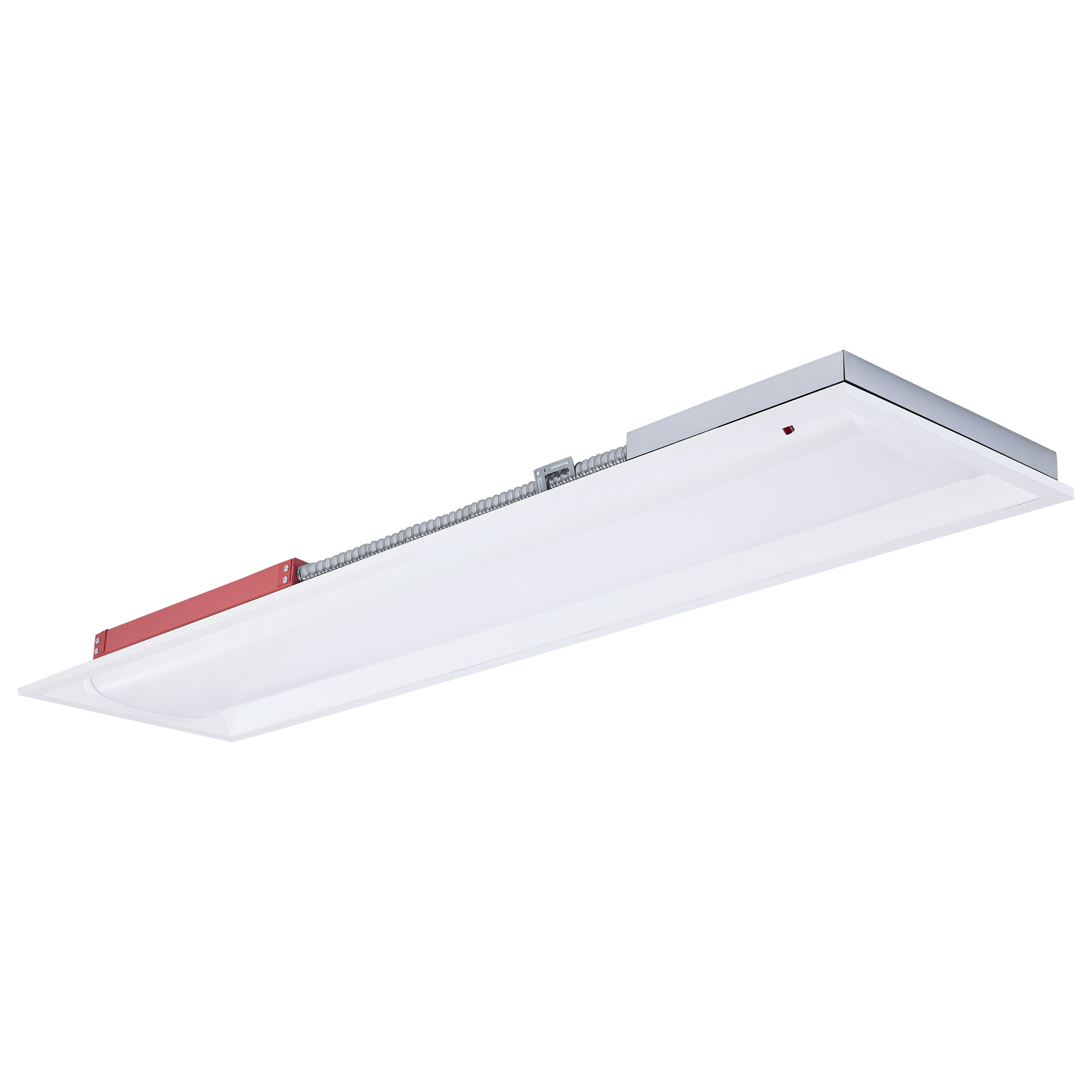

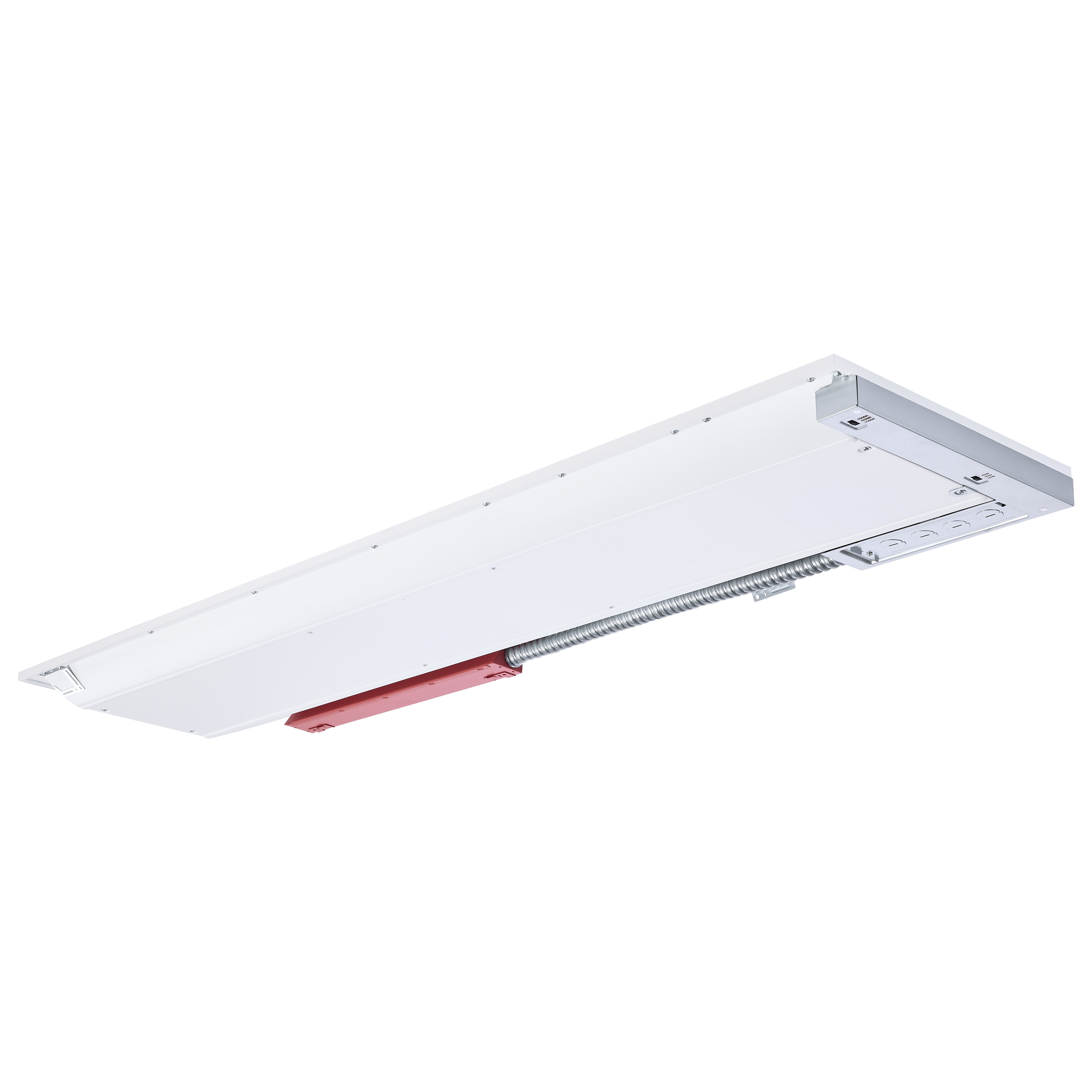

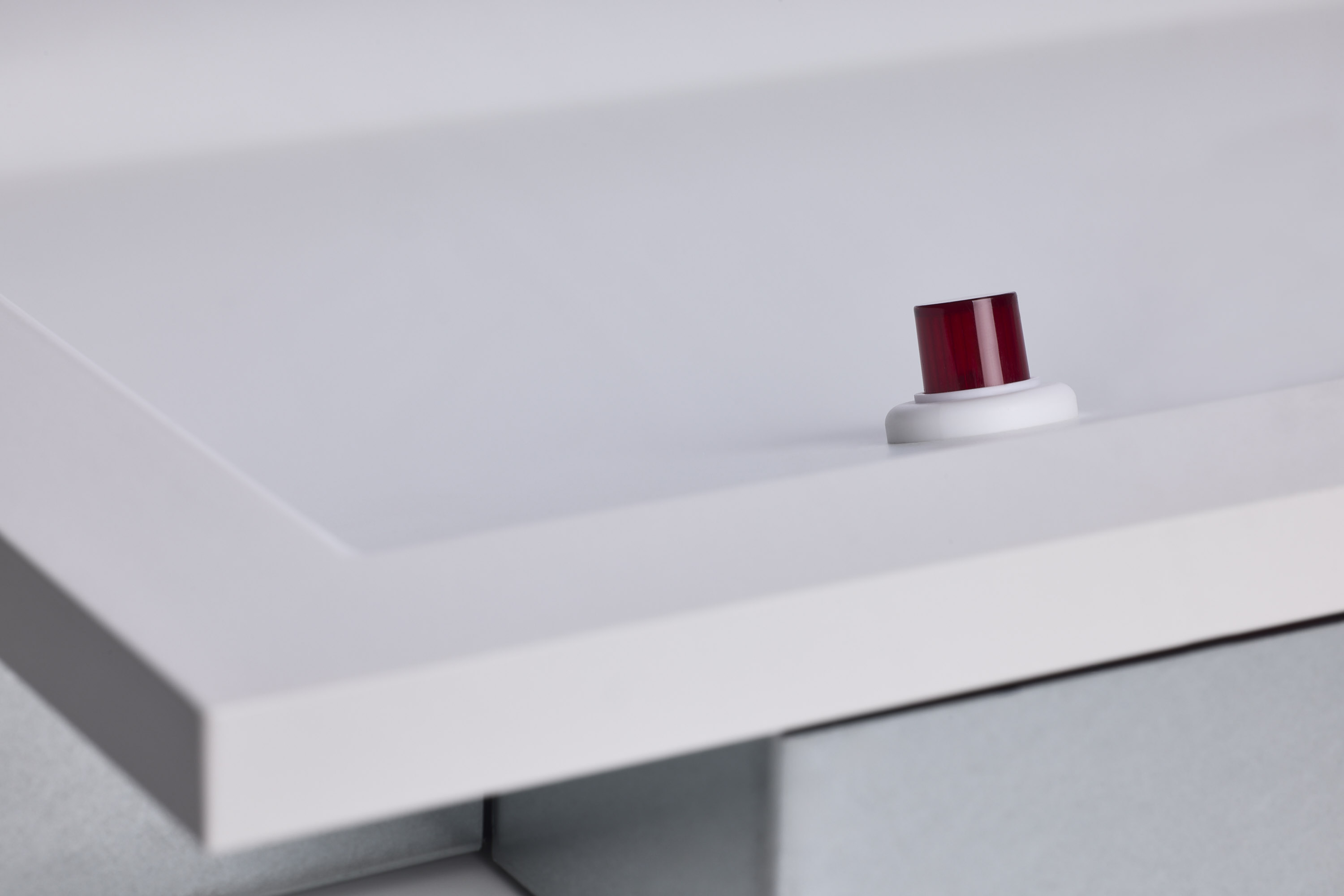

The SATCO NUVO 65-1605 Single Basket LED Troffer offers adaptable lighting and emergency backup in a streamlined 1x4 design. It includes selectable wattage (20W/30W/40W) and selectable CCT (3500K/4000K/5000K), delivering 2500 to 5000 lumens under normal operation. An integrated LiFePO4 emergency battery provides 90 minutes of backup power, complete with a test button and indicator light. Built with a steel housing and polycarbonate lens, this fixture supports 0–10V dimming to 10%, is rated for damp locations, and offers a 50,000-hour lifespan with a 5-year warranty.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Material	Steel
Fixture Type	Troffer
Status	Active
Style	Utility
Surge Protection	Built-in surge protection - 2KV
Total Harmonic Distortion	<20%

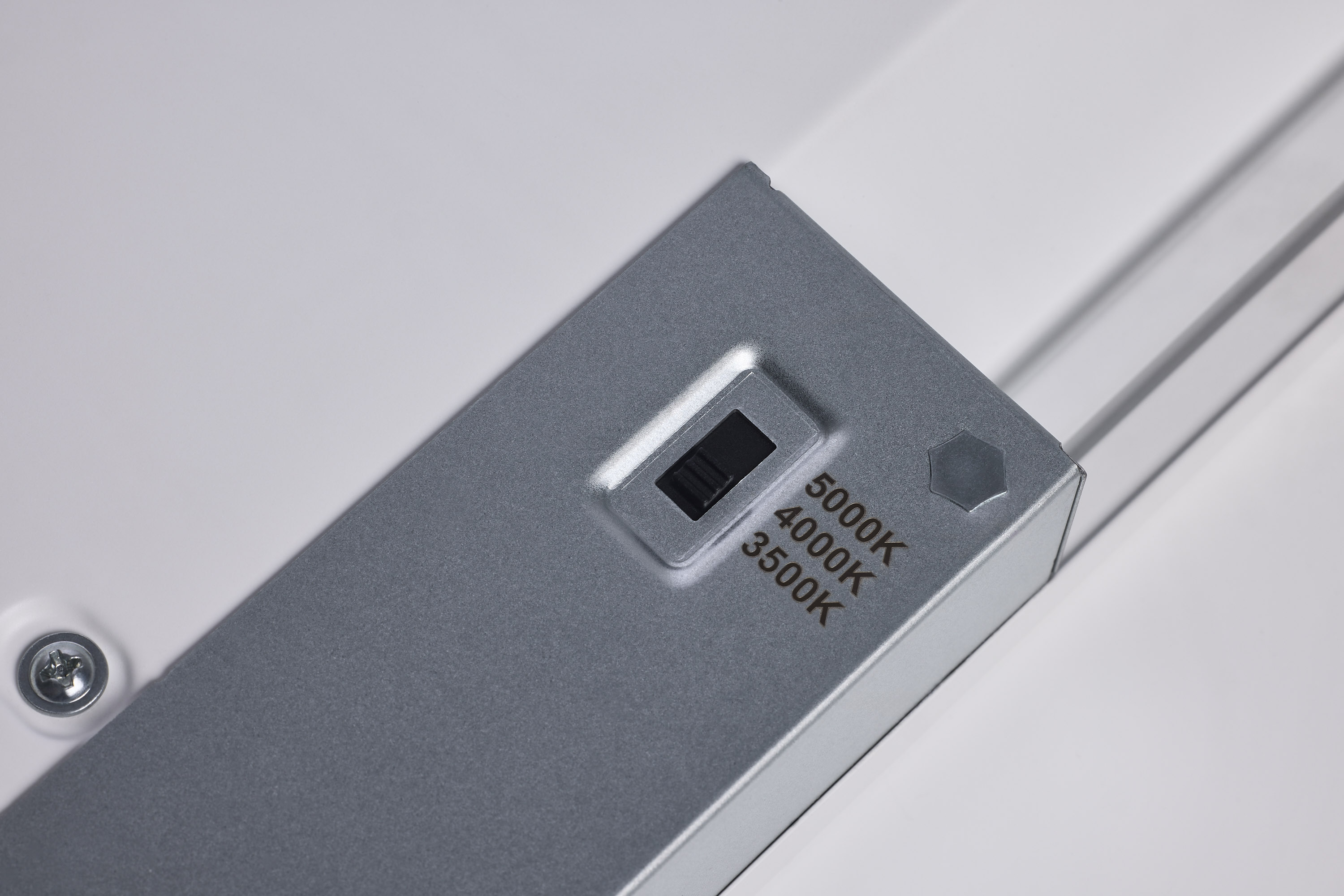

CCT Selectable	Yes

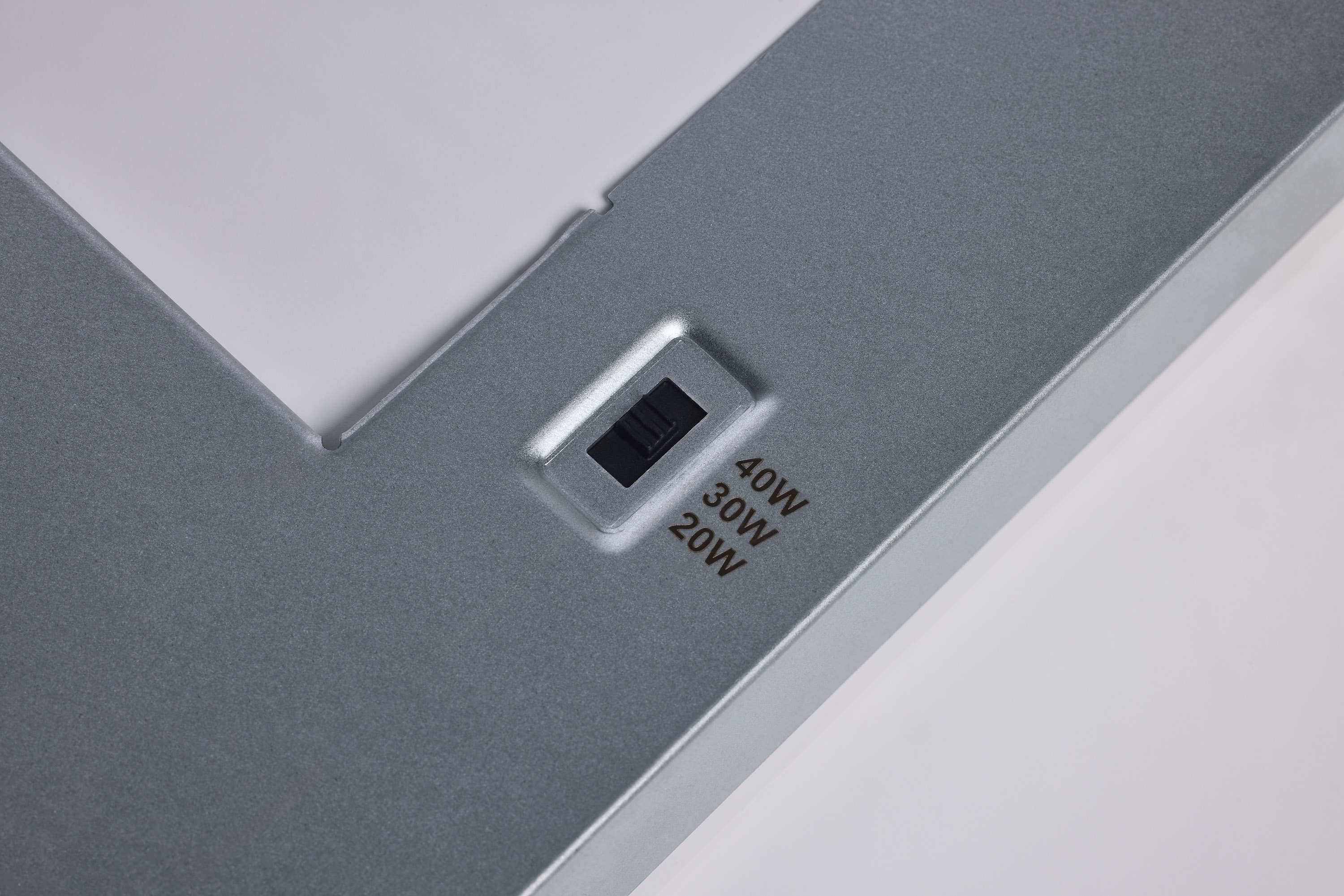

Wattage Selectable	Yes
Finish Family	White
Amps	0.070-0.340A
Has Camera	No
Integrated Features	Intergrated Battery Backup
IOT Enabled	No
Lens Finish	White
Lens Material	Polycarbonate (PC)
Lensed	Yes
Power Factor	0.9
Indoor Outdoor	Indoor
Product Technology	LED
Incandescent Equivalent	200W

Electrical

CCT (Kelvin Temp)	3500K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	120
Color Temp	Neutral White to Natural Light
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50/60Hz
Operating Temp	-4F to +104F (-20C to +40C)
Lumens	2500L/3750L/5000L
Volts	120V-277V
Watts	20W/30W/40W
Max Lumens	5000L
Connection	Hardwire
Charge Time	24hr
Battery Chemistry	LiFePO4

Physical

Lamp Base	Integrated
Finish	WHITE
ANSI Base	Integrated
Lamp Type	Integrated LED
Fixture Shape	Rectangle
Mounting Procedure	Ceiling

Additional Info

Warranty	5-Years

Documents

LED SINGLE BASKET TROFFERS WITH AND WITHOUT EMERGENCY BATTERY BACKUP

65-1605 Specifications

65-1605_Instructions.pdf

Compliance

CA Prop 65	Lead
DLC ID	S-CGXSC2; S-C84GCB
FCC Compliant	Yes
IC Rated	Yes
IP Rating	IP20
Location Rating	Damp
NSF Approved	Yes
ROHS Compliant	Yes
Safety Listing	cULus - Certified
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Yes
T24/JA8 Compliant	No

Packaging

UPC	045923516054
Case Cube	0.6235
Case Height	12.52
Case Length	48.62
Case Quantity	1
Case UPC	10045923516051
Case Weight	10.71
Case Width	1.77
EA Cube	0.6235
EA Height	12.52
EA Length	48.62
EA Quantity	1
EA Weight	10.71
EA Width	1.77
Pack Type	Box

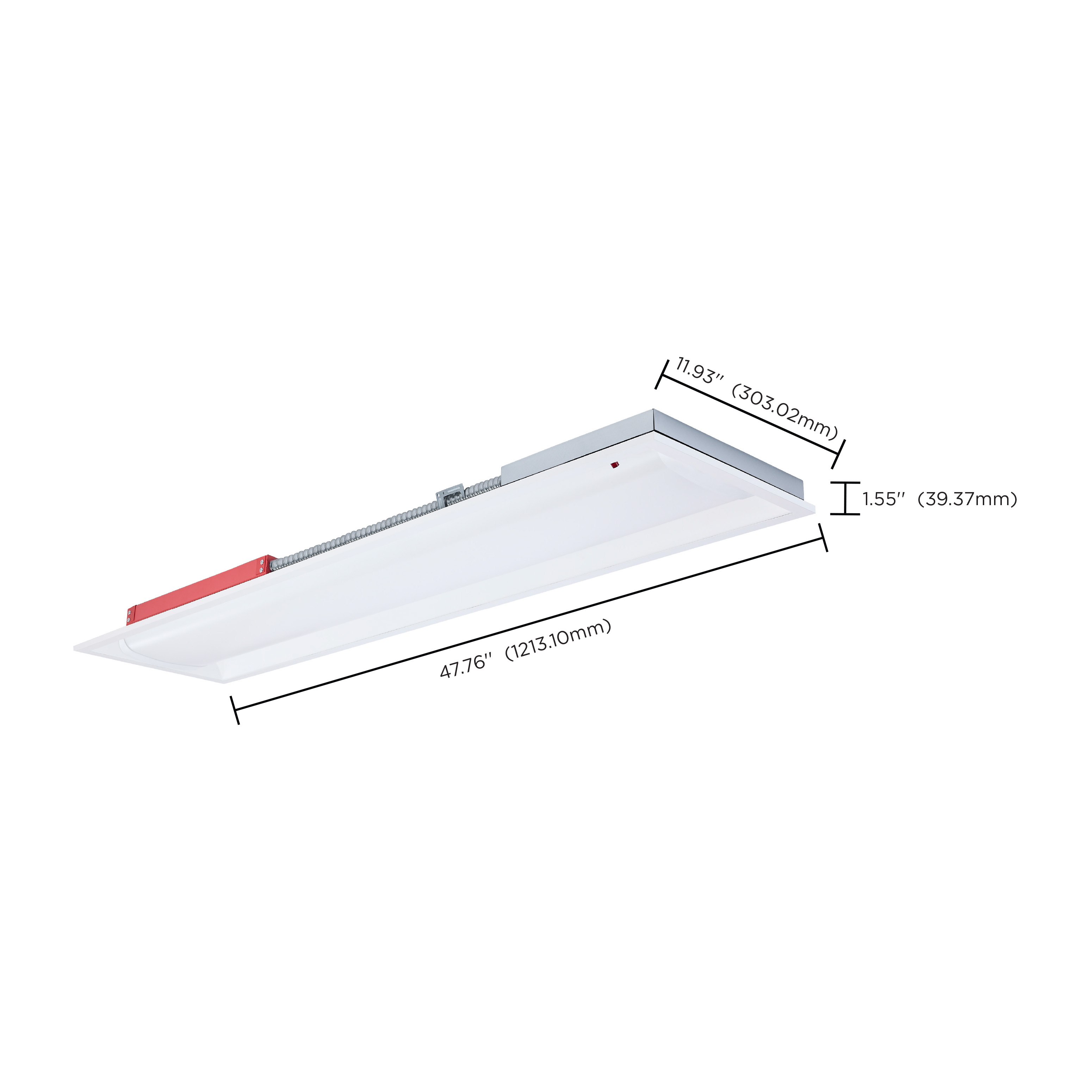

Web Height	1.55
Web Length	47.76
Web Width	11.93
