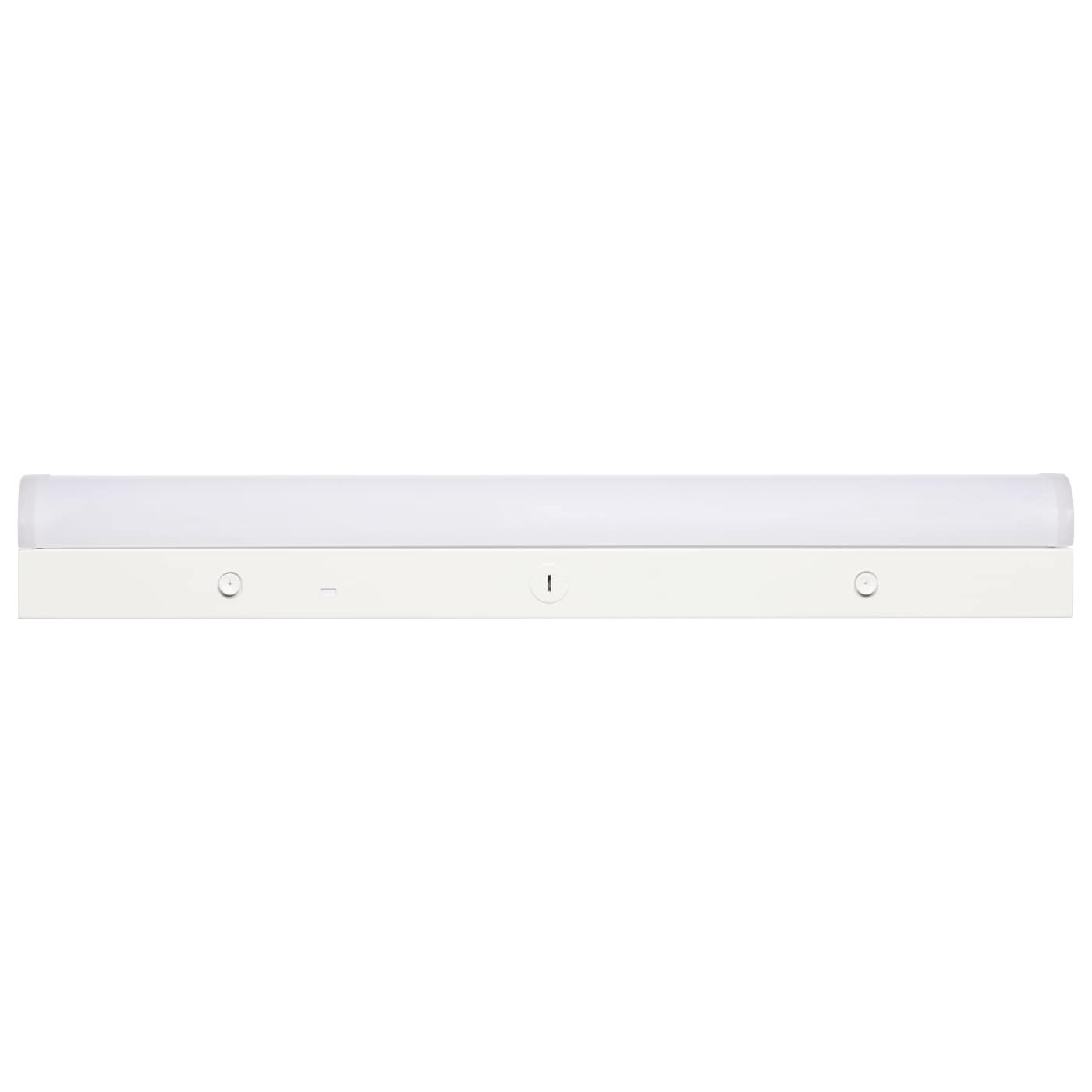

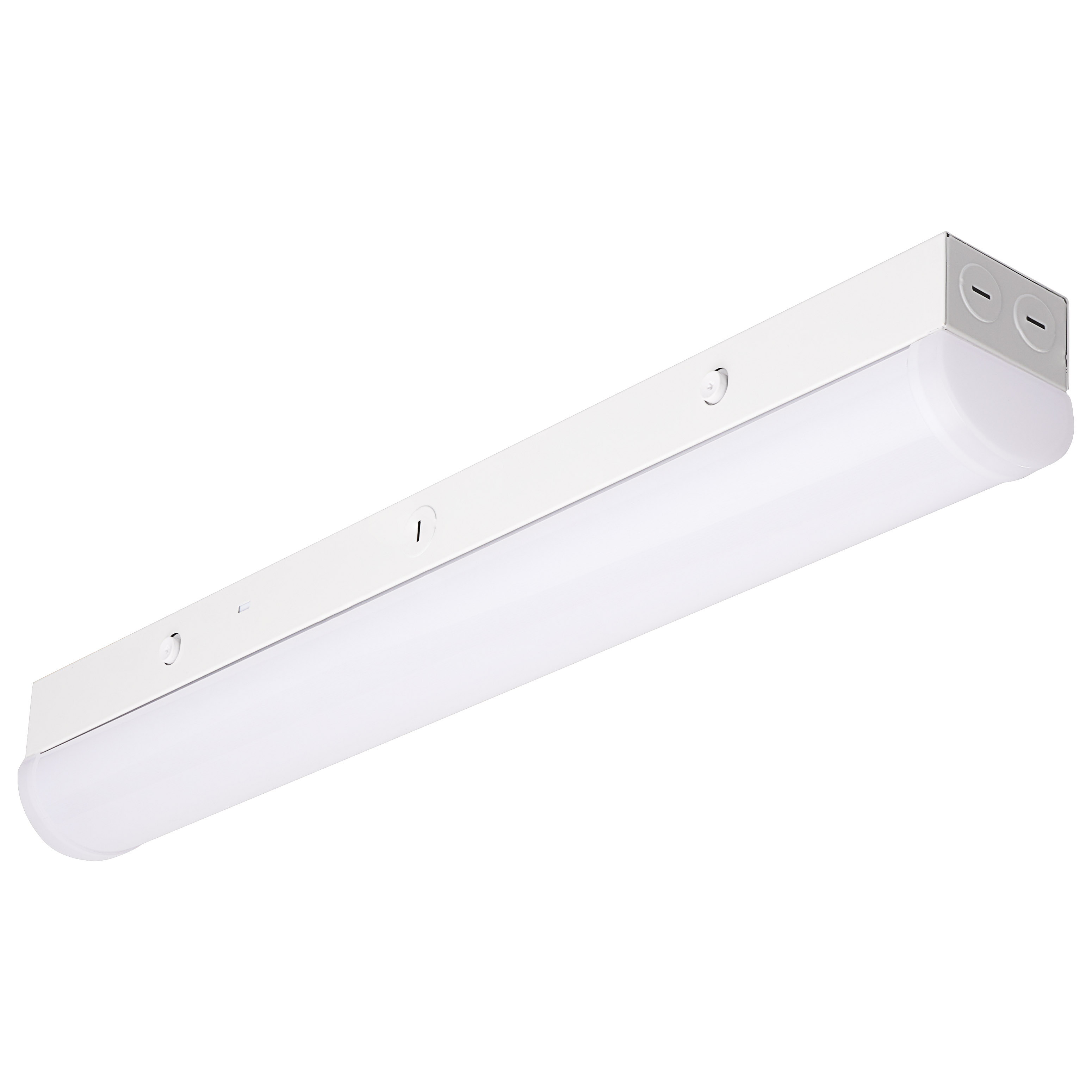

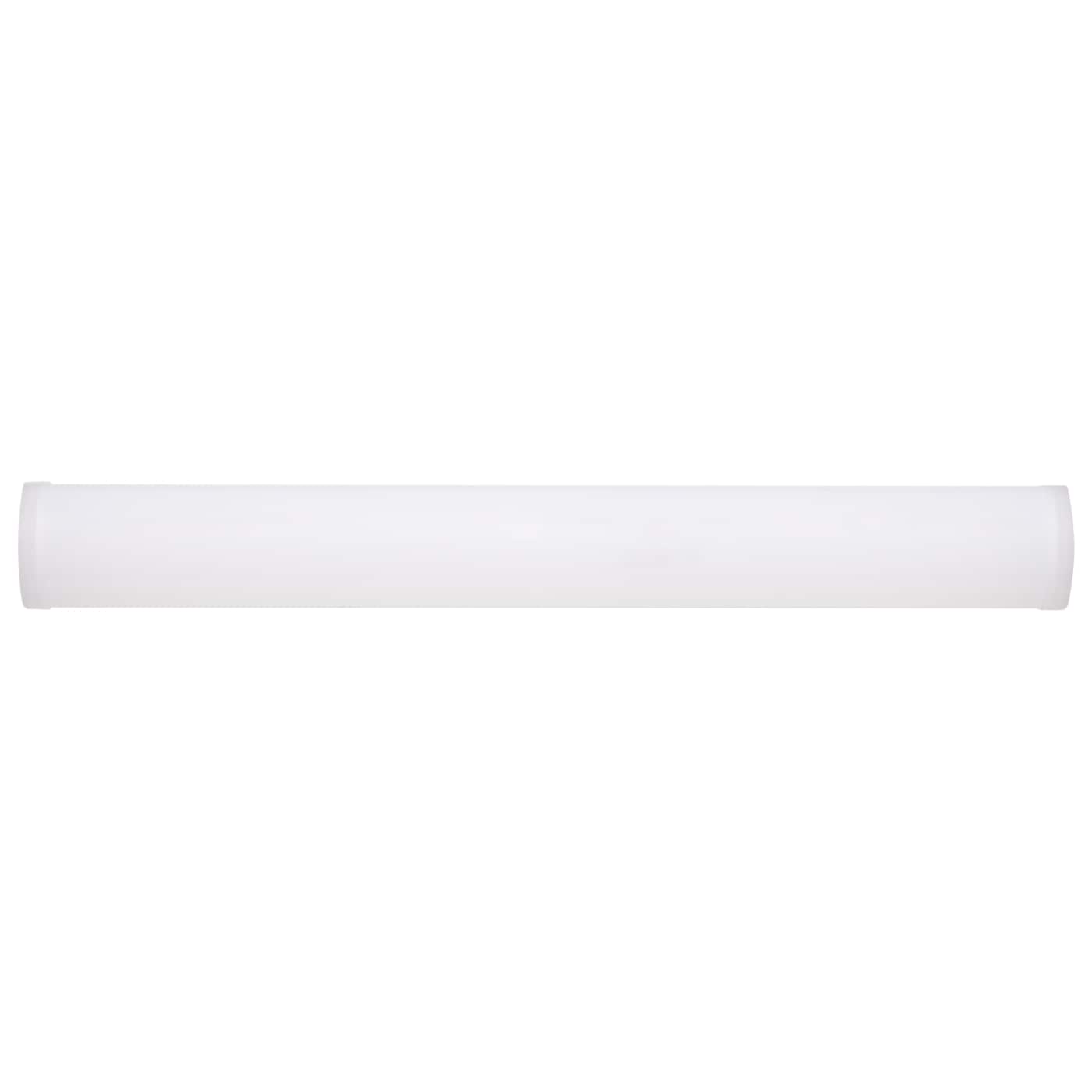

65-1700R1

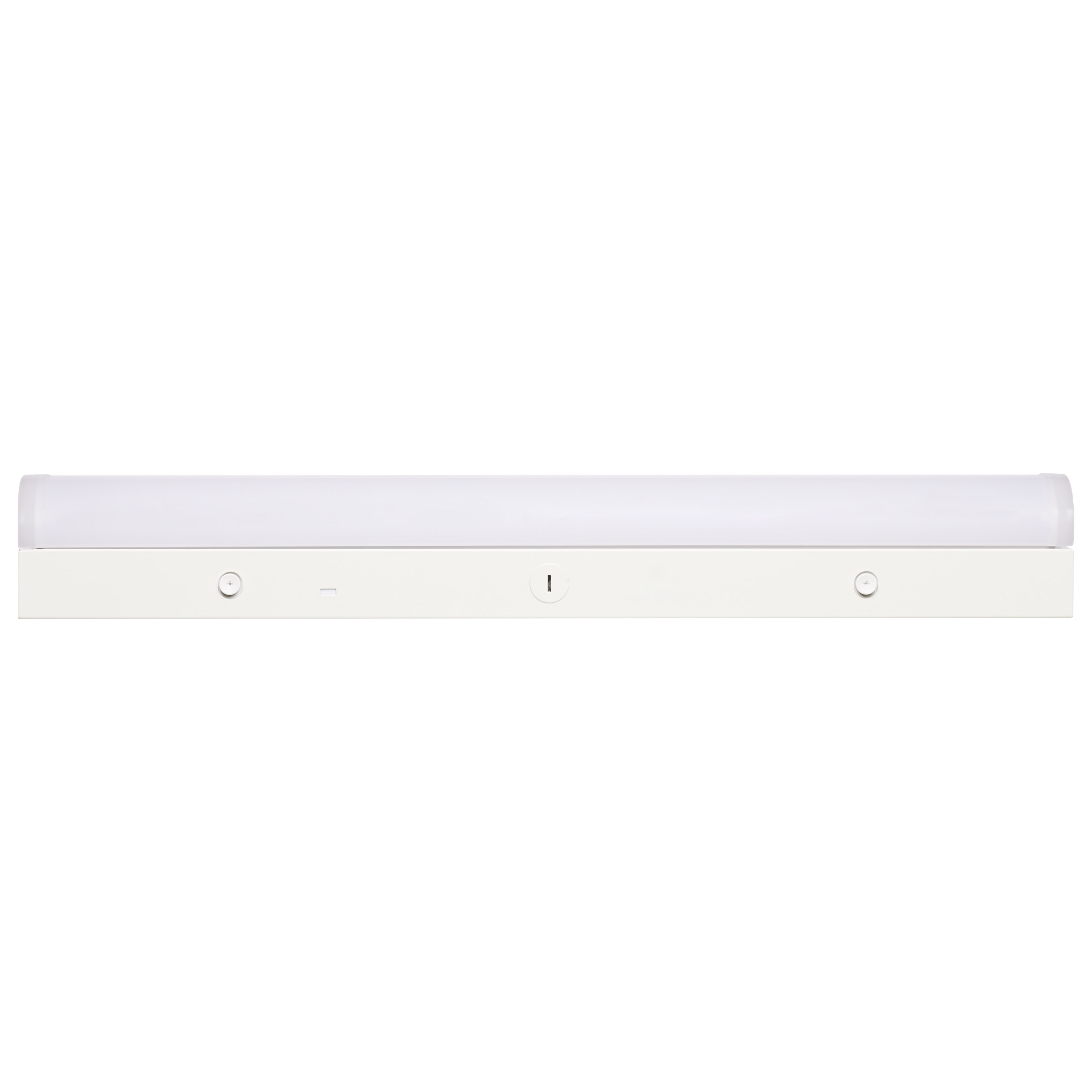

2' LINEAR STRIP W/SENSOR

  • 2 Foot LED Linear Strip Light

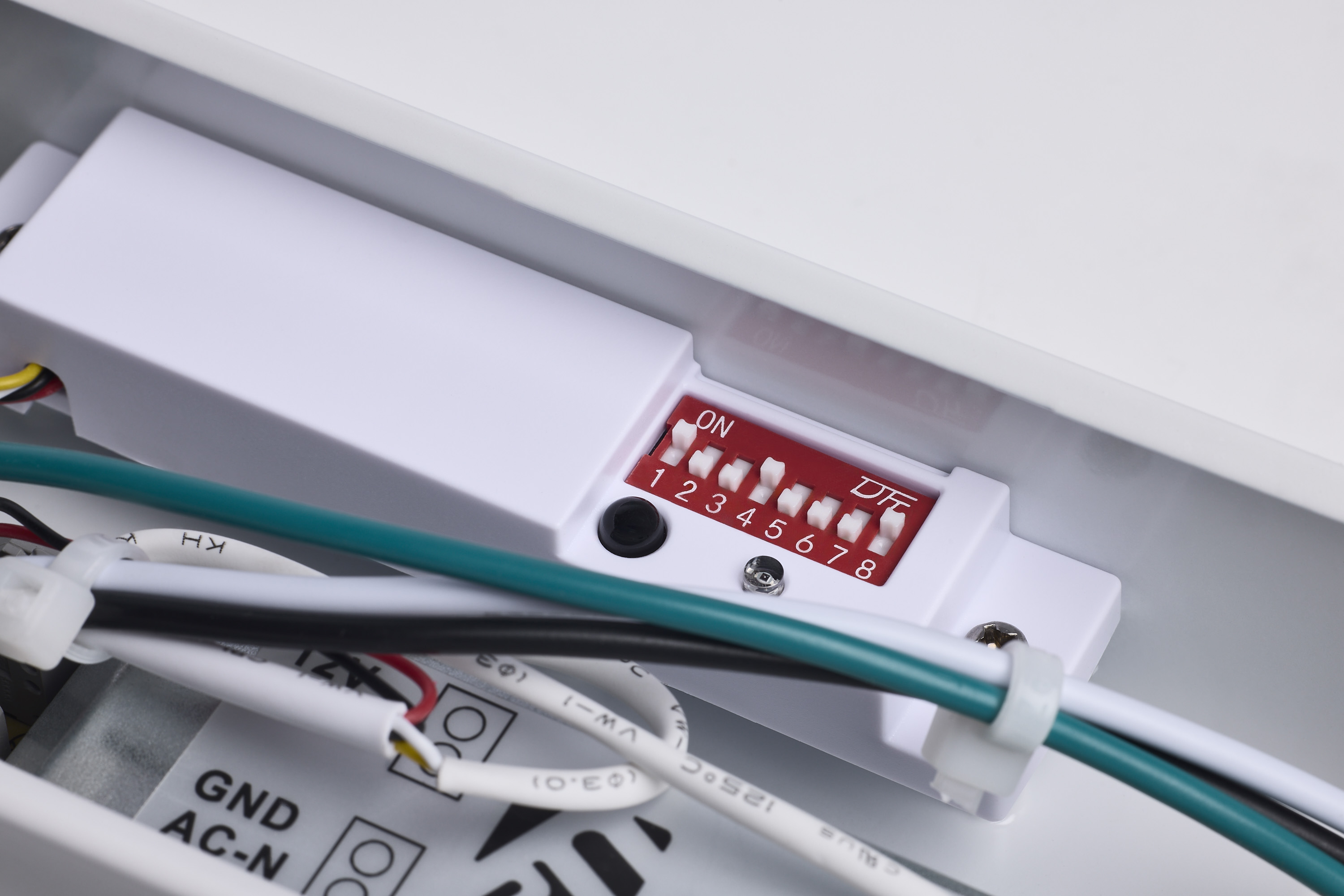

  • Field Selectable
  • With Sensor
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-1700R1 Specifications65-1700R1 Spec ChartSN1735 LED SELEC STRIP LIGHTS FINAL
Tools
Lighting Layout Analysis For 65-1700R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Foot LED Linear Strip Light; Field Selectable; With Sensor; White Finish
Products Specs
General
CompanyNUVO
Mounting Height0.06
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only; Bi-Level Dimmable
MaterialSteel
Fixture TypeStrip Light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion13.61%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.125-0.054/0.167-0.072/0.208-0.090A
Mounting Diameter4.75
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
Photo CellBi-Level Microwave Sensor
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W-175W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +60C (+140F)
Lumens1950L-3500L
Volts120V-277V
Watts15W/20W/25W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Bug RatingB1-U3-G1
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-3TBKCZ;S-FJGJFK
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
UL ApplicationCeiling / Wall
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923662300
Case Cube3.9433
Case Height11.81
Case Length26.65
Case Quantity8
Case UPC10045923662307
Case Weight15.25
Case Width21.65
EA Cube0.4171
EA Height5.31
EA Length26.1
EA Quantity1
EA Weight1.88
EA Width5.2
Inner Cube0.0
Pack TypeBox

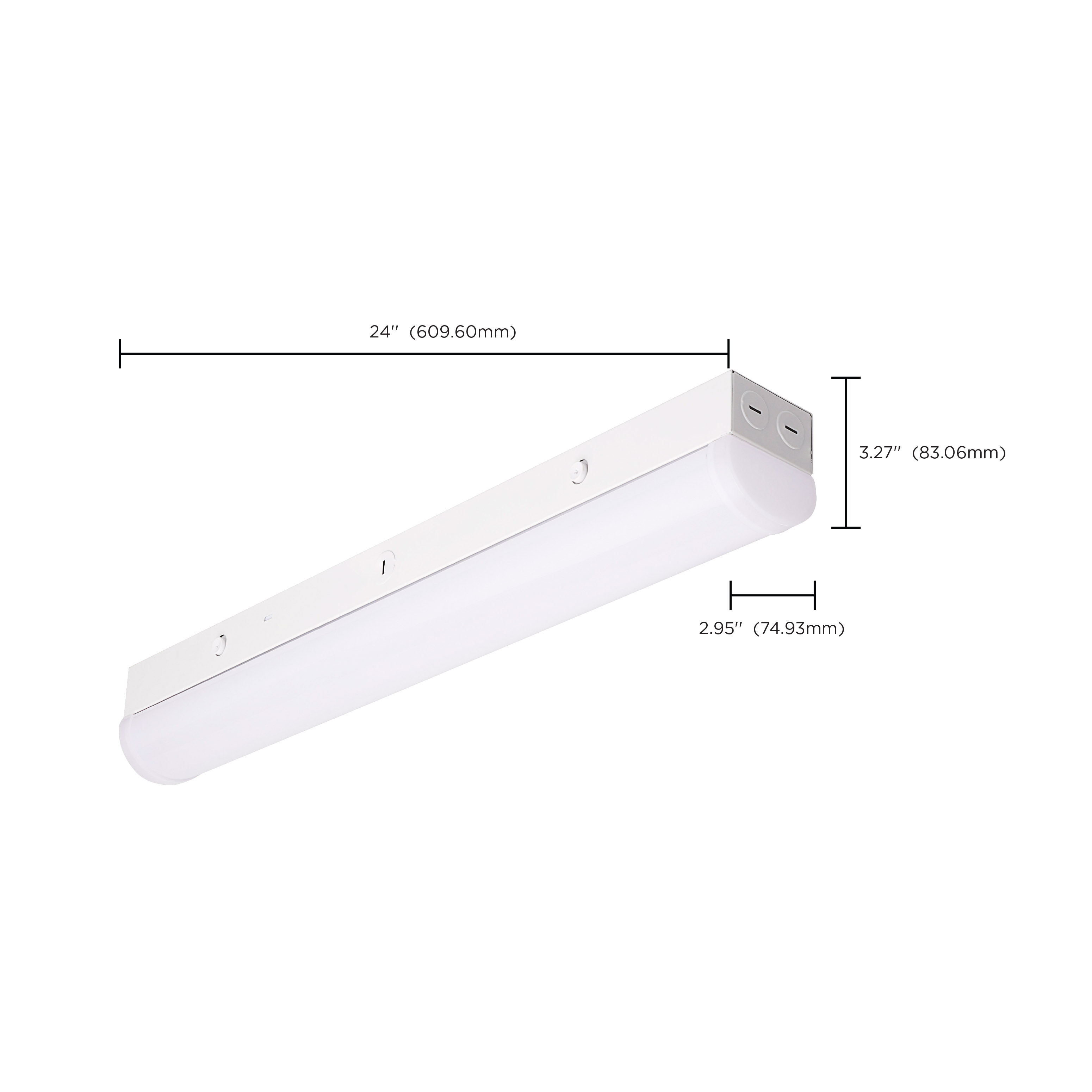

Web Height3.27
Web Length24.0
Web Width2.95
