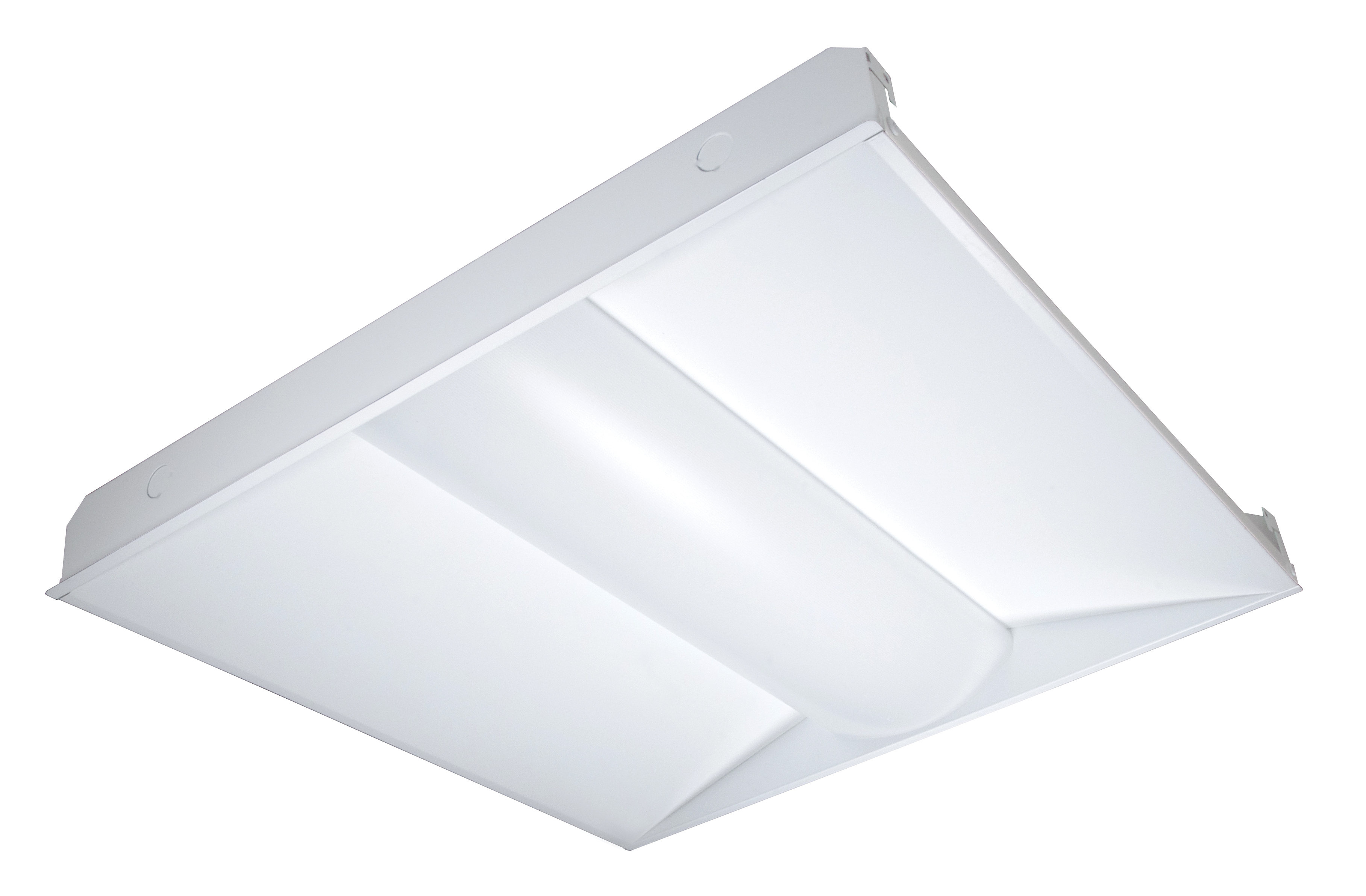

2FT X 2FT LED TROFFER 32 WATT - 65-301
65-301

2FT X 2FT LED TROFFER 32 WATT

Discontinued - Suggested Replacement: 65-421
  • LED Troffer Fixture
  • 32W
  • 2 ft. x 2 ft.
  • 3500K
  • 3213 Lumens
  • 100-277V
location_rating^damp^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
65-301 Specifications65-301 Installation Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 65-301
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Troffer Fixture; 32W; 2 ft. x 2 ft.; 3500K; 3213 Lumens; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeCenter Basket Troffer
StatusObsolete
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.320-0.116A
Has CameraNo
IOT EnabledNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)3500K
DimmableYes-Dimmable
Hours Rated50000
Color TempNeutral White
CRI90+
Dimming Type0-10V Dimming
Operating Temp-4F to +104F (-20C to +40C)
Lumens3213L
Volts120V-277V
Watts32W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923643019
Case Cube1.1208
Case Height3.1
Case Length25.5
Case Quantity1
Case UPC10045923643016
Case Weight2.21
Case Width24.5
EA Cube1.1208
EA Height3.1
EA Length25.5
EA Quantity1
EA Weight2.21
EA Width24.5
Pack TypeBox
Web Height2.75
Web Length23.59
Web Width23.59
