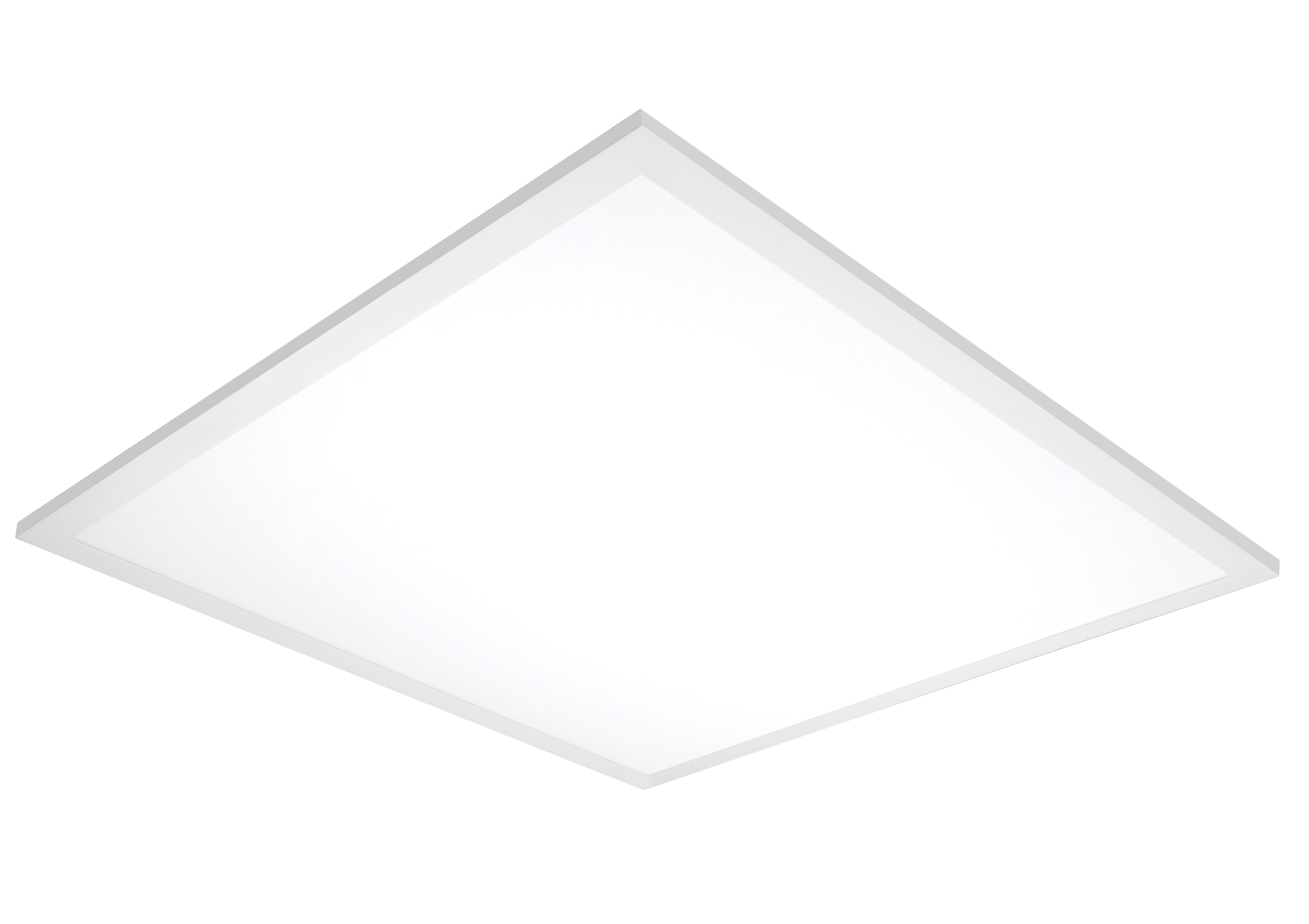

2FT X 2FT LED FLAT PANEL 37W - 65-311
65-311

2FT X 2FT LED FLAT PANEL 37W

Discontinued - Suggested Replacement: 65-321R1
  • LED Flat Panel Fixture
  • 37W
  • 2 ft. x 2 ft.
  • 3500K
  • 3800 Lumens
  • 100-277V
location_rating^damp^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-311 Specifications65-311 Installation Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 65-311
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Flat Panel Fixture; 37W; 2 ft. x 2 ft.; 3500K; 3800 Lumens; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum / Polycarbonate (PC)
Fixture TypeFlat Panel
StatusDiscontinued
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.370-0.134A
Has CameraNo
IOT EnabledNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)3500K
DimmableYes-Dimmable
Hours Rated50000
Color TempNeutral White
CRI90+
Dimming Type0-10V Dimming
Operating Temp-4F to +104F (-20C to +40C)
Lumens3800L
Volts120V-277V
Watts37W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IC RatedYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923643118
Case Cube2.9192
Case Height7.09
Case Length26.97
Case Quantity2
Case UPC10045923643115
Case Weight3.08
Case Width26.38
EA Cube1.1355
EA Height2.95
EA Length25.79
EA Quantity1
EA Weight1.54
EA Width25.79
Pack TypeBox
Web Height1.81
Web Length23.59
Web Width23.59
