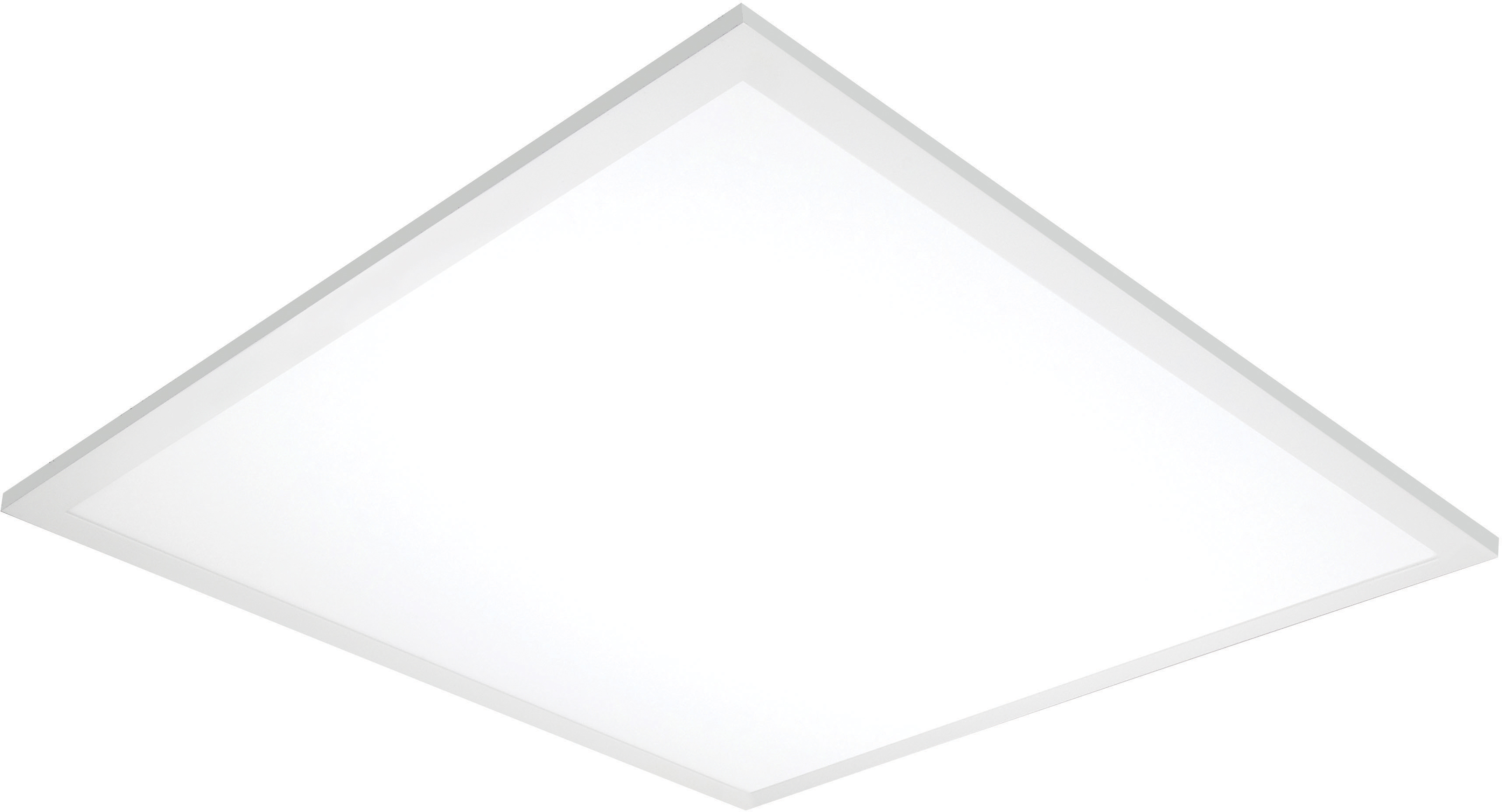

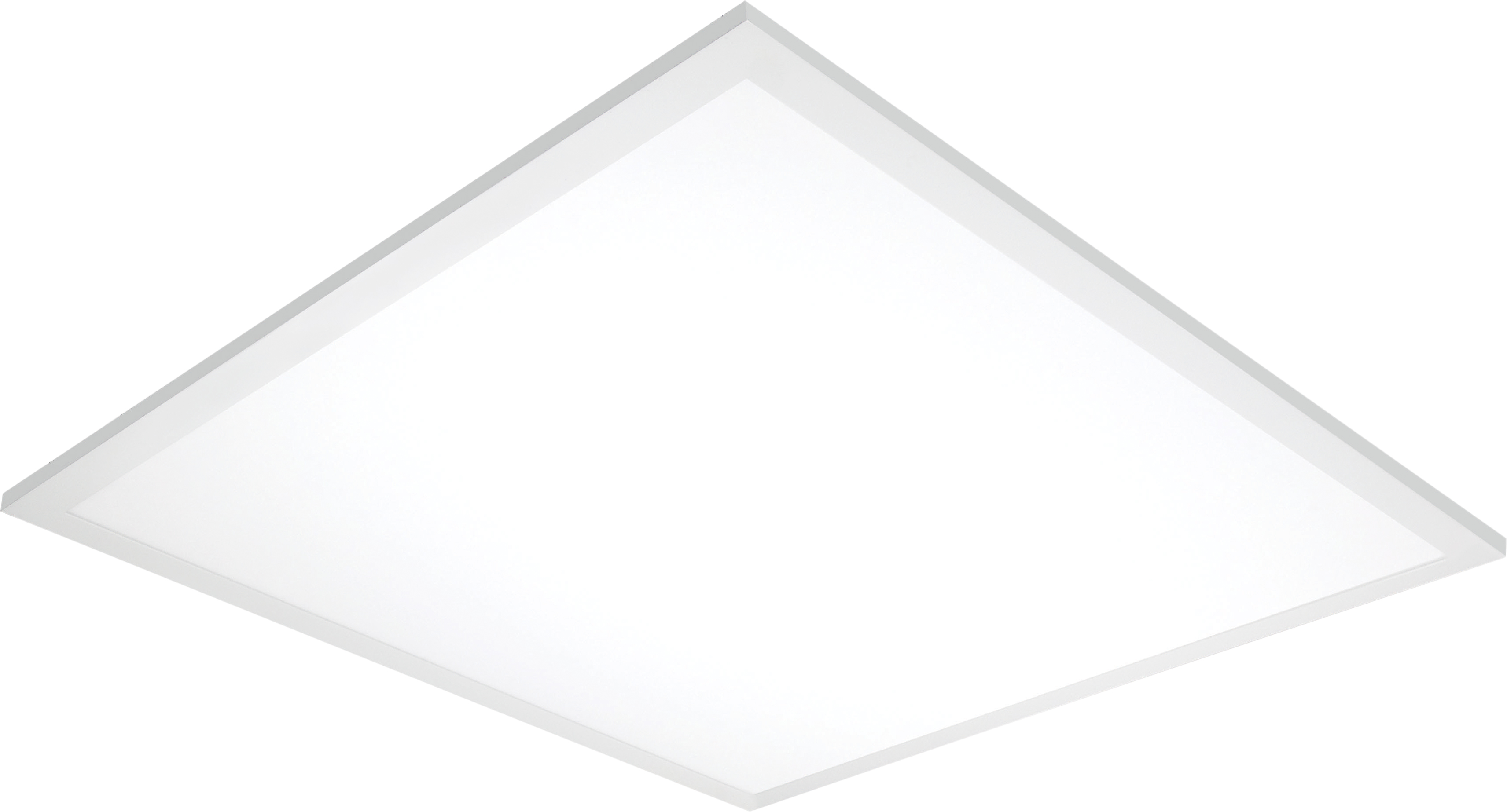

2X2 FLAT PANEL DLC 4.2 - 65-322
2X2 FLAT PANEL DLC 4.2 - 65-322
65-322

2X2 FLAT PANEL DLC 4.2

Discontinued - Suggested Replacement: 65-322R1
  • LED Flat Panel Lay-in
  • 40W
  • 2 ft. x 2 ft.
  • 4000K
location_rating^damp^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-322 Specifications65-322 Instructions.pdf
Tools
Lighting Layout Analysis For 65-322
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Flat Panel Lay-in; 40W; 2 ft. x 2 ft.; 4000K
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeFlat Panel
StatusObsolete
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoPricing Note- Product must be ordered in multiples of 2. Pricing (not shown here) is for one piece, even though there are 2 pieces in a case.
Amps0.400-0.144A
Has CameraNo
IOT EnabledNo
Power Factor0.92
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Color TempCool White
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens4194L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
UL ApplicationLED Recessed Luminaire
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923453229
Case Cube1.8273
Case Height26.2
Case Length26.2
Case Quantity2
Case UPC10045923453226
Case Weight16.6
Case Width4.6
EA Cube0.1944
EA Height6.0
EA Length8.0
EA Quantity1
EA Weight16.6
EA Width7.0
Pack TypeBulk
Web Height1.81
Web Length23.6
Web Width23.6
