SKU 65-339R1 - Image 1
65-339R1

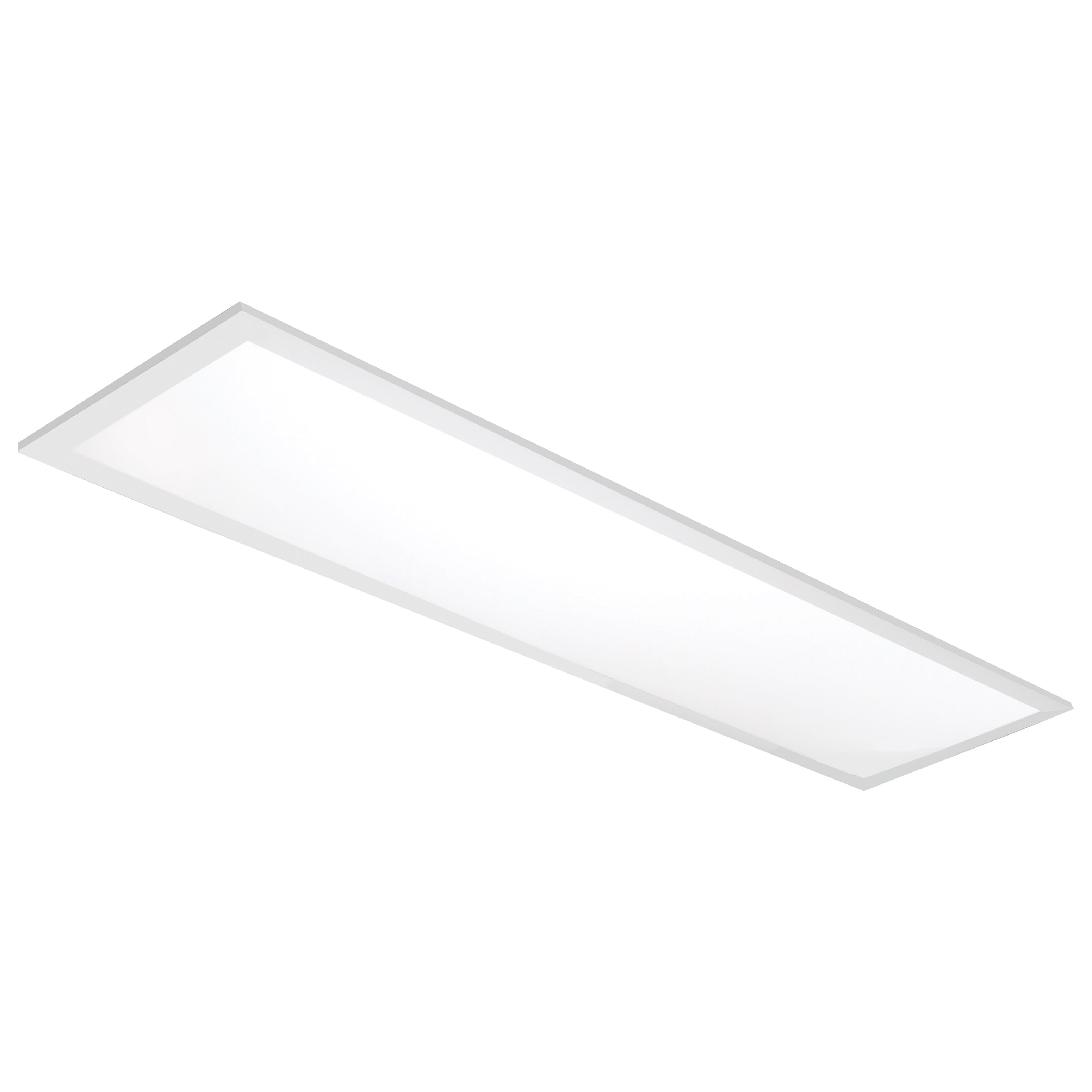

1X4 FLAT PANEL 40W

  • LED Flat Panel Fixture
  • 40W
  • 1 ft. x 4 ft.
  • 3500K
location_rating^damp^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-339R1 Specifications65-339R1 Instructions65-339R1 Wiring Diagram R1 LED Driver
Tools
Lighting Layout Analysis For 65-339R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Flat Panel Fixture; 40W; 1 ft. x 4 ft.; 3500K
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeFlat Panel
StatusObsolete
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.400-0.144A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.95
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)3500K
DimmableYes-Dimmable
Hours Rated50000
Color TempNeutral White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens4120L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
UL ApplicationLED Recessed Luminaire
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923682513
Case Cube1.5587
Case Height13.78
Case Length49.61
Case Quantity2
Case UPC10045923682510
Case Weight17.7
Case Width3.94
EA Cube1.5587
EA Height13.78
EA Length49.61
EA Quantity1
EA Weight17.7
EA Width3.94
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height1.97
Web Length47.6
Web Width11.73
