| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum / Steel |

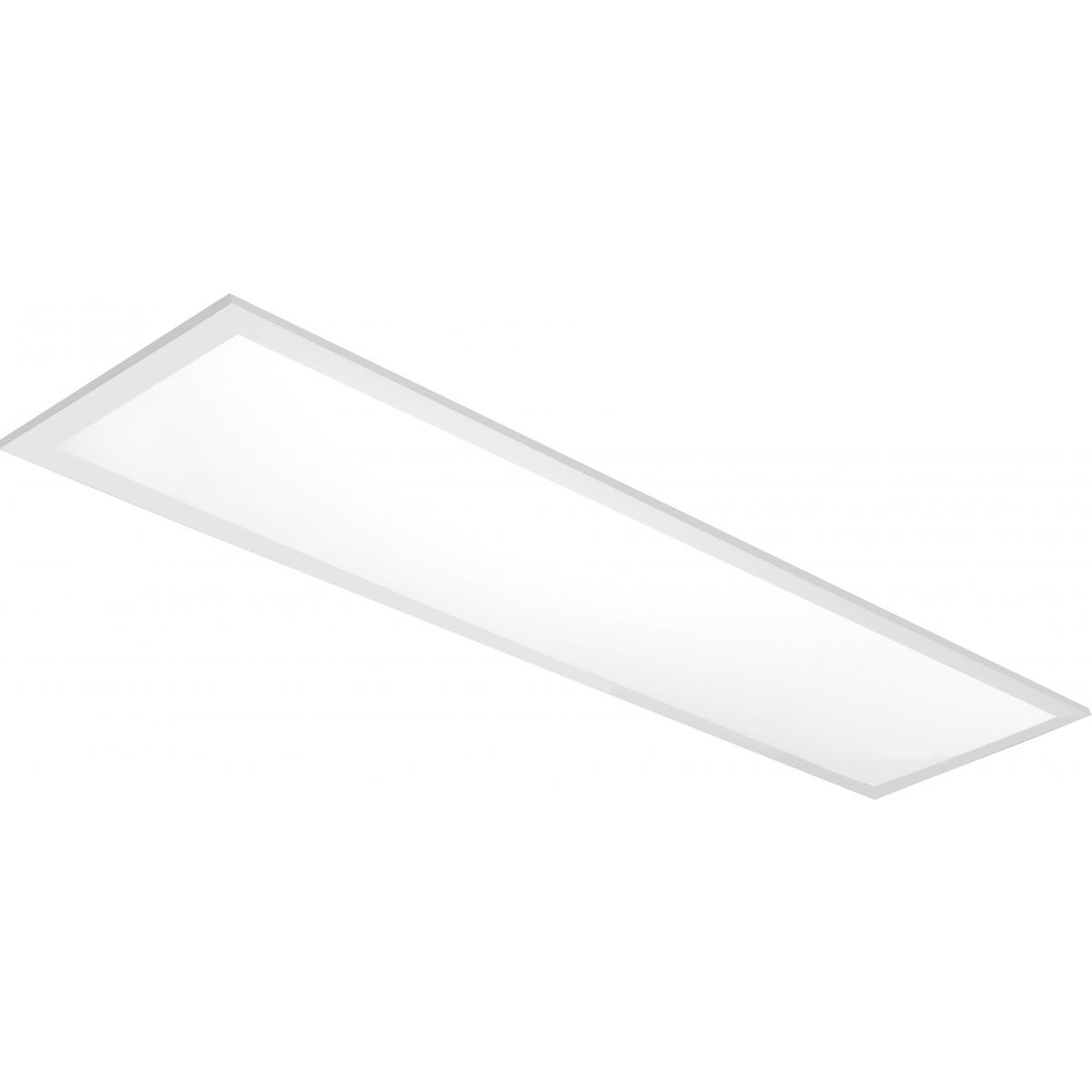

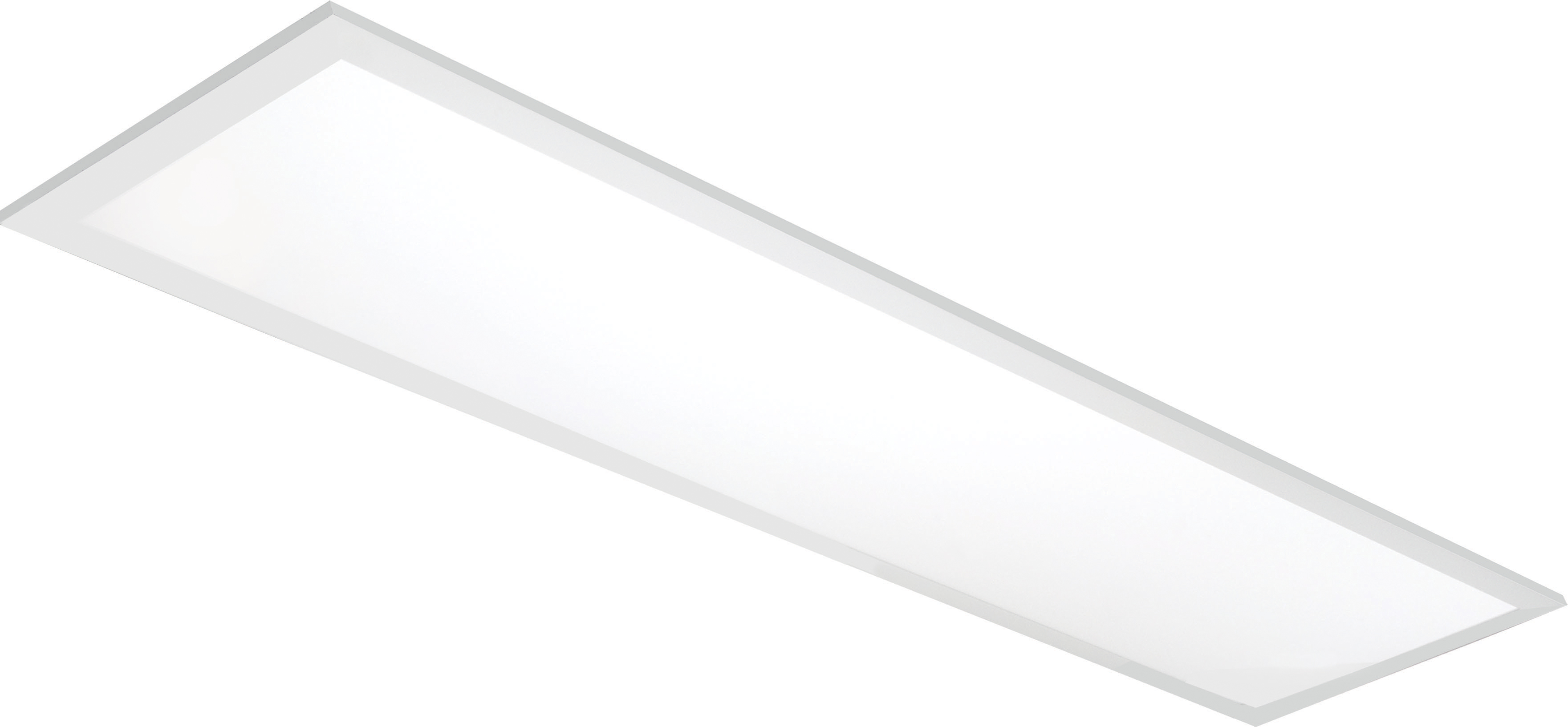

| Fixture Type | Flat Panel |
| Status | Obsolete |
| Style | Utility |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.400-0.144A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Photo Cell | No Photocell |
| Power Factor | 0.95 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 175W |
| CCT (Kelvin Temp) | 3500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Color Temp | Neutral White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 5040L |
| Volts | 120V-277V |
| Watts | 40W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| Flicker Free | Yes |
|---|
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| UL Application | LED Recessed Luminaire |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923682605 |
|---|---|
| Case Cube | 1.5587 |
| Case Height | 13.78 |
| Case Length | 49.61 |
| Case Quantity | 2 |
| Case UPC | 10045923682602 |
| Case Weight | 17.7 |
| Case Width | 3.94 |
| EA Cube | 1.5587 |
| EA Height | 13.78 |
| EA Length | 49.61 |
| EA Quantity | 1 |
| EA Weight | 17.7 |
| EA Width | 3.94 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 1.97 |
| Web Length | 47.6 |
| Web Width | 11.73 |
