| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Material | Die-cast Aluminum |

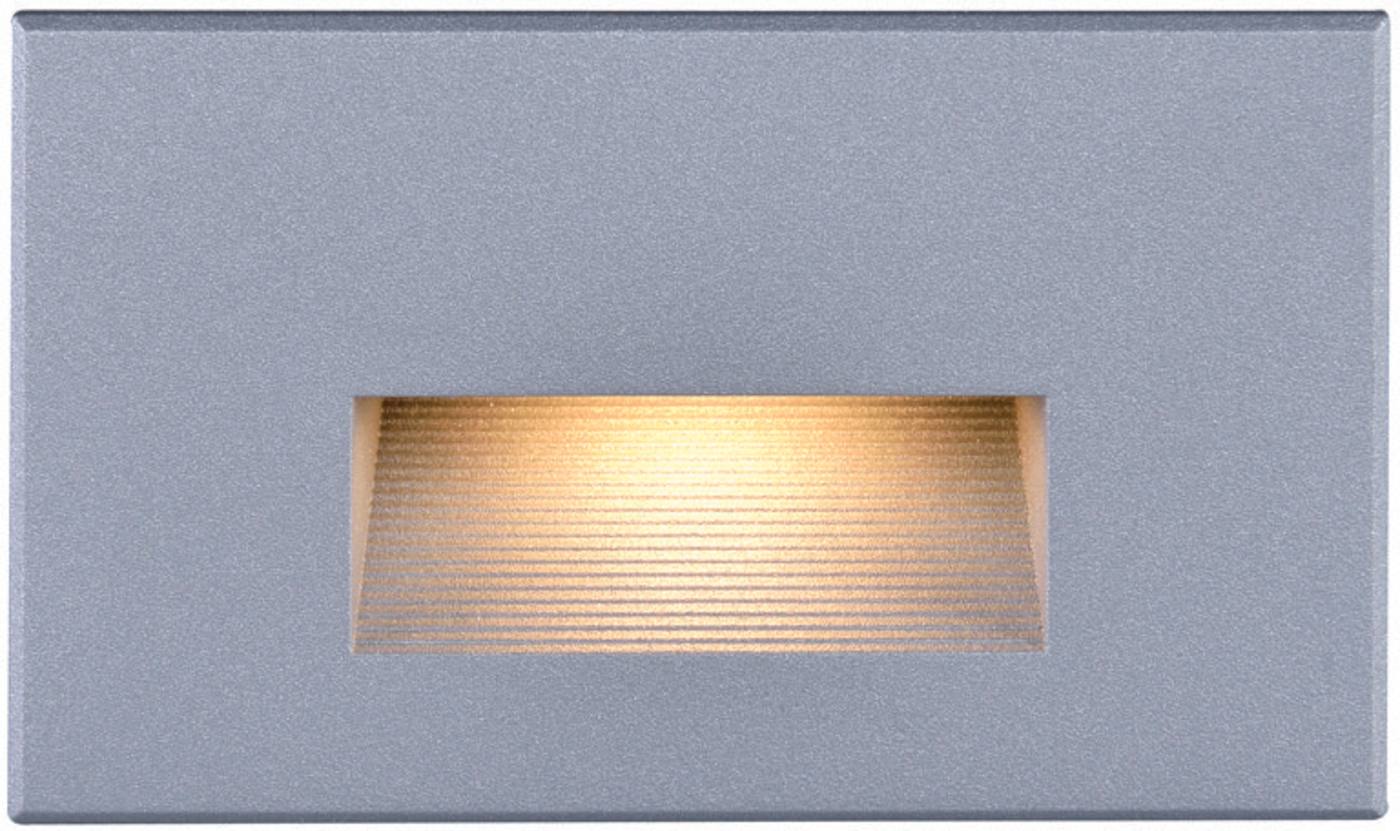

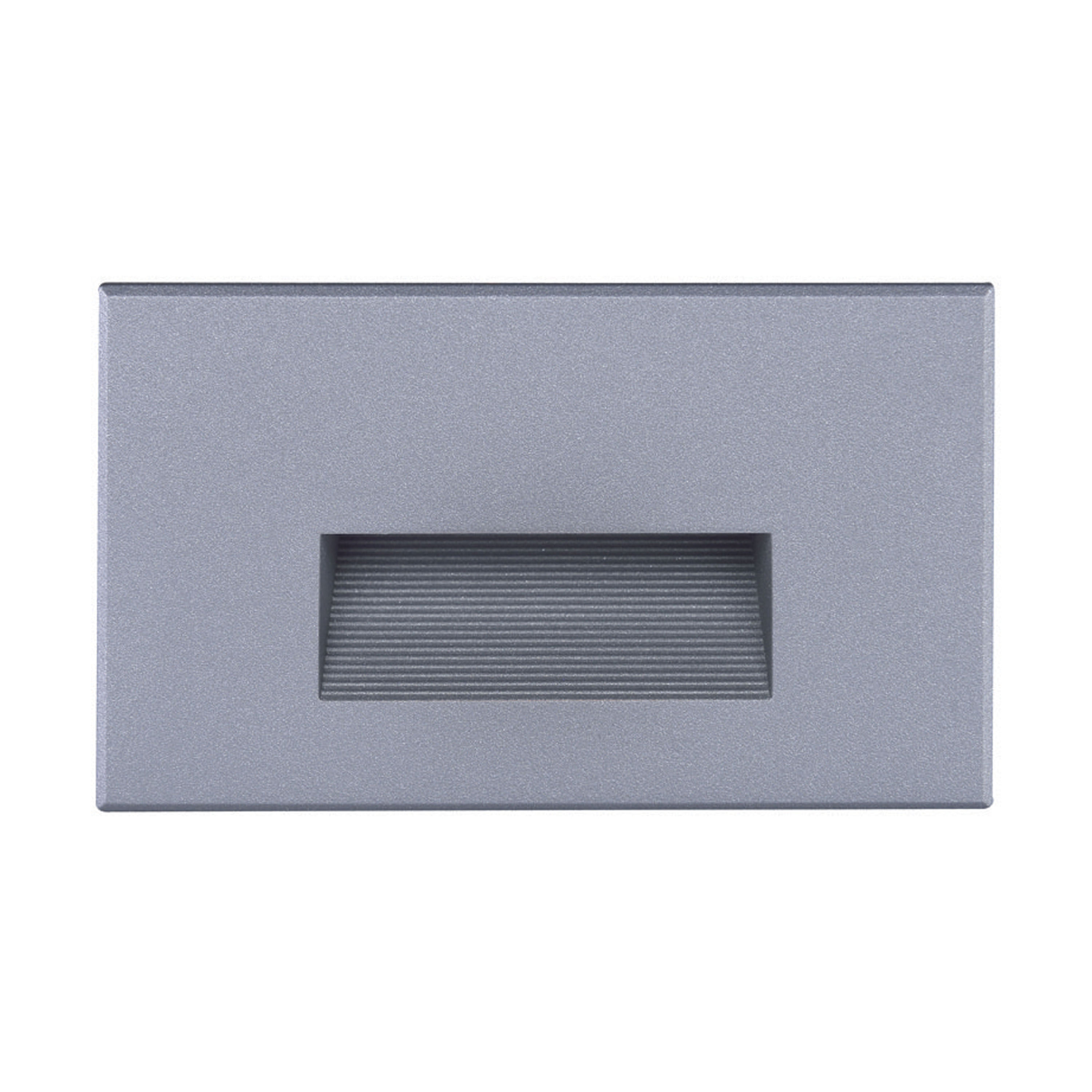

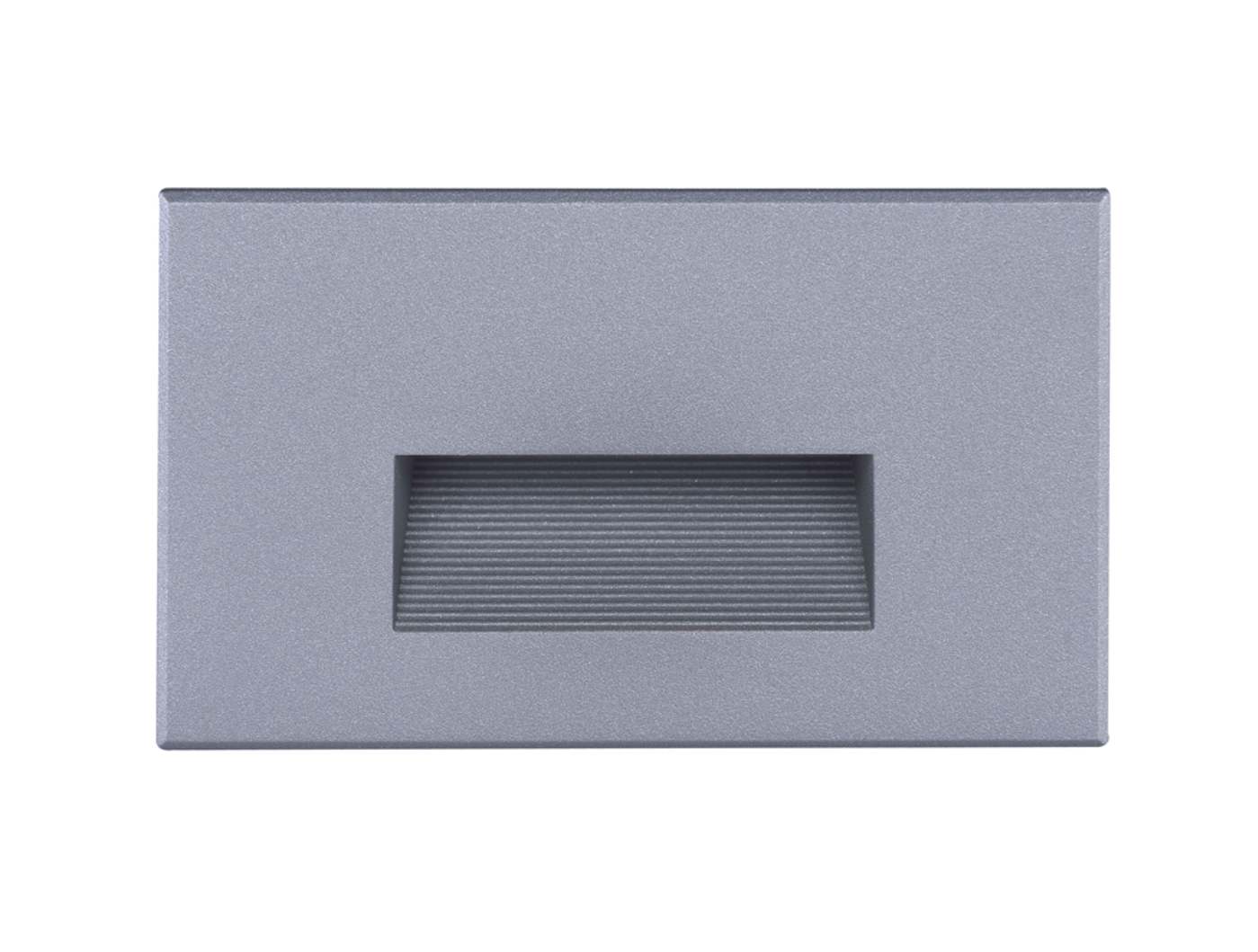

| Fixture Type | Step Light |
| Status | Active |
| Style | Utility |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Gray |
| Amps | 0.042A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Glass |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 20W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Color Temp | Warm White |
| CRI | 80+ |
| Dimming Type | Forward Phase or Reverse Phase |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +40C (+104F) |

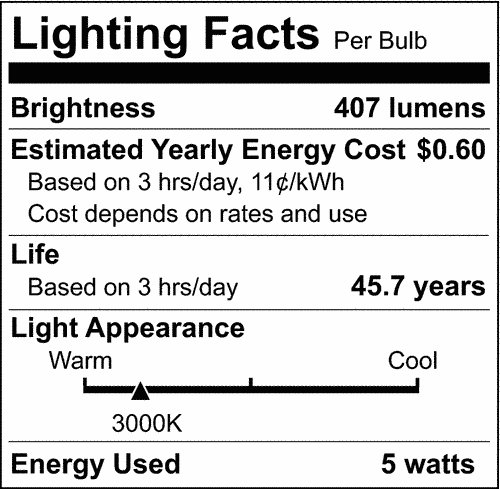

| Lumens | 407L |
| Volts | 120v |
| Watts | 5W |
| Lamp Base | Integrated |
|---|---|
| Finish | Gray |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not concrete rated; Requires a recessed switch box with a minimum interior box volume of 13 cubic inches. |
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923554117 |
|---|---|
| Case Cube | 0.5078 |
| Case Height | 8.8 |
| Case Length | 31.16 |
| Case Quantity | 24 |
| Case UPC | 10045923554114 |
| Case Weight | 13.2 |
| Case Width | 3.2 |
| EA Cube | 0.0212 |
| EA Height | 2.2 |
| EA Length | 5.2 |
| EA Quantity | 1 |
| EA Weight | 0.45 |
| EA Width | 3.2 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

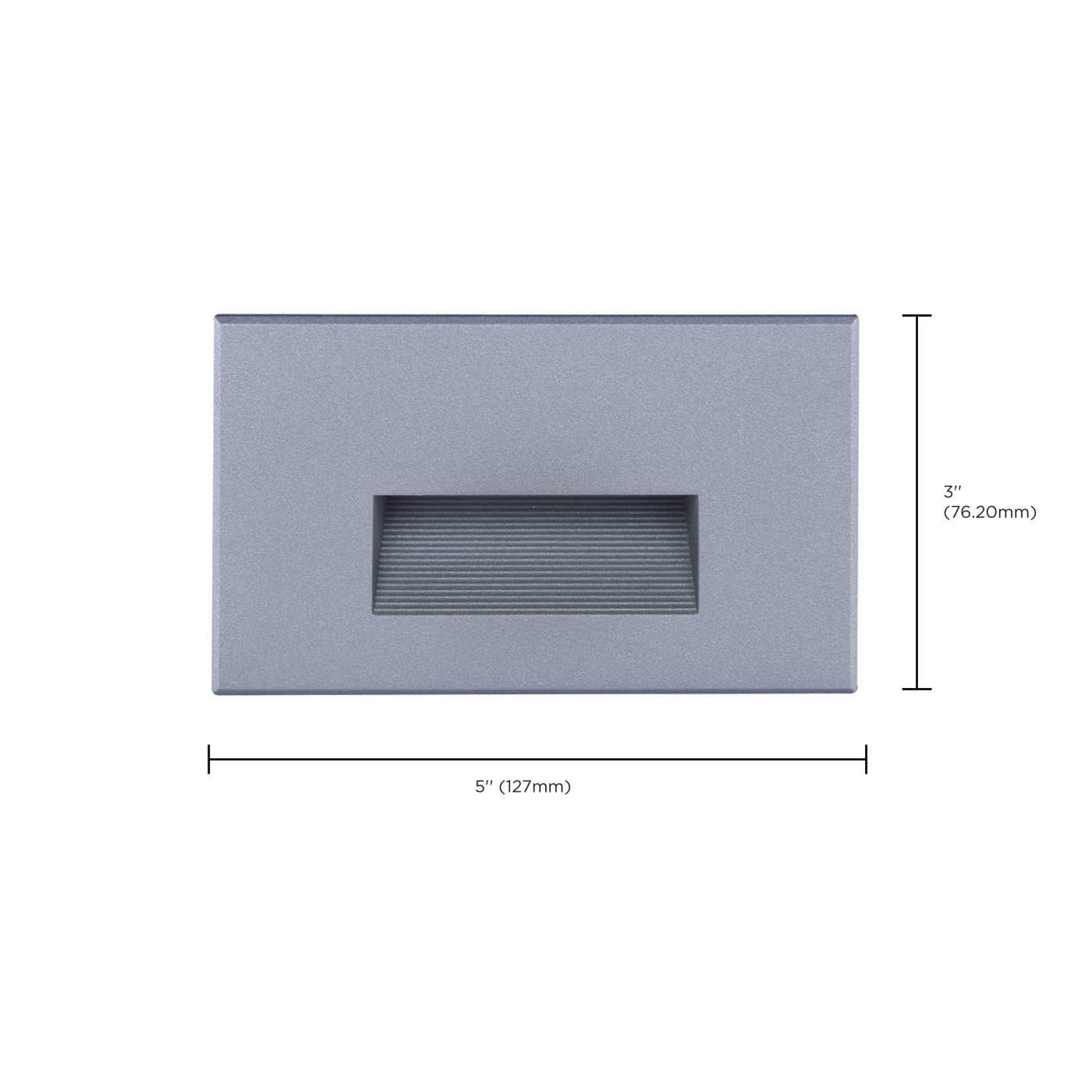

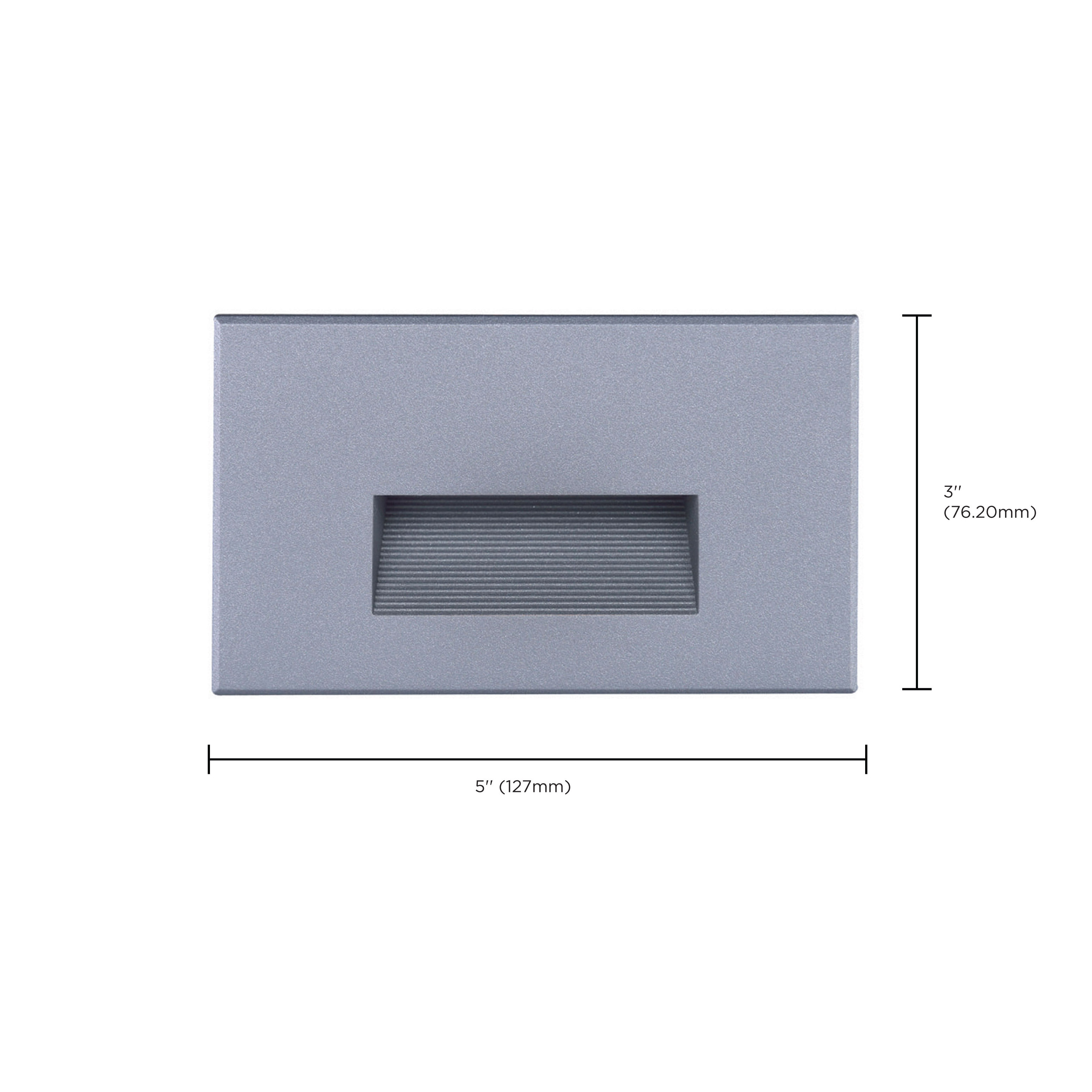

| Web Height | 3.0 |
| Web Length | 1.63 |
| Web Width | 5.0 |
