| Status | Discontinued |

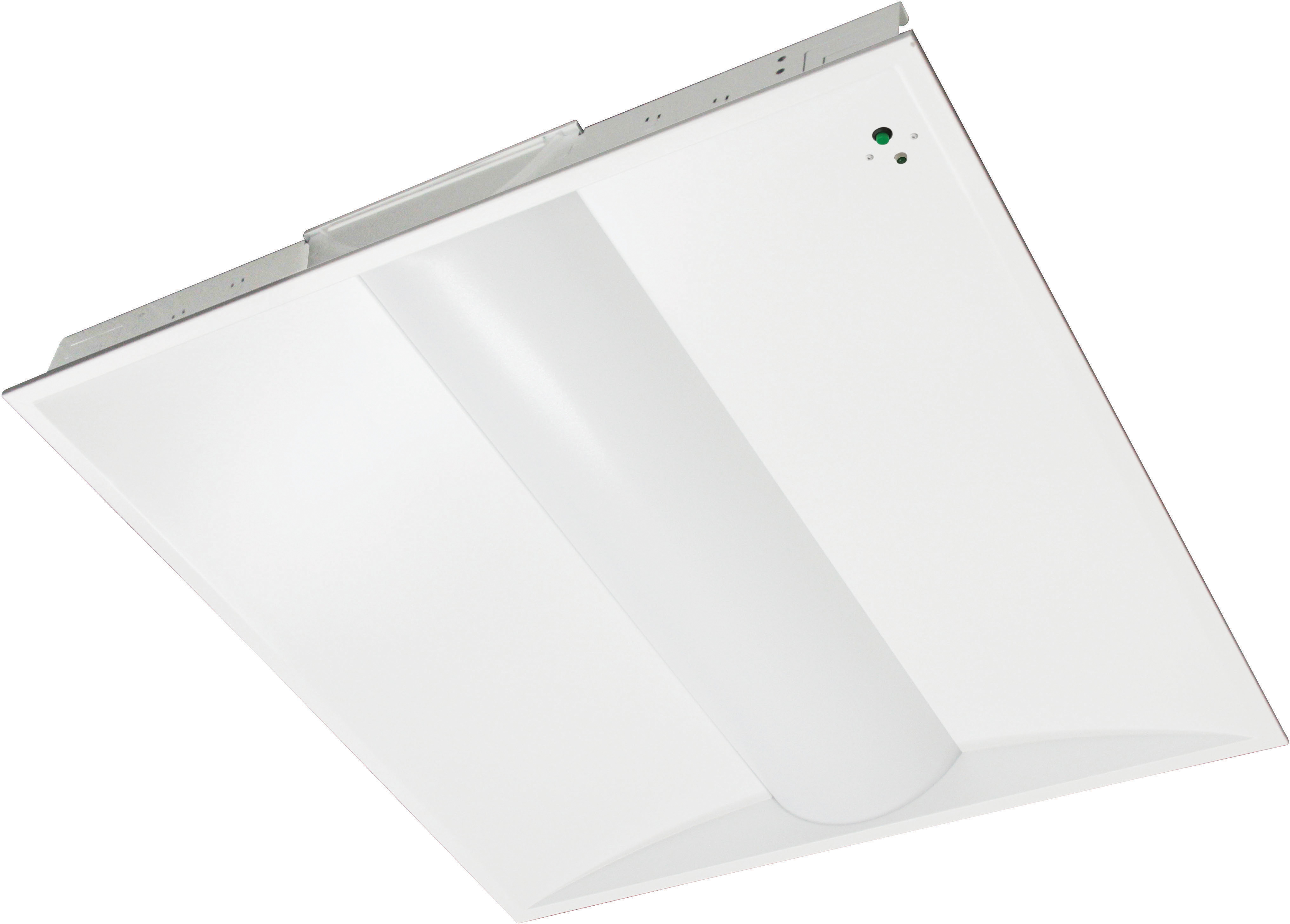

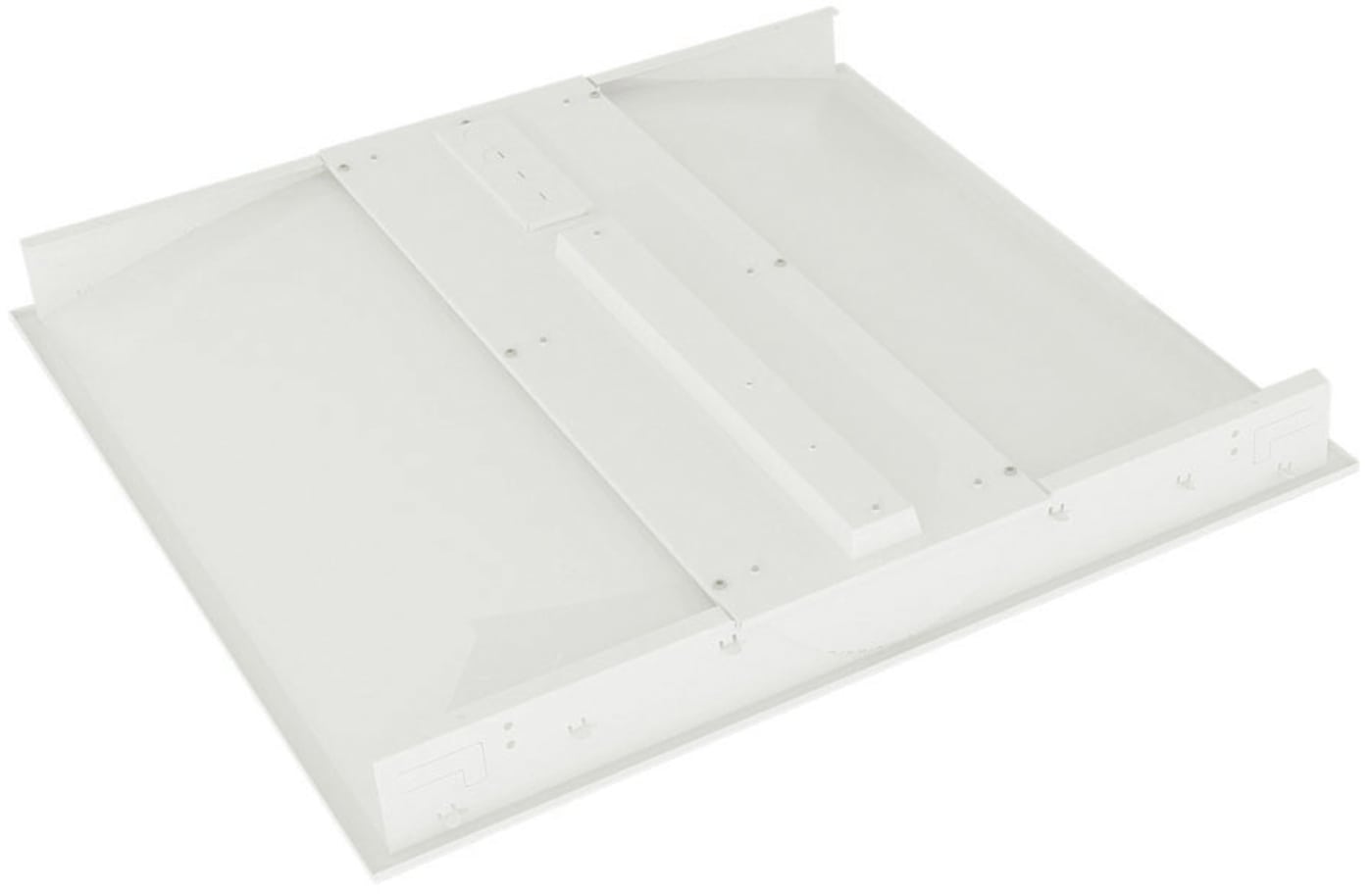

| Fixture Type | Center Basket Troffer |
| Finish | White |
| Wattage | 30W |
| Lumen Output | 3750L |
| CCT (Kelvin) | 3500K |
| Indoor or Outdoor Fixture | Indoor |
| Panel Size | 2x2 |
| IOT Enabled | No |
| Integrated Camera | No |
| Technology | LED |
| Wattage | 30W |
| Lumen Output | 3750L |
| CCT (Kelvin) | 3500K |
| Color Temperature | Neutral White |
| CRI | 80+ |
| Voltage | 120V-277V |
| Rated Hours | 50000 |
| Operating Temperature | -20C (-4F) to +40C (+104F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only; Use 120-277V or 347V Dimmers only |
| Lens Material | Polycarbonate (PC) |
| Weight (lb.) | 14.03 |
| Material | Steel |
| Height (in.) | 2.75 |
| Width (in.) | 23.59 |
| Length (in.) | 23.59 |
| Safety Listing | cULus - Certified |
| Location Rating | Damp |
| UL Application | LED Recessed Luminaire |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLBAE3UM06DE |
| IC Rated | Yes |
| California Status | Non-Compliant |
| Title 20 / 24 Status | Non-Compliant |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| Flicker Free | Yes |
| SDS Sheet | LED Fixture |
| Warranty | 5-Years |
| Each UPC | 045923534454 |
| Each Quantity | 1 |
| Each Length (in.) | 25.98 |
| Each Width (in.) | 6.61 |
| Each Height (in.) | 27.09 |
| Each Weight (lb.) | 14.77 |
| Each Cube (CuFt.) | 2.6922 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923534451 |
| Case Quantity | 1 |
| Case Length (in.) | 25.98 |
| Case Width (in.) | 6.61 |
| Case Height (in.) | 27.09 |
| Case Weight (lb.) | 14.77 |
| Case Cube (CuFt.) | 2.6922 |
