65-446

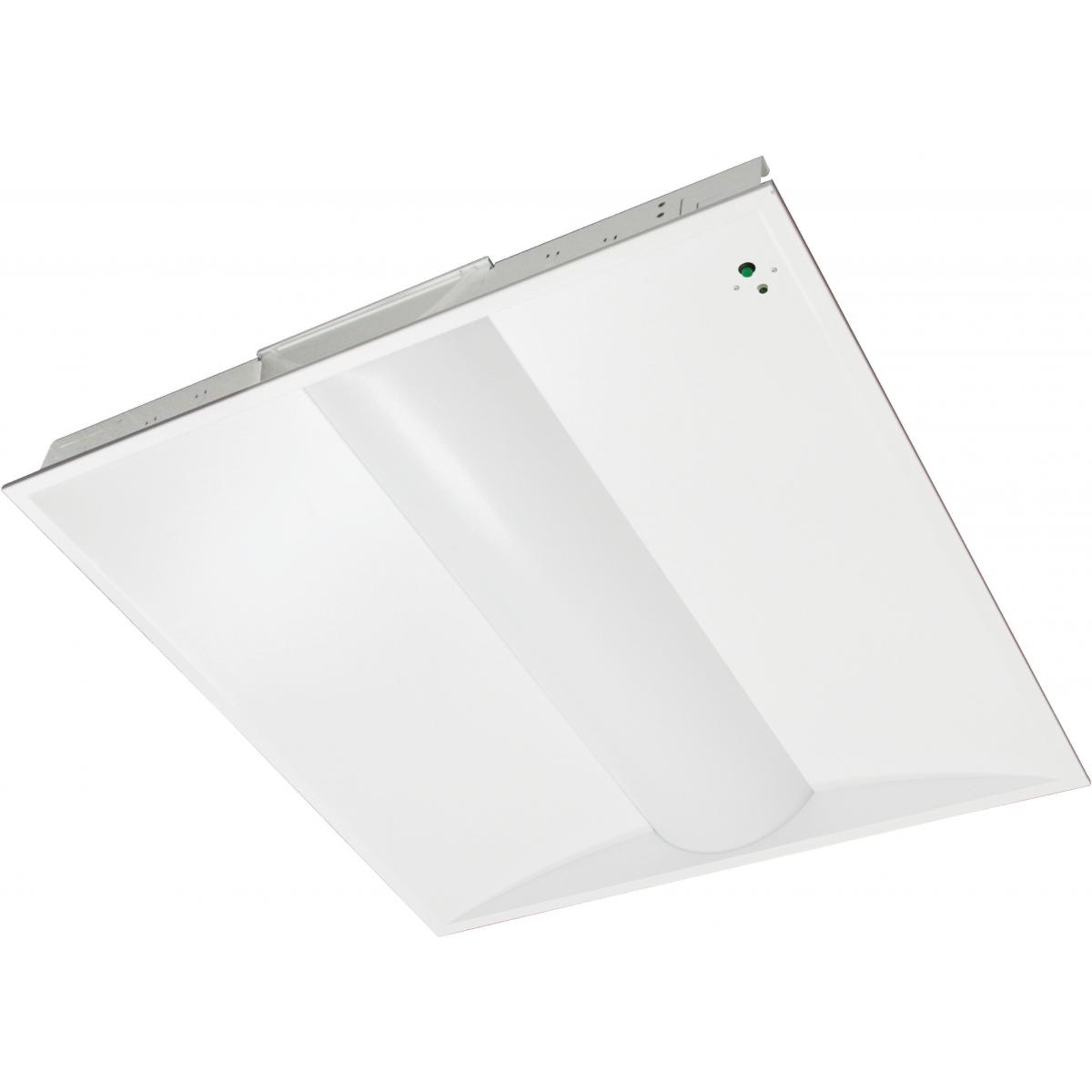

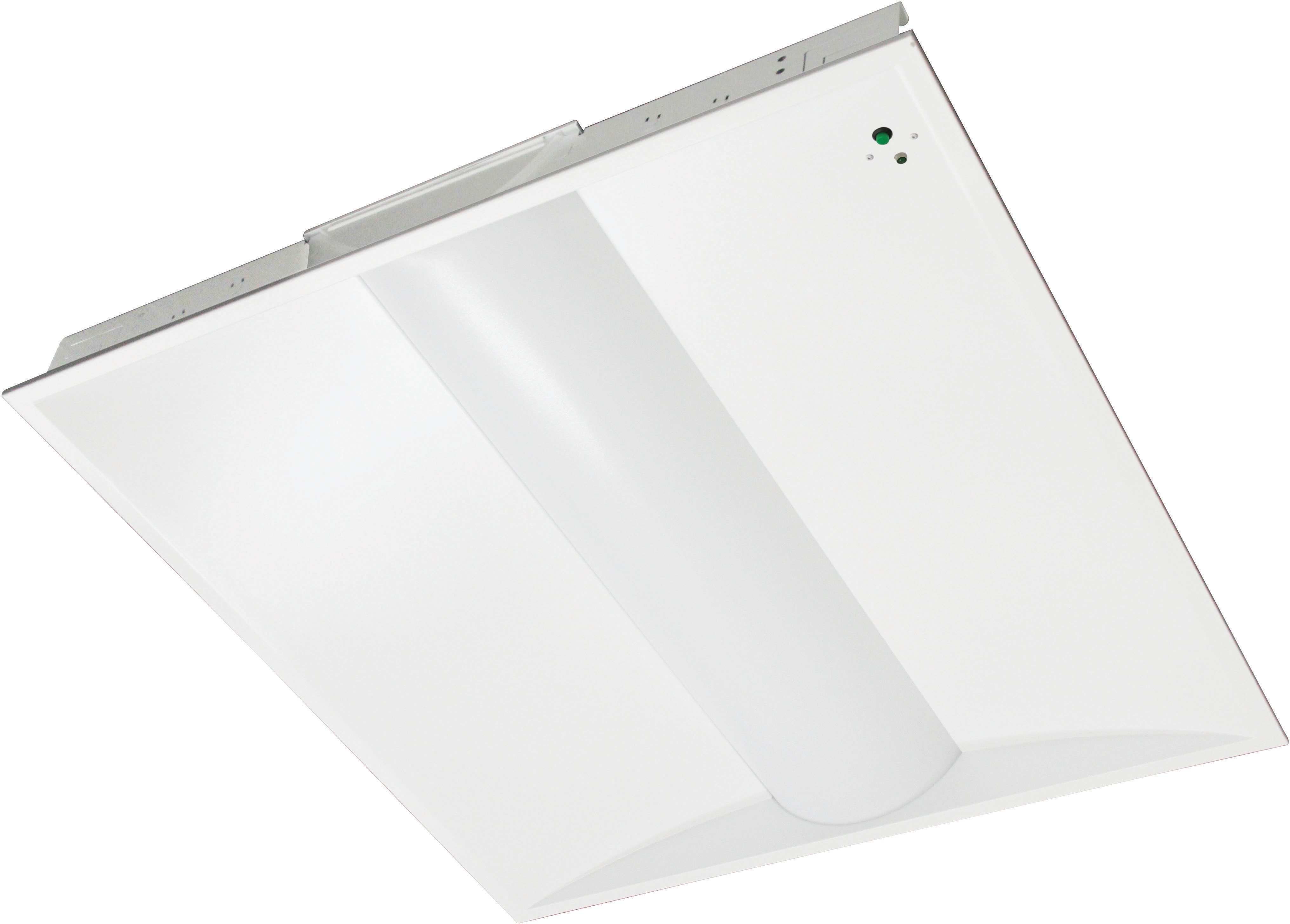

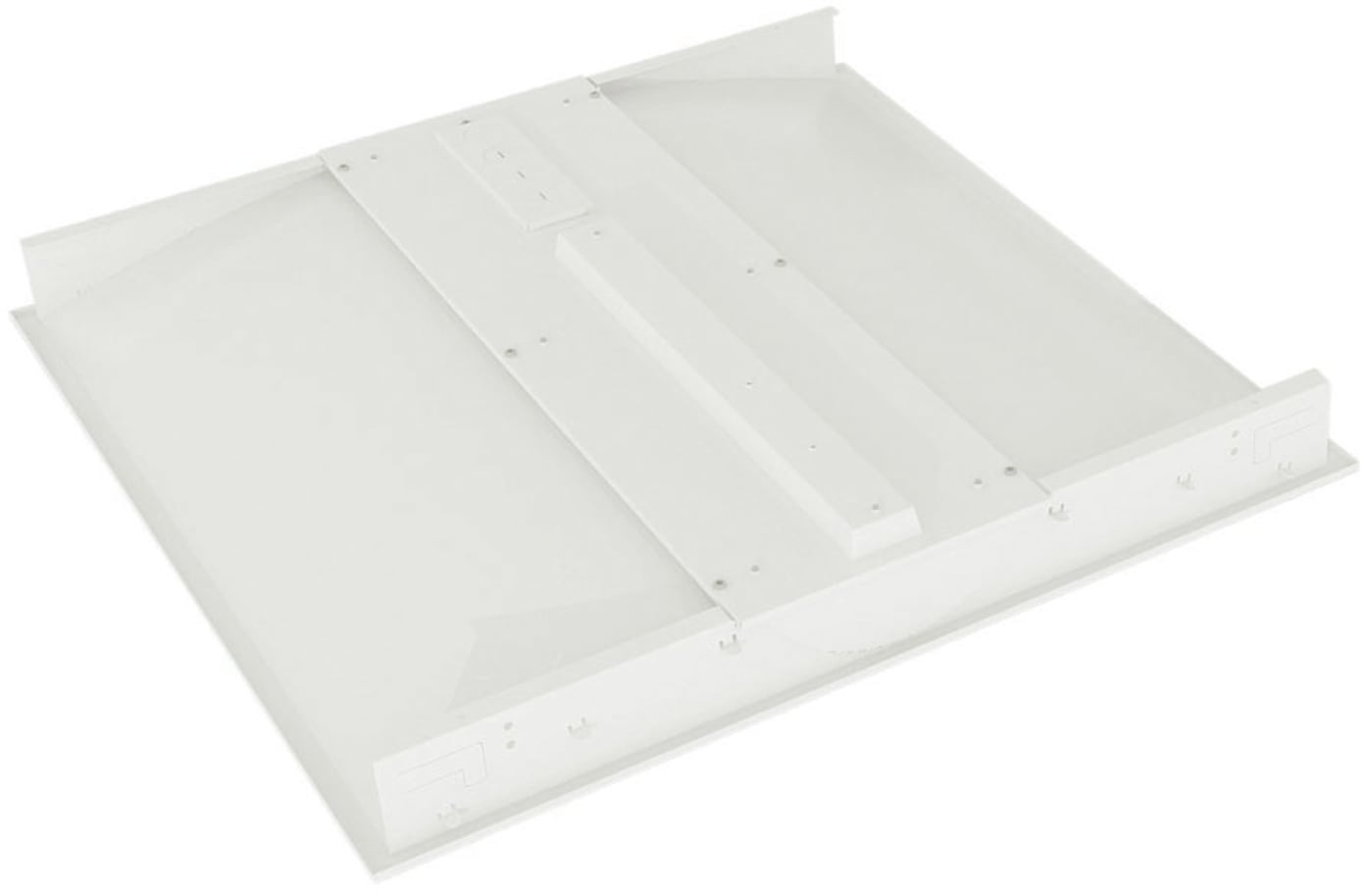

2FT X 2FT EM LED TROFFER 30W

  • LED Emergency Troffer Fixture
  • 30W
  • 2 ft. x 2 ft.
  • 4000K
  • 100-277V
location_rating^damp^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-446 Specifications65-446 Instructions EnSpFr65-446 Wiring without a switched line
Tools
Lighting Layout Analysis For 65-446
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Troffer Fixture; 30W; 2 ft. x 2 ft.; 4000K; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only; Use 120-277V or 347V Dimmers only
MaterialSteel
Fixture TypeCenter Basket Troffer
StatusDiscontinued
StyleUtility
Total Harmonic Distortion13.92%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.300-0.108A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Power Factor0.88
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Color TempCool White
CRI80+
Operating Temp-20C (-4F) to +40C (+104F)
Lumens3750L
Volts120V-277V
Watts30W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
CA RegulationsT20 Non-Compliant - Never Tested
CA Prop 65Lead
CA StatusNon-Compliant
DLC IDPLJXQBZU17AF
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextNon-Compliant
UL ApplicationLED Recessed Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923534461
Case Cube2.6922
Case Height27.09
Case Length25.98
Case Quantity1
Case UPC10045923534468
Case Weight14.77
Case Width6.61
EA Cube2.6922
EA Height27.09
EA Length25.98
EA Quantity1
EA Weight14.77
EA Width6.61
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.75
Web Length23.59
Web Width23.59
