| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming; Use 120-277V or 347V Dimmers only |
| Material | Steel |

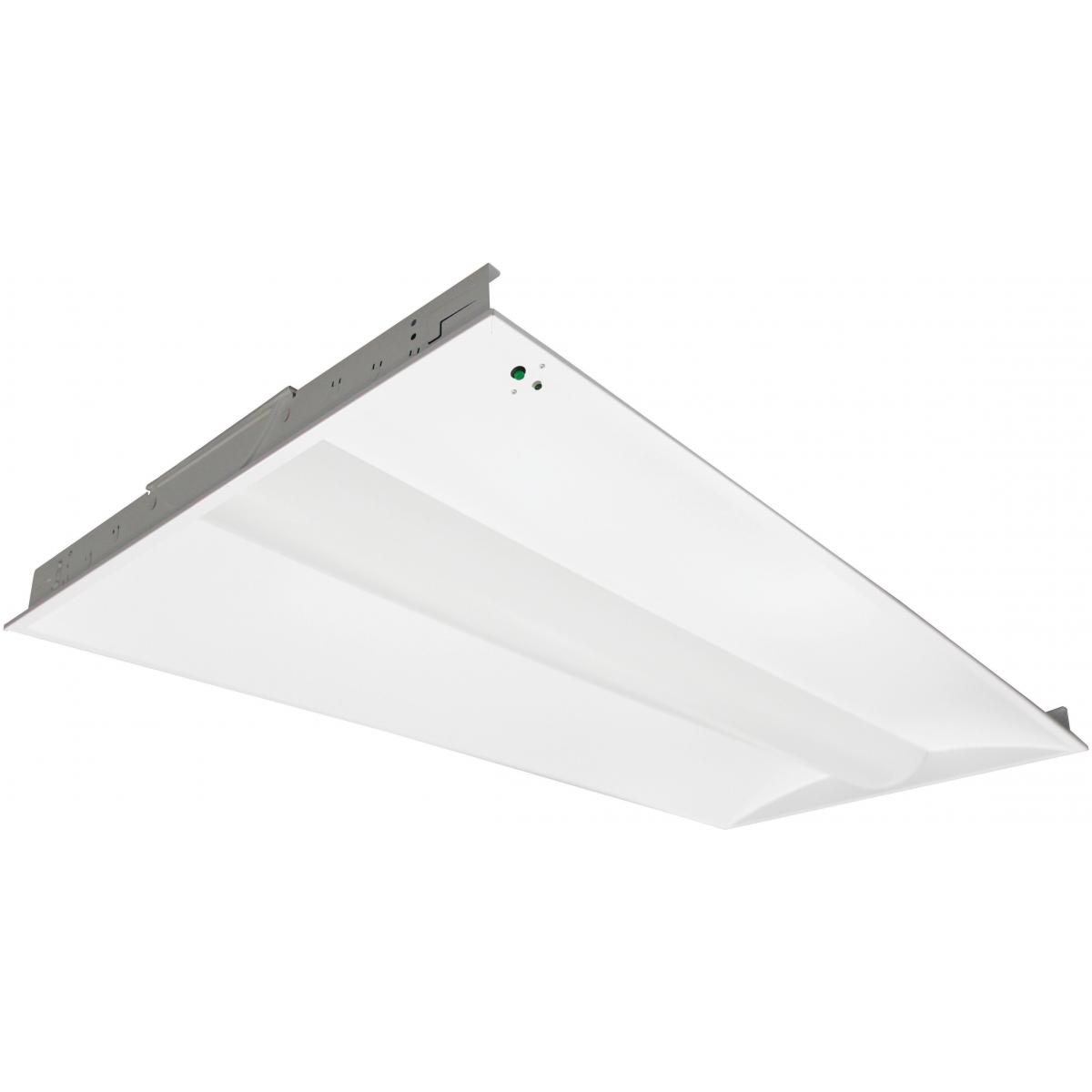

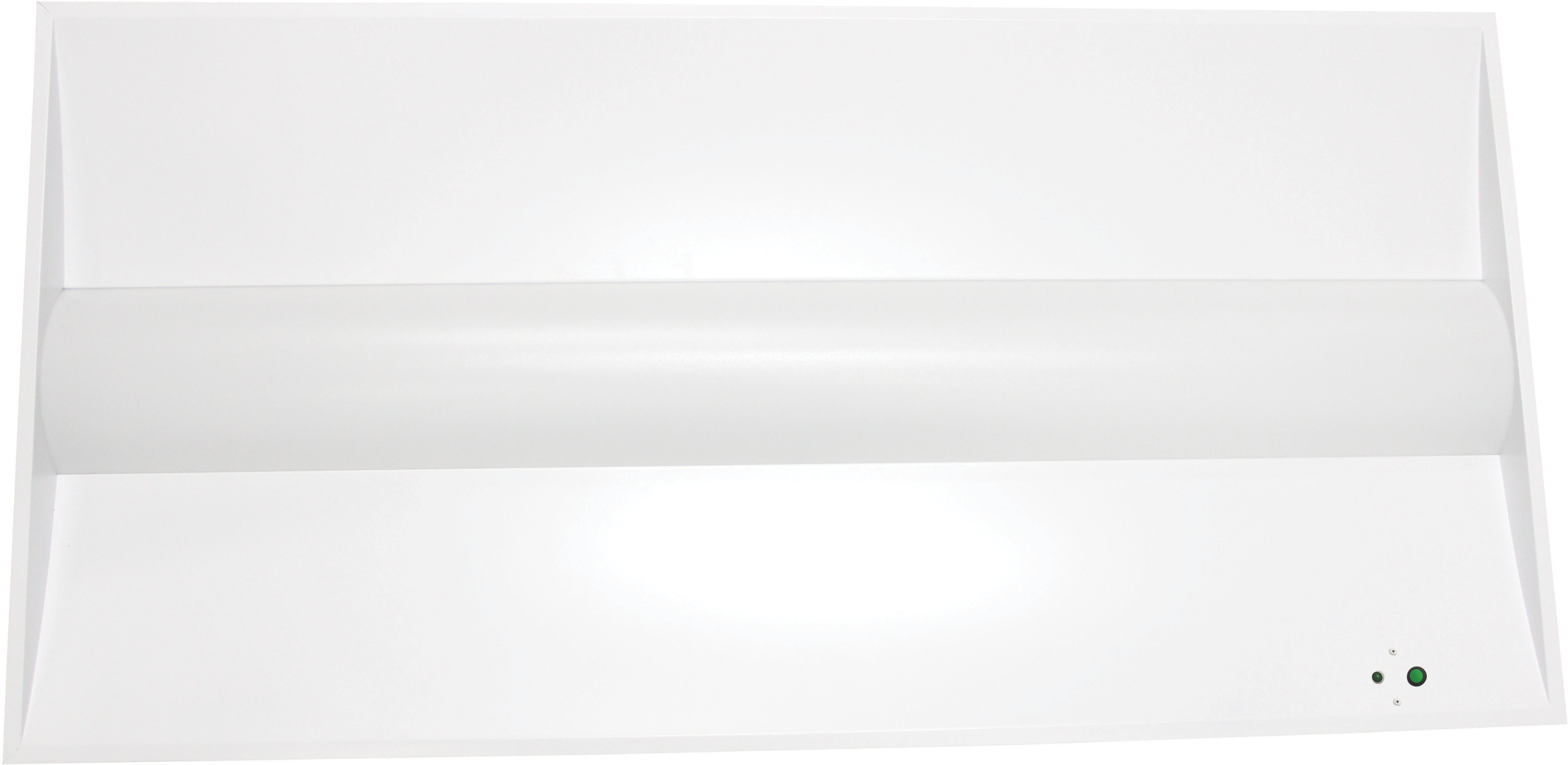

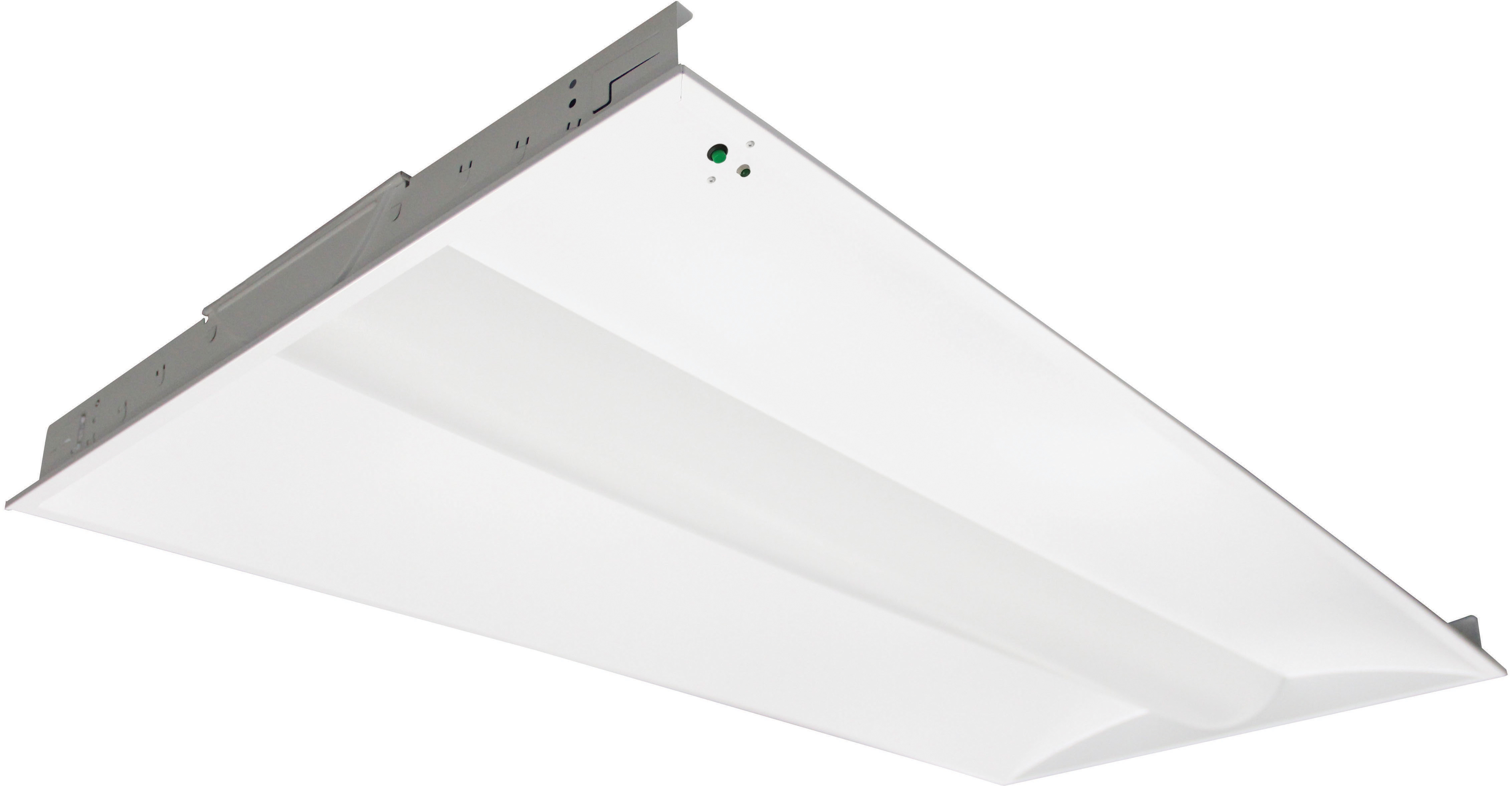

| Fixture Type | Center Basket Troffer |
| Status | Discontinued |
| Style | Utility |
| Total Harmonic Distortion | 12.30% |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.400-0.144A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.92 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 175W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming Only, Use 120-277V or 347V Dimmers only |
| Operating Temp | -20C (-4F) to +40C (+104F) |

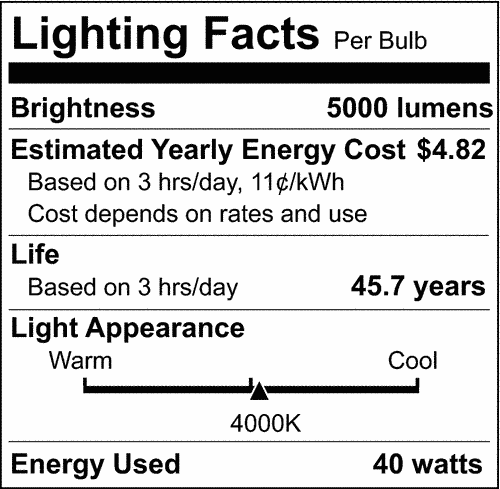

| Lumens | 5000L |
| Volts | 120V-277V |
| Watts | 40W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| Flicker Free | Yes |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | PLHXWCS0RKIG |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Non-Compliant |
| UL Application | LED Recessed Luminaire |
| DLC Approved | Yes |
| Energy Star Certified | No |
| Title 20 | No |
| T24 Compliant | No |
| UPC | 045923534522 |
|---|---|
| Case Cube | 5.1813 |
| Case Height | 27.09 |
| Case Length | 50.0 |
| Case Quantity | 1 |
| Case UPC | 10045923534529 |
| Case Weight | 22.49 |
| Case Width | 6.61 |
| EA Cube | 5.1813 |
| EA Height | 27.09 |
| EA Length | 50.0 |
| EA Quantity | 1 |
| EA Weight | 22.49 |
| EA Width | 6.61 |
| Pack Type | Box |
| Web Height | 2.75 |
| Web Length | 47.59 |
| Web Width | 23.59 |
