65-503

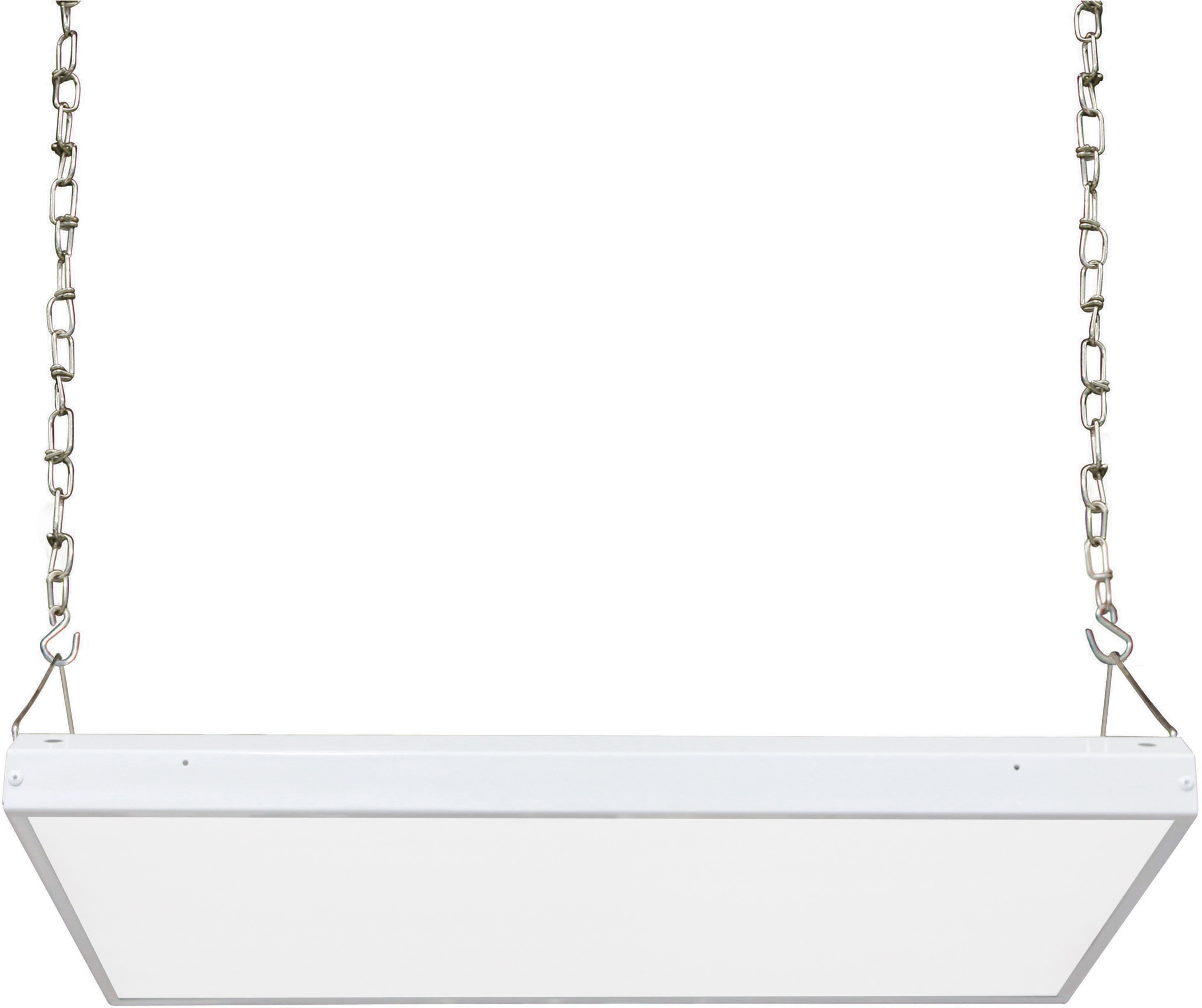

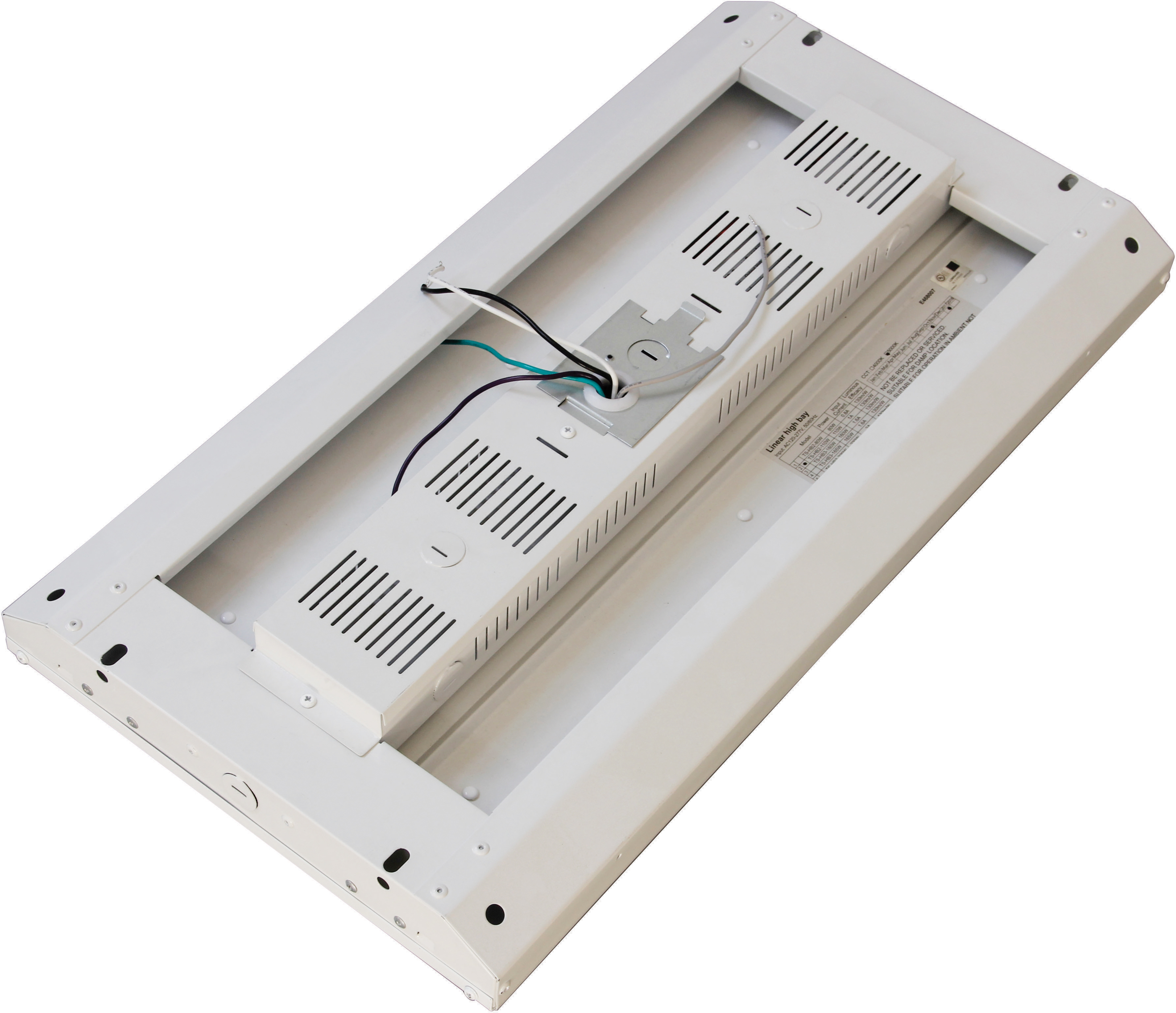

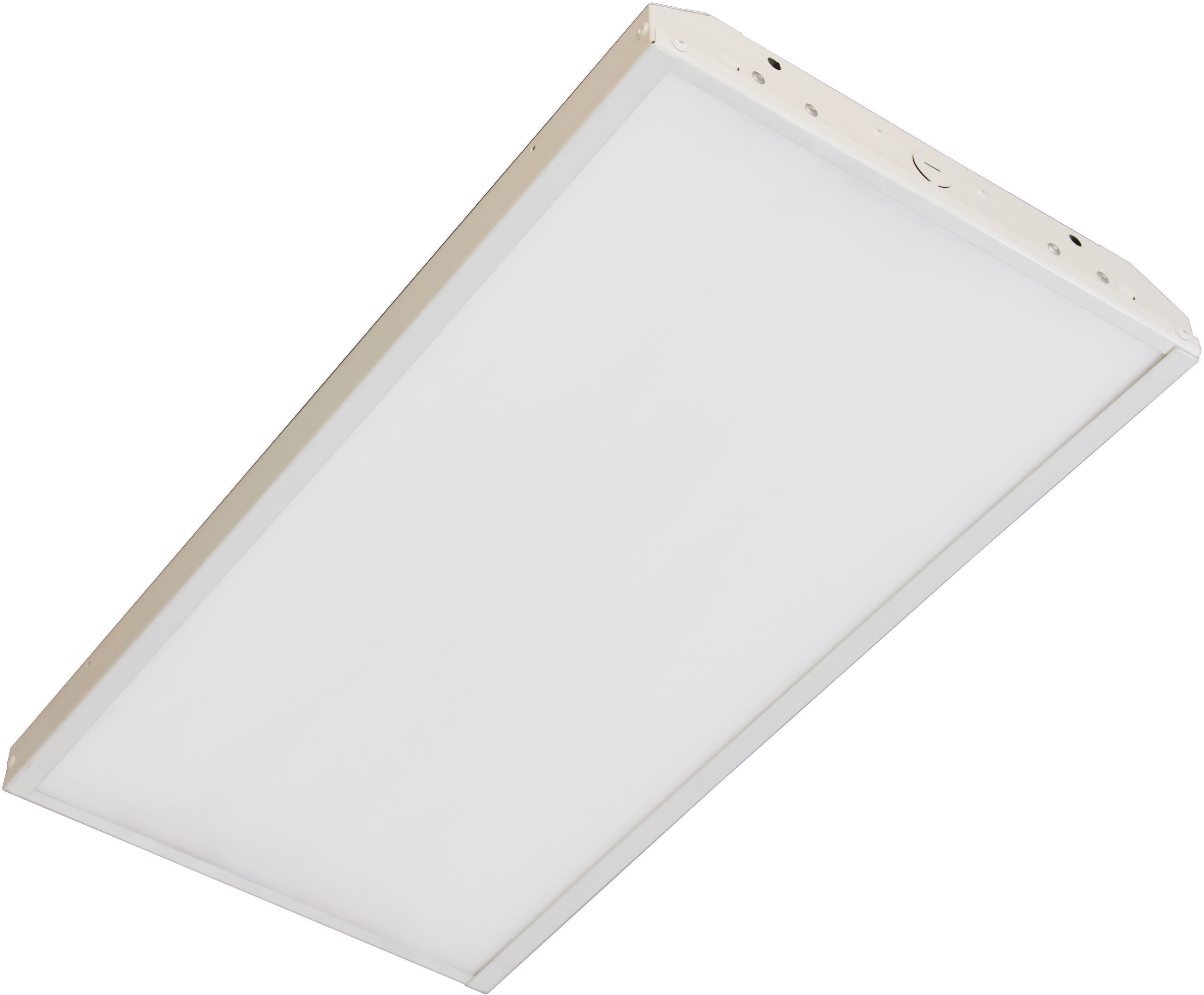

110W LED 2FT LINEAR HI-BAY

  • LED 2 ft. Linear Hi-Bay
  • 110W
  • 4000K
  • 100-277V
location_rating^damp^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-503 Specifications65-503 Instructions EnSpFr65-503 Instructions Kit
Tools
Lighting Layout Analysis For 65-503
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED 2 ft. Linear Hi-Bay; 110W; 4000K; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Chain Length (in)48
Dimmable Text0-10V Dimming Only
MaterialAluminum
Fixture TypeLinear Hi-Bay

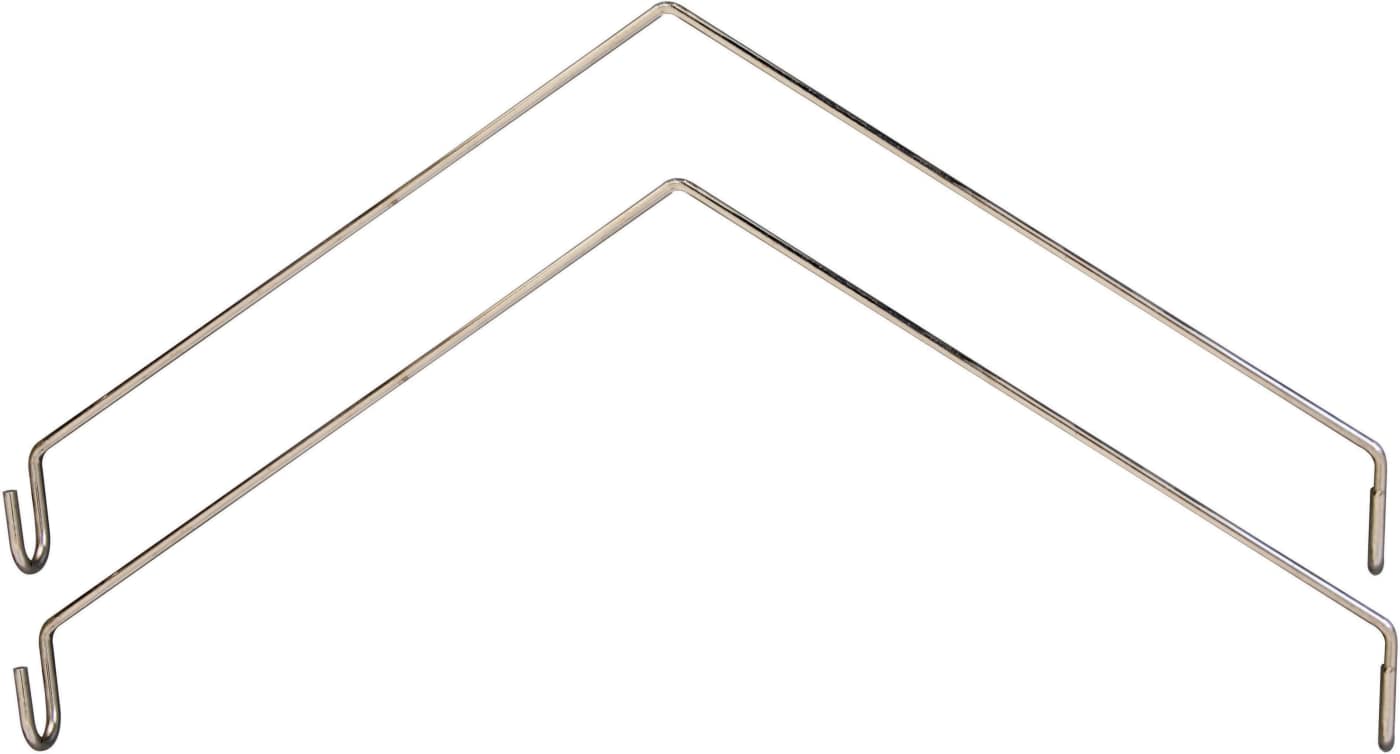

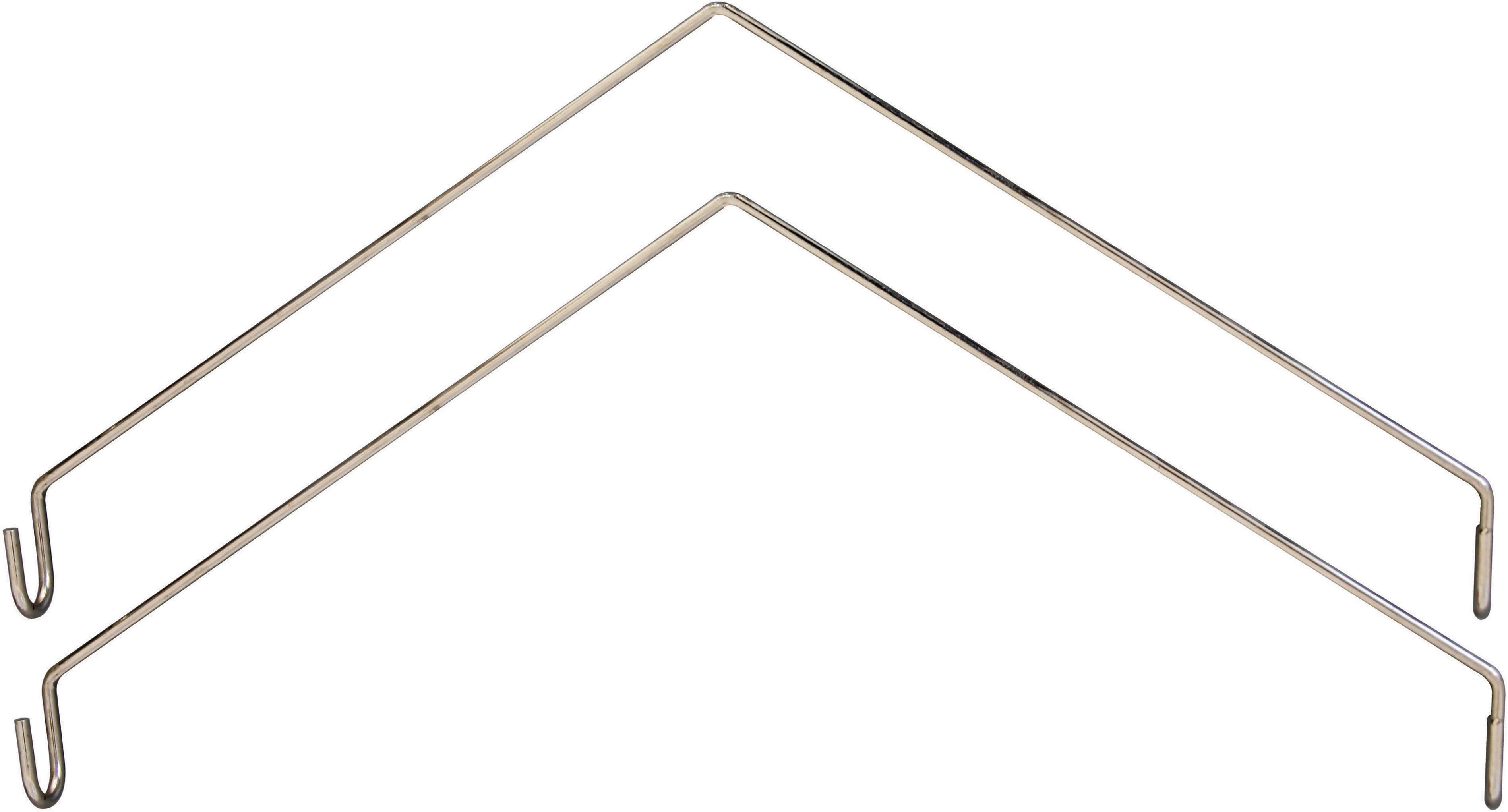

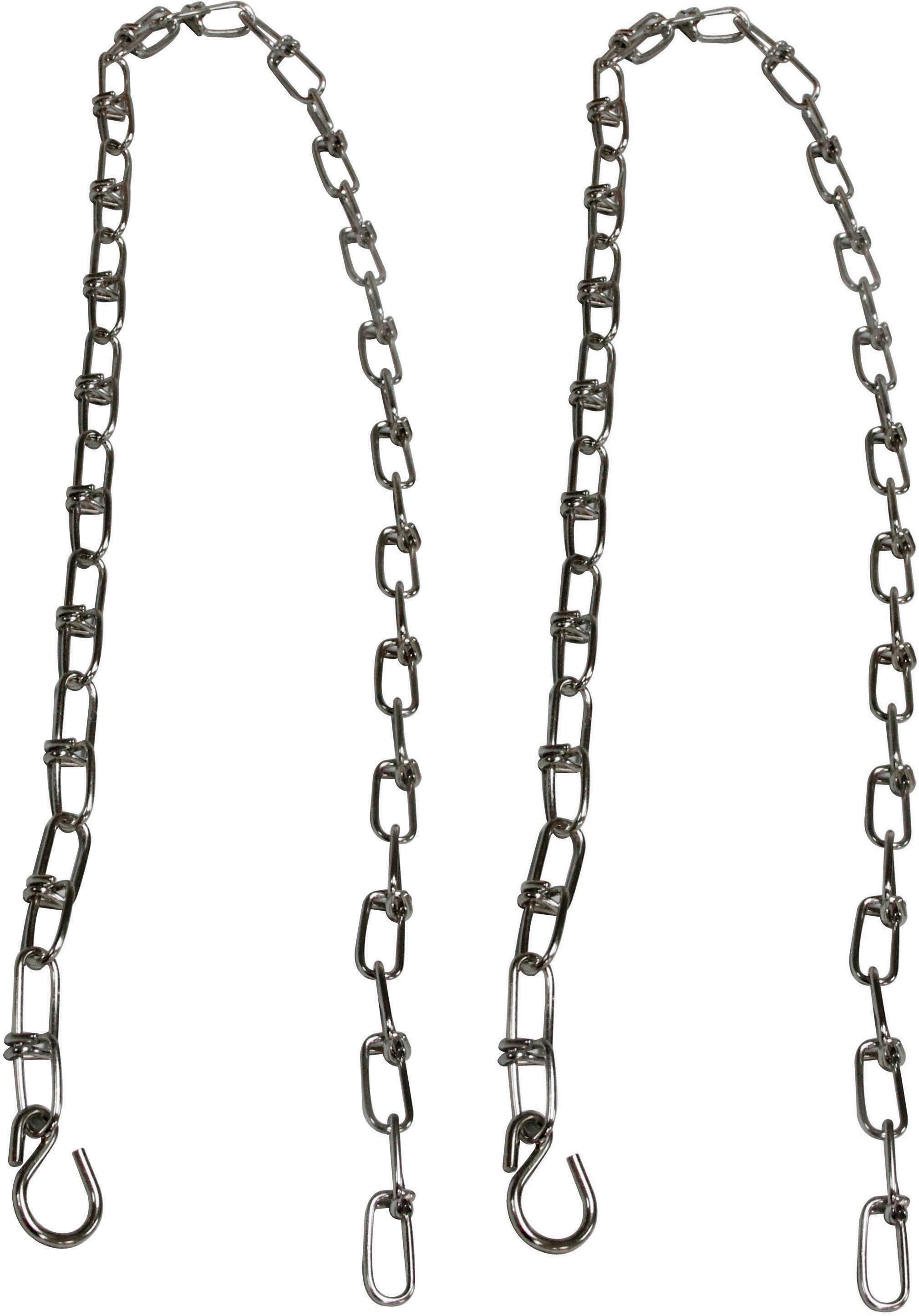

Includes(2) 48 Inch Chain; (2) V-Clips; (1) 1.02 Inch Mounting Bracket
StatusActive
StyleUtility
Total Harmonic Distortion9.30%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Additional InfoIncludes brackets and 48 inch chain
Amps1.100-0.397A
Has CameraFalse
IOT EnabledFalse
Power Factor0.94
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens14850L
Volts120V-277V
Watts110W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPL04BEXRD7VZ
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923535031
Case Cube1.0178
Case Height15.75
Case Length25.79
Case Quantity1
Case UPC10045923535038
Case Weight11.68
Case Width4.33
EA Cube1.0178
EA Height15.75
EA Length25.79
EA Quantity1
EA Weight11.68
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

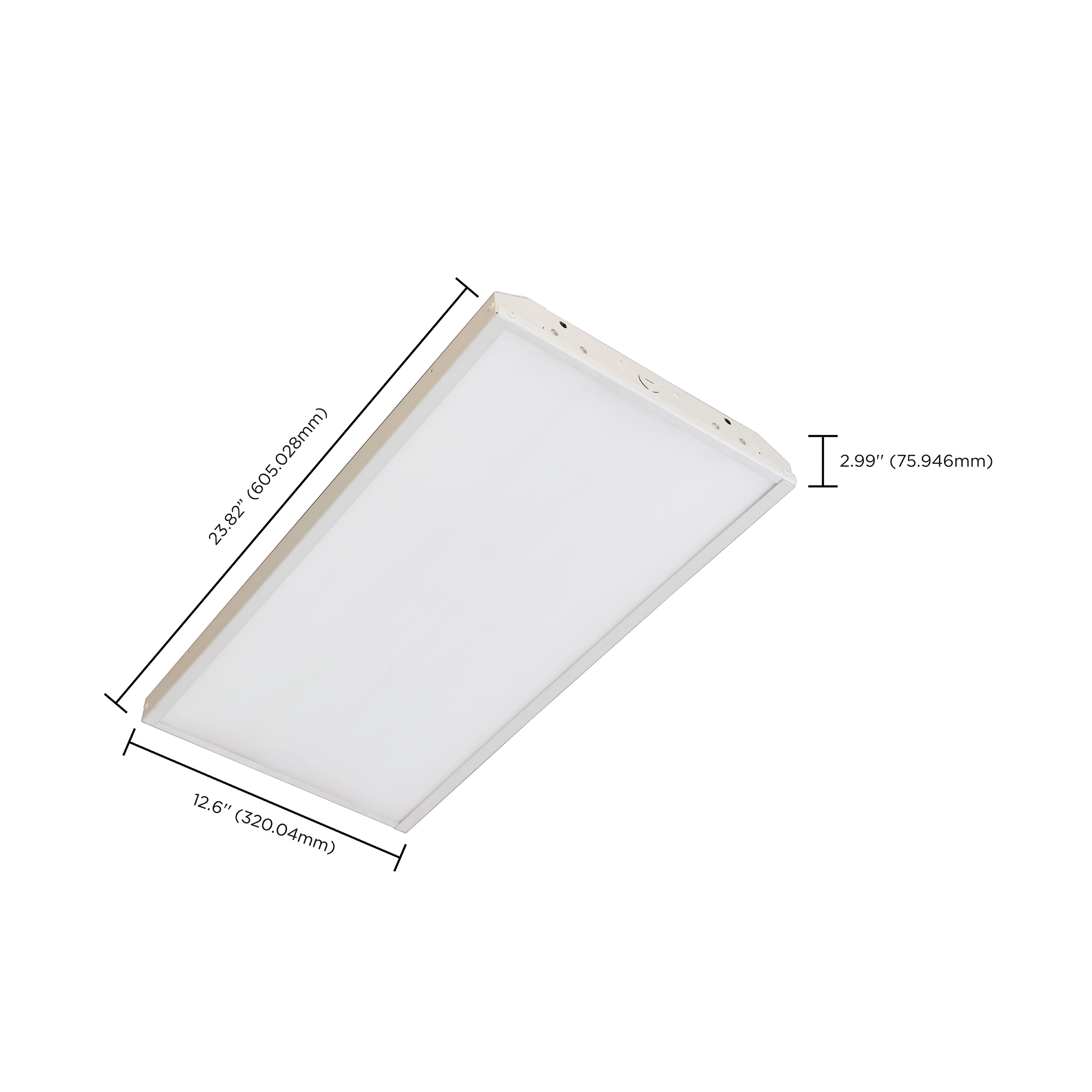

Web Height2.99
Web Length23.82
Web Width12.6
