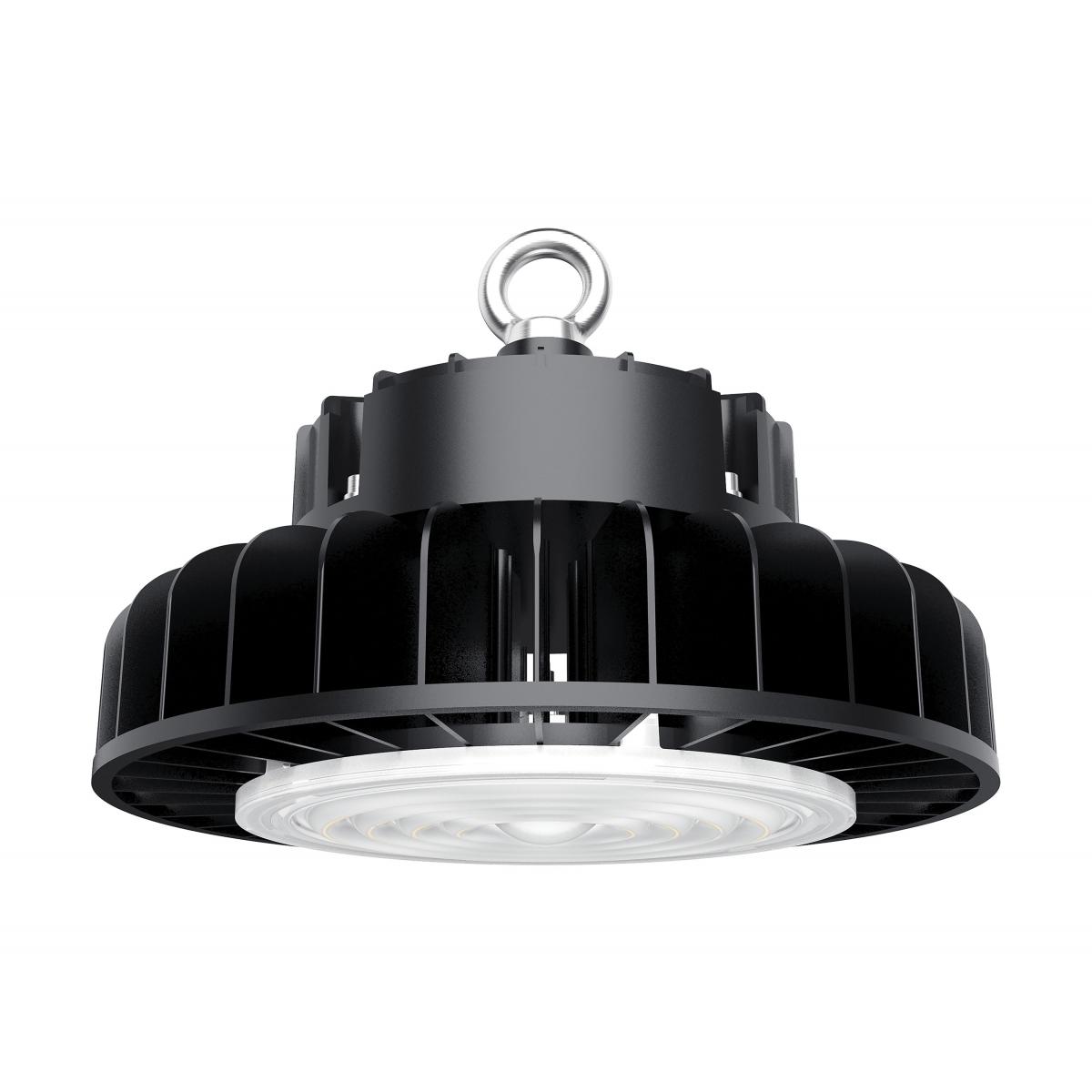

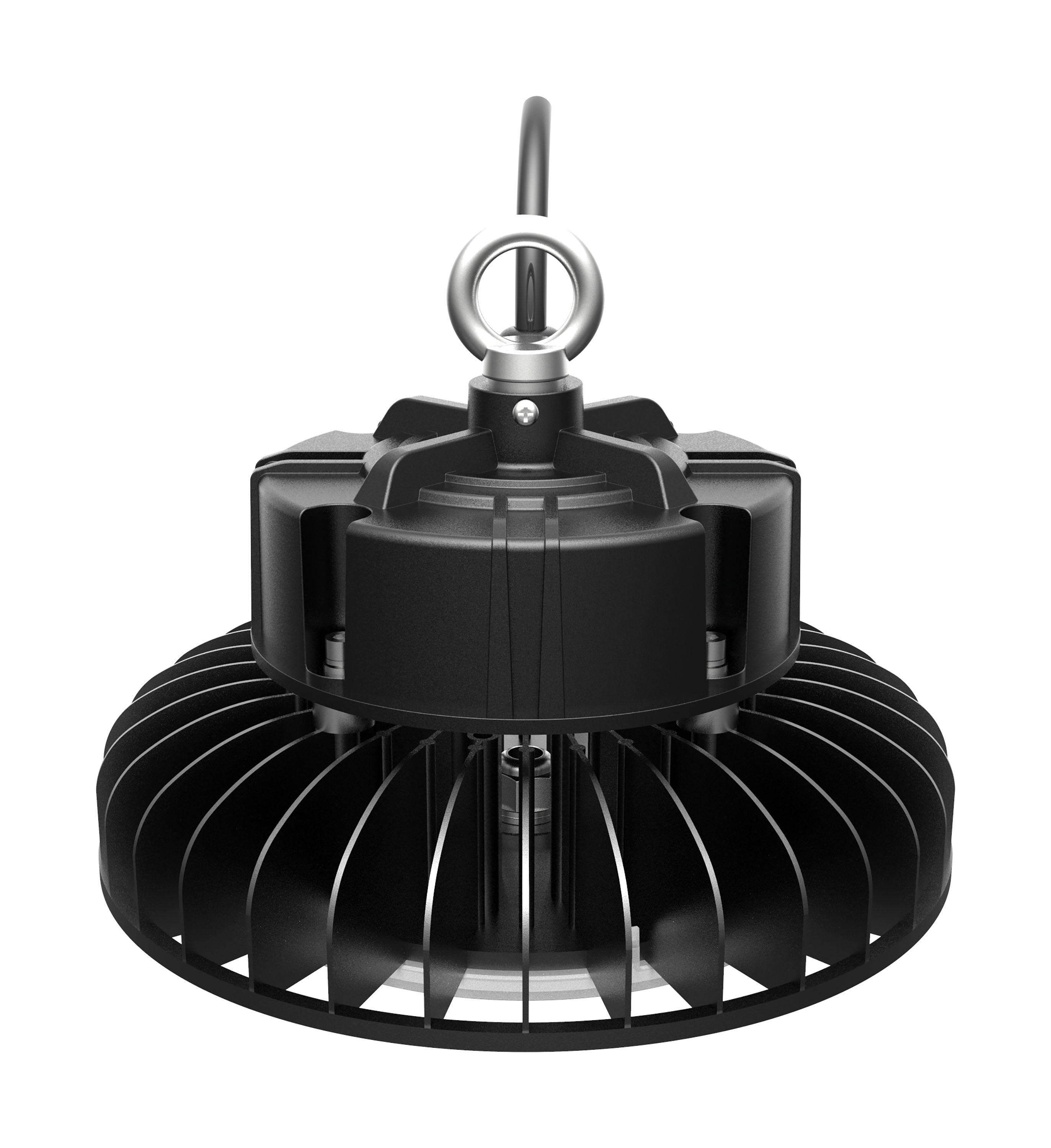

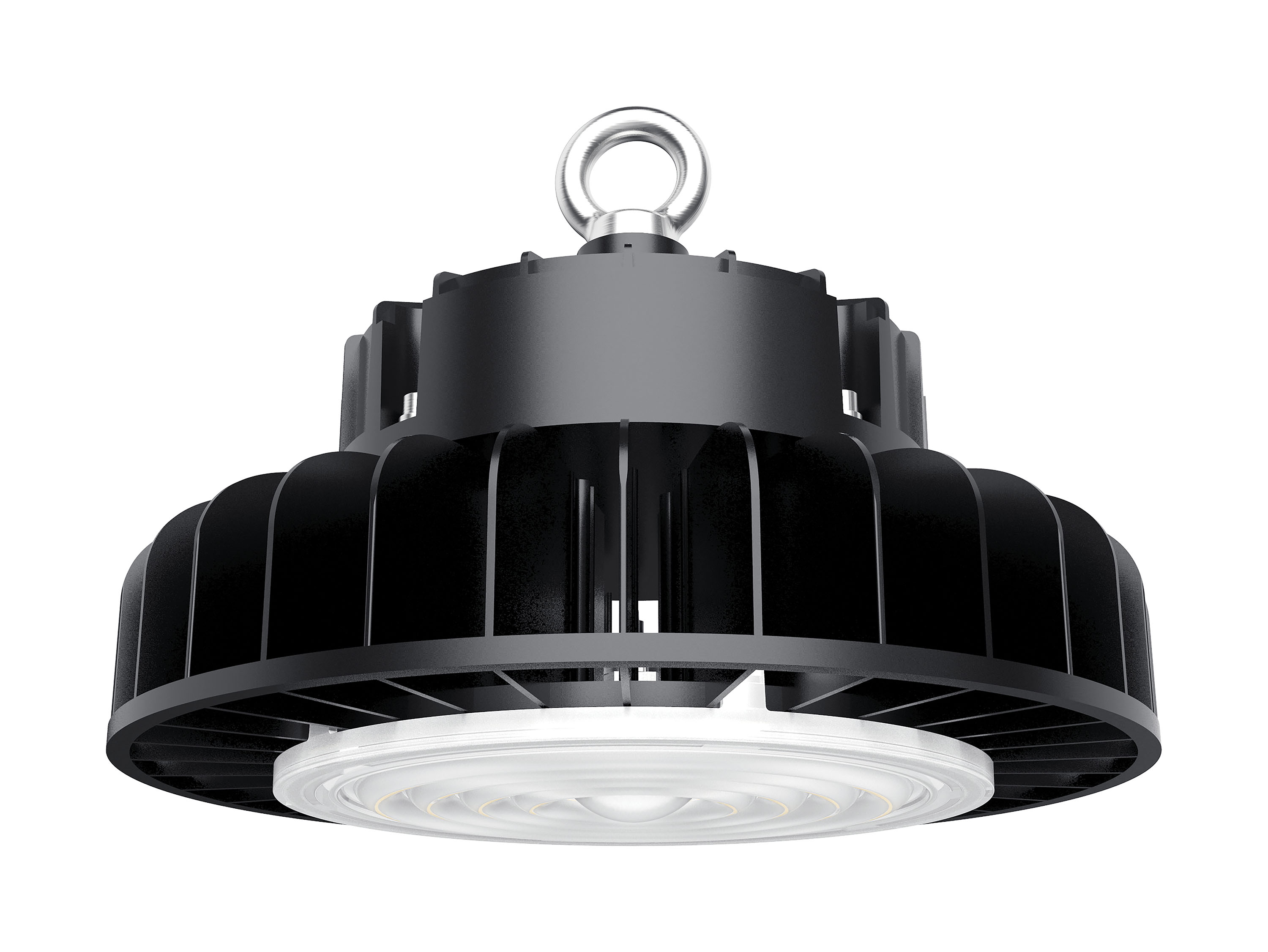

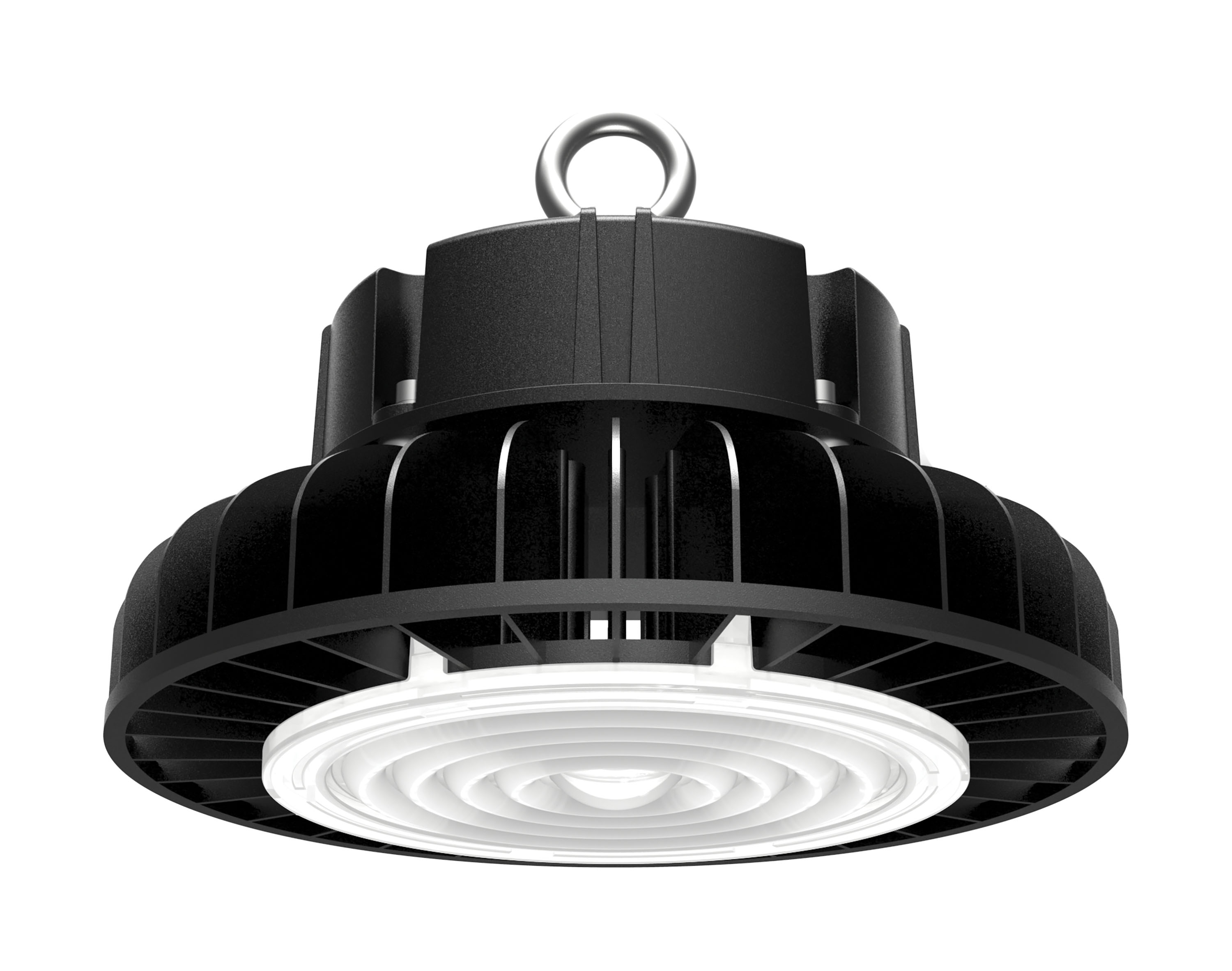

65-524 LED UFO HIGHBAY - 150W/5000K

65-524

LED UFO HIGHBAY - 150W/5000K

LED High bay; 150W; 5000K; 277/480V; Black Finish


Satco's 150-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in a black finish and delivers 50,000 hours of natural white light.
  • Diameter: 9.44 inches, Height: 7.41 inches
  • Black Finish
  • Round Shape
  • 5000K Natural White Light
  • Material: Aluminum Alloy
  • Lens Material: Polycarbonate
  • 19,500 lumens
  • 120 degree beam spread
  • 5-year limited warranty
Lights

65-524

LED UFO HIGHBAY - 150W/5000K

LED High bay; 150W; 5000K; 277/480V; Black Finish

Satco's 150-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in a black finish and delivers 50,000 hours of natural white light.
  • Diameter: 9.44 inches, Height: 7.41 inches
  • Black Finish
  • Round Shape
  • 5000K Natural White Light
  • Material: Aluminum Alloy
  • Lens Material: Polycarbonate
  • 19,500 lumens
  • 120 degree beam spread
  • 5-year limited warranty

Specifications

General
StatusDiscontinued
Fixture TypeUFO Hi-Bay
FinishBlack
Wattage150W
Lumen Output19500L
CCT (Kelvin)5000K
IP RatingIP65
Specifications
TechnologyLED
Wattage150W
Lumen Output19500L
CCT (Kelvin)5000K
Color TemperatureNatural Light
CRI70+
Voltage277V-480V
Beam Angle120
Rated Hours50000
Operating Temperature-30C (-22F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Lens MaterialPolycarbonate (PC)
Surge Protection4kV line-line, 4kV line-earth
Weight (lb.)6.17
IP RatingIP65
MaterialAluminum Alloy
Dimensions
Height (in.)7.41
Width (in.)9.44
Compliance
Safety ListingcETLus
Location RatingWet
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923683213
Each Quantity1
Each Length (in.)11.02
Each Width (in.)11.02
Each Height (in.)9.65
Each Weight (lb.)7.27
Each Cube (CuFt.)0.6782
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923683210
Case Quantity1
Case Length (in.)11.41
Case Width (in.)11.41
Case Height (in.)9.84
Case Weight (lb.)7.27
Case Cube (CuFt.)0.7413
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer LeGrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Lutron DVTV + PP347H 347V ONLY Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
