65-555

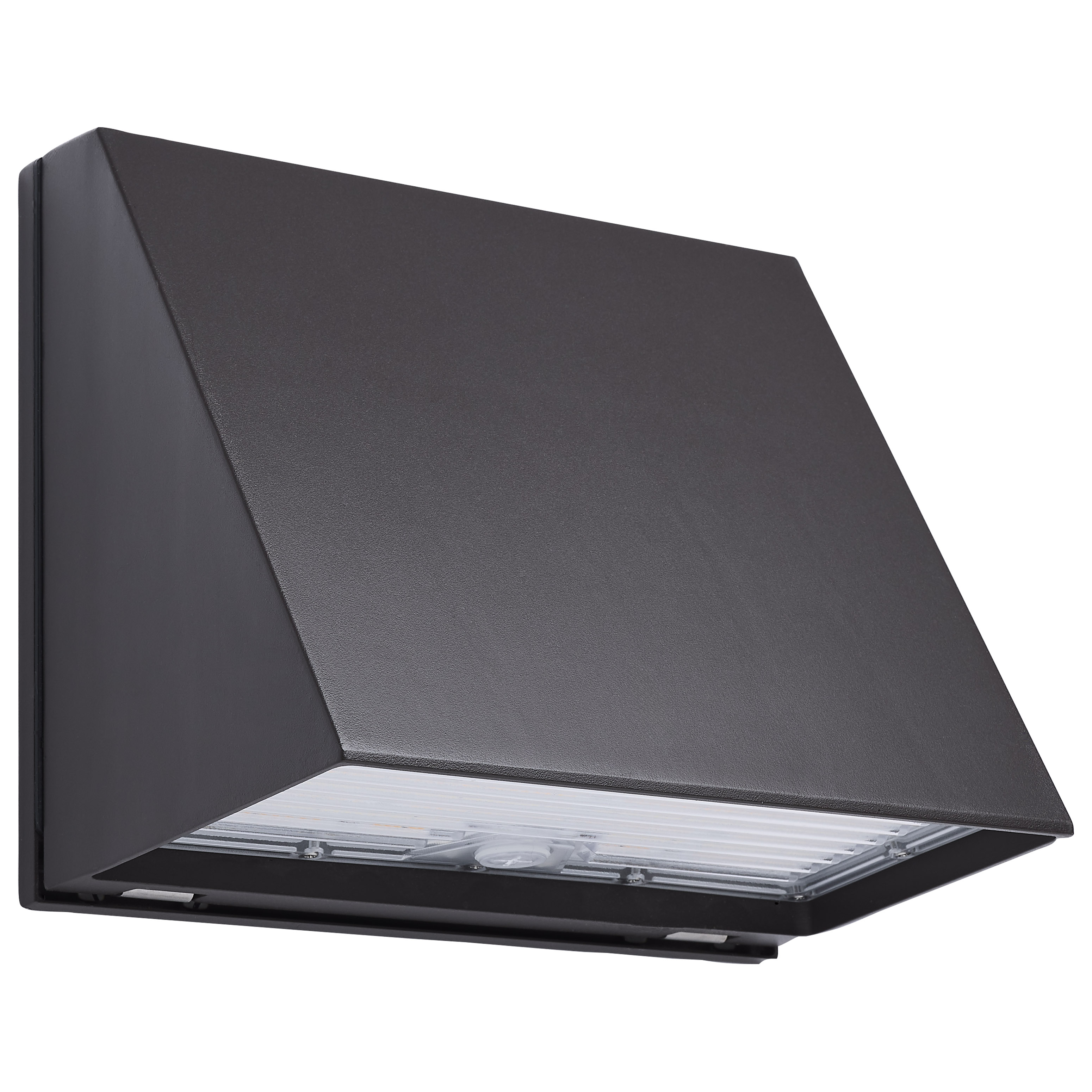

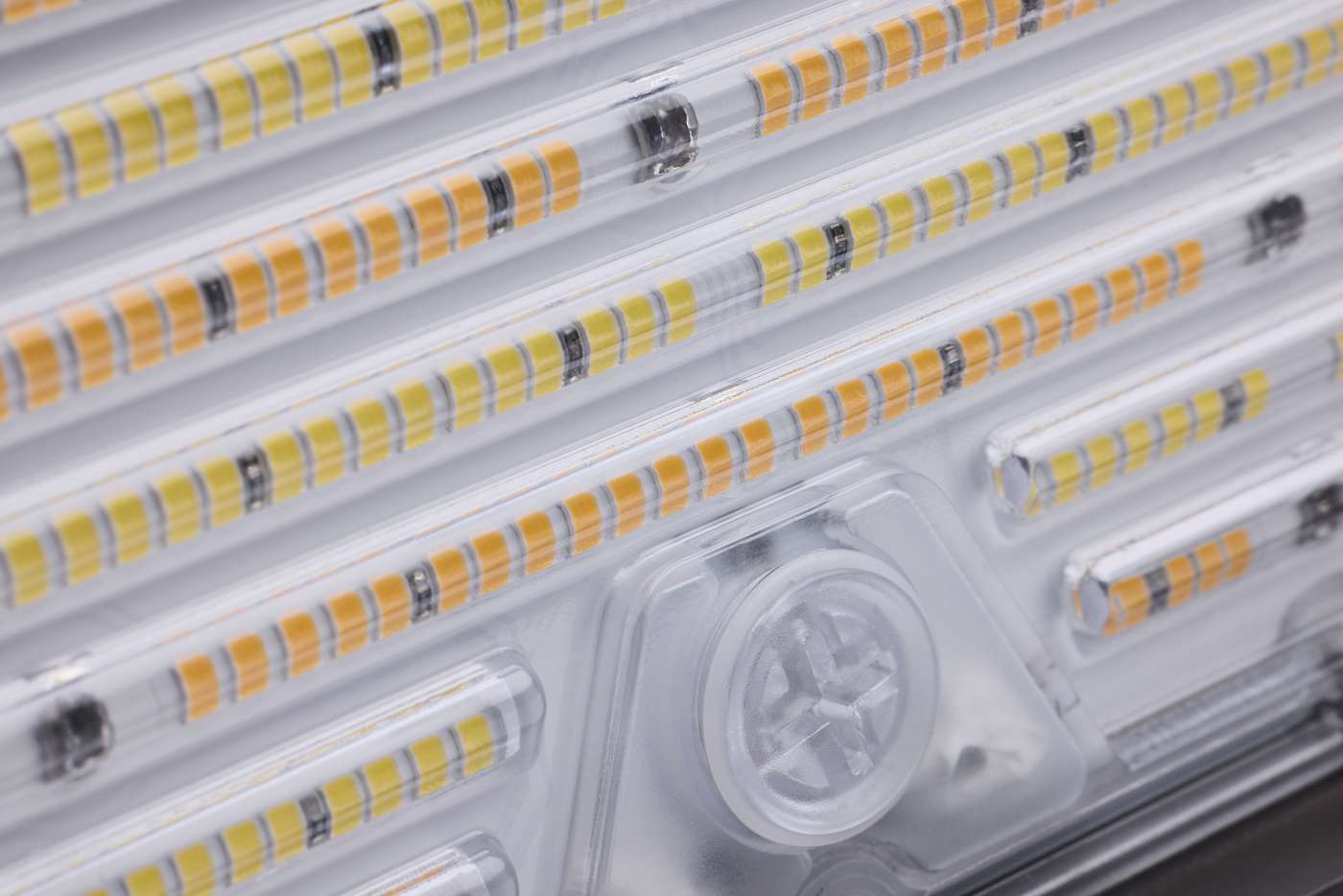

LED FULL CUTOFF WALL PACK

  • 20/40/60 Watt LED Cutoff Wall Pack
  • 3K/4K/5K CCT

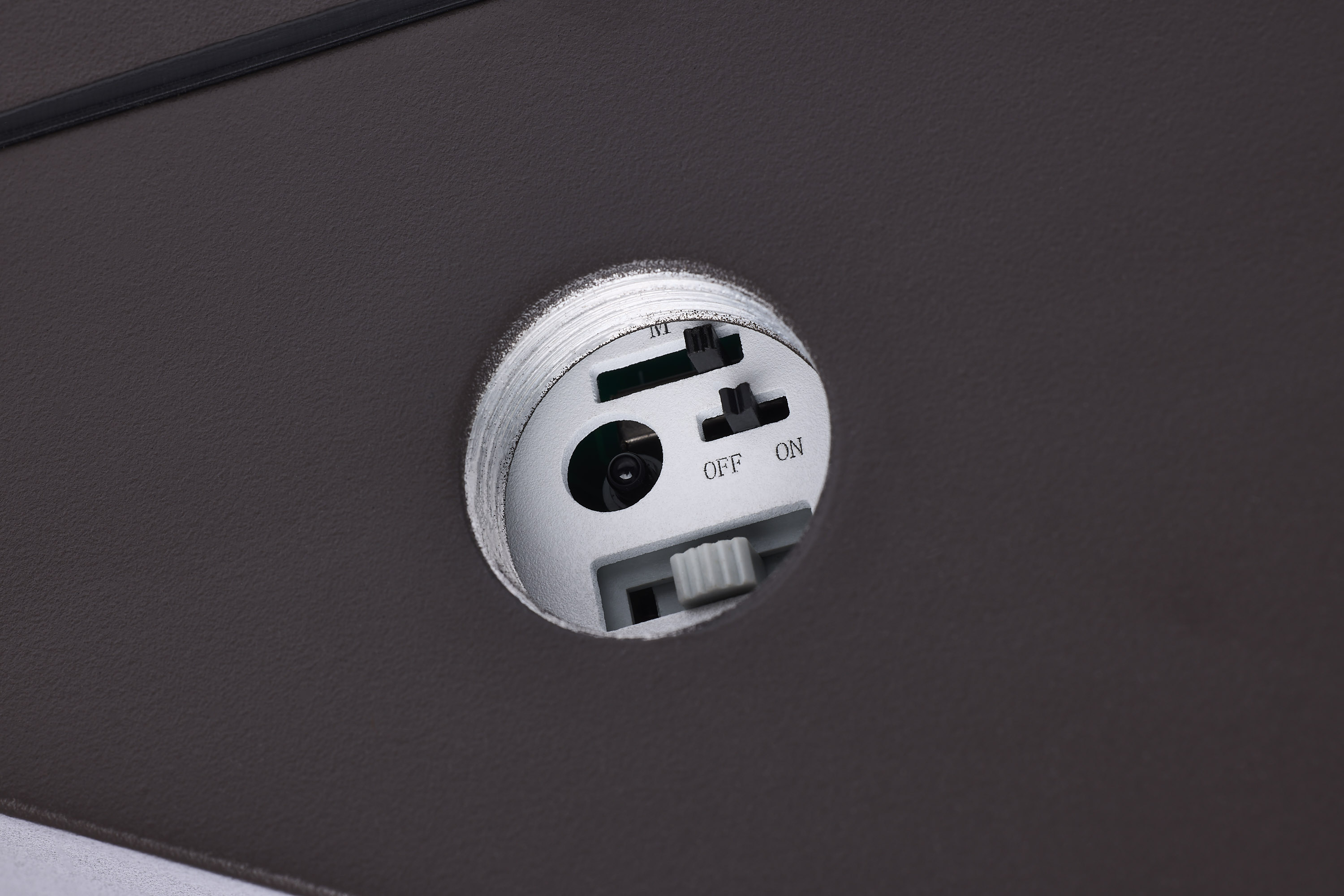

  • Field Selectable
  • Bronze
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-555 Specifications65-555 Instructions65-555 Spec Chart
Tools
Lighting Layout Analysis For 65-555
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming

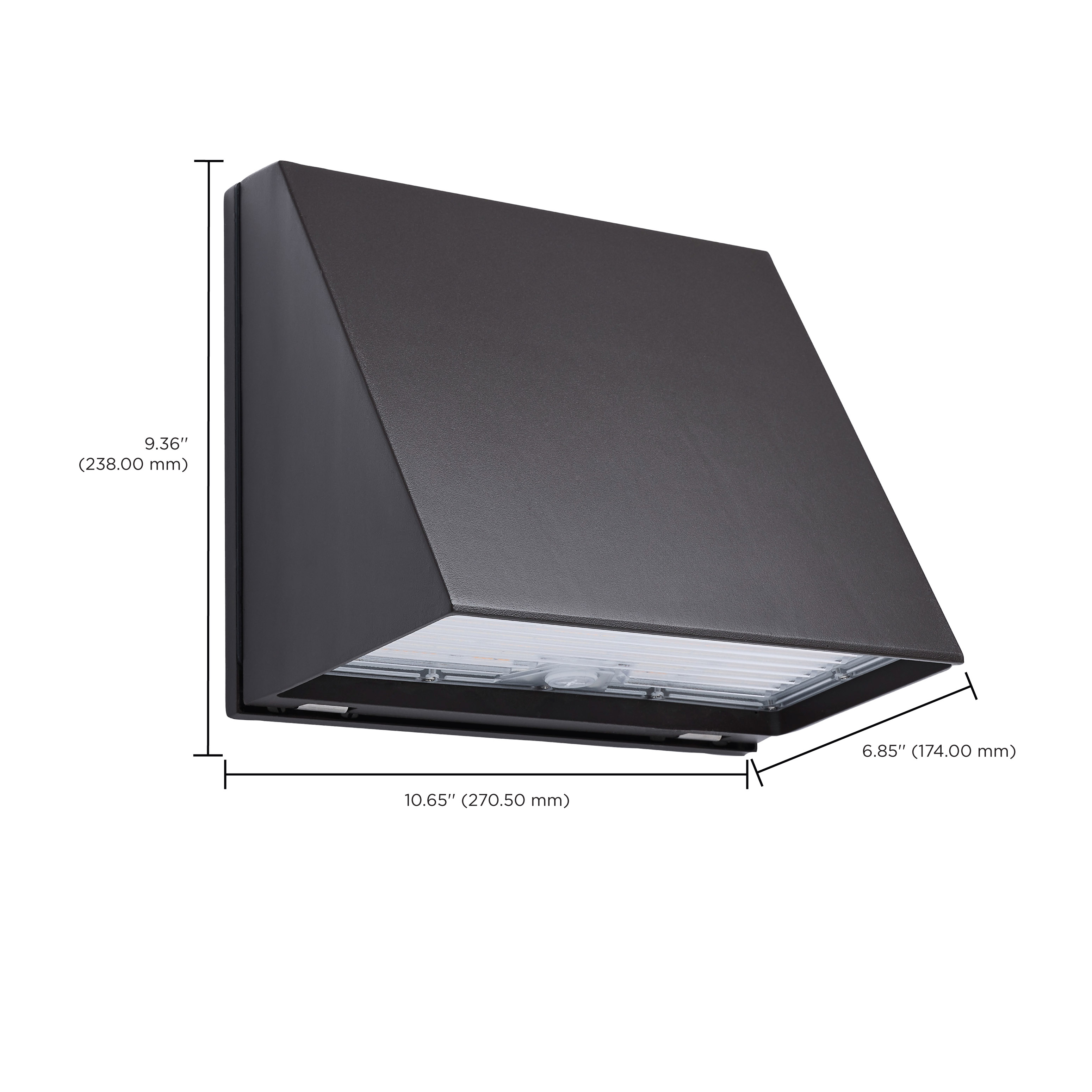

Extends (in)6.85
MaterialDie-cast Aluminum
Fixture TypeWall Pack
Product NotesType II Light Distribution
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBronze
Amps0.167-0.058/0.333-0.115/0.500-0.173A
Has CameraFalse
IOT EnabledFalse
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)

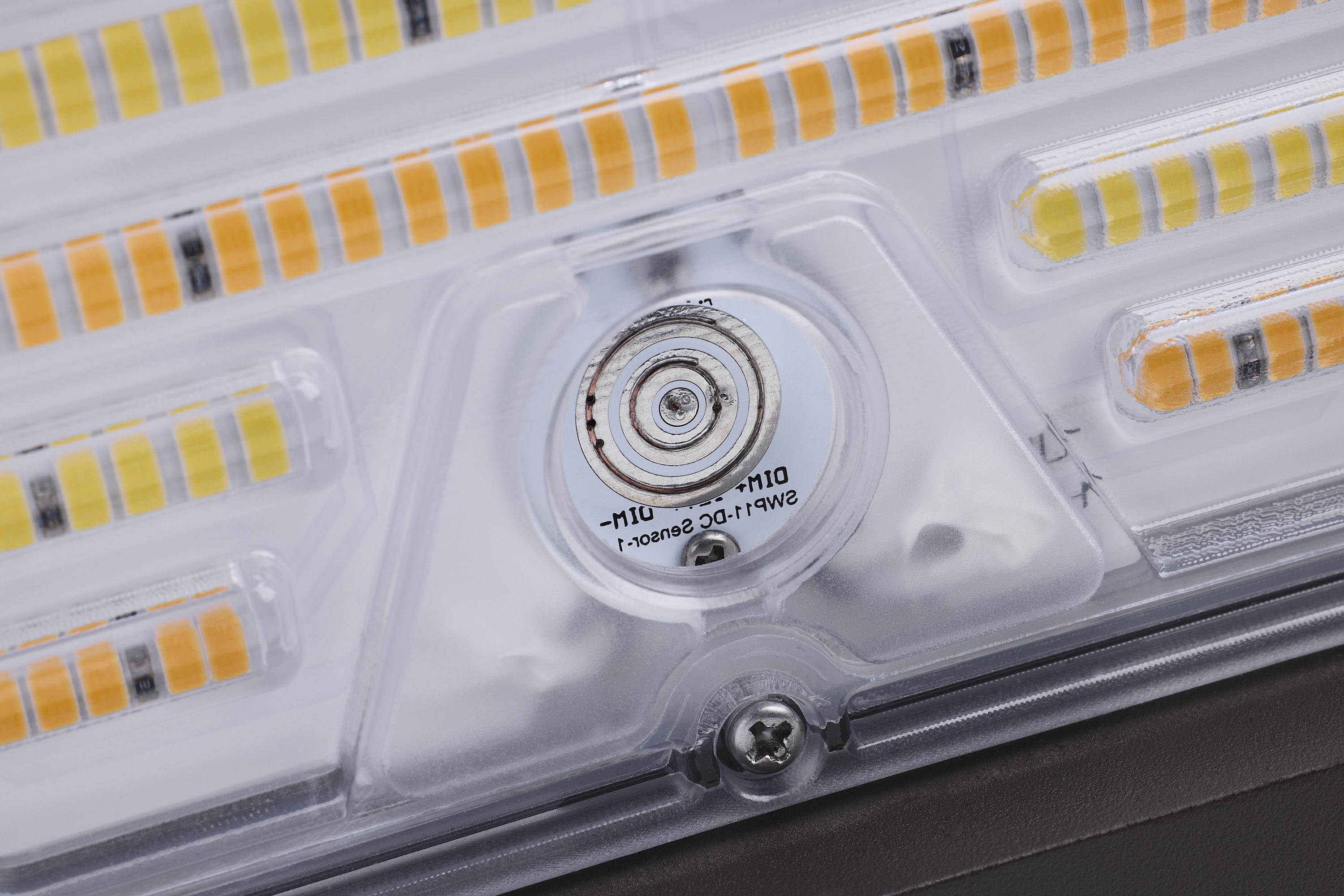

Photo CellYes - Bypassable
Power Factor>0.9
Indoor OutdoorOutdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)108
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent250W
Lumens3056L-8421L
Volts120V-347V
Watts20W/40W/60W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
ADA CompliantFalse
Bug RatingB2-U0-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-45Y2JF
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923434150
Case Cube0.8212
Case Height8.46
Case Length13.27
Case Quantity1
Case UPC10045923434157
Case Weight9.9
Case Width12.64
EA Cube0.8212
EA Height8.46
EA Length13.27
EA Quantity1
EA Weight9.9
EA Width12.64
Inner Cube0.0
Pack TypeBox
Web Height9.36
Web Width10.65
