65-556

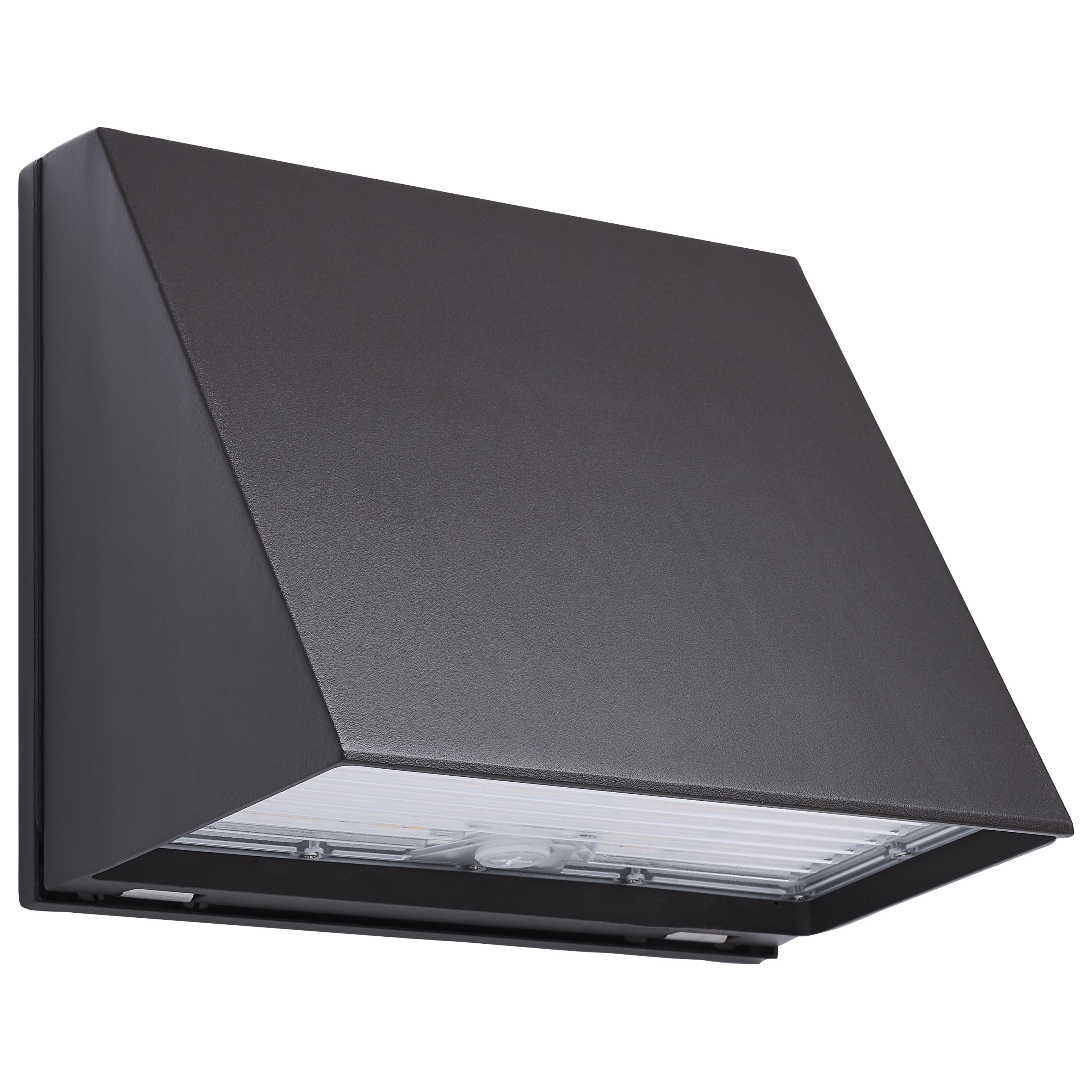

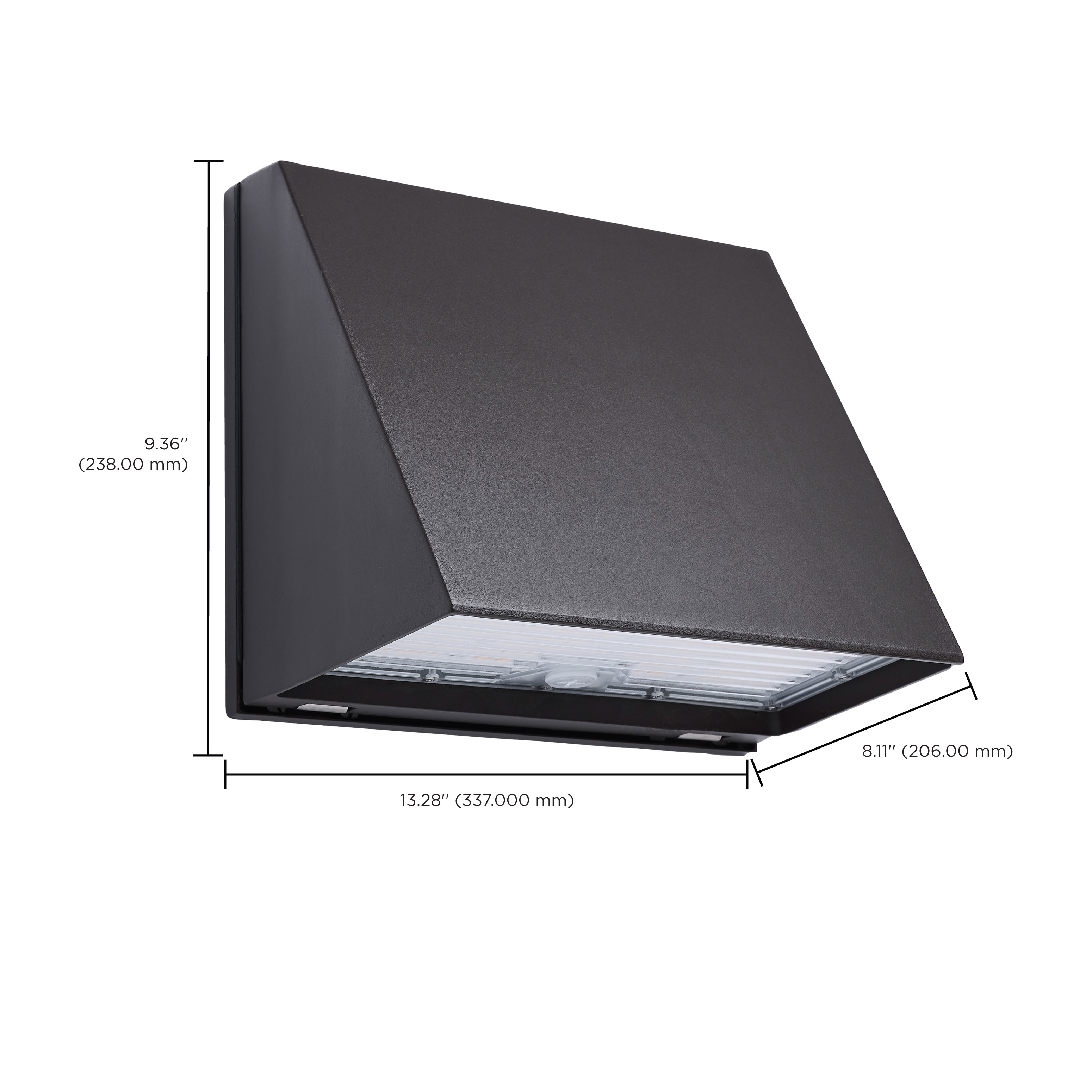

LED FULL CUTOFF WALL PACK

  • 80/100/120 Watt LED Cutoff Wall Pack
  • 3K/4K/5K CCT
  • Field Selectable
  • Bronze
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-556 Specifications65-556 Instructions65-556 Spec Chart
Tools
Lighting Layout Analysis For 65-556
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming
Extends (in)8.11
MaterialDie-cast Aluminum
Fixture TypeWall Pack
Product NotesType II Light Distribution
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBronze
Amps0.667-0.231/0.833-0.288/1.000-0.346A
Has CameraFalse
IOT EnabledFalse
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)

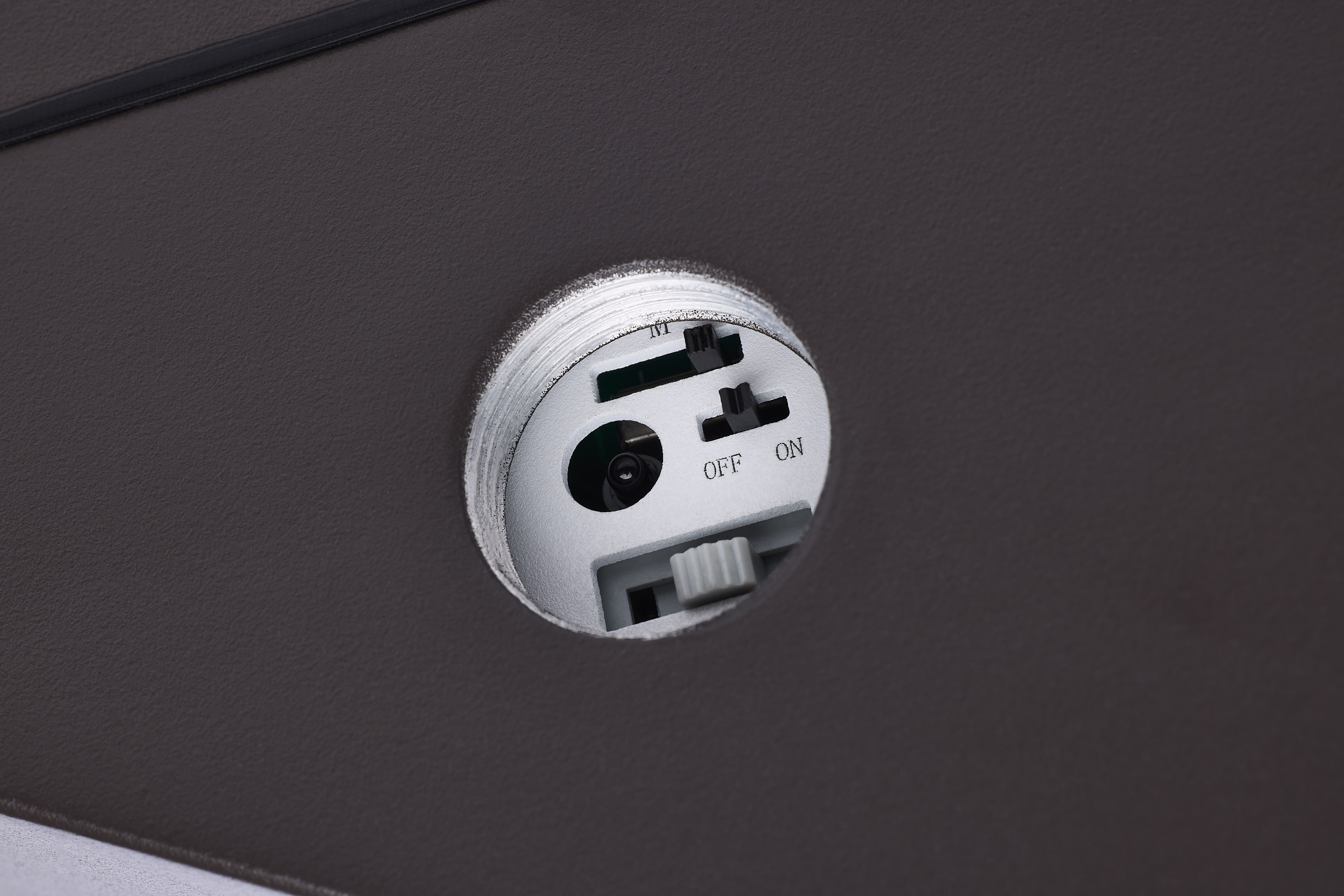

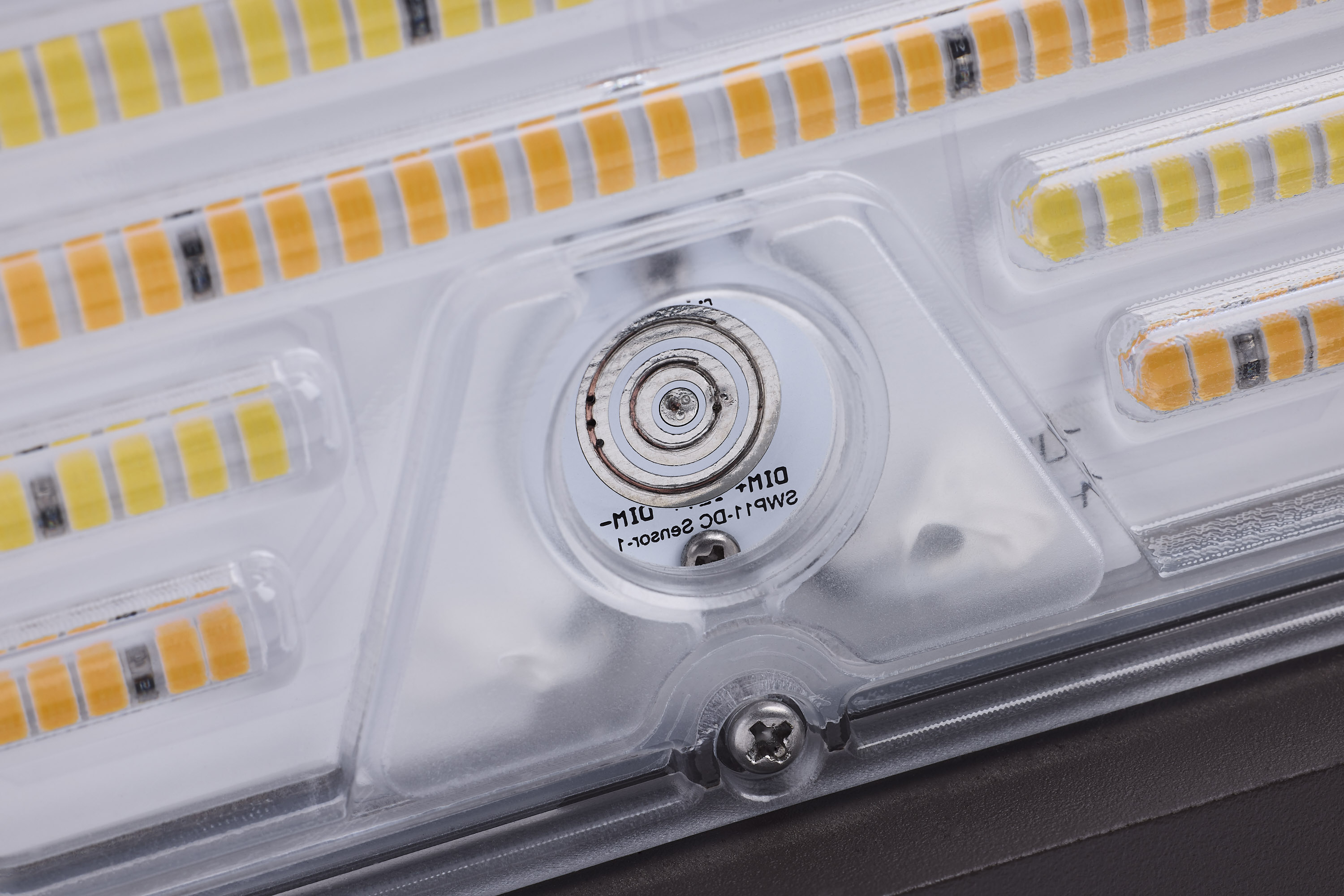

Photo CellYes - Bypassable
Power Factor>0.9
Indoor OutdoorOutdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)106
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent400W
Lumens12107L-17789L
Volts120V-347V
Watts80W/100W/120W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
ADA CompliantFalse
Bug RatingB2-U0-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-CW1MVQ
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923434167
Case Cube1.1803
Case Height9.45
Case Length15.35
Case Quantity1
Case UPC10045923434164
Case Weight12.2
Case Width14.06
EA Cube1.1803
EA Height9.45
EA Length15.35
EA Quantity1
EA Weight12.2
EA Width14.06
Inner Cube0.0
Pack TypeBox
Web Height9.36
Web Width13.28
