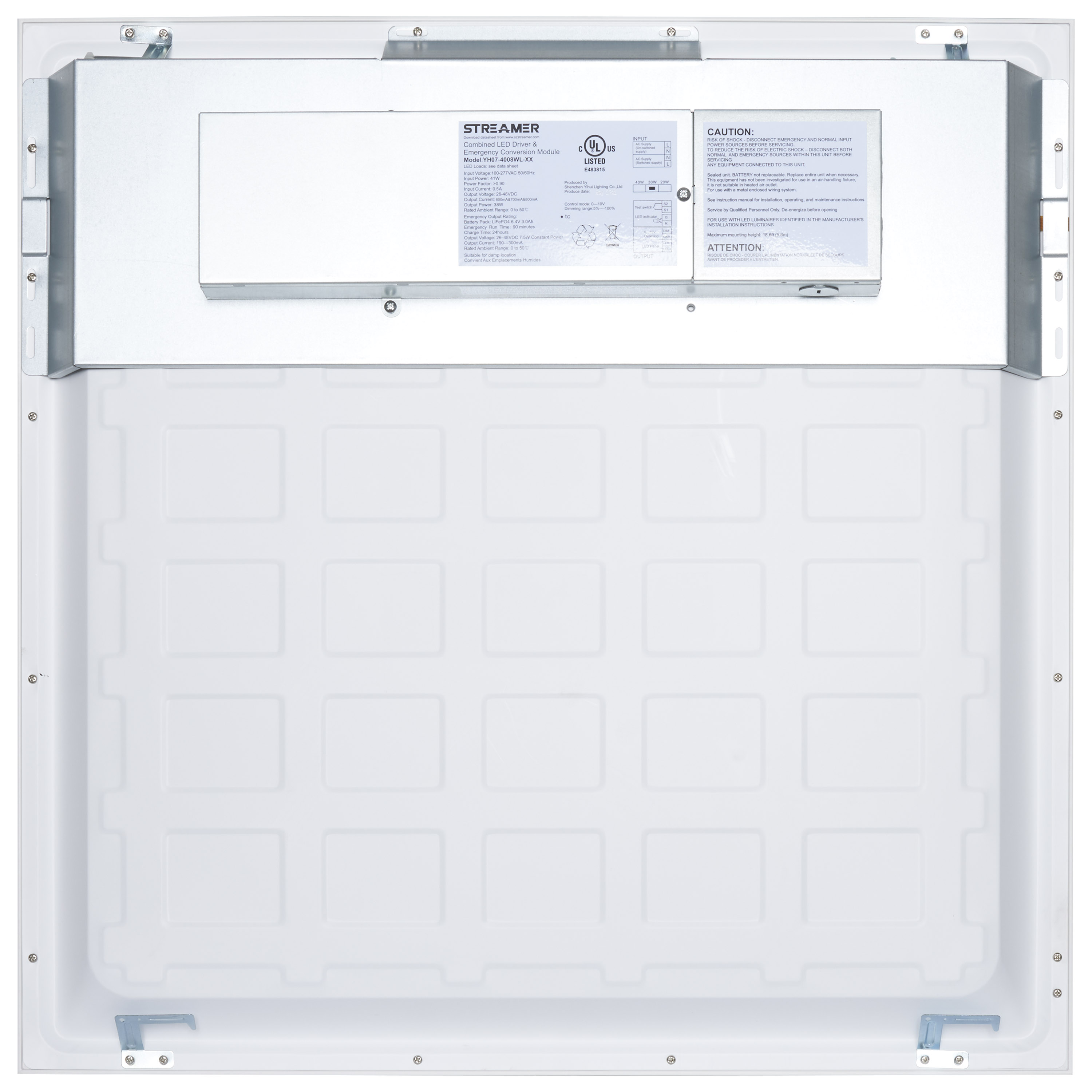

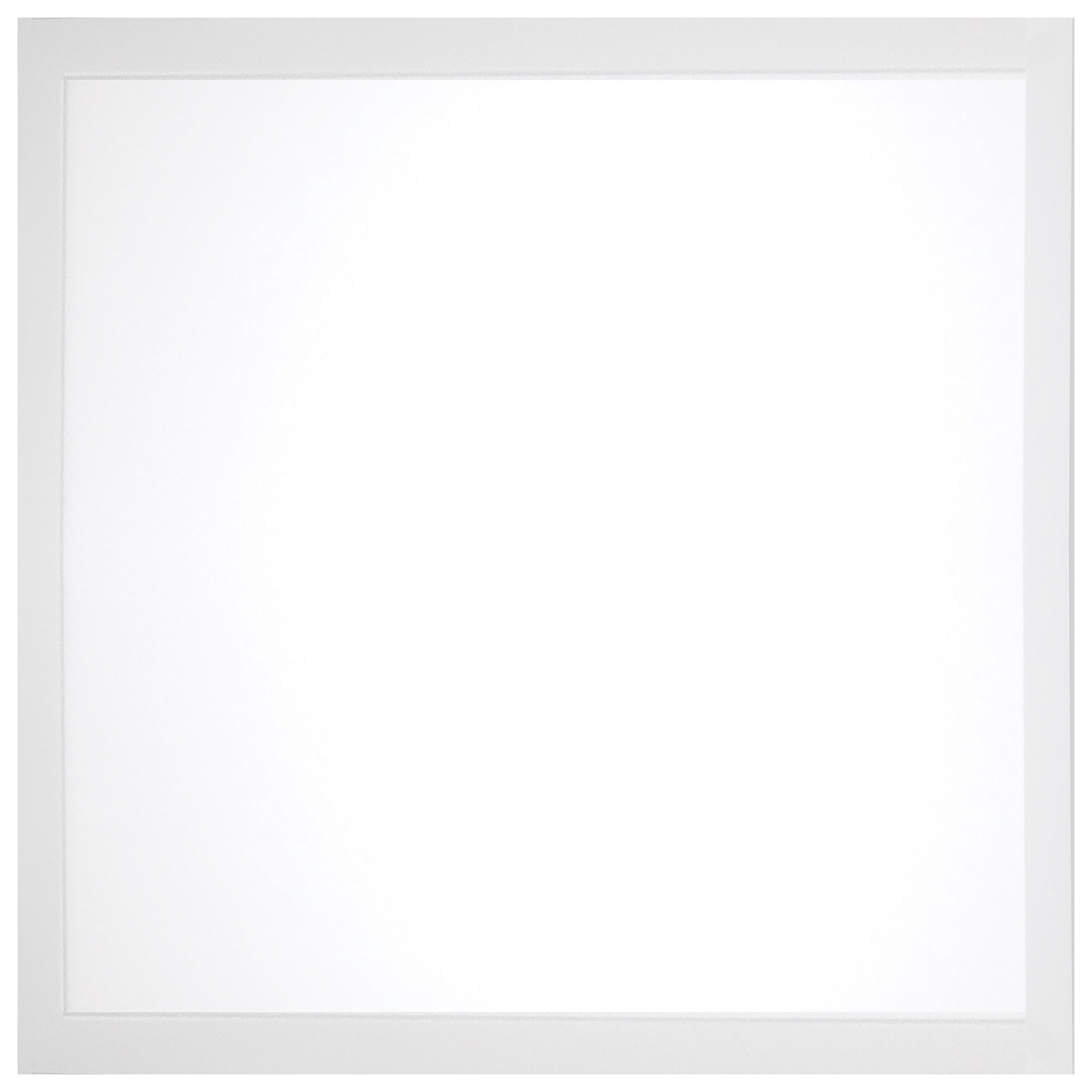

65-575R1

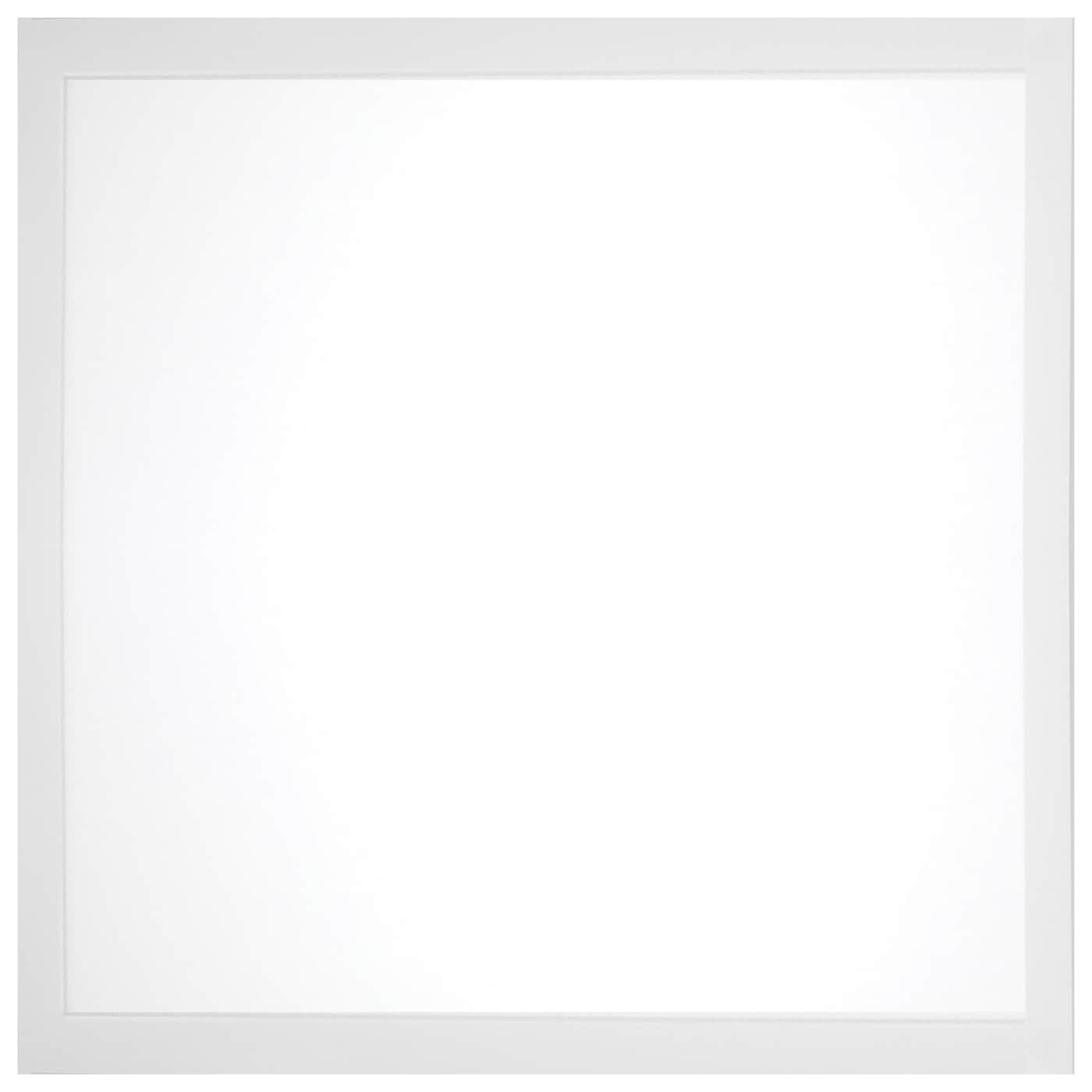

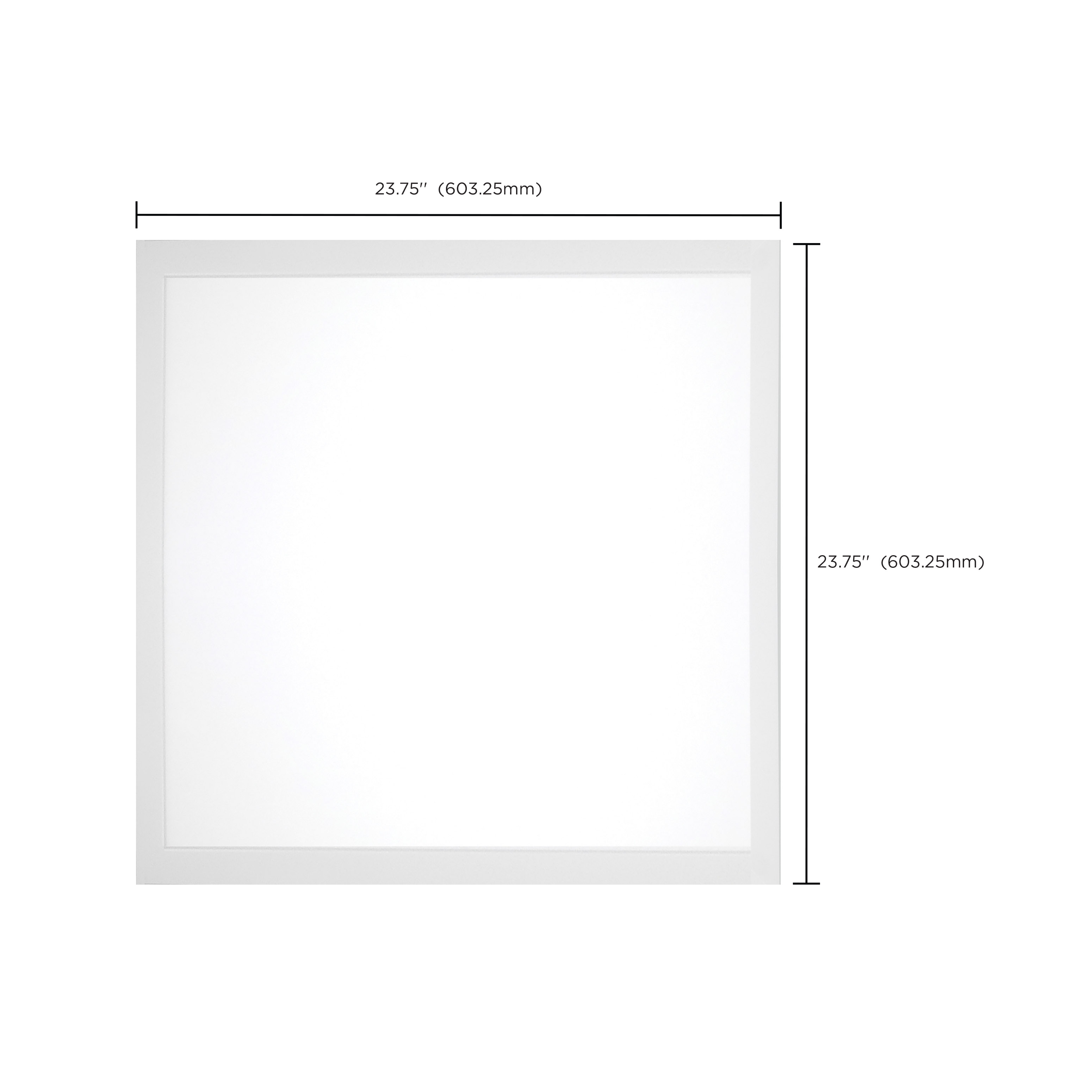

2X2 LED EM BACKLIT FLAT PANEL

  • LED Emergency Backlit Flat Panel
  • 2 ft. x 2 ft.
  • Wattage and CCT Selectable
  • 100-277 Volt
  • ColorQuick Technology
  • PowerQuick Technology
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-575R1 Specifications65-575R1 Photometrics 20W 3500K.ies65-575R1 Photometrics 20W 4000K.ies
Tools
Lighting Layout Analysis For 65-575R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Backlit Flat Panel; 2 ft. x 2 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion16.30%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional InfoDriver Specs - VDC38-48V; 430/620/810mA
Amps0.200-0.072/0.300-0.108/0.400-0.144A
Has CameraNo
IOT EnabledNo

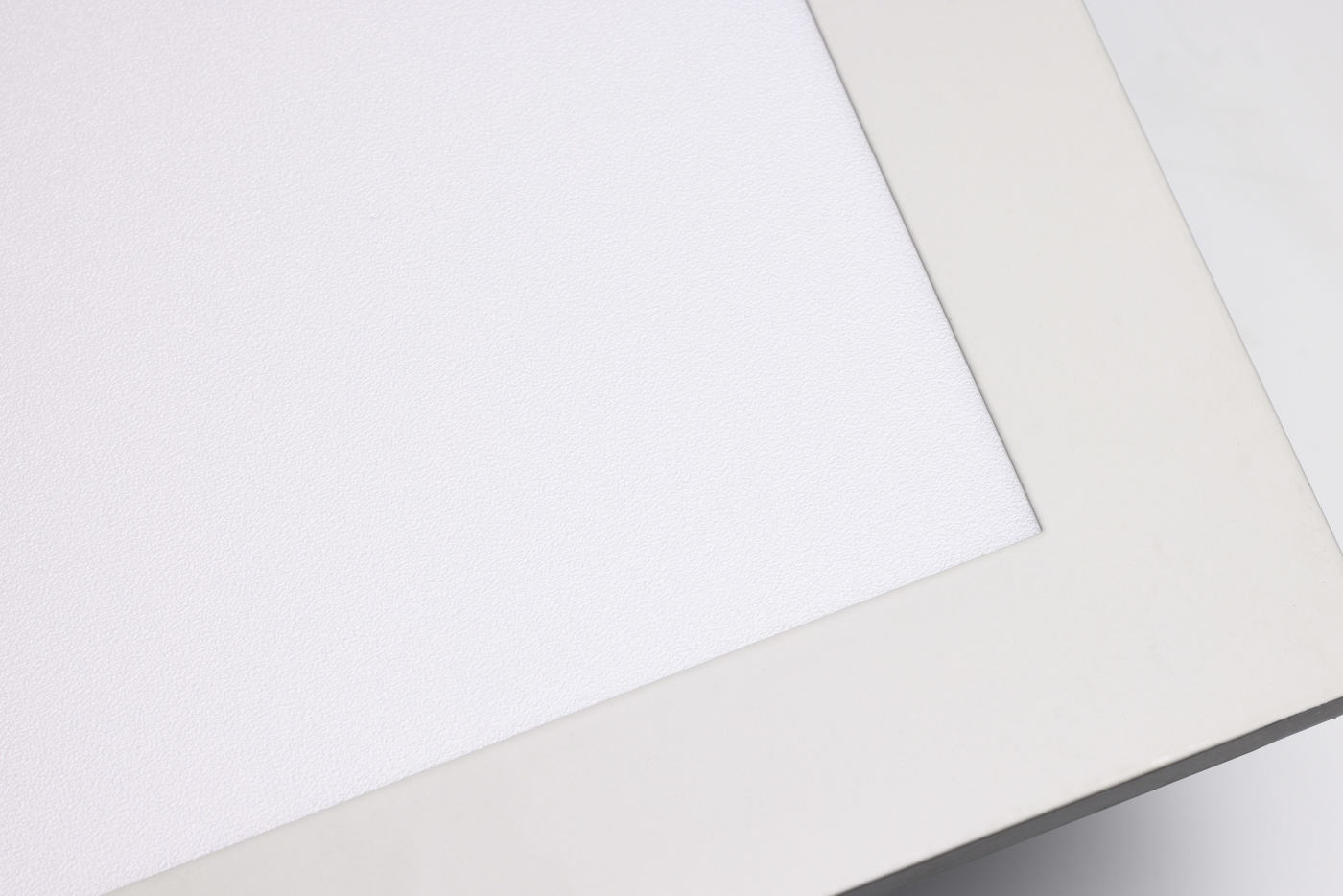

Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W-175W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens2200L-4600L
Volts120V-277V
Watts20W/30W/40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
Air TightNo
CA Prop 65Lead
DLC IDS-J0MT7W; S-JP9ZK5
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
UL ApplicationLED Panel Luminaire
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Yes
T24 CompliantNo
Packaging
UPC045923657177
Case Cube1.5786
Case Height25.2
Case Length25.0
Case Quantity1
Case UPC10045923657174
Case Weight9.59
Case Width4.33
EA Cube1.5786
EA Height25.2
EA Length25.0
EA Quantity1
EA Weight9.59
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.06
Web Length23.75
Web Width23.75
