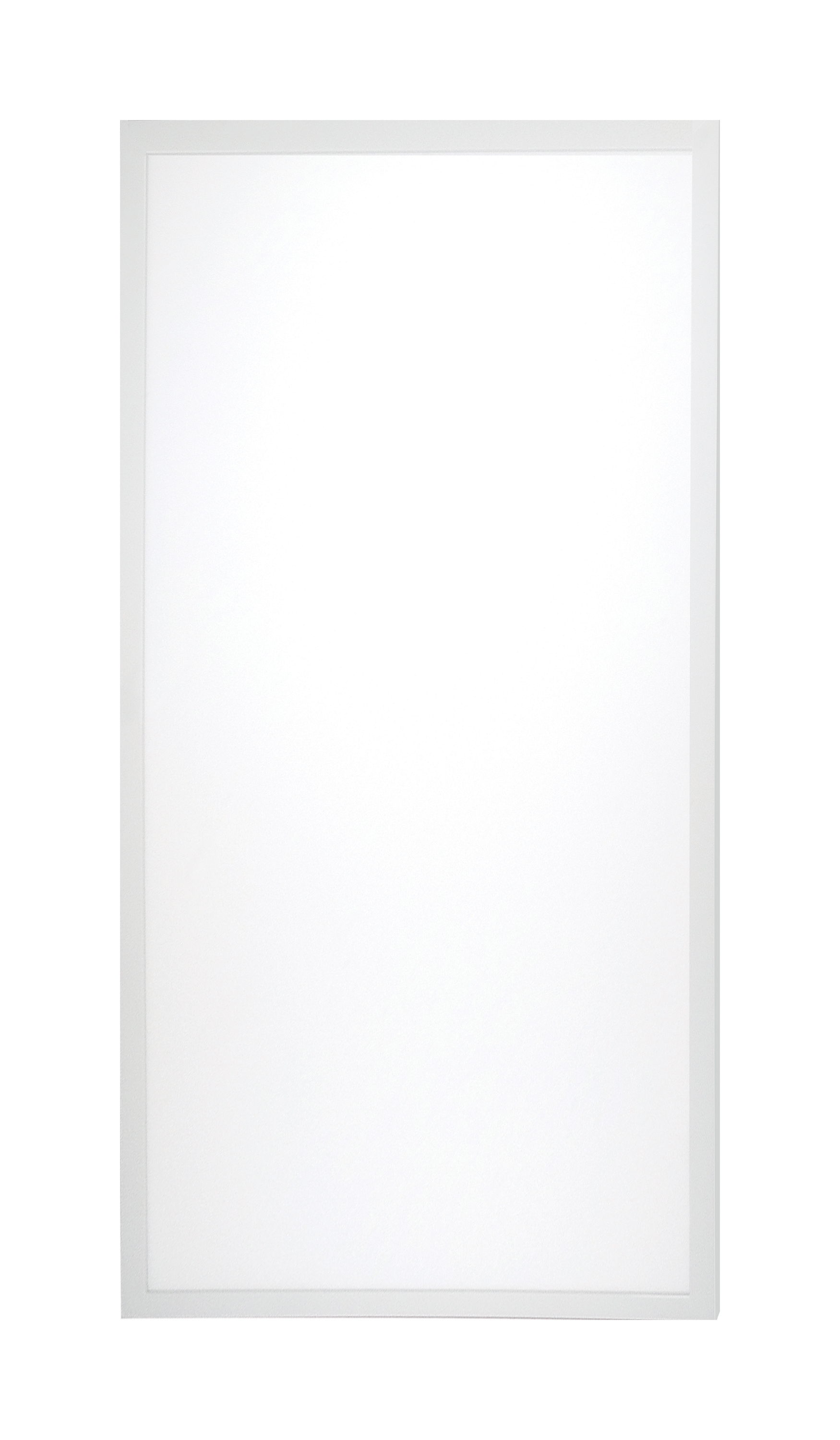

2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
2X4 LED EM BACKLIT FLAT PANEL - 65-576
65-576

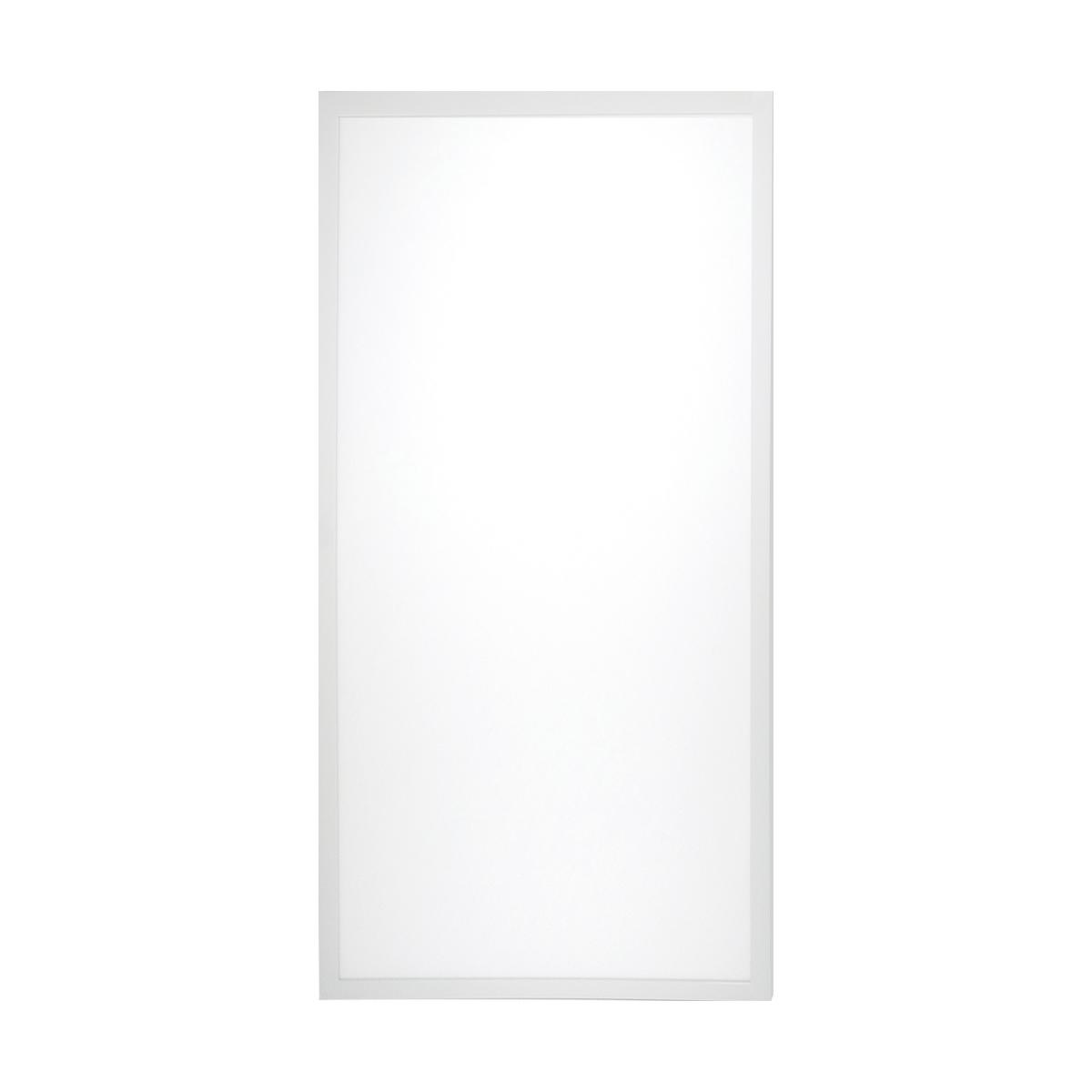

2X4 LED EM BACKLIT FLAT PANEL

Discontinued - Suggested Replacement: 65-576R1
  • LED Emergency Backlit Flat Panel
  • 50 Watt
  • 2 ft. x 4 ft.
  • Selectable CCT
  • 100-277 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-576 Specifications65-576 Instructions.pdf
Tools
Lighting Layout Analysis For 65-576
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Backlit Flat Panel; 50 Watt; 2 ft. x 4 ft.; Selectable CCT; 100-277 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusObsolete
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion11.20%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.500-0.181A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens5500L-5750L
Volts120V-277V
Watts50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
Air TightNo
CA Prop 65Lead
DLC IDPLLY8Z4OITK8
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanNon-Compliant
UL ApplicationLED Panel Luminaire
DLC ApprovedYes
Energy Star CertifiedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923659553
Case Cube3.0954
Case Height25.2
Case Length49.02
Case Quantity1
Case UPC10045923659550
Case Weight15.33
Case Width4.33
EA Cube3.0954
EA Height25.2
EA Length49.02
EA Quantity1
EA Weight15.33
EA Width4.33
Pack TypeBox
Web Height3.06
Web Length47.72
Web Width23.75
