| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 1-10V Dimming Only |
| Material | Die-cast Aluminum |

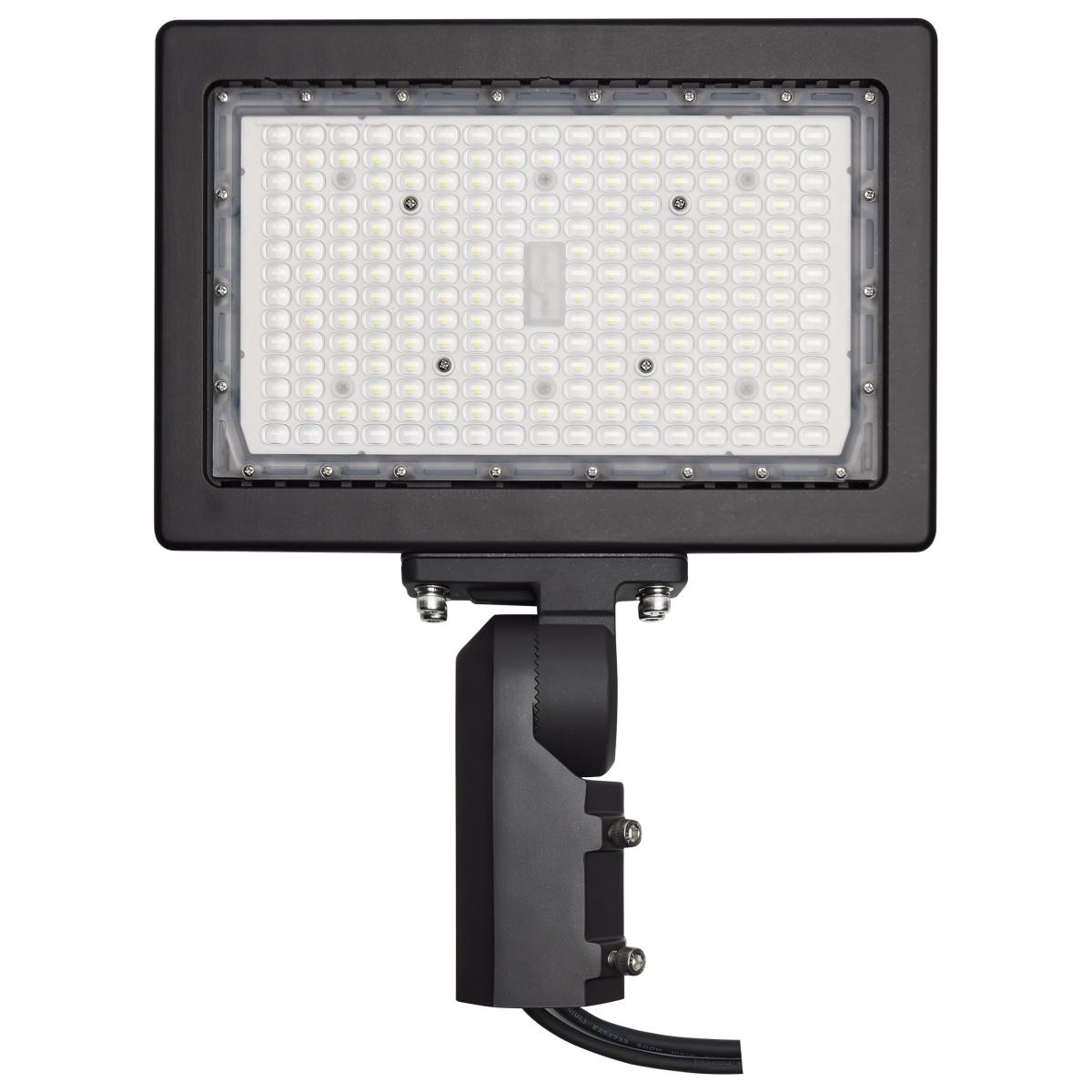

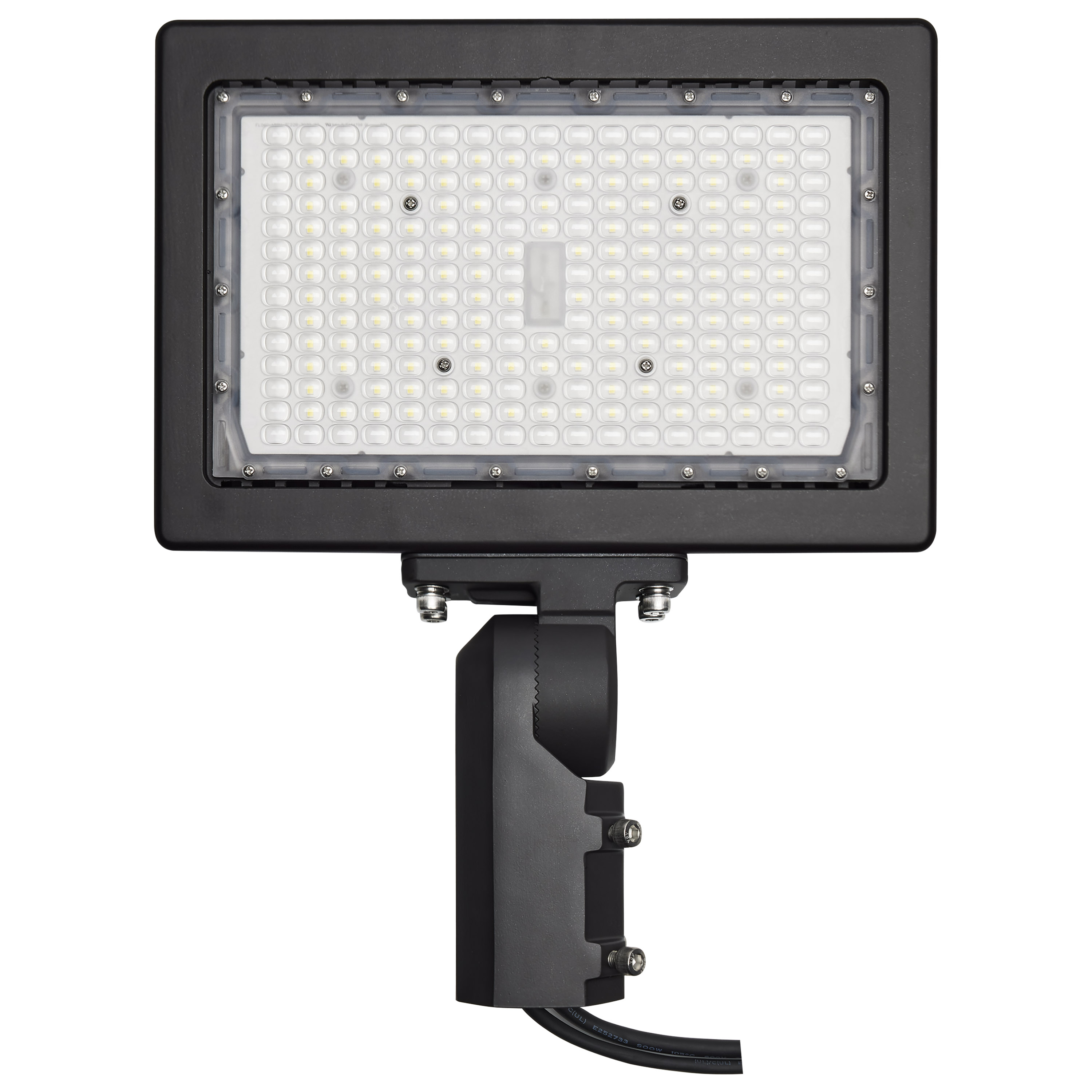

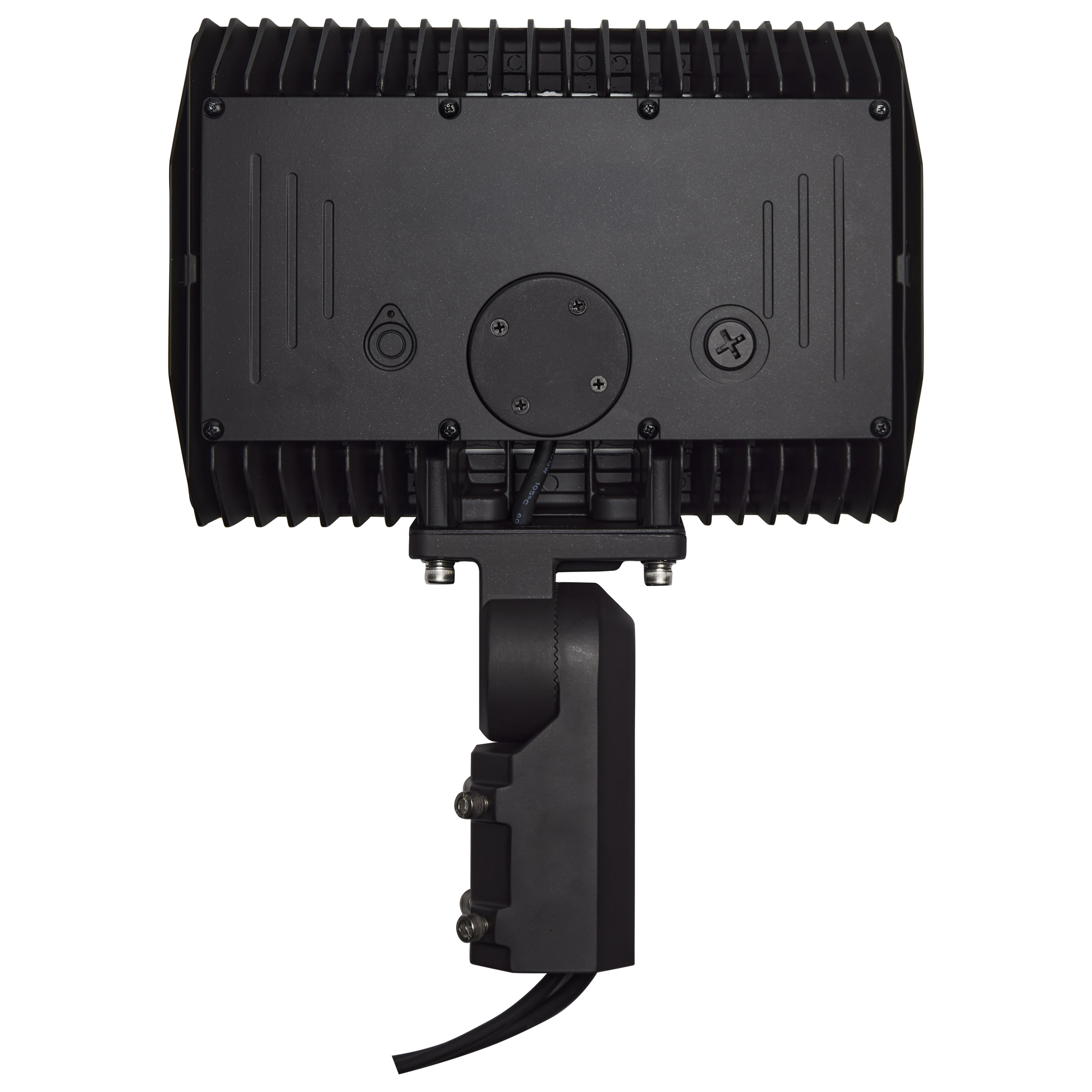

| Fixture Type | Flood Light |
| Product Notes | Add on photocell, sku 86-212, is only rated for 120-277 Volt |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | 15% |
| Wire Color | White / Black / Green / Gray / Yellow |
| Wire Quantity | 5 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Amps | 1.250-0.432A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Polycarbonate (PC) |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |

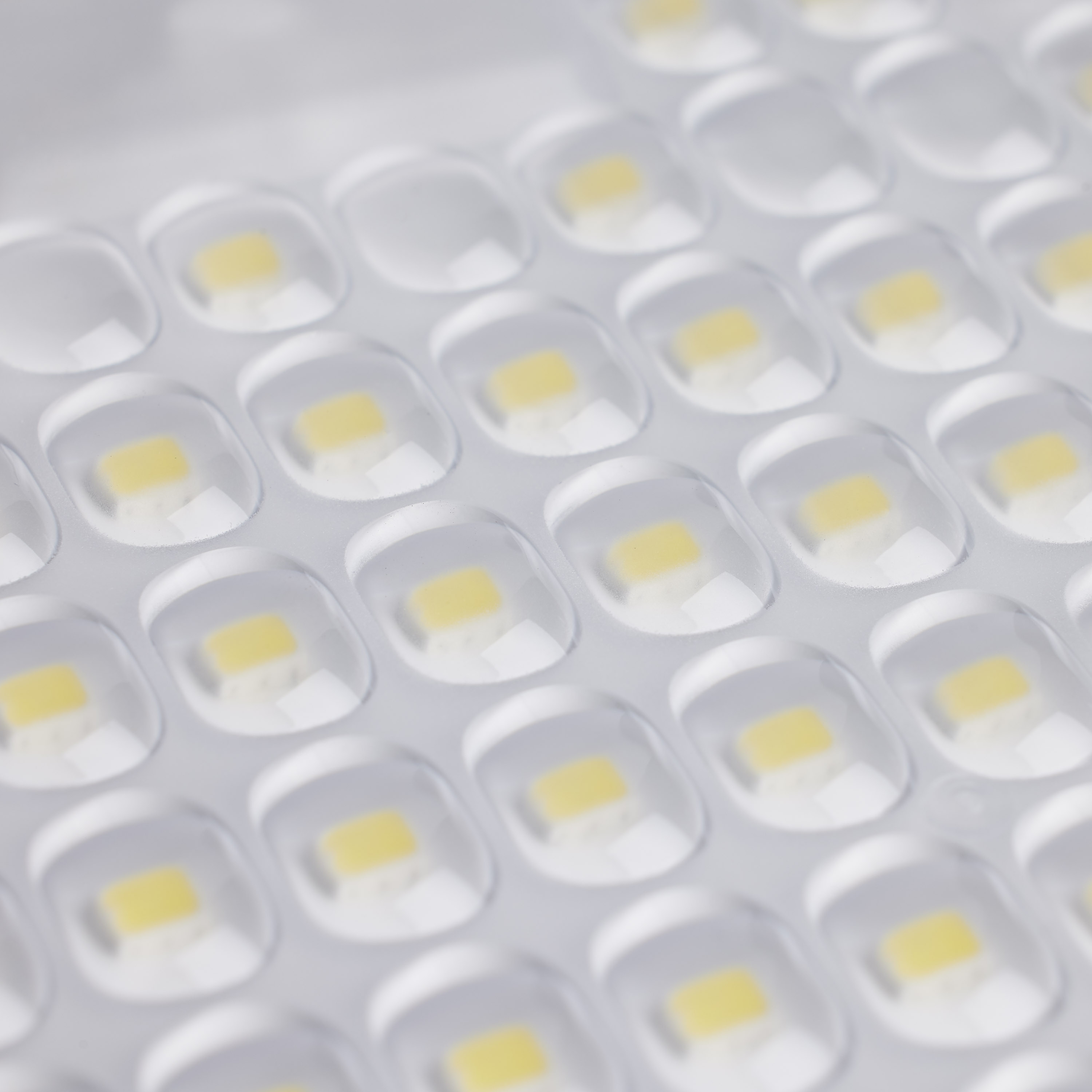

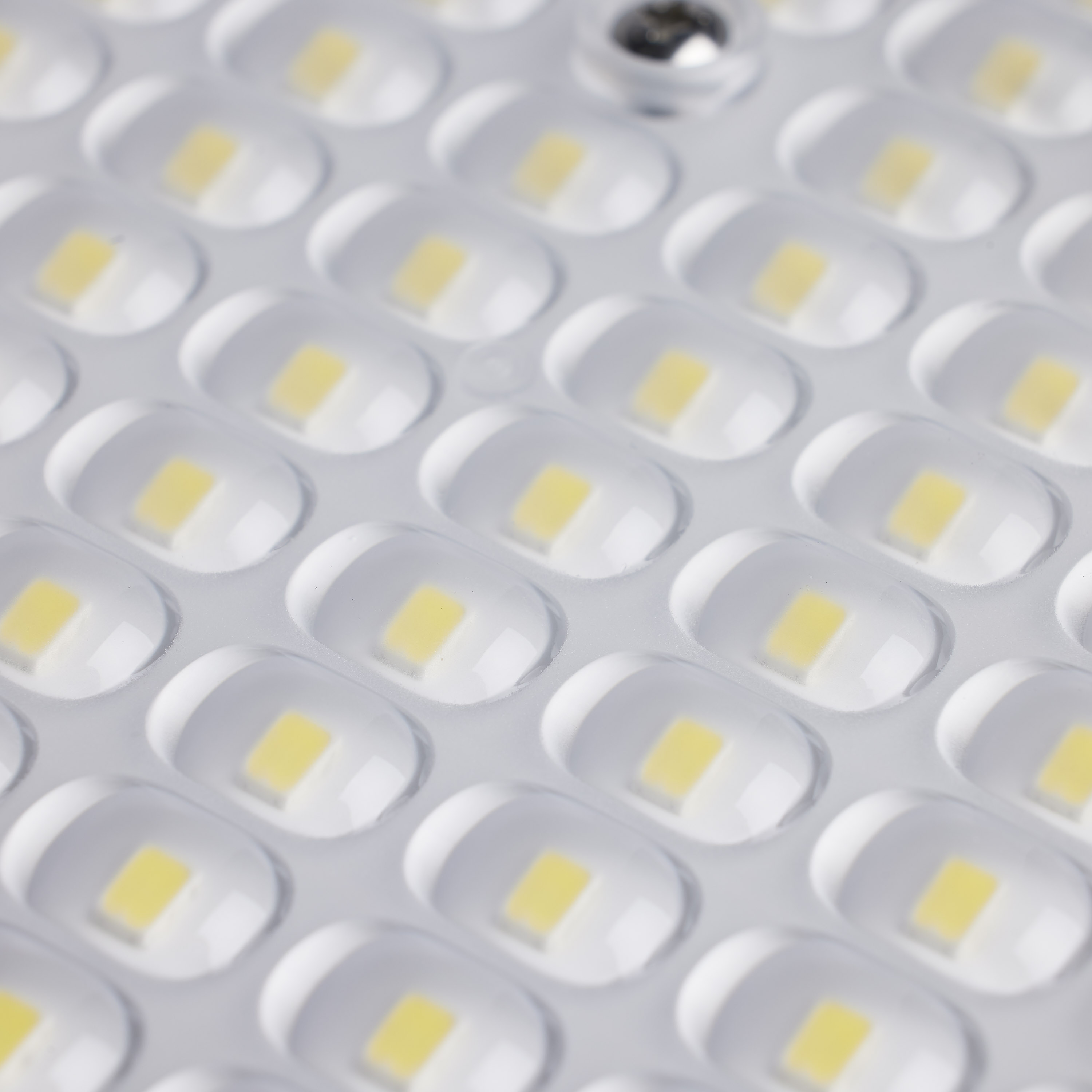

| Product Technology | LED |
| Incandescent Equivalent | 450W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 150 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |

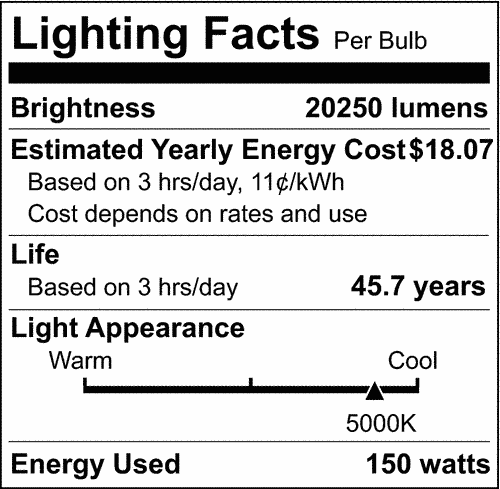

| Lumens | 20250L |
| Volts | 120V-347V |
| Watts | 150W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-PYBT47 |
| FCC Compliant | True |
| IC Rated | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923659669 |
|---|---|
| Case Cube | 0.954 |
| Case Height | 5.51 |
| Case Length | 19.49 |
| Case Quantity | 1 |
| Case UPC | 10045923659666 |
| Case Weight | 9.93 |
| Case Width | 15.35 |
| EA Cube | 0.954 |
| EA Height | 5.51 |
| EA Length | 19.49 |
| EA Quantity | 1 |
| EA Weight | 19.52 |
| EA Width | 15.35 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 2.83 |
| Web Length | 17.36 |
| Web Width | 9.44 |
