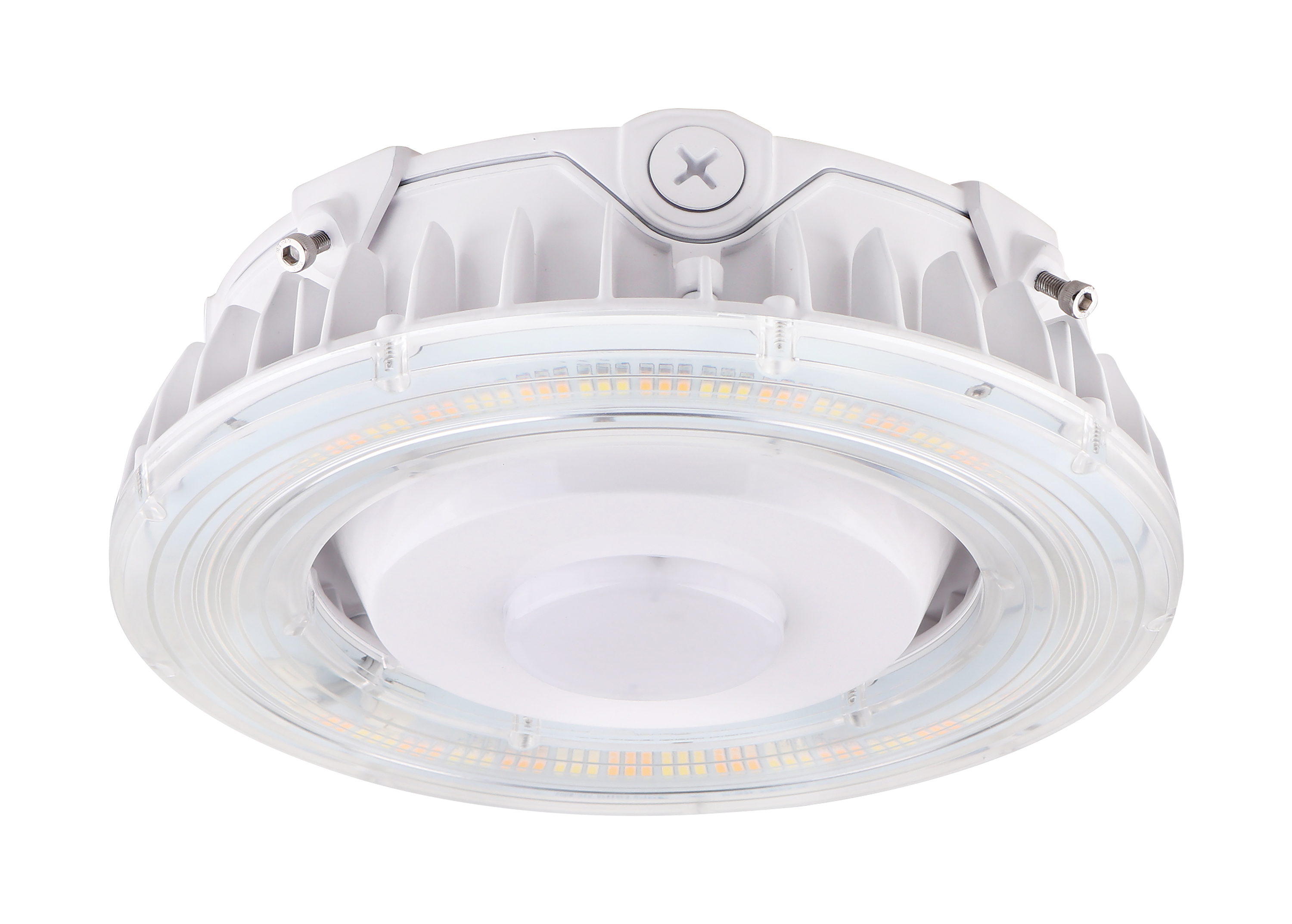

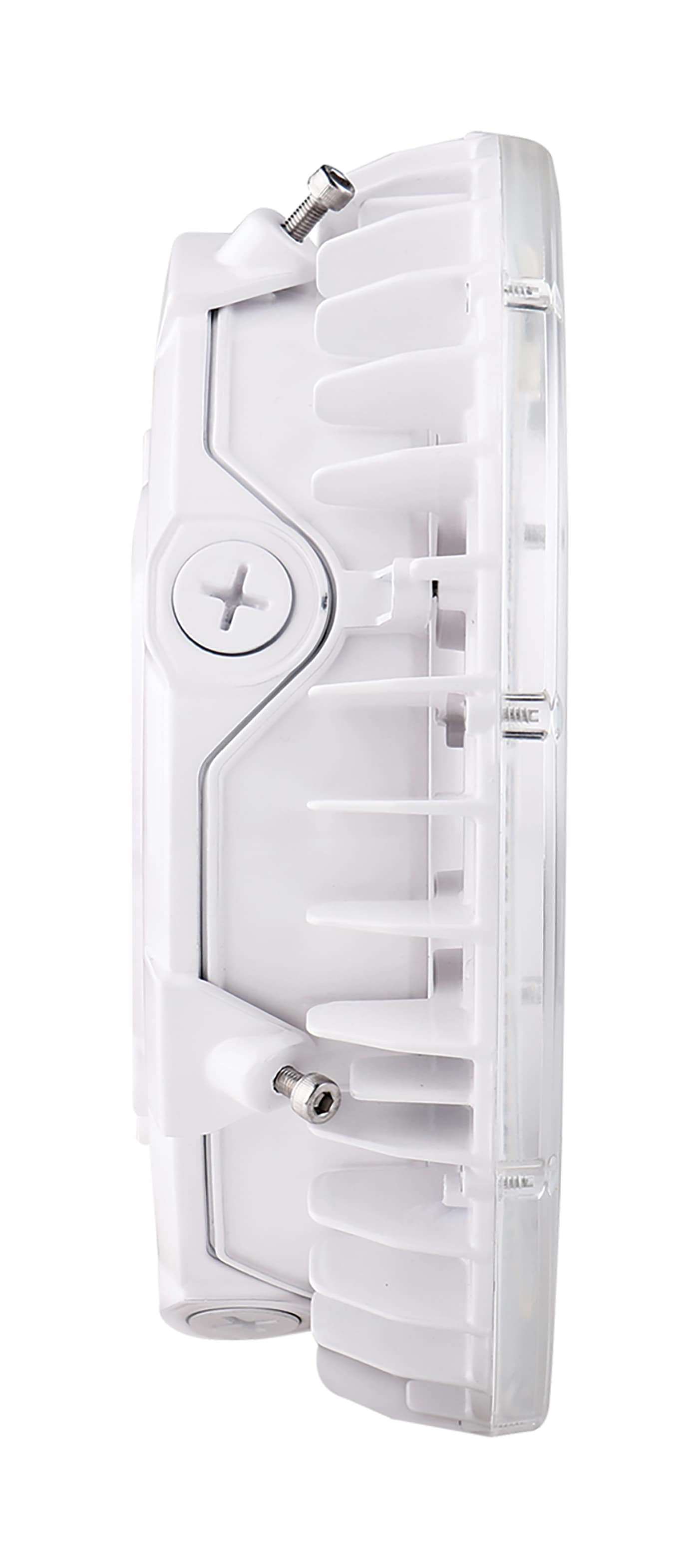

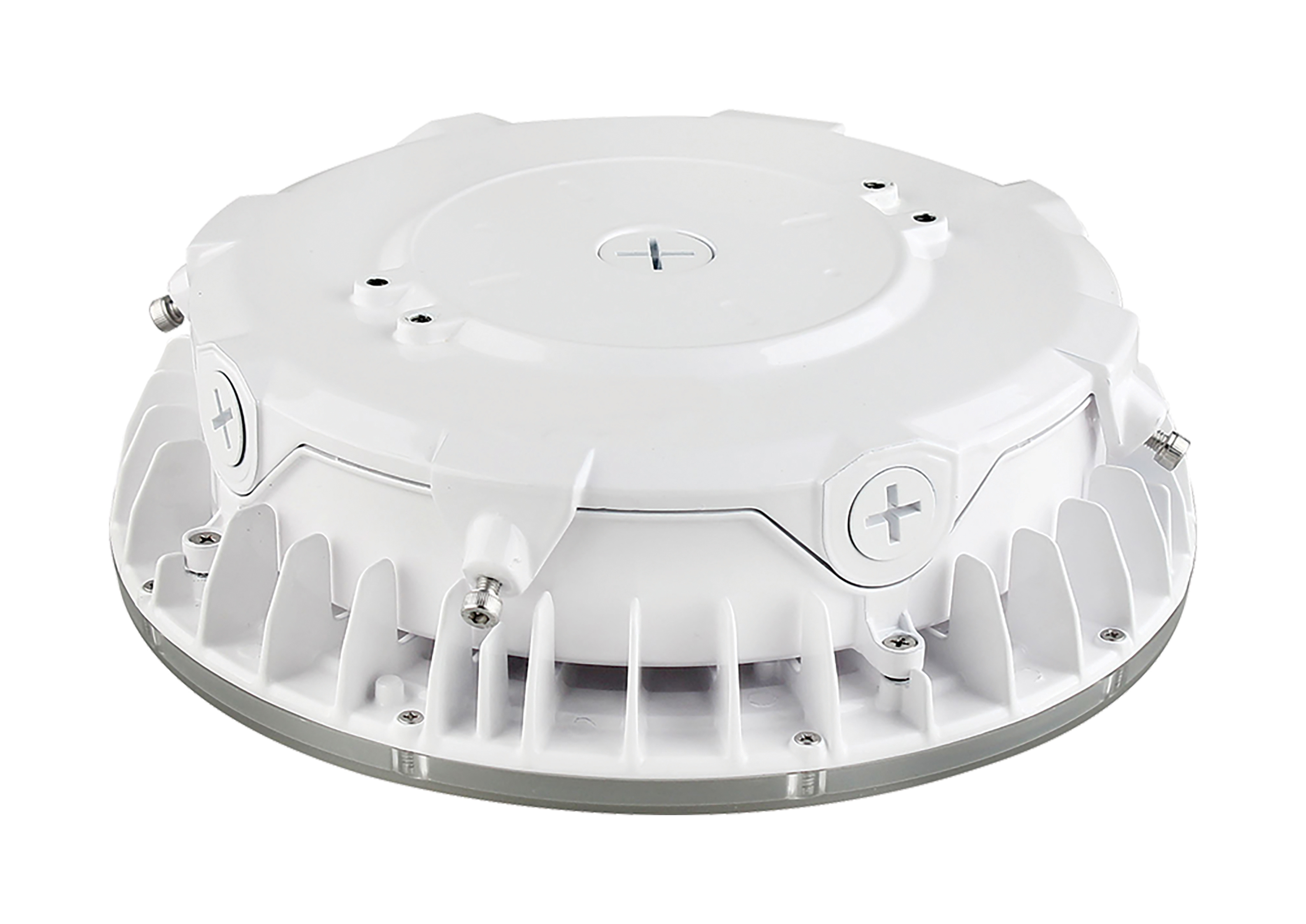

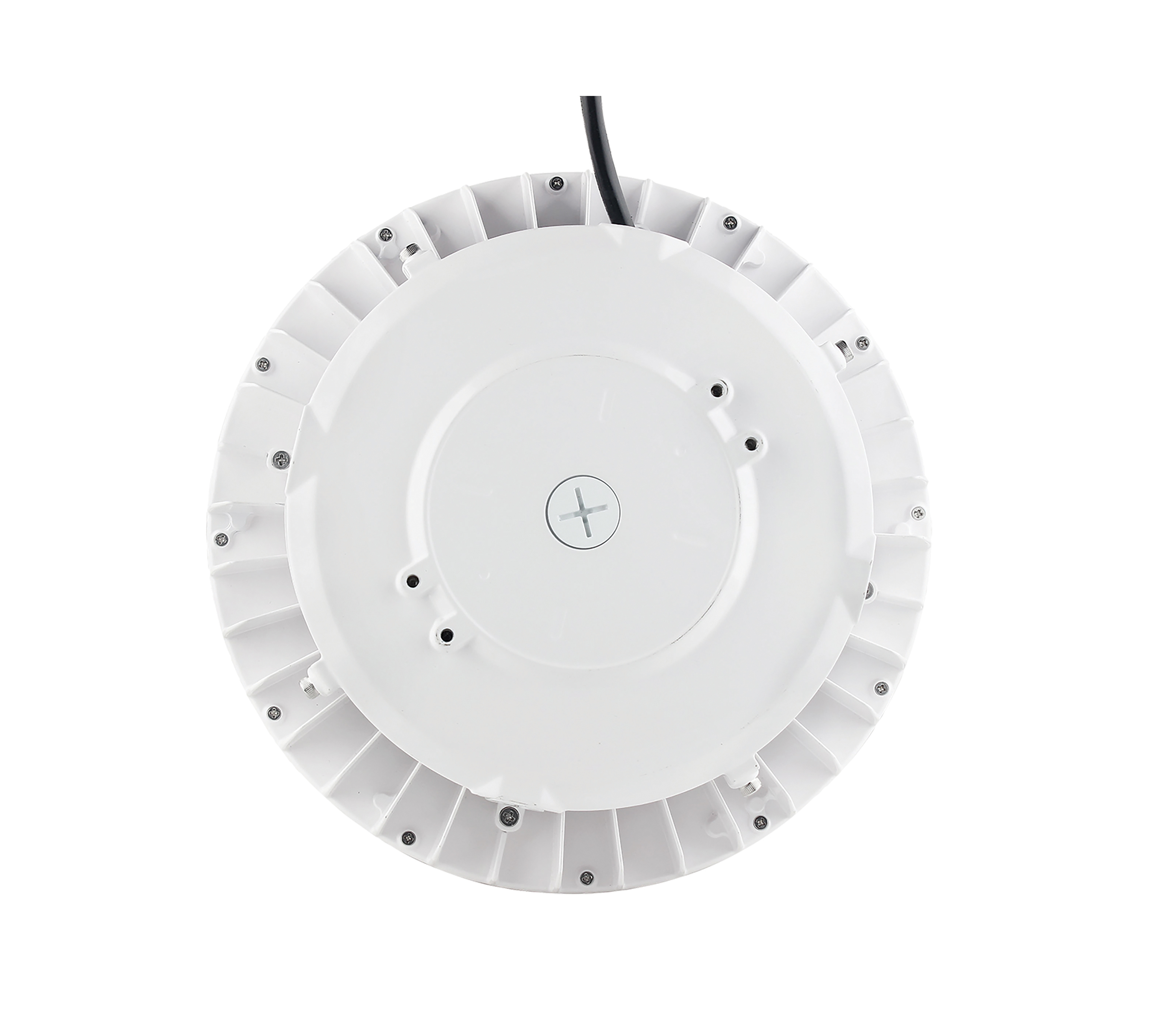

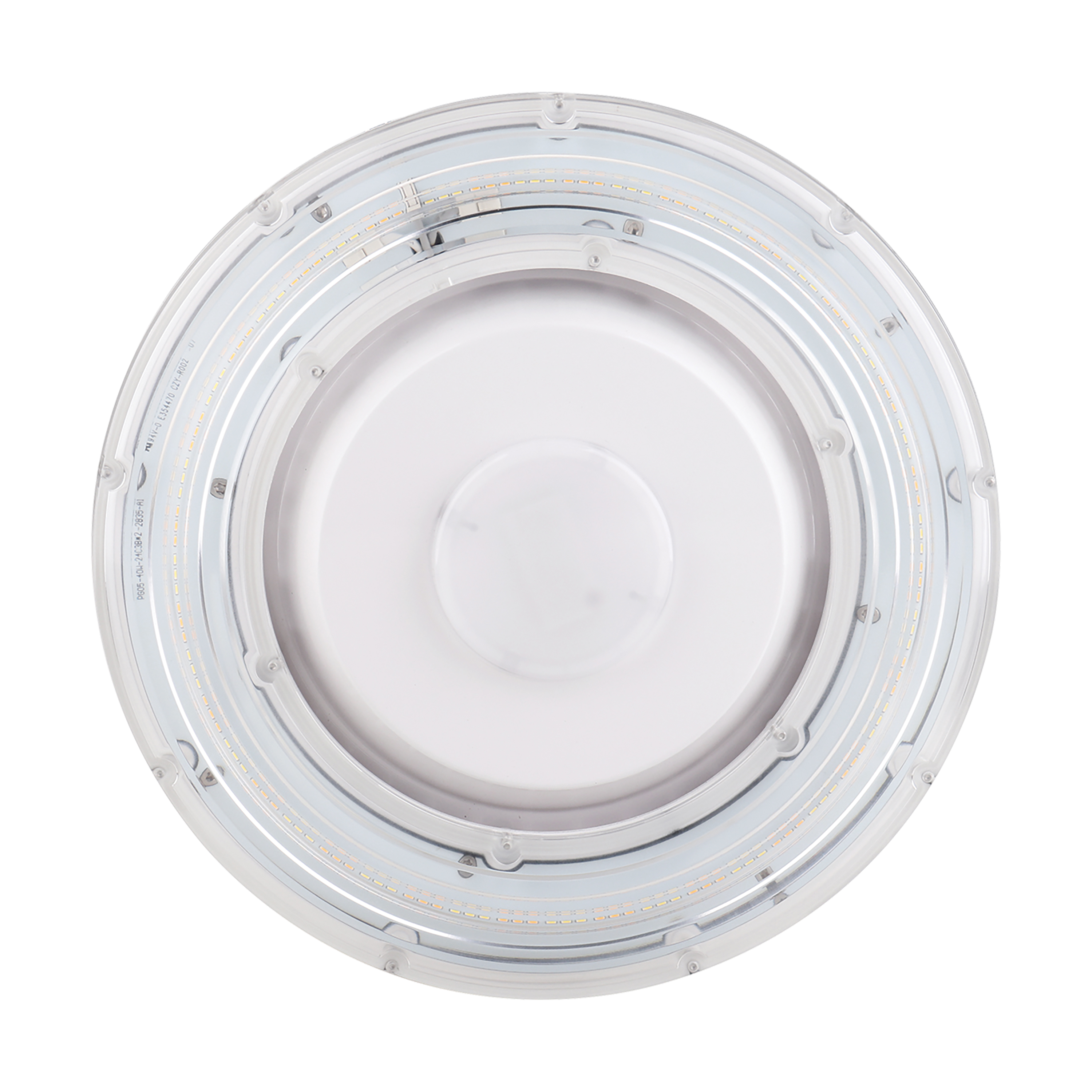

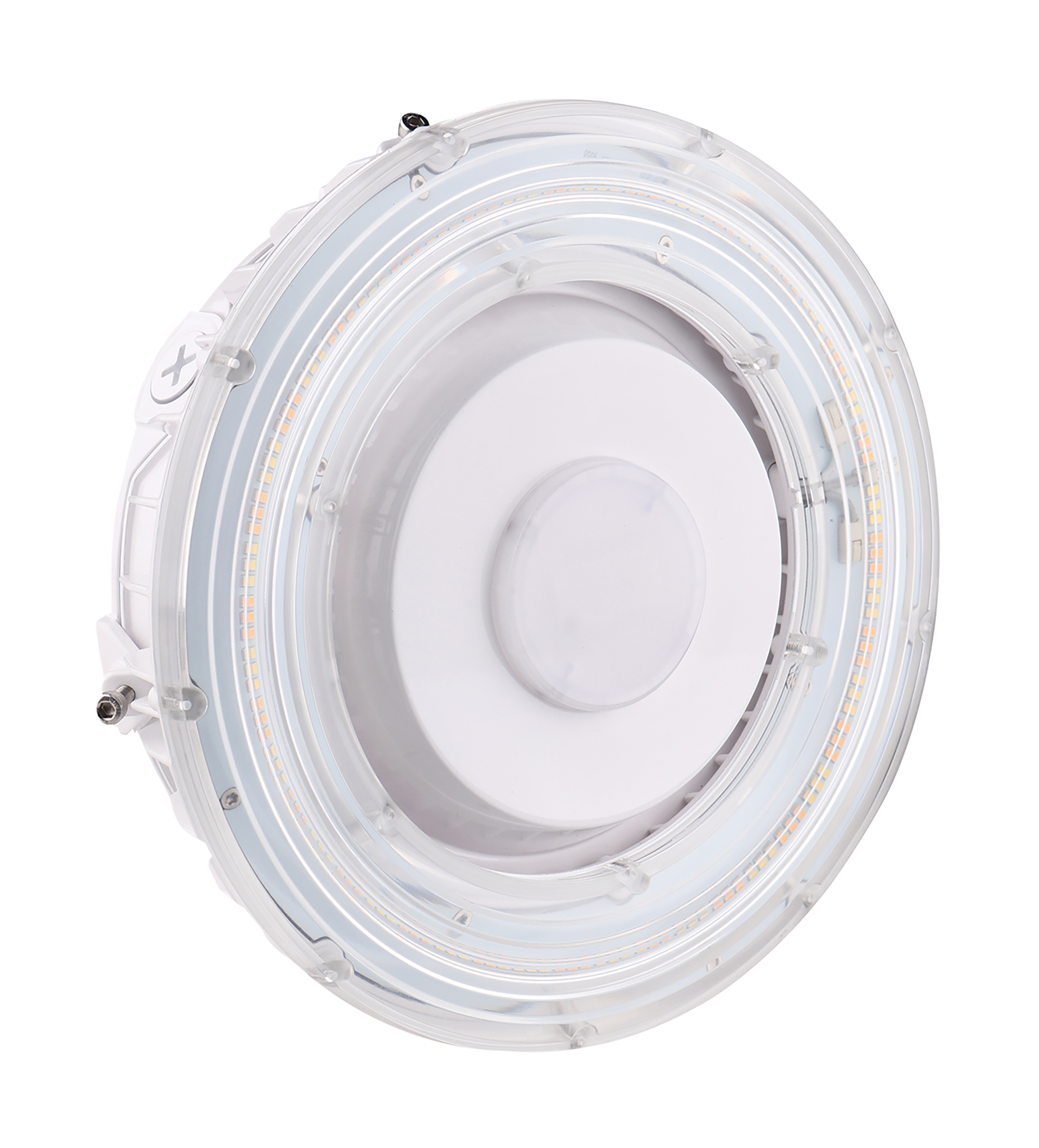

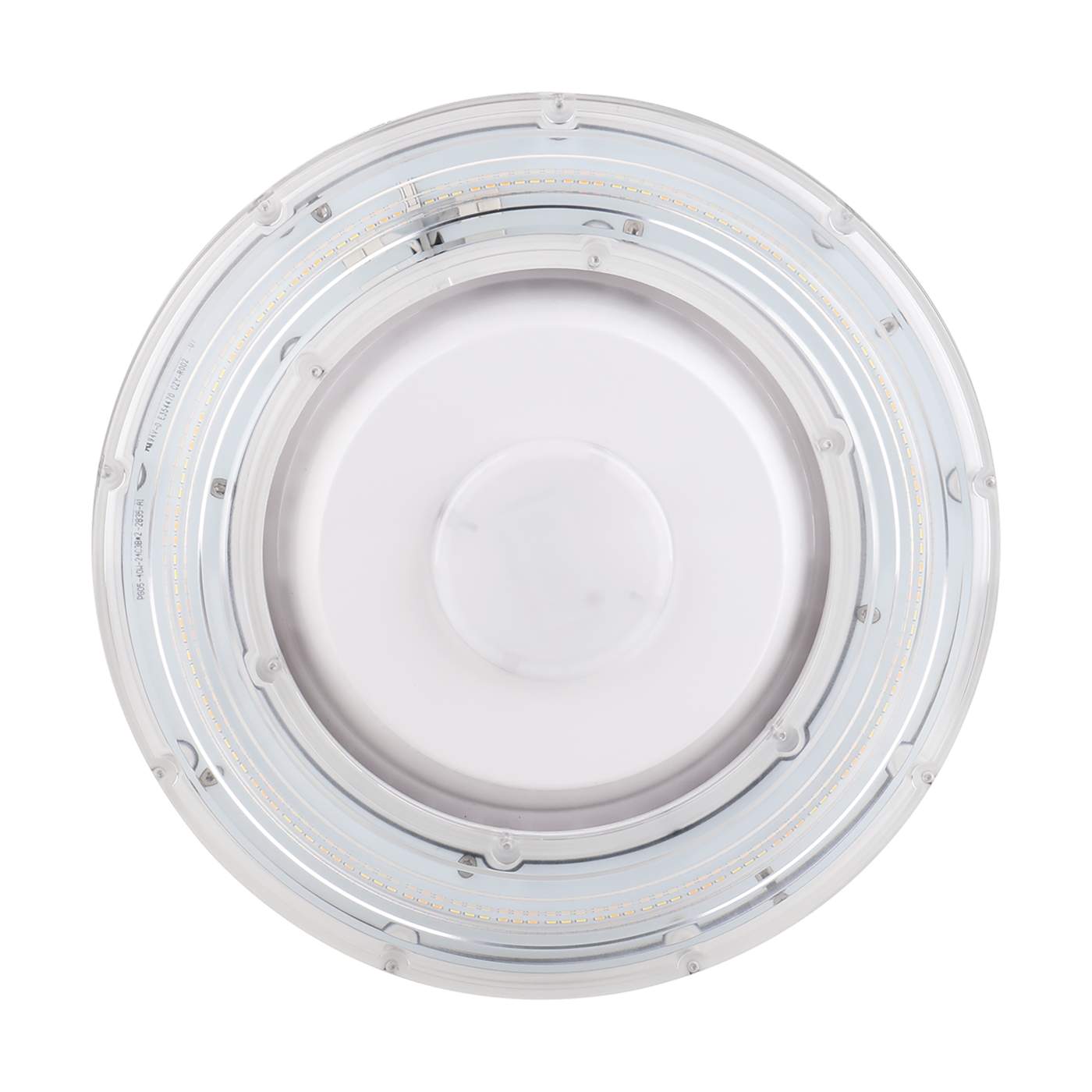

65-623 25W LED CANOPY LIGHT

65-623

25W LED CANOPY LIGHT

LED Canopy Fixture; 25 Watt; CCT Selectable; White Finish; 100-277 Volt


SATCO|NUVO's 25-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy to install and designed to withstand tough environments.
  • Adjustable color temperature: 3000K, 4000K, 5000K
  • Adjustable lumen range: 2800~3322
  • DLC Premium certified
  • 1-10V dimming
  • IP65 rated
  • 150 degree beam spread
  • 150 degree beam spread
Lights

65-623

25W LED CANOPY LIGHT

LED Canopy Fixture; 25 Watt; CCT Selectable; White Finish; 100-277 Volt

SATCO|NUVO's 25-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy to install and designed to withstand tough environments.
  • Adjustable color temperature: 3000K, 4000K, 5000K
  • Adjustable lumen range: 2800~3322
  • DLC Premium certified
  • 1-10V dimming
  • IP65 rated
  • 150 degree beam spread
  • 150 degree beam spread

Specifications

General
StatusActive
Substitute65-623R1
Fixture TypeCanopy
FinishWhite
Wattage25W
Lumen Output2800L-3322L
CCT (Kelvin)3000K/4000K/5000K
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage25W
Lumen Output2800L-3322L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80+
Voltage100V-277V
Beam Angle150
Rated Hours50000
Operating Temperature-30C (-22F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2.5KV
Weight (lb.)4.41
IP RatingIP65
MaterialAluminum Alloy
Dimensions
Height (in.)3.13
Width (in.)10.03
Compliance
Safety ListingcULus - Listed
Location RatingWet
UL ApplicationOutdoor
Energy StarNo
DLC ApprovedYes
DLC IDPLNTBHUGY0NY
B.U.G. RatingB1-U3-G1
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Additional InformationUV stabilized powder coated finish
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923674228
Each Quantity1
Each Length (in.)11.81
Each Width (in.)11.81
Each Height (in.)5.51
Each Weight (lb.)5.50
Each Cube (CuFt.)0.4447
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923674225
Case Quantity2
Case Length (in.)12.60
Case Width (in.)11.81
Case Height (in.)12.60
Case Weight (lb.)12.10
Case Cube (CuFt.)1.0850
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
