65-628

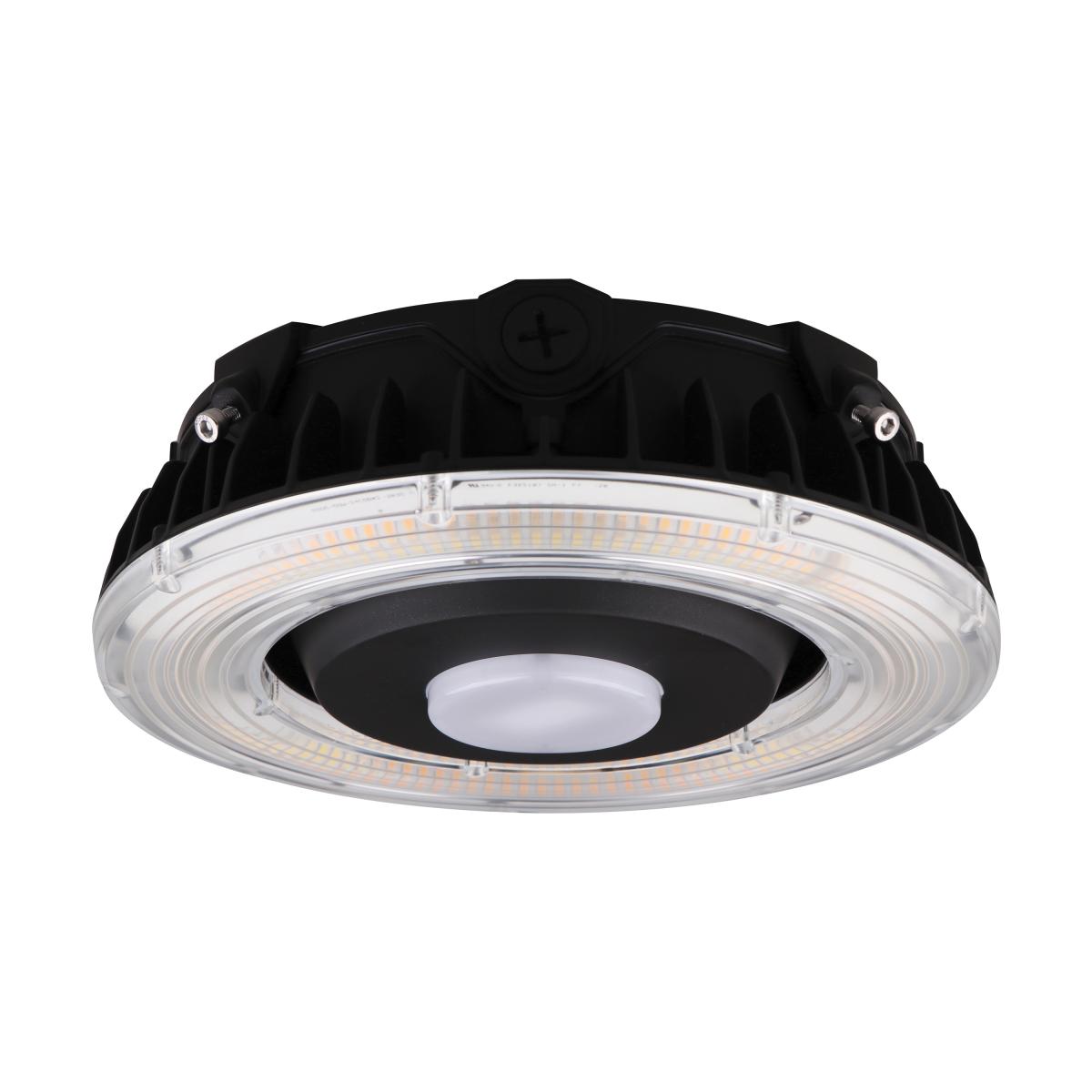

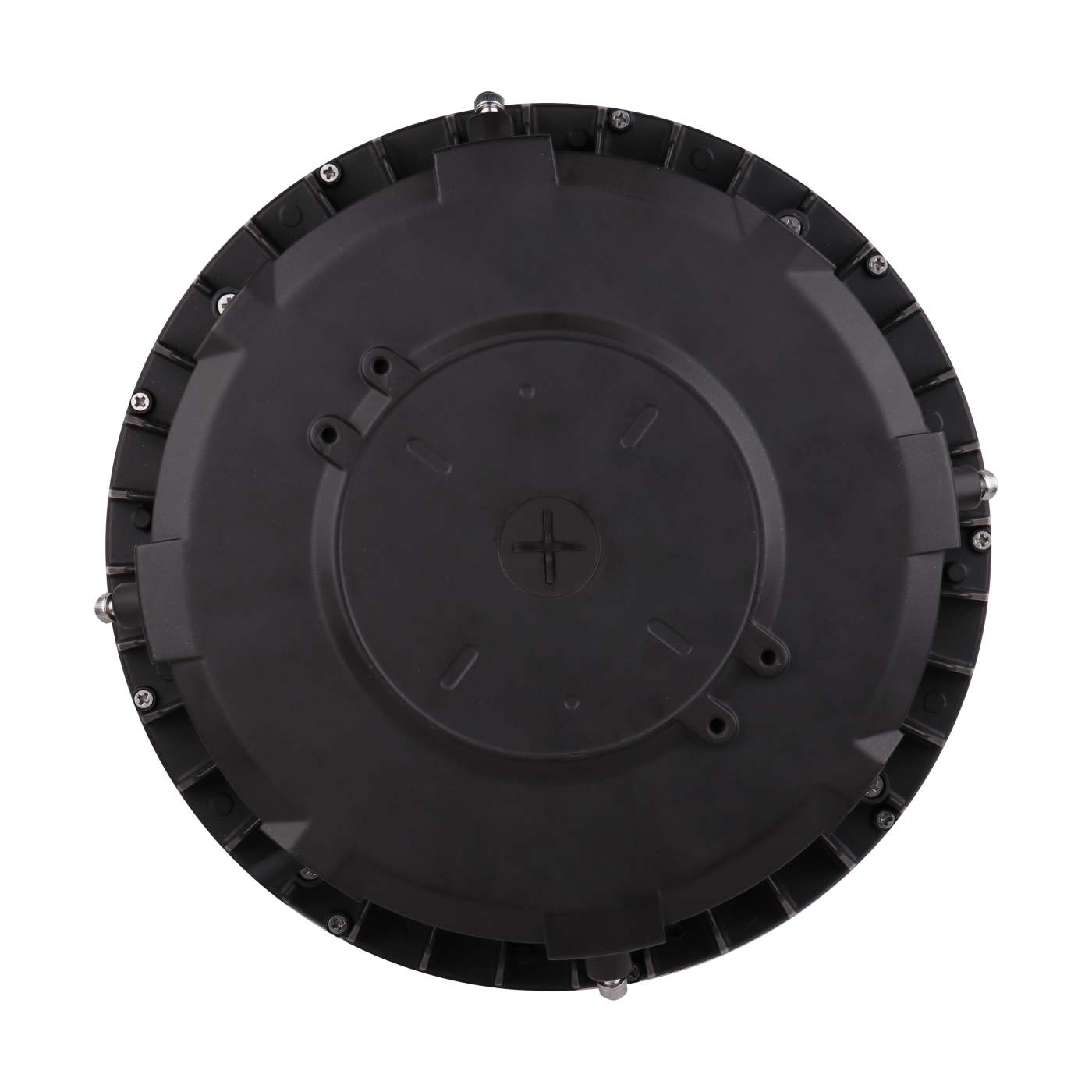

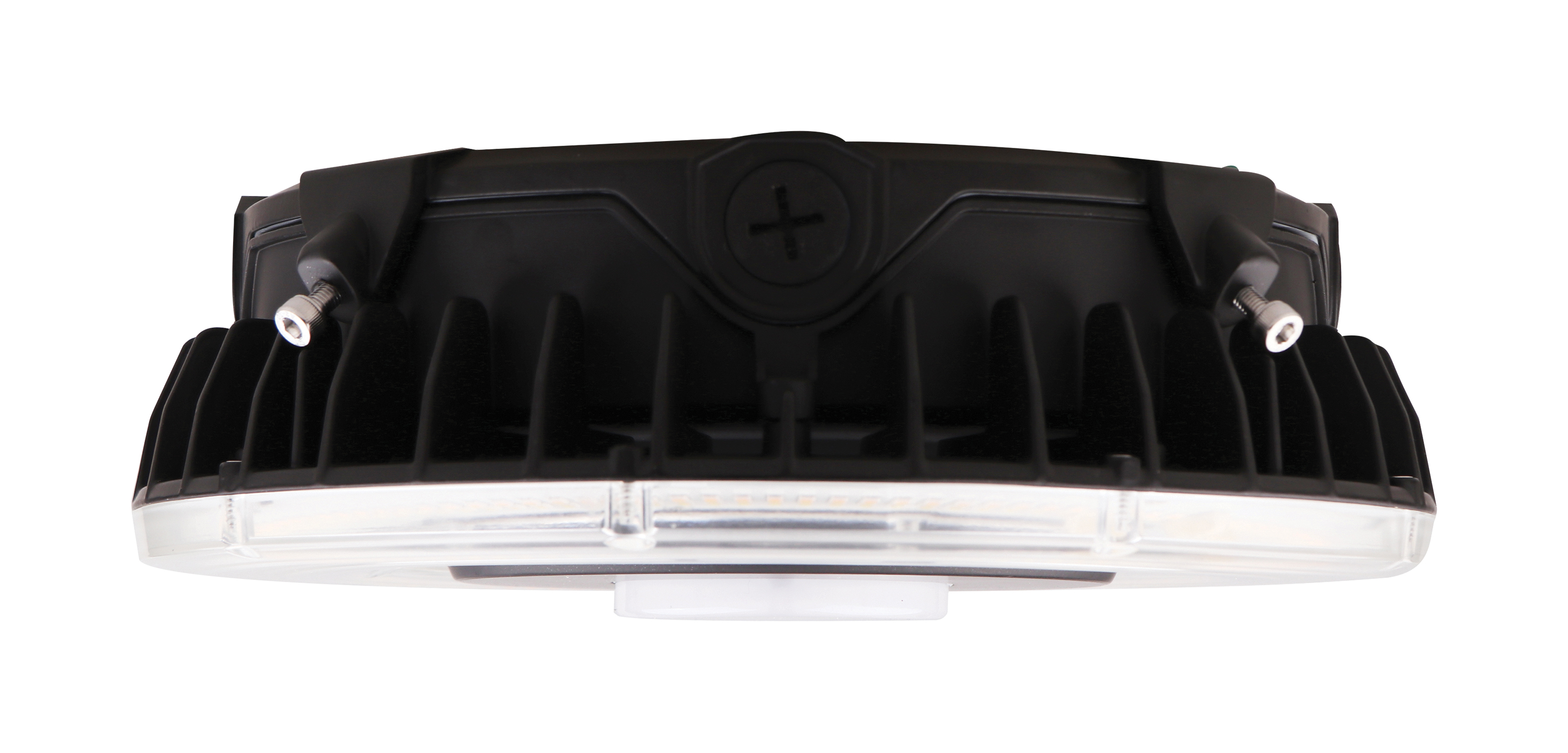

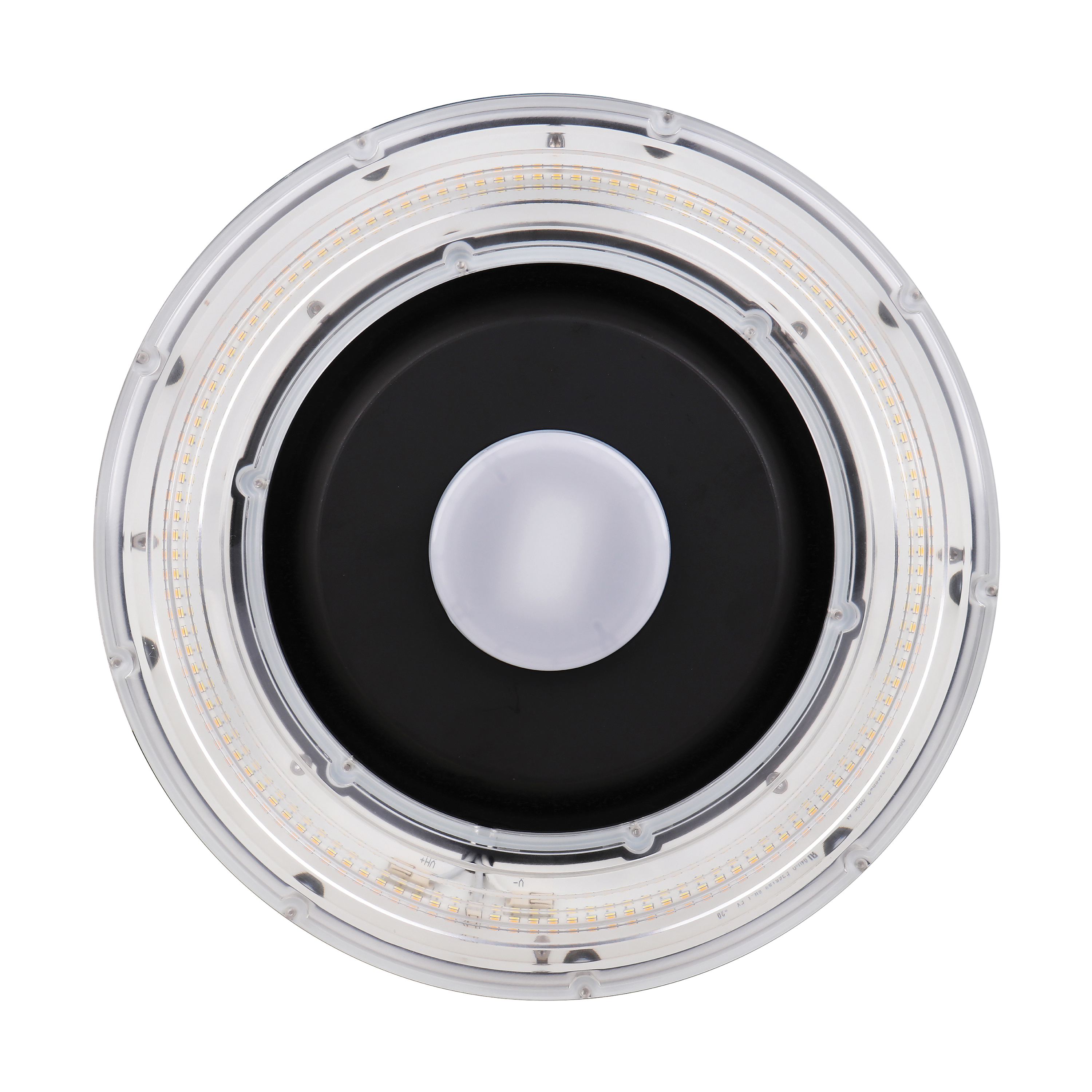

55W LED CANOPY LIGHT

  • LED Canopy Fixture
  • 55 Watt
  • CCT Selectable
  • Bronze Finish
  • 100-277 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-628 Specifications65-628 InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For 65-628
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Canopy Fixture; 55 Watt; CCT Selectable; Bronze Finish; 100-277 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Diameter10.03
Dimmable Text0-10V Dimming Only
MaterialAluminum Alloy
Fixture TypeCanopy
StatusDiscontinued
StyleUtility
Most Current Generation65-628R1
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion15%
Wire ColorWhite / Black / Green / Gray / Yellow
Wire Length11.81
Wire Quantity5
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.550-0.199A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent150W-200W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempWarm to Cool White
CRI80+
Operating Frequency50-60Hz
Operating Temp-30C (-22F) to +50C (+122F)
Lumens6297L-7546L
Volts120V-277V
Watts55W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLJ9473HWCJ4
FCC CompliantTrue
IC RatedTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextLawful for sale
UL ApplicationOutdoor
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923674273
Case Cube1.085
Case Height12.6
Case Length12.6
Case Quantity2
Case UPC10045923674270
Case Weight12.1
Case Width11.81
EA Cube0.4447
EA Height5.51
EA Length11.81
EA Quantity1
EA Weight5.5
EA Width11.81
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.13
Web Width10.03
