65-632R1

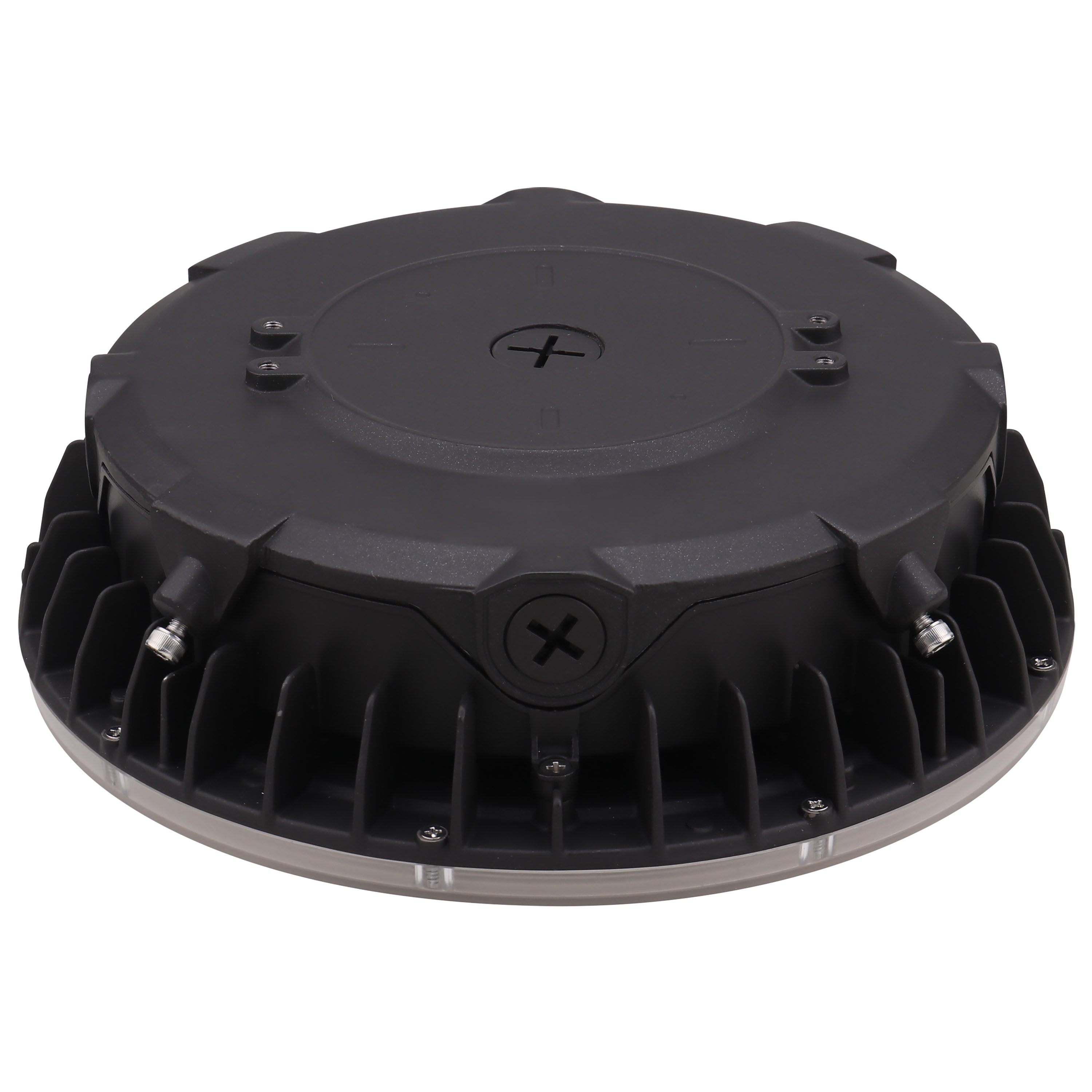

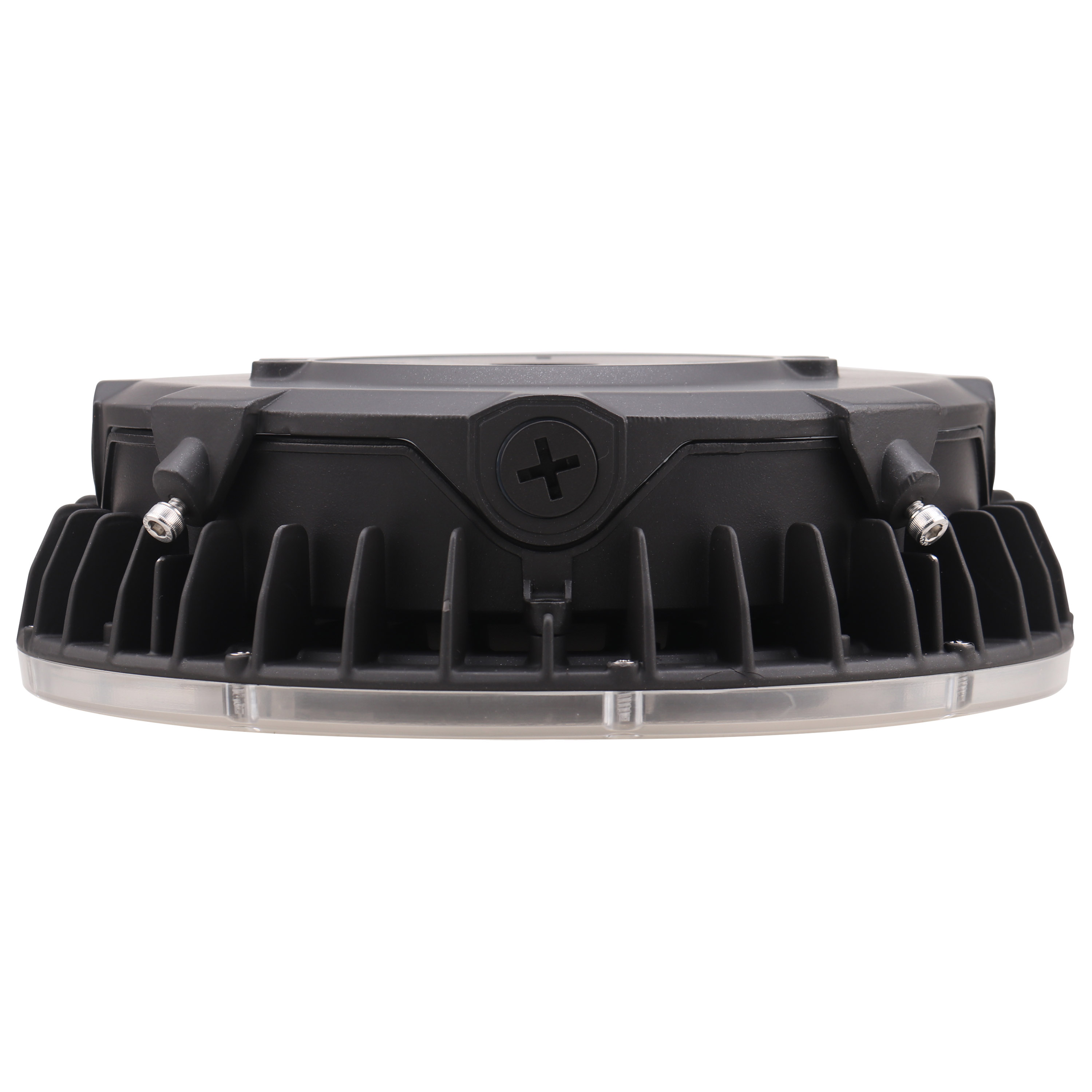

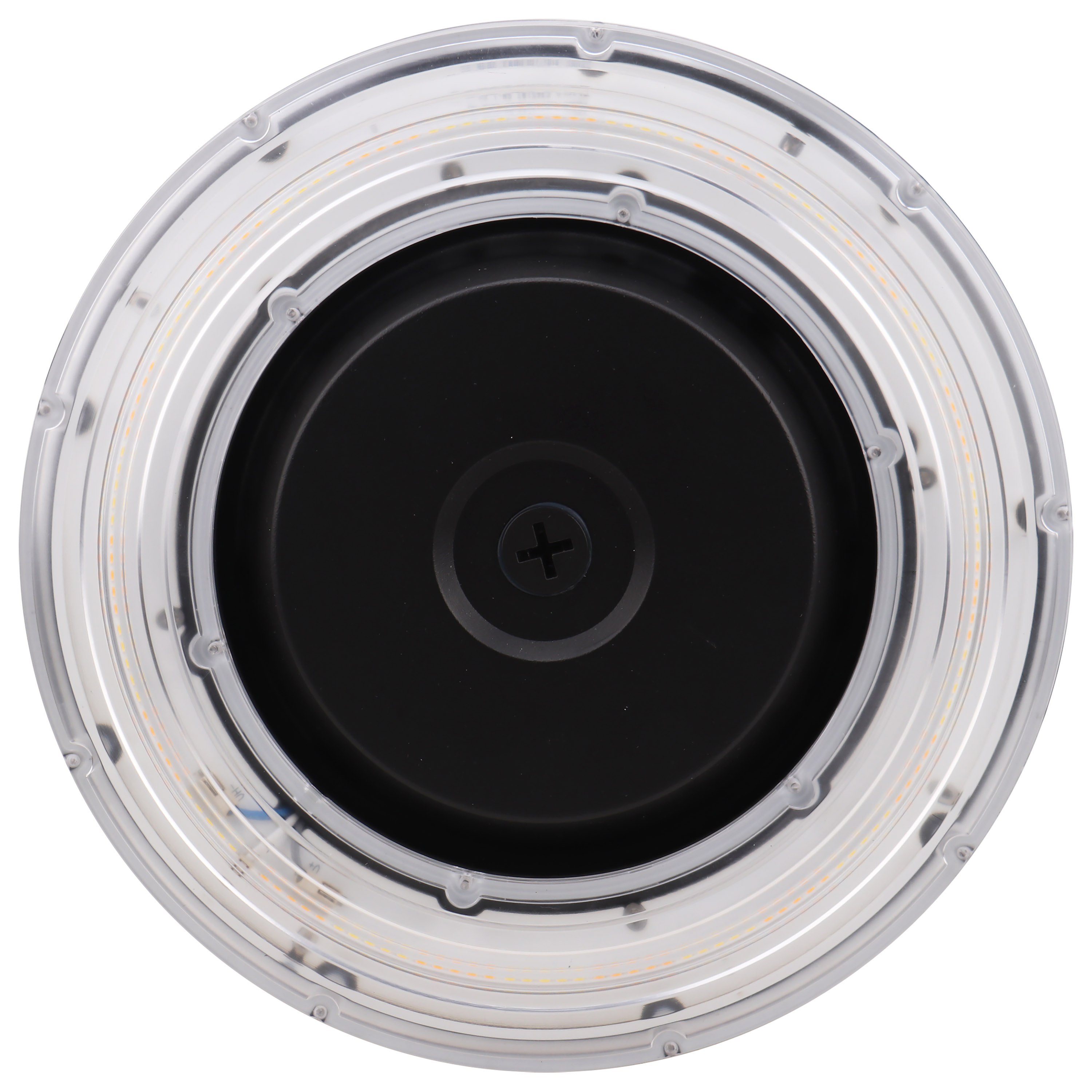

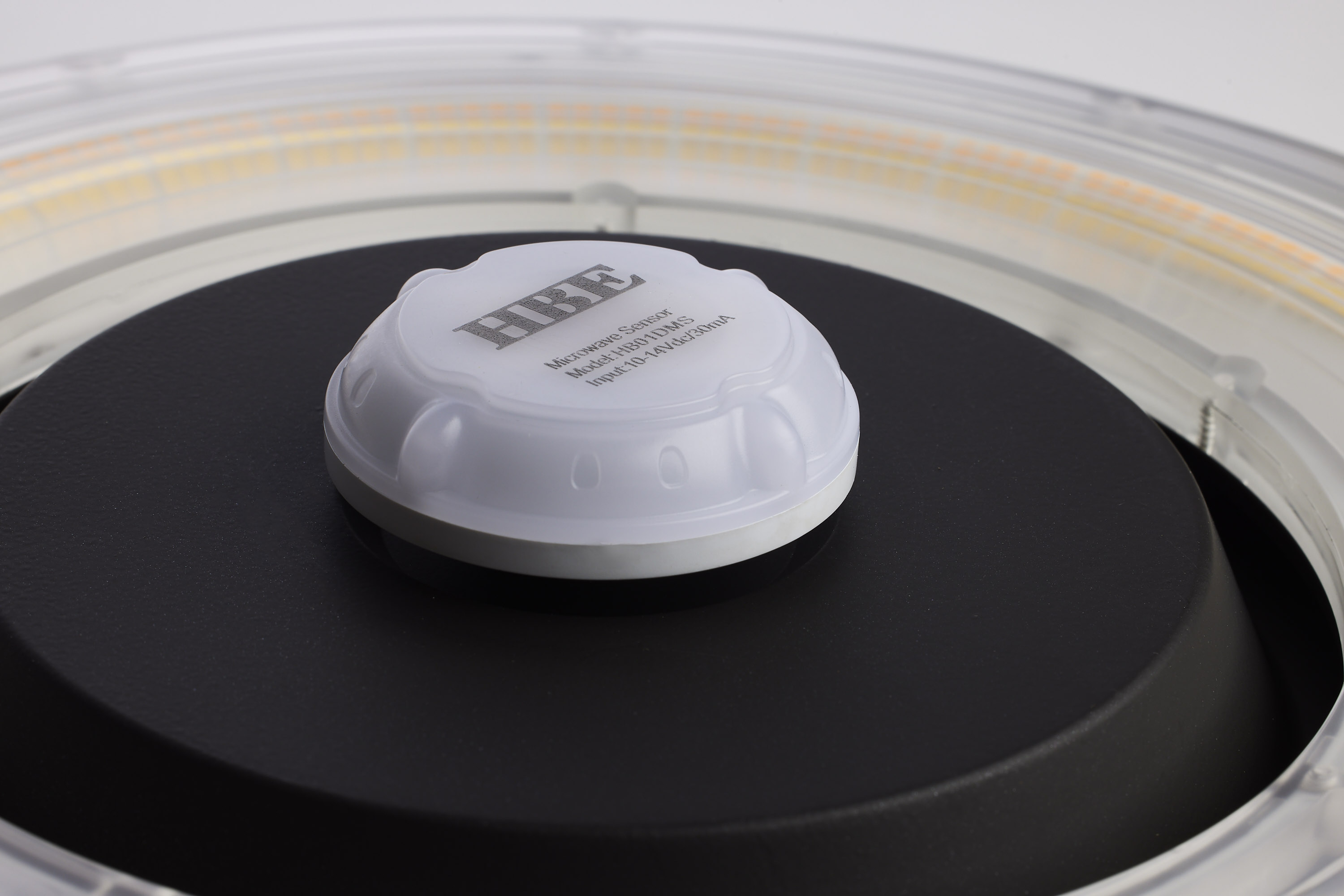

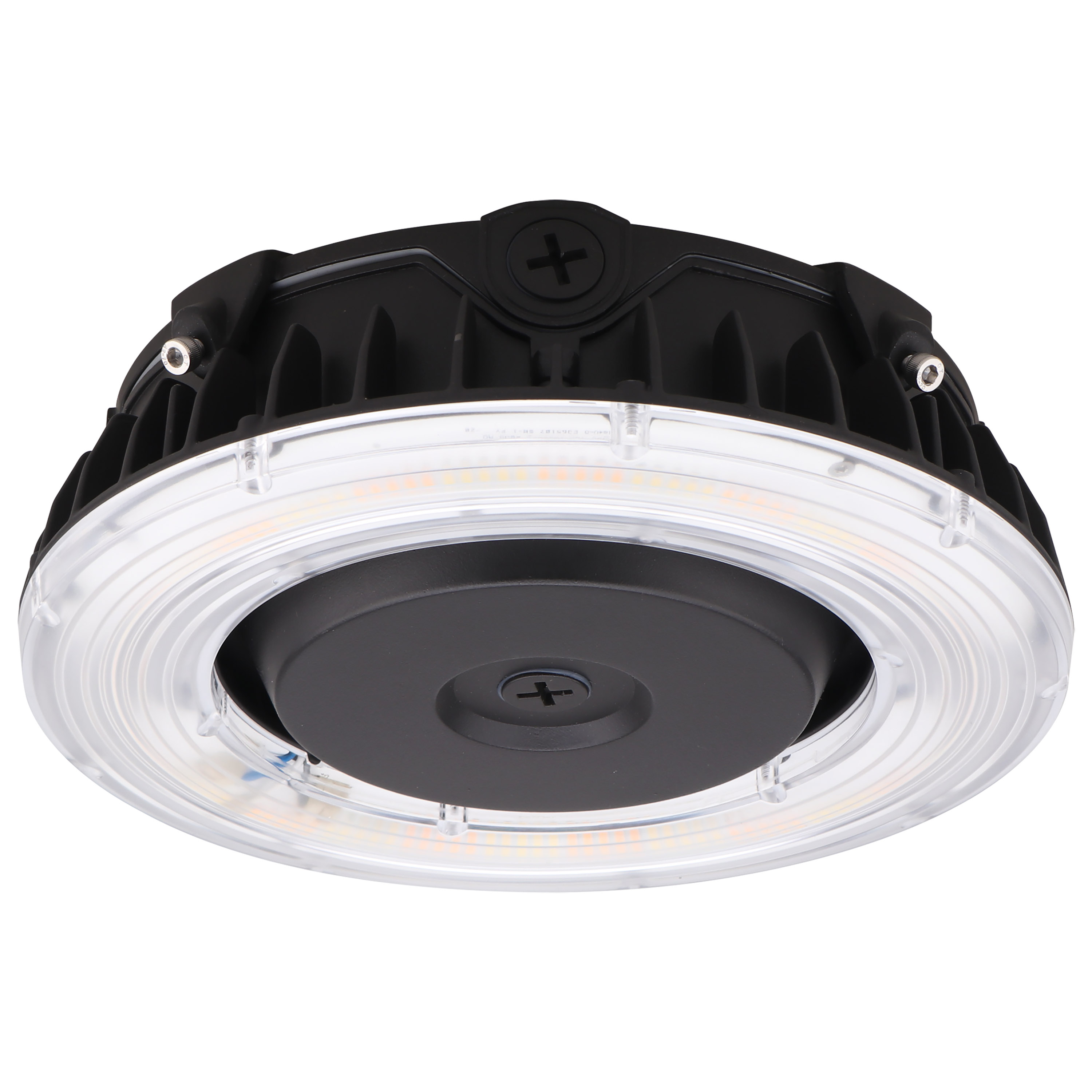

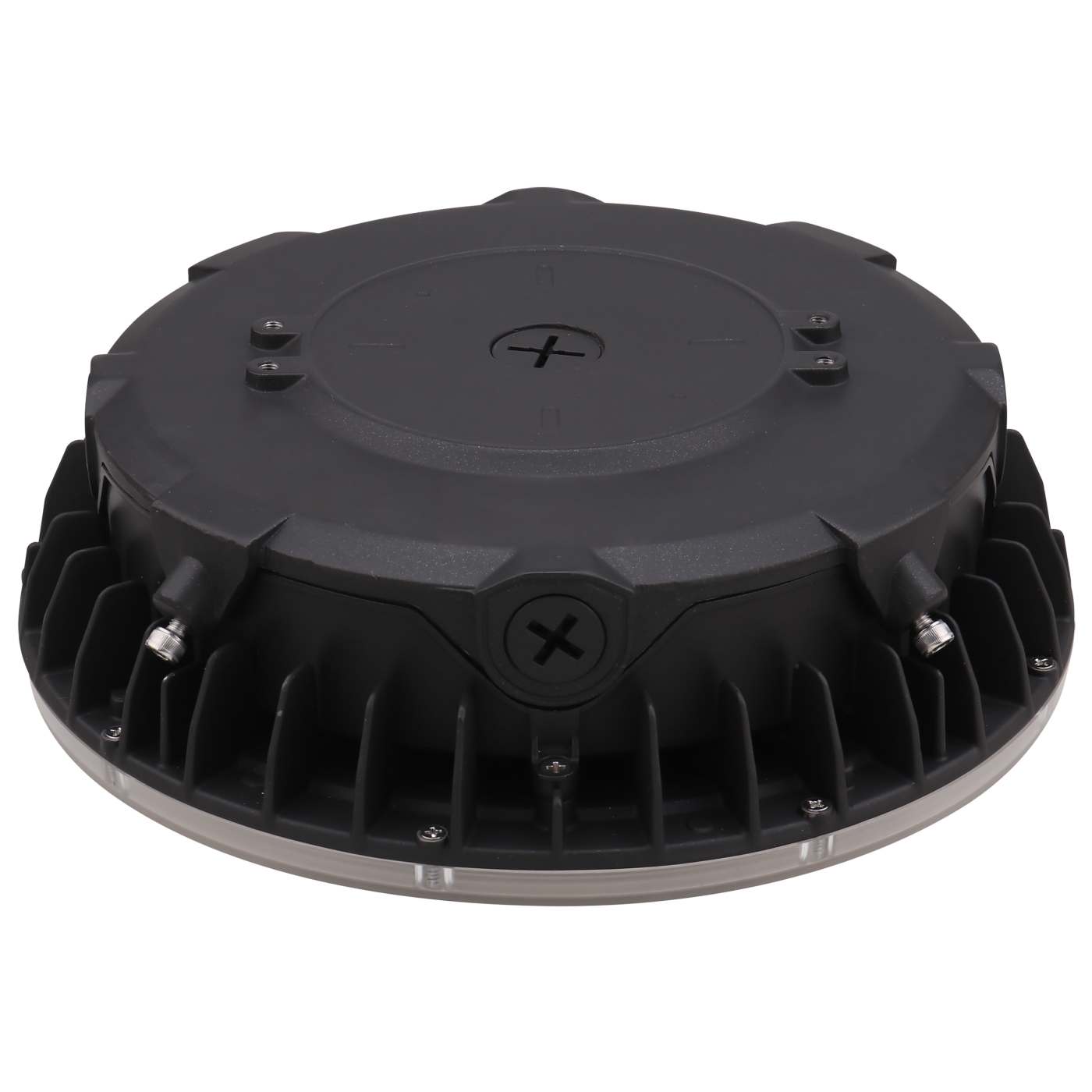

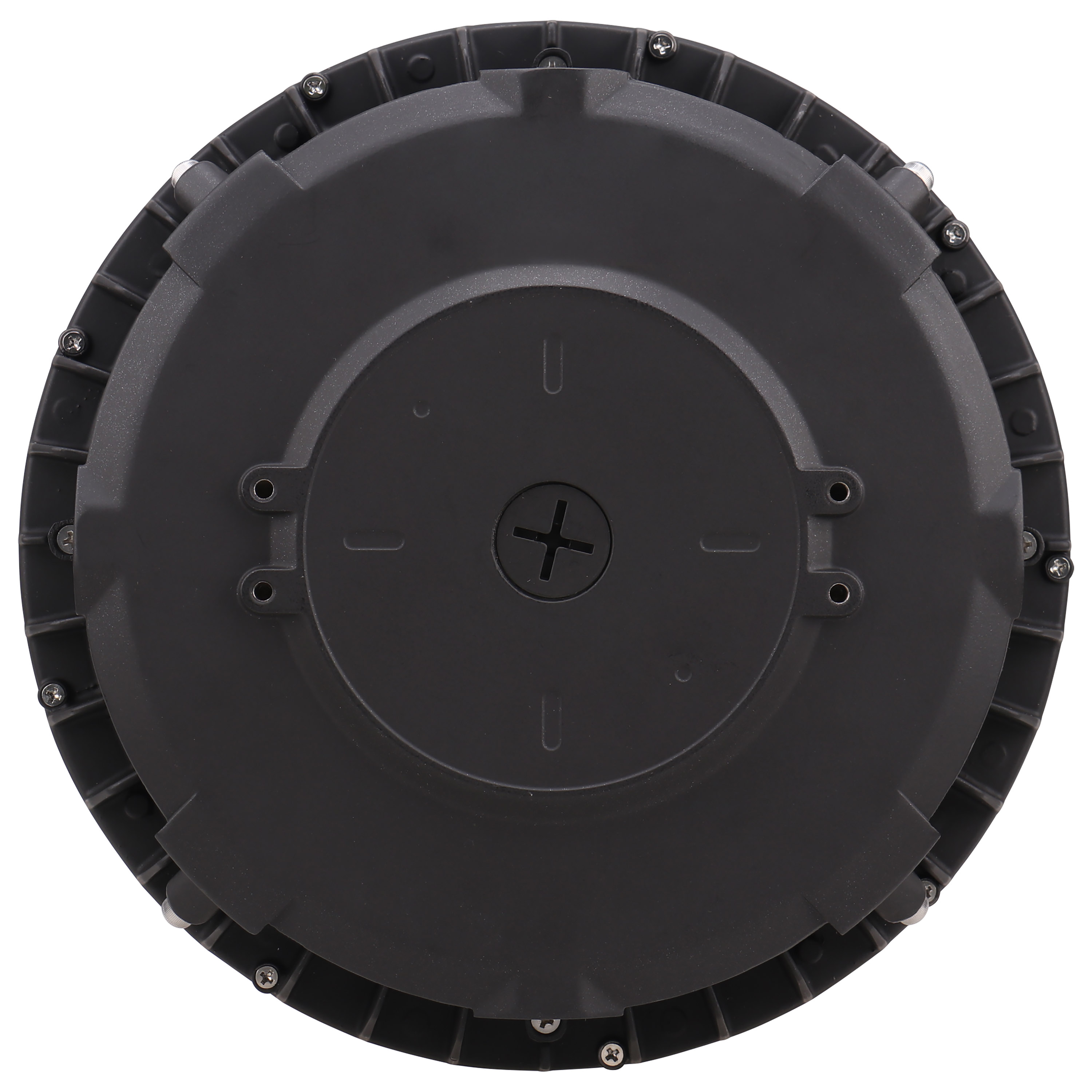

100W LED CANOPY W/ SENSOR PORT

  • LED Canopy Fixture
  • 100 Watt
  • CCT Selectable
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-632R1 Specifications65-632R1 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-632R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

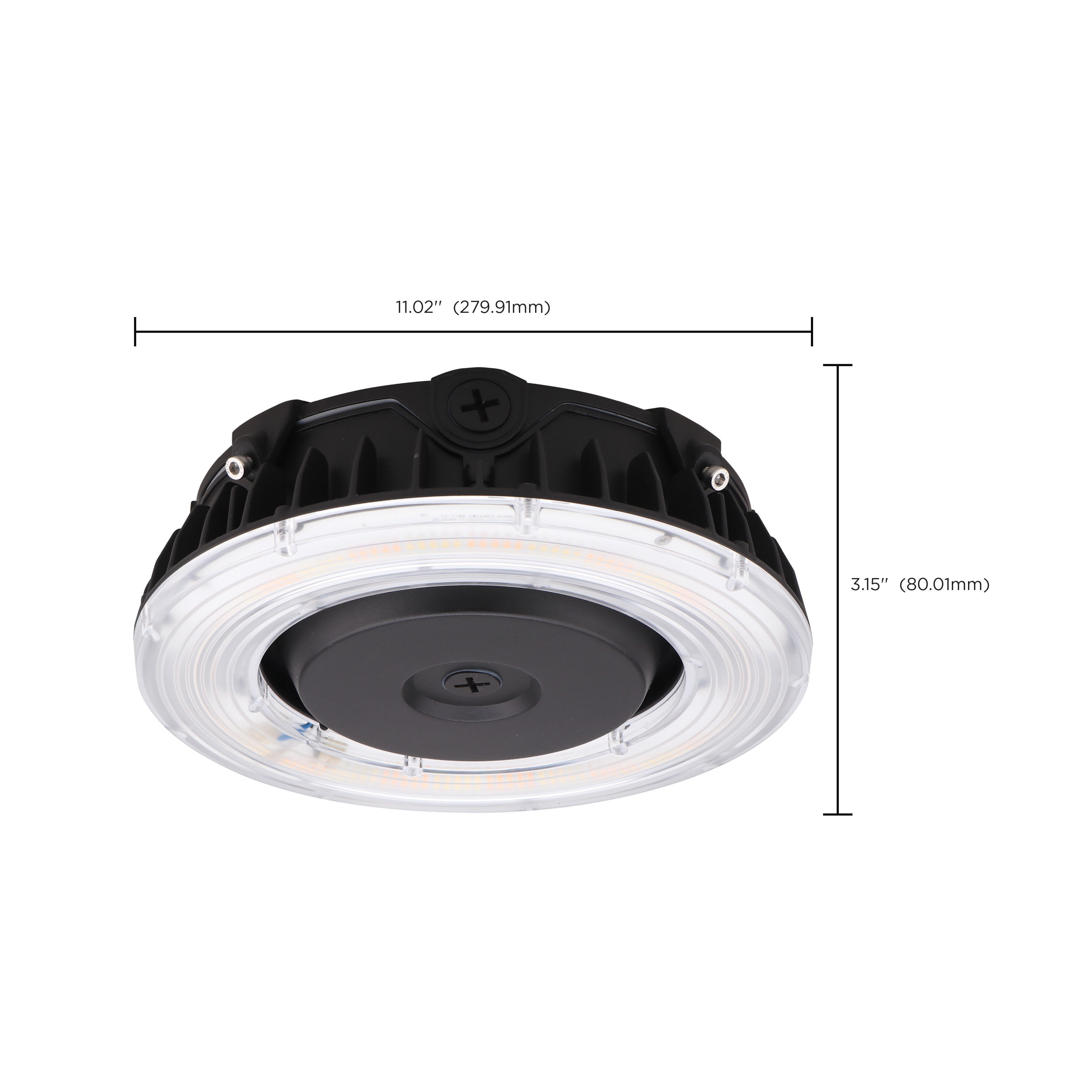

Diameter11.02
Dimmable Text0-10V Dimming
MaterialDie-cast Aluminum
Fixture TypeCanopy
Product NotesUV Stabilized Powder Coated Finish
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyBronze
Amps0.833-0.361A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Photo CellOptional Add-On
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
Lumens14298L/15322/14943L
Volts120V-277V
Watts100W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G2
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-ZW3LNP
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923652851
Case Cube1.2604
Case Height13.58
Case Length13.58
Case Quantity2
Case UPC10045923652858
Case Weight19.8
Case Width11.81
EA Cube0.5224
EA Height5.51
EA Length12.8
EA Quantity1
EA Weight8.8
EA Width12.8
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.15
Web Width11.02
