| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum Alloy |

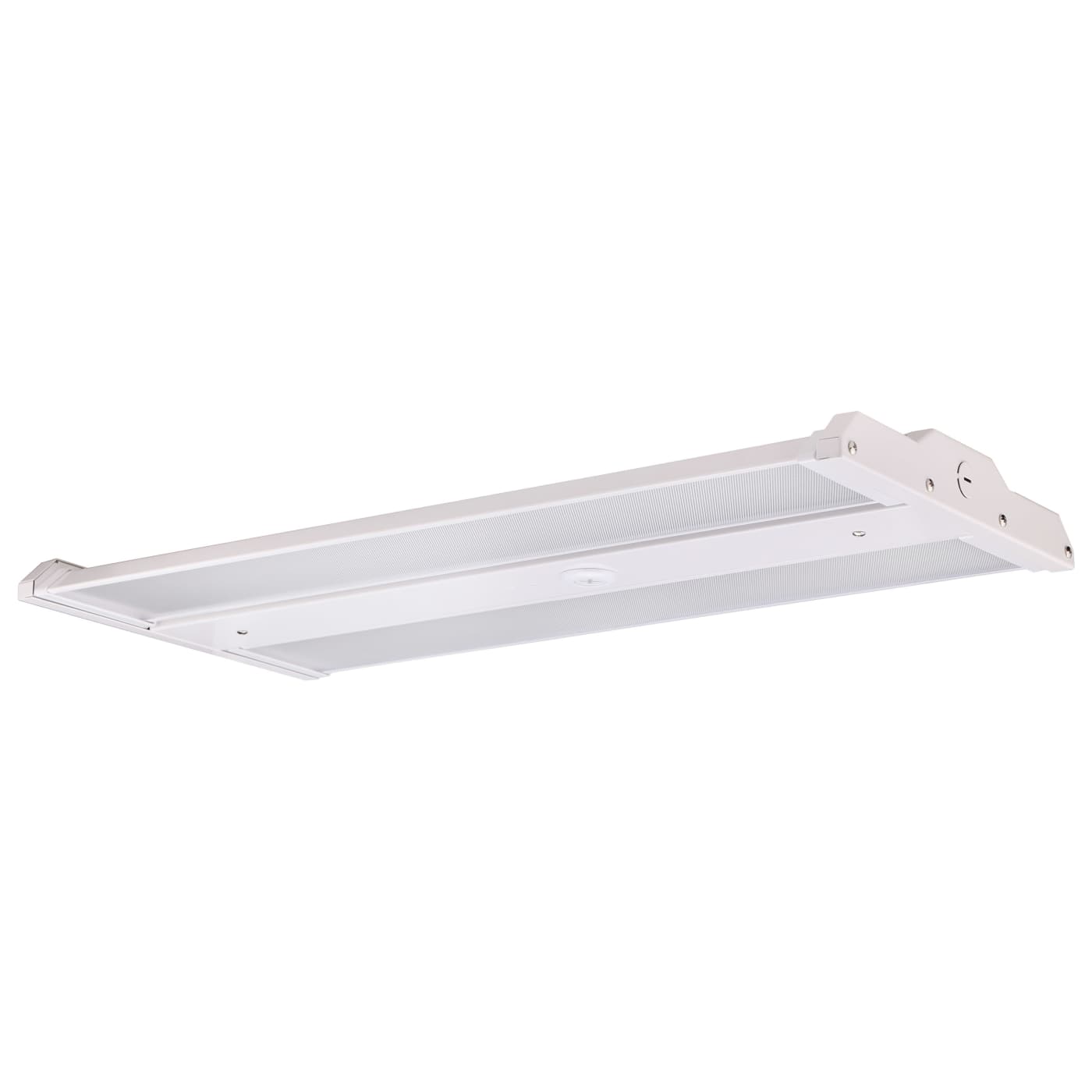

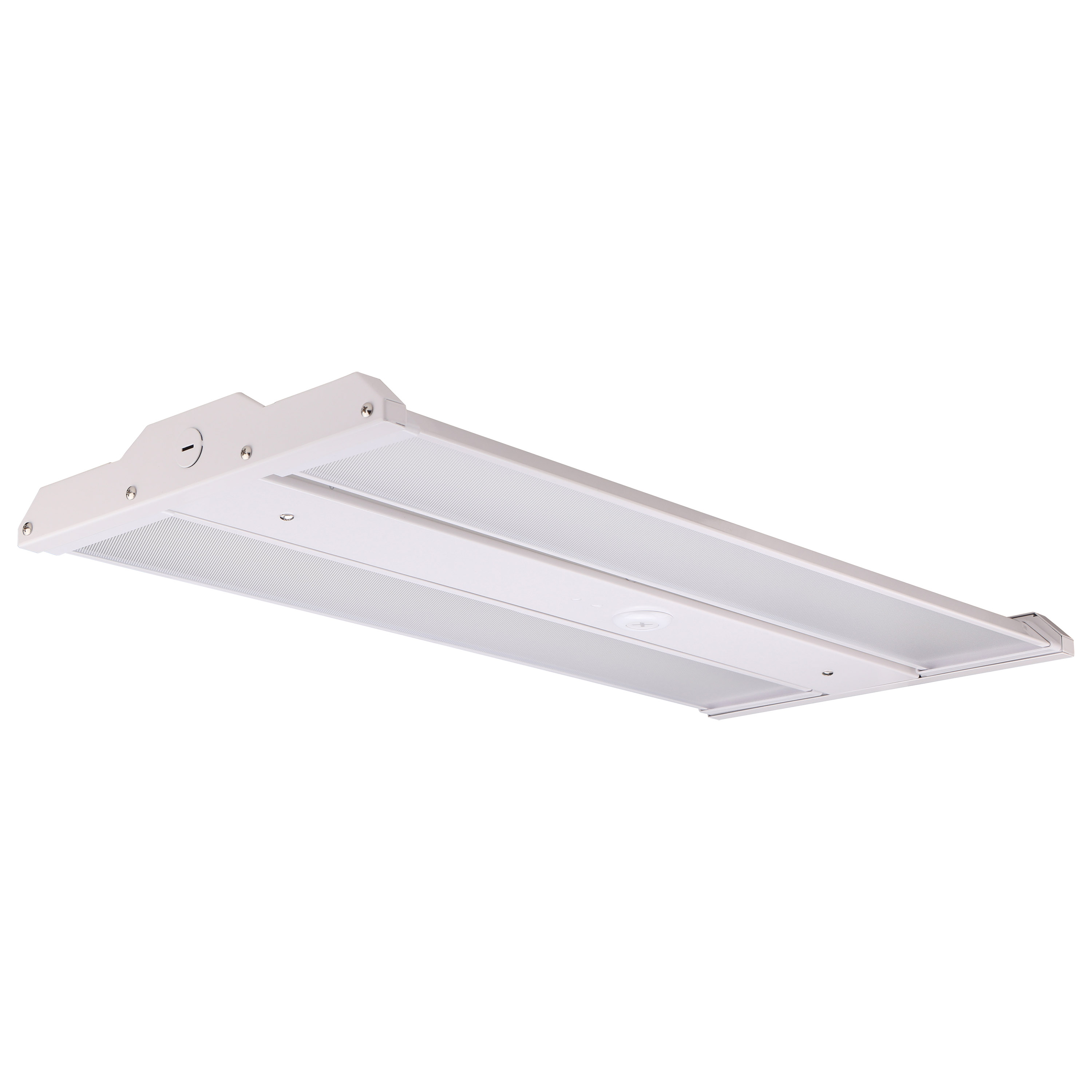

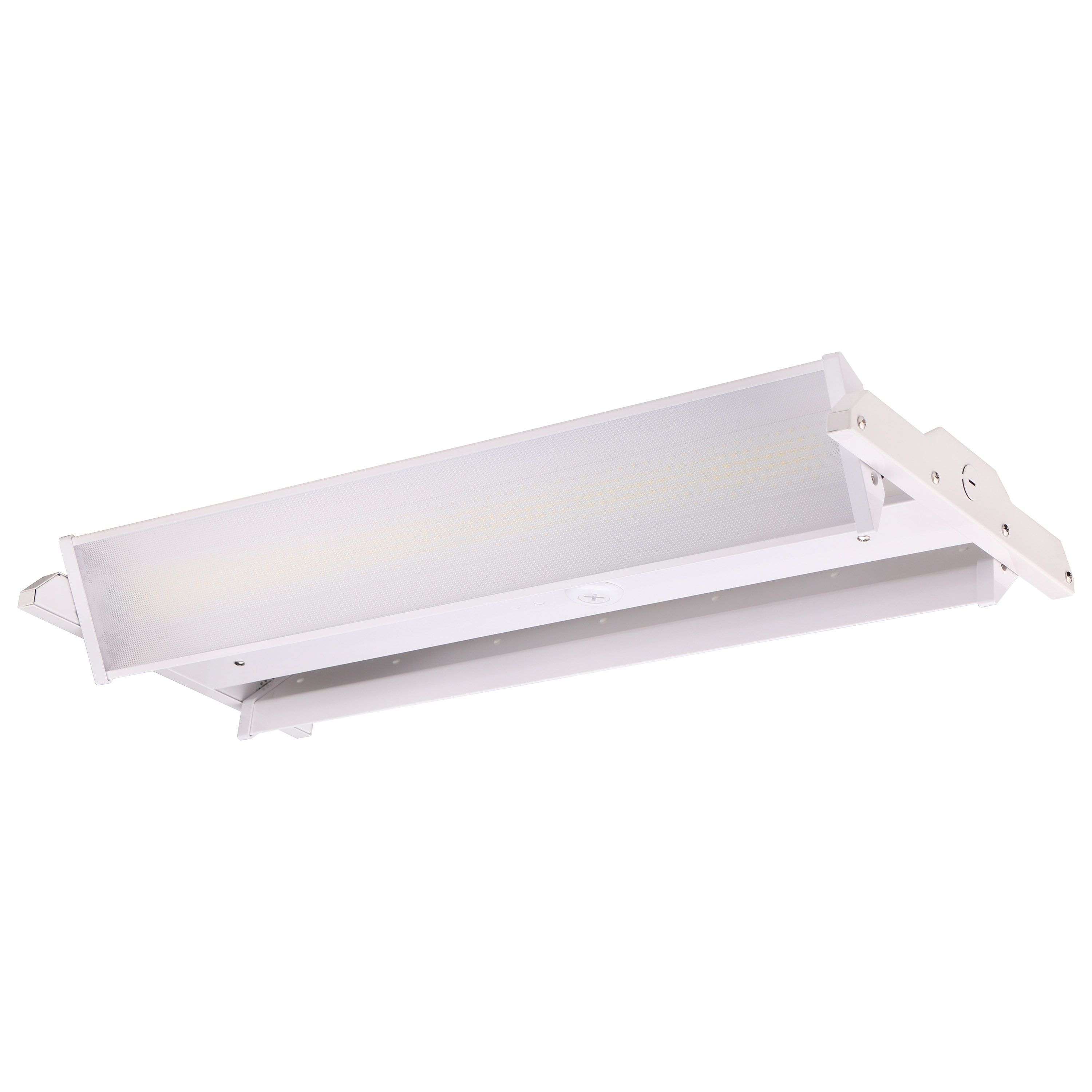

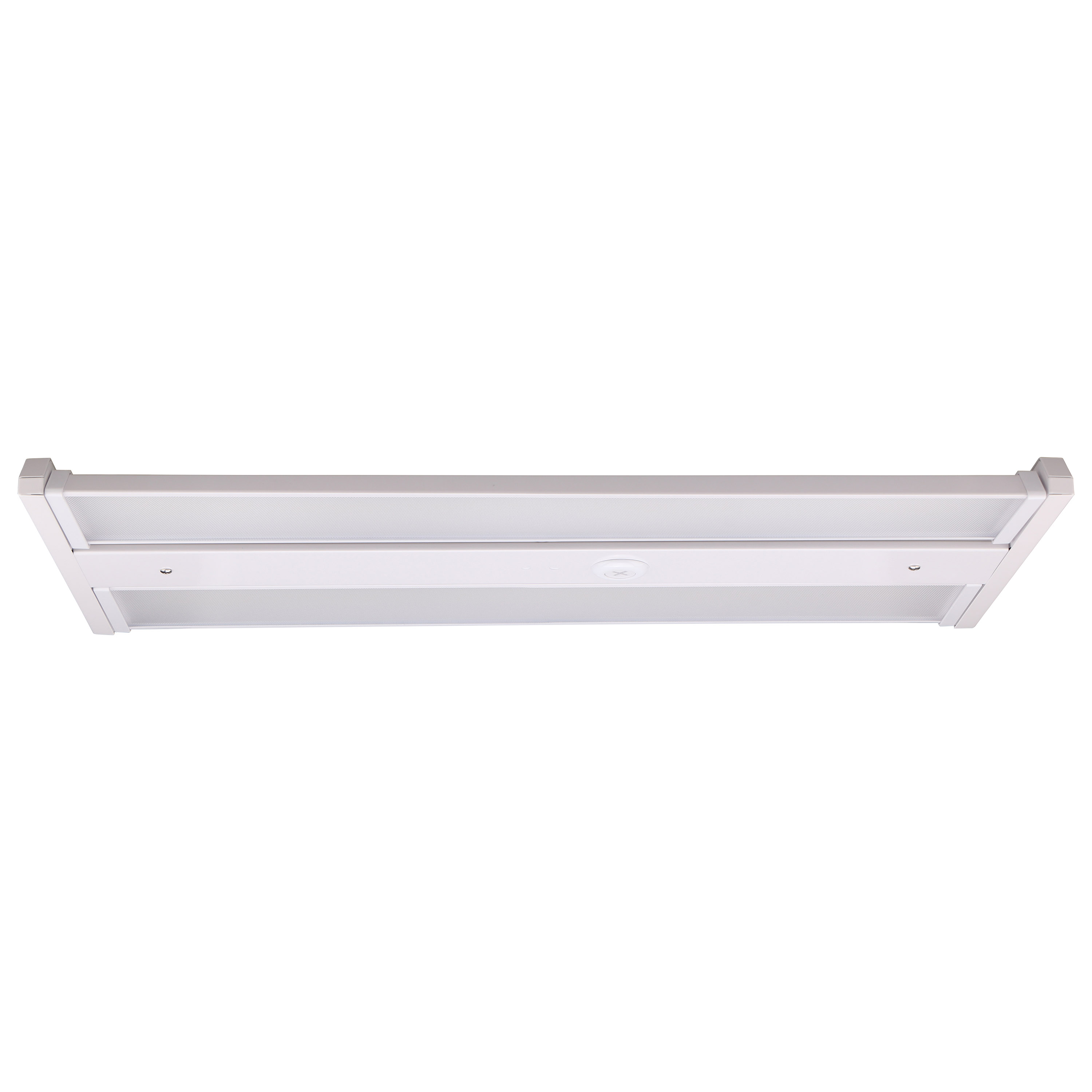

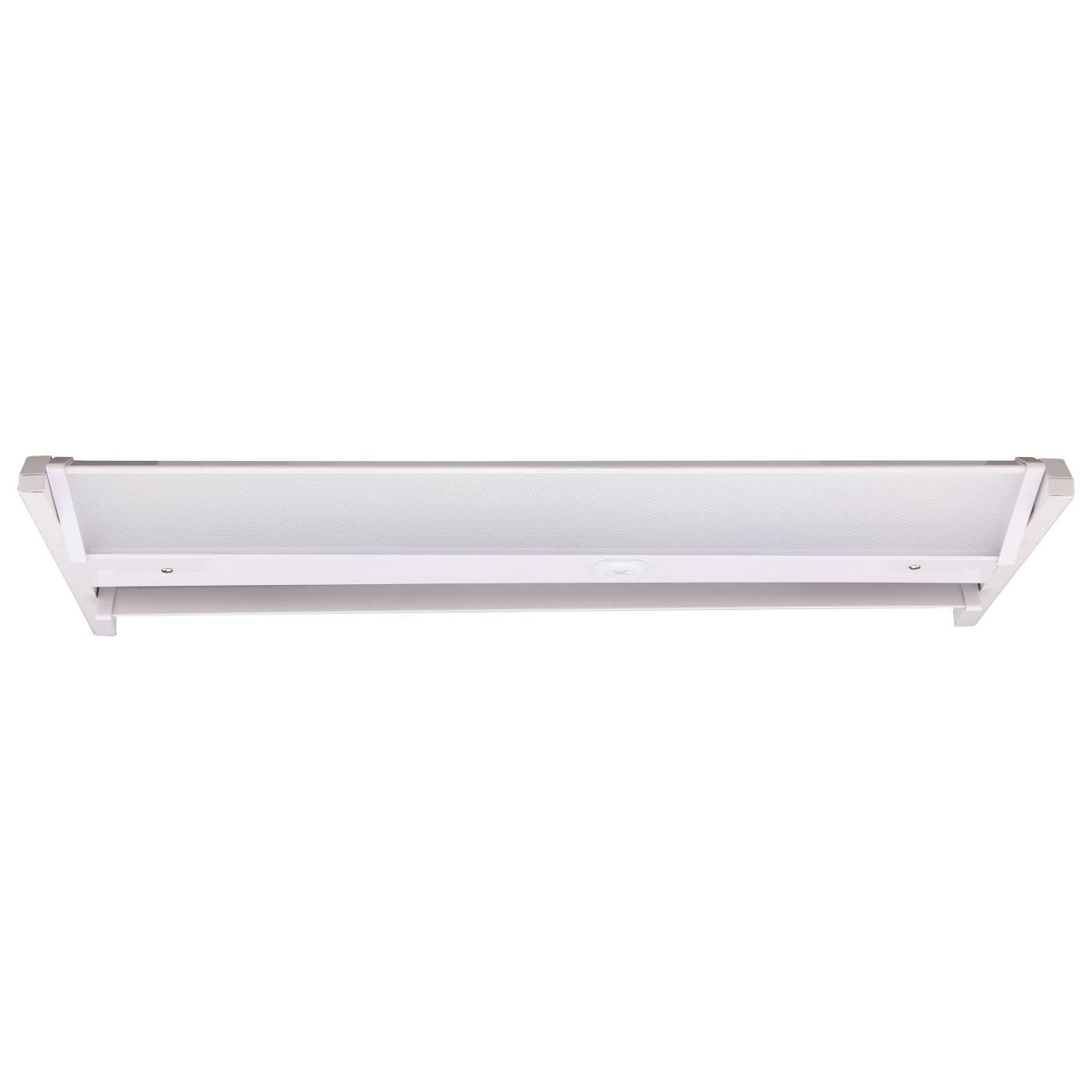

| Fixture Type | Linear Hi-Bay |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 15% |
| Wire Color | White / Black / Green / Gray / Yellow |
| Wire Length | 5.91 |
| Wire Quantity | 5 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 1.375-0.596A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Photo Cell | Multiple Optional Sensors Available |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 100 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| Lumens | 22816L |
| Volts | 120V-277V |
| Watts | 165W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-E2HV7D |
| FCC Compliant | True |
| IC Rated | True |
| IP Rating | IP40 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923656286 |
|---|---|
| Case Cube | 1.2472 |
| Case Height | 4.72 |
| Case Length | 30.12 |
| Case Quantity | 1 |
| Case UPC | 10045923656283 |
| Case Weight | 10.78 |
| Case Width | 15.16 |
| EA Cube | 1.2472 |
| EA Height | 4.72 |
| EA Length | 30.12 |
| EA Quantity | 1 |
| EA Weight | 10.78 |
| EA Width | 15.16 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

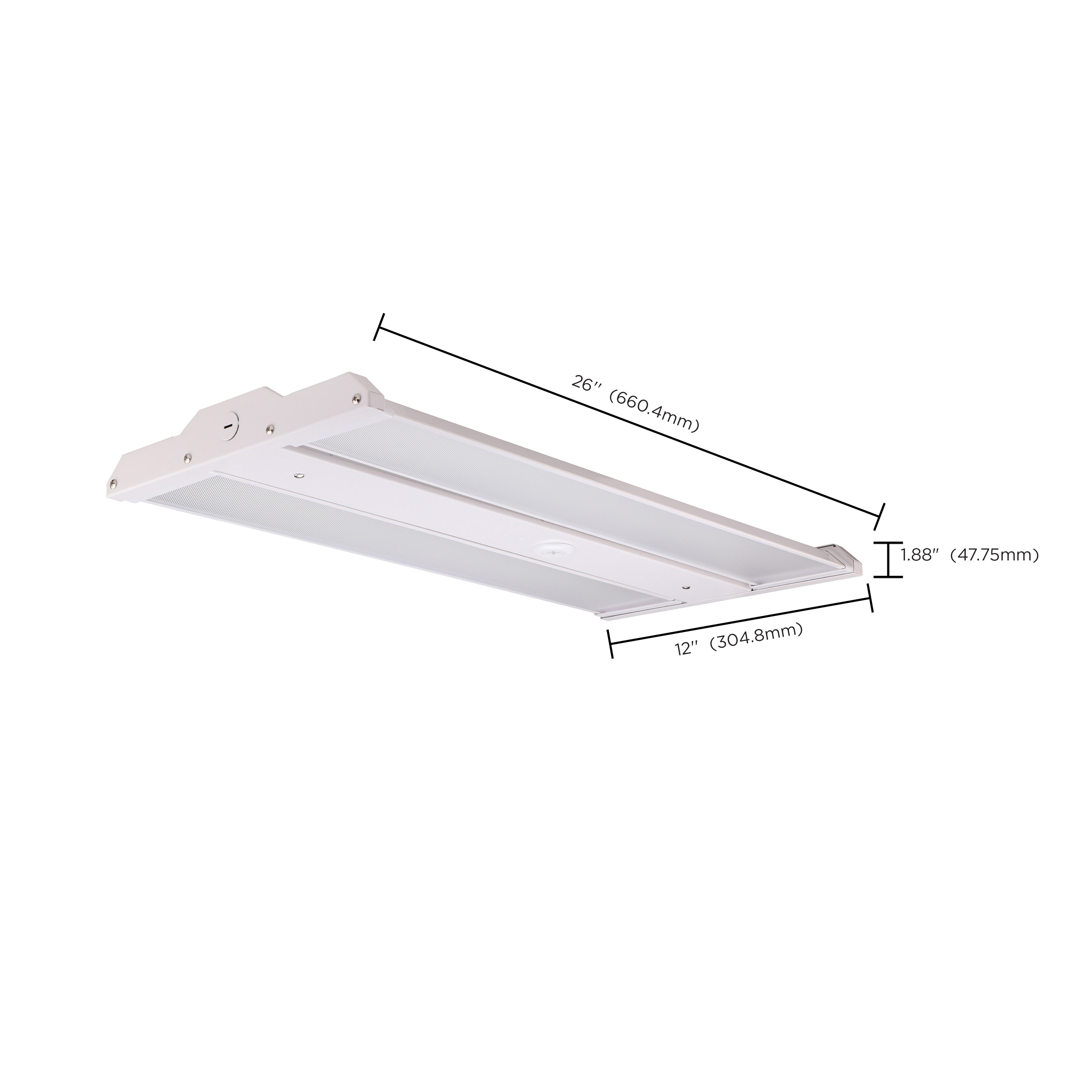

| Web Height | 1.88 |
| Web Length | 26.0 |
| Web Width | 12.0 |
