» 65-648

Discontinued – Suggested Replacement: 65-648R1

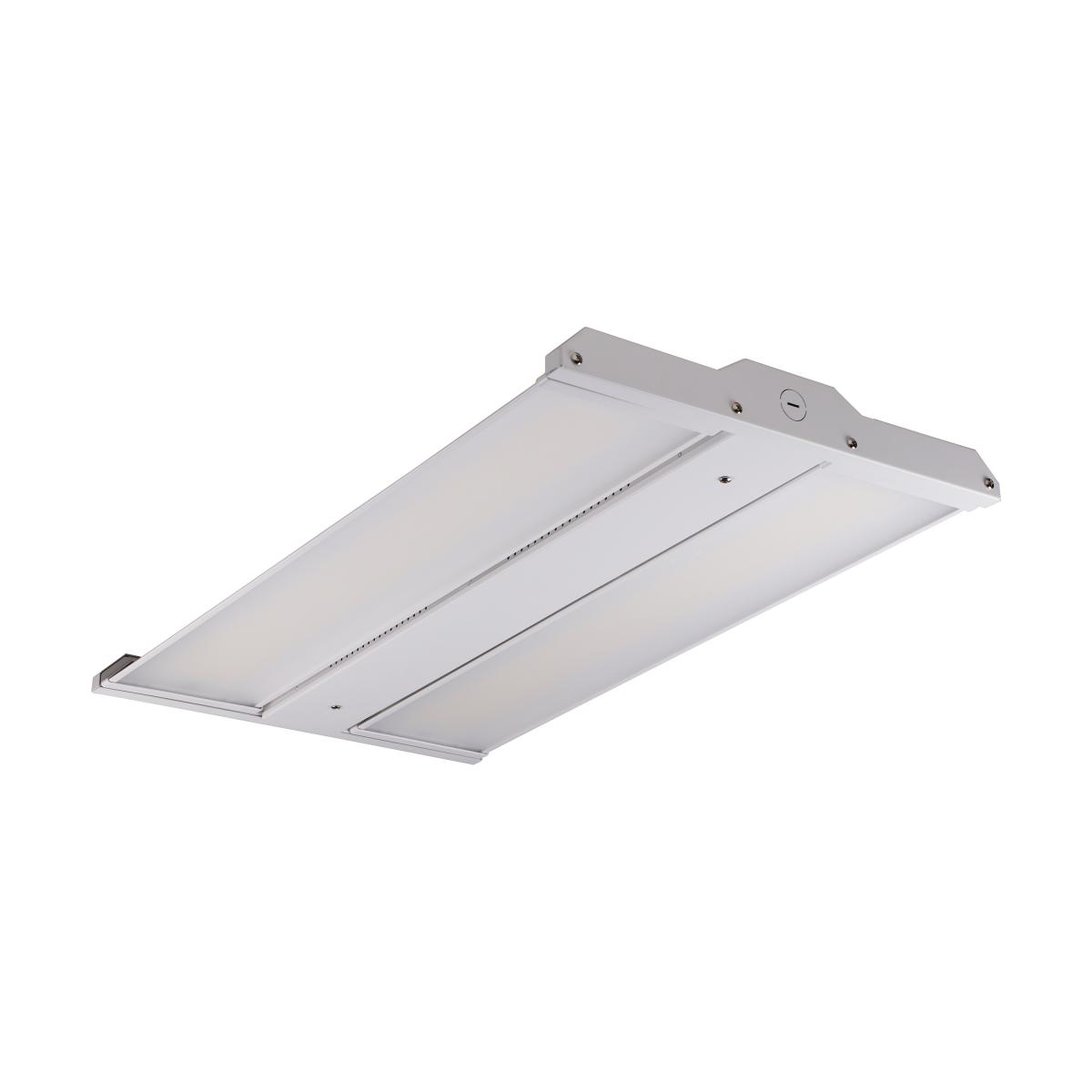

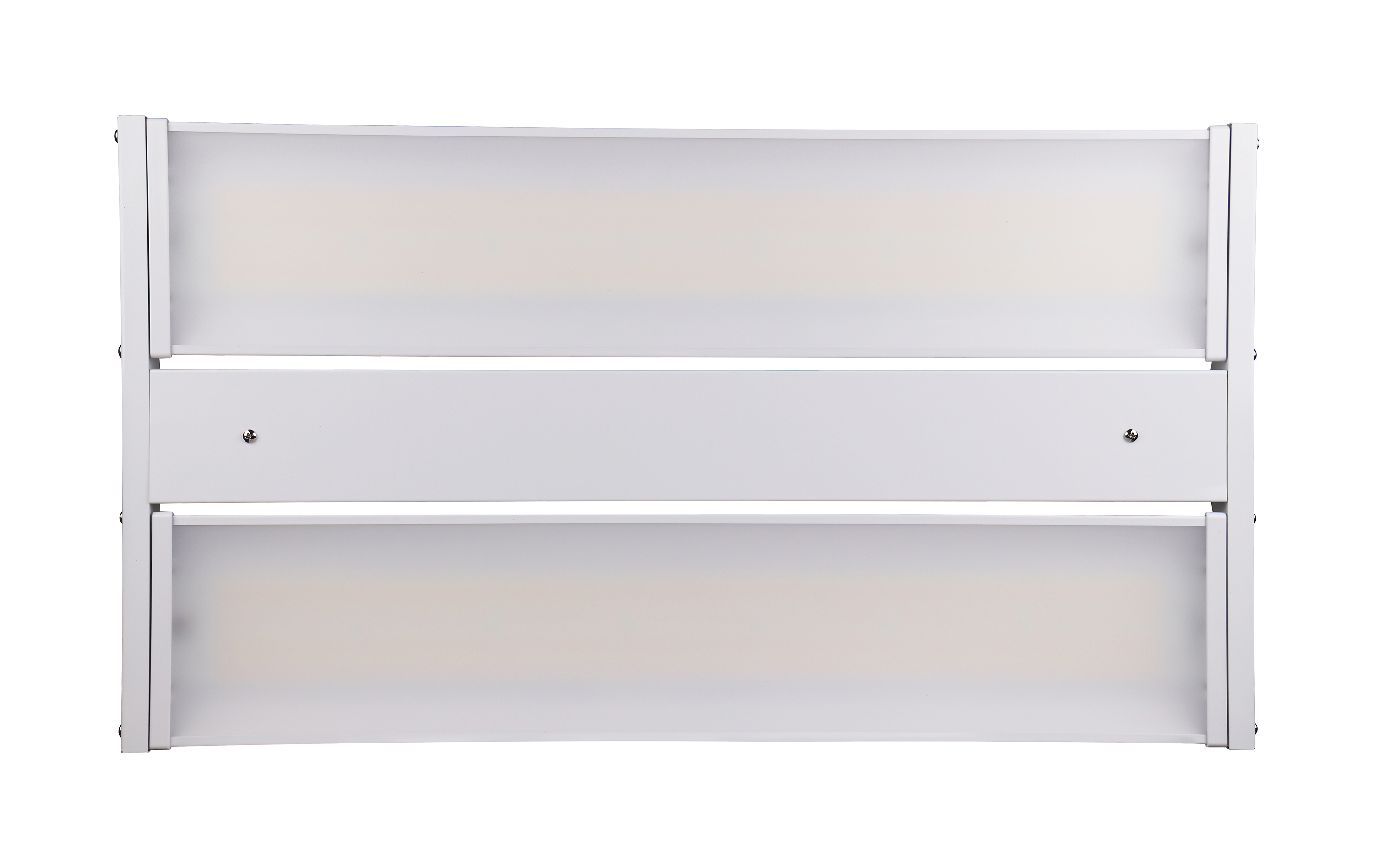

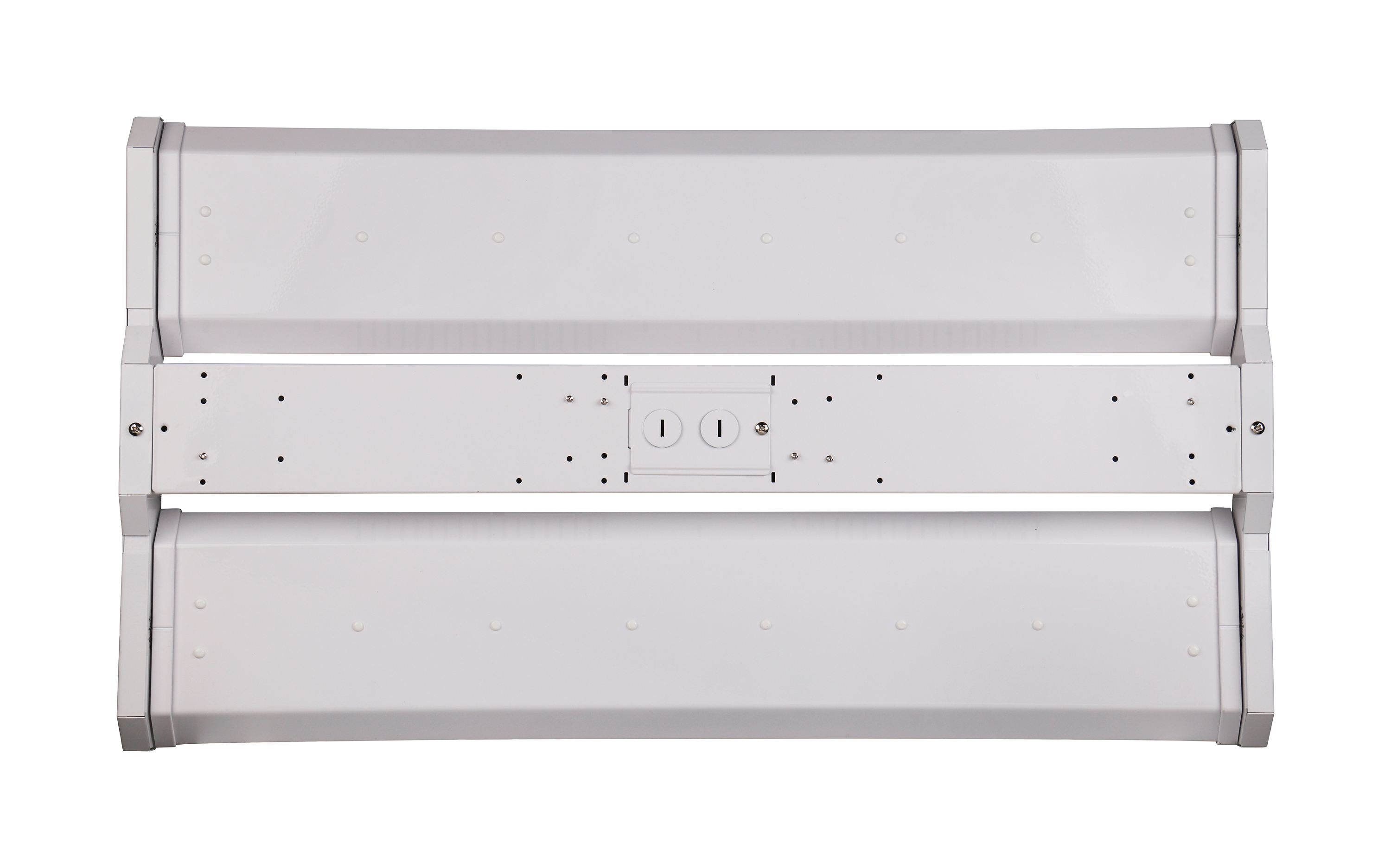

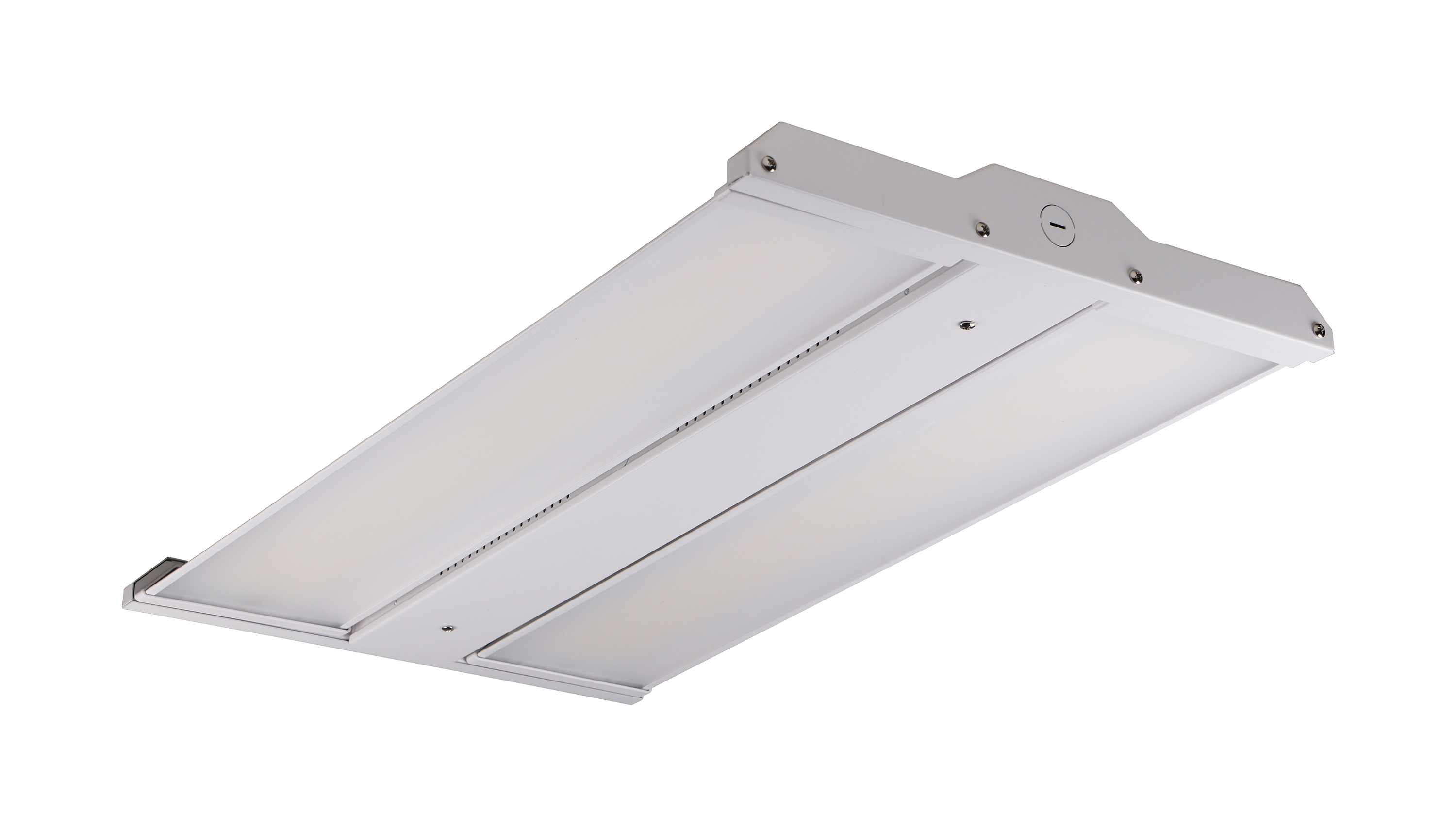

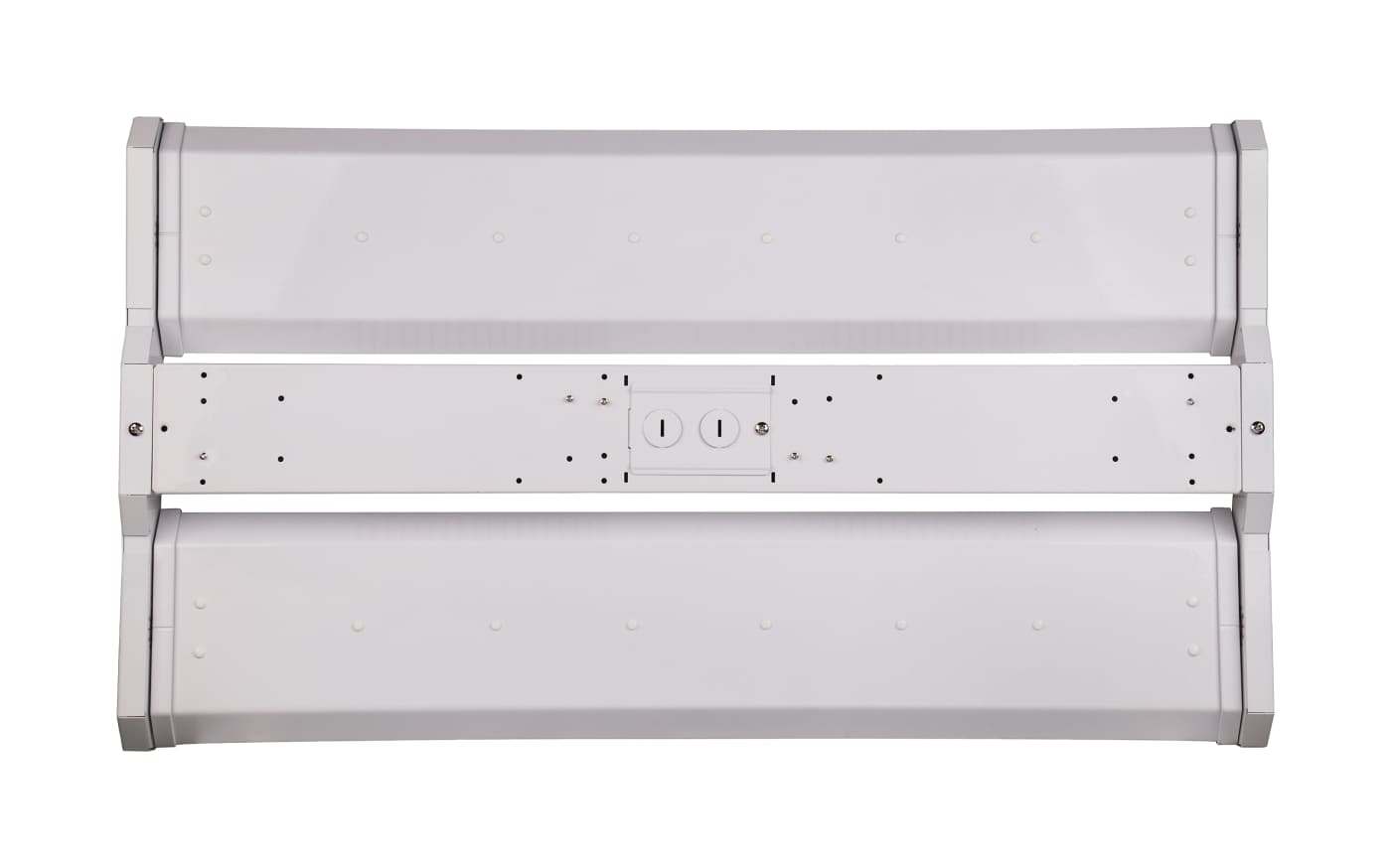

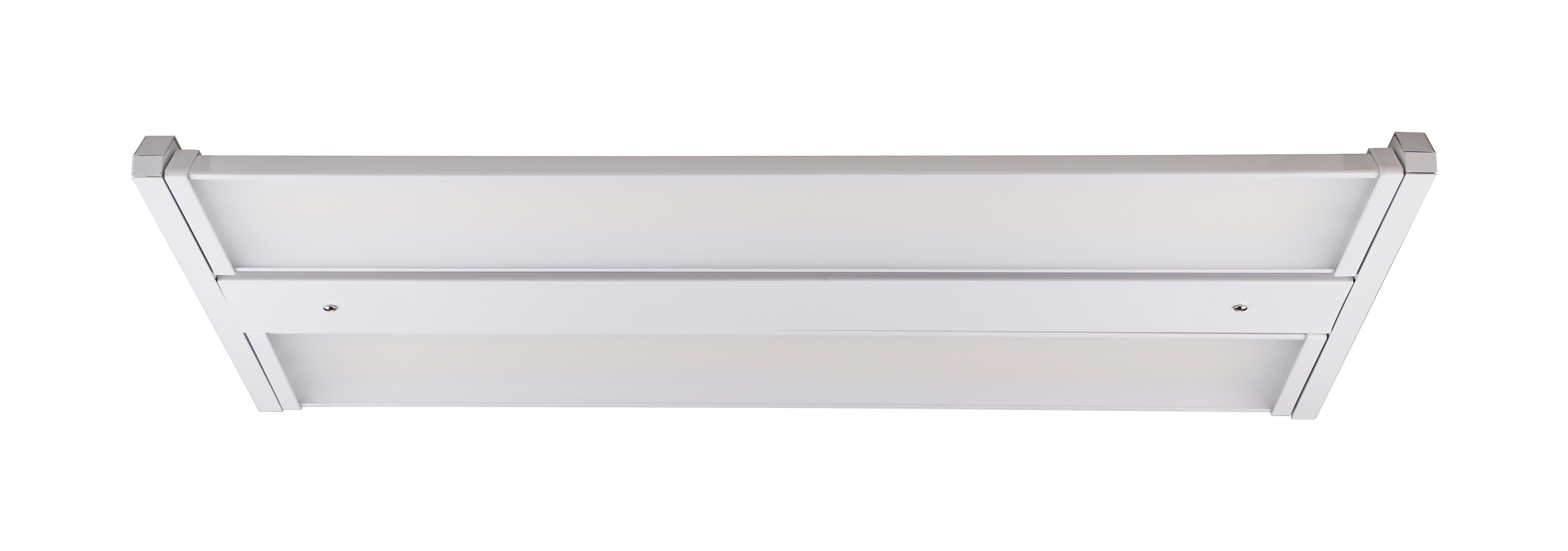

65-648 220W LED ADJUSTABLE HIGH BAY

65-648

220W LED ADJUSTABLE HIGH BAY

LED Adjustable High bay; 220 Watt; 5000K; White Finish; 120-277 Volt

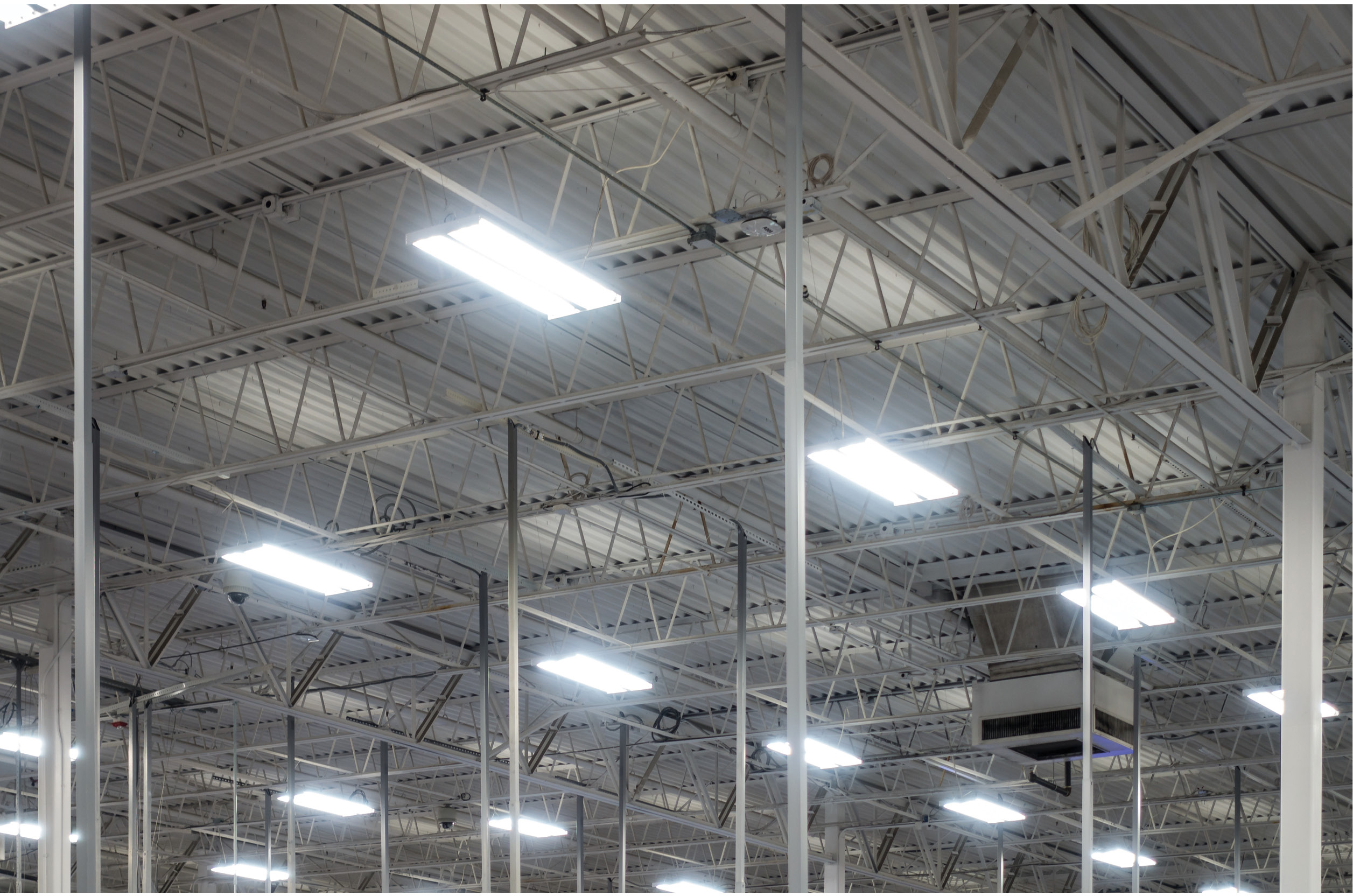

The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top box on a warehouse shelf or tracking a volleyball in a gymnasium during the state championship, no one wants to be left seeing spots from powerful overhead lighting. The graceful articulation of the individual panels on our adjustable high bay puts the power of directionality in your hands. | Introducing the new high standard for linear high bays.. Fully adjustable directional light output puts control in your hands! The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top box on a warehouse shelf or tracking a volleyball in a gymnasium during the state championship, no one wants to be left seeing spots from powerful overhead lighting. The graceful articulation of the individual panels on our adjustable high bay puts the power of directionality in your hands. Along with a full suite of accessories including PIR and Microwave sensors, surface and pendant mount kits, and an Emergency battery backup unit, you now have the ability to light what you want the way you want to see it lit!

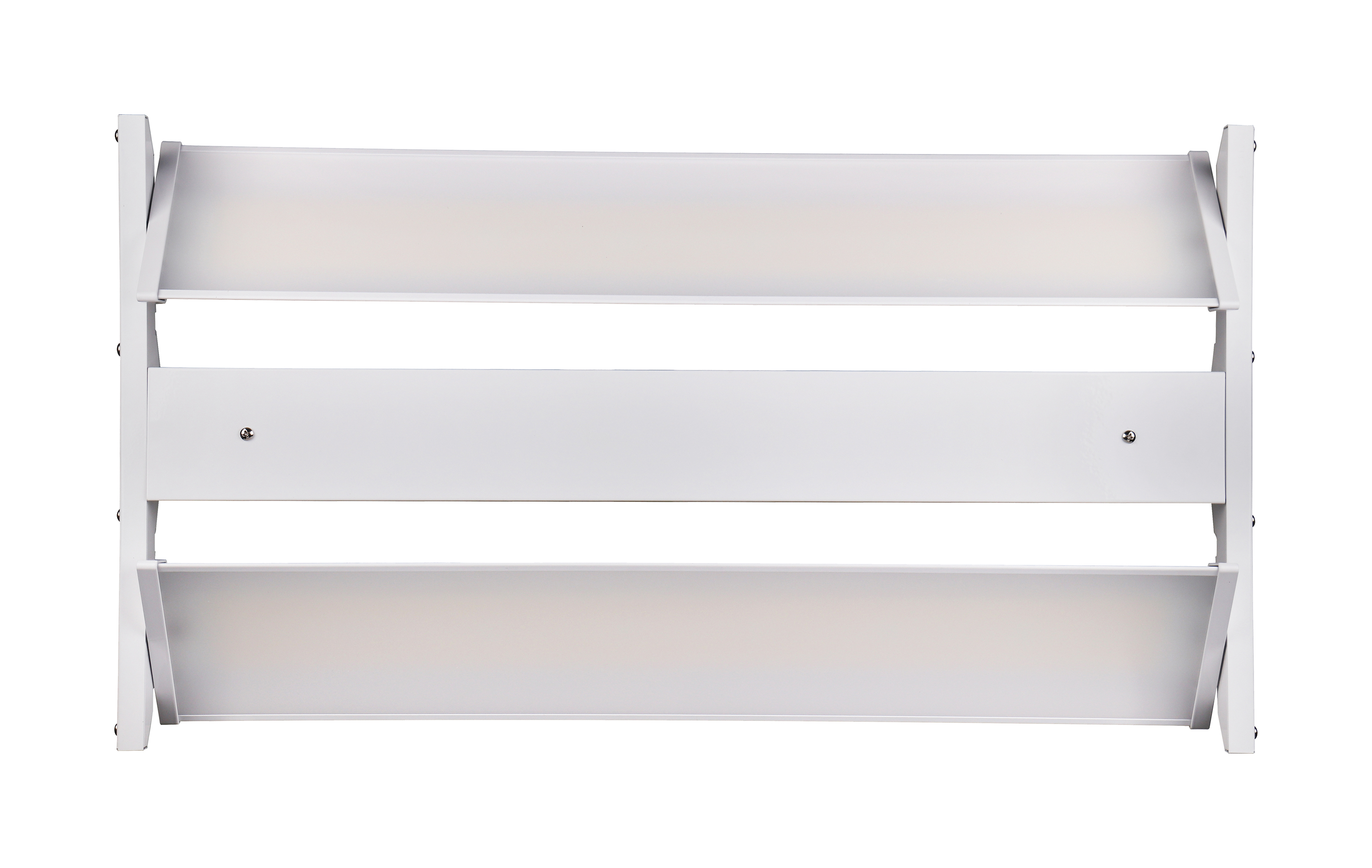

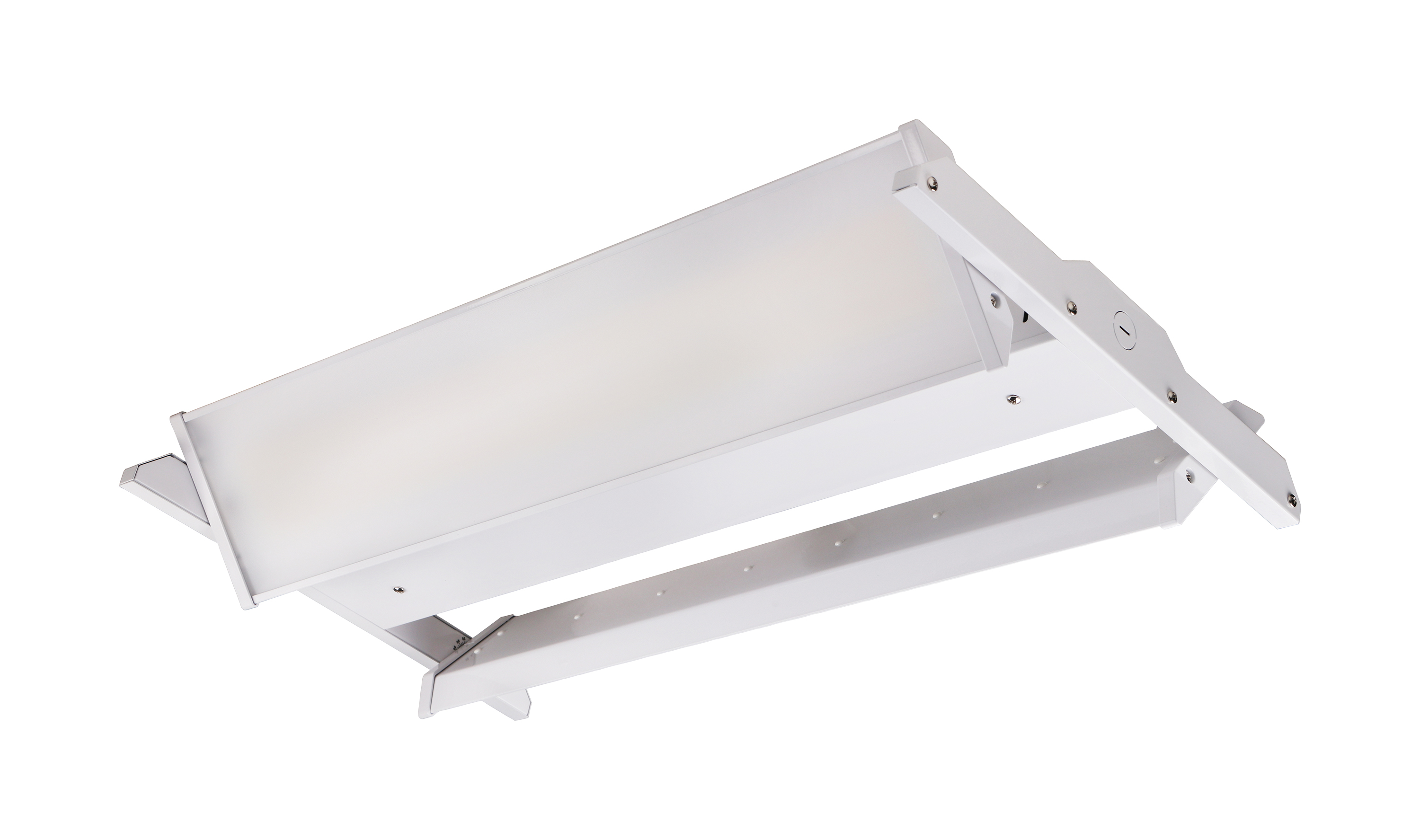

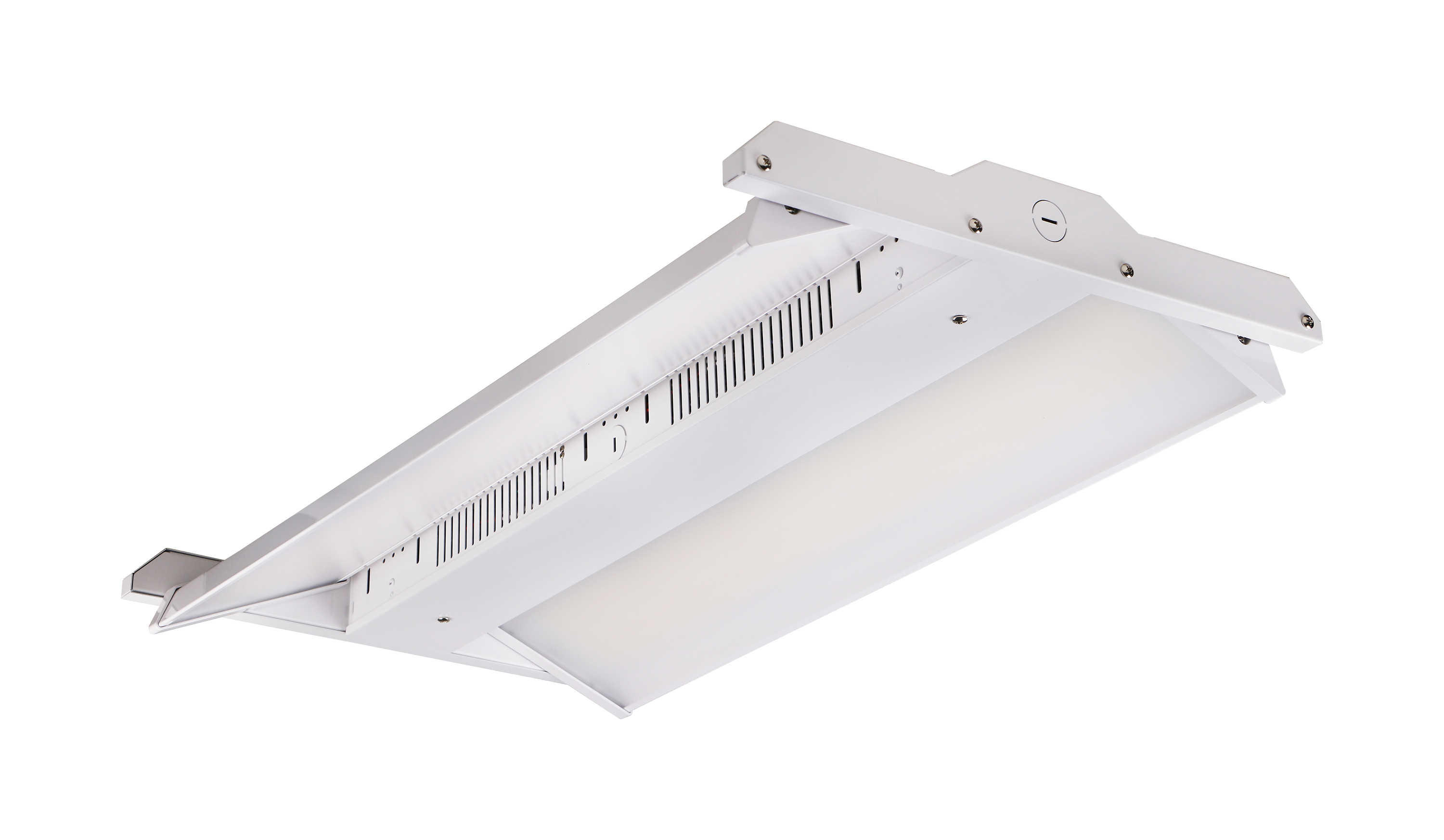

  • Fully independent articulating light panels
  • Full suite of accessories: PIR and microwave sensors, surface and pendant mount kits, and an emergency battery backup unit
  • Voltage Range: 120-277V
  • 1-10V dimming
  • IP40 rated
Lights

65-648

220W LED ADJUSTABLE HIGH BAY

LED Adjustable High bay; 220 Watt; 5000K; White Finish; 120-277 Volt

The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top box on a warehouse shelf or tracking a volleyball in a gymnasium during the state championship, no one wants to be left seeing spots from powerful overhead lighting. The graceful articulation of the individual panels on our adjustable high bay puts the power of directionality in your hands. | Introducing the new high standard for linear high bays.. Fully adjustable directional light output puts control in your hands! The nature of a traditional high bay is to put out as much light in the widest range possible. On paper this sounds like a good plan, but in form and function it can be quite literally blinding and inefficient. Whether you're trying to reach that top box on a warehouse shelf or tracking a volleyball in a gymnasium during the state championship, no one wants to be left seeing spots from powerful overhead lighting. The graceful articulation of the individual panels on our adjustable high bay puts the power of directionality in your hands. Along with a full suite of accessories including PIR and Microwave sensors, surface and pendant mount kits, and an Emergency battery backup unit, you now have the ability to light what you want the way you want to see it lit!
  • Fully independent articulating light panels
  • Full suite of accessories: PIR and microwave sensors, surface and pendant mount kits, and an emergency battery backup unit
  • Voltage Range: 120-277V
  • 1-10V dimming
  • IP40 rated

Specifications

General
StatusDiscontinued
Substitute65-648R1
Fixture TypeLinear Hi-Bay
FinishWhite
Wattage220W

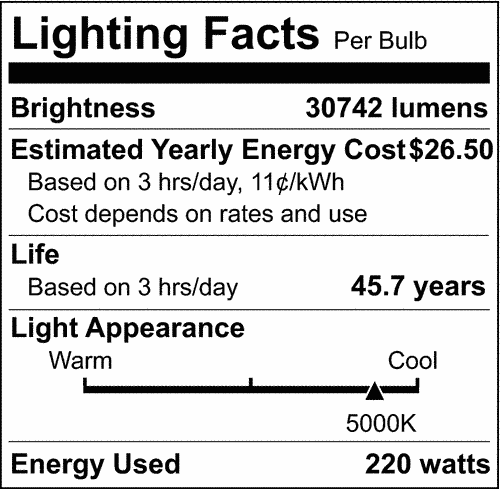

Lumen Output30742L
CCT (Kelvin)5000K
IP RatingIP40
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage220W
Lumen Output30742L
CCT (Kelvin)5000K
Color TemperatureNatural Light
CRI80+
Voltage120V-277V
Beam Angle100
Rated Hours50000
Operating Temperature-40C (-40F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)10.36
IP RatingIP40
MaterialAluminum Alloy
Dimensions
Height (in.)1.88
Width (in.)14.25
Length (in.)26
Compliance
Safety ListingcULus - Listed
Location RatingDamp
UL ApplicationCeiling
Energy StarNo
DLC ApprovedNo
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923674396
Each Quantity1
Each Length (in.)30.12
Each Width (in.)17.52
Each Height (in.)4.72
Each Weight (lb.)12.32
Each Cube (CuFt.)1.4414
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923674393
Case Quantity1
Case Length (in.)30.12
Case Width (in.)17.52
Case Height (in.)4.72
Case Weight (lb.)12.54
Case Cube (CuFt.)1.4414
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
