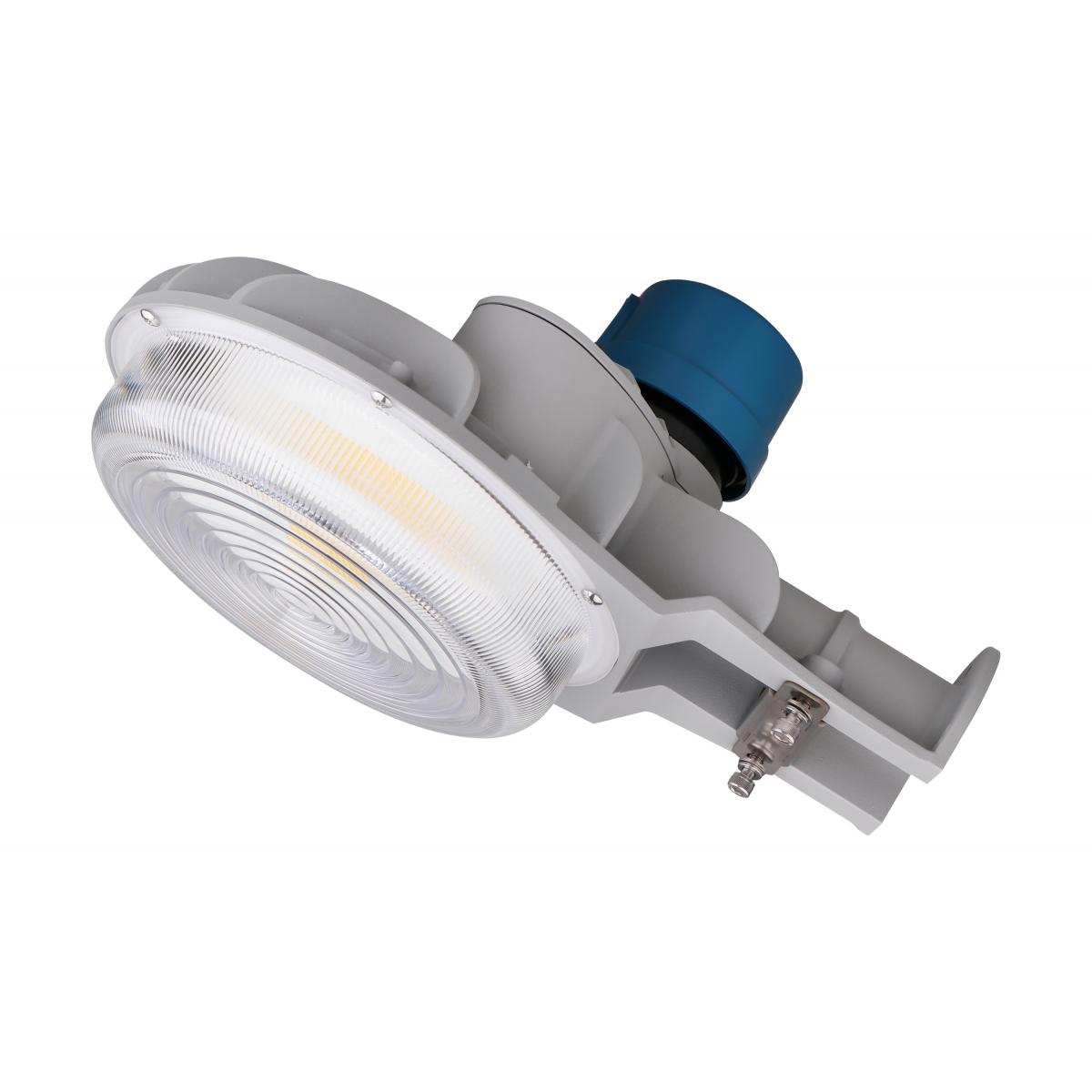

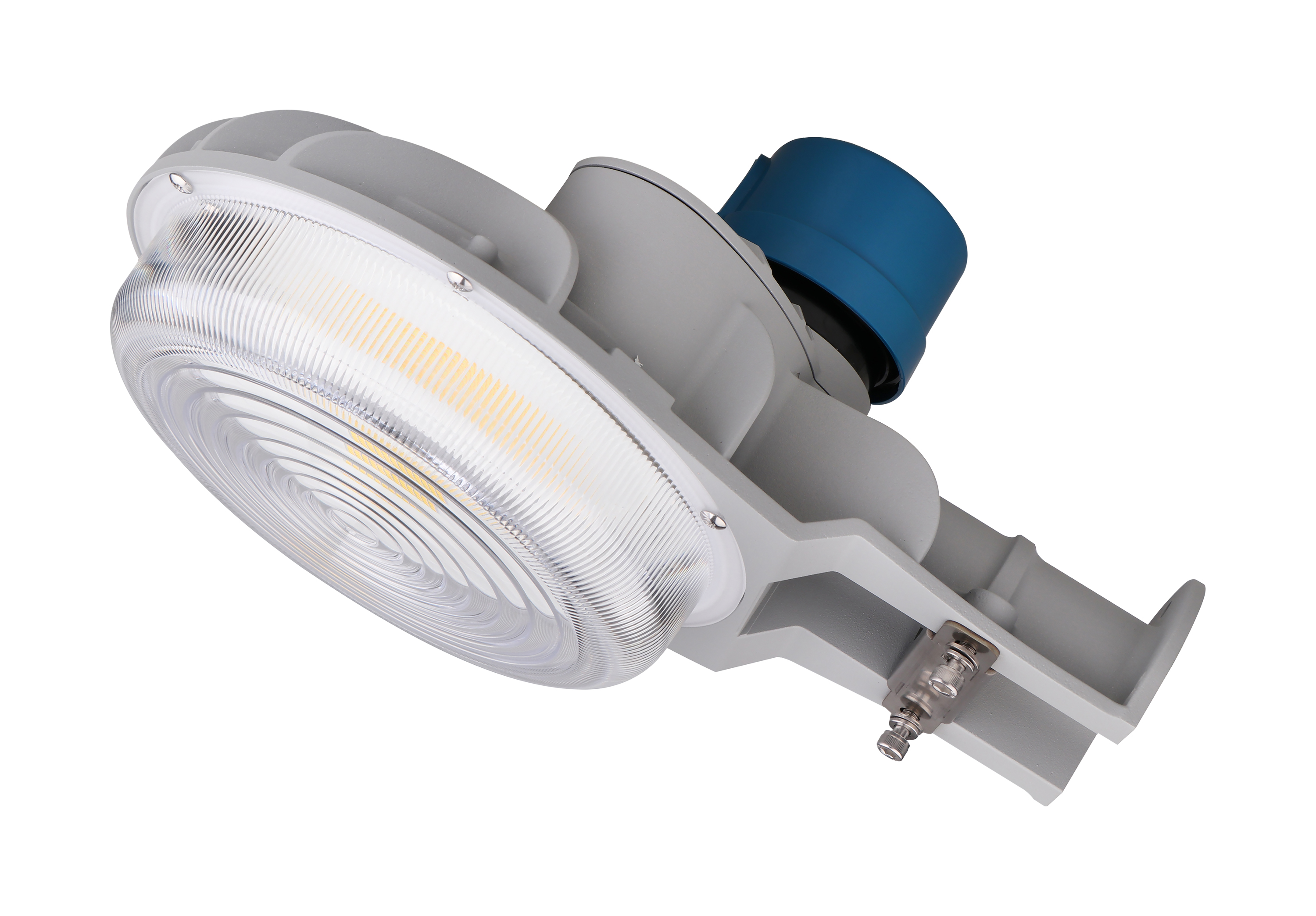

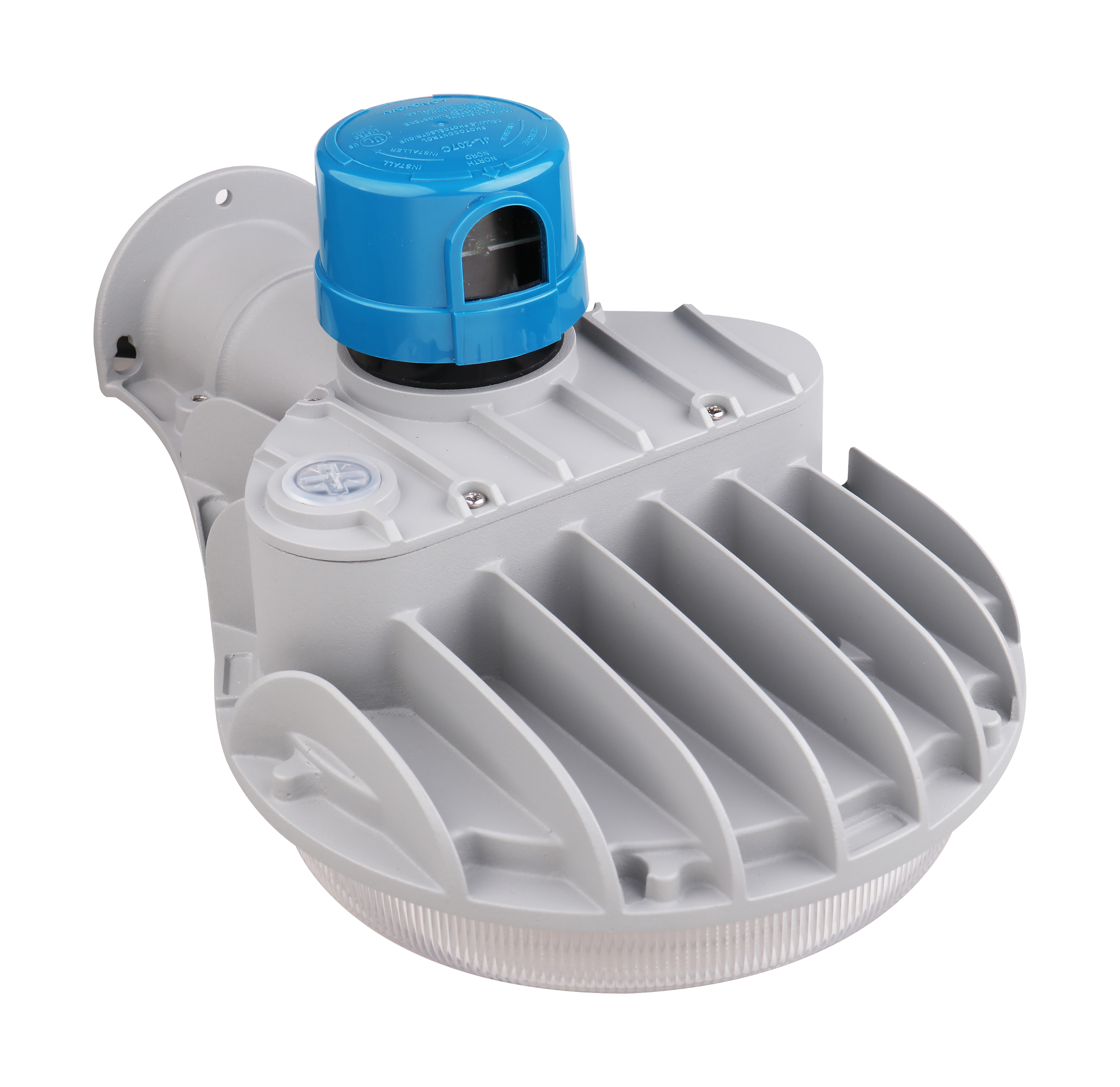

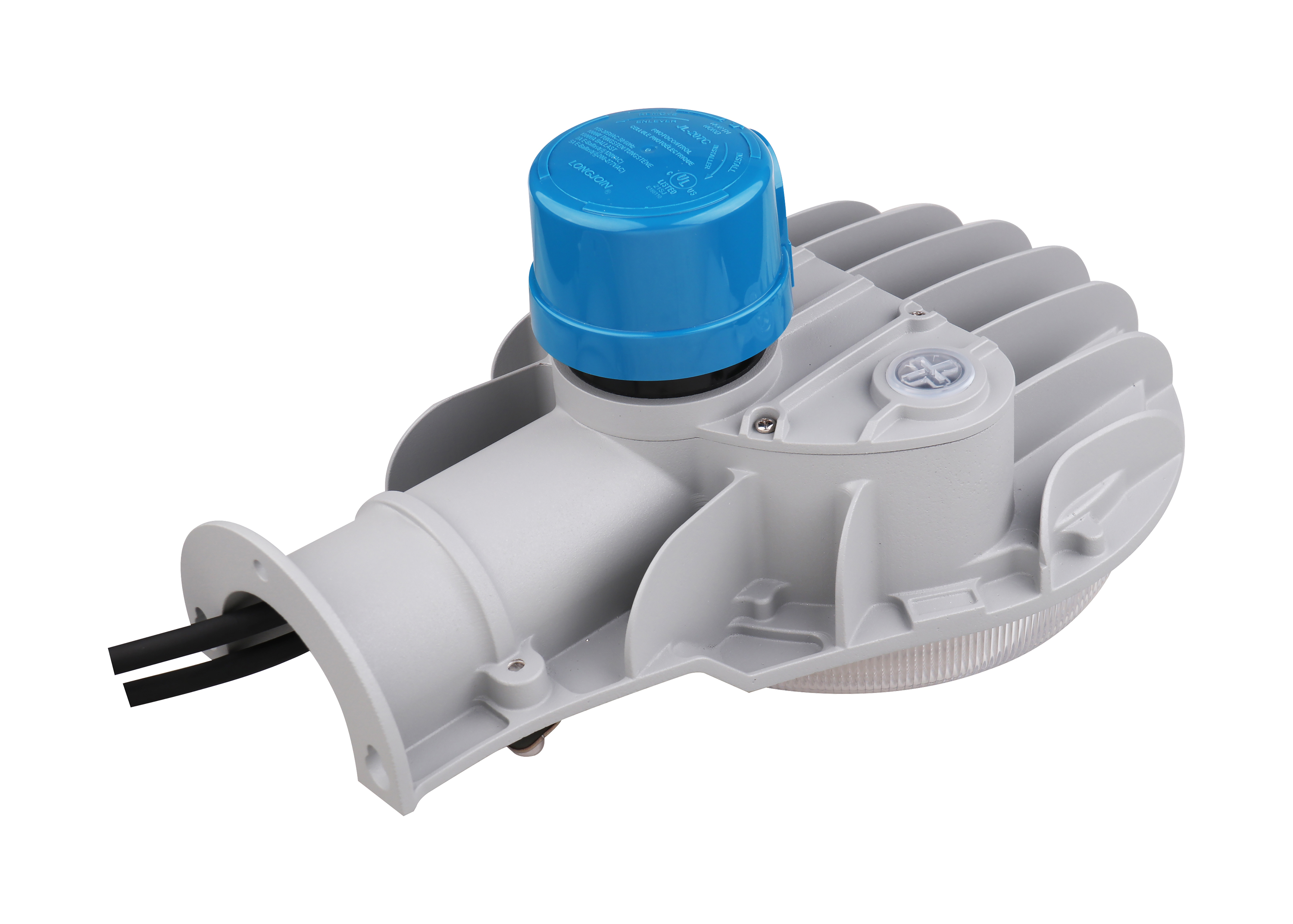

65-681 29W LED AREA LIGHT W/PHOTOCELL

65-681

29W LED AREA LIGHT W/PHOTOCELL

29 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Gray Finish; 120-277 Volts; Ultra Bright Lumens


SATCO|NUVO's 29-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick selectable technology, a Type 5 lens for even, omni-directional light distribution, and photocell for dusk to dawn operation. An optional shorting cap is available to override the photocell. The area light can be mounted direct to wall or with the mounting arm, sold separately. The new area light delivers 50,000 hours of maintenance free LED light.
  • DLC Premium
  • Included Photocell
  • CCT Selectable

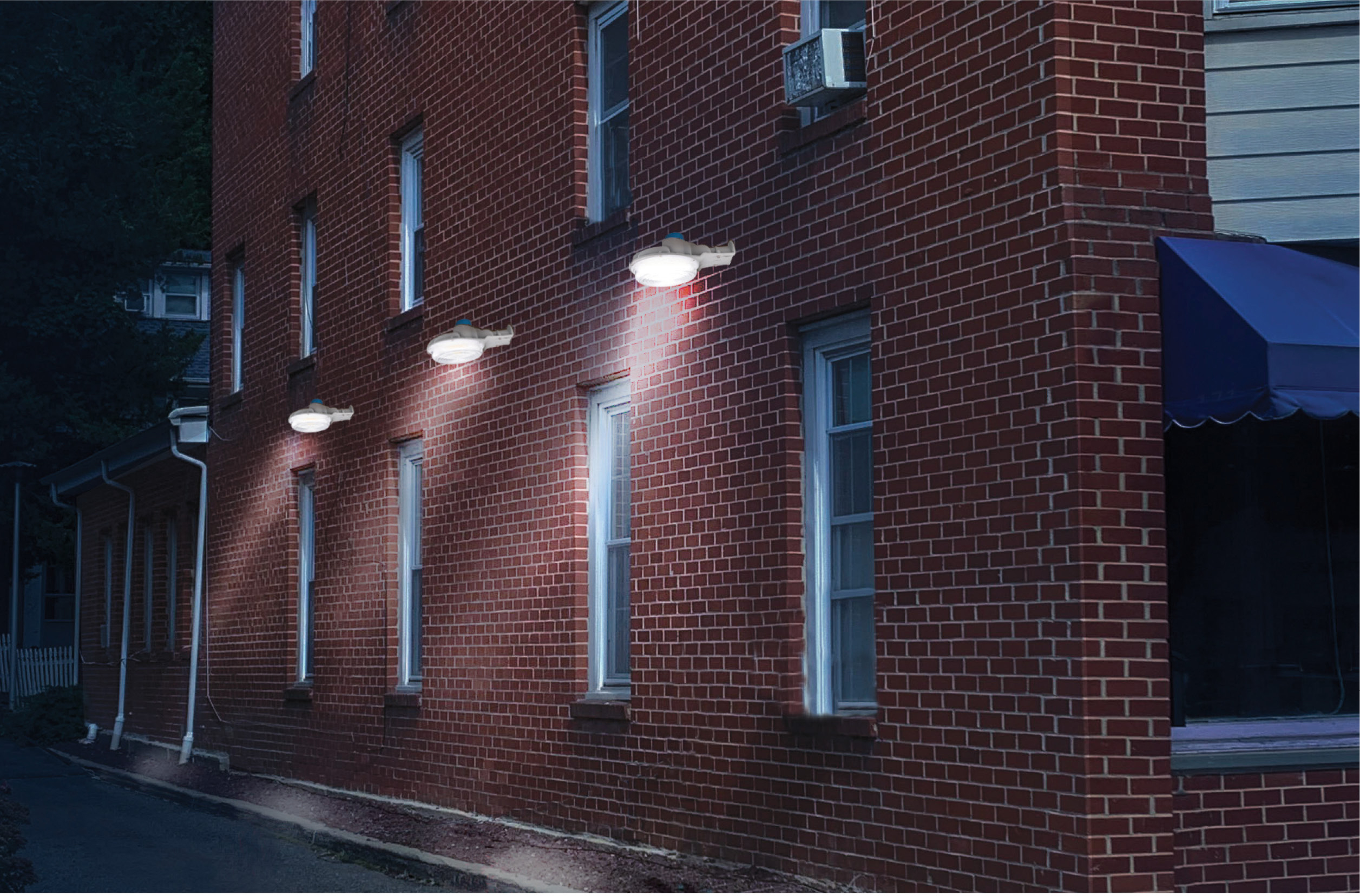

  • Wall or Arm Mount Installations (Arm Mount Not Included)
  • IP65 rated
  • Type V lighting distribution
  • 2KV Surge Protection
Lights

65-681

29W LED AREA LIGHT W/PHOTOCELL

29 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Gray Finish; 120-277 Volts; Ultra Bright Lumens

SATCO|NUVO's 29-watt CCT Selectable LED Area Light is engineered for performance inside and out! Built rugged using die cast aluminum and impact resistant lens these IP65 fixtures are all-weather tough. The new area light features our ColorQuick selectable technology, a Type 5 lens for even, omni-directional light distribution, and photocell for dusk to dawn operation. An optional shorting cap is available to override the photocell. The area light can be mounted direct to wall or with the mounting arm, sold separately. The new area light delivers 50,000 hours of maintenance free LED light.
  • DLC Premium
  • Included Photocell
  • CCT Selectable
  • Wall or Arm Mount Installations (Arm Mount Not Included)
  • IP65 rated
  • Type V lighting distribution
  • 2KV Surge Protection

Specifications

Minimize
General
StatusActive
Fixture TypeArea Light
FinishGray
Wattage29W
Lumen Output4060L-4640L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage29W
Lumen Output4060L-4640L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI70
Voltage120V-277V
Beam Angle150x150
Rated Hours50000
Operating Temperature-40C (-40F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorHas Photocell
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)4.85
IP RatingIP65
MaterialAluminum

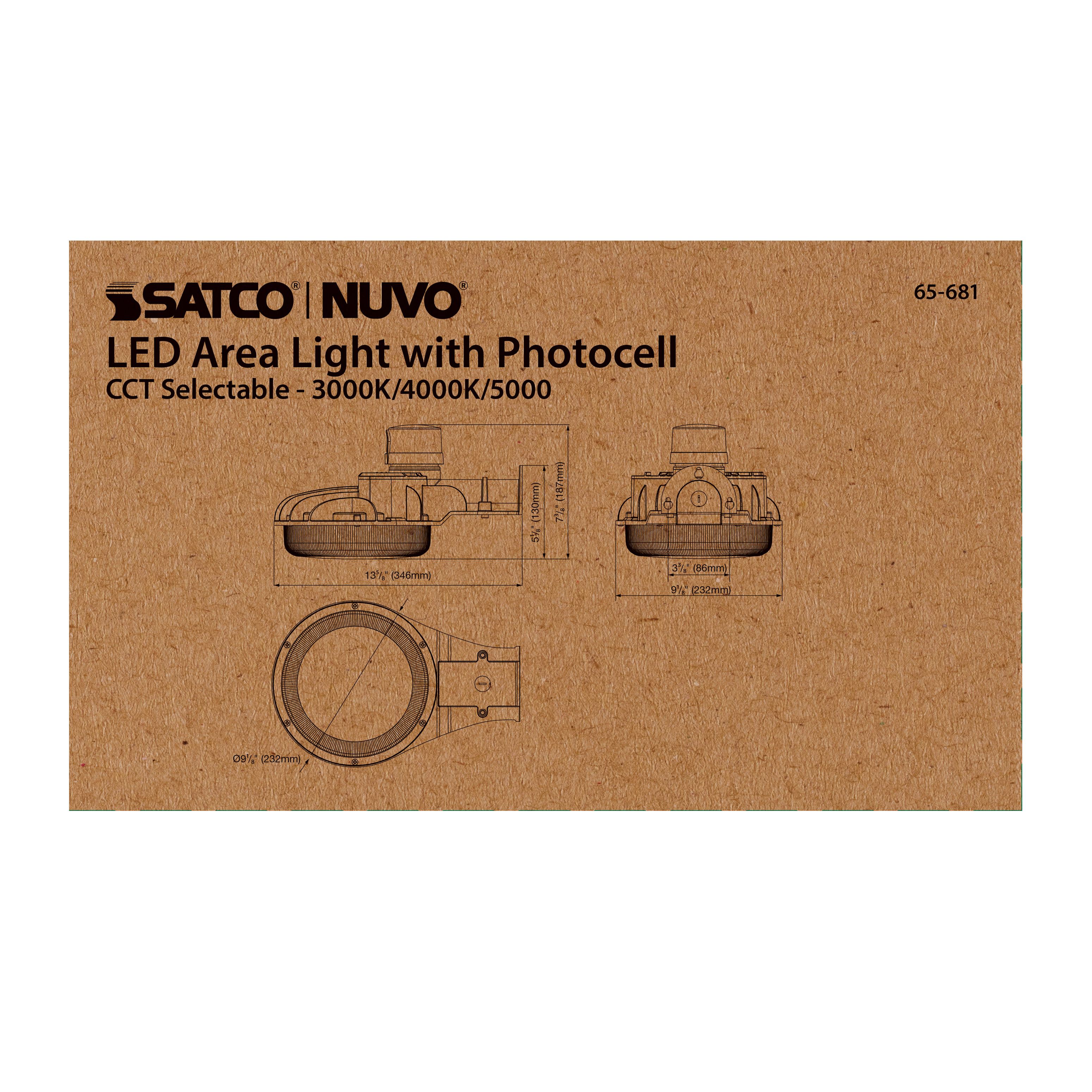

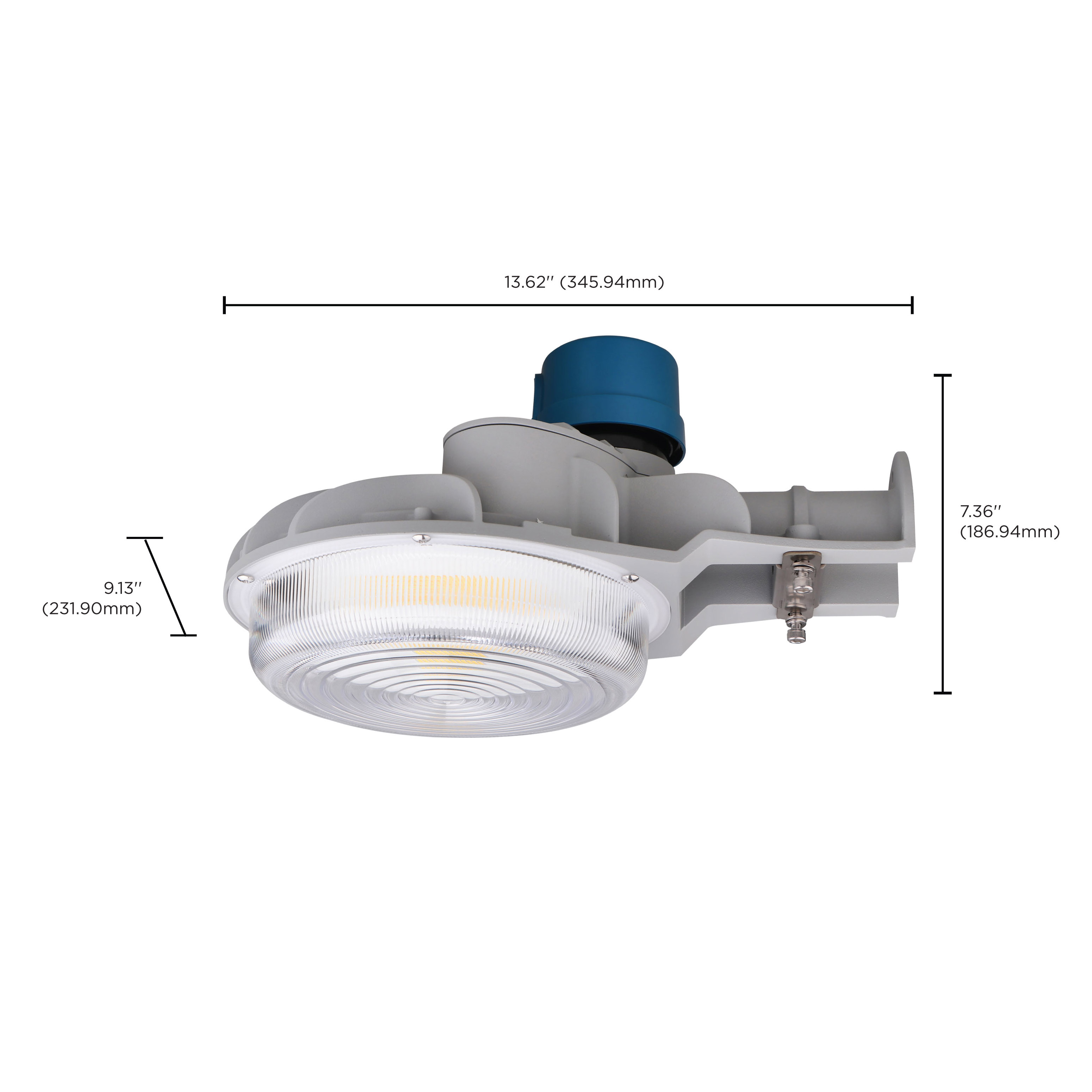

Dimensions
Height (in.)7.36
Width (in.)9.13
Length (in.)9.13
Extension (in.)13.62
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPL93XFELHJHY
ADA CompliantNo
B.U.G. RatingB2-U2-G1
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
Lead
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Additional InformationType V Lighting Distribution; Dusk to Dawn Lamp
Installation NotesSuitable for 42-60mm pipe installation
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923656811
Each Quantity1
Each Length (in.)12.13
Each Width (in.)16.75
Each Height (in.)7.13
Each Weight (lb.)7.28
Each Cube (CuFt.)0.8383
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923656818
Case Quantity2
Case Length (in.)17.13
Case Width (in.)12.40
Case Height (in.)14.96
Case Weight (lb.)16.09
Case Cube (CuFt.)1.8389

Documents

Size

99K

65-681 Spec Sheet

Type: PDF

Size

1.1M

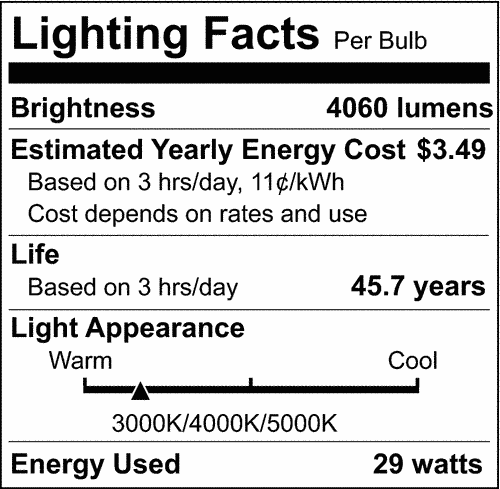

65-681 Lighting Facts Label

Type: PNG

Size

495KB

65-681 Instructions

Type: PDF

Documents

65-681 Spec Sheet

Type: PDF

Size: 41K

65-681 Lighting Facts Label

Type: PNG

Size: 1.1MB

65-681 Instructions

Type: PDF

Size: 25K

Files

3

65-681 Photometric IES Files

Type: IES

Tools

Lighting Layout Analysis For 65-681

Create your own analysis for this Part Number.

Custom Lighting Layout Analysis

Request a lighting layout.
Related Products
Lights

65-085
Lights

65-687
Lights

65-688
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Eaton DF10P Visit
Dimmer Eaton SF10P Visit
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
×
×
