65-685

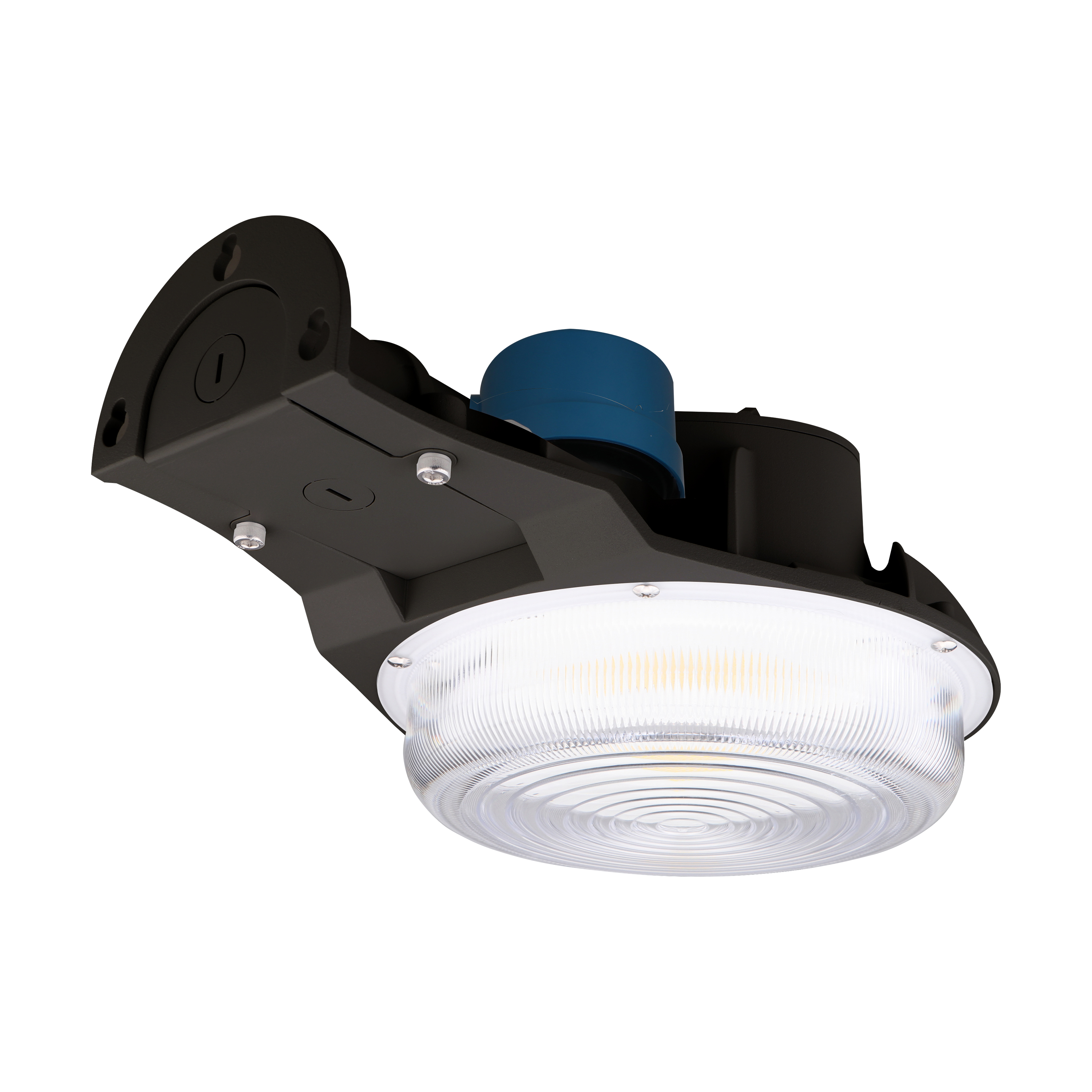

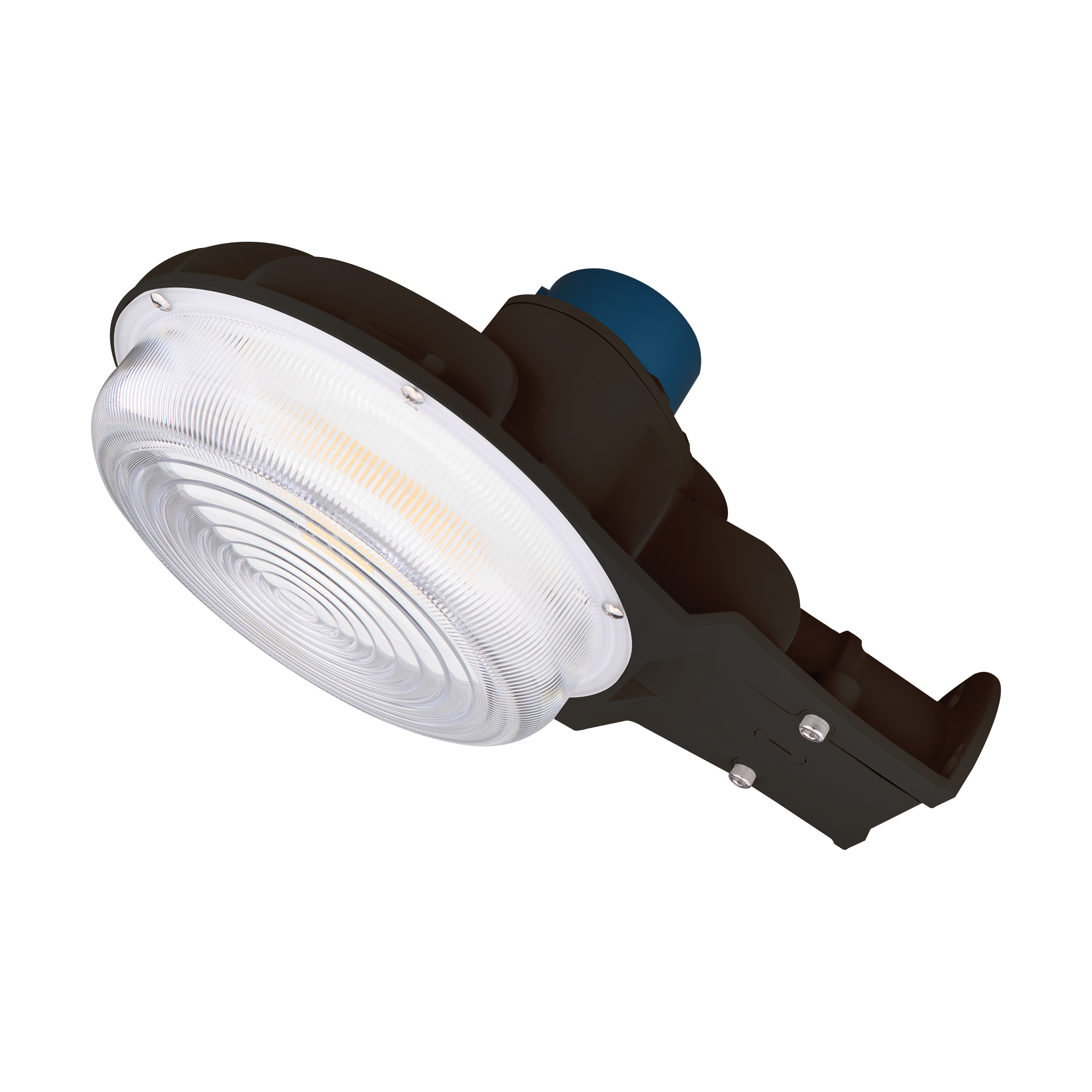

40W LED AREA LIGHT W/PHOTOCELL

  • 40 Watt LED Area Light with Photocell
  • CCT Selectable and Dimmable
  • Bronze Finish
  • 120-277 Volts
  • Ultra Bright Lumens
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-685 Specifications65-685 Instructions.pdf
Tools
Lighting Layout Analysis For 65-685
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40 Watt LED Area Light with Photocell; CCT Selectable and Dimmable; Bronze Finish; 120-277 Volts; Ultra Bright Lumens
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only

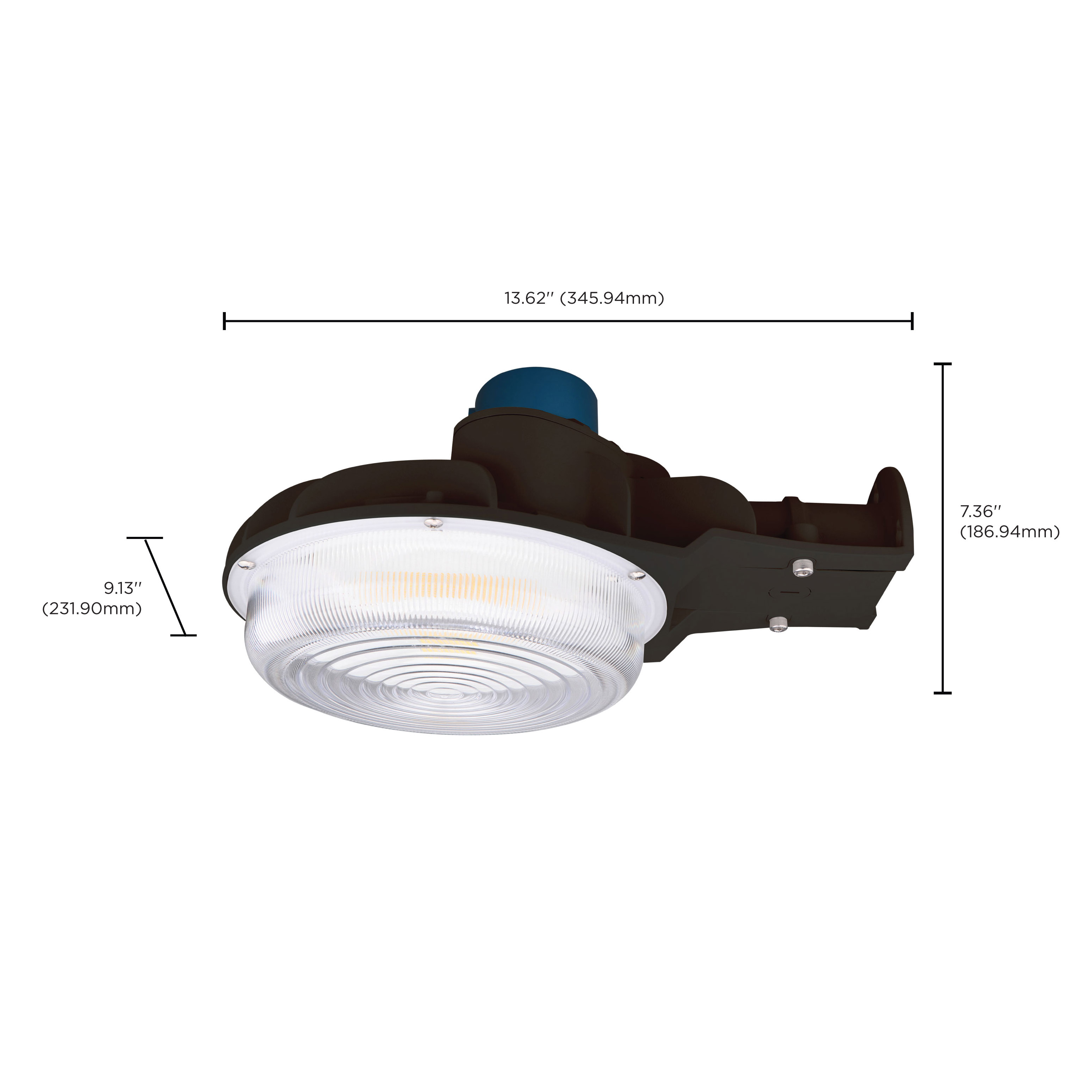

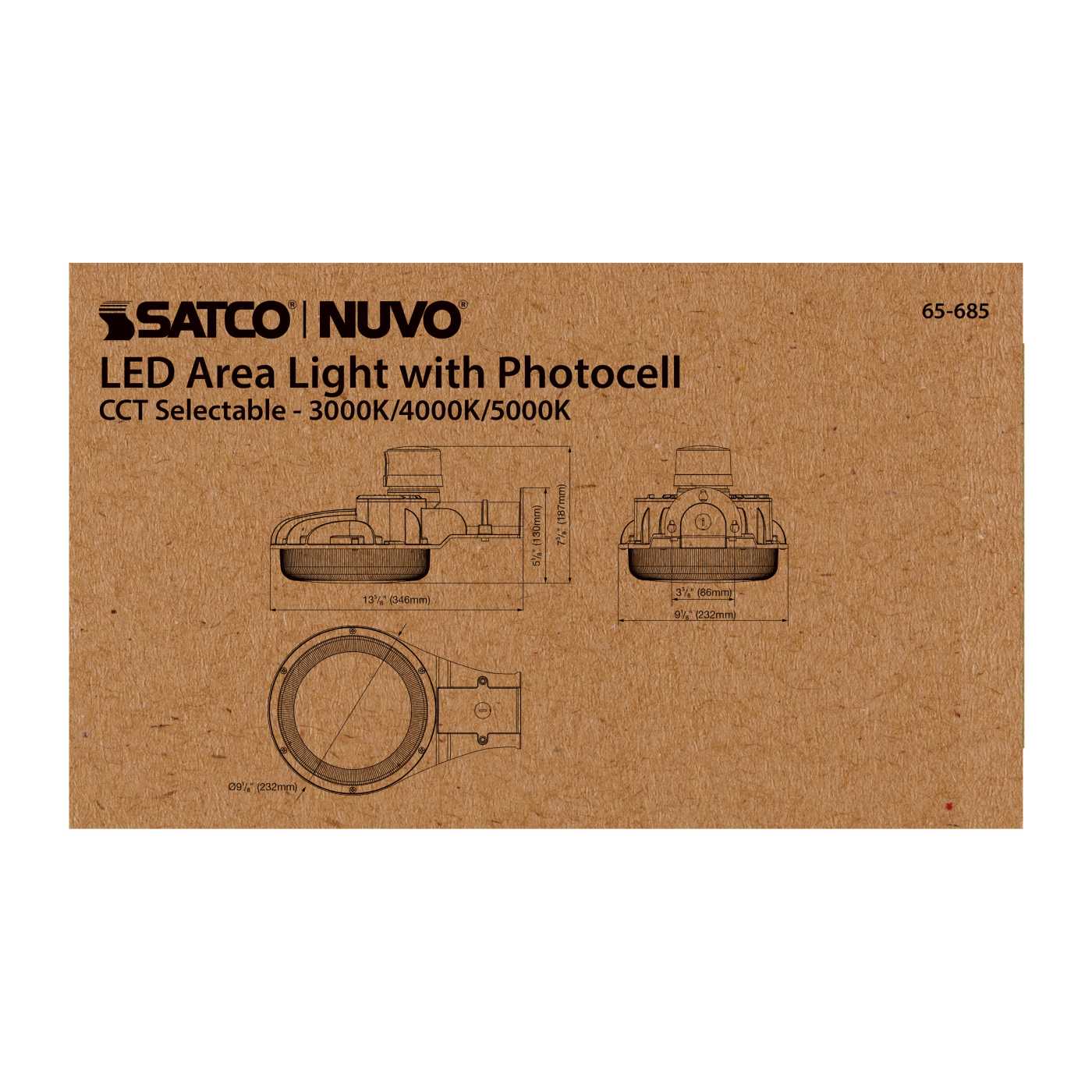

Extends (in)13.62
MaterialAluminum
Fixture TypeArea Light
StatusActive
StyleTraditional
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion15%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBronze
Additional InfoType V Lighting Distribution; Dusk to Dawn Lamp
Amps0.333-0.144A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellHas Photocell
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150x150
Color TempWarm to Cool White
CRI70+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent150W

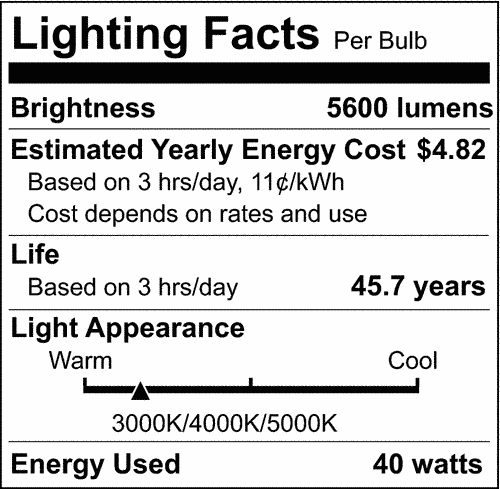

Lumens5600L-6400L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Installation NotesSuitable for 42-60mm pipe installation
Documents
Features
Flicker FreeYes
Compliance
ADA CompliantNo
Bug RatingB2-U3-G1
CA Prop 65Lead
DLC IDPLIZI1KXWZDS
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923656859
Case Cube1.8389
Case Height14.96
Case Length17.13
Case Quantity2
Case UPC10045923656856
Case Weight16.09
Case Width12.4
EA Cube0.8015
EA Height7.09
EA Length16.54
EA Quantity1
EA Weight7.28
EA Width11.81
Pack TypeBox
Web Height7.36
Web Width9.13
