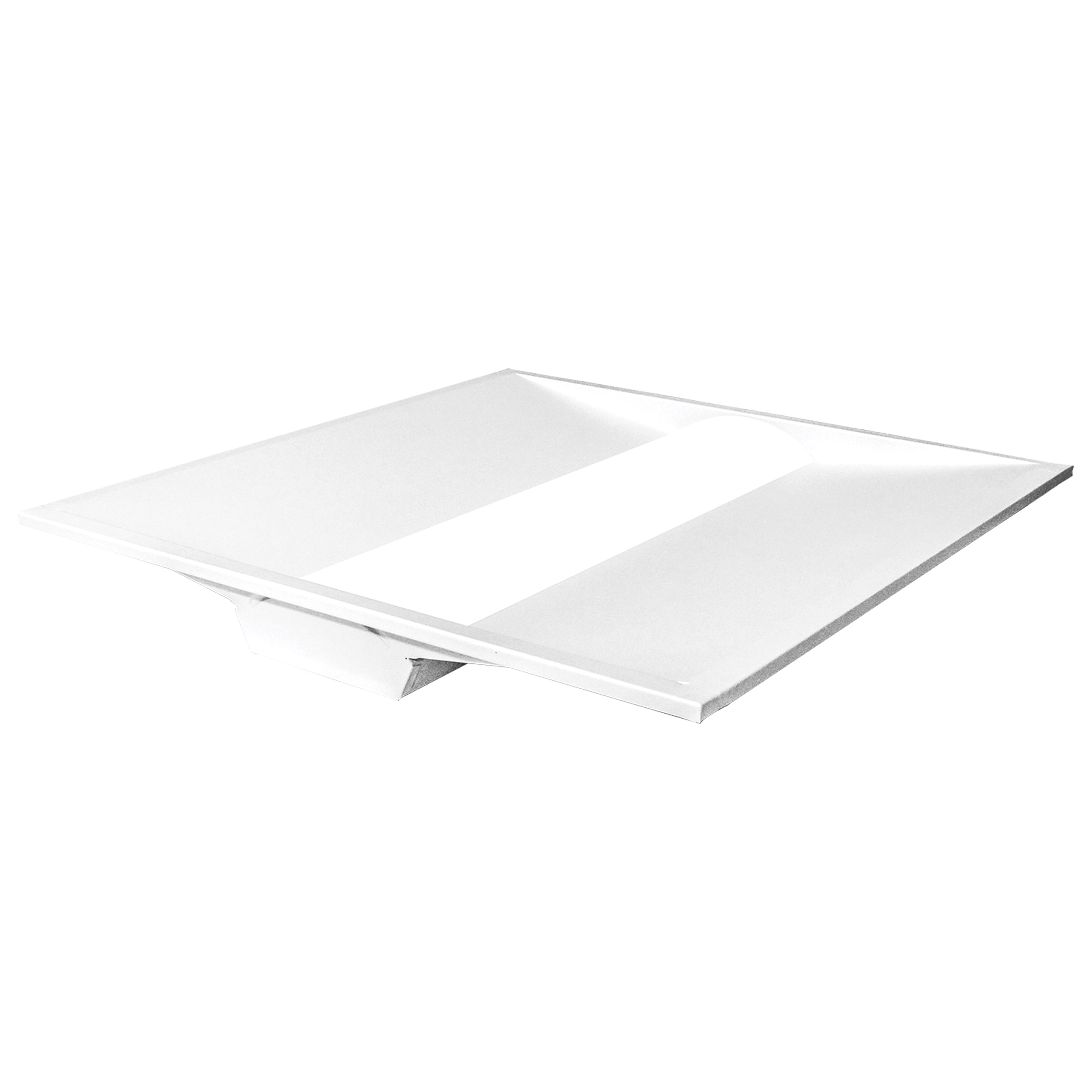

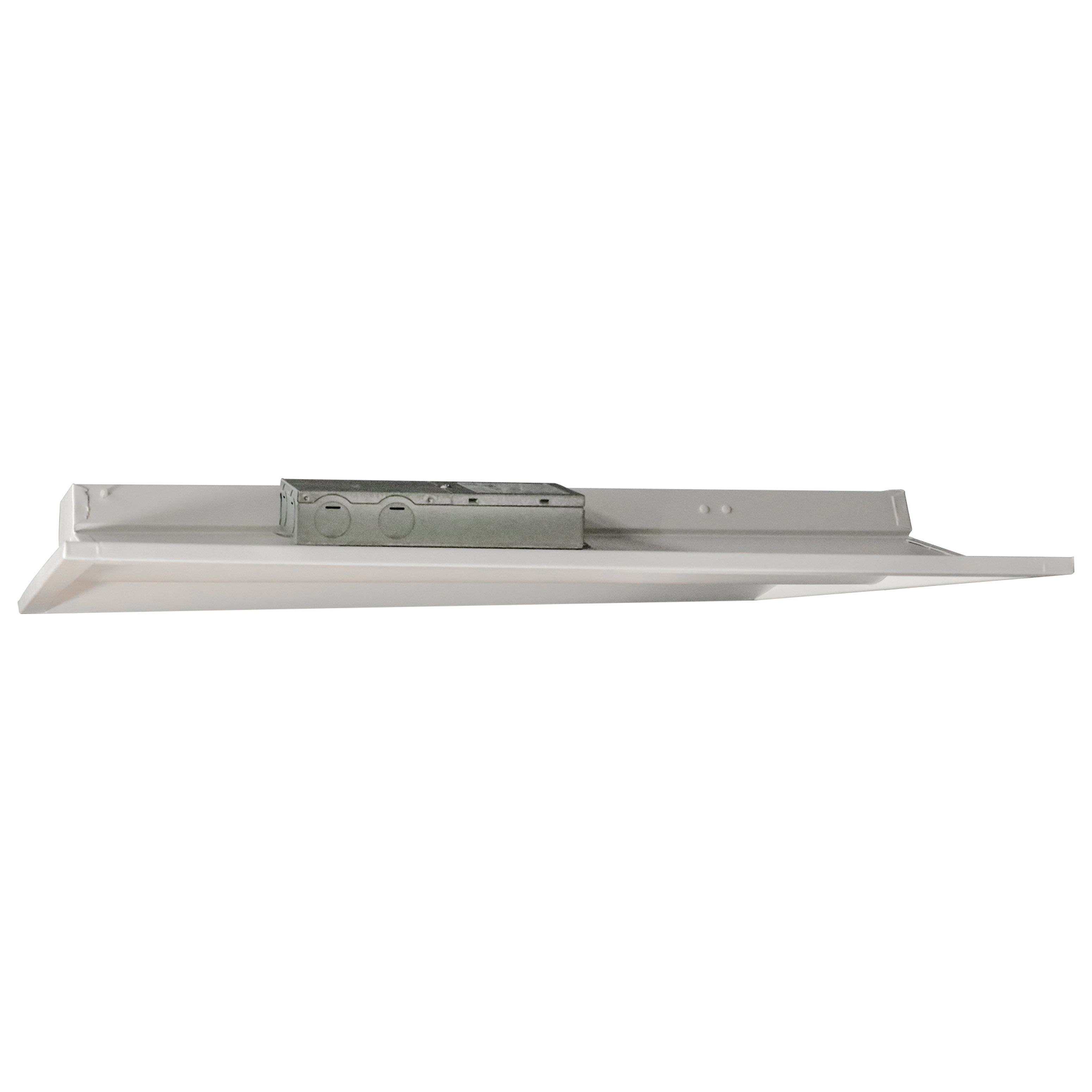

65-692 2X2 EM SINGLE BASKET TROFFER

65-692

2X2 EM SINGLE BASKET TROFFER

2X2 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable


SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our troffers are rated for 50,000 hours of illumination.
  • 3 CCT Selectable ( 3500K, 4000K, 5000K)
  • 3 Wattage Selectable (30W, 35W, 40W)
  • 0-10V Dimmable
  • DLC Listed

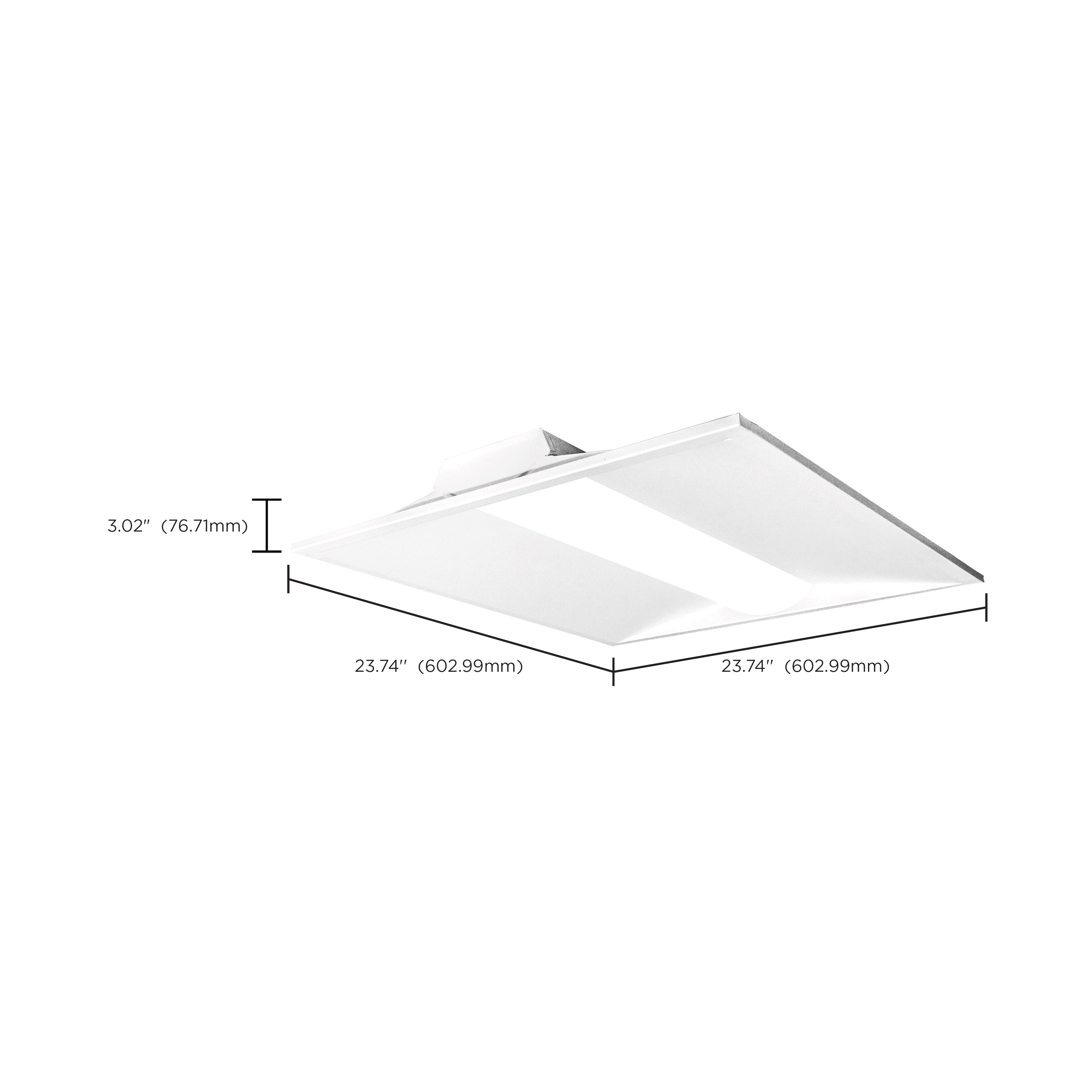

  • Length: 23.74 inches X Width: 23.74 inches X Height: 3.02 inches
Lights

65-692

2X2 EM SINGLE BASKET TROFFER

2X2 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable

SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our troffers are rated for 50,000 hours of illumination.
  • 3 CCT Selectable ( 3500K, 4000K, 5000K)
  • 3 Wattage Selectable (30W, 35W, 40W)
  • 0-10V Dimmable
  • DLC Listed
  • Length: 23.74 inches X Width: 23.74 inches X Height: 3.02 inches

Specifications

General
StatusActive
Fixture TypeSingle Basket Troffer
FinishWhite
Wattage30W/35W/40W
Lumen Output3300L-4400L
CCT (Kelvin)3500K/4000K/5000K
IP RatingIP20
Indoor or Outdoor FixtureIndoor
Panel Size2x2
Specifications
TechnologyLED
Wattage30W/35W/40W
Lumen Output3300L-4400L
CCT (Kelvin)3500K/4000K/5000K
CRI80
Voltage100V-277V
Beam Angle120
Rated Hours50000
Operating Temperature-20C (-4F) to +40C (+104F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming
Lens MaterialPoly methyl methacrylate (PMMA)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)7.72
IP RatingIP20
MaterialSteel
Dimensions
Height (in.)3.02
Width (in.)23.74
Length (in.)23.74
Compliance
Safety ListingcULus - Certified
Location RatingDamp
UL ApplicationLED Recessed Luminaire/Type IC
Energy StarNo
DLC ApprovedYes
DLC IDS-ZYJRI4
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Additional Information90 Minute Battery Runtime
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923655173
Each Quantity1
Each Length (in.)25.51
Each Width (in.)4.33
Each Height (in.)25.71
Each Weight (lb.)8.93
Each Cube (CuFt.)1.6435
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923655170
Case Quantity1
Case Length (in.)25.51
Case Width (in.)4.33
Case Height (in.)25.71
Case Weight (lb.)8.93
Case Cube (CuFt.)1.6435
