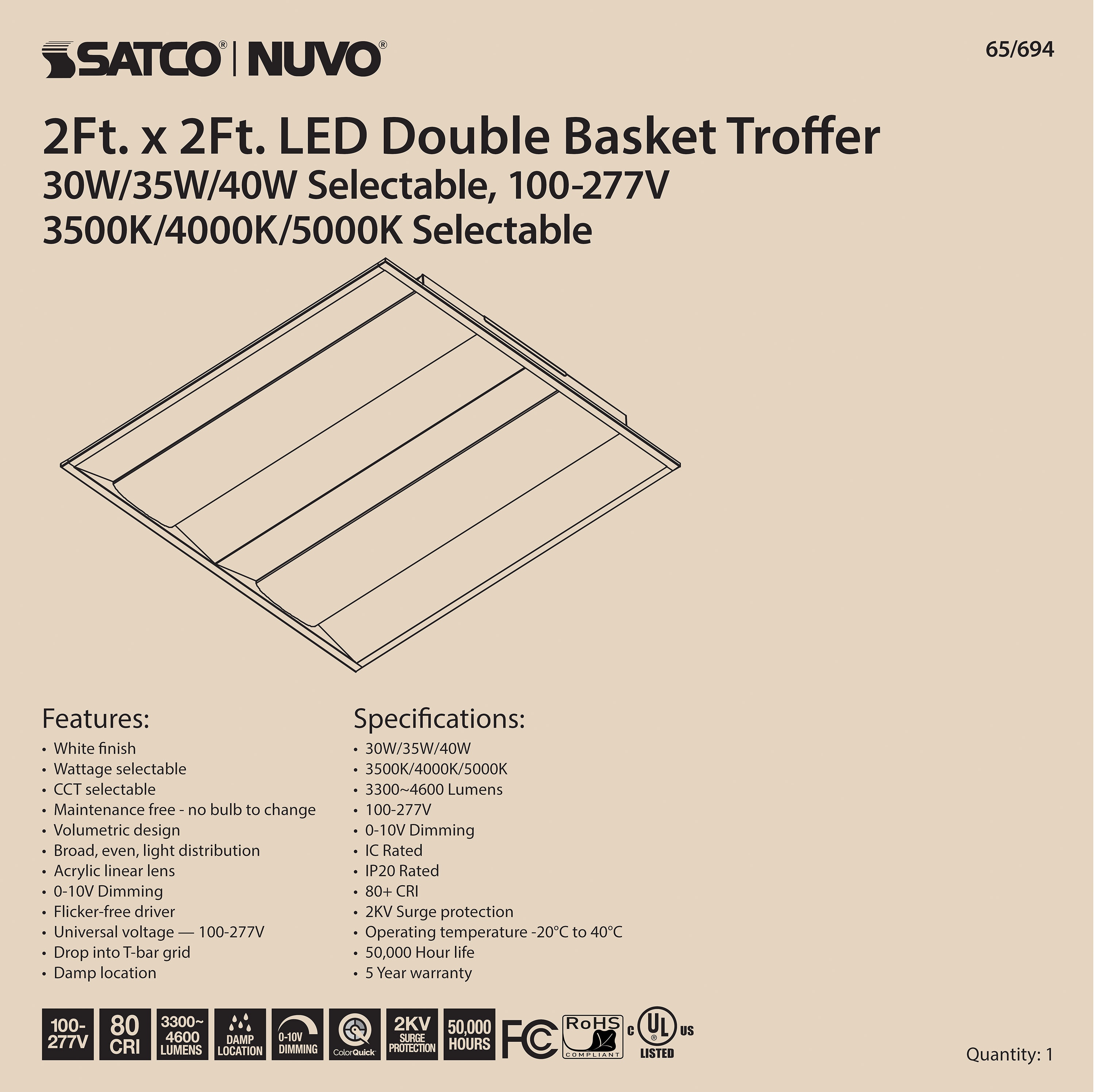

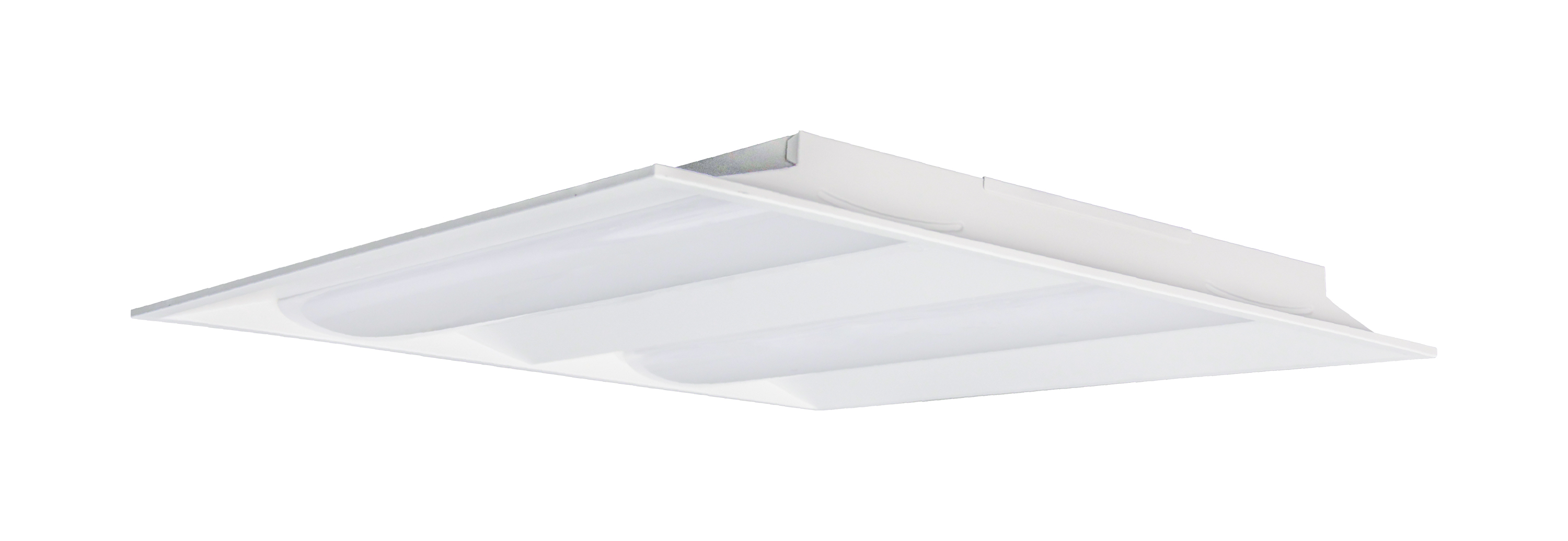

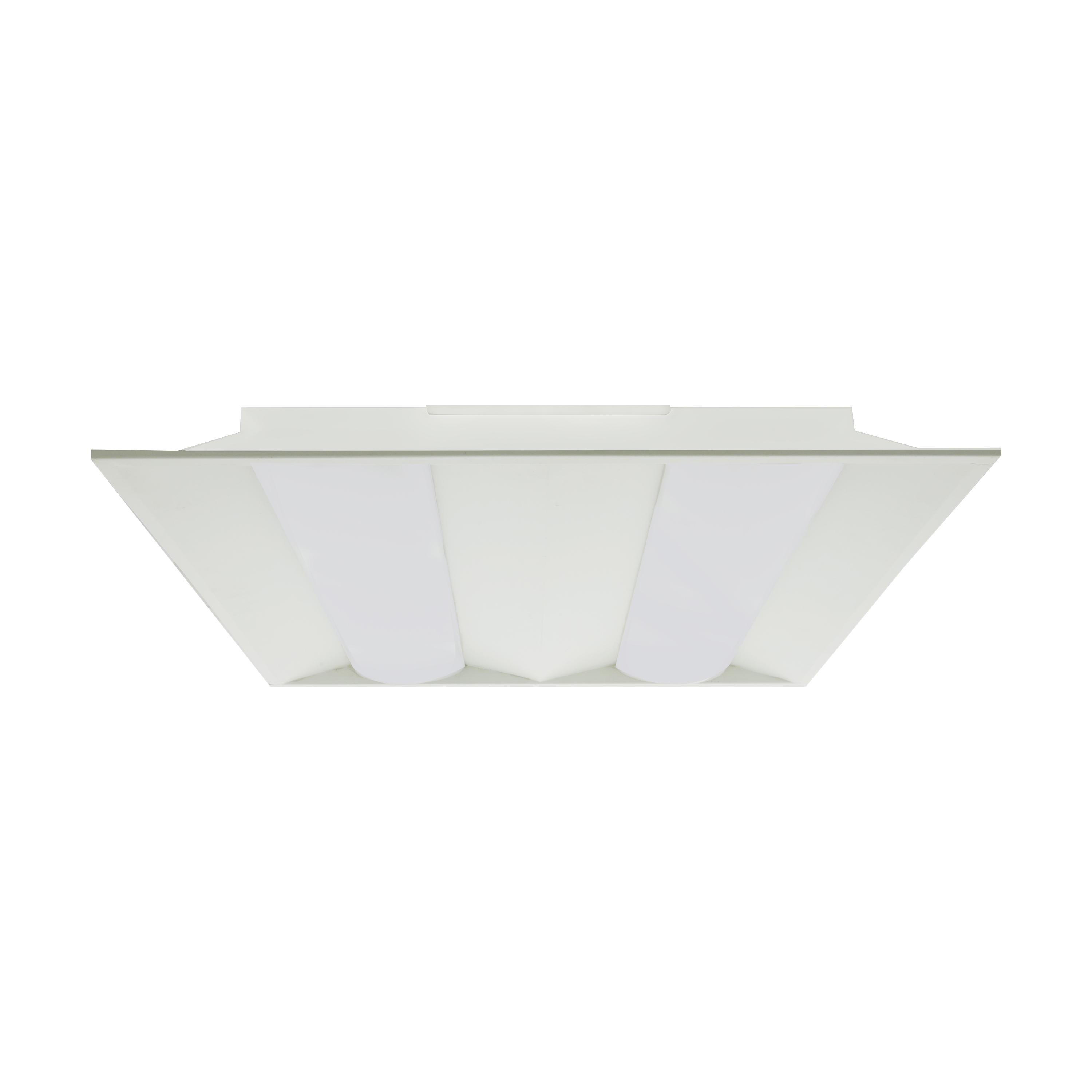

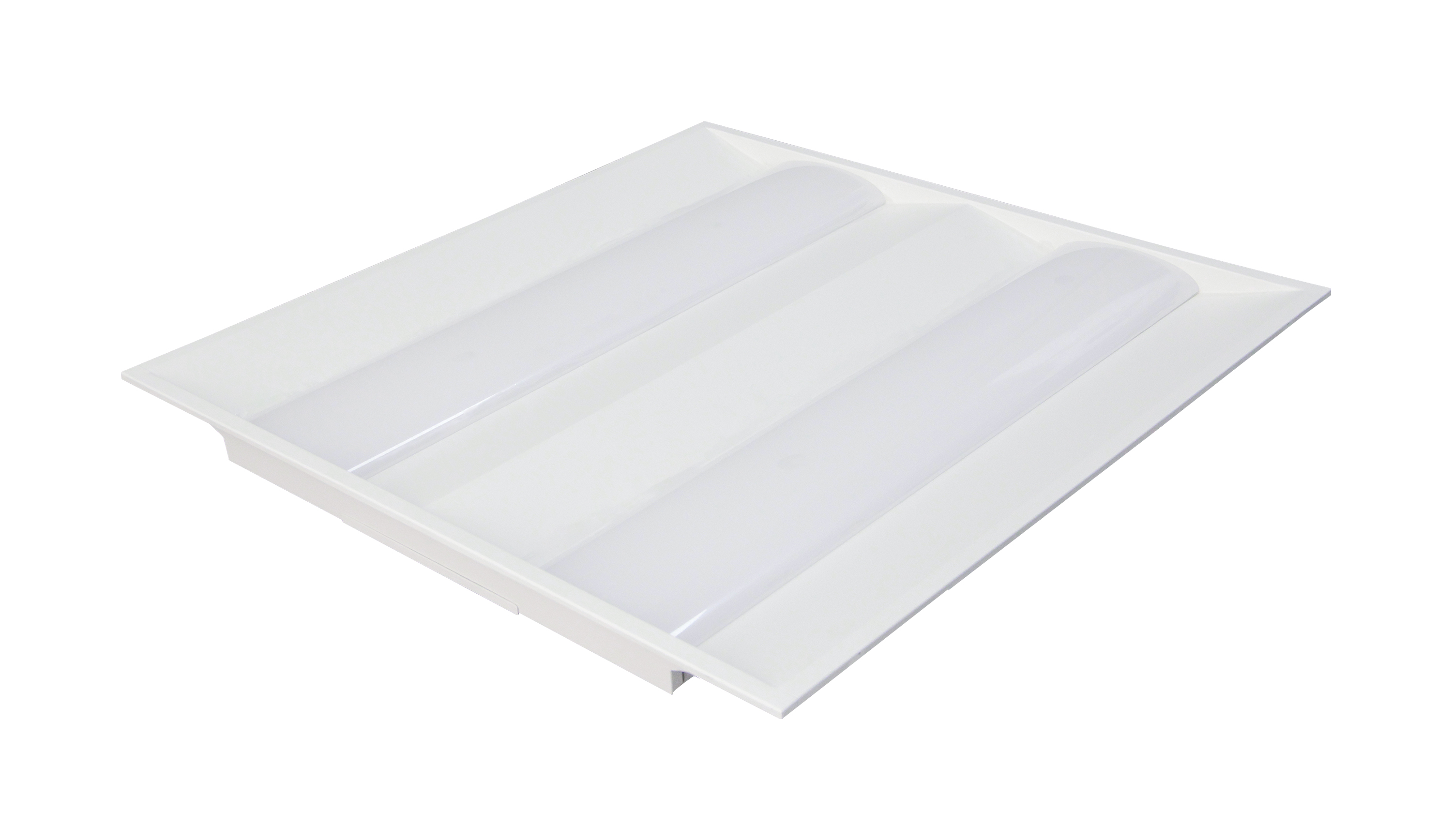

65-694 2X2 DOUBLE BASKET TROFFER

65-694

2X2 DOUBLE BASKET TROFFER

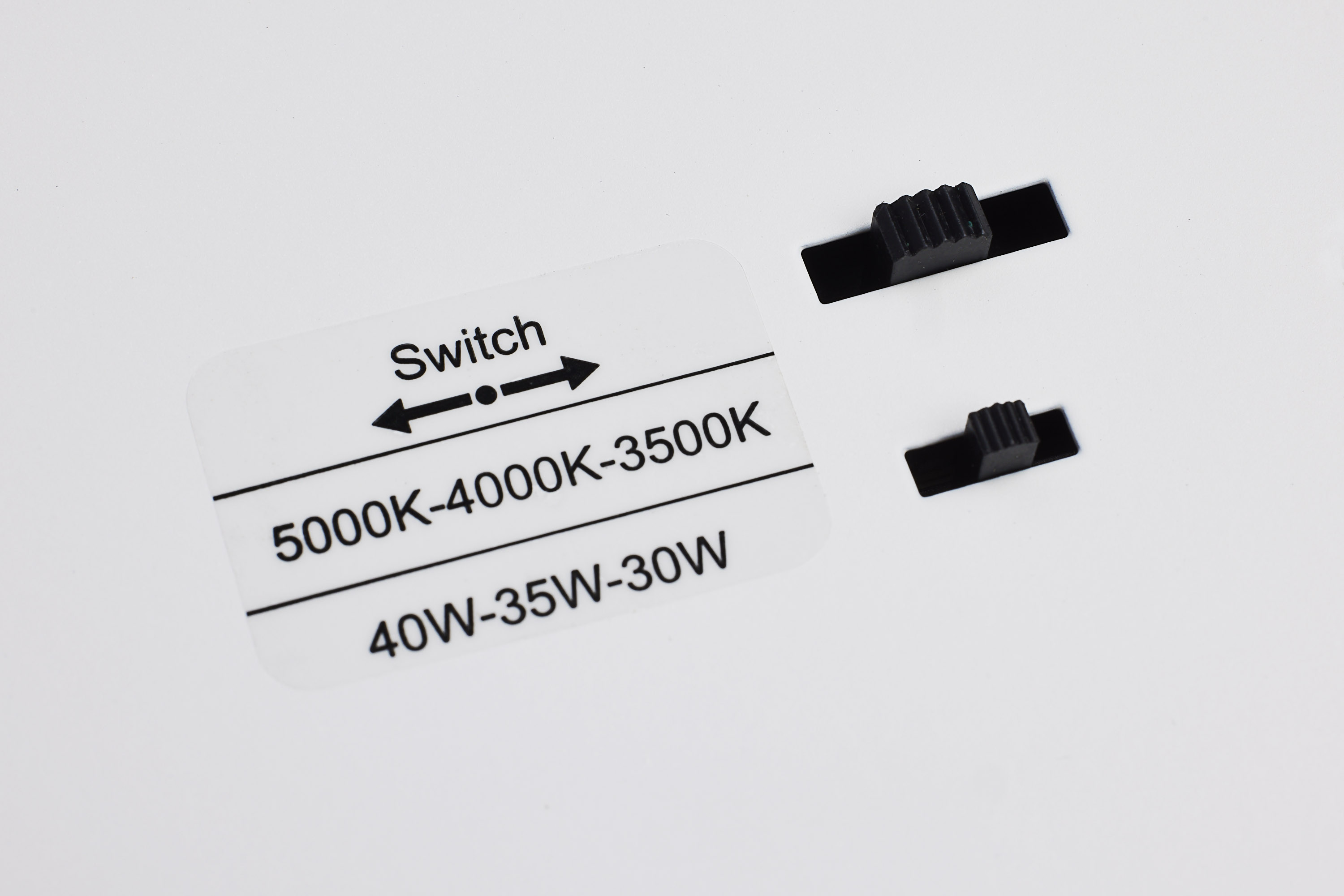

2X2 Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V

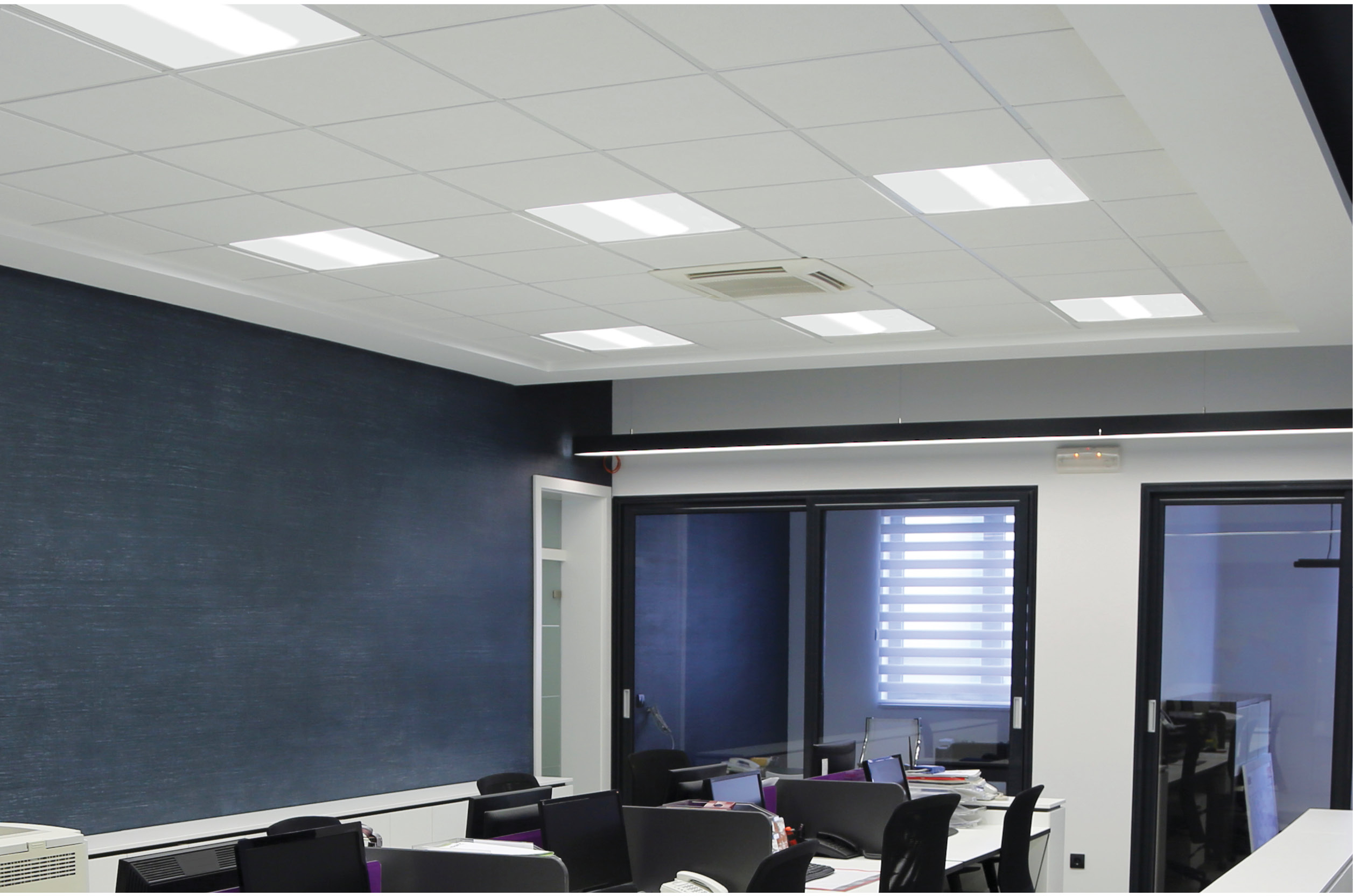

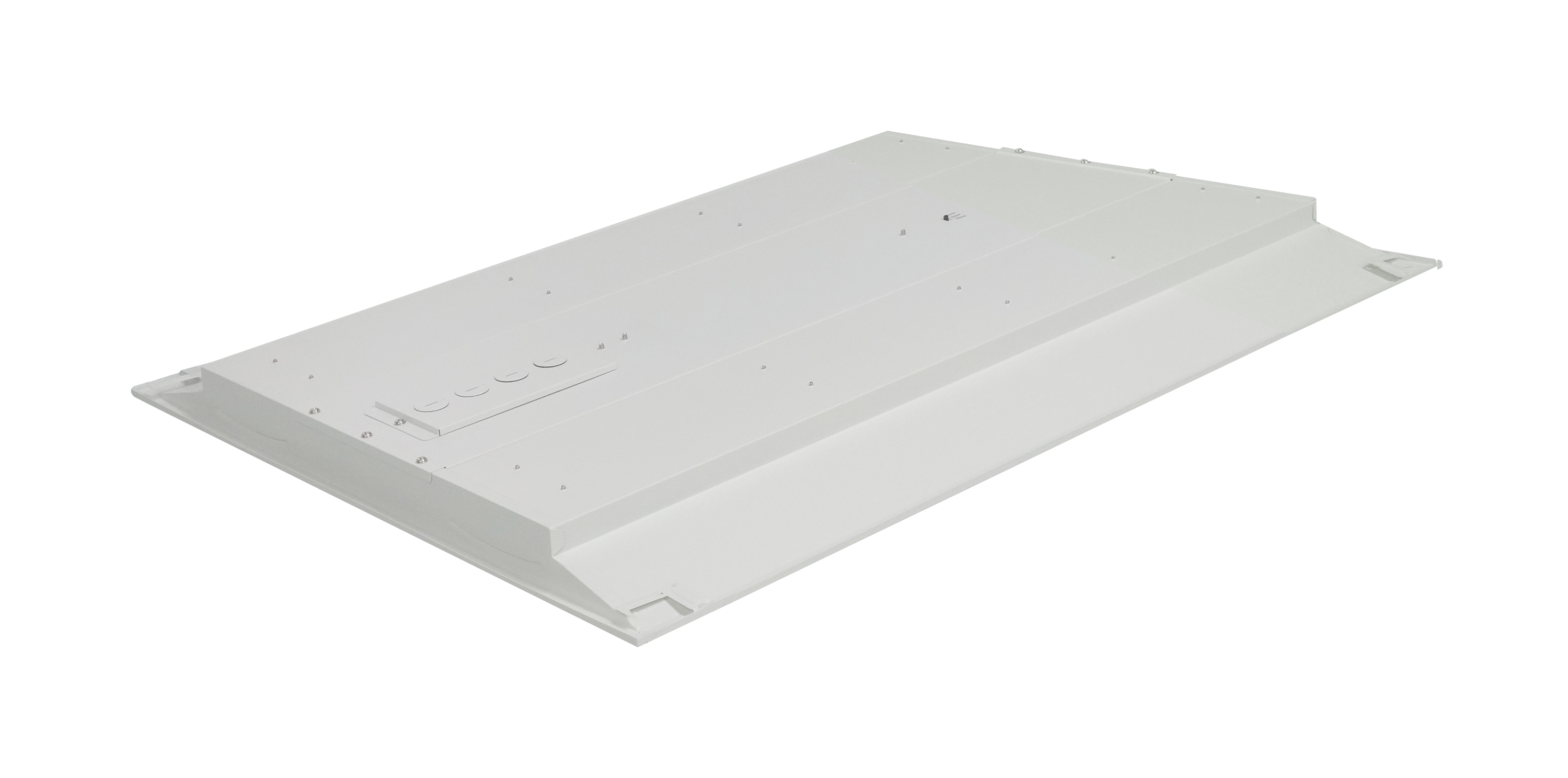

A two foot by two foot double basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.
  • Volumetric design
  • Watts: 30W - 35W - 40W
  • Lumens: 3300L - 4600L
  • Color temperature: 3500K/4000K/5000K
  • Operating temperature: -20C (-4F) to a maximum of 40C (104F)
Lights

65-694

2X2 DOUBLE BASKET TROFFER

2X2 Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V

A two foot by two foot double basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.
  • Volumetric design
  • Watts: 30W - 35W - 40W
  • Lumens: 3300L - 4600L
  • Color temperature: 3500K/4000K/5000K
  • Operating temperature: -20C (-4F) to a maximum of 40C (104F)

Specifications

General
StatusActive
Fixture TypeDouble Basket Troffer
FinishWhite
Wattage30W/35W/40W
Lumen Output3300L-4600L
CCT (Kelvin)3500K/4000K/5000K
IP RatingIP20
Indoor or Outdoor FixtureIndoor
Panel Size2x2
Specifications
TechnologyLED
Wattage30W/35W/40W
Lumen Output3300L-4600L
CCT (Kelvin)3500K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage100V-277V
Beam Angle120
Rated Hours50000
Operating Temperature-20C (-4F) to +40C (+104F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Lens MaterialPoly methyl methacrylate (PMMA)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)6.5
IP RatingIP20
MaterialSteel

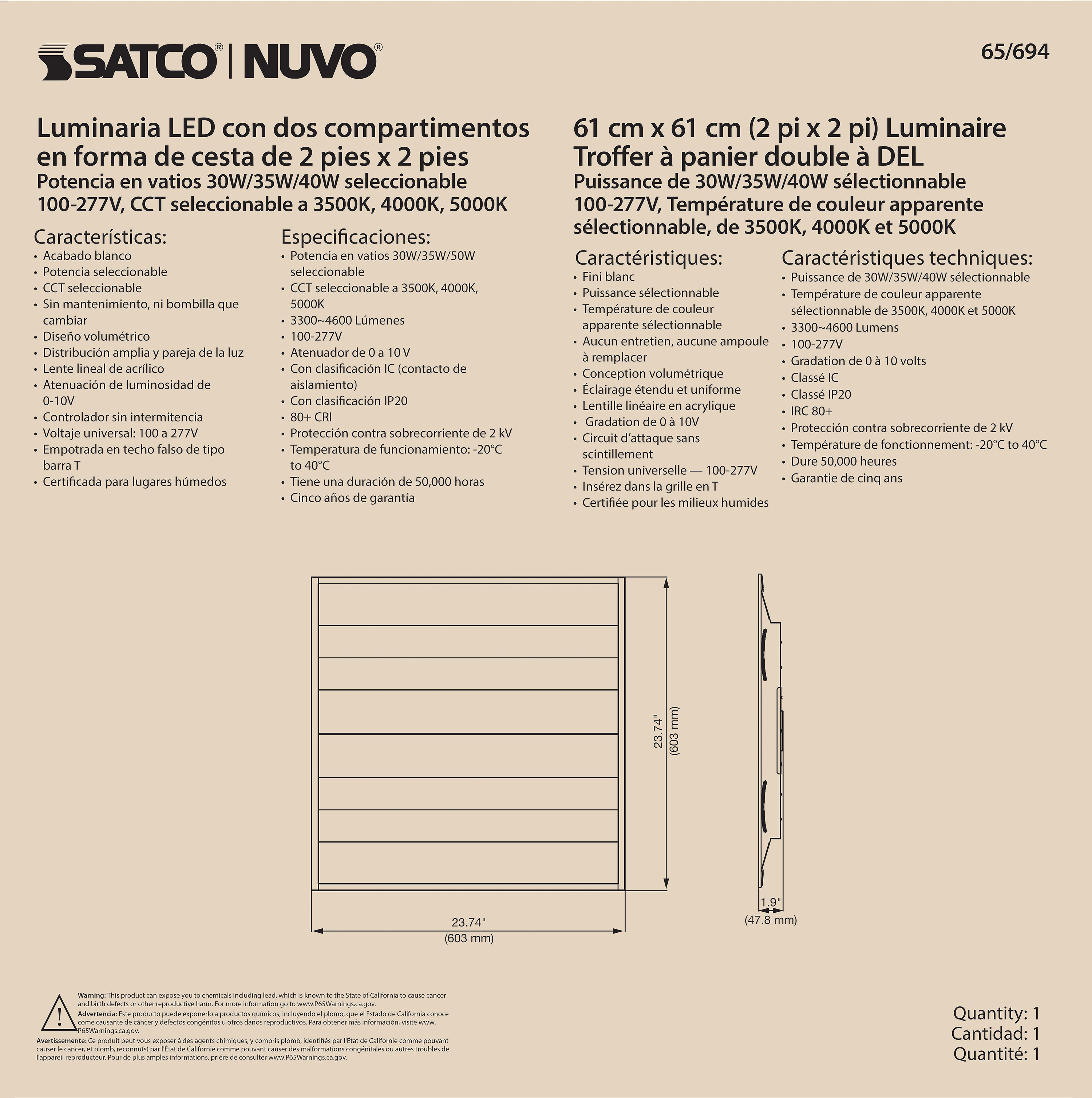

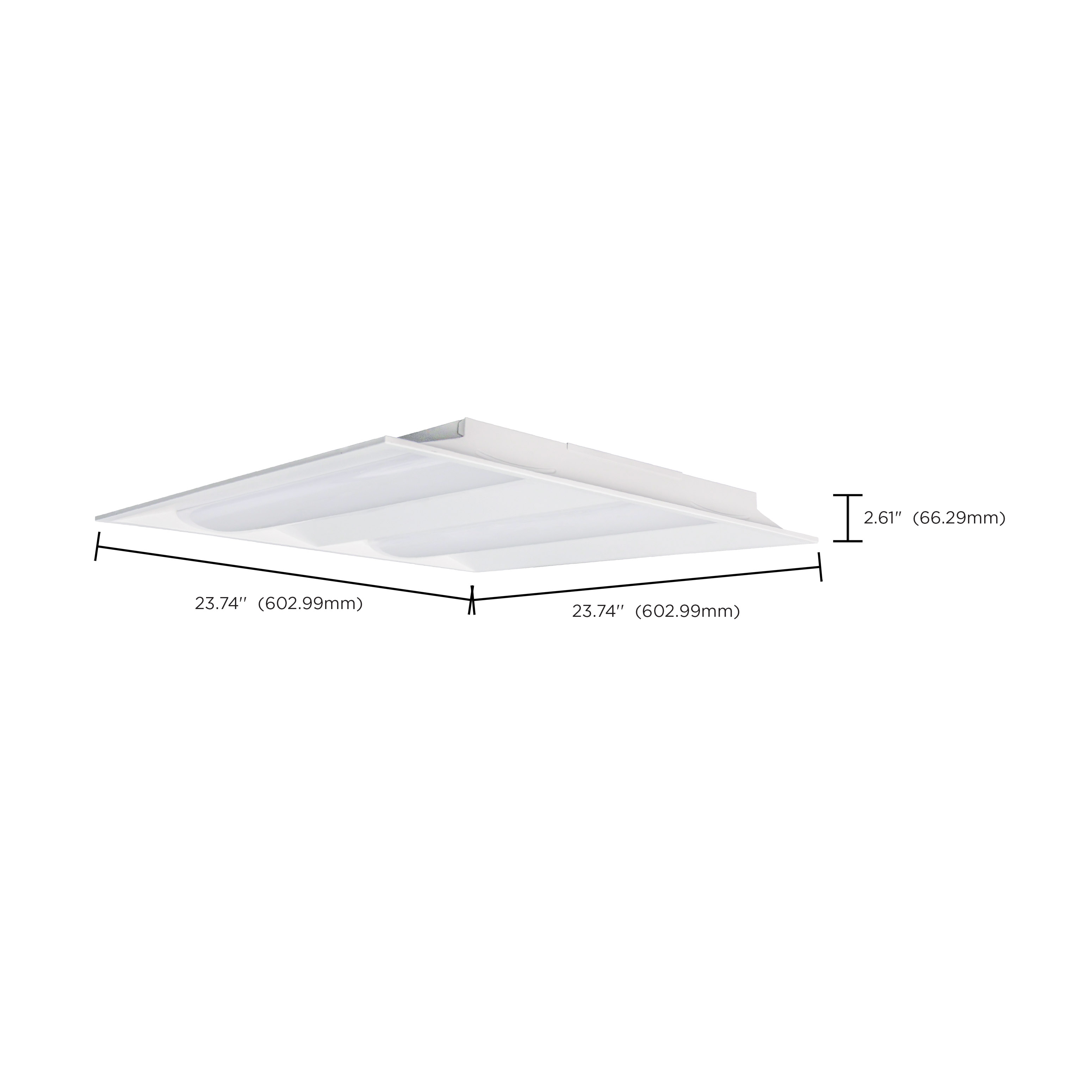

Dimensions
Height (in.)2.61
Width (in.)23.74
Length (in.)23.74
Compliance
Safety ListingcULus - Certified
Location RatingDamp
UL ApplicationLED Recessed Luminaire/Type IC
Energy StarNo
DLC ApprovedYes
DLC IDPL0L0GTR5WW5
IC RatedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923655197
Each Quantity1
Each Length (in.)25.51
Each Width (in.)3.27
Each Height (in.)25.67
Each Weight (lb.)8.70
Each Cube (CuFt.)1.2392
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923655194
Case Quantity1
Case Length (in.)25.51
Case Width (in.)3.27
Case Height (in.)25.67
Case Weight (lb.)8.70
Case Cube (CuFt.)1.2392
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Eaton DF10P Visit
Dimmer Eaton SF10P Visit
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B + PJ2-3BRL-GWH-L01 Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
