65-695

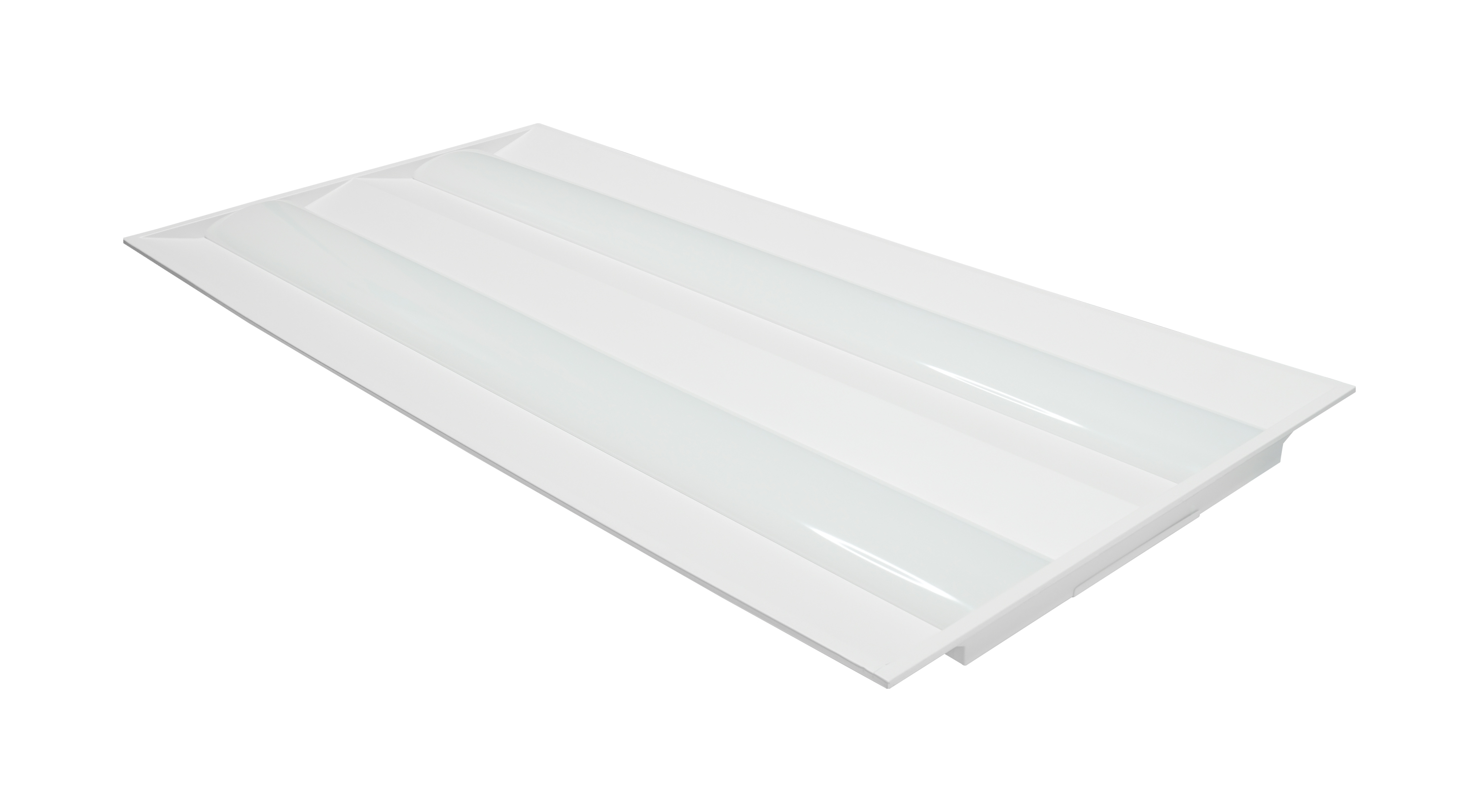

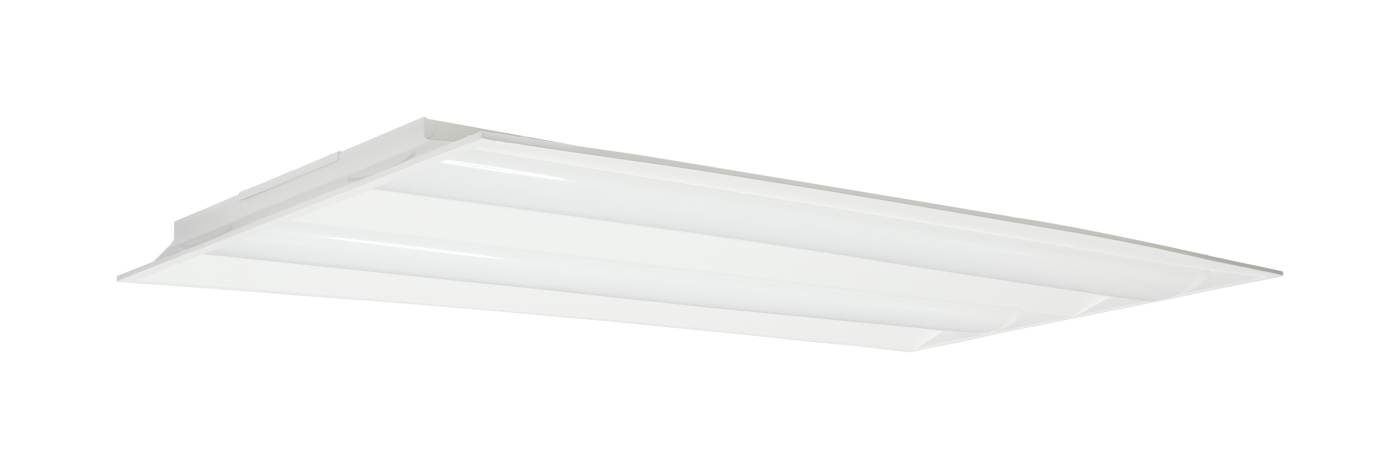

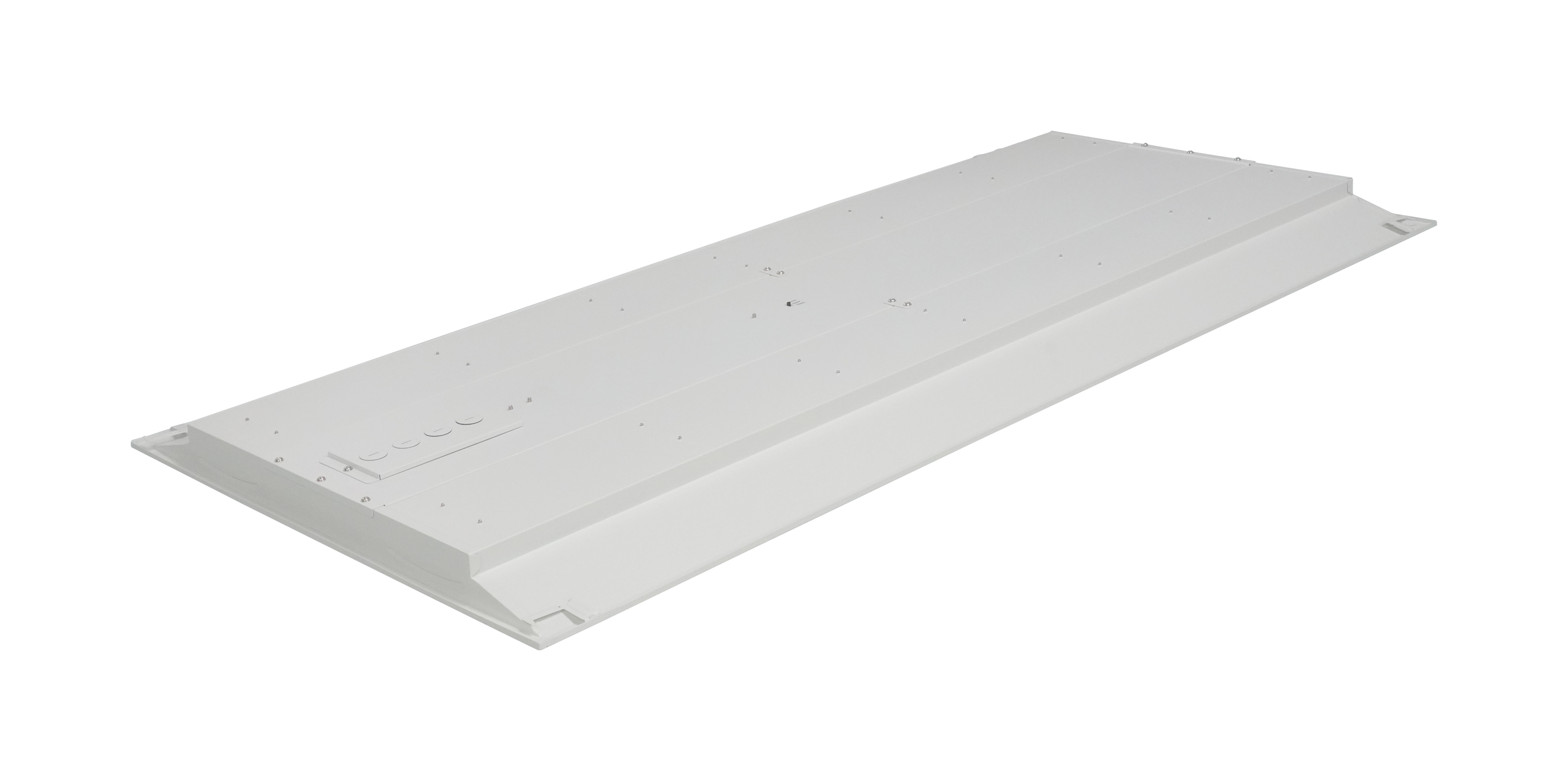

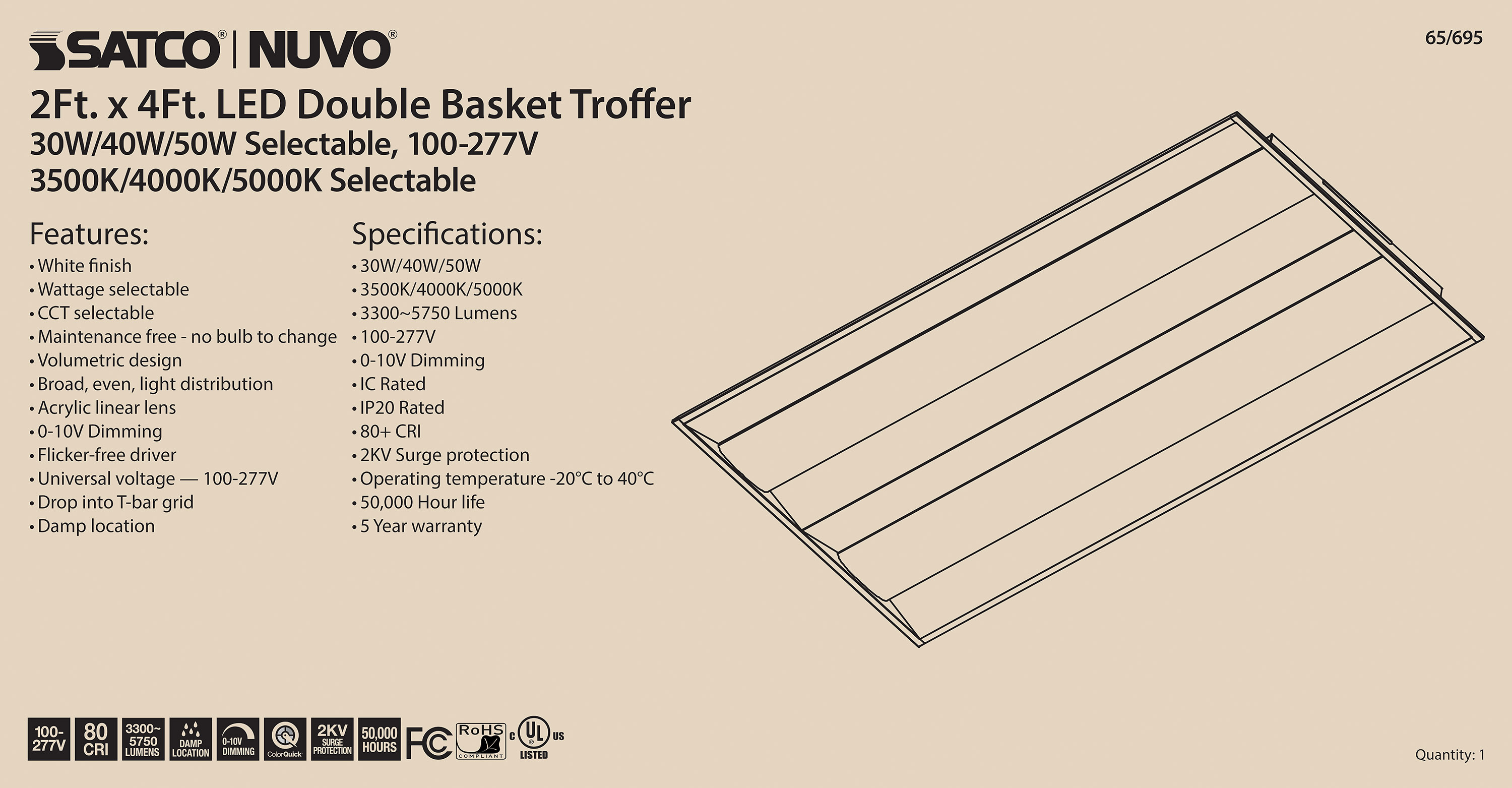

2X4 DOUBLE BASKET TROFFER

  • 2X4 Double Basket LED Troffer Fixture
  • Wattage Selectable
  • CCT Selectable
  • Lumens Selectable
  • 100-277V
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-695 Specifications65-695 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-695
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2X4 Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialSteel
Fixture TypeDouble Basket Troffer
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.300-0.108/0.400-0.144/0.500-0.181A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent70W-125W
Lumens3300L-5750L
Volts120V-277V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLMPDZI3JAU2
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
UL ApplicationLED Recessed Luminaire/Type IC
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923655203
Case Cube2.4041
Case Height25.67
Case Length49.49
Case Quantity1
Case UPC10045923655200
Case Weight16.1
Case Width3.27
EA Cube2.4041
EA Height25.67
EA Length49.49
EA Quantity1
EA Weight16.1
EA Width3.27
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

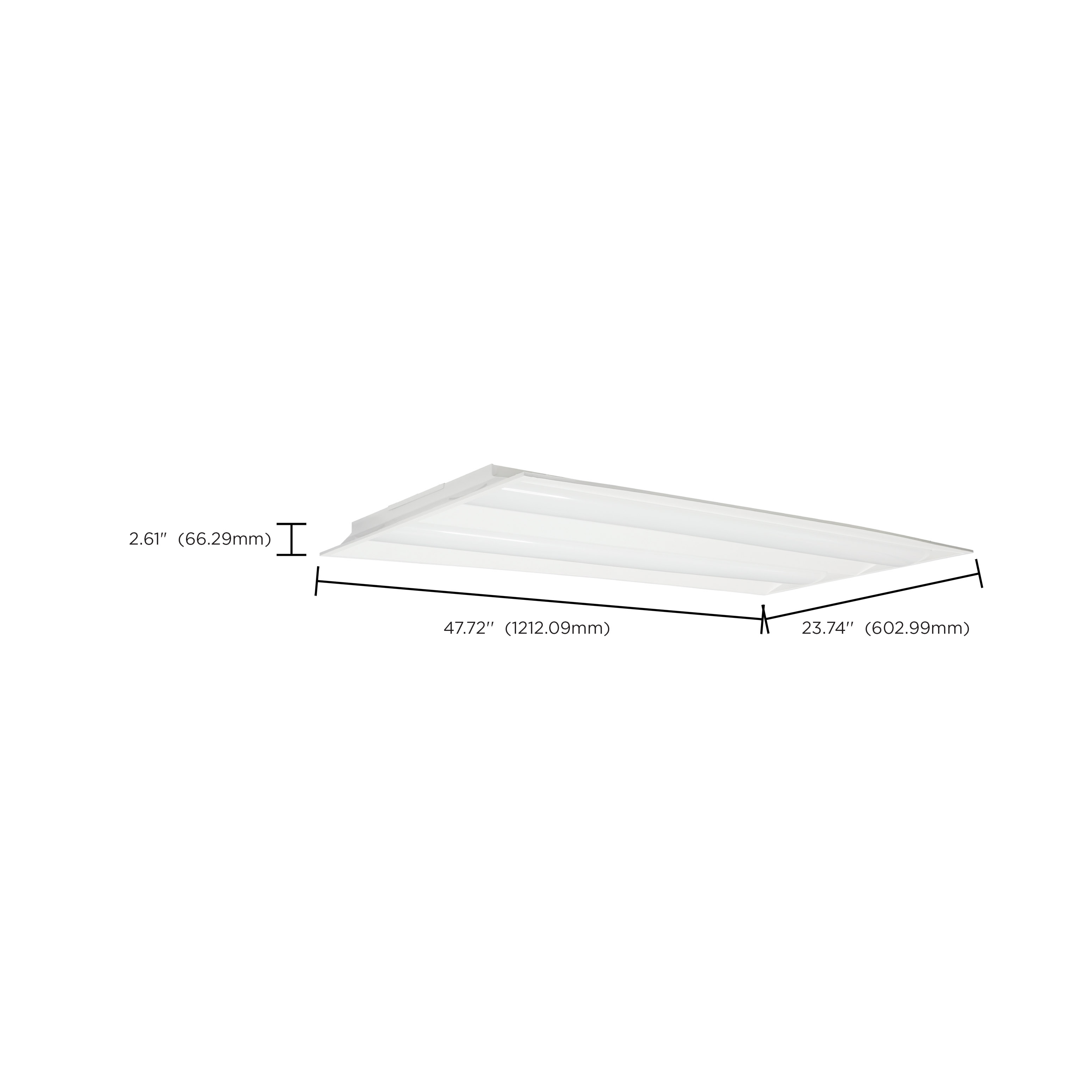

Web Height2.61
Web Length47.72
Web Width23.74
