65-698R1

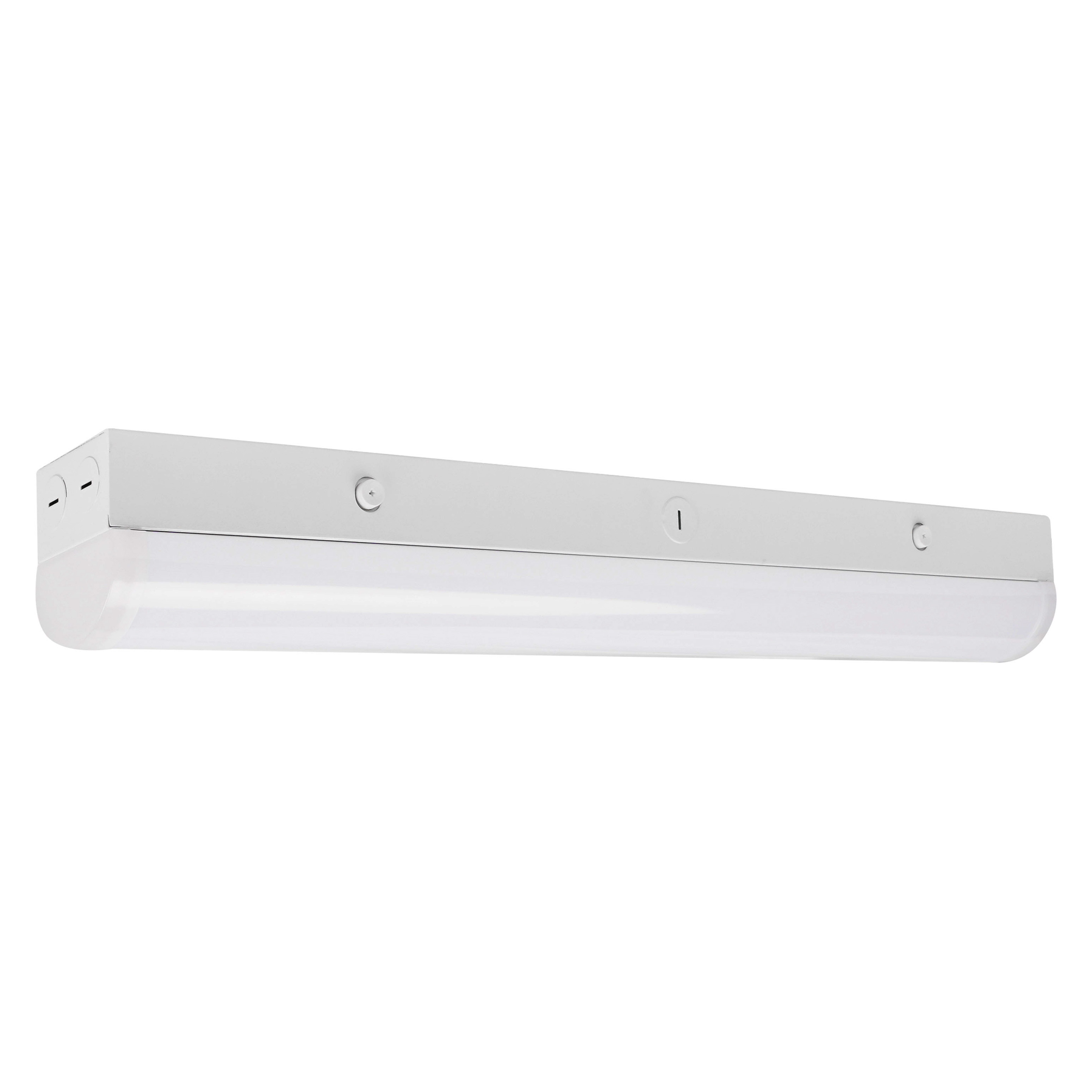

2' LINEAR STRIP W/ EM & SENSOR

  • LED 2 ft.
  • Linear Strip Light
  • 15/20/25 Watt
  • 35K/40K/50K CCT Selectable
  • White Finish
  • 120-277V
  • Integrated EM & Sensor
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-698R1 Specifications65-698R1 Wiring Instructions with two Neutrals.pdf
Tools
Lighting Layout Analysis For 65-698R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED 2 ft.; Linear Strip Light; 15/20/25 Watt; 35K/40K/50K CCT Selectable; White Finish; 120-277V; Integrated EM & Sensor
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialSteel
Fixture TypeStrip Light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.60%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional InfoEM Mode 4W/90 Min run time
Amps0.125-0.054/0.167-0.072/0.208-0.090A
Mounting Diameter4.75
Has CameraNo
Integrated FeaturesIntegrated Battery Backup and MW Sensor
IOT EnabledNo
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
Photo CellHas Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80+
Dimming Type0-10V Dimming, Bi-Level Dimmable
Operating Frequency50/60Hz
Operating Temp-4F to +140F (-20C to +60C)
HID Equivalent100W-150W
Lumens1950L-3500L
Volts120V-277V
Watts15W/20W/25W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
Bug RatingB1-U3-G1
CA Prop 65Lead
DLC IDS-JF7YDX;S-PZ8M6L
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Listed
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923412196
Case Cube1.569
Case Height7.87
Case Length25.0
Case Quantity8
Case UPC10045923412193
Case Weight28.22
Case Width13.78
EA Cube0.1615
EA Height3.54
EA Length24.41
EA Quantity1
EA Weight3.2
EA Width3.23
Pack TypeBox

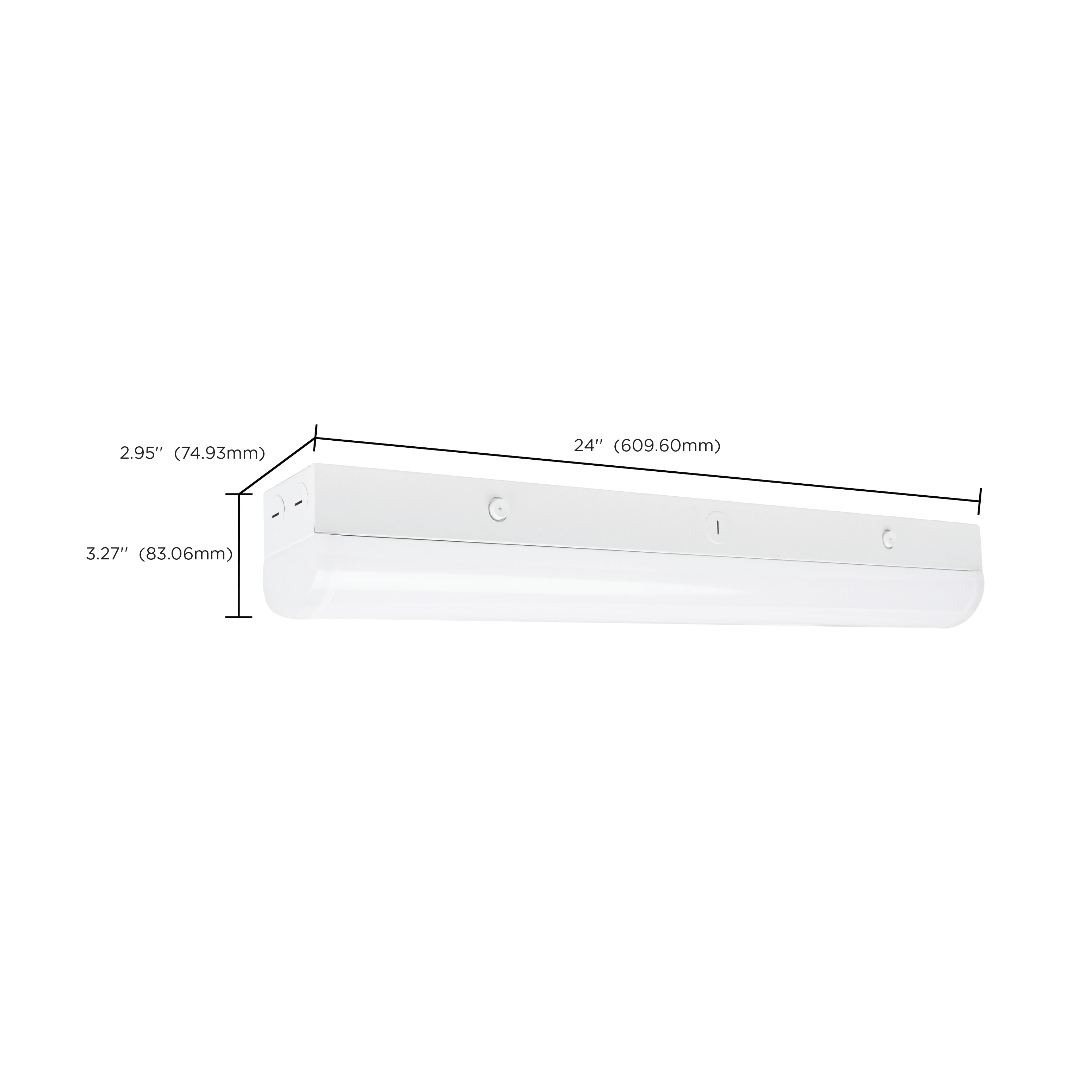

Web Height3.27
Web Length24.0
Web Width2.95
