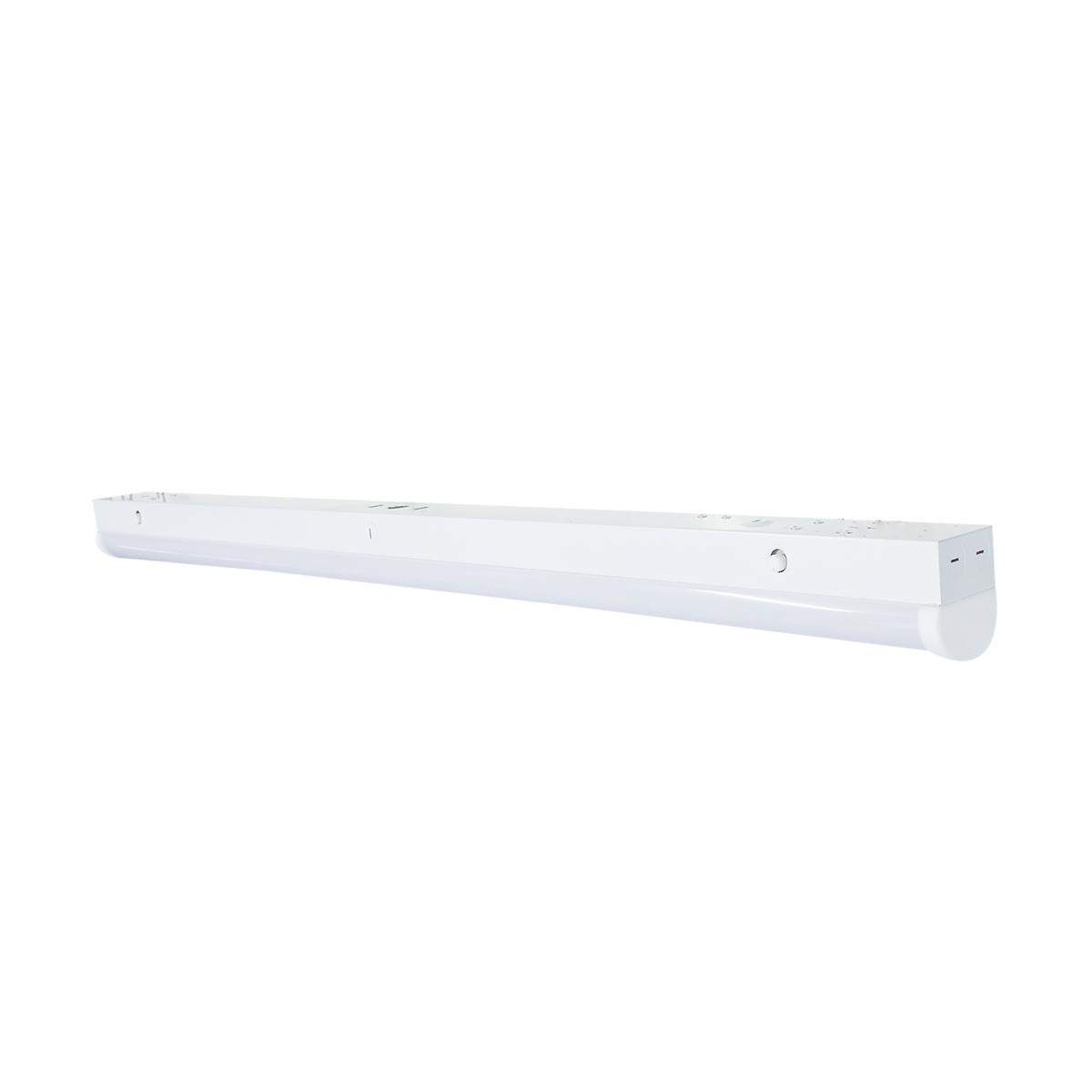

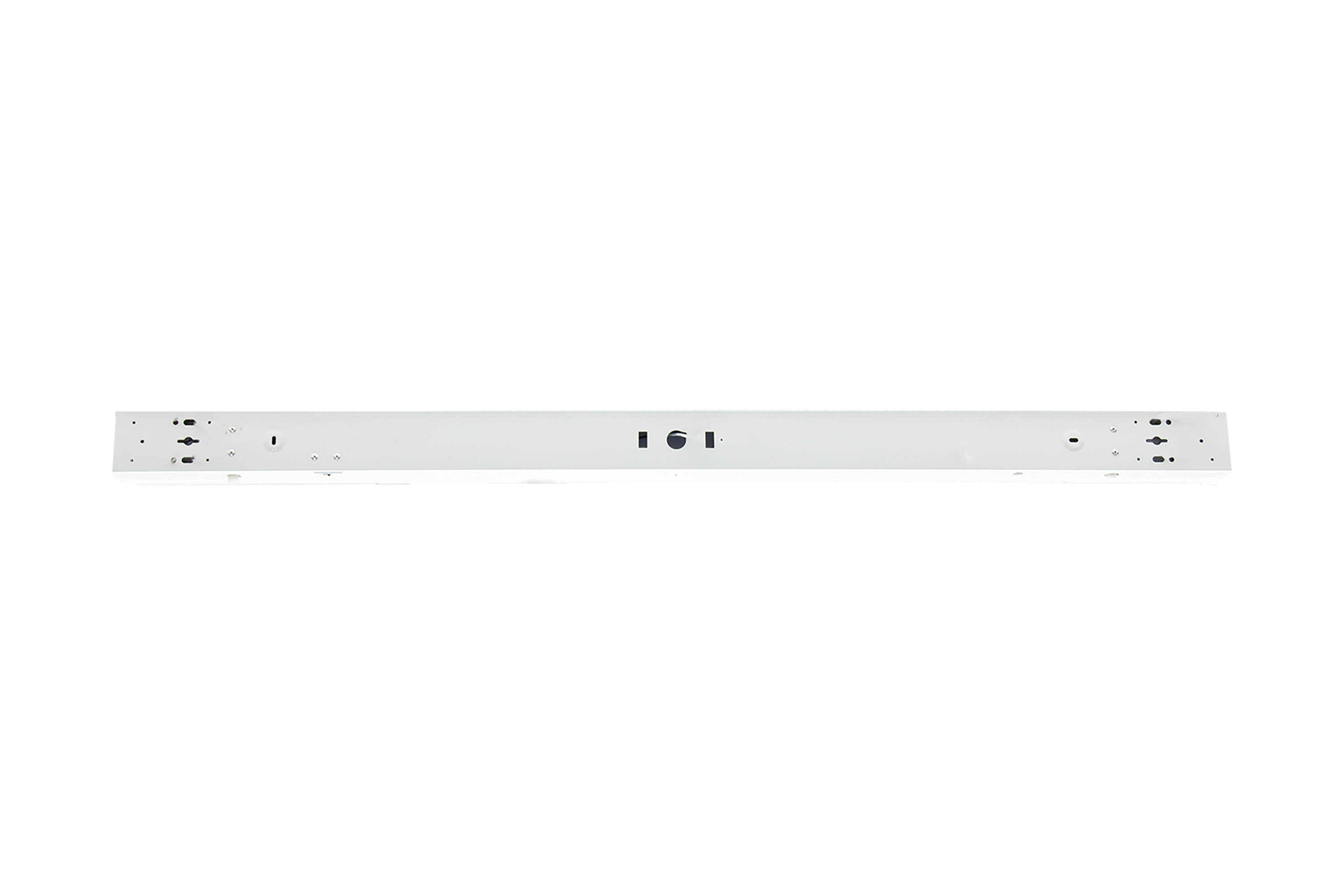

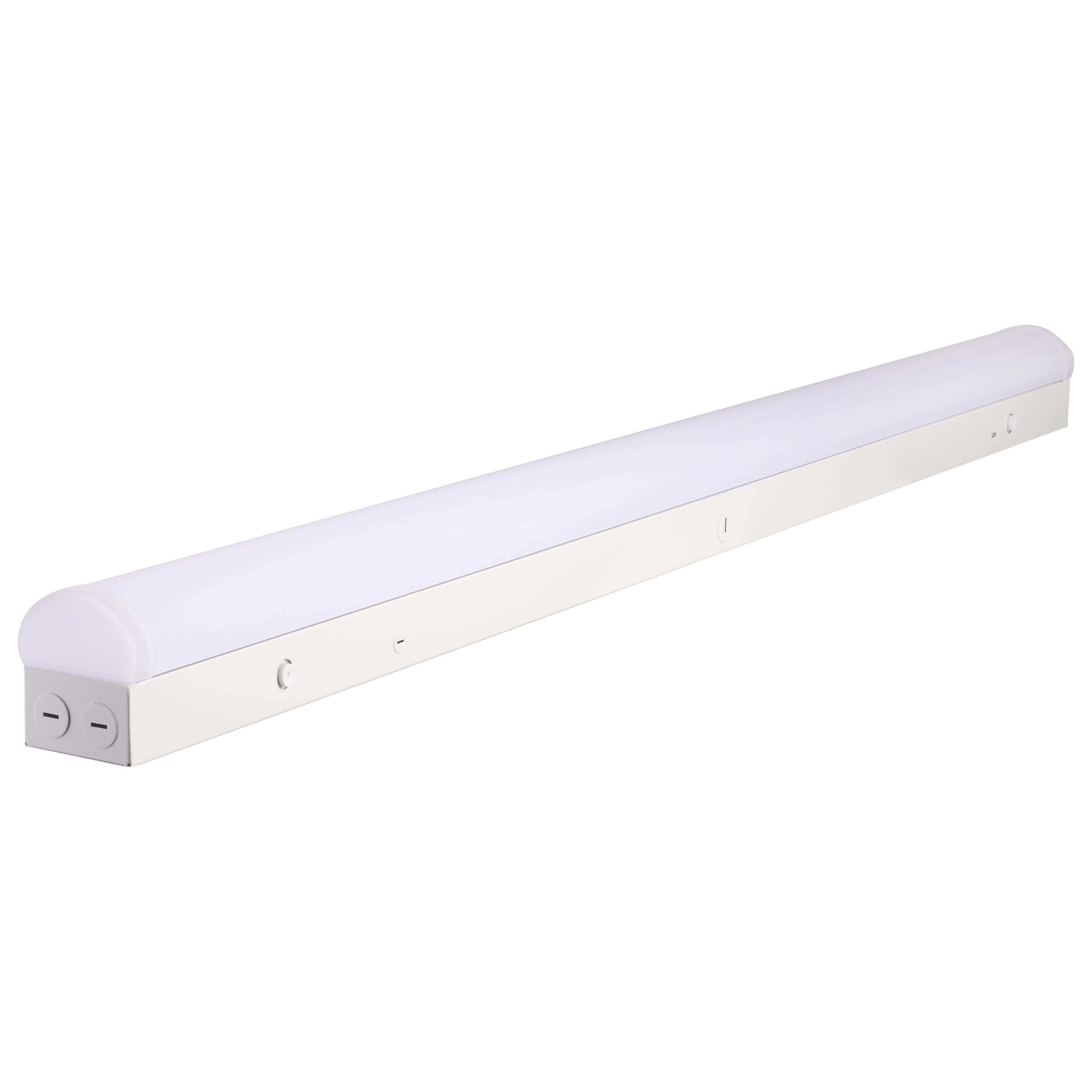

65-701

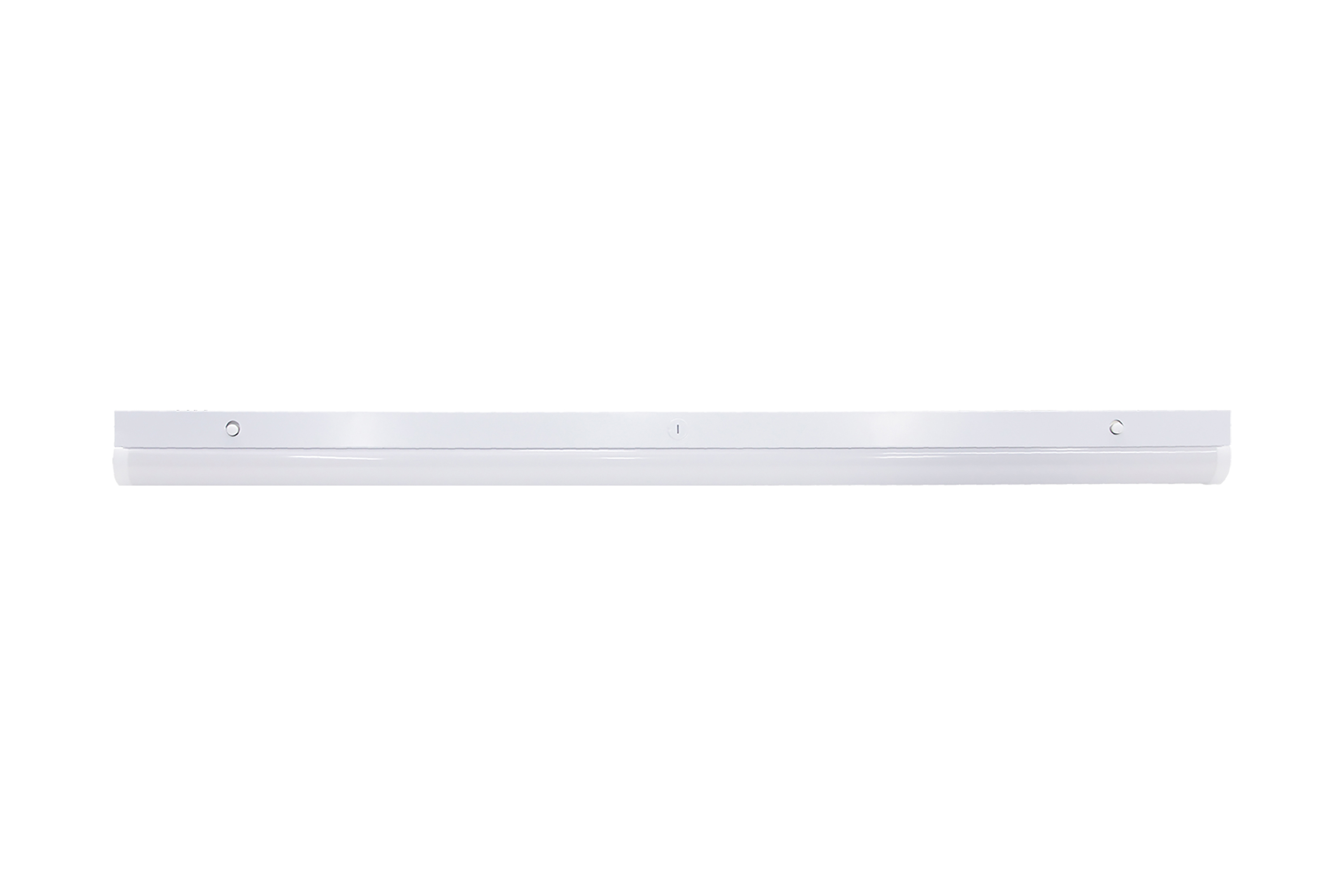

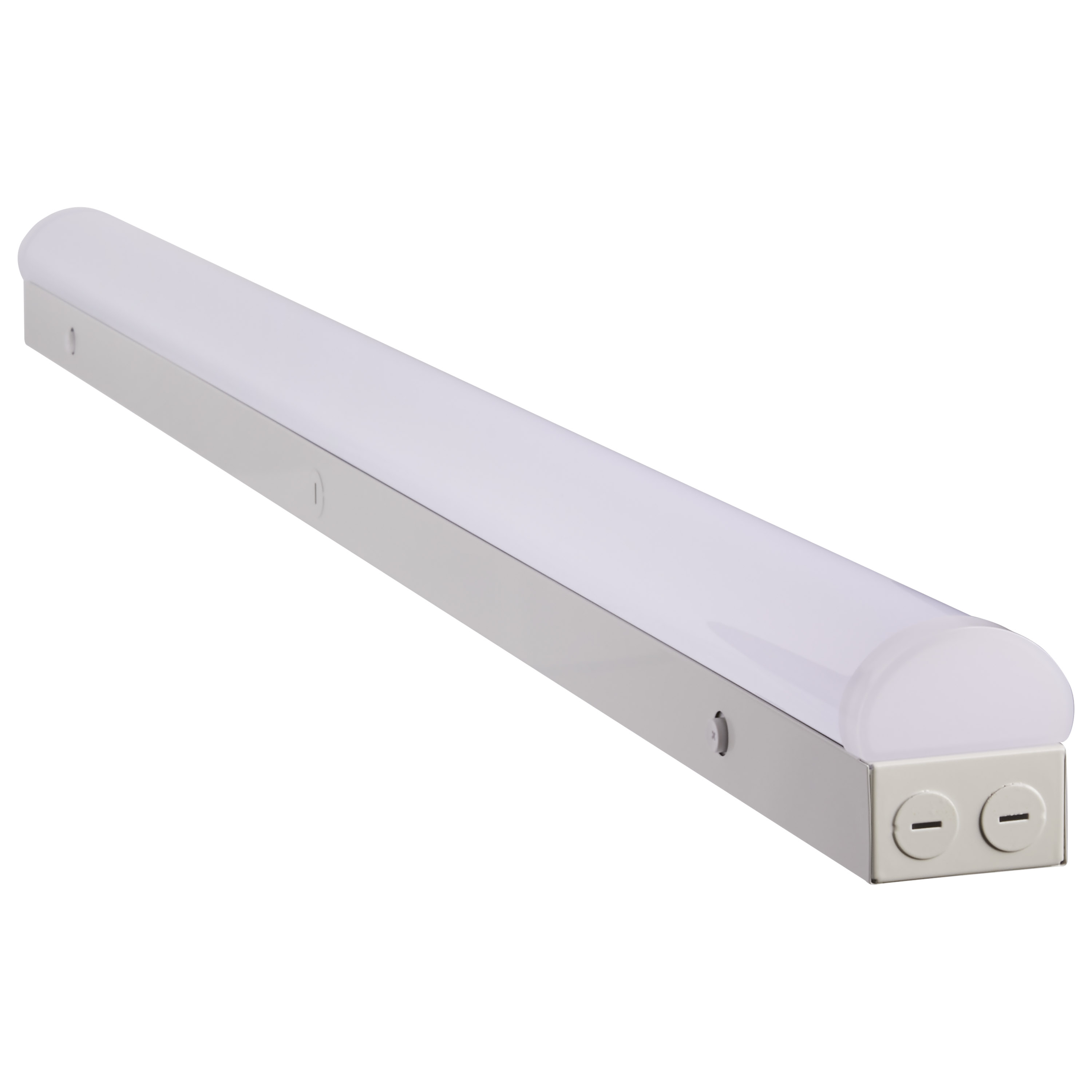

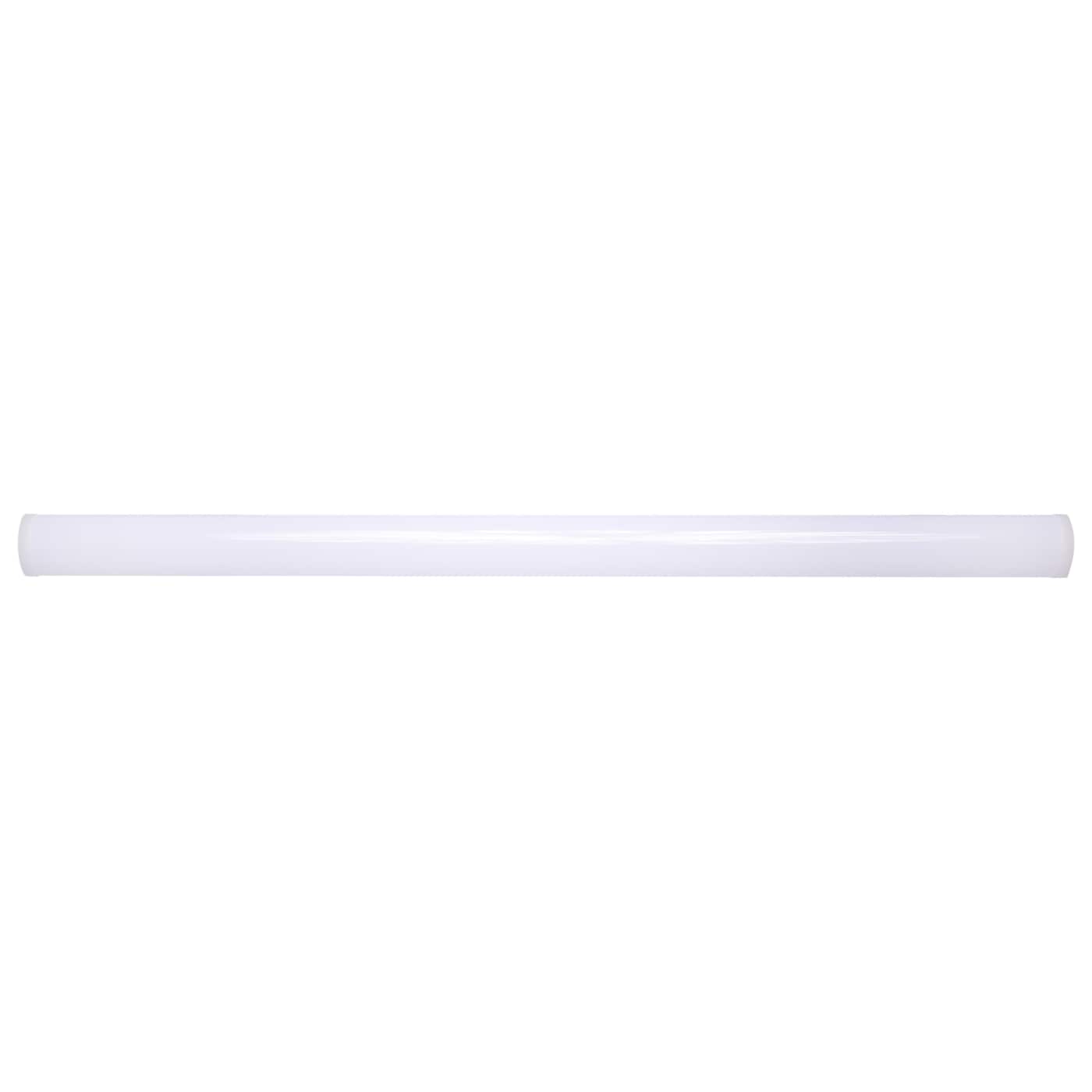

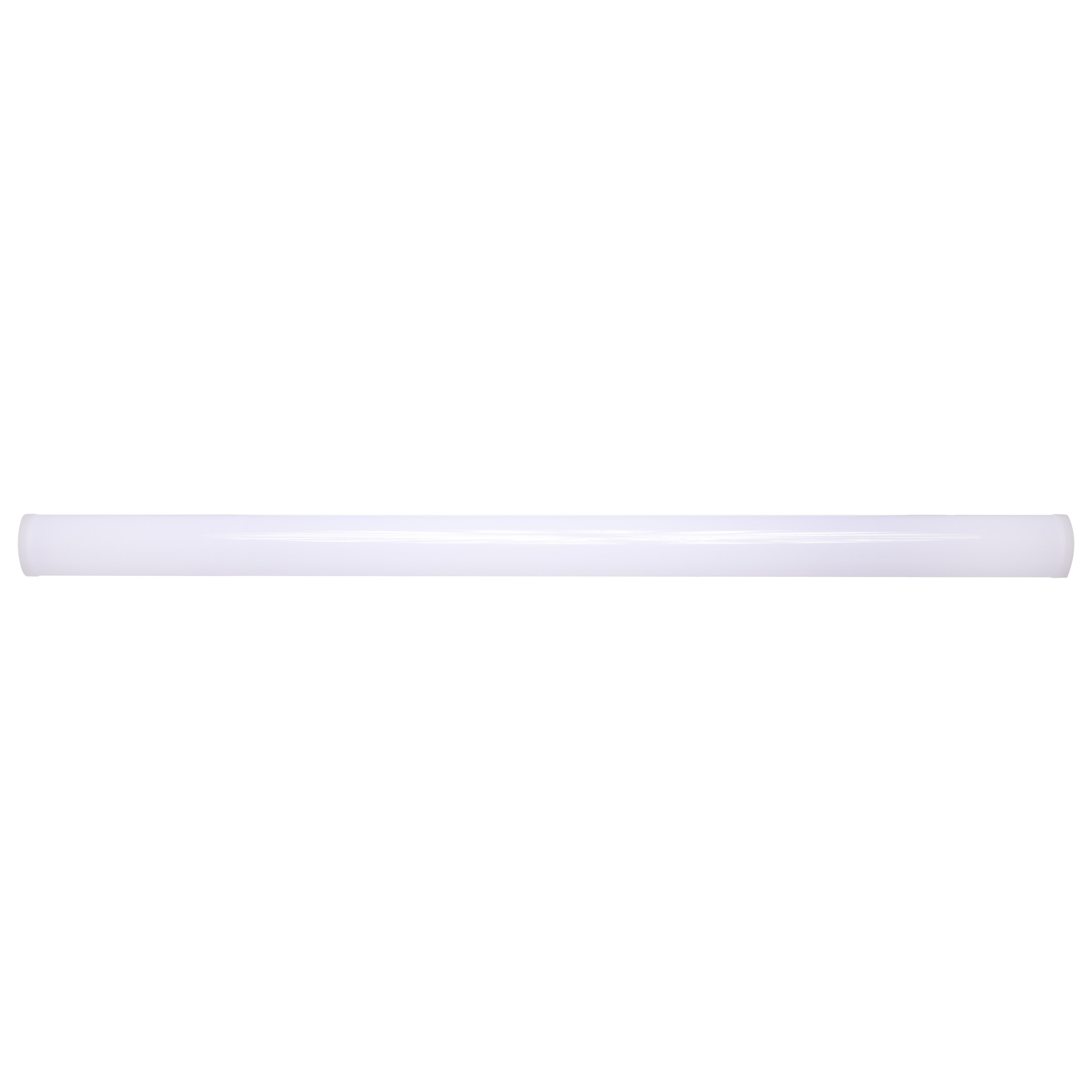

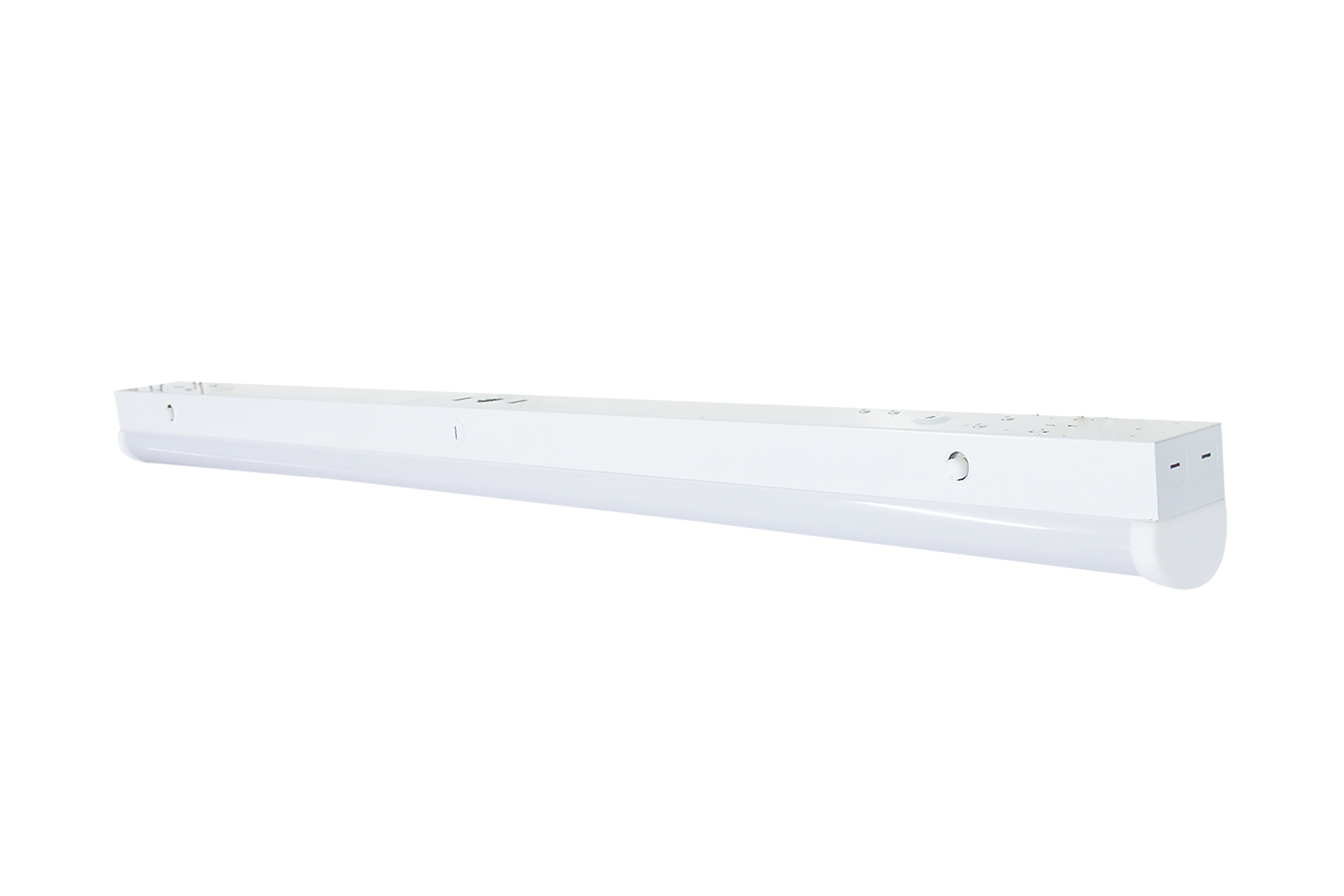

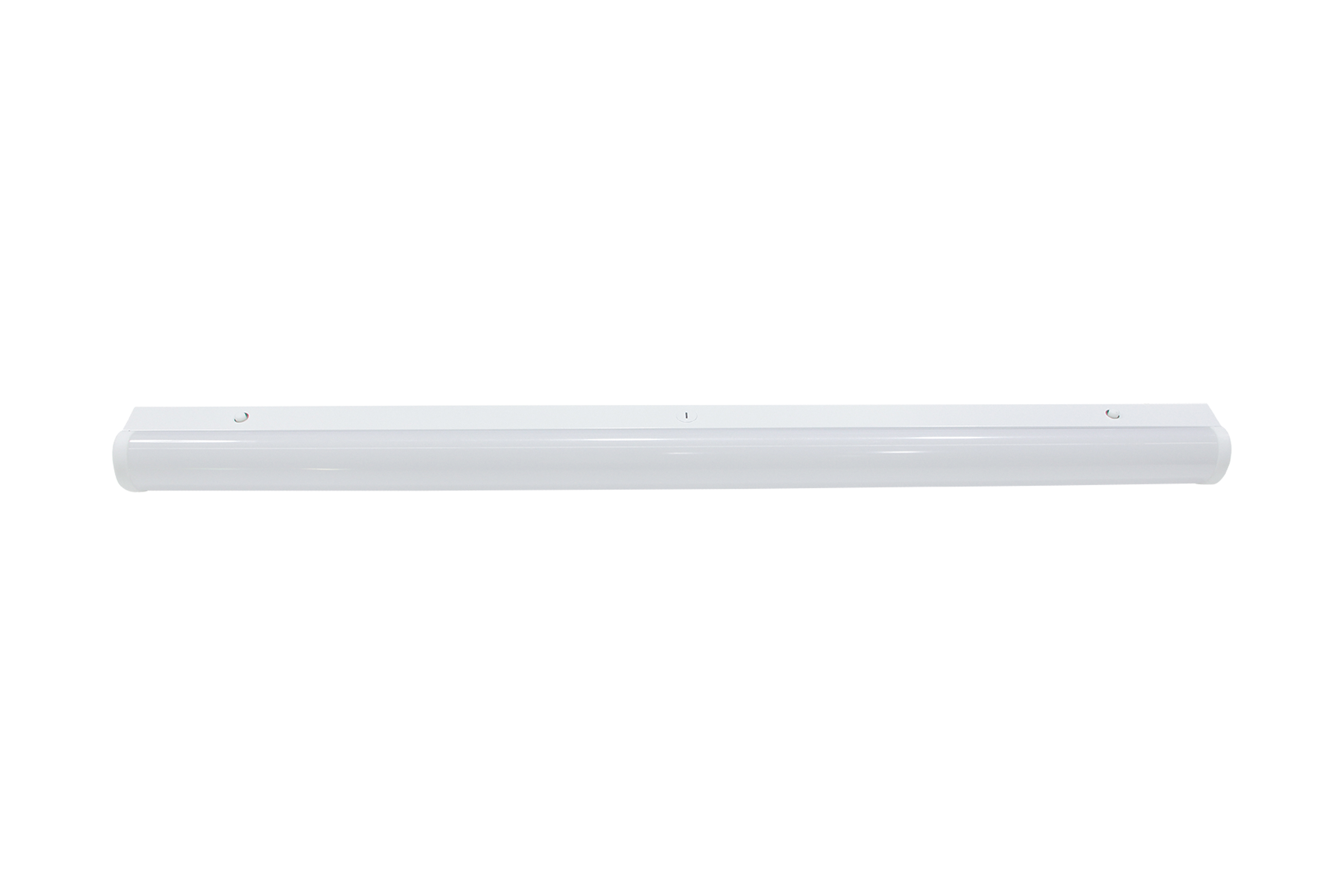

4' LINEAR STRIP WHITE FINISH

  • 4 ft. LED
  • Linear Strip Light
  • Wattage and CCT Selectable
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-701 Specifications65-701 and 86-202 Wiring Instructions65-701 Instructions
Tools
Lighting Layout Analysis For 65-701
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialSteel
Fixture TypeStrip Light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.71%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.250-0.108/0.333-0.144/0.417-0.181A

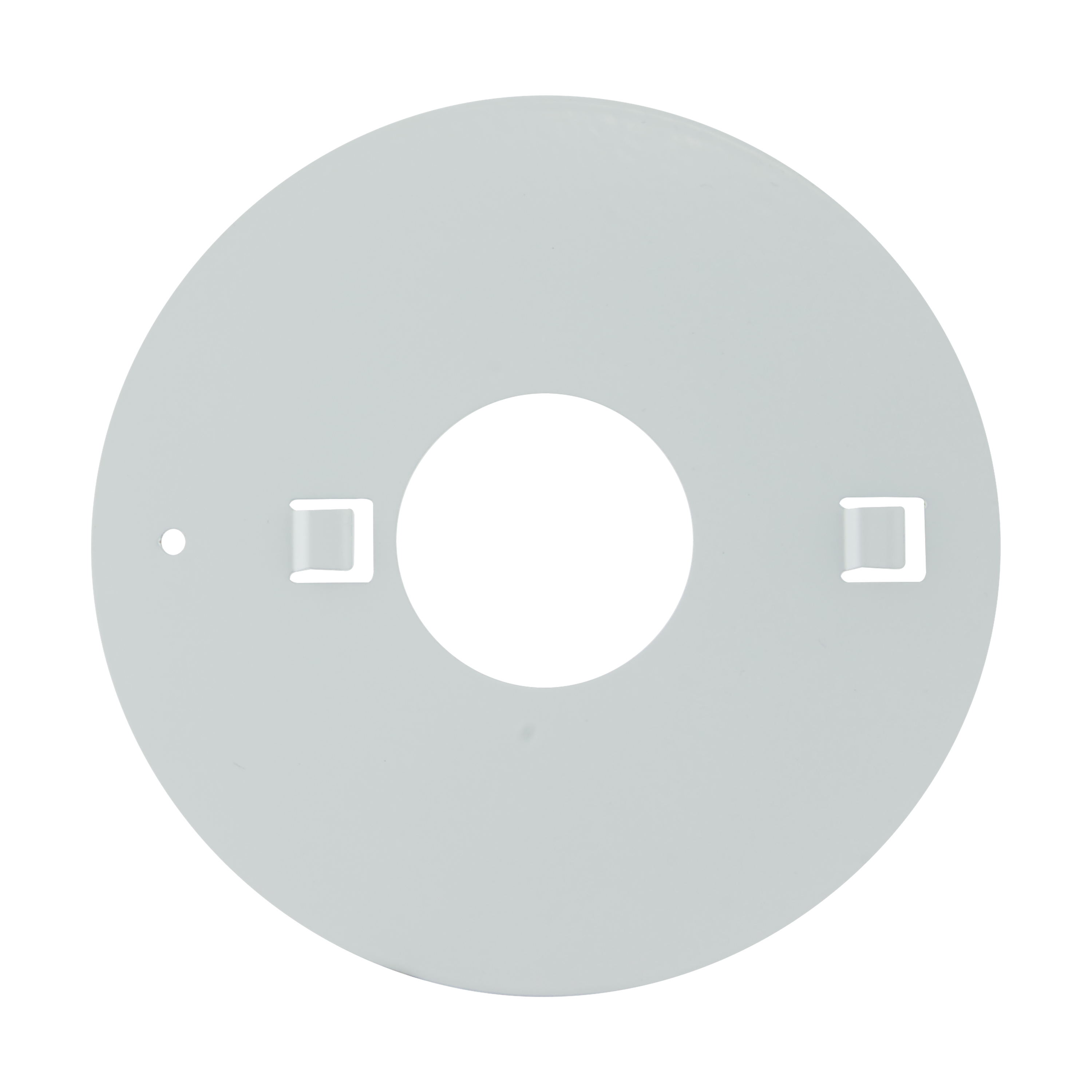

Mounting Diameter4.75
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
Photo CellOptional Add-On
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W-175W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +60C (+140F)
HID Equivalent100W-150W
Lumens3900L-6750L
Volts120V-277V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Bug RatingB2-U4-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLK0WRSF76AD; PY93KEUH; S-KPXKB2
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
UL ApplicationCeiling / Wall
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923655593
Case Cube5.6586
Case Height11.81
Case Length50.67
Case Quantity6
Case UPC10045923655590
Case Weight26.5
Case Width16.34
EA Cube0.7999
EA Height5.38
EA Length50.08
EA Quantity1
EA Weight3.75
EA Width5.13
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.27
Web Length48.0
Web Width2.95
