| Company | SATCO |
|---|---|
| Bulb Included | Integrated |

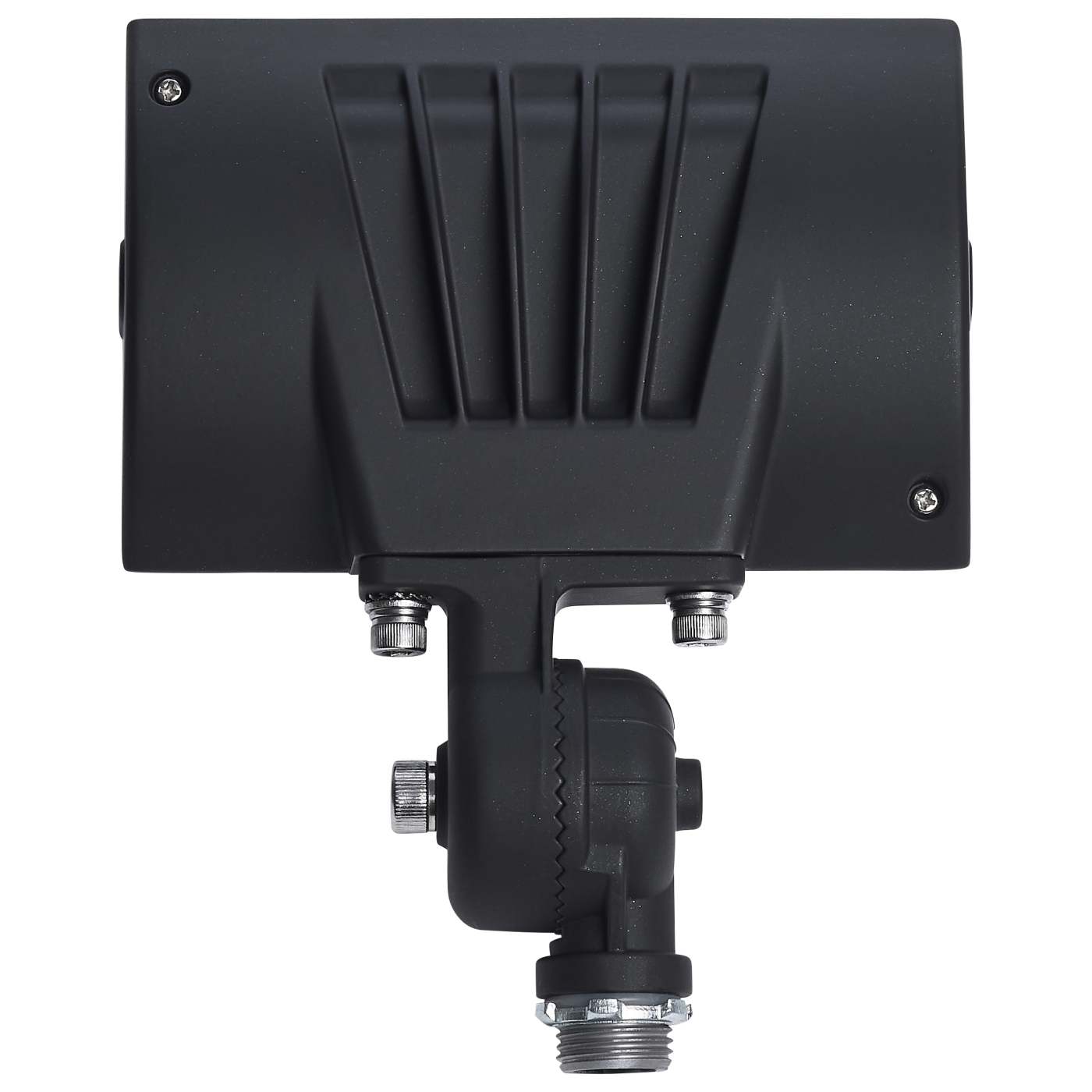

| Material | Die-cast Aluminum |

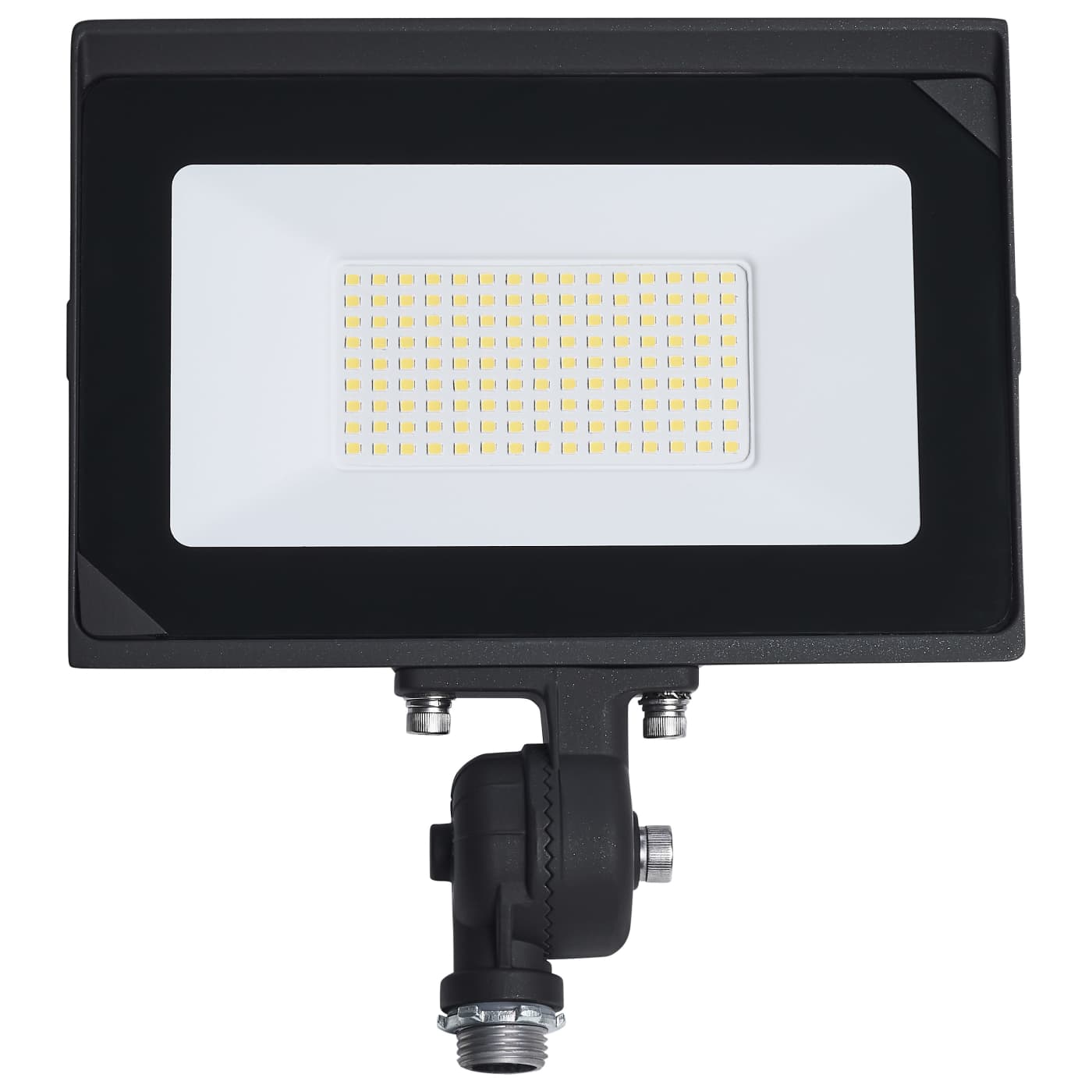

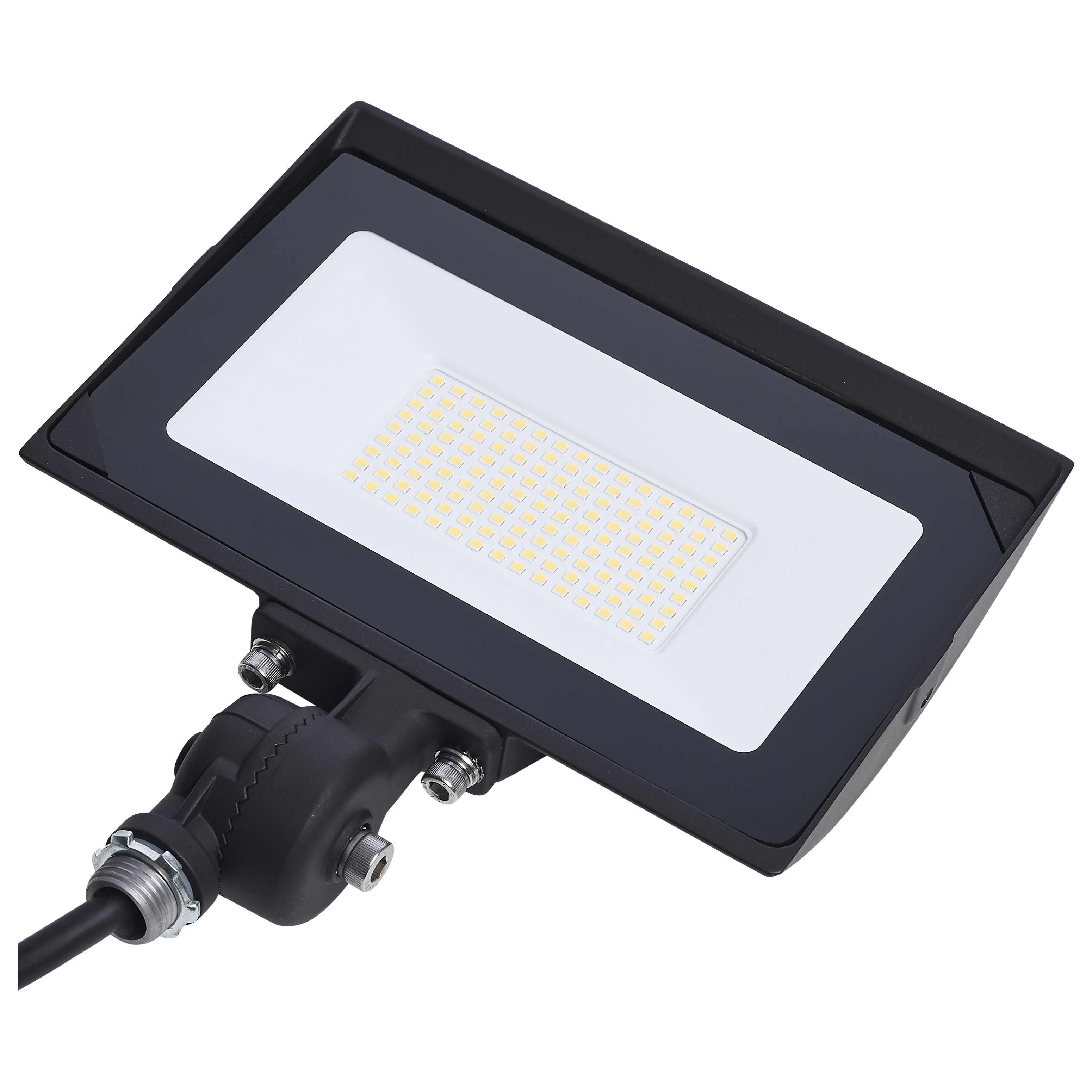

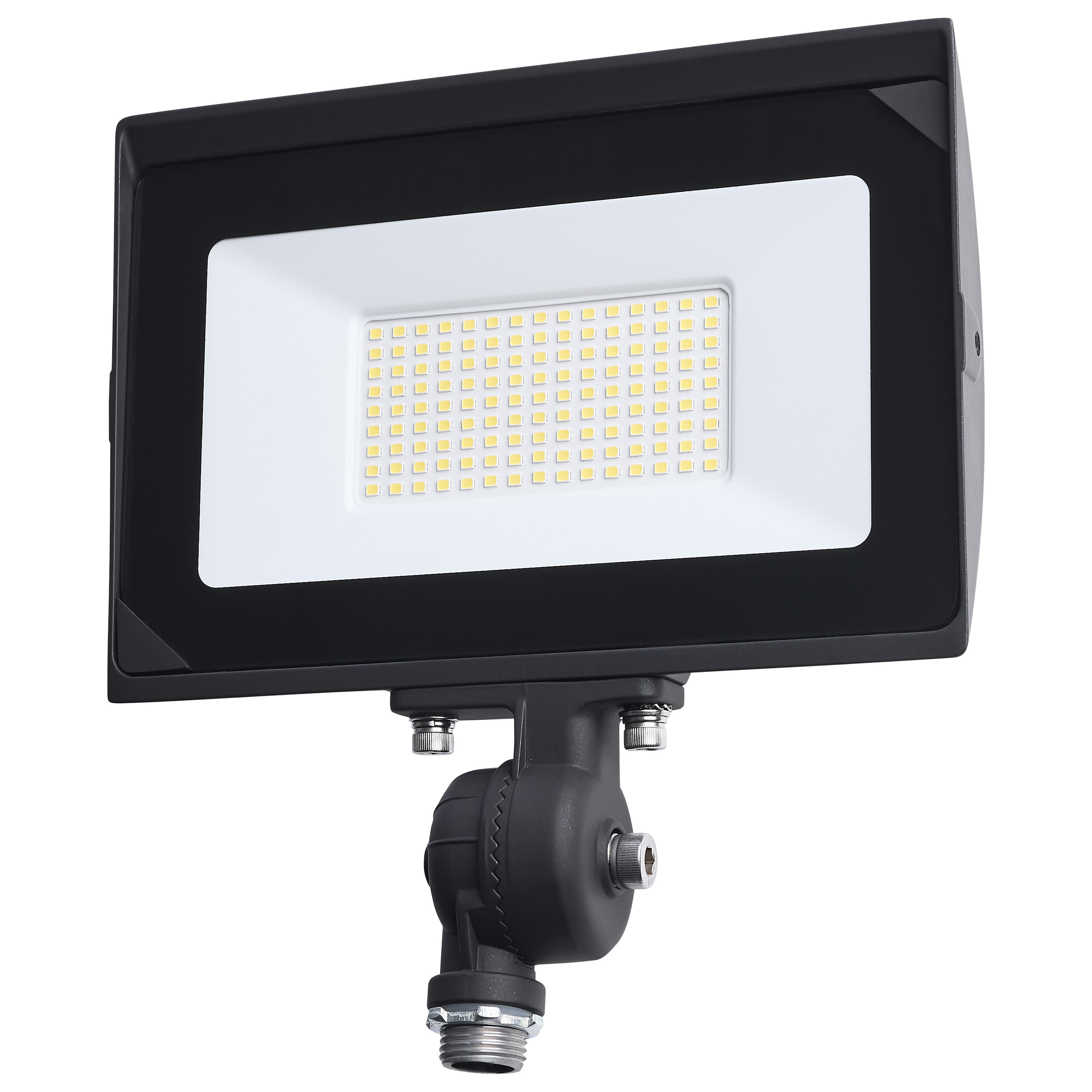

| Fixture Type | Flood Light |

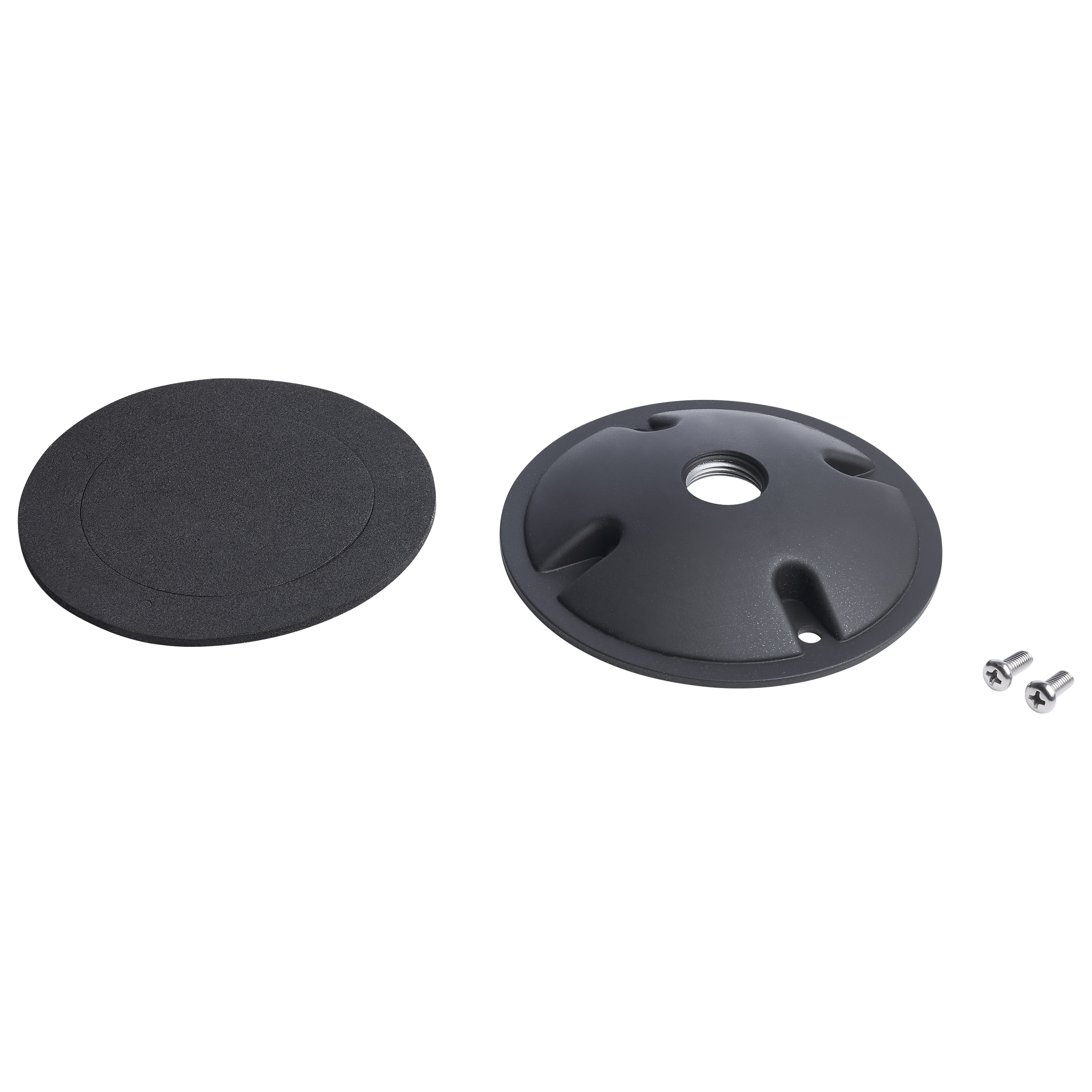

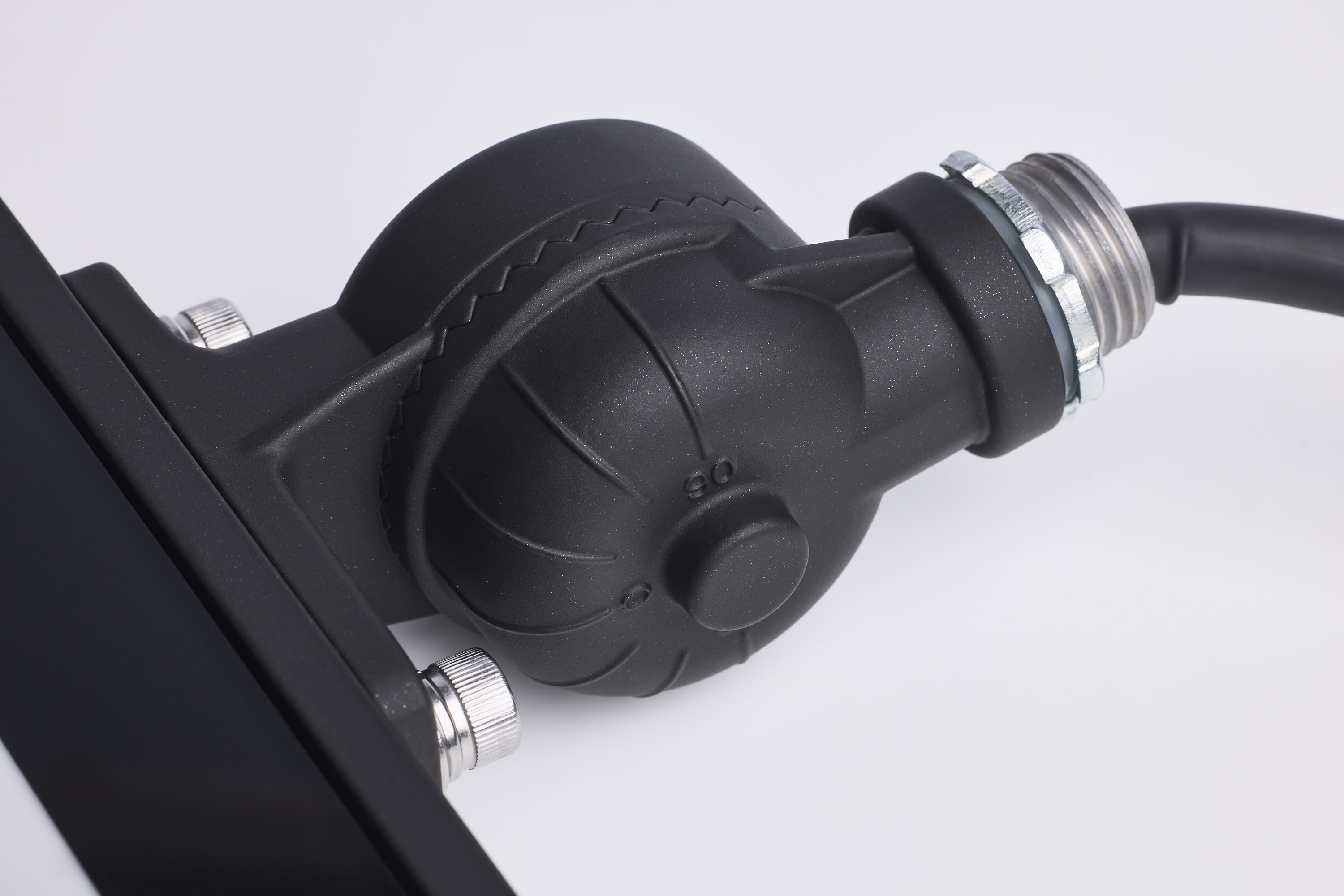

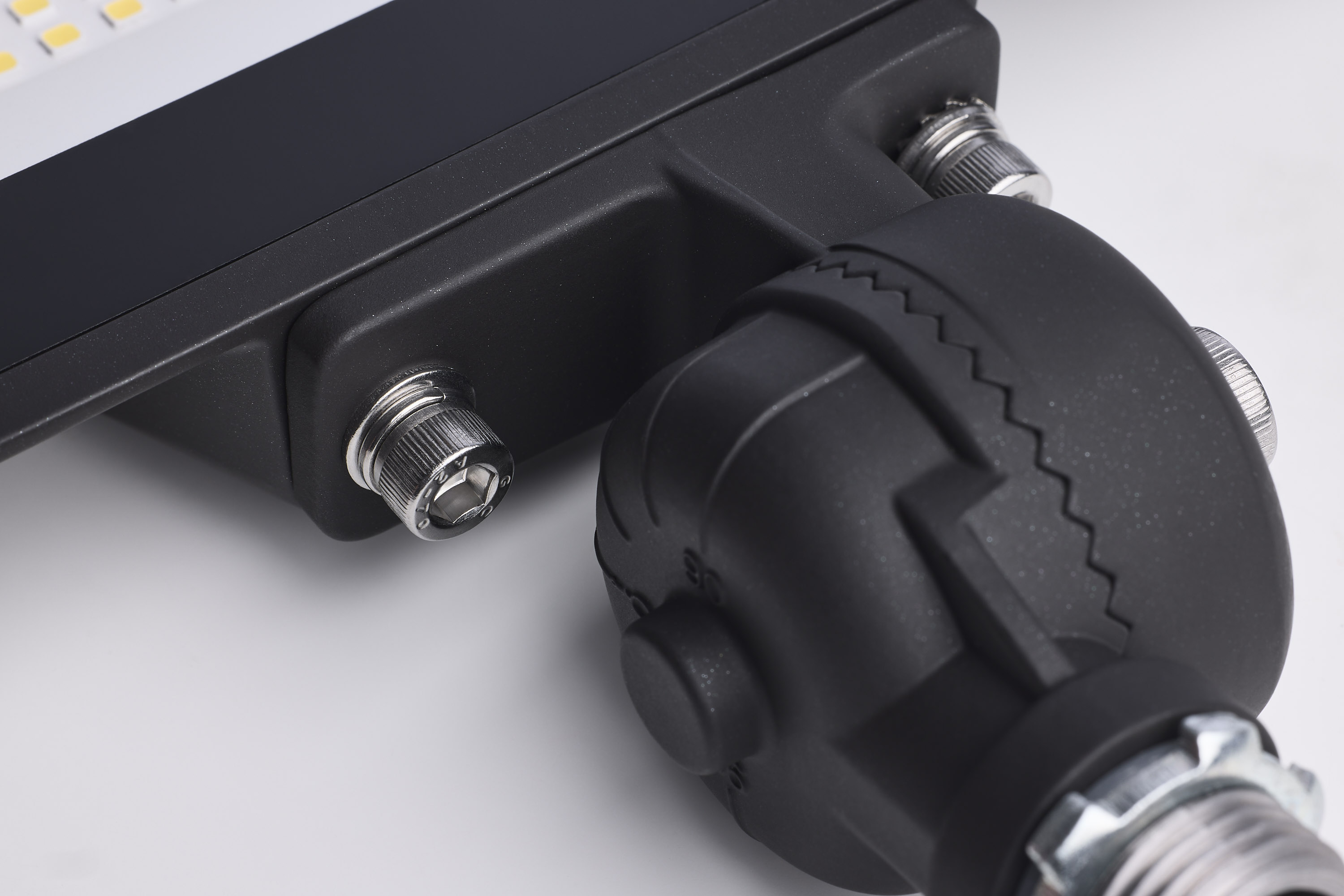

| Includes | Yoke Mount |
| Product Notes | NEMA Distribution: 6Vx6H (120x120) |
| Status | Active |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | <30% |
| Up Down Installation | Up |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Amps | 0.670A |
| Lens Finish | Clear |
| Lens Material | Tempered Glass |
| Lensed | True |
| Power Factor | >0.94 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 325W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 30000 |
| Beam Angle (degree) | 120 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| Lumens | 9040L |
| Volts | 120v |
| Watts | 80W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |

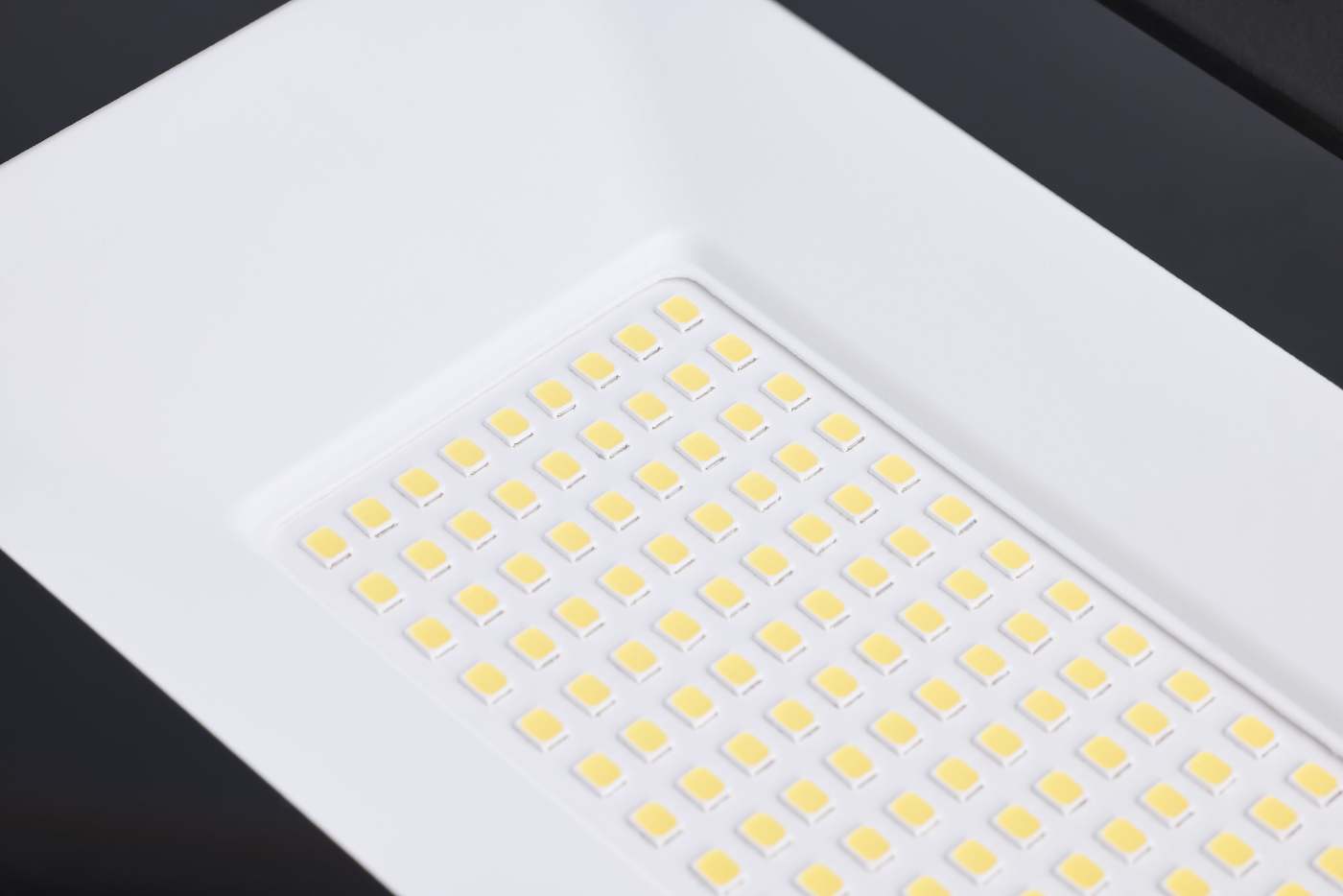

| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 3-Years |
|---|
| Flicker Free | False |
|---|
| ADA Compliant | False |
|---|---|
| Bug Rating | B1-U2-G1 |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Dark Sky Rated | False |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923410970 |
|---|---|
| Case Cube | 1.4747 |
| Case Height | 11.34 |
| Case Length | 11.89 |
| Case Quantity | 8 |
| Case UPC | 10045923410977 |
| Case Weight | 22.46 |
| Case Width | 18.9 |
| EA Cube | 0.1624 |
| EA Height | 11.57 |
| EA Length | 2.24 |
| EA Quantity | 1 |
| EA Weight | 2.62 |
| EA Width | 10.83 |
| Inner Cube | 0.0 |
| Pack Type | Color Box |

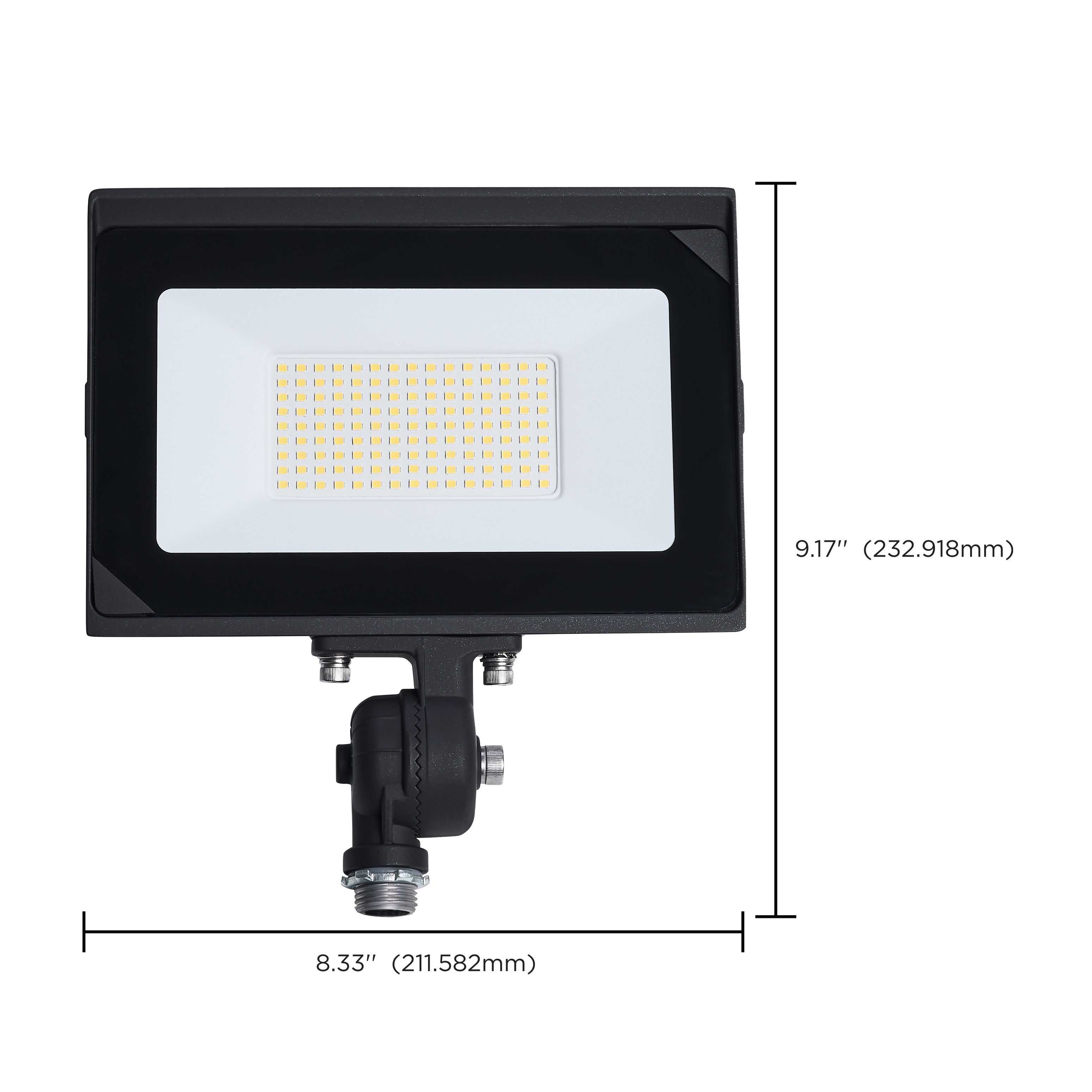

| Web Height | 9.17 |
| Web Width | 8.33 |
