| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 0-10V Dimming |
| Extends (in) | 3.09 |
| Material | Cast Aluminum |

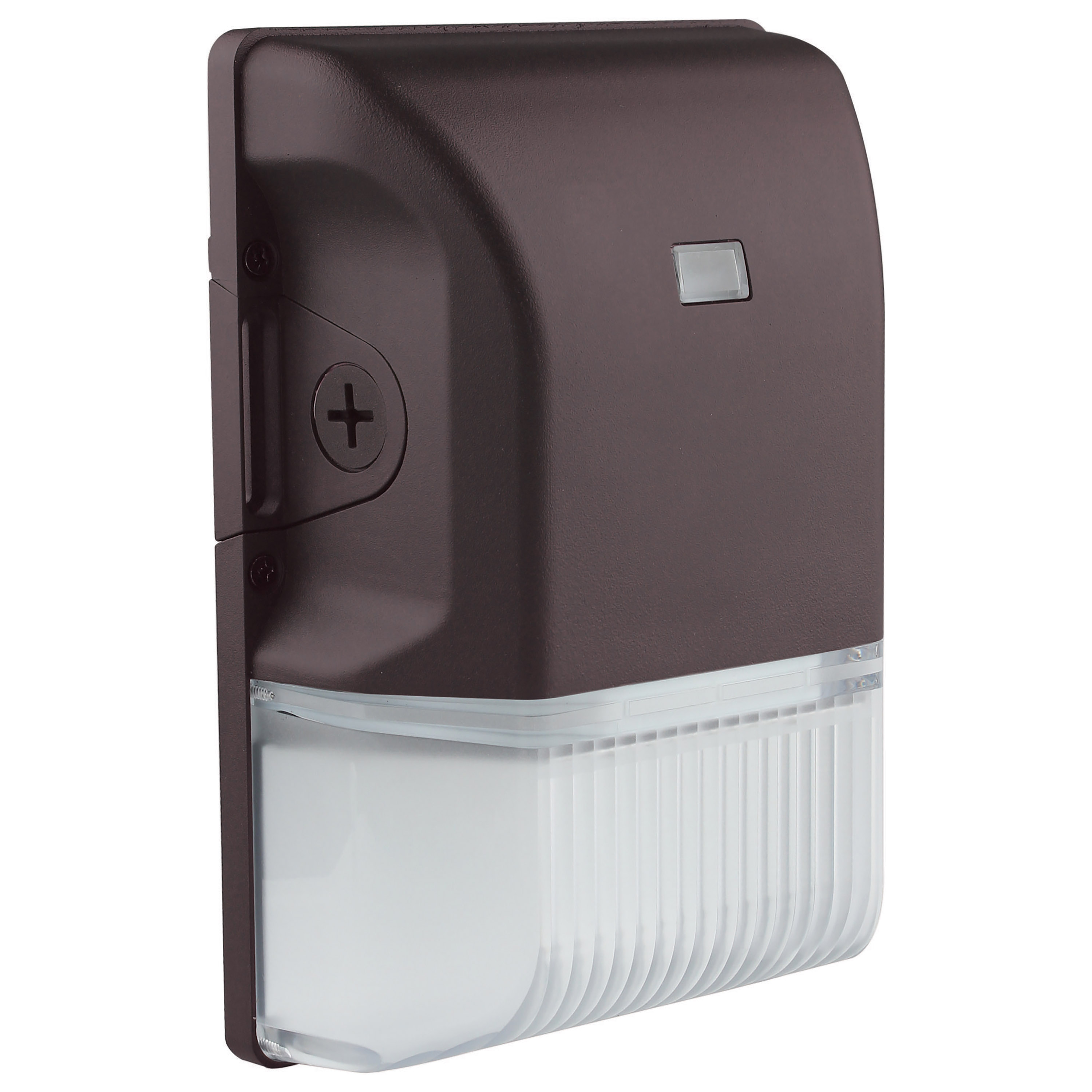

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | 20% |

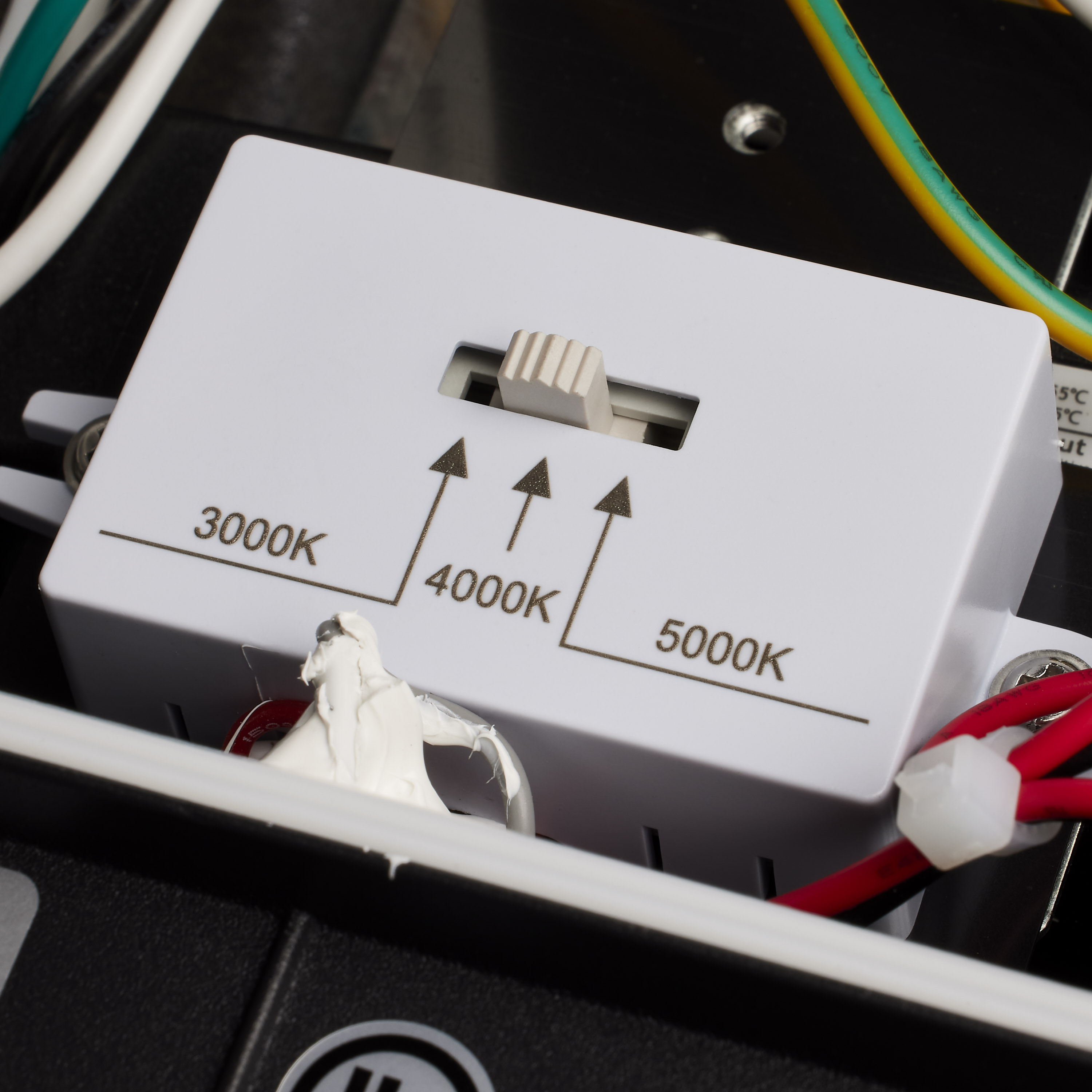

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Amps | 0.167-0.072A |
| Has Camera | False |
| IOT Enabled | False |

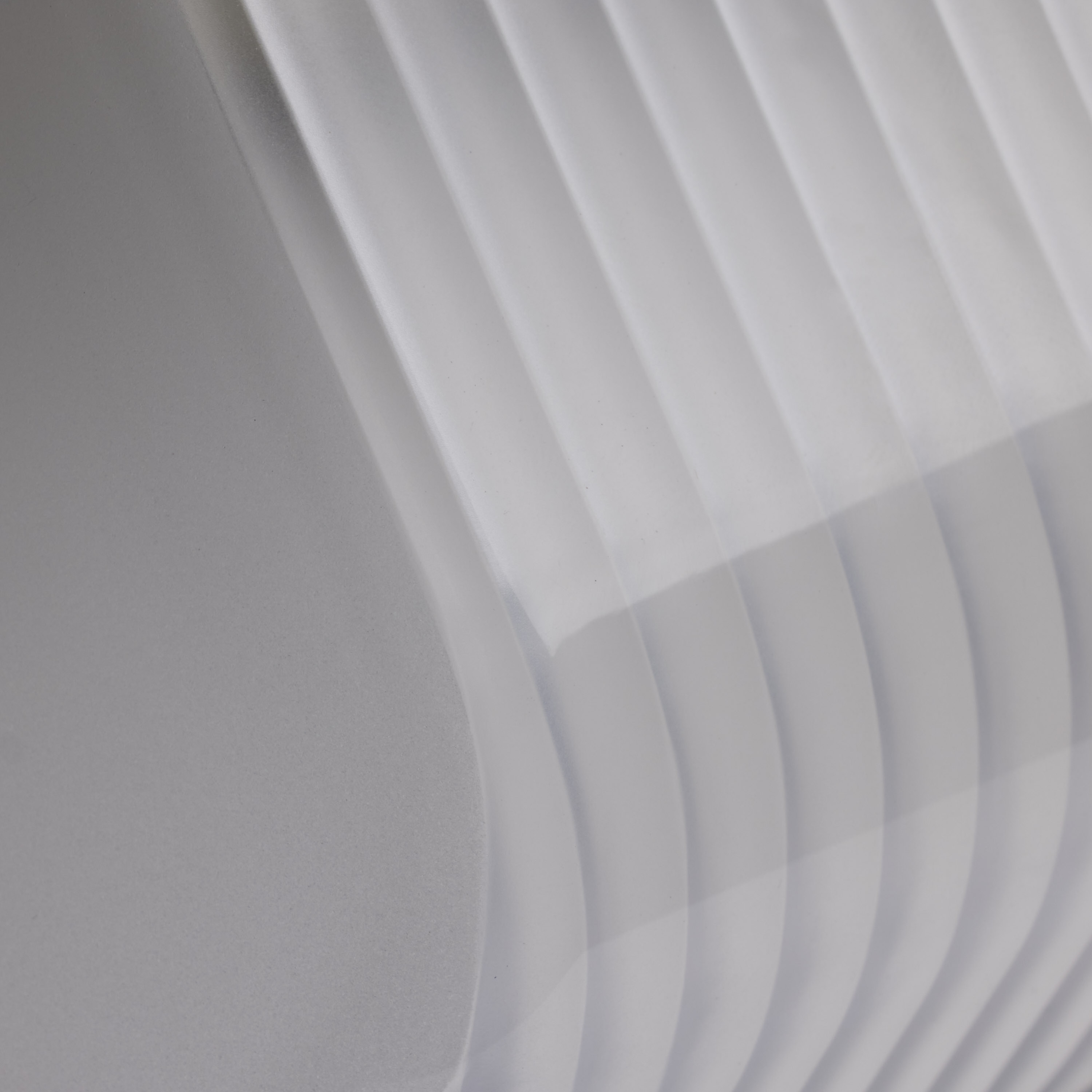

| Lens Material | Polycarbonate (PC) |

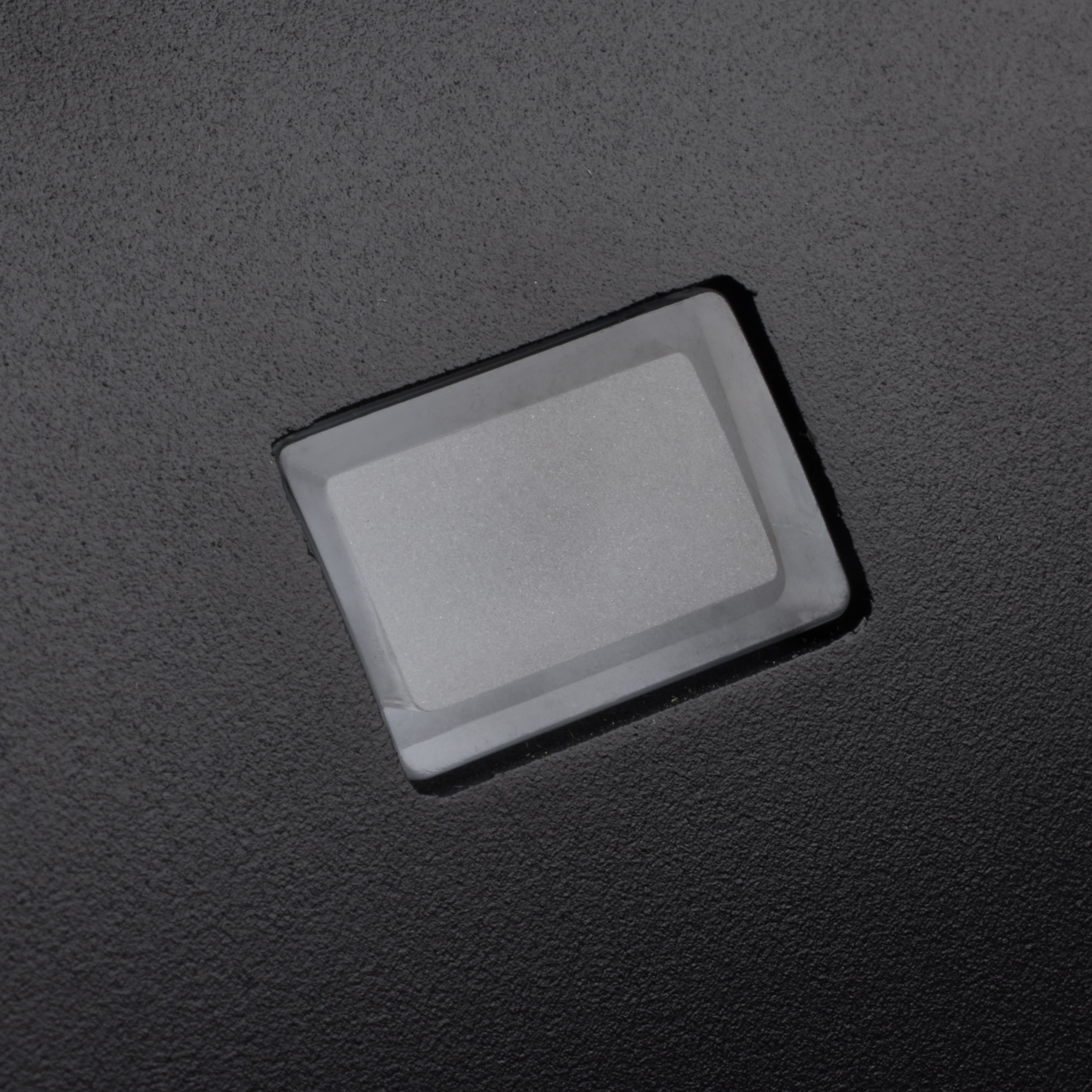

| Photo Cell | Has Photocell |
| Power Factor | 0.99 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 100 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| HID Equivalent | 100W-150W |
| Lumens | 2608.9L/2920.8L/2703.4L |
| Volts | 120V-277V |
| Watts | 20W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| ADA Compliant | True |
|---|---|
| Bug Rating | B1-U3-G2 |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-GL6EYJ |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923657481 |
|---|---|
| Case Cube | 1.2871 |
| Case Height | 9.6 |
| Case Length | 18.1 |
| Case Quantity | 10 |
| Case UPC | 10045923657488 |
| Case Weight | 22.05 |
| Case Width | 12.8 |
| EA Cube | 0.11 |
| EA Height | 8.9 |
| EA Length | 6.1 |
| EA Quantity | 1 |
| EA Weight | 2.03 |
| EA Width | 3.5 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

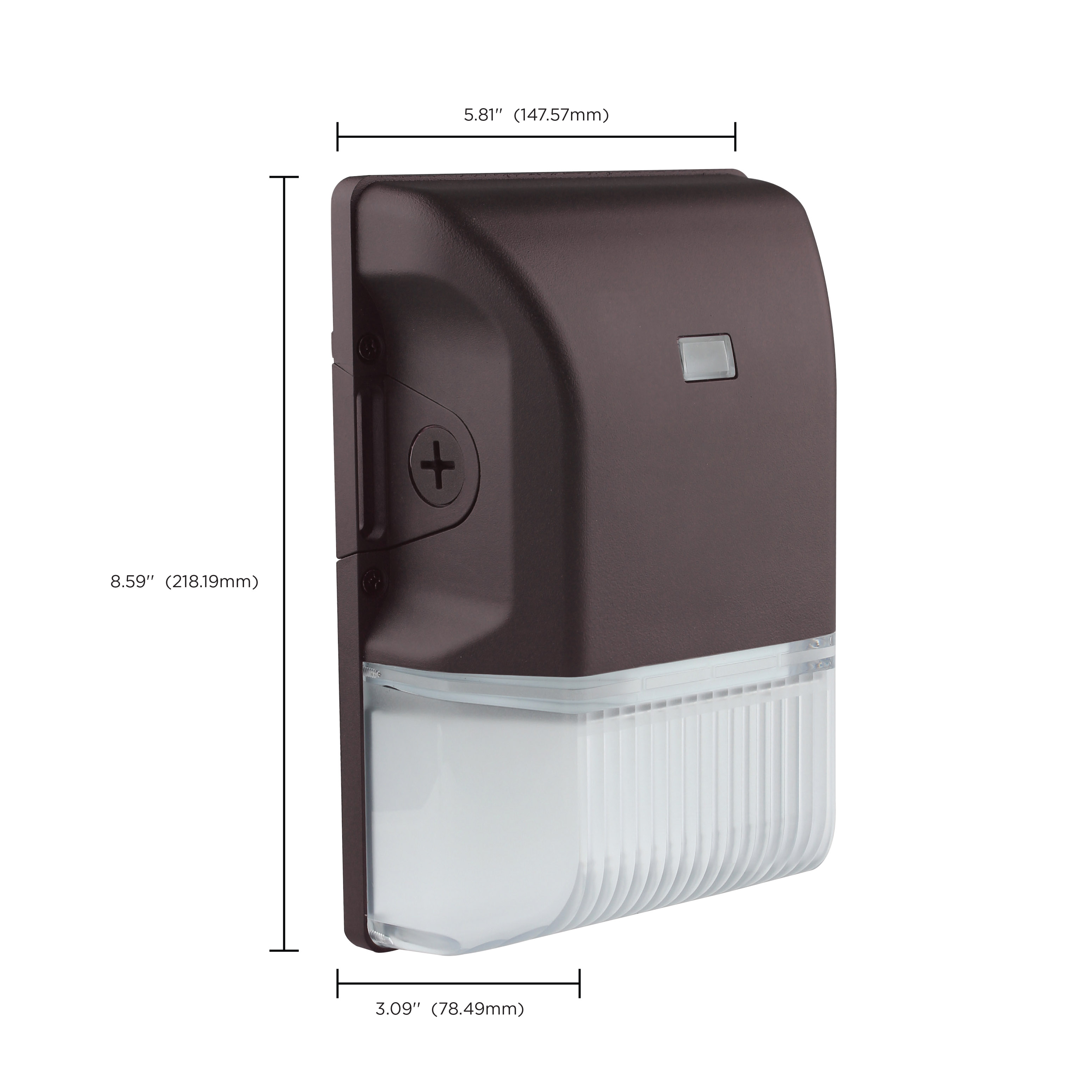

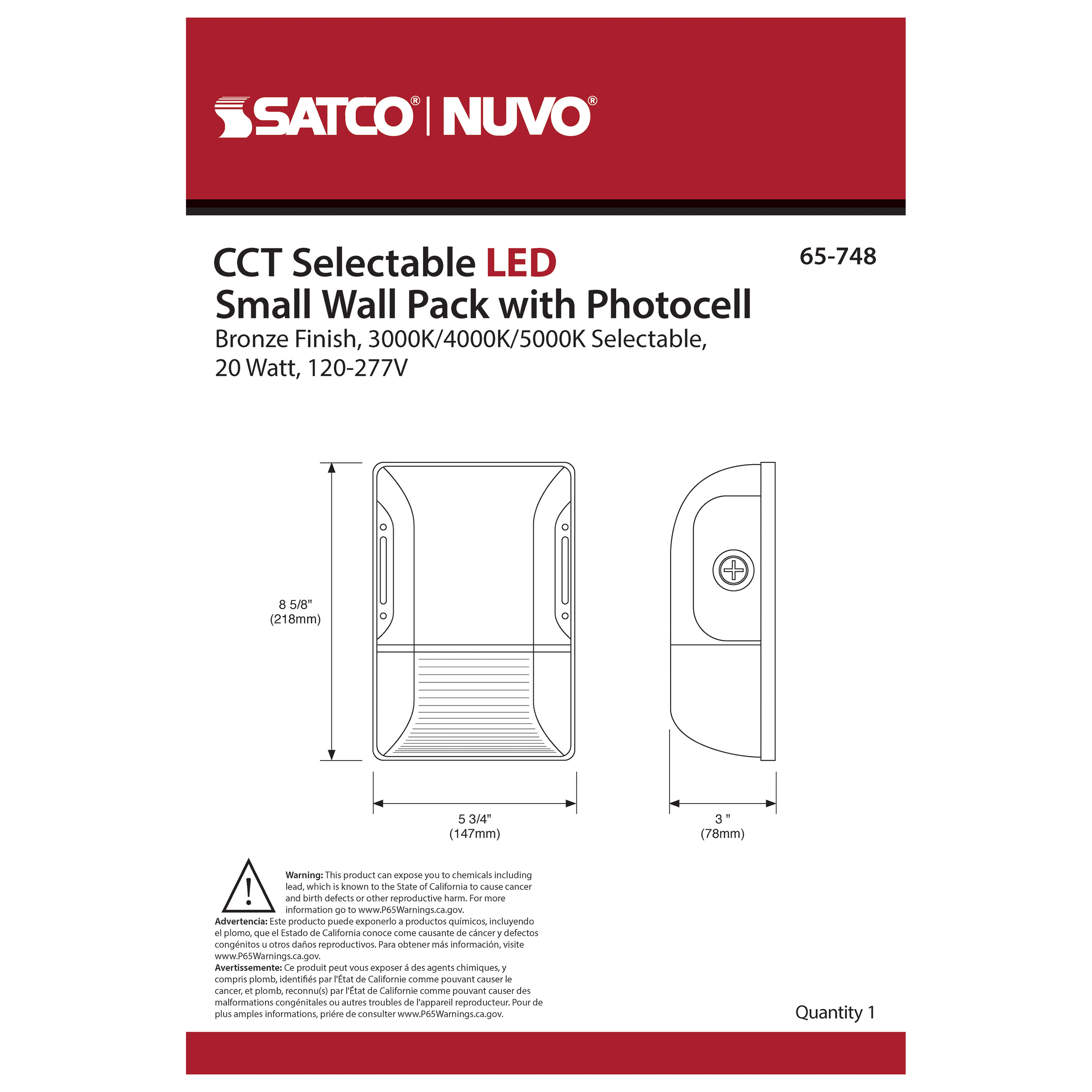

| Web Height | 8.59 |
| Web Width | 5.81 |
