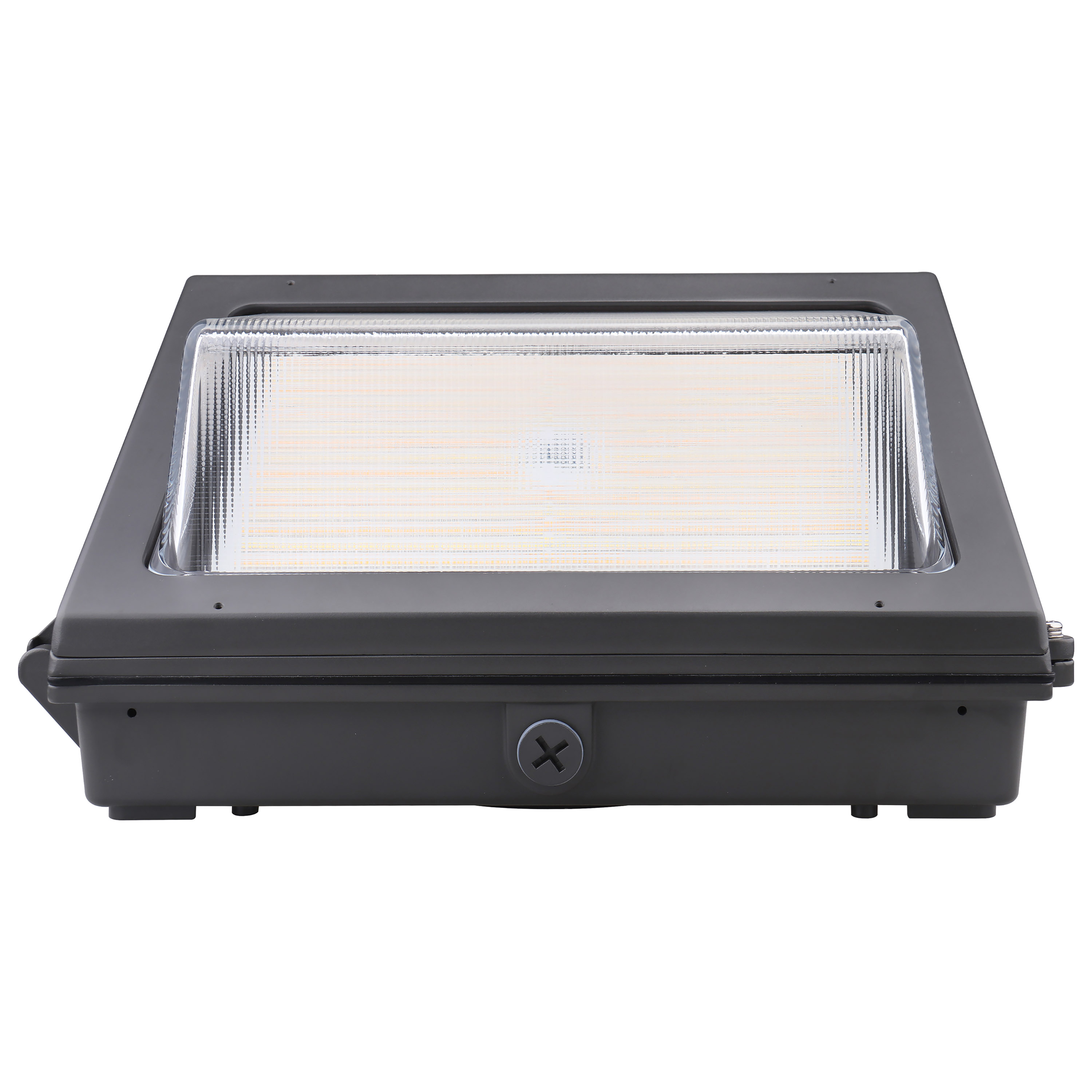

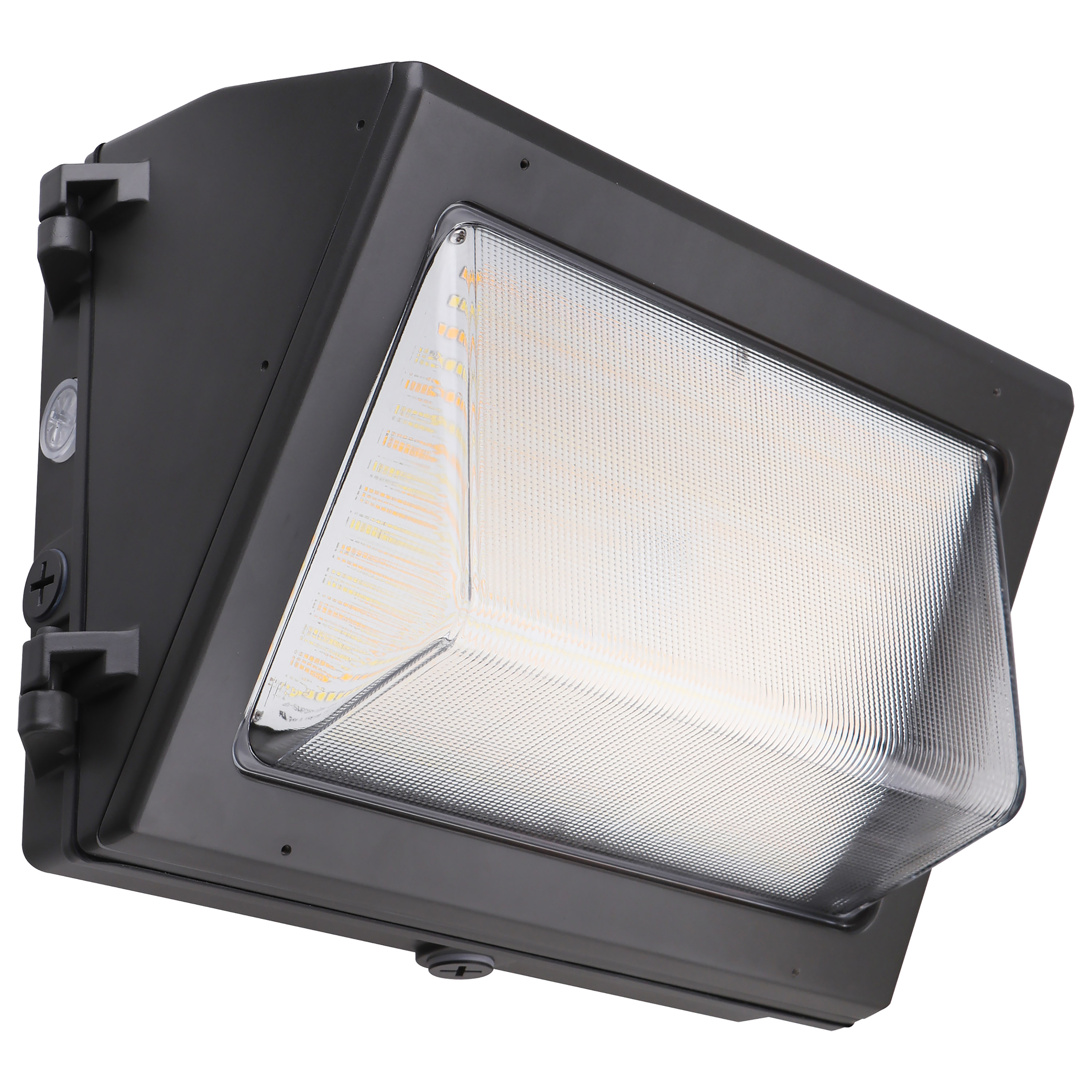

65-754 EM WALL PACK CCT & WATT ADJ

65-754

EM WALL PACK CCT & WATT ADJ

Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt

Lights

65-754

EM WALL PACK CCT & WATT ADJ

Emergency Architectural LED Wall Pack; CCT Selectable 3K/4K/5K; Wattage Adjustable; Bypassable Photocell; 120-277 Volt

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishBronze

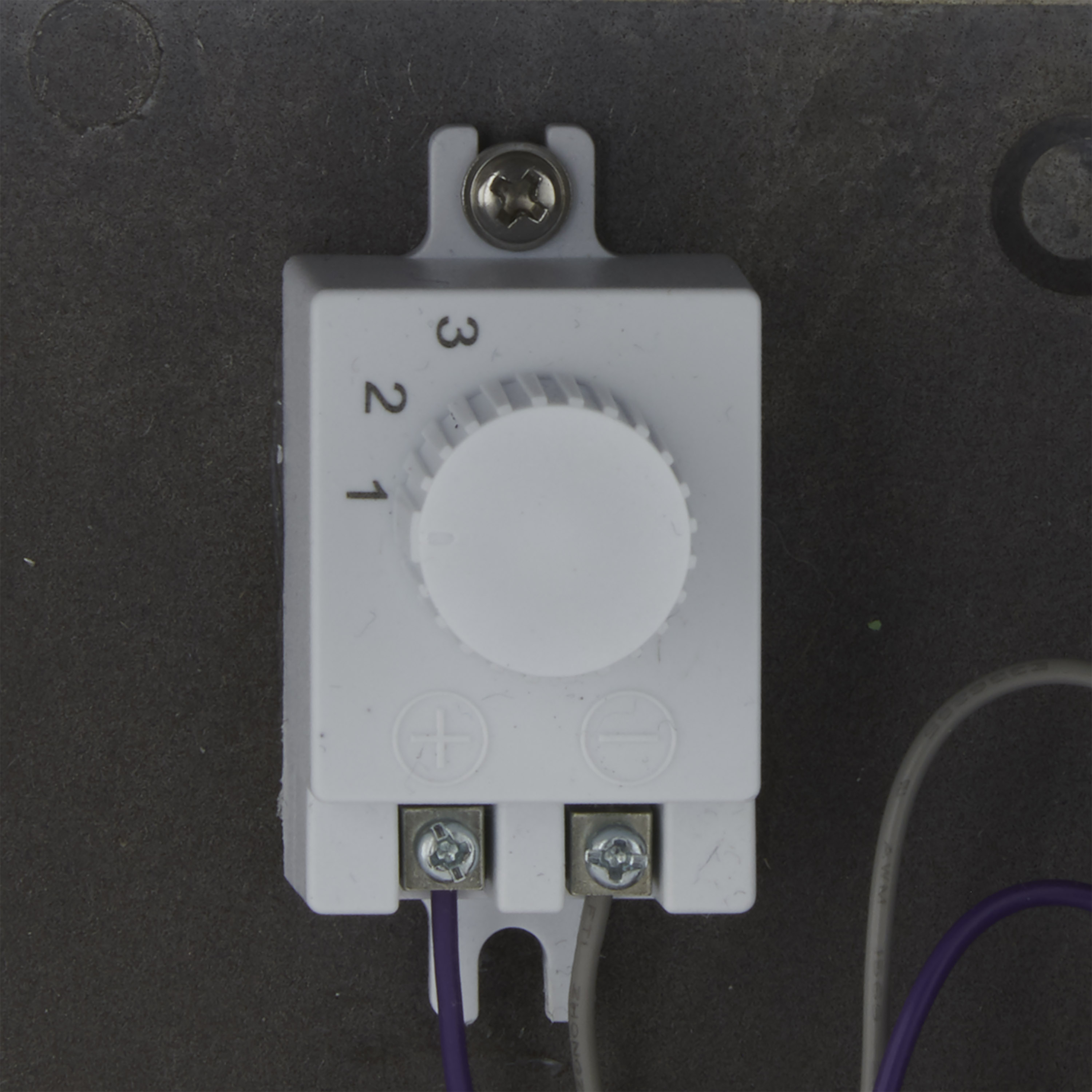

Wattage29W/40W/60W
Lumen Output4060L-8640L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor and Outdoor
Specifications
TechnologyLED
Wattage29W/40W/60W
Lumen Output4060L-8640L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-277V
Beam Angle110
Rated Hours50000
Operating Temperature-40C (-40F) to a maximum of +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control
PhotocellYes - bypassable
Lens MaterialPolycarbonate (PC) and Glass
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)9.50
IP RatingIP65
MaterialDie Cast Aluminum

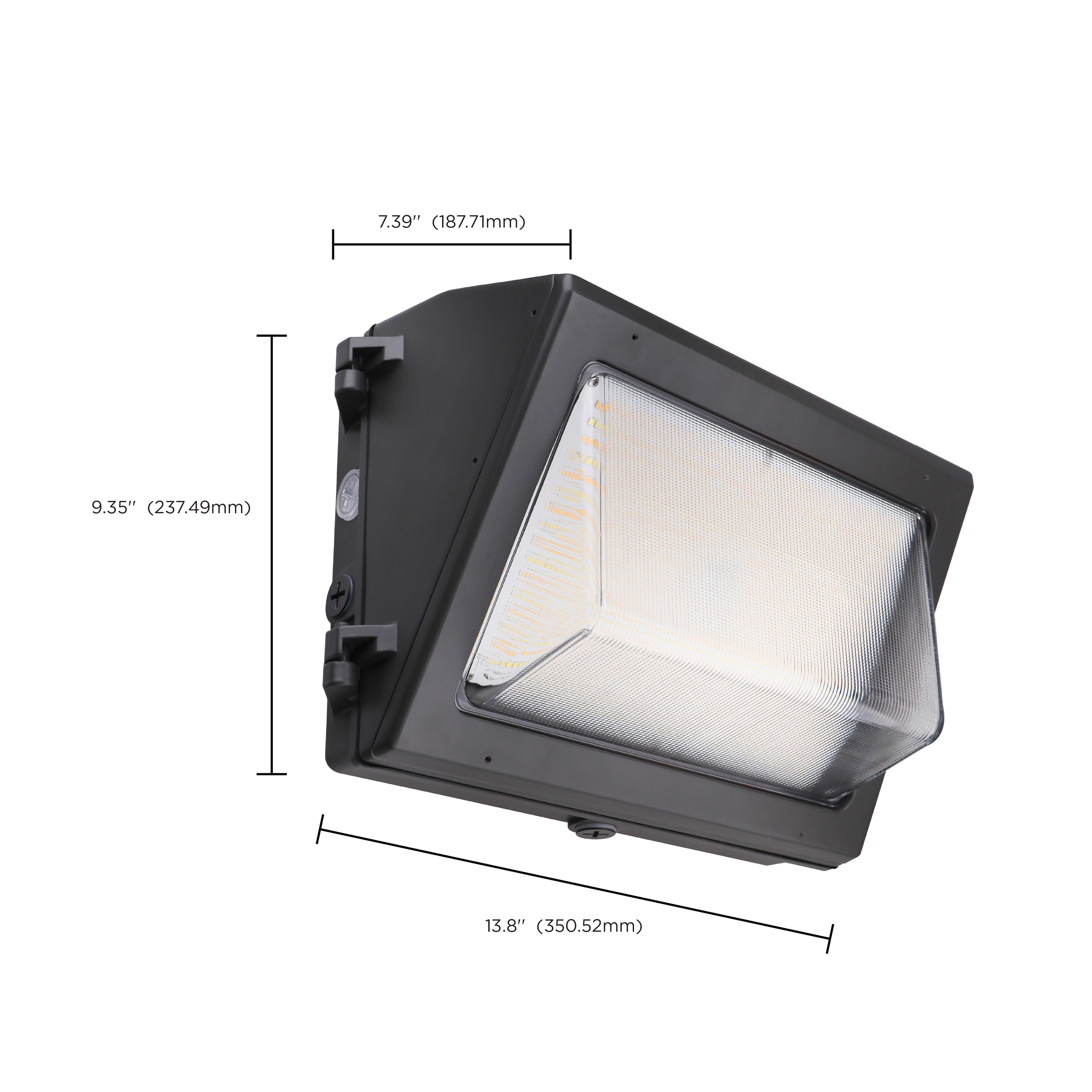

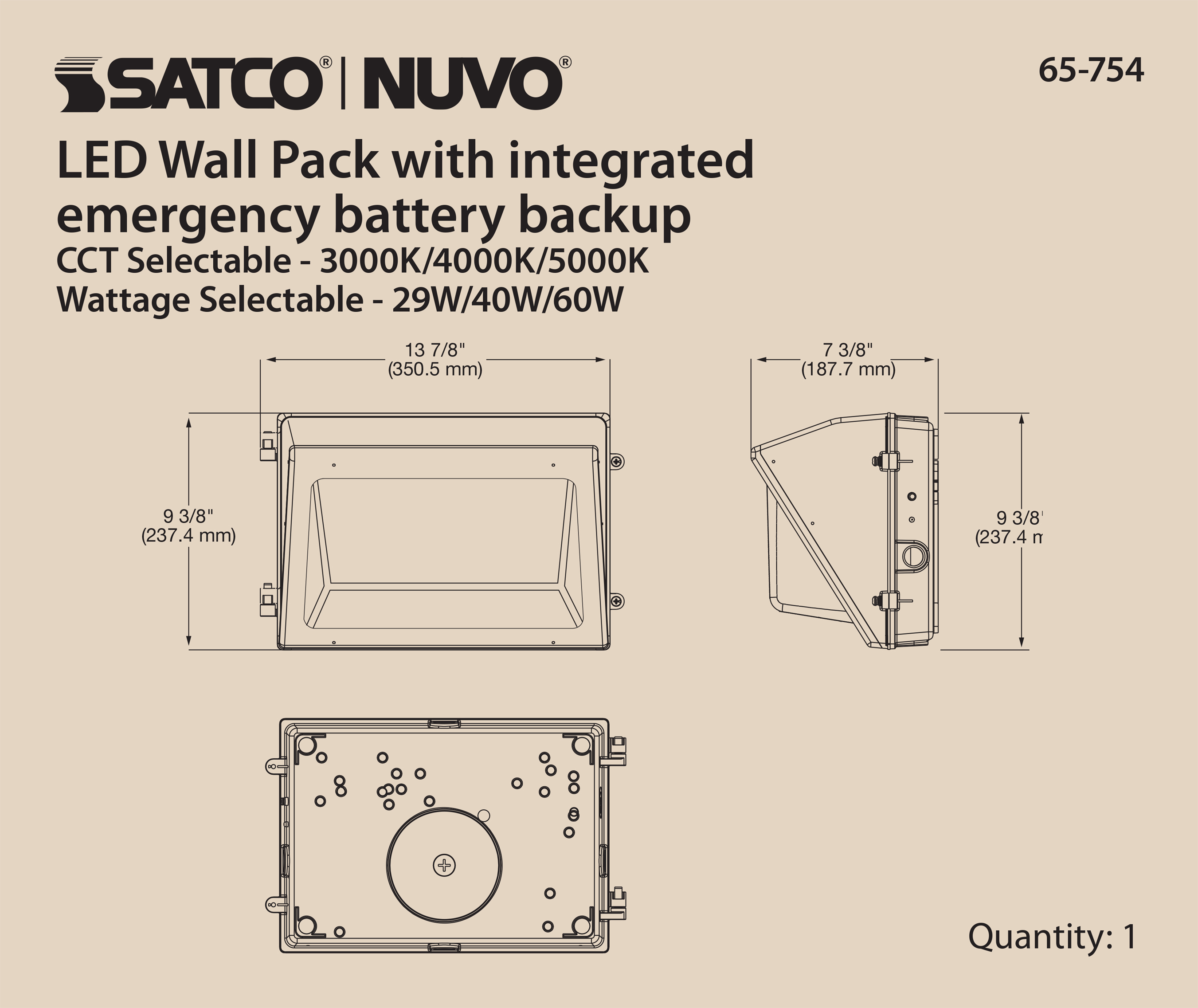

Dimensions
Height (in.)9.35
Width (in.)13.80
Extension (in.)7.39
Compliance
Safety ListingcULus - Listed; cULus - Certified
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-YL8U14
ADA CompliantNo
B.U.G. RatingB1-U4-G5
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Additional Information
Warranty5 Year Limited
Packaging
Each UPC045923658792
Each Quantity1
Each Length (in.)15.63
Each Width (in.)11.69
Each Height (in.)9.84
Each Weight (lb.)10.14
Each Cube (CuFt.)1.0405
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923658799
Case Quantity1
Case Length (in.)15.63
Case Width (in.)11.69
Case Height (in.)9.84
Case Weight (lb.)10.14
Case Cube (CuFt.)1.0405
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
