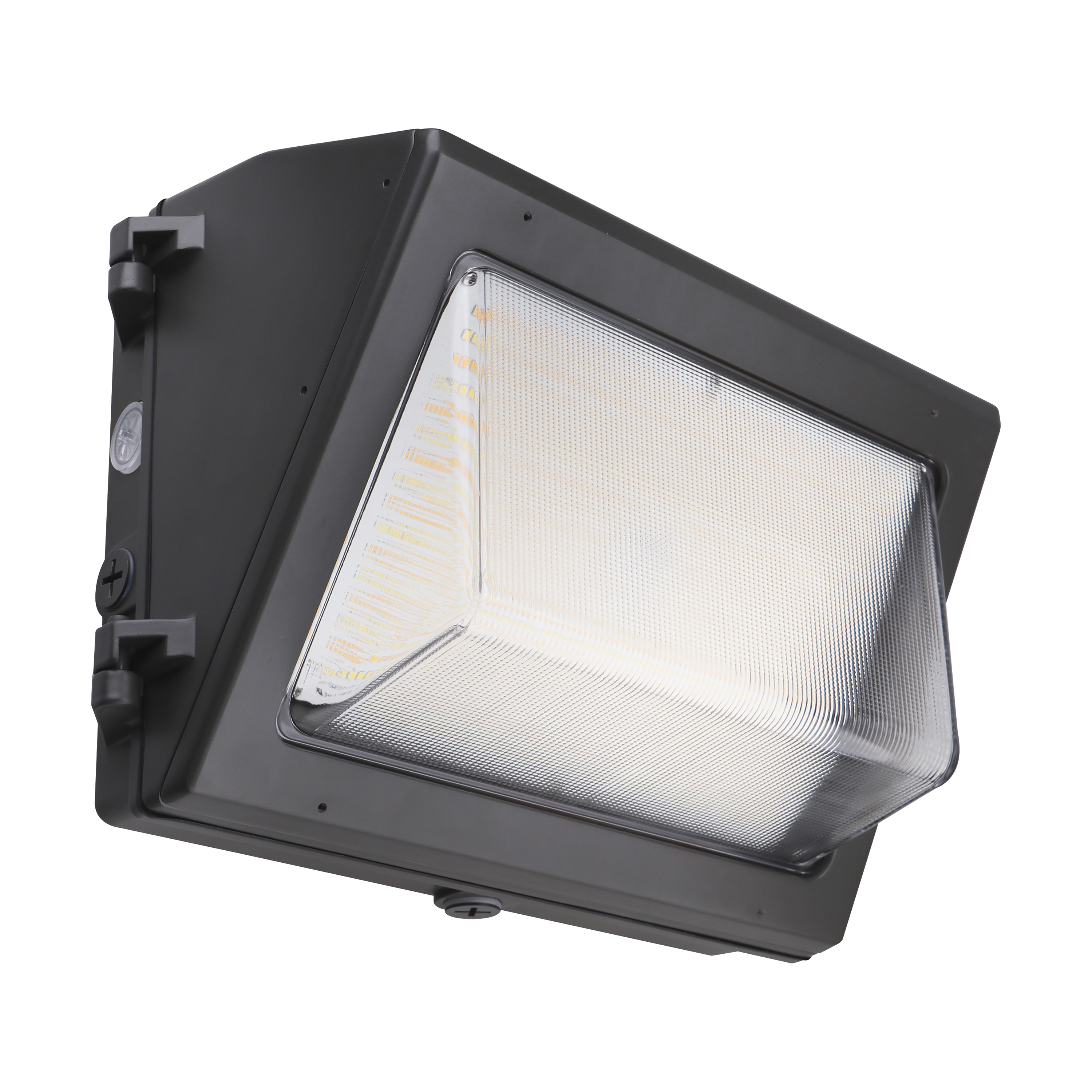

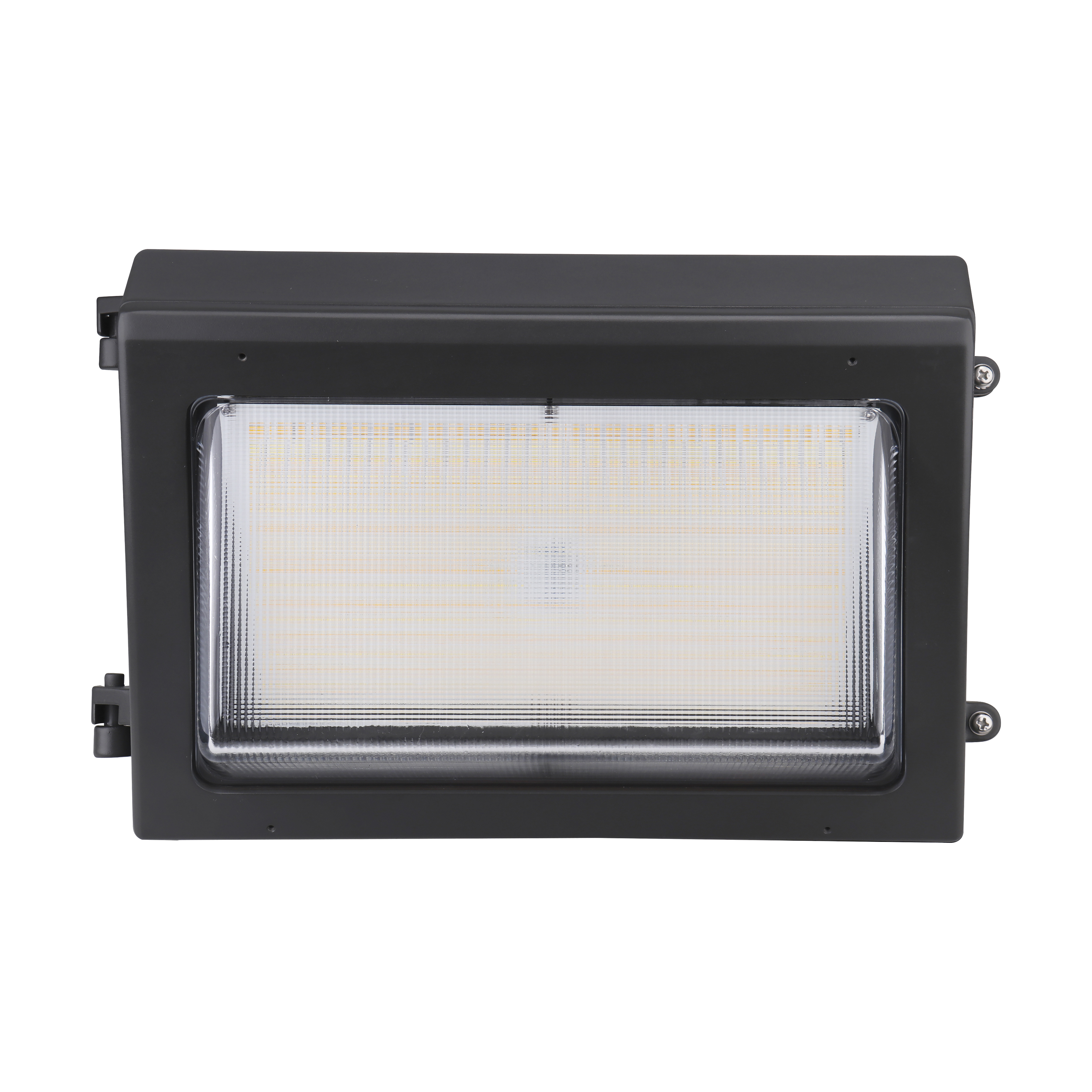

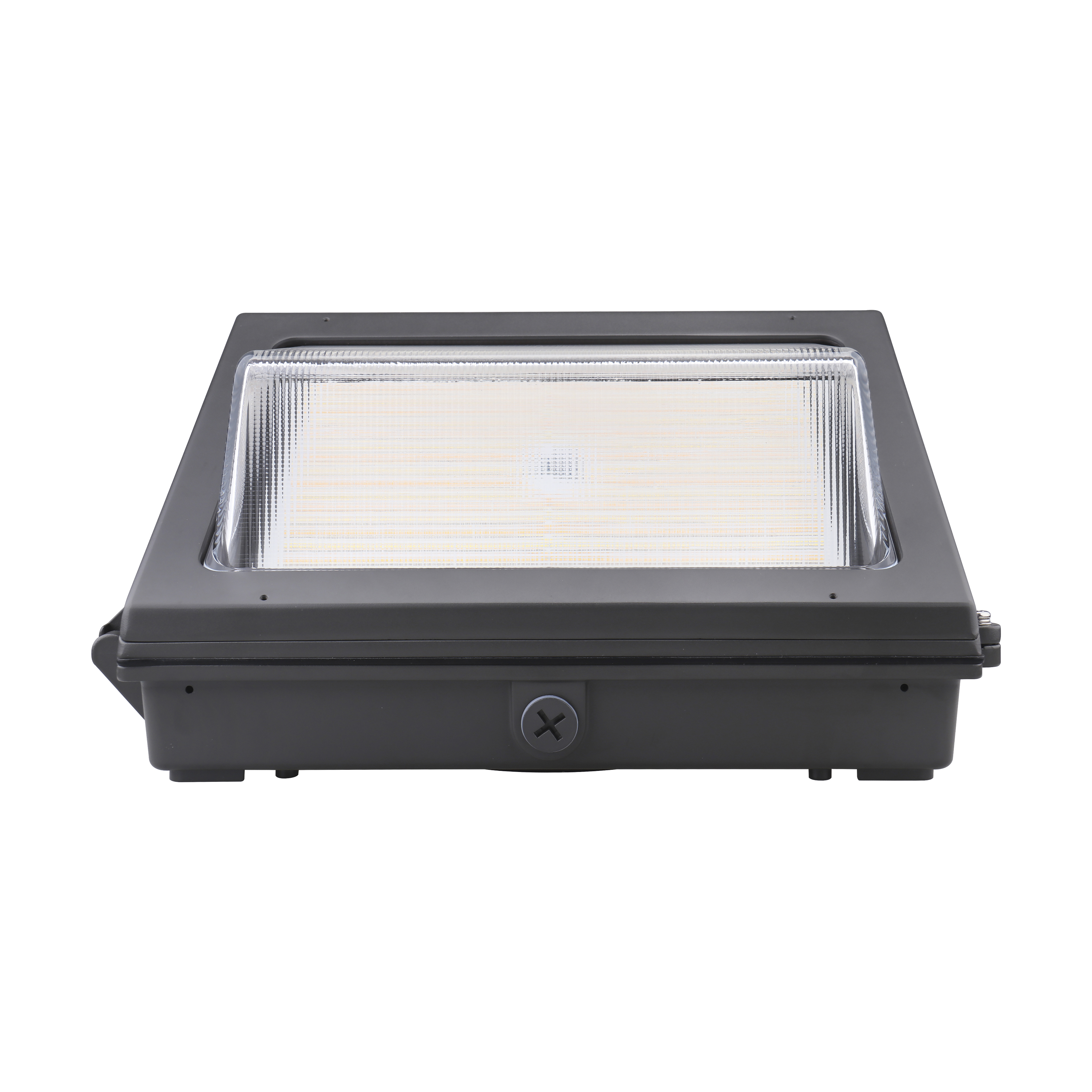

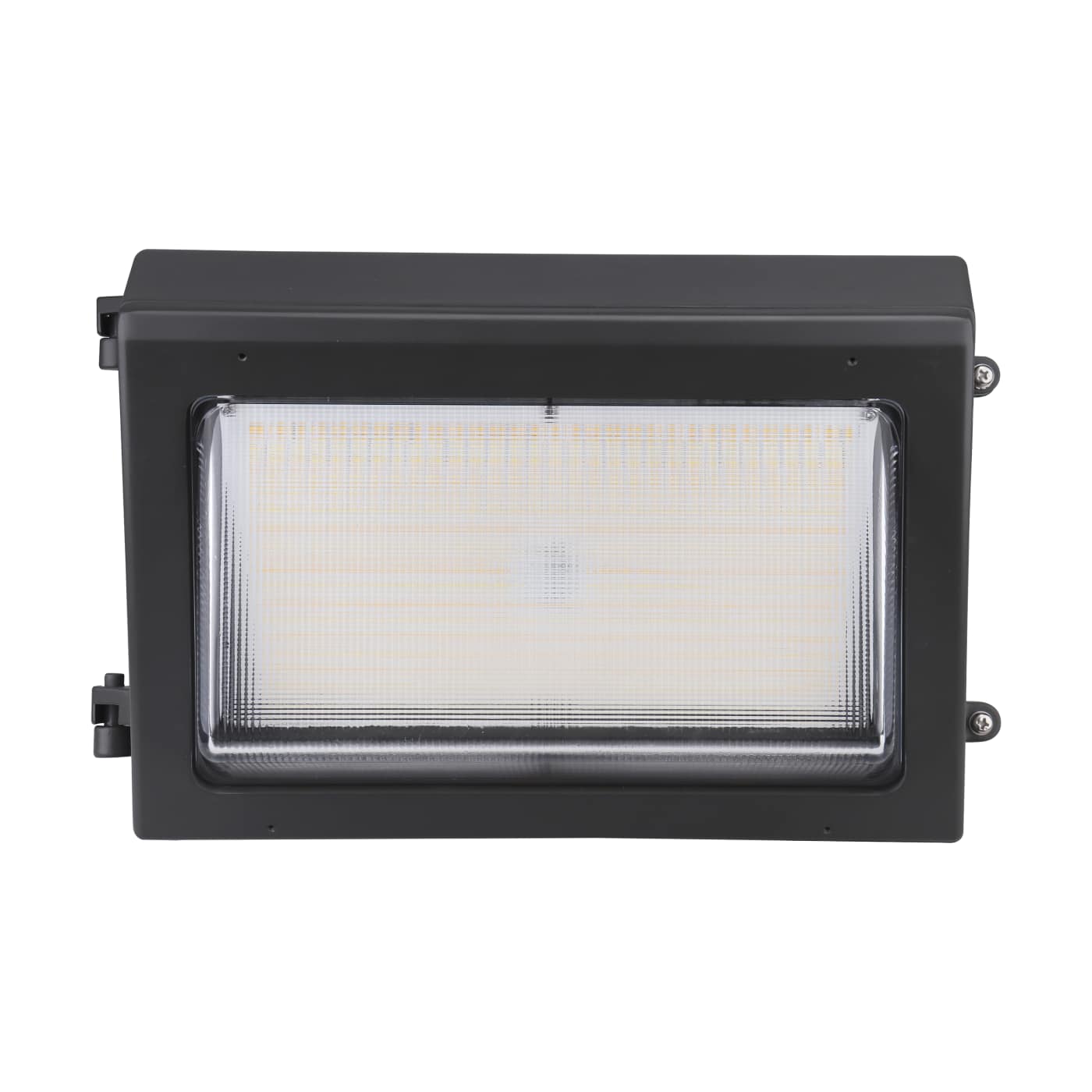

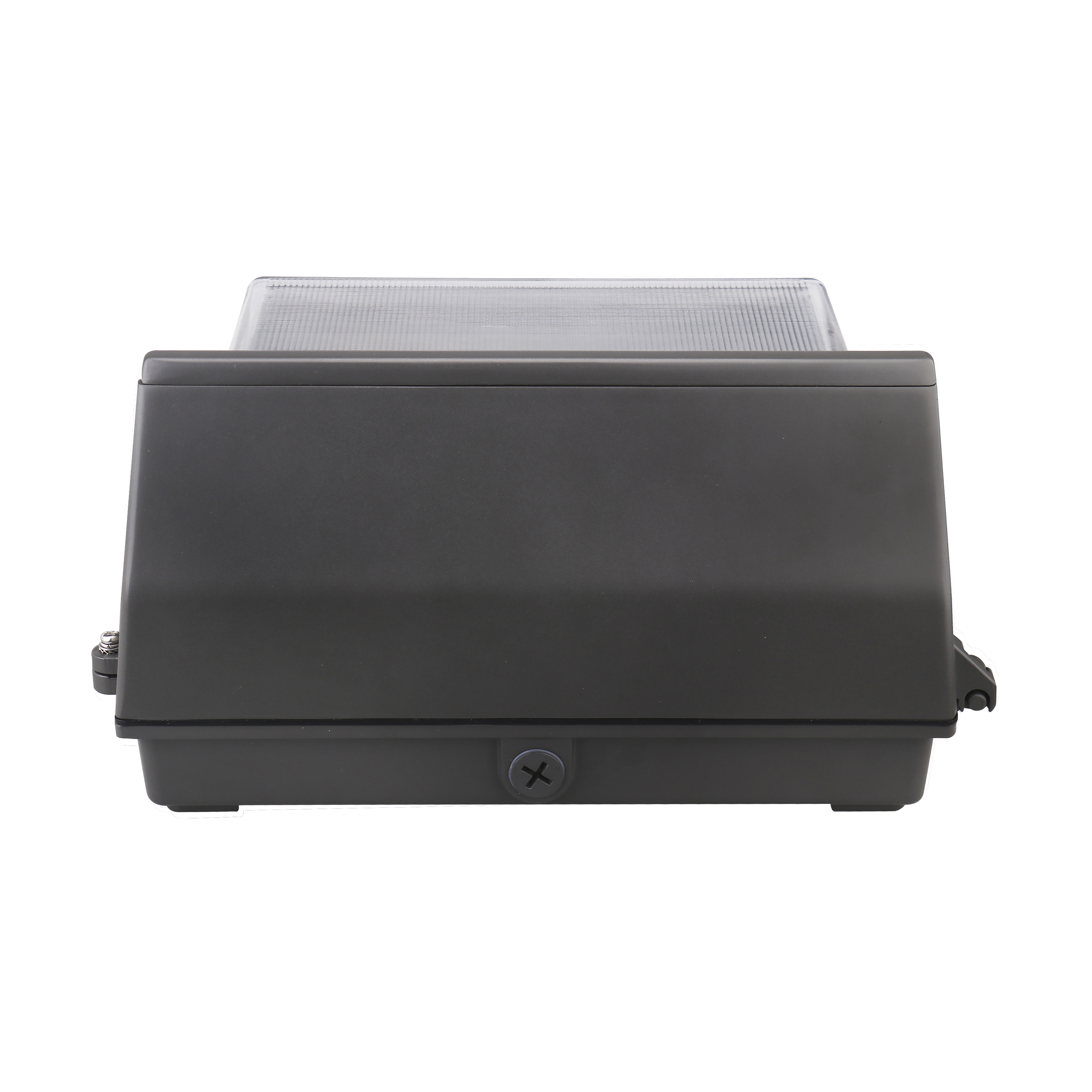

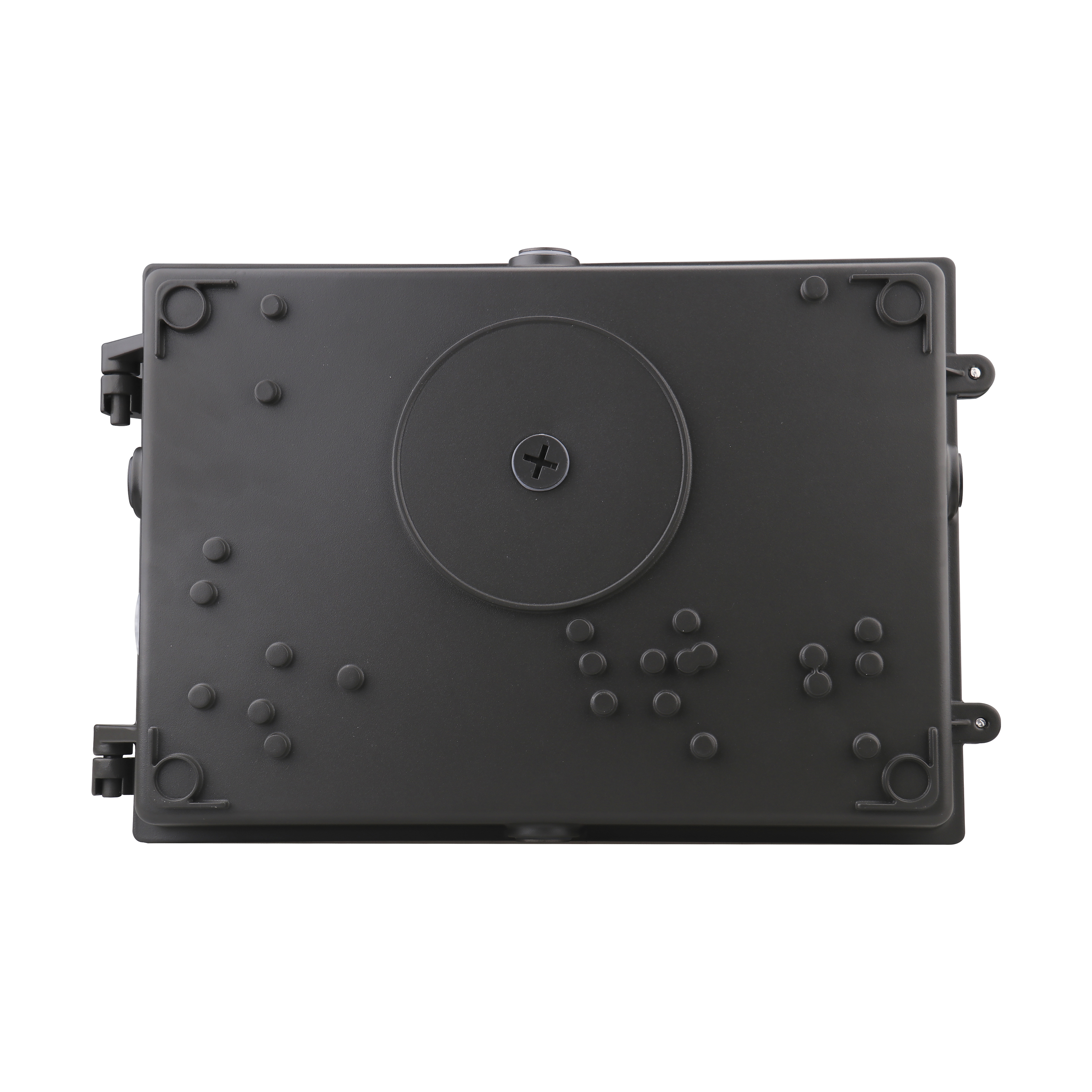

65-757 LED WALL PACK CCT & WATT ADJ

65-757

LED WALL PACK CCT & WATT ADJ

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 29, 40, or 60 Watt; 120-347 Volt


Lights

65-757

LED WALL PACK CCT & WATT ADJ

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 29, 40, or 60 Watt; 120-347 Volt

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishBronze

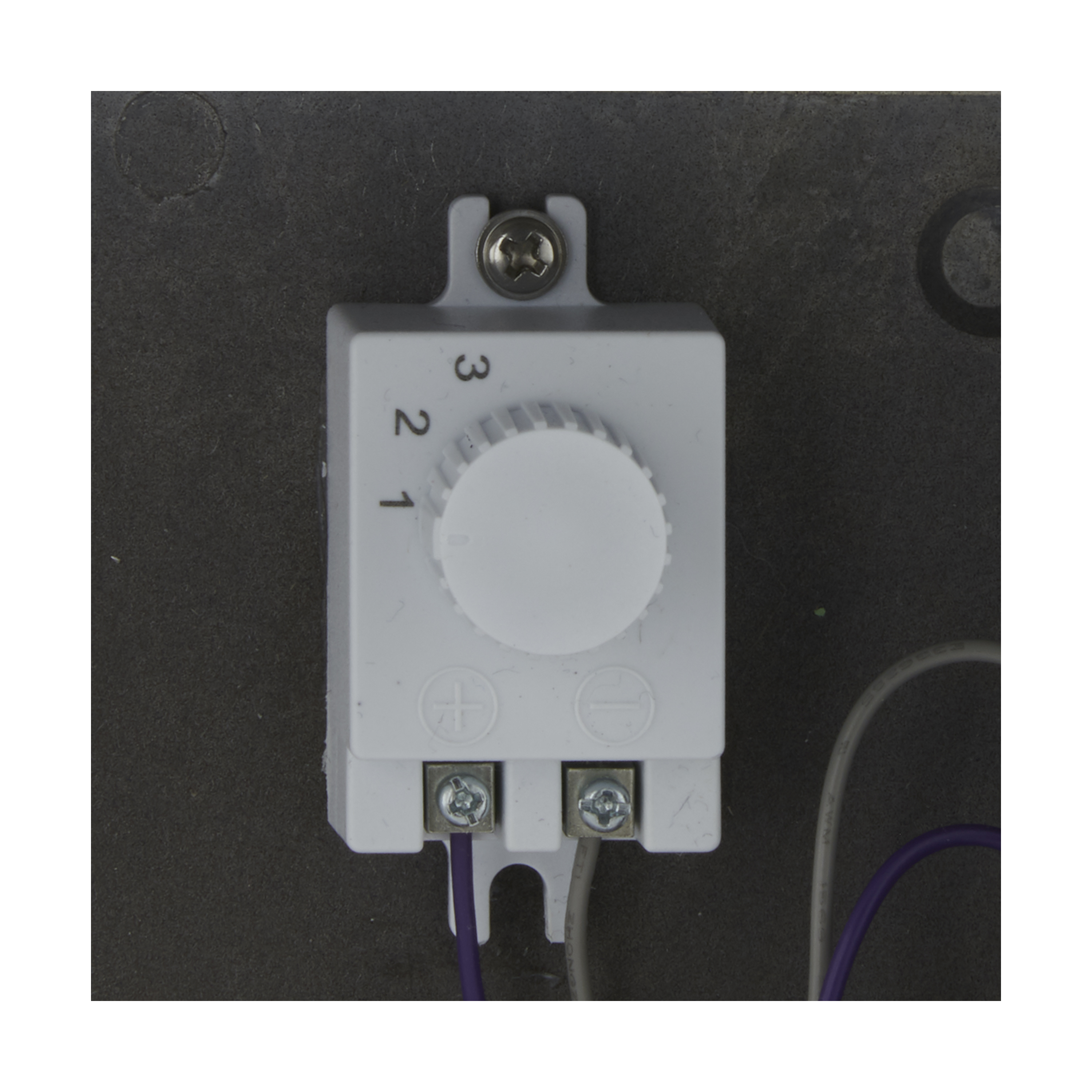

Wattage29W/40W/60W
Lumen Output4118L-8770L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage29W/40W/60W
Lumen Output4118L-8770L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80+
Voltage120V-347V
Beam Angle110
Rated Hours50000
Operating Temperature-40C (-40F) to +50C (+122F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorYes - Bypassable
Lens MaterialGlass
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)9.5
IP RatingIP65
MaterialDie-cast Aluminum

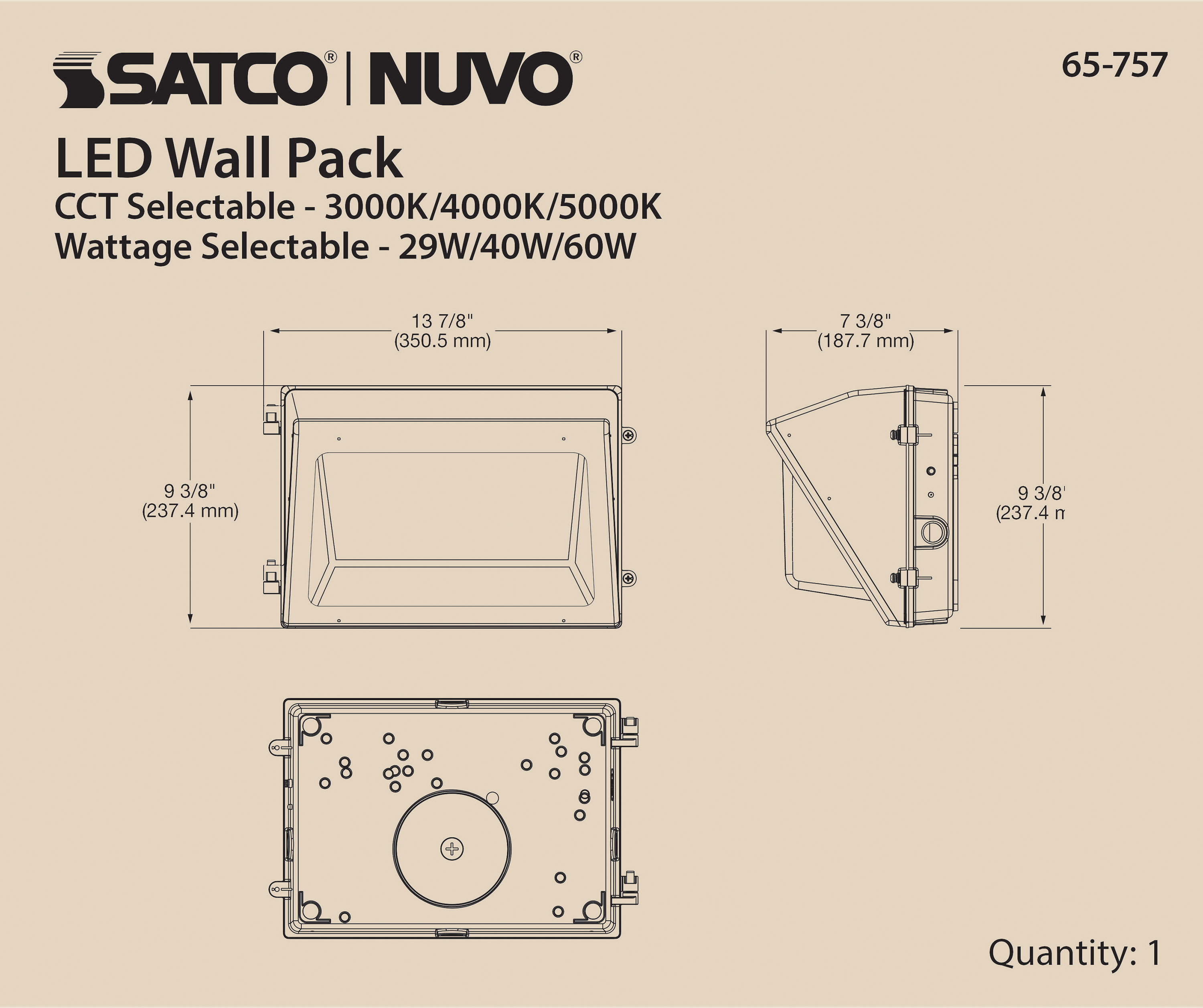

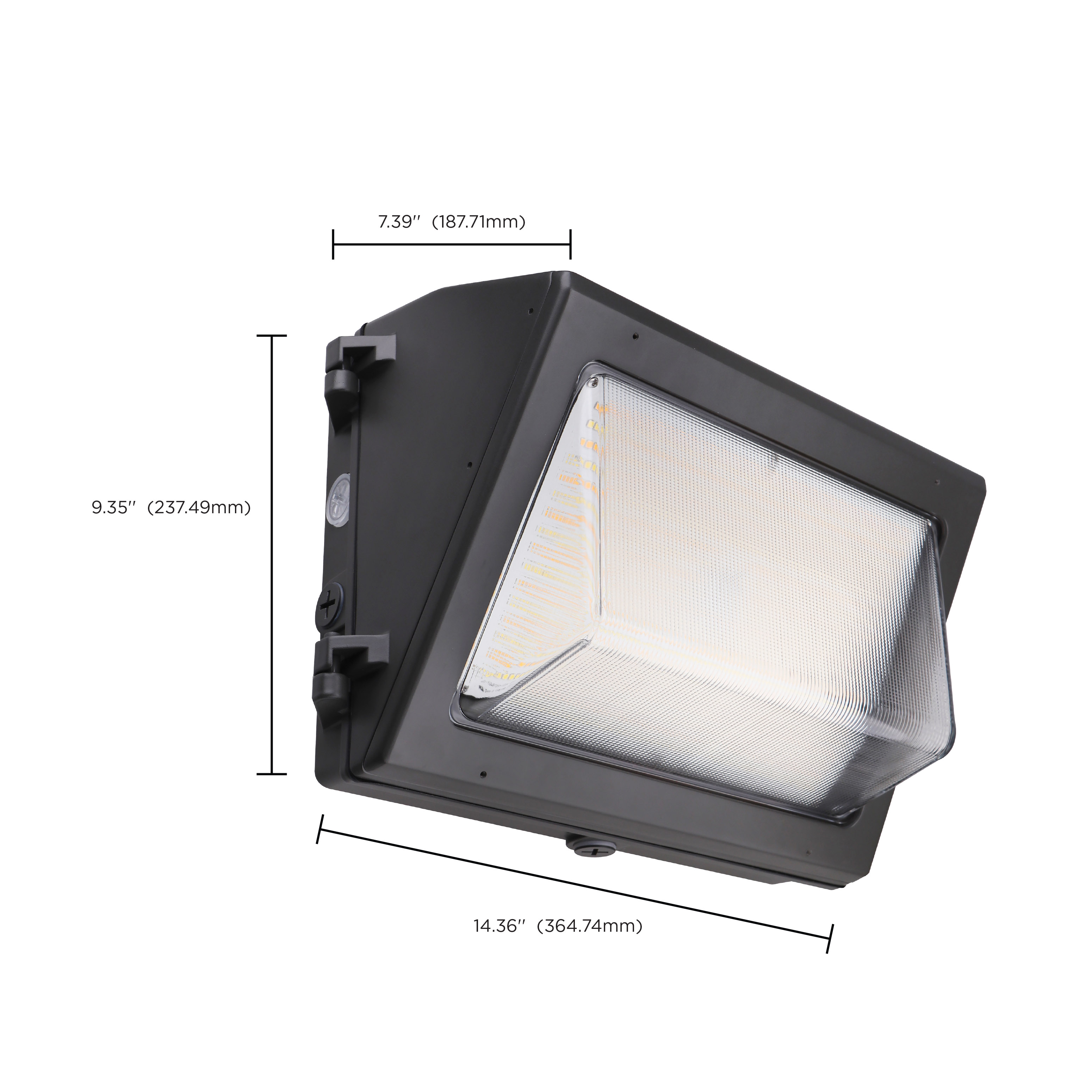

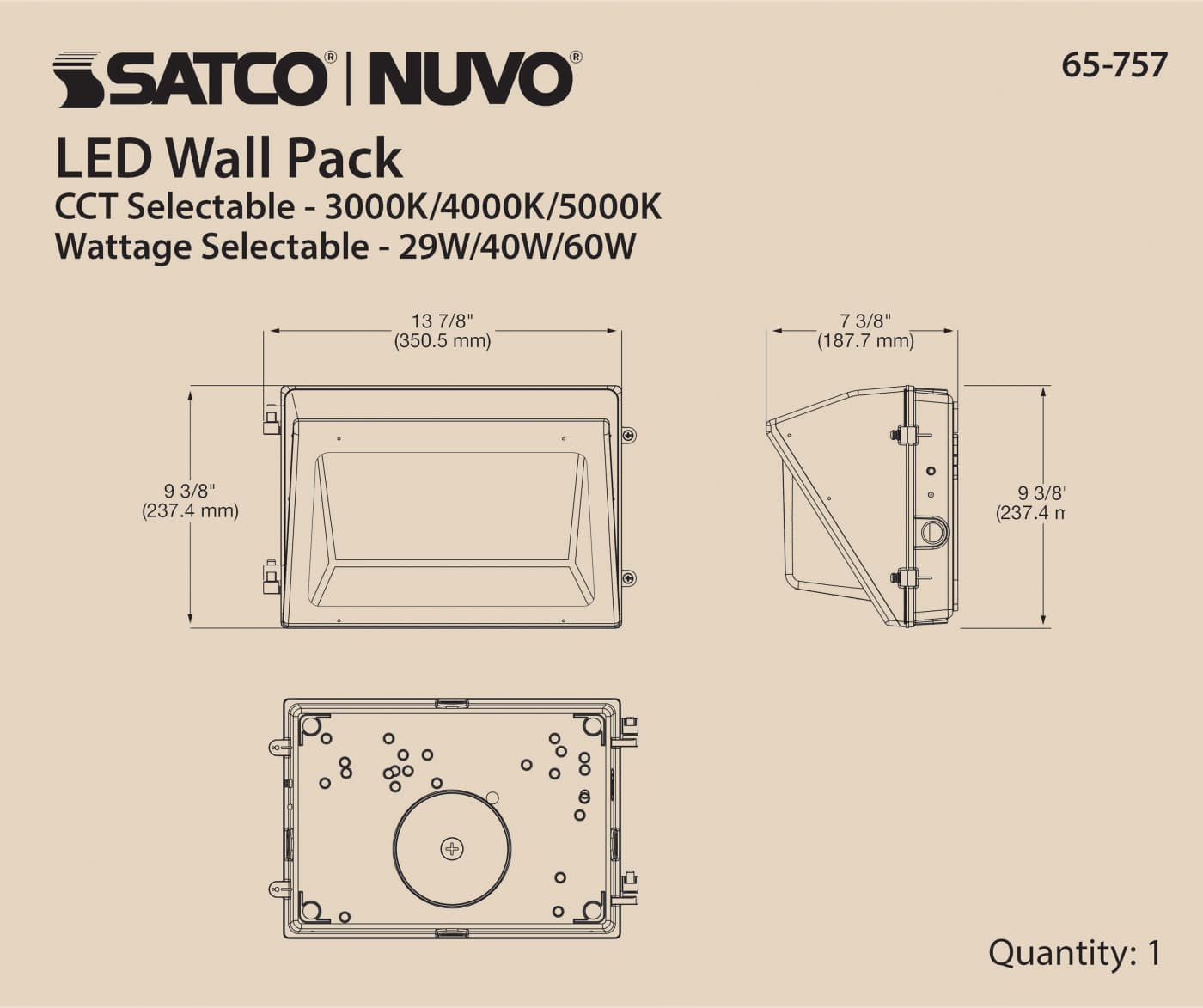

Dimensions
Height (in.)9.35
Width (in.)14.36
Extension (in.)7.39
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPL1MK0MX6TQL
ADA CompliantNo
B.U.G. RatingB1-U4-G5
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923670770
Each Quantity1
Each Length (in.)15.63
Each Width (in.)11.69
Each Height (in.)9.84
Each Weight (lb.)10.14
Each Cube (CuFt.)1.0405
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923670777
Case Quantity1
Case Length (in.)15.63
Case Width (in.)11.69
Case Height (in.)9.84
Case Weight (lb.)10.14
Case Cube (CuFt.)1.0405
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
