65-761

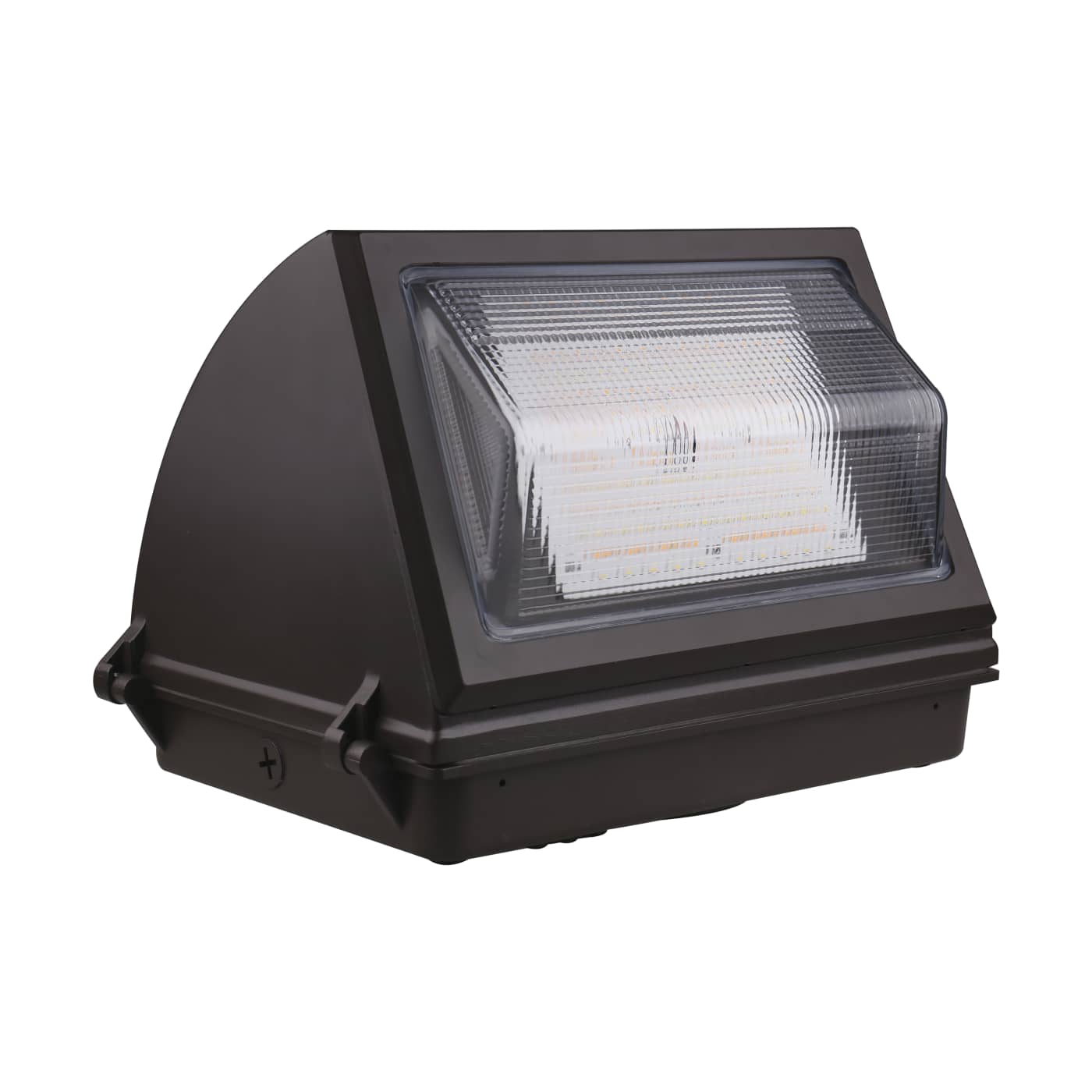

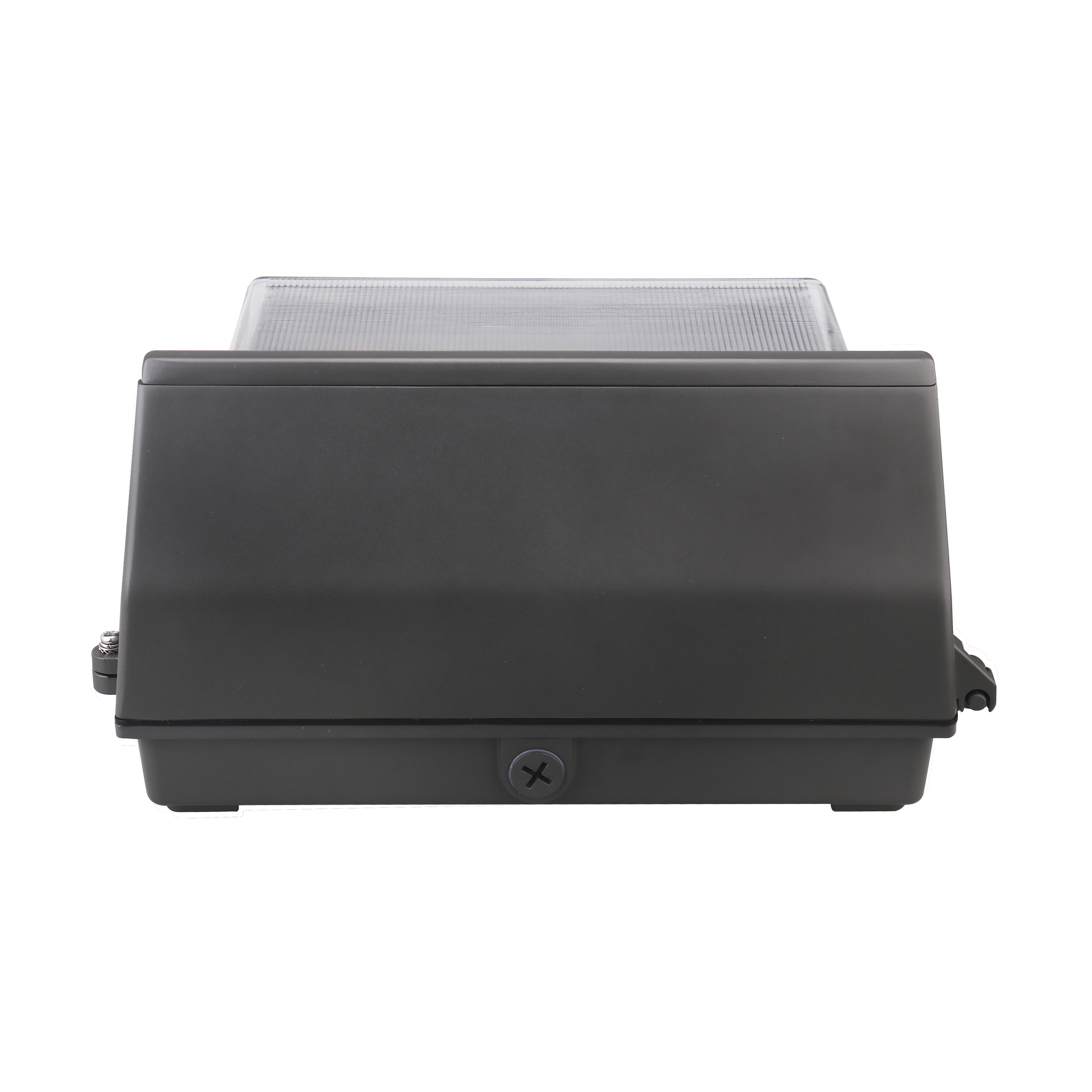

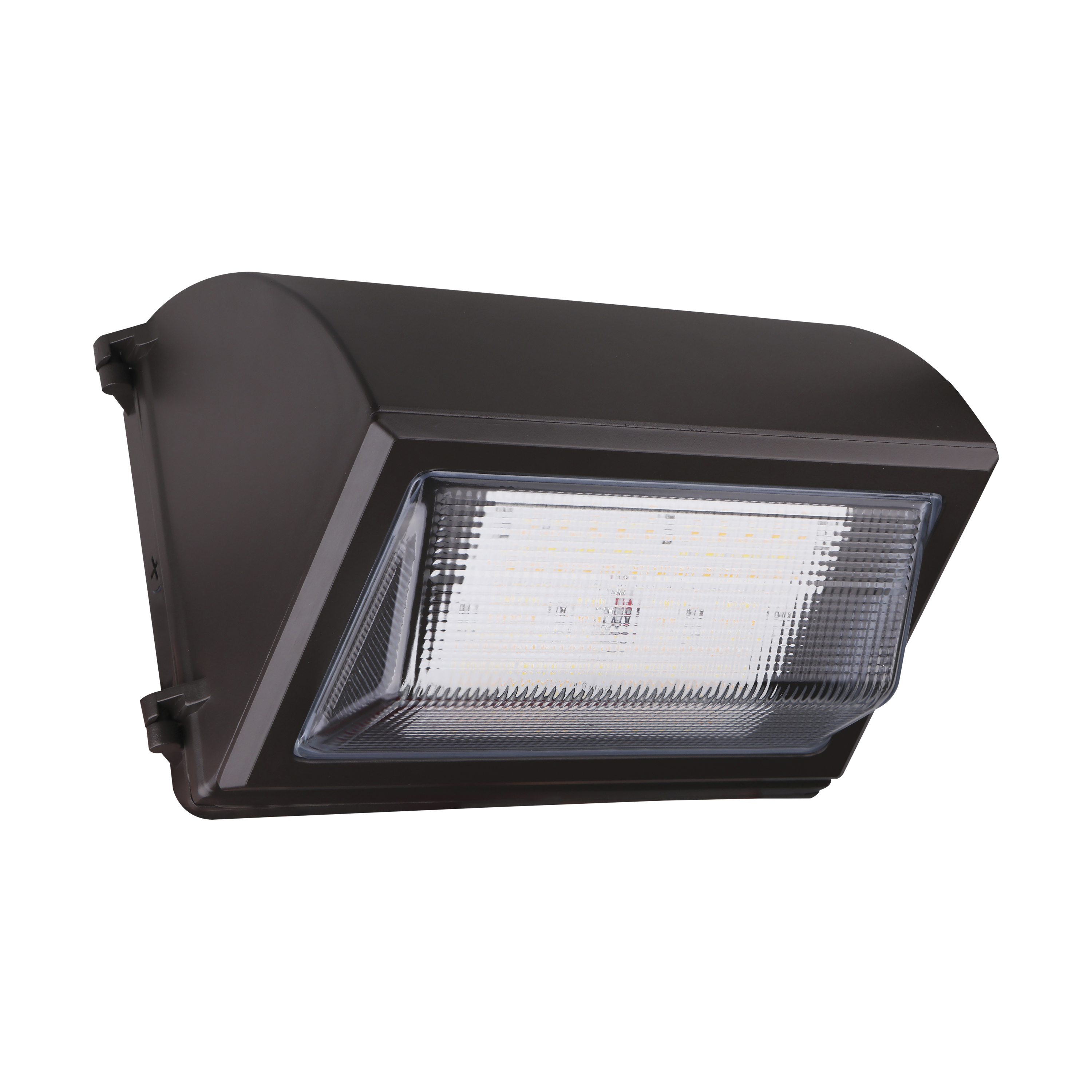

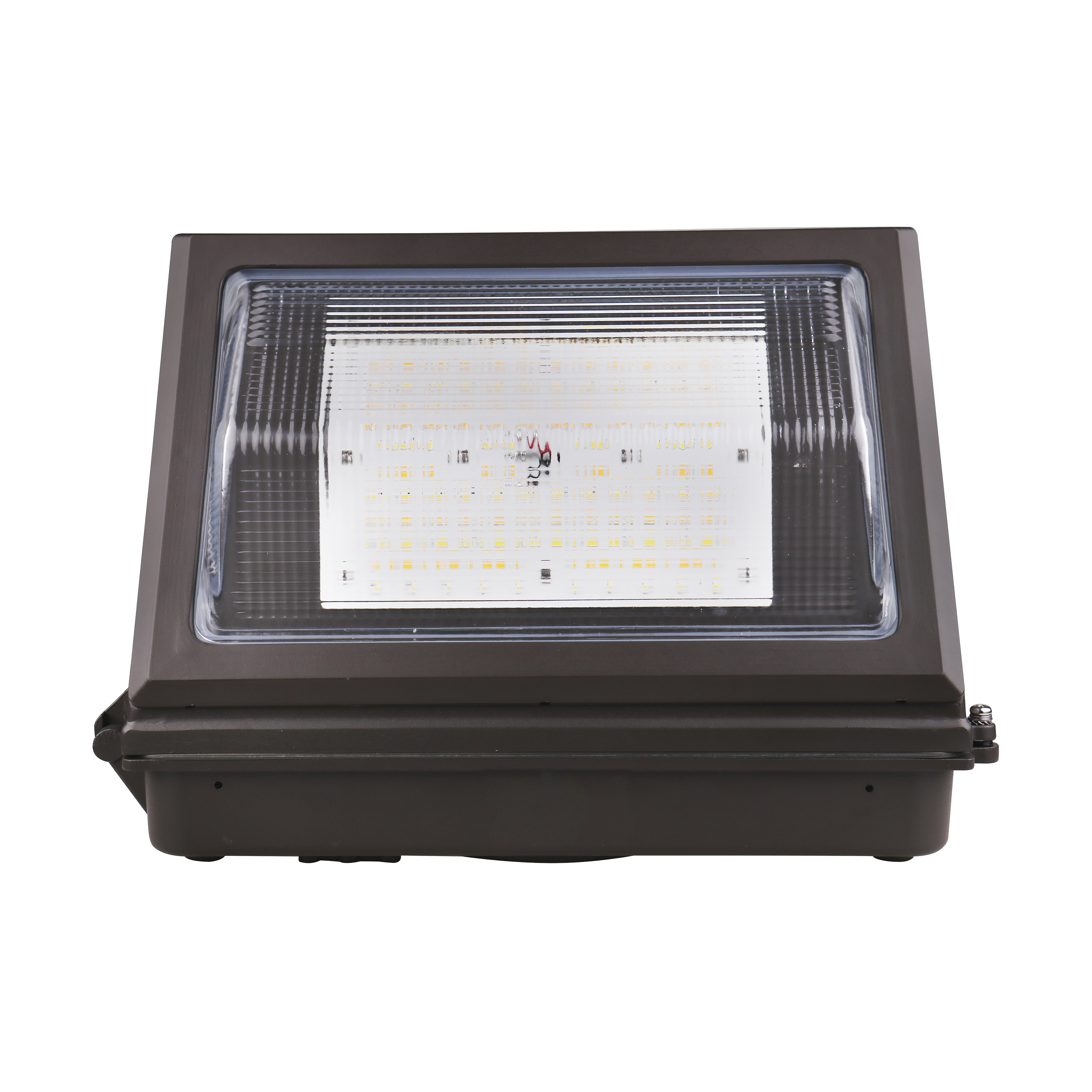

LED CUTOFF WALL PACK CCT&WATT

Discontinued

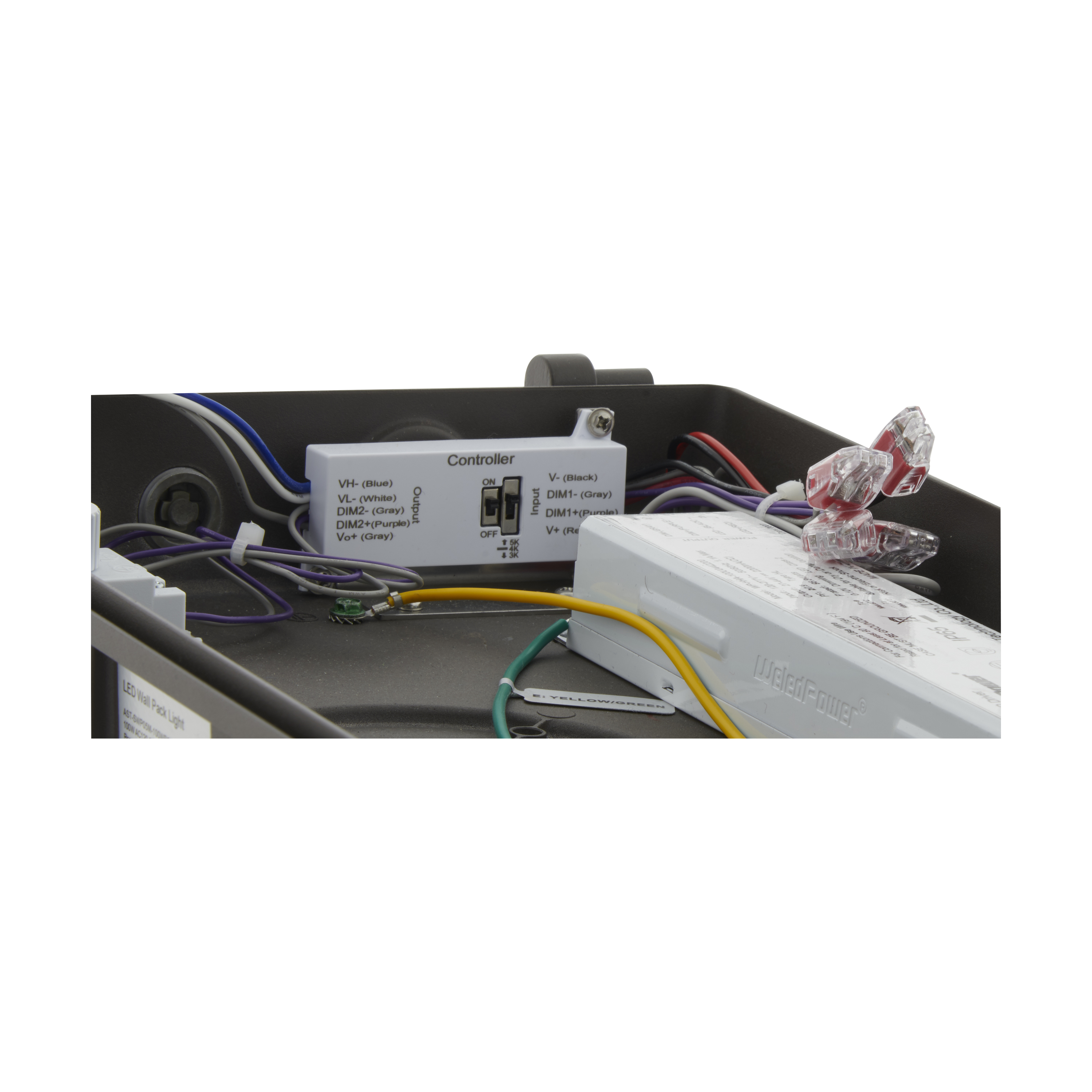

  • CCT and Wattage Adjustable LED Cutoff Wall Pack
  • Integrated Bypassable Photocell
  • CCT Selectable from 3000, 4000 or 5000K

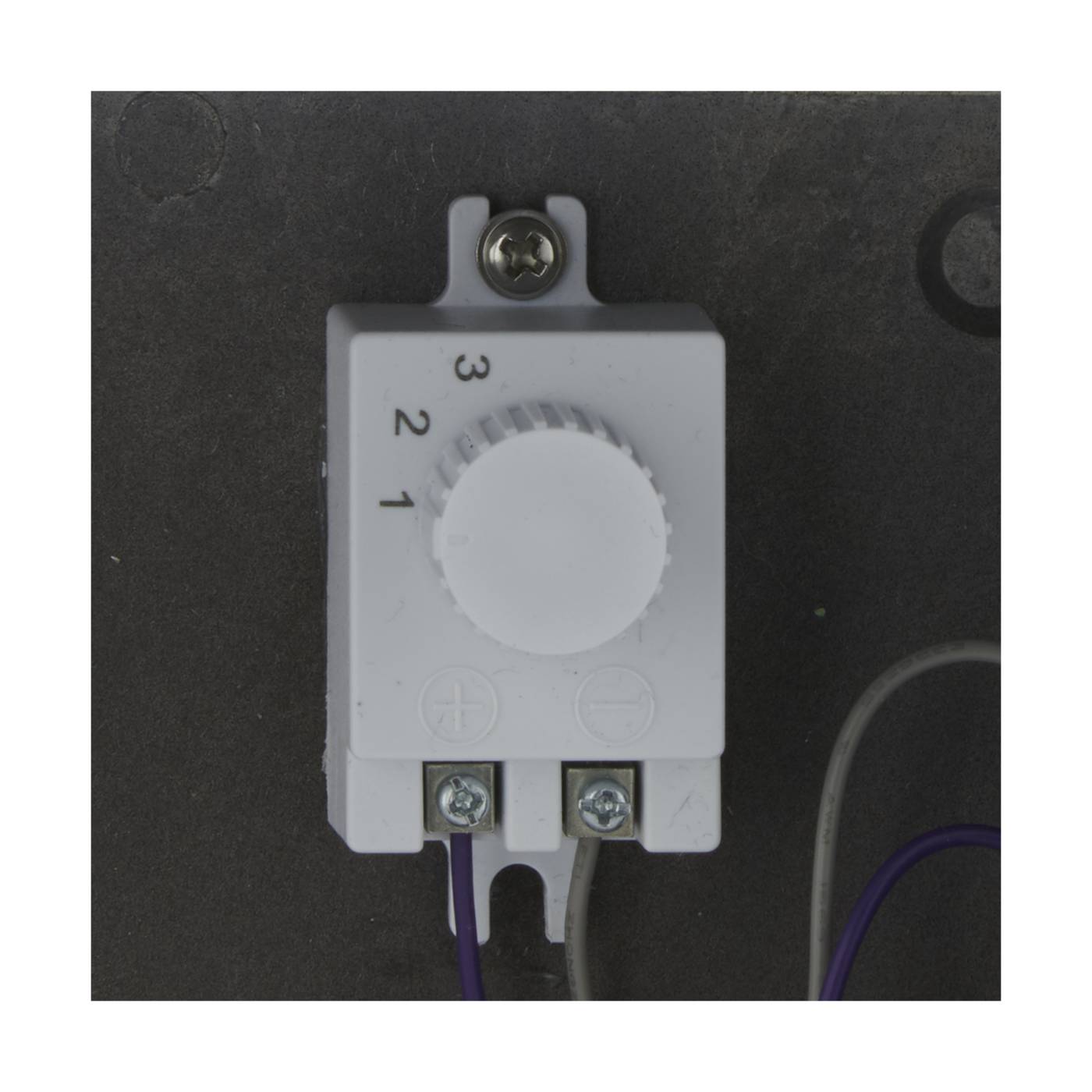

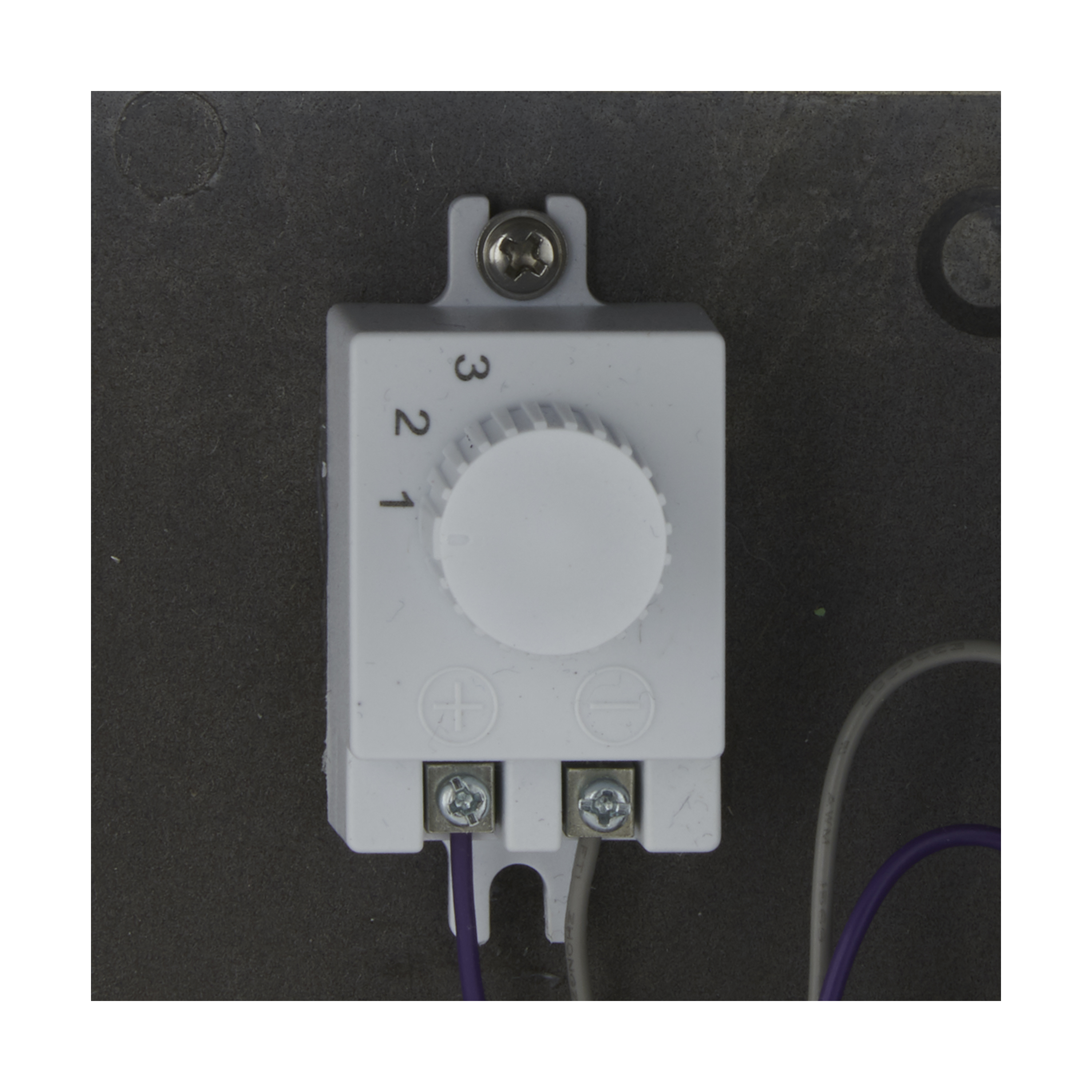

  • Wattage Selectable from 80, 100, or 120 Watt
  • 120-277 Volt
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-761 Specifications65-761 Photometrics 80W 3000K.ies65-761 Photometrics 80W 4000K.ies
Tools
Lighting Layout Analysis For 65-761
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
CCT and Wattage Adjustable LED Cutoff Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 80, 100, or 120 Watt; 120-277 Volt; Bronze Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only

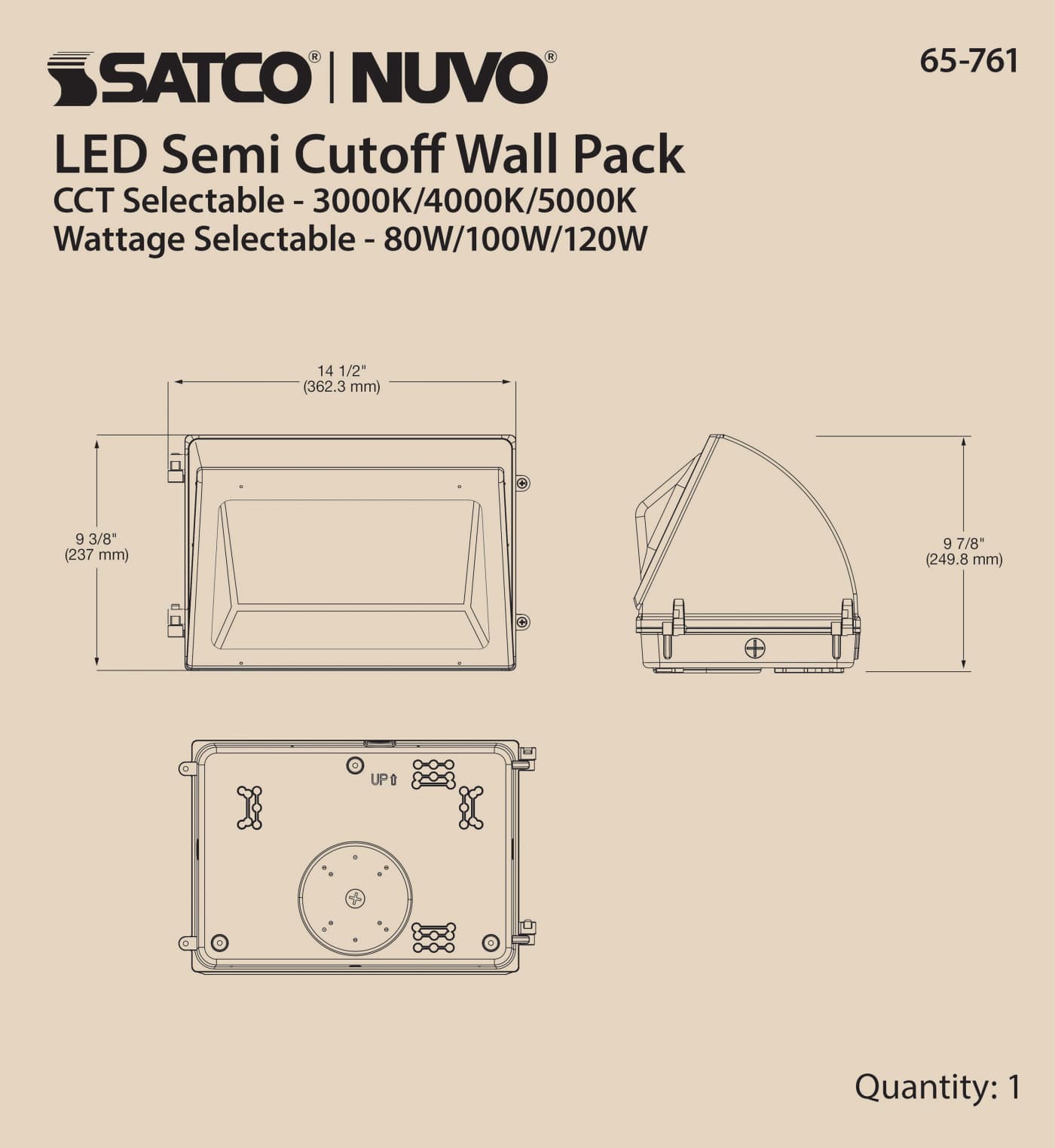

Extends (in)9.33
MaterialDie-cast Aluminum
Fixture TypeWall Pack
StatusDiscontinued
StyleTraditional
Surge ProtectionBuilt-in surge protection - 10KV
Total Harmonic Distortion15%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Amps0.667-0.289/0.833-0.361/1.000-0.433A
Has CameraNo
IOT EnabledNo
Lens MaterialGlass

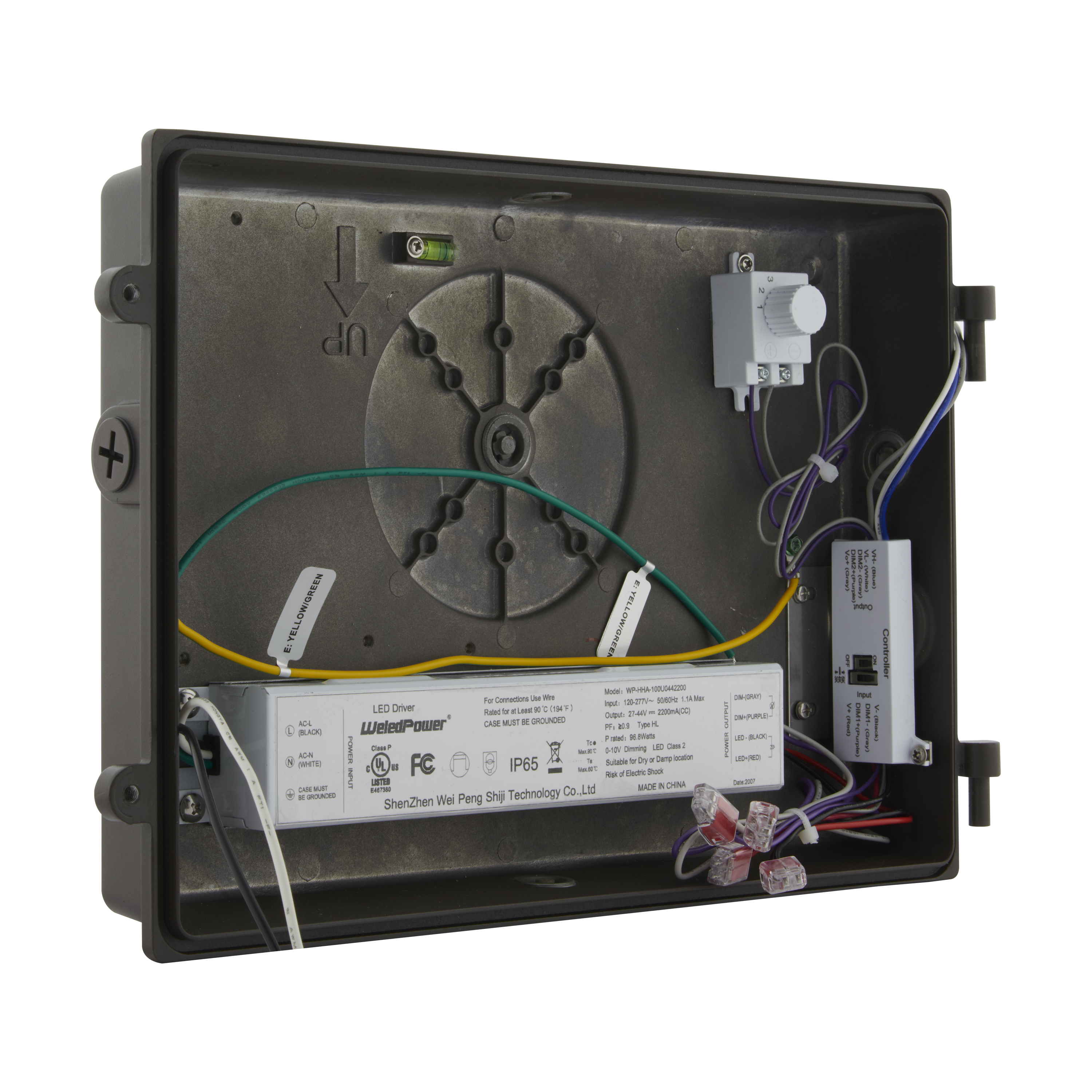

Photo CellYes - Bypassable
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent600W-1000W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent200W-400W
Lumens10800L-15600L
Volts120V-277V
Watts80W/100W/120W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantNo
Bug RatingB3-U3-G5
CA Prop 65Lead
DLC IDPLV84B3C1BRR
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923670800
Case Cube1.3563
Case Height12.6
Case Length15.75
Case Quantity1
Case UPC10045923670807
Case Weight11.24
Case Width11.81
EA Cube1.3563
EA Height12.6
EA Length15.75
EA Quantity1
EA Weight11.24
EA Width11.81
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

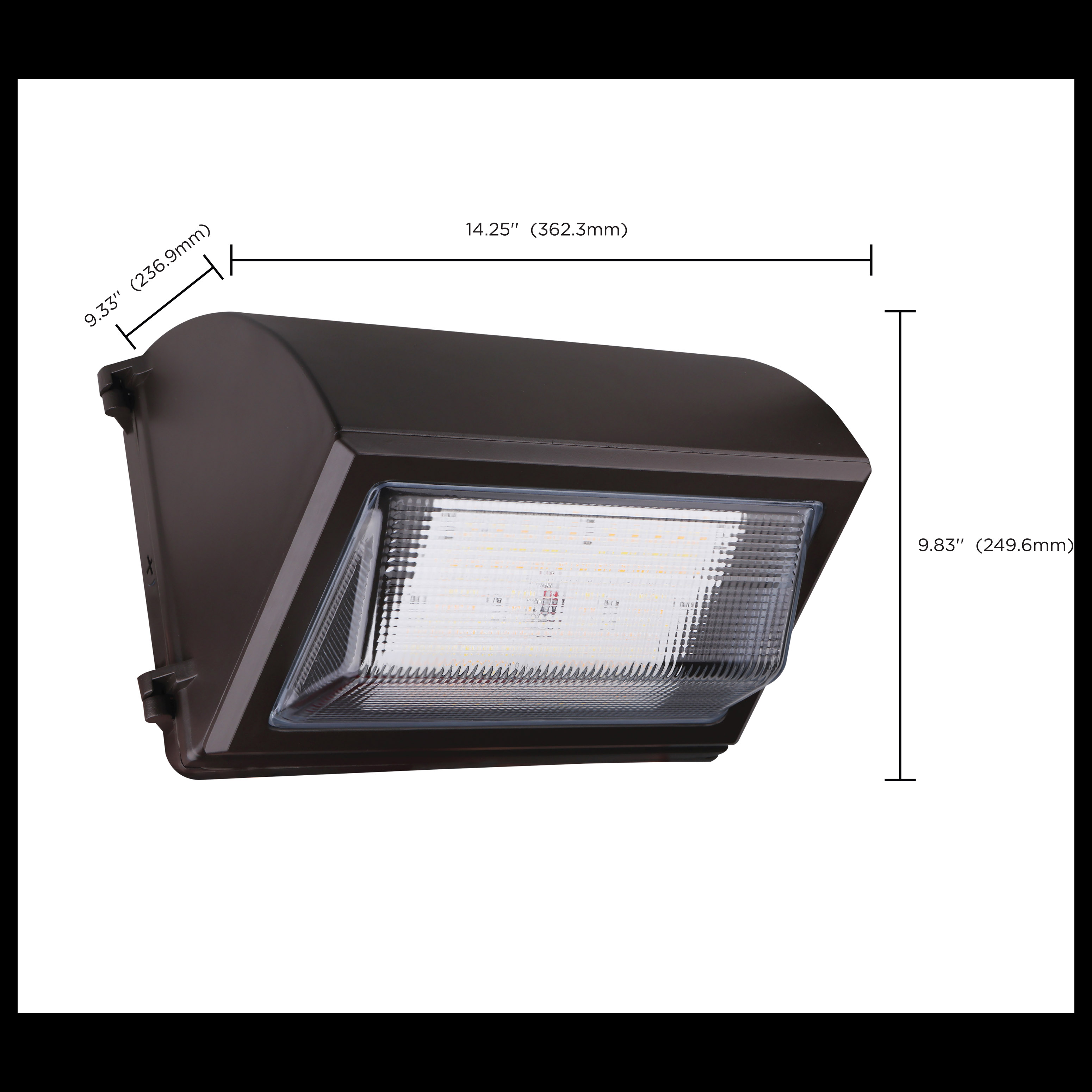

Web Height9.83
Web Width14.26
