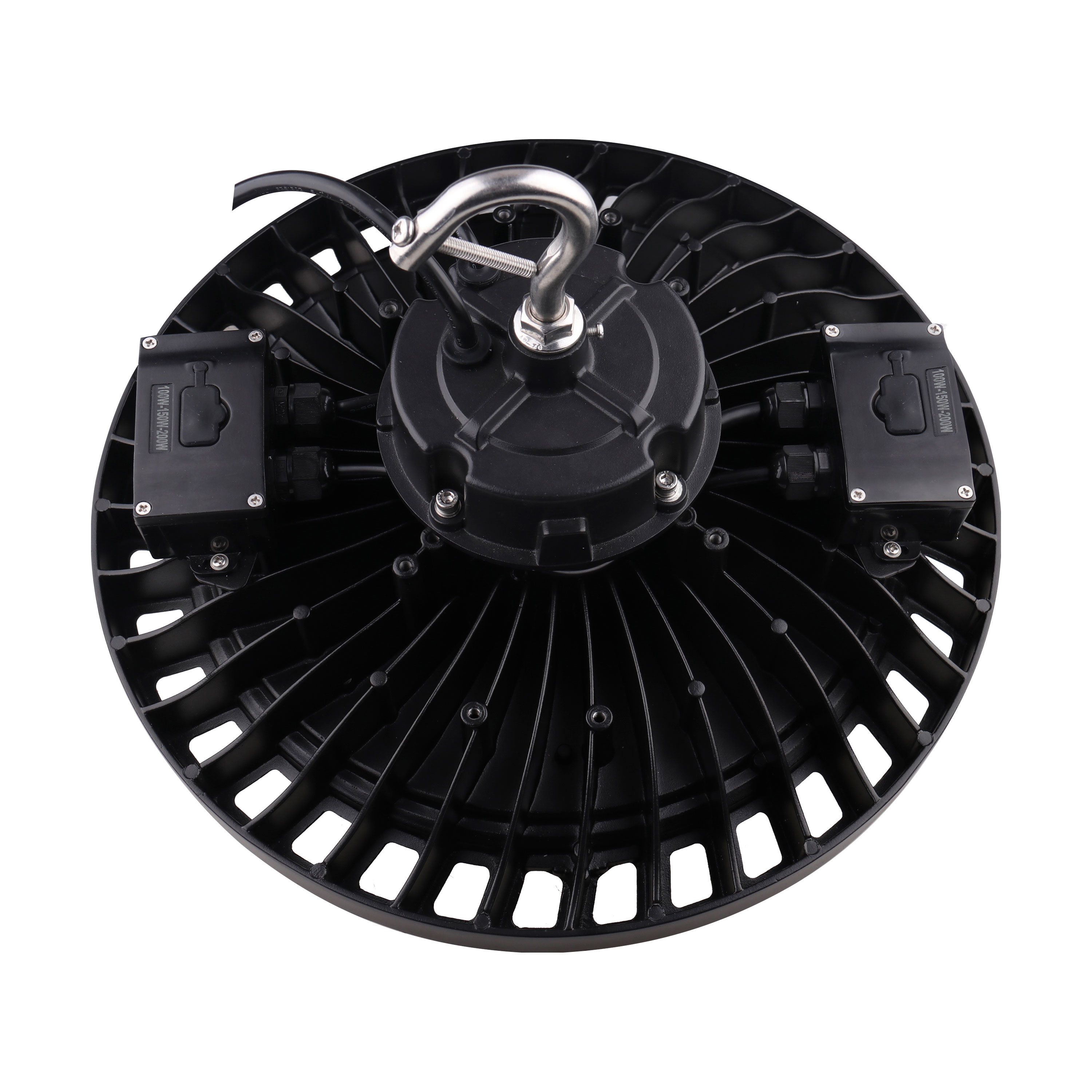

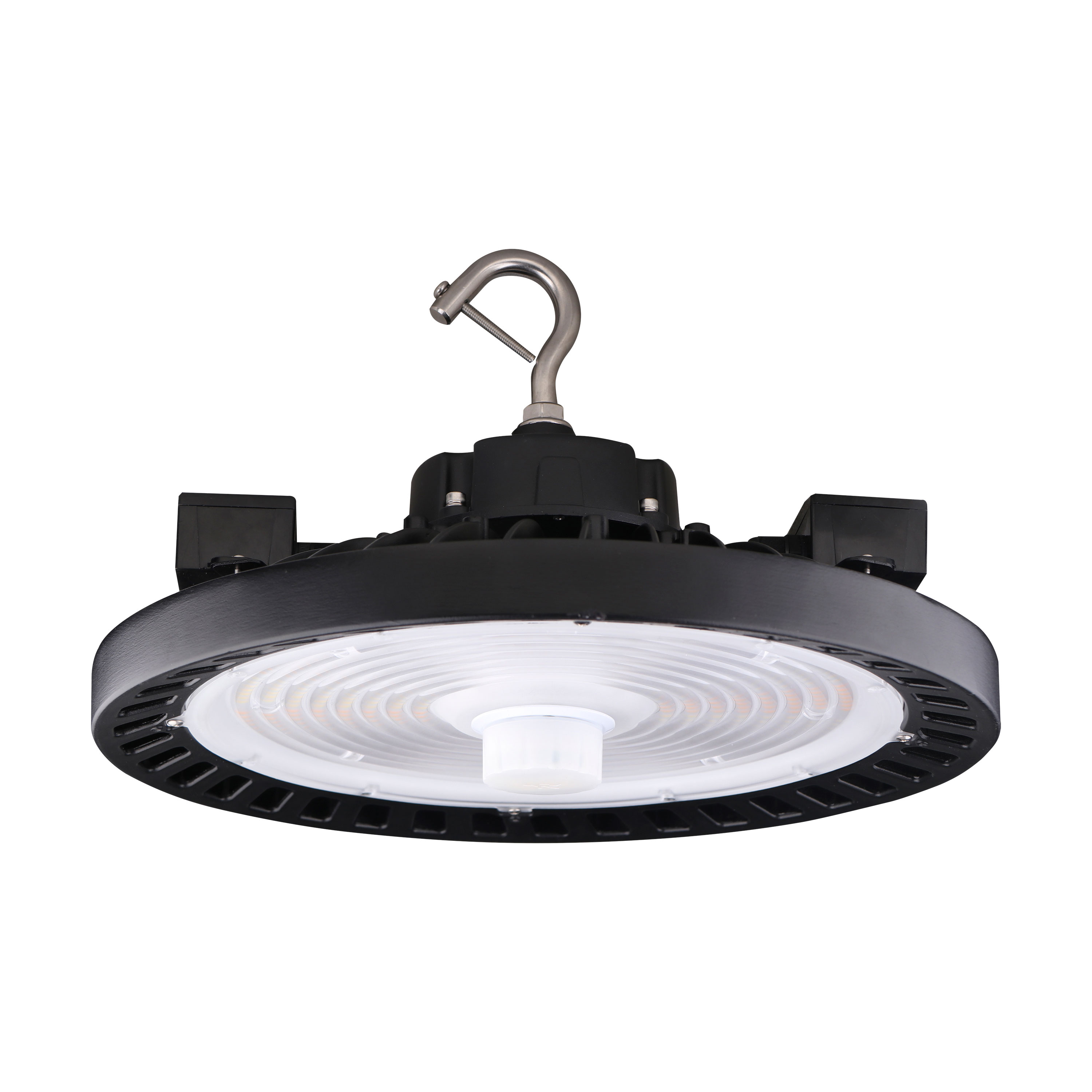

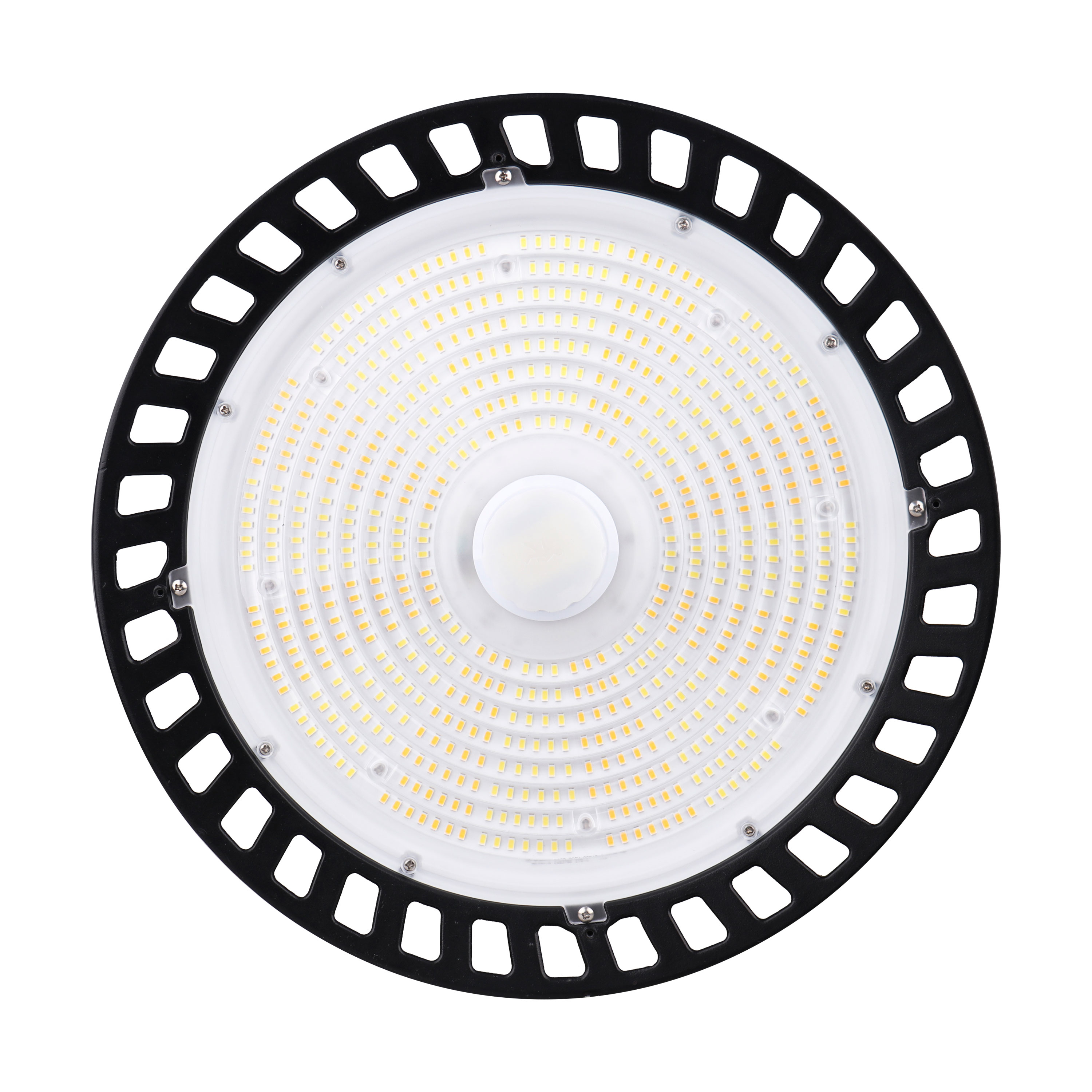

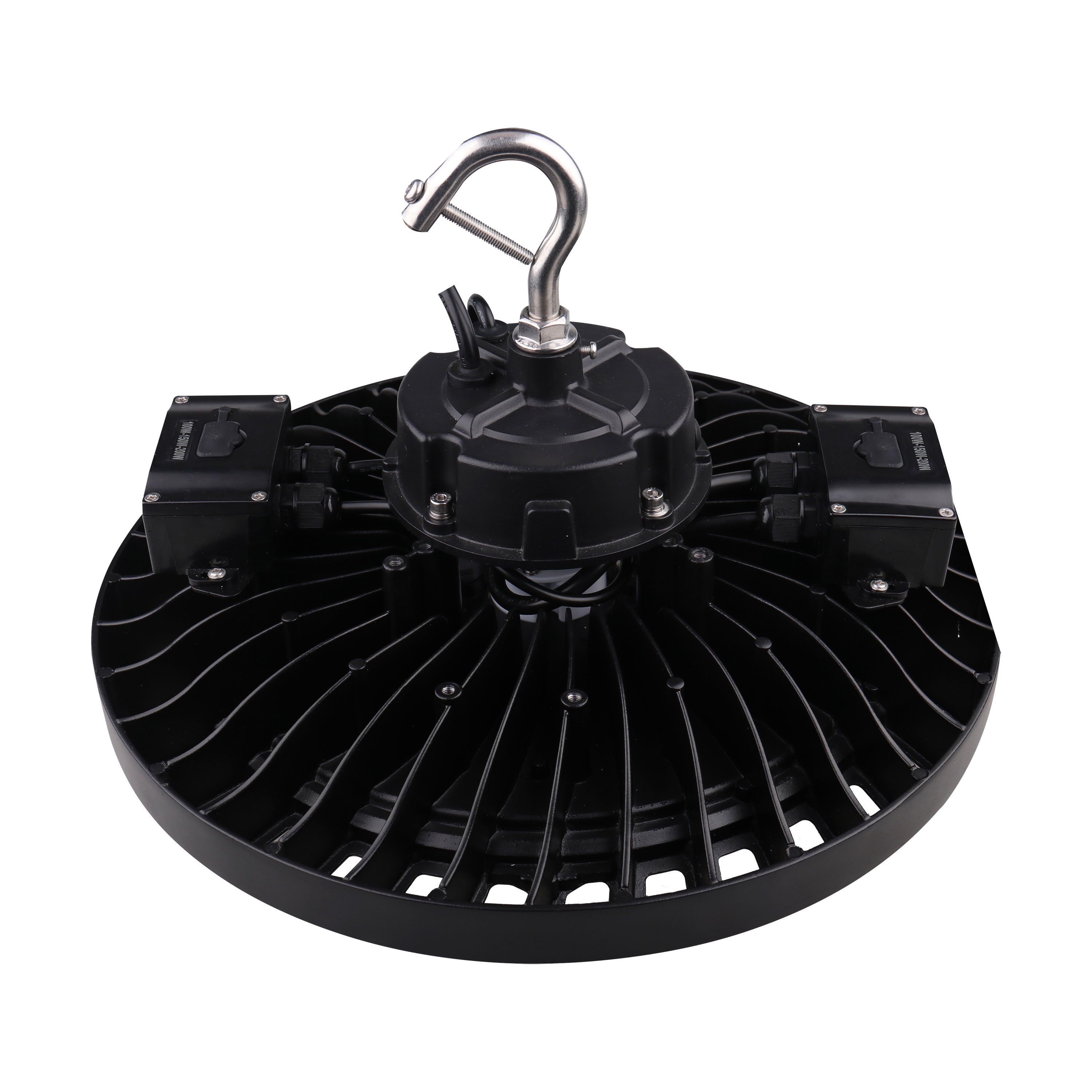

LED UFO HIGHBAY CCT & WATT ADJ - 65-771R1
LED UFO HIGHBAY CCT & WATT ADJ - 65-771R1
LED UFO HIGHBAY CCT & WATT ADJ - 65-771R1
LED UFO HIGHBAY CCT & WATT ADJ - 65-771R1
65-771R1

LED UFO HIGHBAY CCT & WATT ADJ

Discontinued - Suggested Replacement: 65-771R3
  • LED UFO High Bay
  • CCT Selectable 3K/4K/5K and Wattage Selectable 150W/175W/200W
  • 50,000 hours working life
  • Black Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-771R1 Specifications65-771R1 Photometrics 150W 120V.ies65-771R1 Photometrics 150W 277V.ies
Tools
Lighting Layout Analysis For 65-771R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 150W/175W/200W; 50,000 hours working life; Black Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter14.57
Dimmable Text0-10V Dimming Only
MaterialDie-cast Aluminum
Fixture TypeUFO Hi-Bay
StatusObsolete
StyleUtility
Most Current Generation65-771R3
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion15%
Wire Length72.0
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyBlack
Amps1.500-0.542/1.750-0.632/2.000-0.722A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent1000W/1500W/2000W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm to Cool White
CRI80+
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent400W/450W

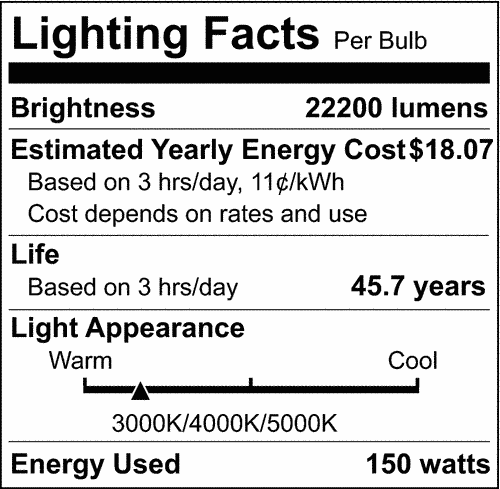

Lumens22200L-28800L
Volts120V-277V
Watts150W/175W/200W
Physical
Lamp BaseIntegrated
FinishBLACK
Housing ColorBlack
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
65-771R1 Specifications
IES
65-771R1_Photometrics_150W_120V.ies
IES
65-771R1_Photometrics_150W_277V.ies
IES
65-771R1_Photometrics_150W_3000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_150W_4000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_150W_4000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_150W_5000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_150W_5000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_175W_3000K.ies
IES
65-771R1_Photometrics_175W_3000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_175W_4000K.ies
IES
65-771R1_Photometrics_175W_4000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_175W_4000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_175W_5000K.ies
IES
65-771R1_Photometrics_175W_5000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_175W_5000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_200W_120V.ies
IES
65-771R1_Photometrics_200W_277V.ies
IES
65-771R1_Photometrics_200W_3000K.ies
IES
65-771R1_Photometrics_200W_3000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_200W_4000K_120V.ies
IES
65-771R1_Photometrics_200W_4000K_277V.ies
IES
65-771R1_Photometrics_200W_4000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_200W_4000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_200W_4000K_with_PC_Shade.ies
IES
65-771R1_Photometrics_200W_4000K_with_Reflector.ies
IES
65-771R1_Photometrics_200W_5000K.ies
IES
65-771R1_Photometrics_200W_5000K_with_Bottom_Diff.ies
IES
65-771R1_Photometrics_200W_5000K_with_EM_Backup.ies
IES
65-771R1_Photometrics_200W_5000K_with_PC_Shade.ies
IES
65-771R1_Photometrics_200W_5000K_with_Reflector.ies
65-771R1_How_To_Bypass_The_Sensor.pdf
65-771R1_Instructions.pdf
65-771R1_Instructions_Sensor.pdf
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLN15R8TWVGV
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923661907
Case Cube1.4209
Case Height8.11
Case Length17.4
Case Quantity1
Case UPC10045923661904
Case Weight9.48
Case Width17.4
EA Cube1.4209
EA Height8.11
EA Length17.4
EA Quantity1
EA Weight9.48
EA Width17.4
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height8.86
Web Width14.57
