65-783R1

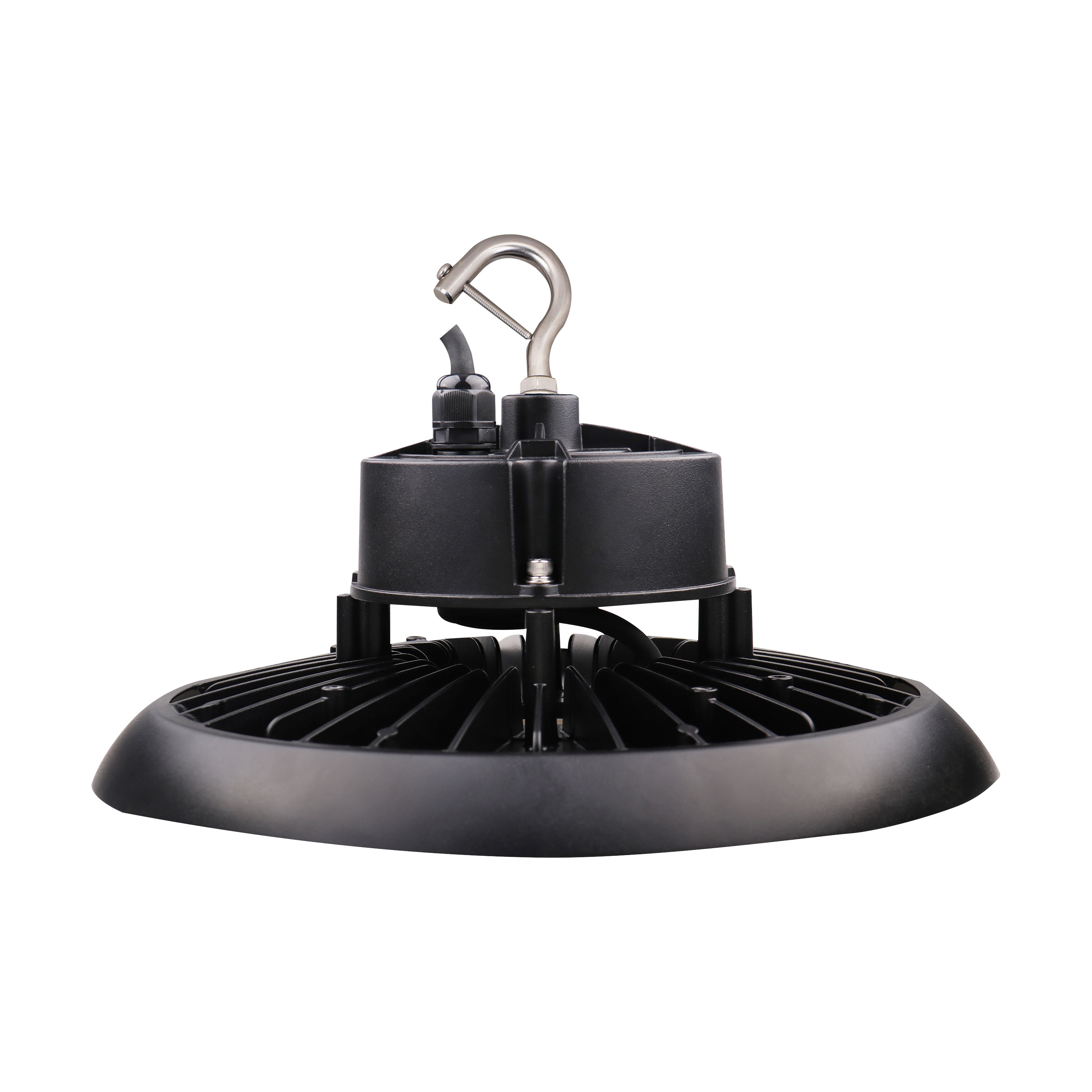

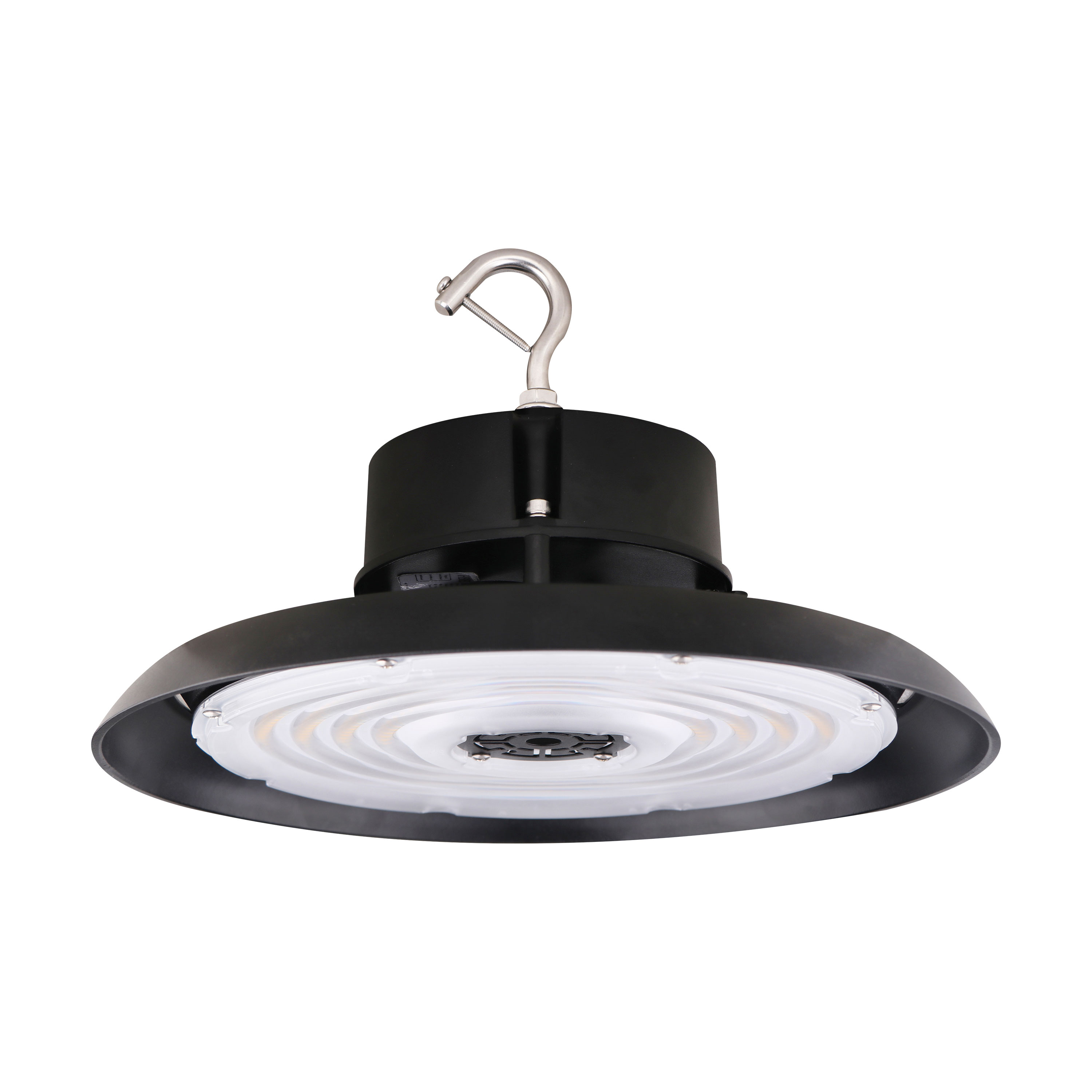

LED UFO HIGHBAY 150W/4000K

Discontinued - Suggested Replacement: 65-783R2
  • 150W UFO LED High Bay

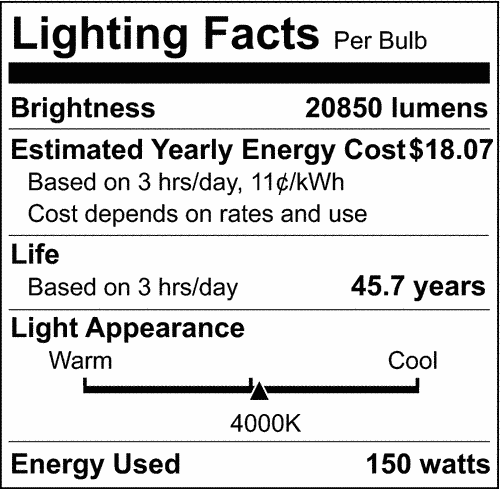

  • 20850 Lumens
  • 4000K
  • 120-277 Volt
  • 0-10V Dimmable
  • Black Finish
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
Description
Description

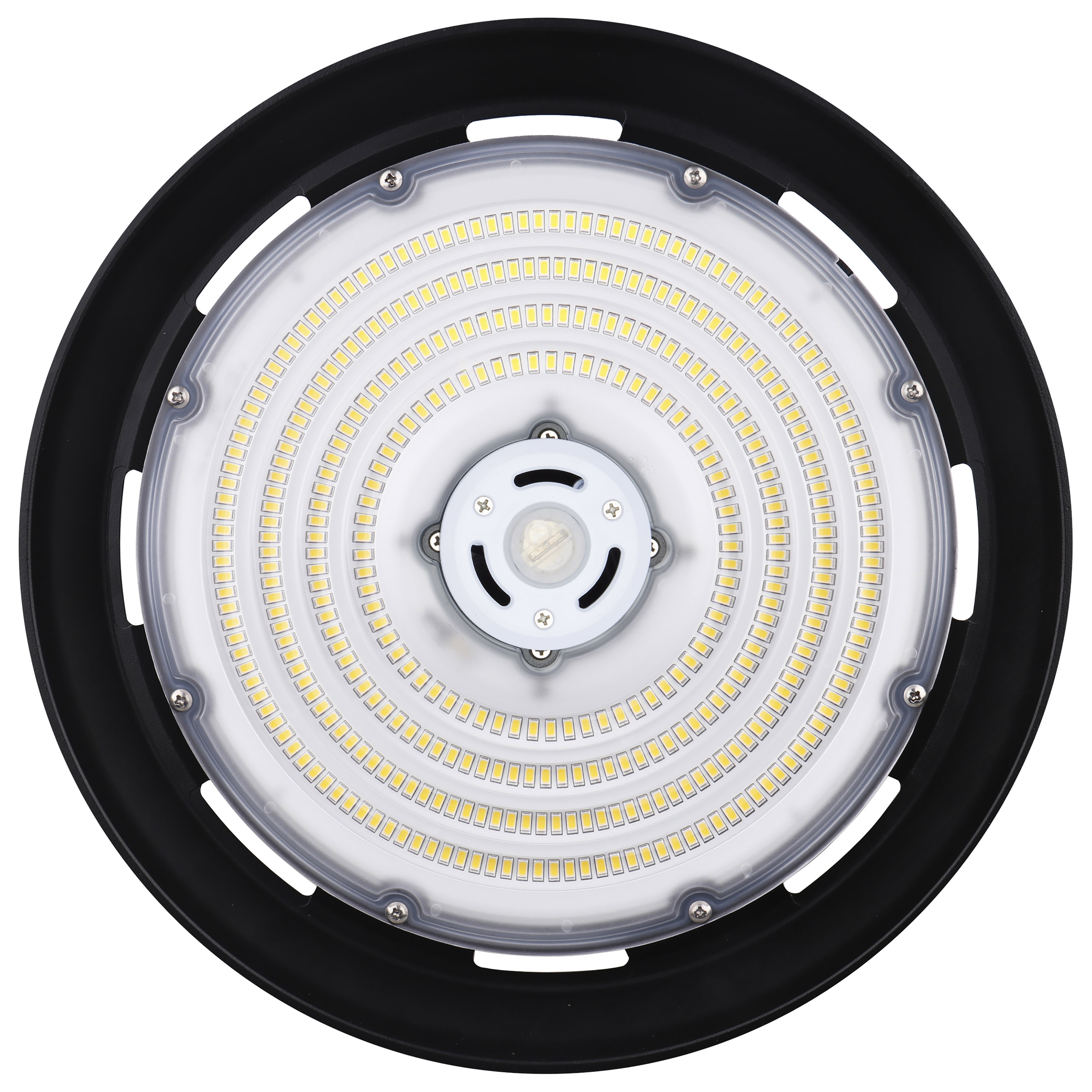

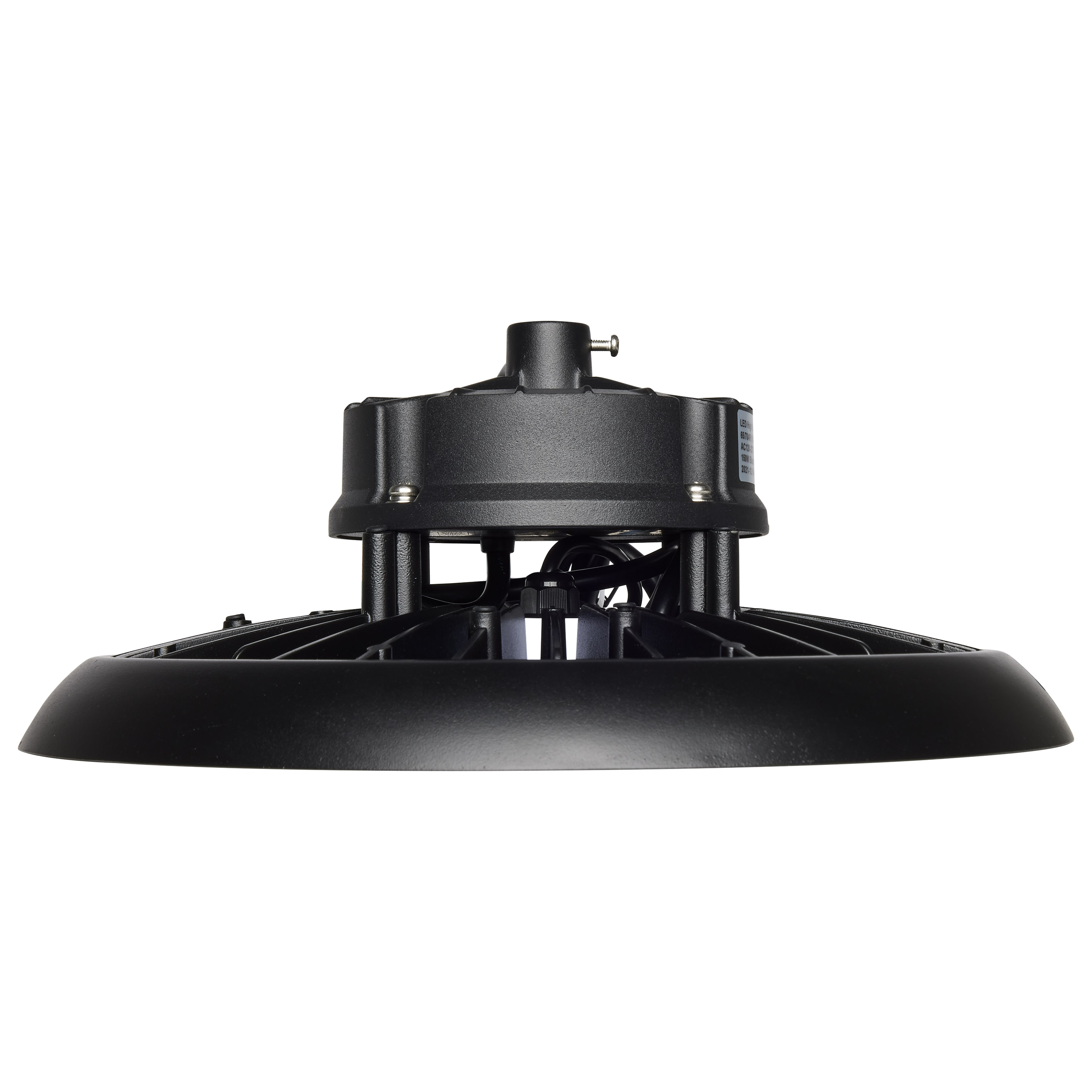

SATCO NUVO's 65-783R1 150-watt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire guard and a microwave sensor. This product also features dimming capabilities, 6KV surge protection is wet location rated and is also DLC Premium 5.1 listed.
Products Specs
General
Generational SKU65-783R2
CompanyNUVO
Bulb IncludedIntegrated
Diameter11.81
MaterialDie-cast Aluminum
Fixture TypeUFO Hi-Bay
StatusDiscontinued
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion15%
Wire Length72.0
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBlack
Amps1.250-0.542A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Power Factor0.99
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent1000W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempCool White
CRI80+
Dimming Type0-10V Dimming
Operating Temp-40F to +122F (-40C to +50C)
HID Equivalent400W
Lumens20850L
Volts120V-277V
Watts150W
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBLACK
Housing ColorBlack
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Compliance
CA Prop 65Lead
DLC IDPL865W9QL575
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923661938
Case Cube0.8924
Case Height7.68
Case Length14.17
Case Quantity1
Case UPC10045923661935
Case Weight6.83
Case Width14.17
EA Cube0.8924
EA Height7.68
EA Length14.17
EA Quantity1
EA Weight6.83
EA Width14.17
Pack TypeBox
Web Height8.19
Web Width11.81
