65-784

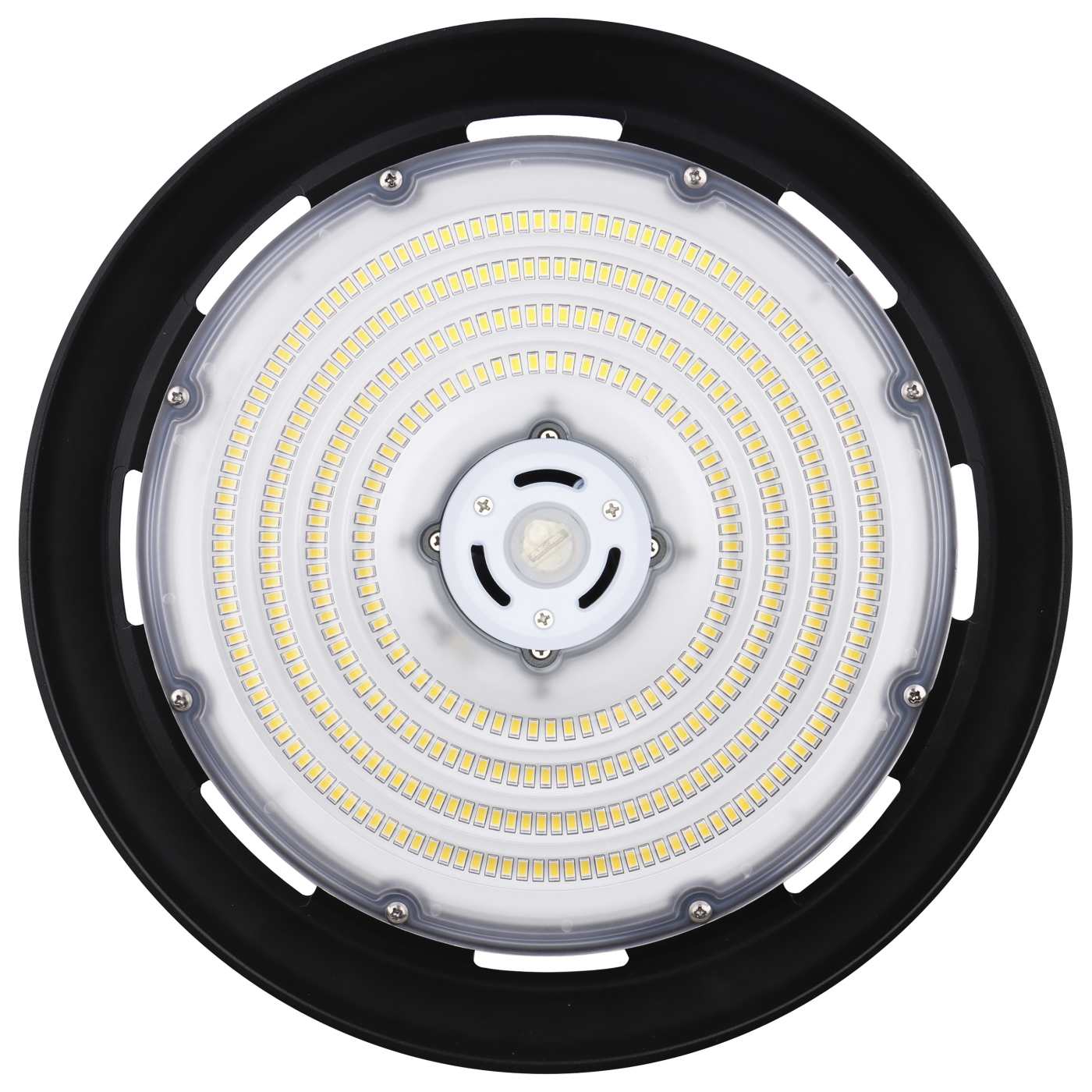

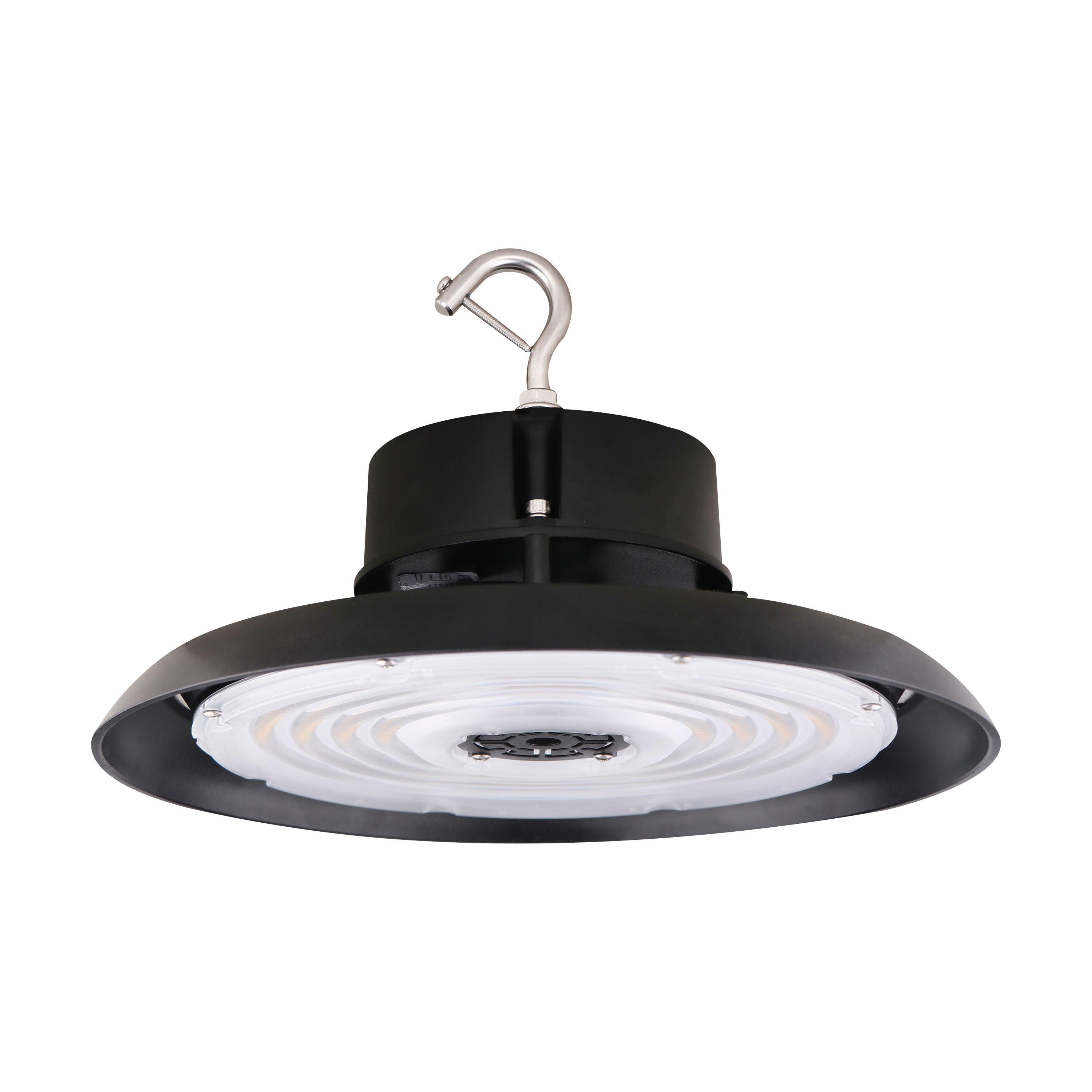

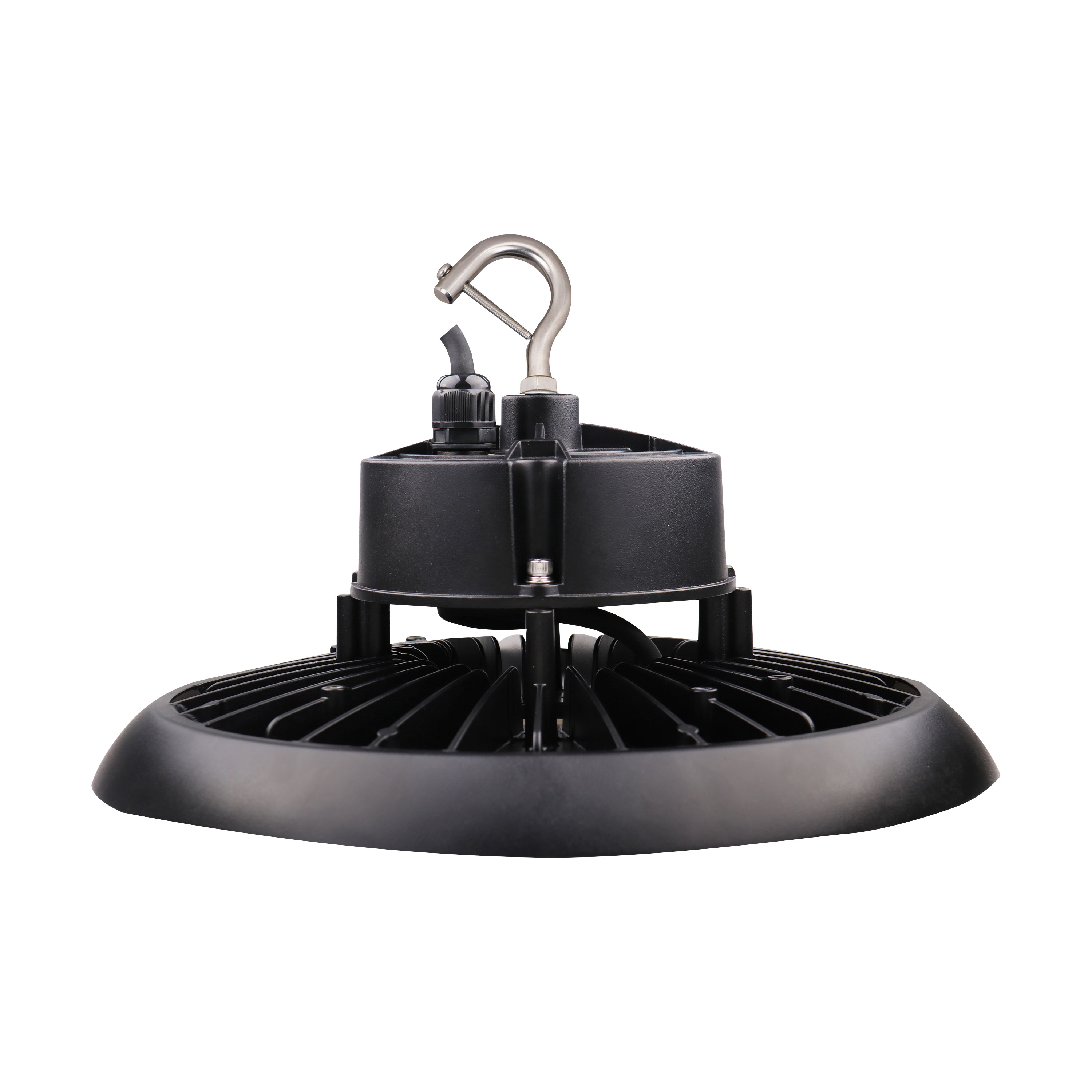

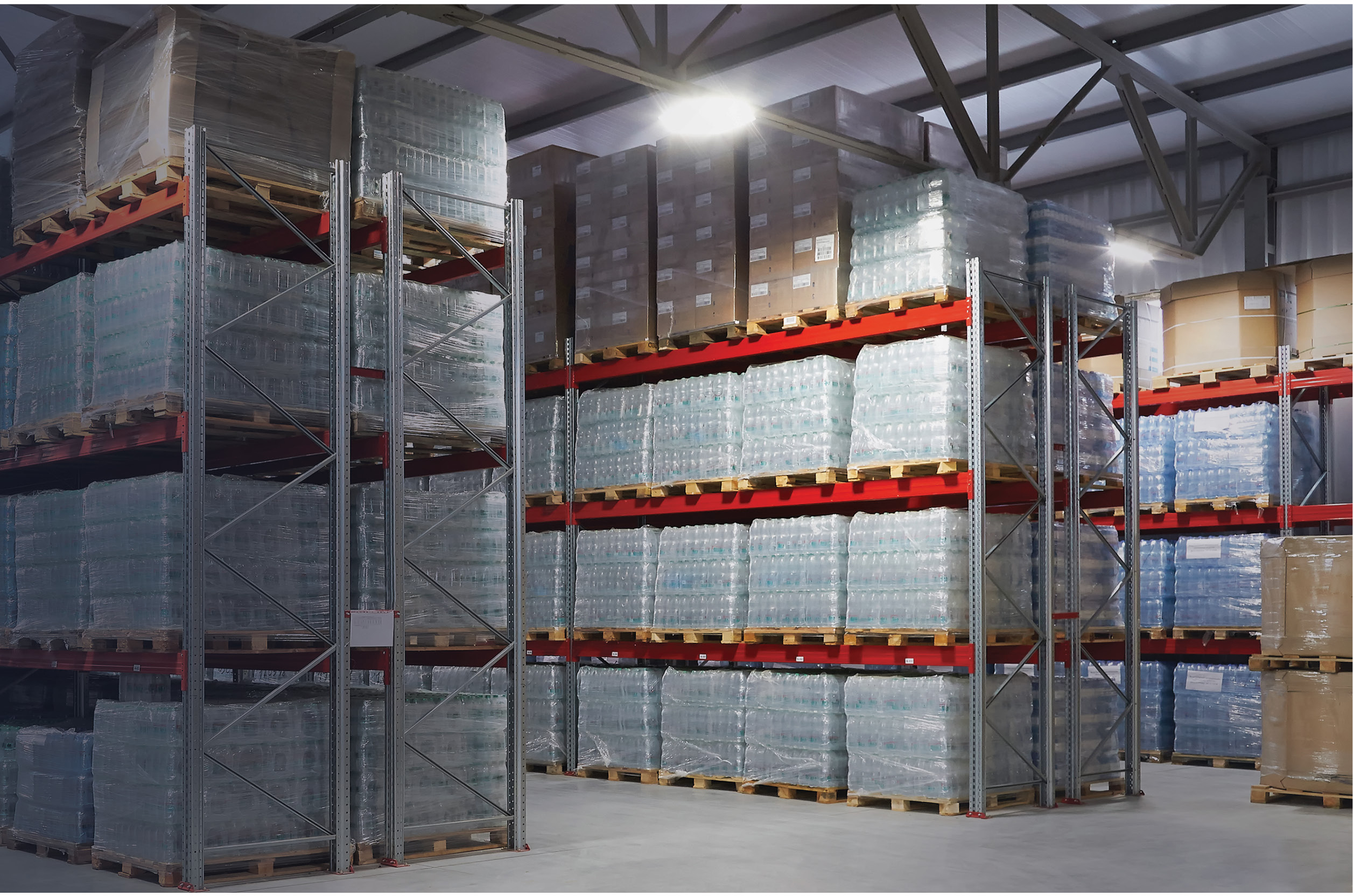

LED UFO HIGHBAY 150W/5000K

Discontinued - Suggested Replacement: 65-784R2
  • 150W UFO LED High Bay
  • 21600 Lumens
  • 5000K
  • 120-277 Volt
  • 0-10V Dimmable
  • Black Finish
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-784 Specifications65-784 How To Bypass The Sensor65-784 Instructions
Tools
Lighting Layout Analysis For 65-784
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
150W UFO LED High Bay; 21600 Lumens; 5000K; 120-277 Volt; 0-10V Dimmable; Black Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter11.81
Dimmable Text0-10V Dimming Only
MaterialDie-cast Aluminum
Fixture TypeUFO Hi-Bay
StatusDiscontinued
Most Current Generation65-784R2
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion15%
Wire Length72.0
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyBlack
Amps1.250-0.542A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent1000W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempNatural Light
CRI80+
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent400W

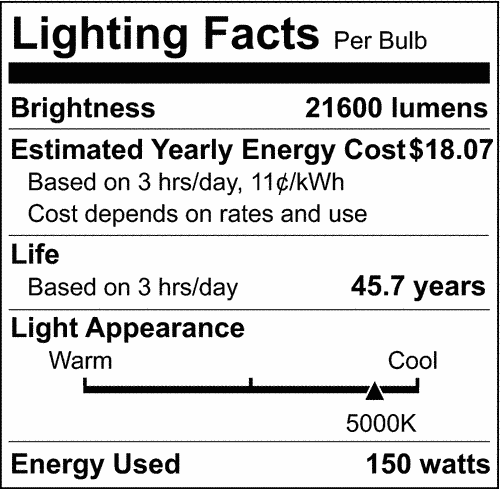

Lumens21600L
Volts120V-277V
Watts150W
Physical
Lamp BaseIntegrated
FinishBLACK
Housing ColorBlack
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPL096VGD8FFC
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923666193
Case Cube0.8924
Case Height7.68
Case Length14.17
Case Quantity1
Case UPC10045923666190
Case Weight6.83
Case Width14.17
EA Cube0.8924
EA Height7.68
EA Length14.17
EA Quantity1
EA Weight6.83
EA Width14.17
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height7.99
Web Width11.81
