65-785

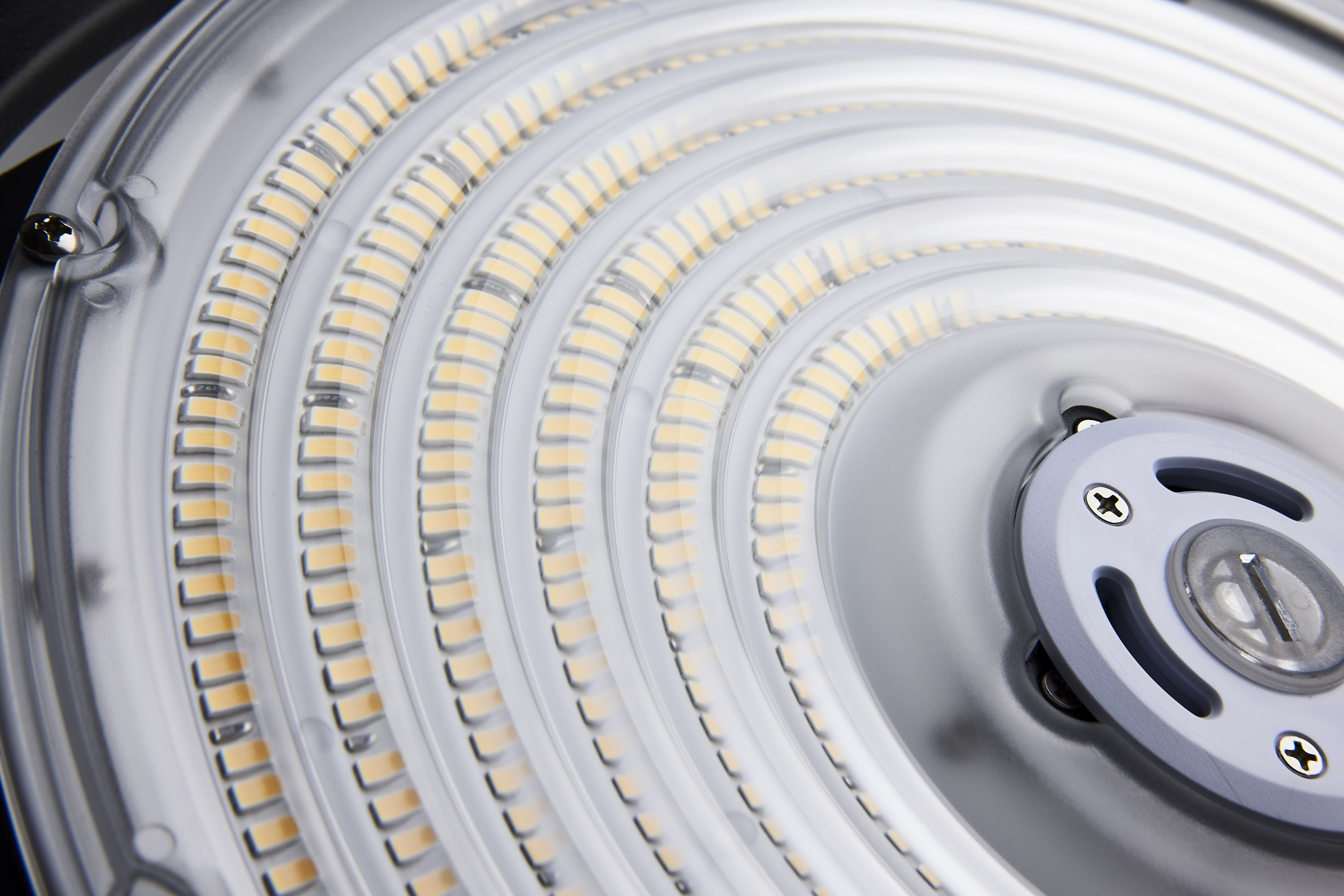

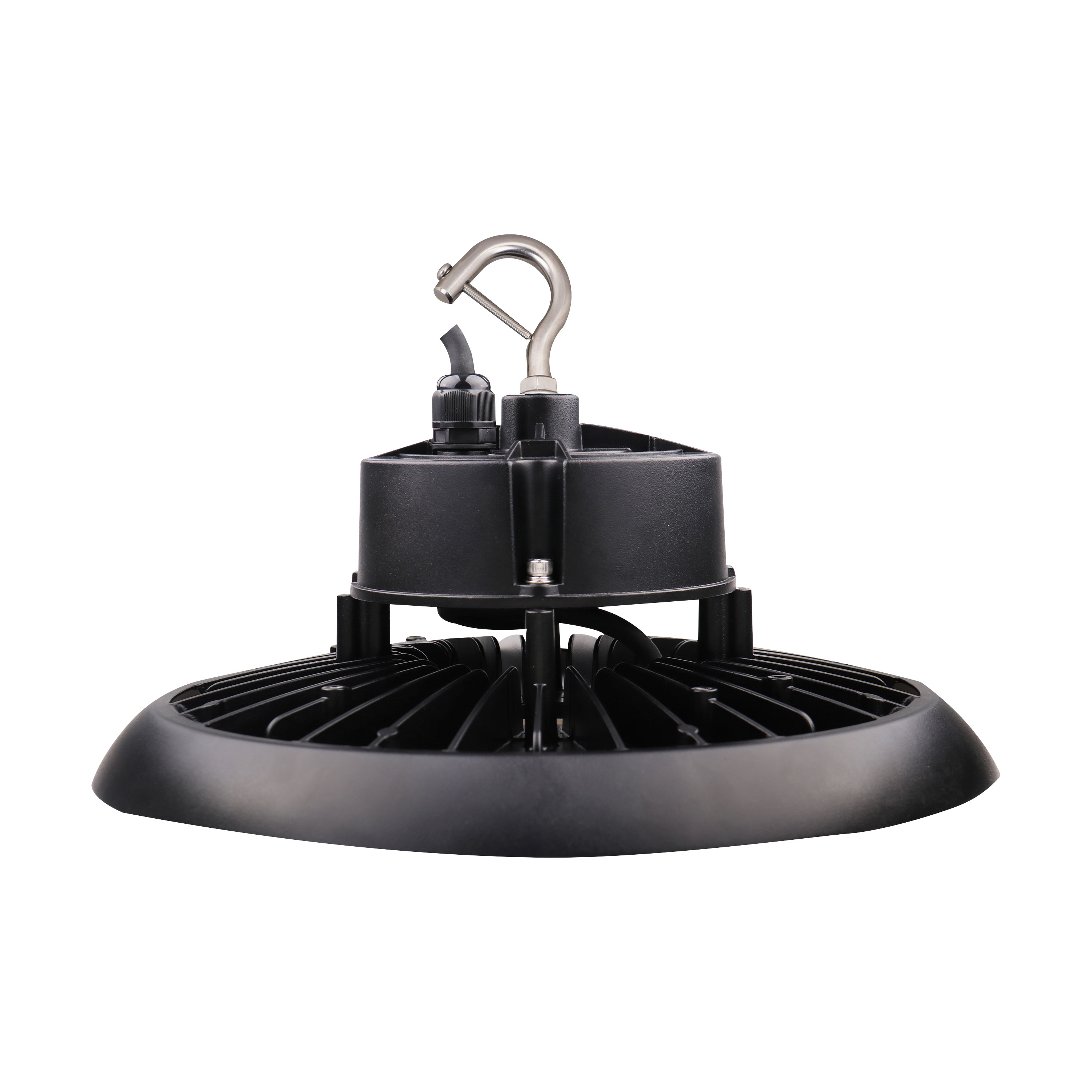

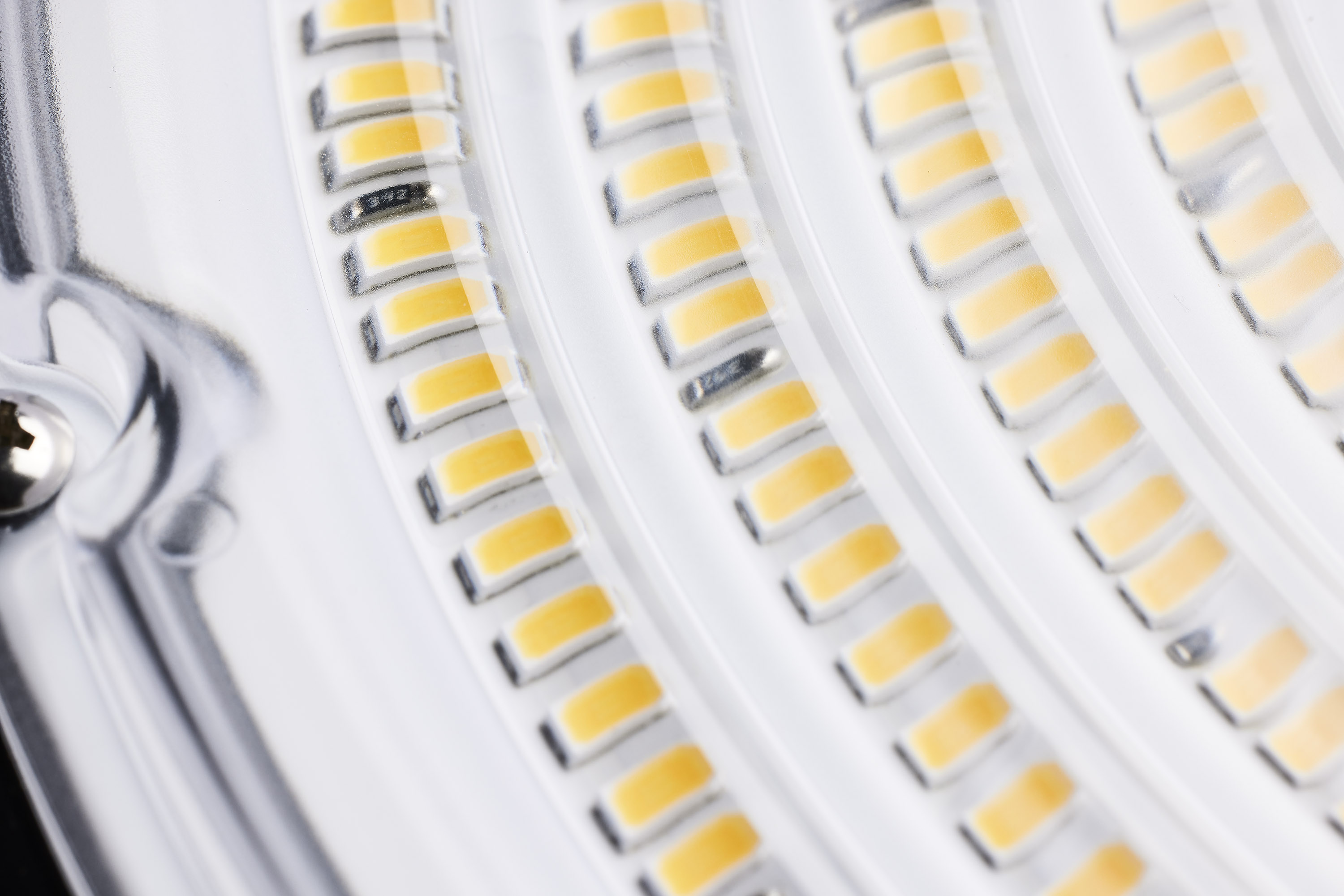

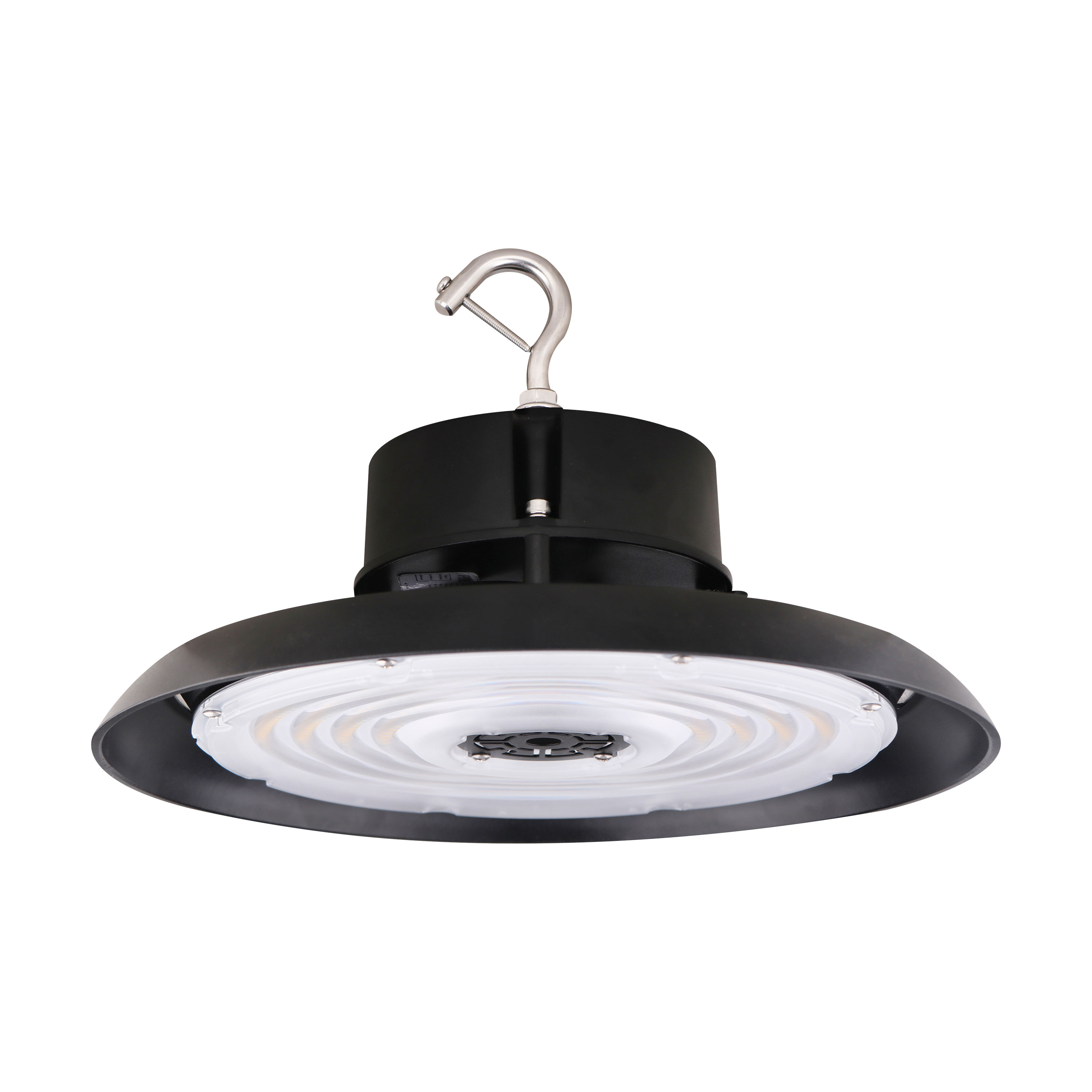

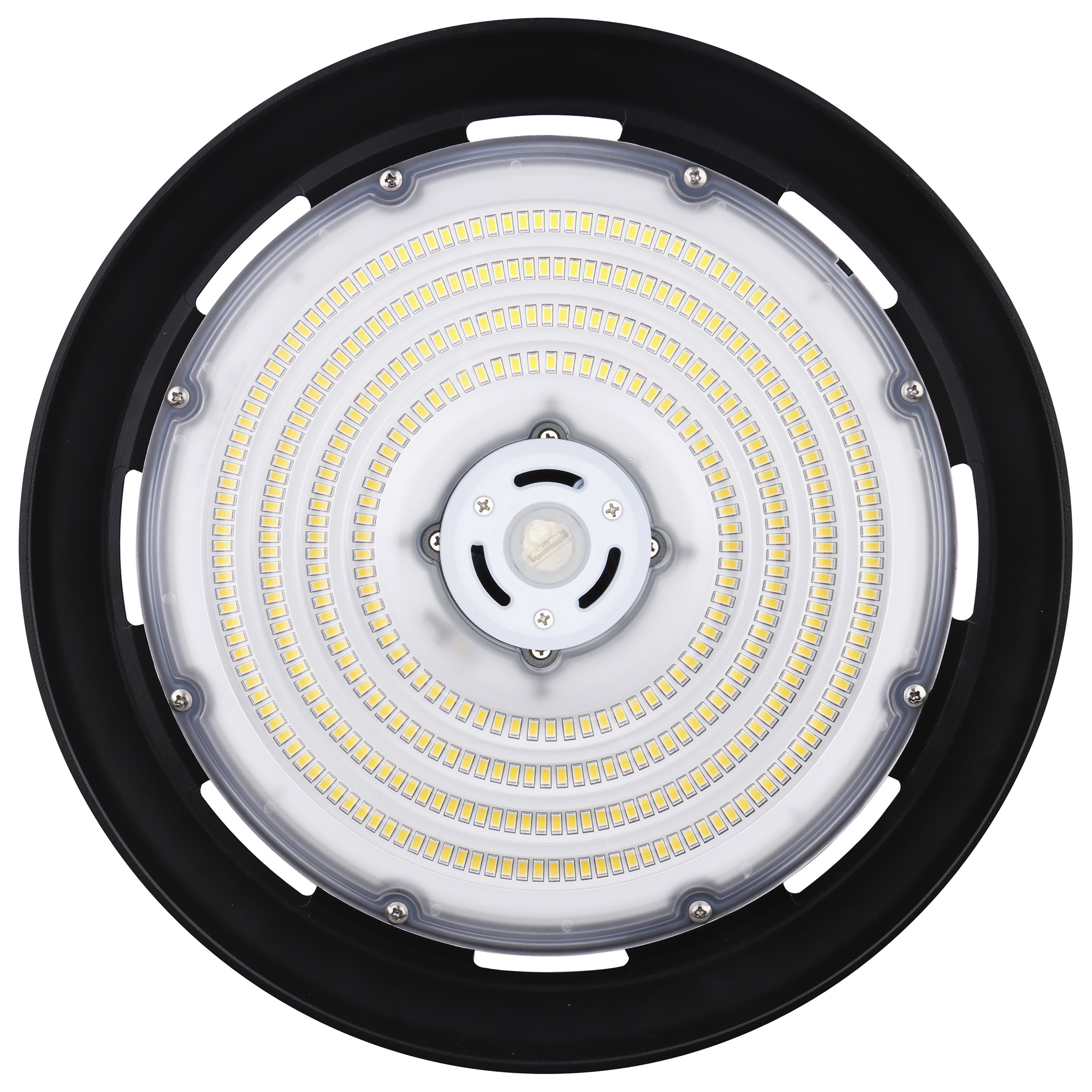

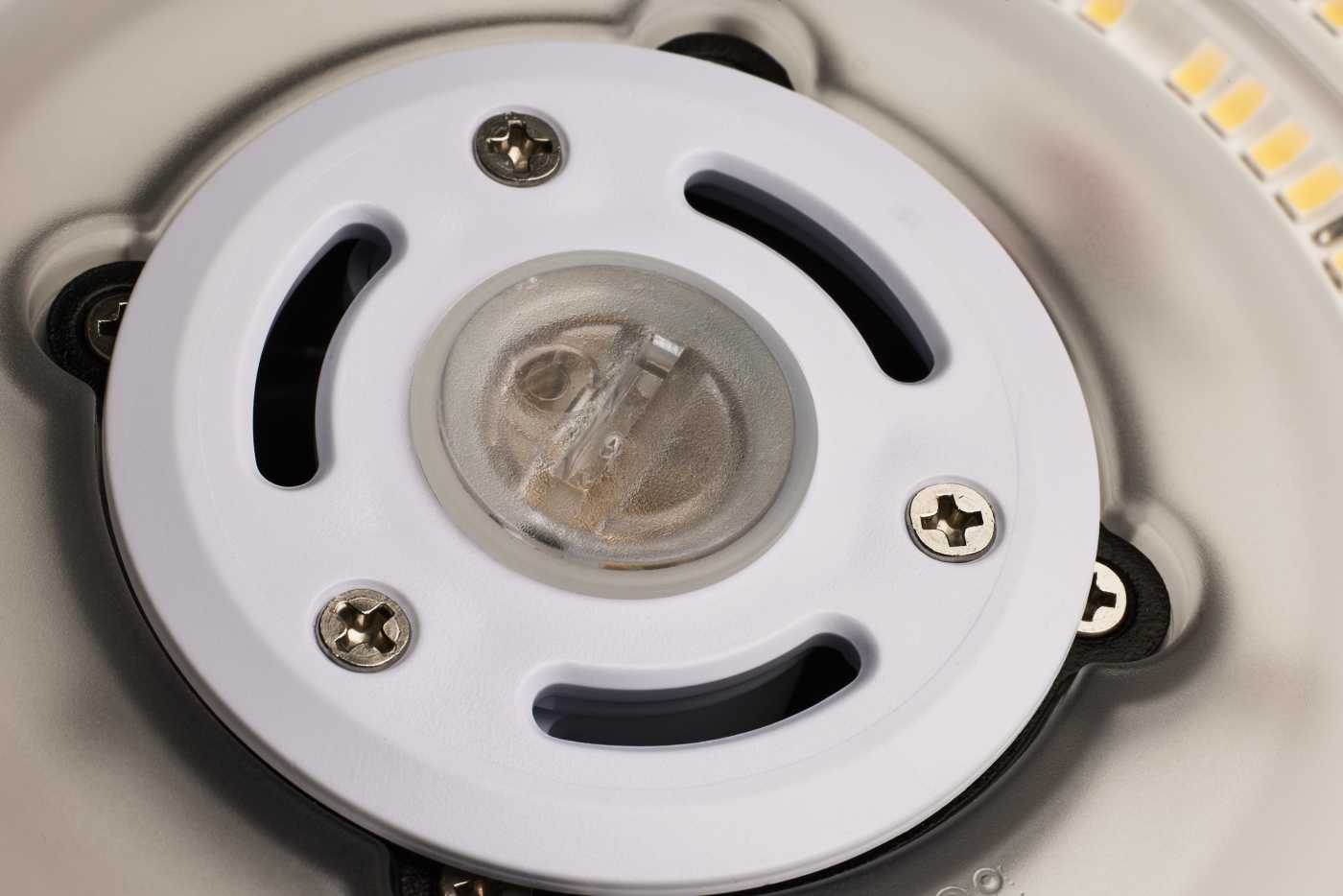

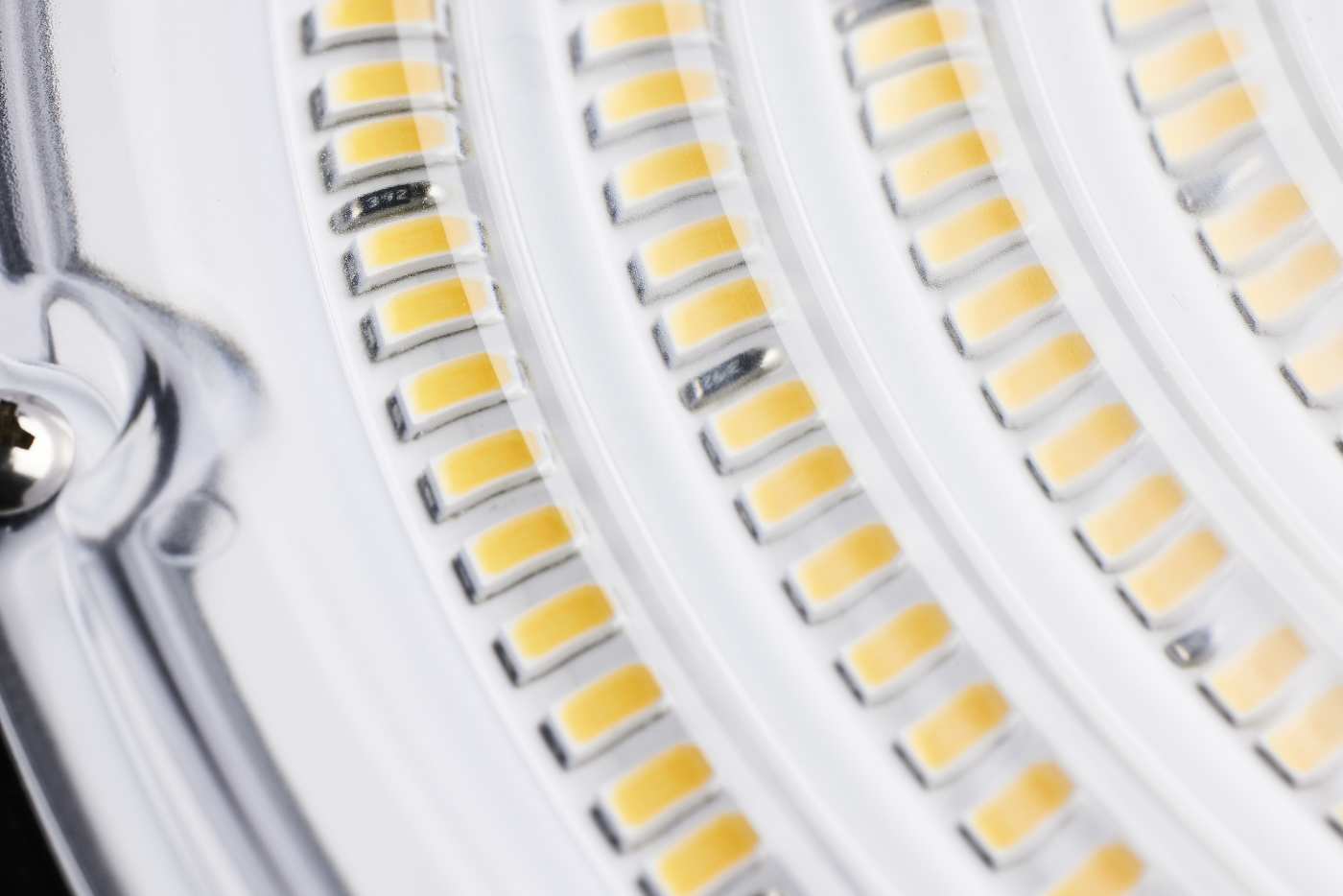

LED UFO HIGHBAY 200W/4000K

Discontinued - Suggested Replacement: 65-785R2
  • 200W UFO LED High Bay
  • 28000 Lumens
  • 4000K
  • 120-277 Volt
  • 0-10V Dimmable
  • Black Finish
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-785 Specifications65-785 How To Bypass The Sensor65-785 Instructions
Tools
Lighting Layout Analysis For 65-785
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
200W UFO LED High Bay; 28000 Lumens; 4000K; 120-277 Volt; 0-10V Dimmable; Black Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter14.17
Dimmable Text0-10V Dimming Only
MaterialDie-cast Aluminum
Fixture TypeUFO Hi-Bay
StatusObsolete
StyleUtility
Most Current Generation65-785R2
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion15%
Wire Length72.0
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyBlack
Amps1.667-0.722A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialPolycarbonate (PC)
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent1500W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempCool White
CRI80+
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent600W
Lumens28000L
Volts120V-277V
Watts200W
Physical
Lamp BaseIntegrated
FinishBLACK
Housing ColorBlack
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLE5VQOKF6Q0
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923662850
Case Cube1.2776
Case Height8.07
Case Length16.54
Case Quantity1
Case UPC10045923662857
Case Weight10.36
Case Width16.54
EA Cube1.2776
EA Height8.07
EA Length16.54
EA Quantity1
EA Weight10.36
EA Width16.54
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height8.43
Web Width14.17
