| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 14.17 |
| Material | Die-cast Aluminum |

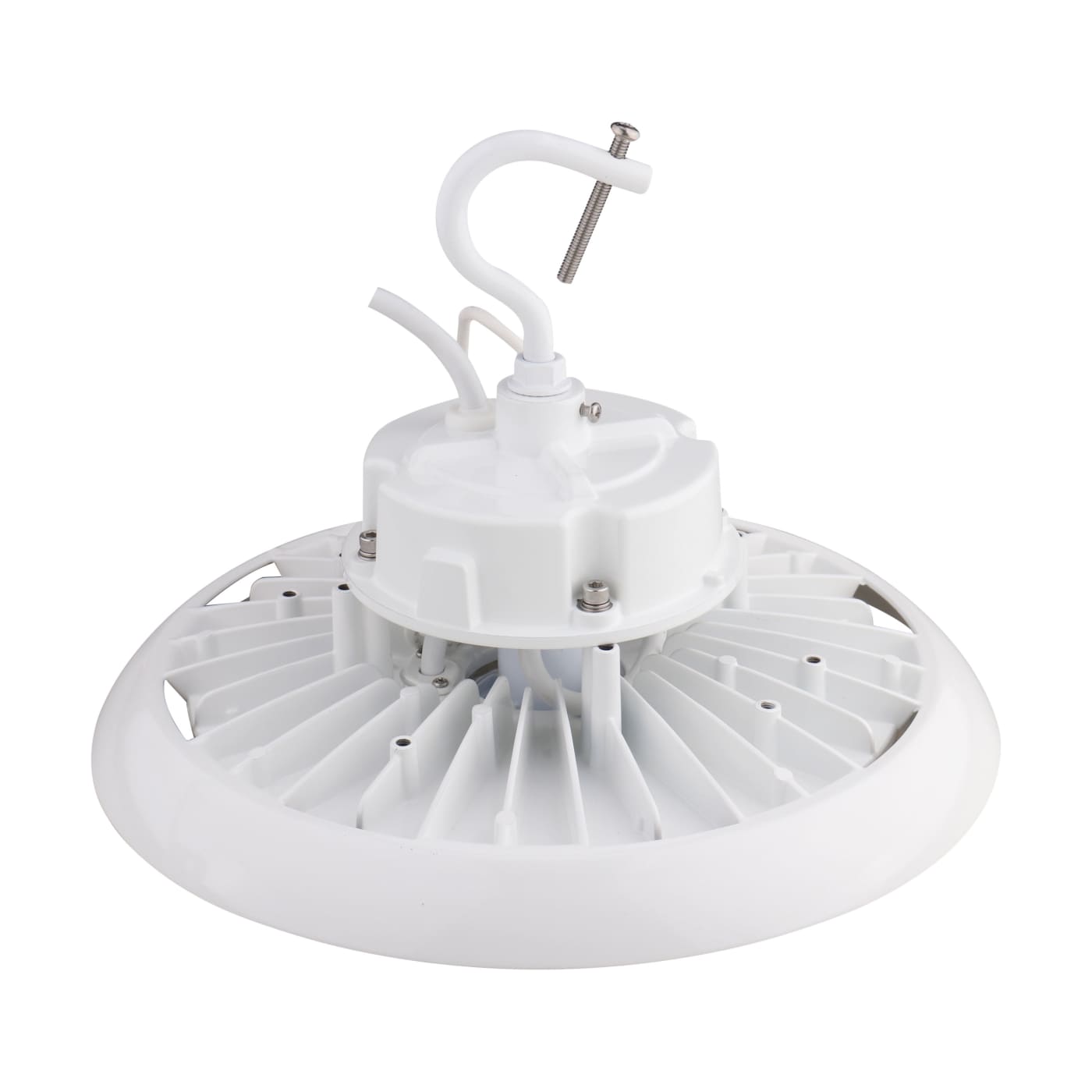

| Fixture Type | UFO Hi-Bay |
| Status | Obsolete |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 15% |
| Wire Length | 72.0 |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 1.667-0.722A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 1500W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Temp | -40F to +113F (-40C to +45C) |
| HID Equivalent | 600W |
| Lumens | 28000L |
| Volts | 120V-277V |
| Watts | 200W |
| Connection | Hardwire |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Mounting Procedure | Ceiling |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | PLE5VQOKF6Q0 |
| FCC Compliant | Yes |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923666261 |
|---|---|
| Case Cube | 1.2776 |
| Case Height | 8.07 |
| Case Length | 16.54 |
| Case Quantity | 1 |
| Case UPC | 10045923666268 |
| Case Weight | 10.36 |
| Case Width | 16.54 |
| EA Cube | 1.2776 |
| EA Height | 8.07 |
| EA Length | 16.54 |
| EA Quantity | 1 |
| EA Weight | 10.36 |
| EA Width | 16.54 |
| Pack Type | Box |
| Web Height | 8.43 |
| Web Width | 14.17 |
