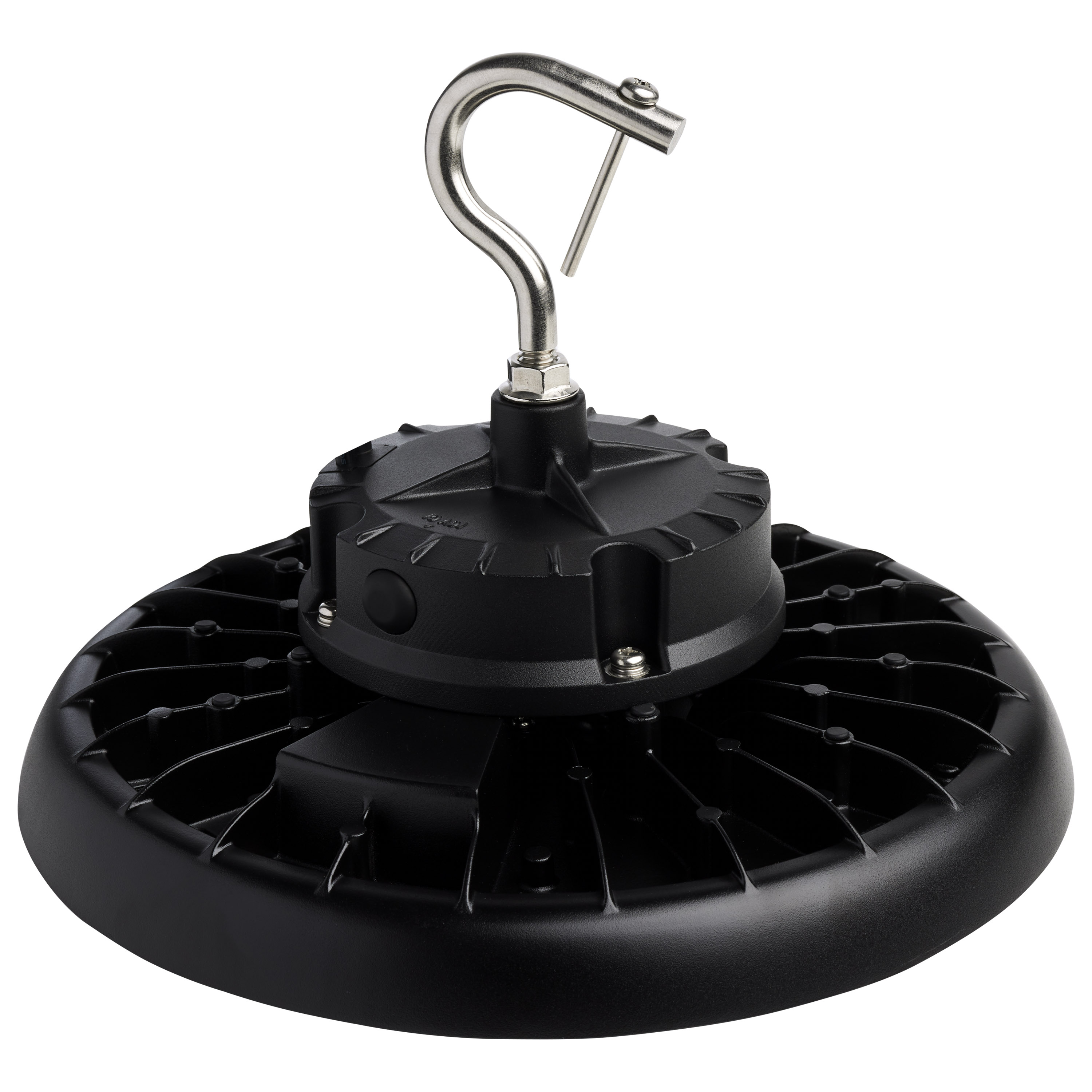

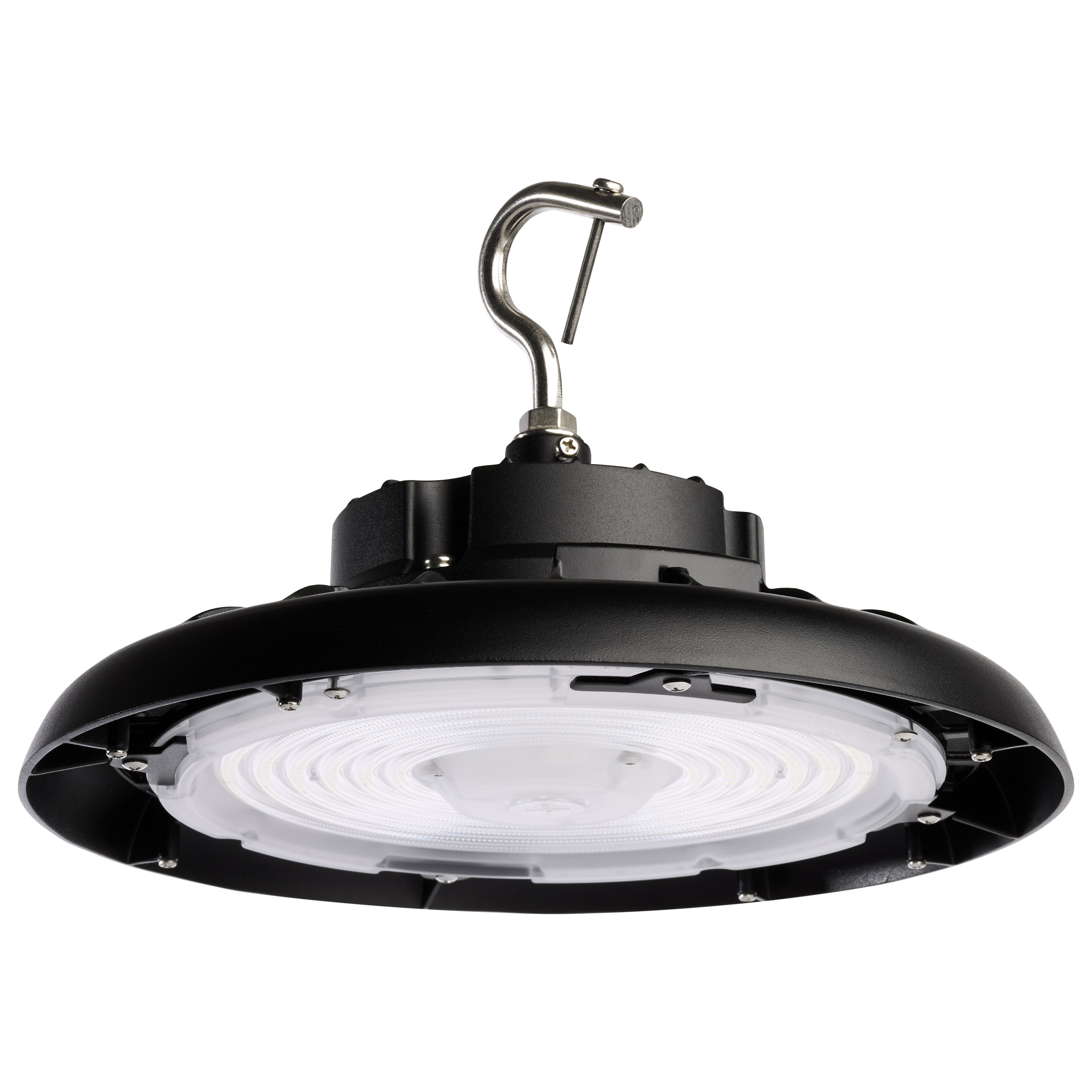

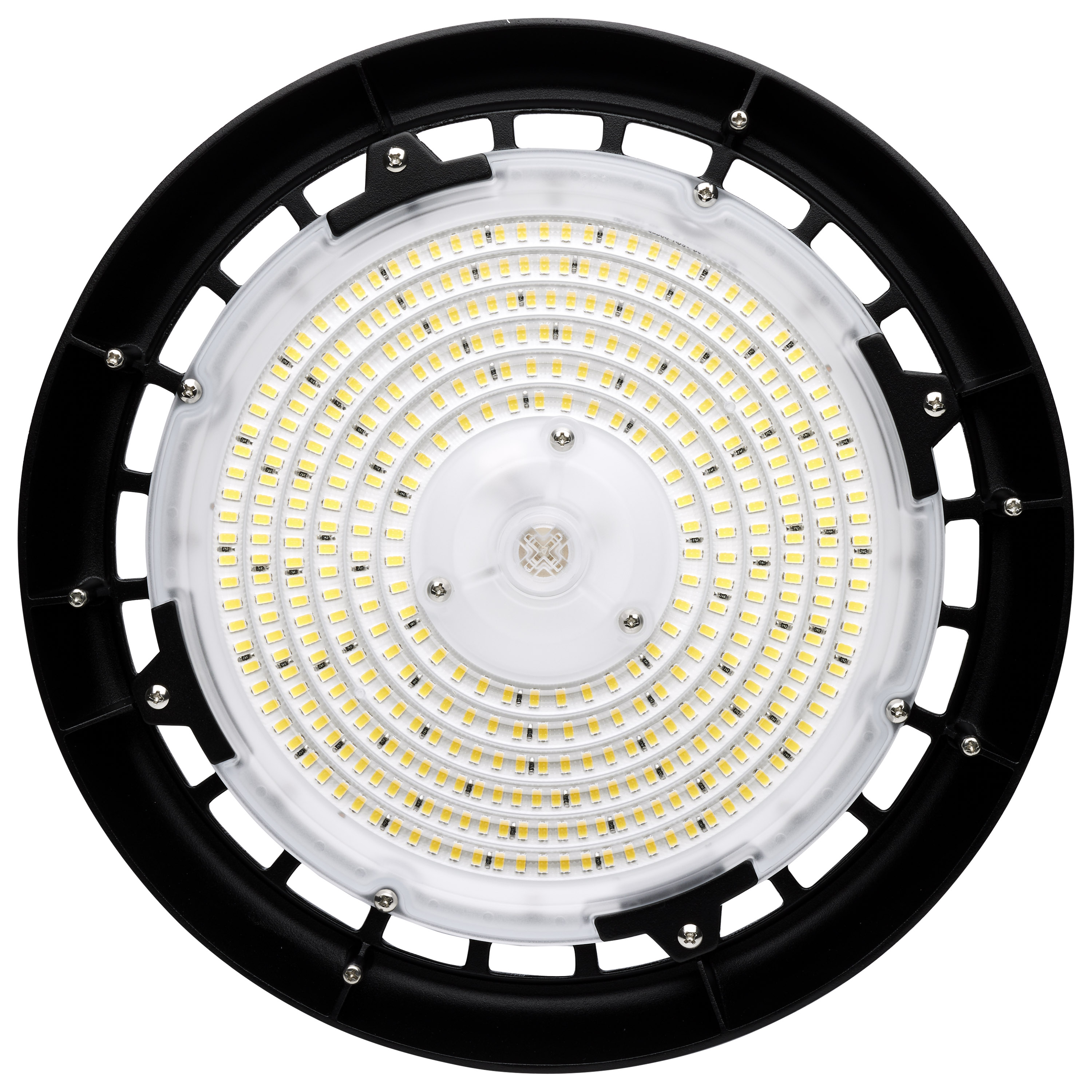

65-804R2 LED UFO HIGHBAY 150W/5000K

65-804R2

LED UFO HIGHBAY 150W/5000K

150 Watt UFO LED High Bay; 5000K; 21750 Lumens; 277-480 Volt; Black Finish


Introducing SATCO|NUVO's newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated, sensor port for easy field installation of an add on microwave sensor. They have a 90 degree beam angle, a locking hook, are IP65, 0-10V dimmable, and feature 6KV surge Protection. They are rated for 50,000 hours and carry a 5-year warranty. Offered with these is a full suite of accessories including yoke mounts, pendant adapters, protective cages, anti-glare shields, a sensor and remote and an add on EM.

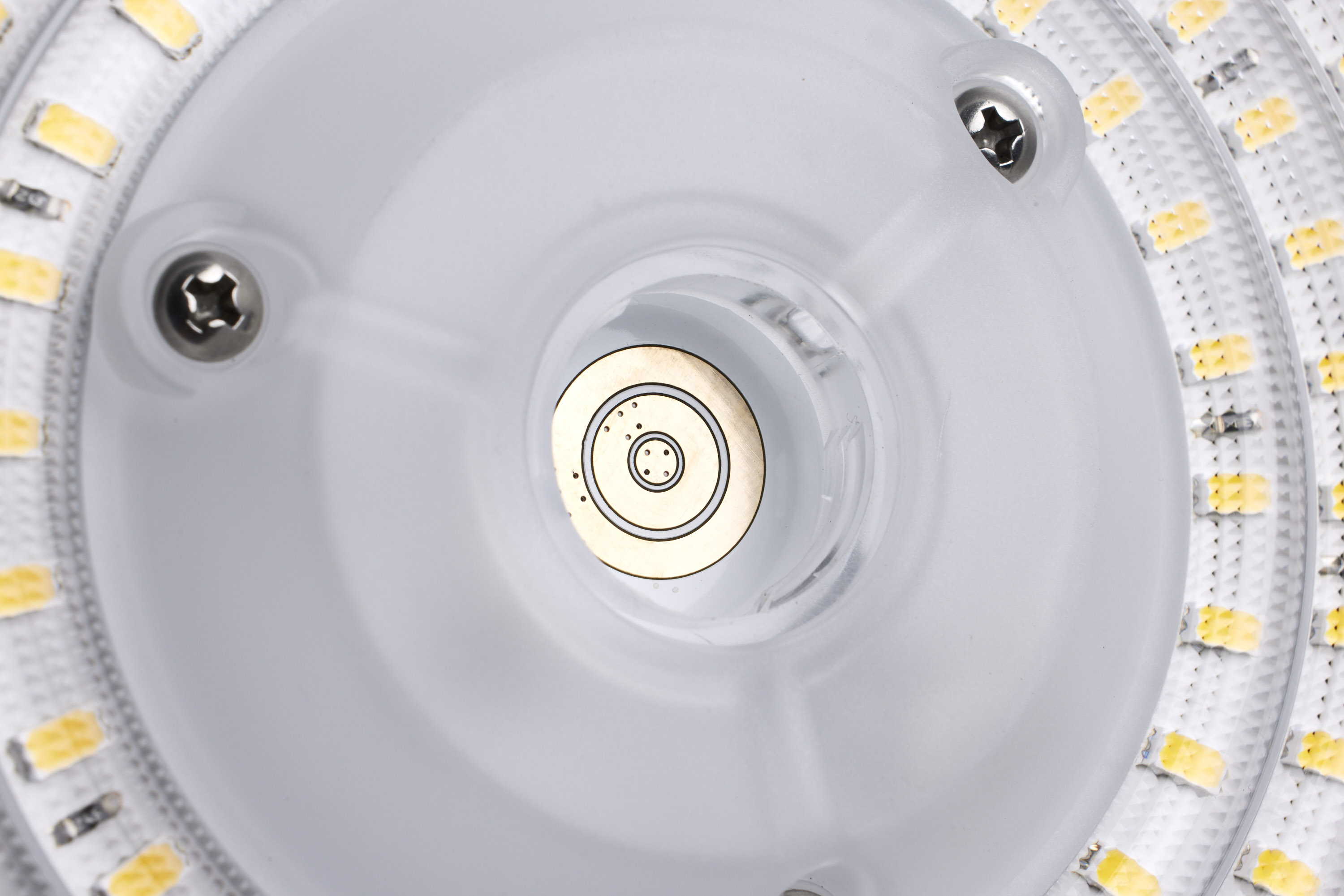

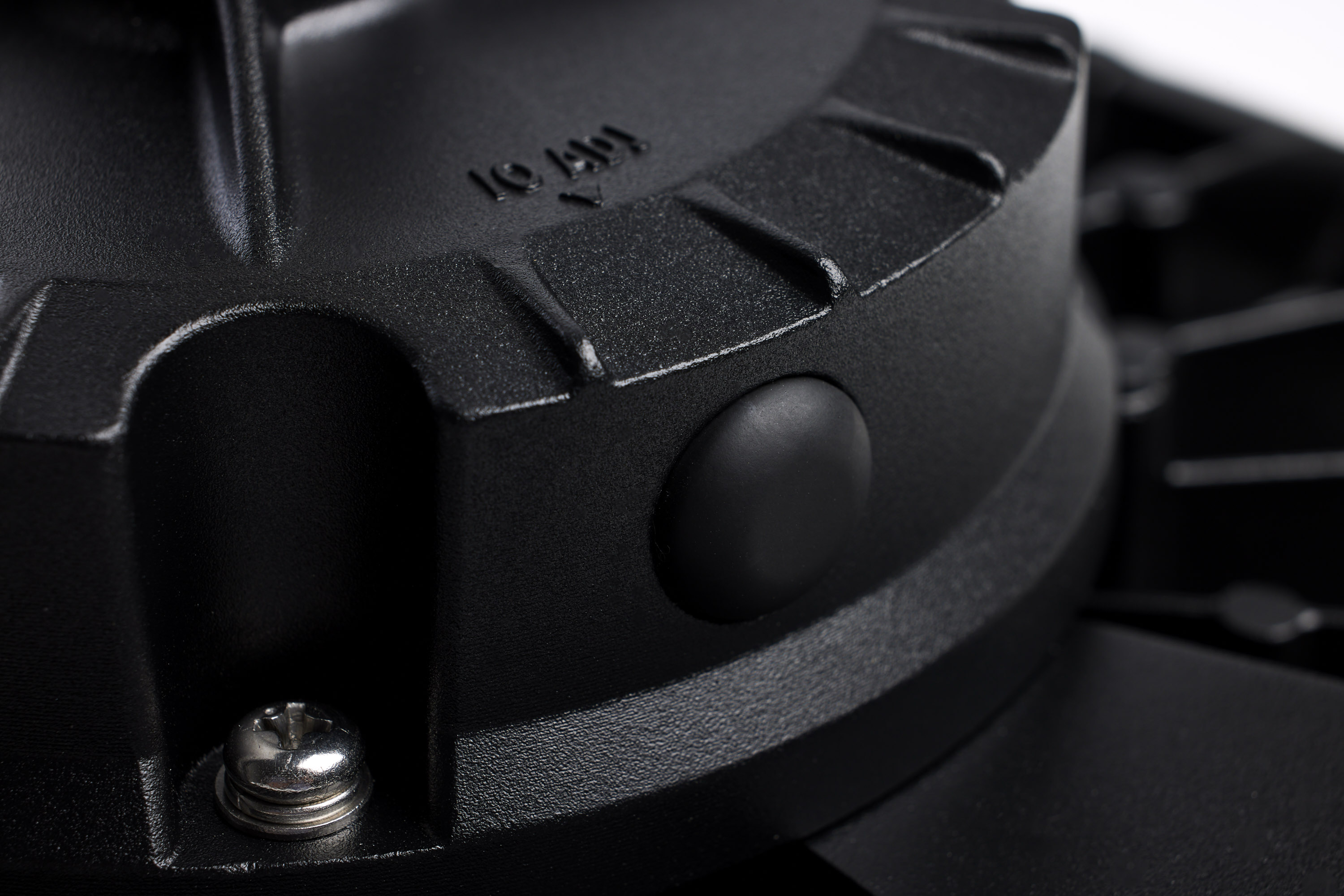

  • Integrated Sensor Port
  • IP65
  • 6KV Surge Protection
  • 6 Foot Whip
  • 90 degree Beam Angle
  • 50,000 hours
  • 5 Year Warranty
Lights

65-804R2

LED UFO HIGHBAY 150W/5000K

150 Watt UFO LED High Bay; 5000K; 21750 Lumens; 277-480 Volt; Black Finish

Introducing SATCO|NUVO's newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated, sensor port for easy field installation of an add on microwave sensor. They have a 90 degree beam angle, a locking hook, are IP65, 0-10V dimmable, and feature 6KV surge Protection. They are rated for 50,000 hours and carry a 5-year warranty. Offered with these is a full suite of accessories including yoke mounts, pendant adapters, protective cages, anti-glare shields, a sensor and remote and an add on EM.
  • Integrated Sensor Port
  • IP65
  • 6KV Surge Protection
  • 6 Foot Whip
  • 90 degree Beam Angle
  • 50,000 hours
  • 5 Year Warranty

Specifications

General
StatusActive
Fixture TypeUFO Hi-Bay
FinishBlack
Wattage150W
Lumen Output21750L
CCT (Kelvin)5000K
IP RatingIP65
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage150W
Lumen Output21750L
CCT (Kelvin)5000K
Color TemperatureNatural Light
CRI80
Voltage277V-480V
Beam Angle90
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only
Photocell or SensorOptional Add-On

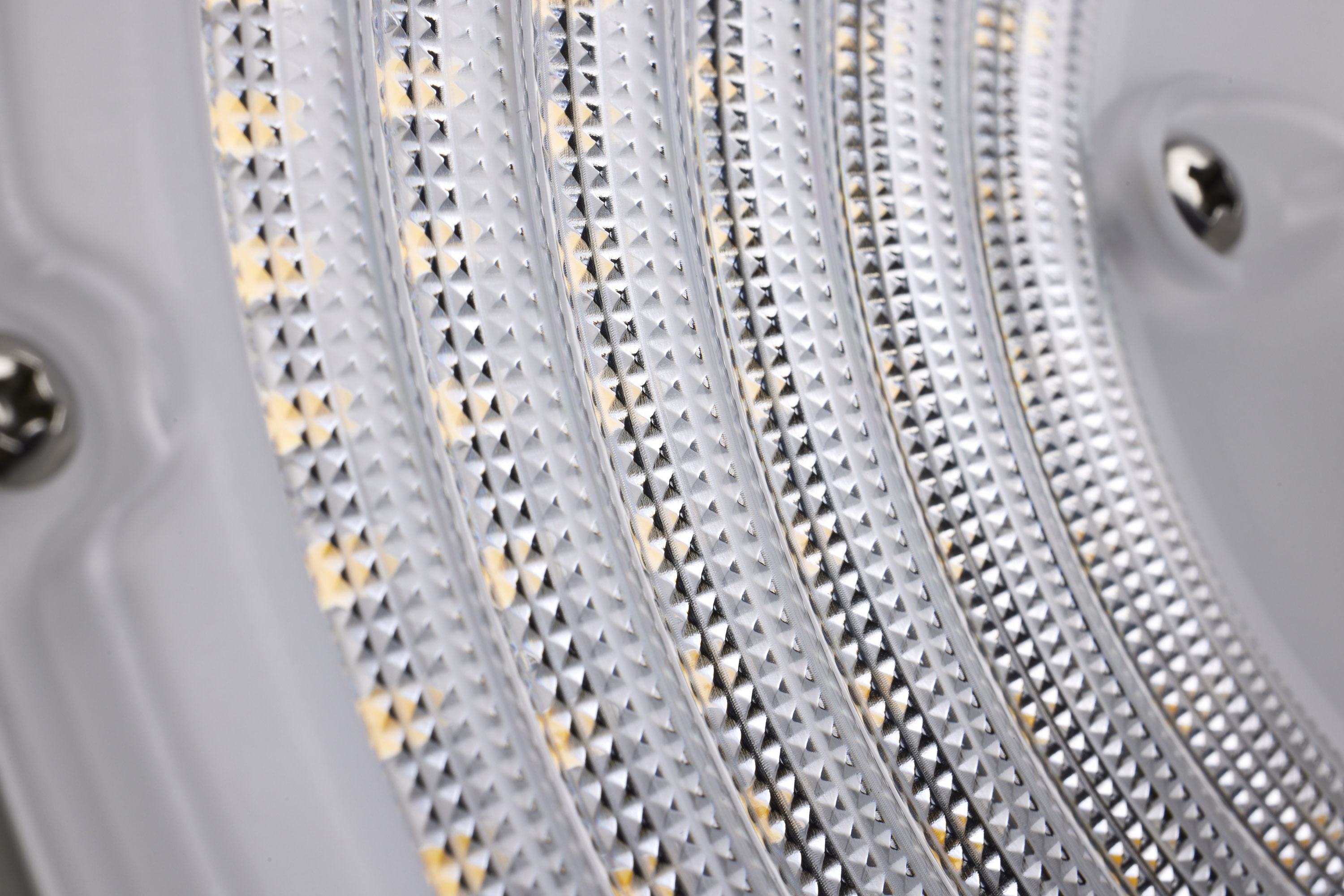

Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 6KV
Weight (lb.)6.58
IP RatingIP65
MaterialDie-cast Aluminum

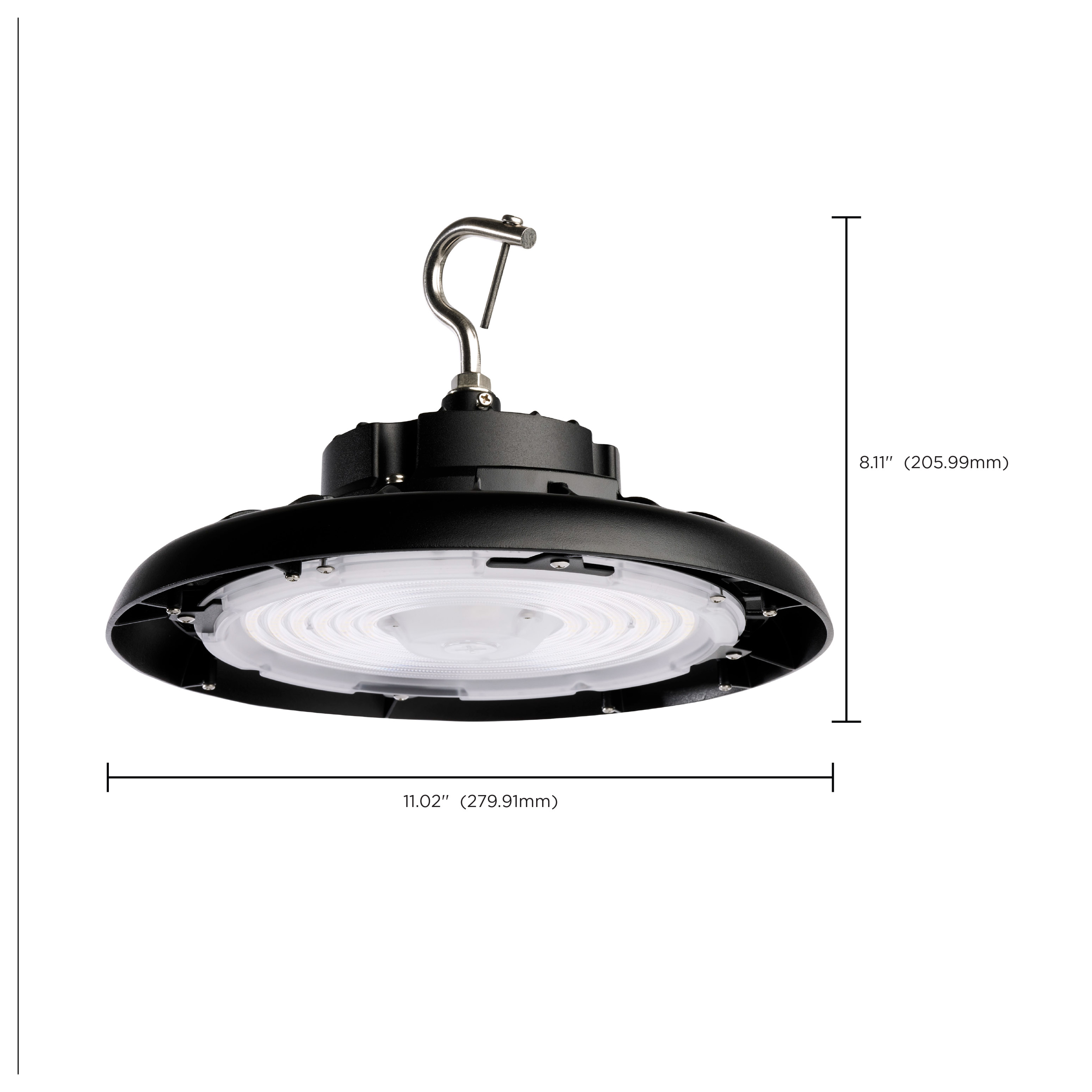

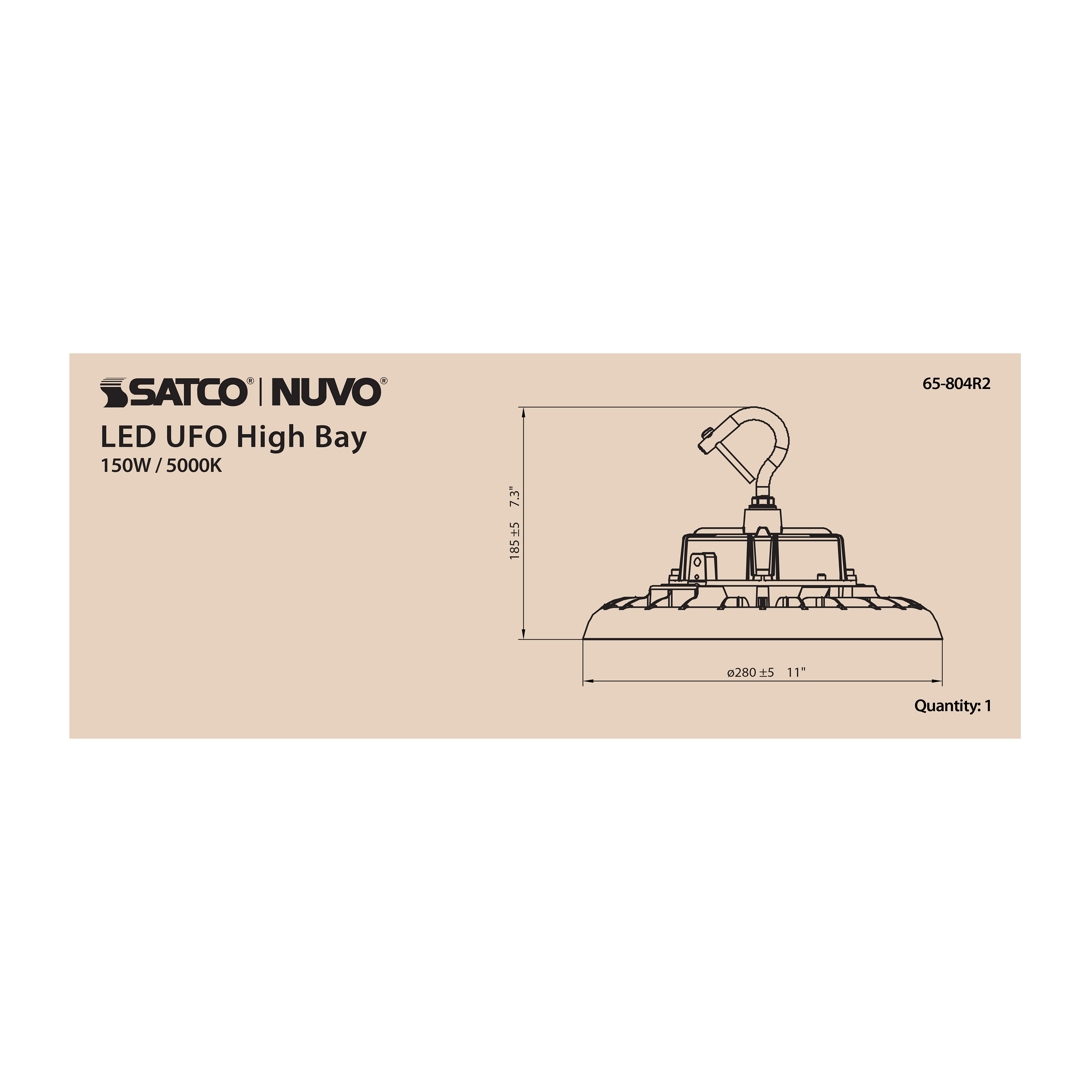

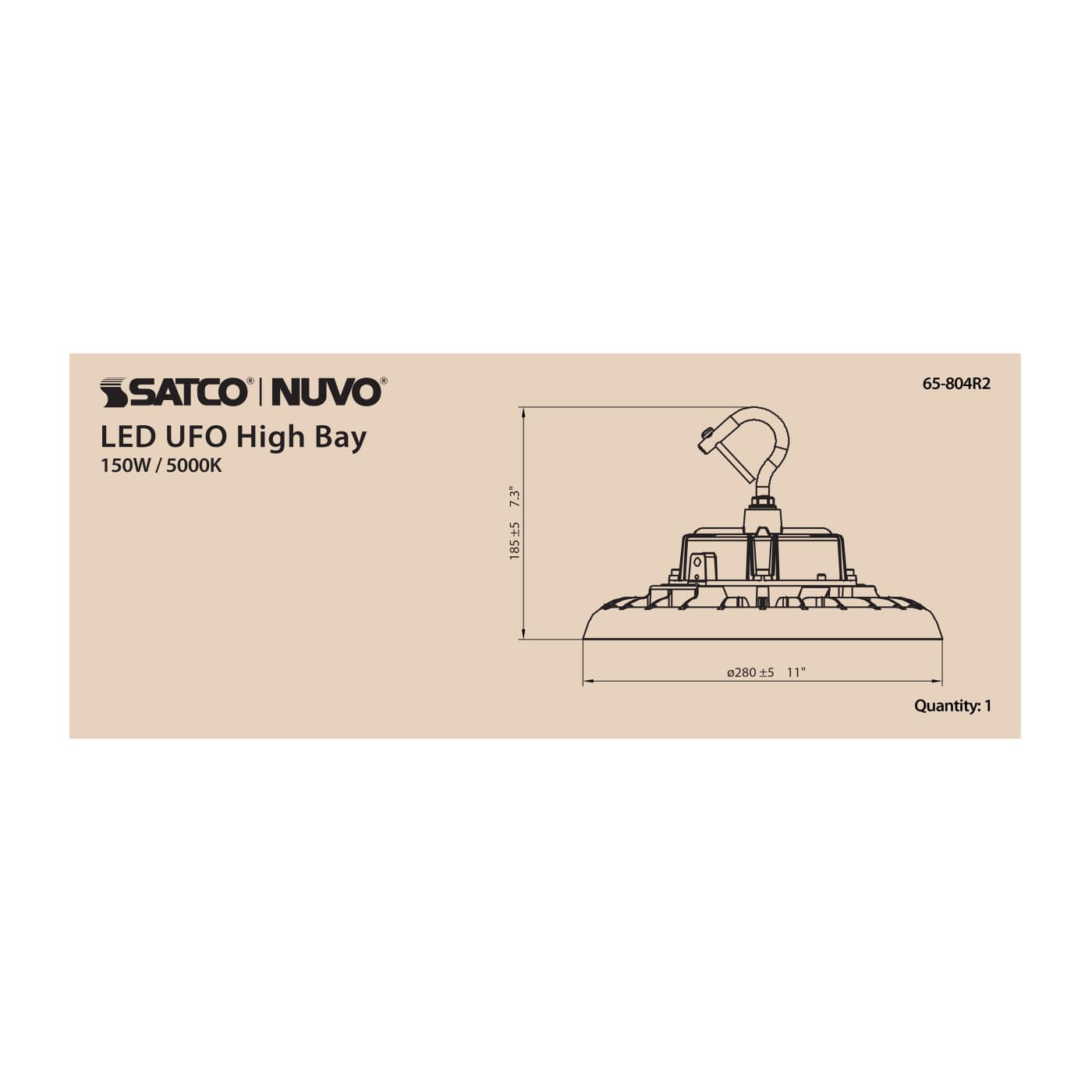

Dimensions
Height (in.)8.11
Width (in.)11.02
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-XEOBAC
NSF ApprovedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Installation NotesMounting Height: Up to 25 feet

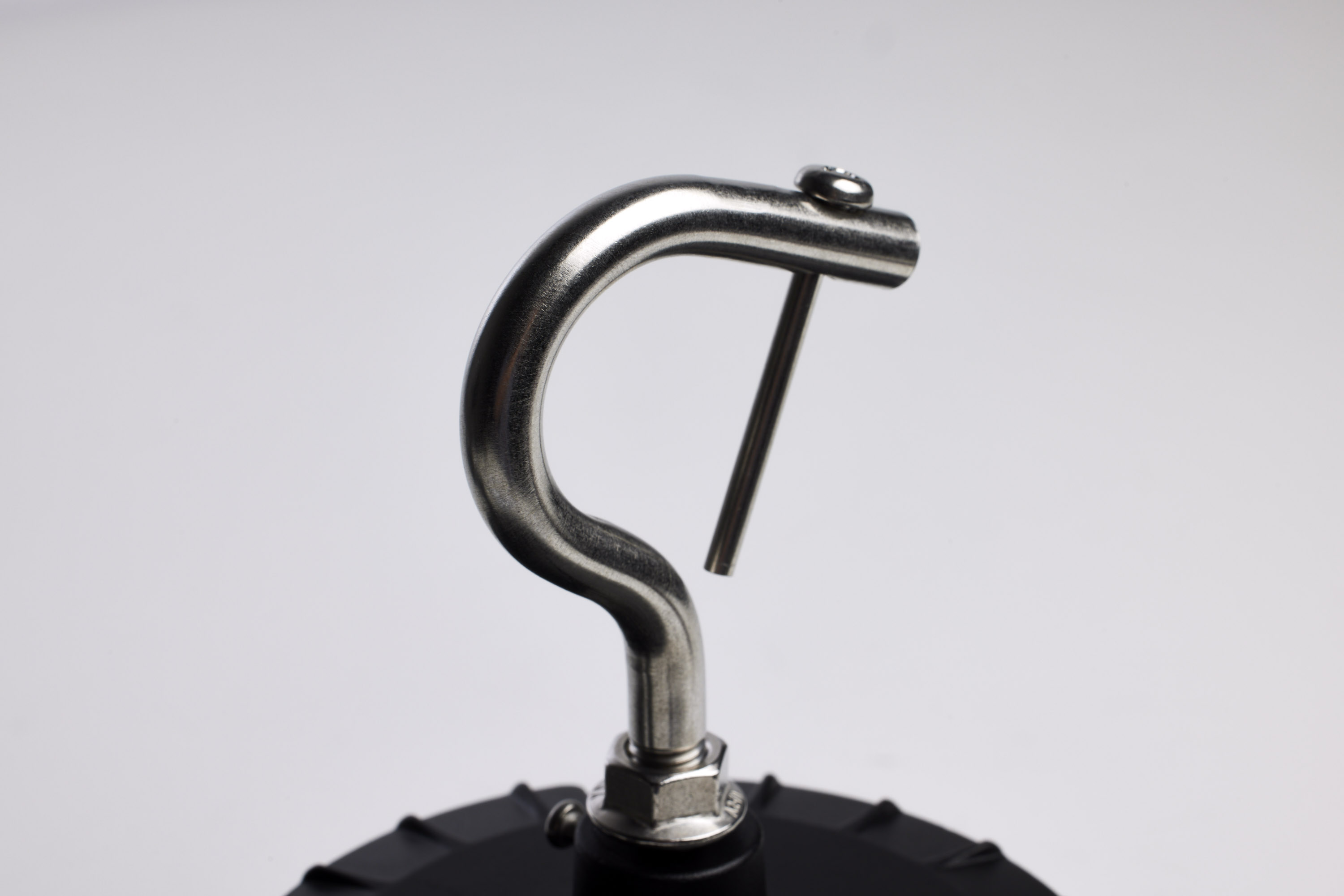

IncludesLocking Hanging Hook; 6 Foot Whip
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923648168
Each Quantity1
Each Length (in.)11.81
Each Width (in.)11.81
Each Height (in.)4.92
Each Weight (lb.)6.83
Each Cube (CuFt.)0.3971
Pack TypeKraft Box
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923648165
Case Quantity1
Case Length (in.)11.81
Case Width (in.)11.81
Case Height (in.)4.92
Case Weight (lb.)6.83
Case Cube (CuFt.)0.3971
