| Company | NUVO |
|---|---|
| Bulb Included | Integrated |

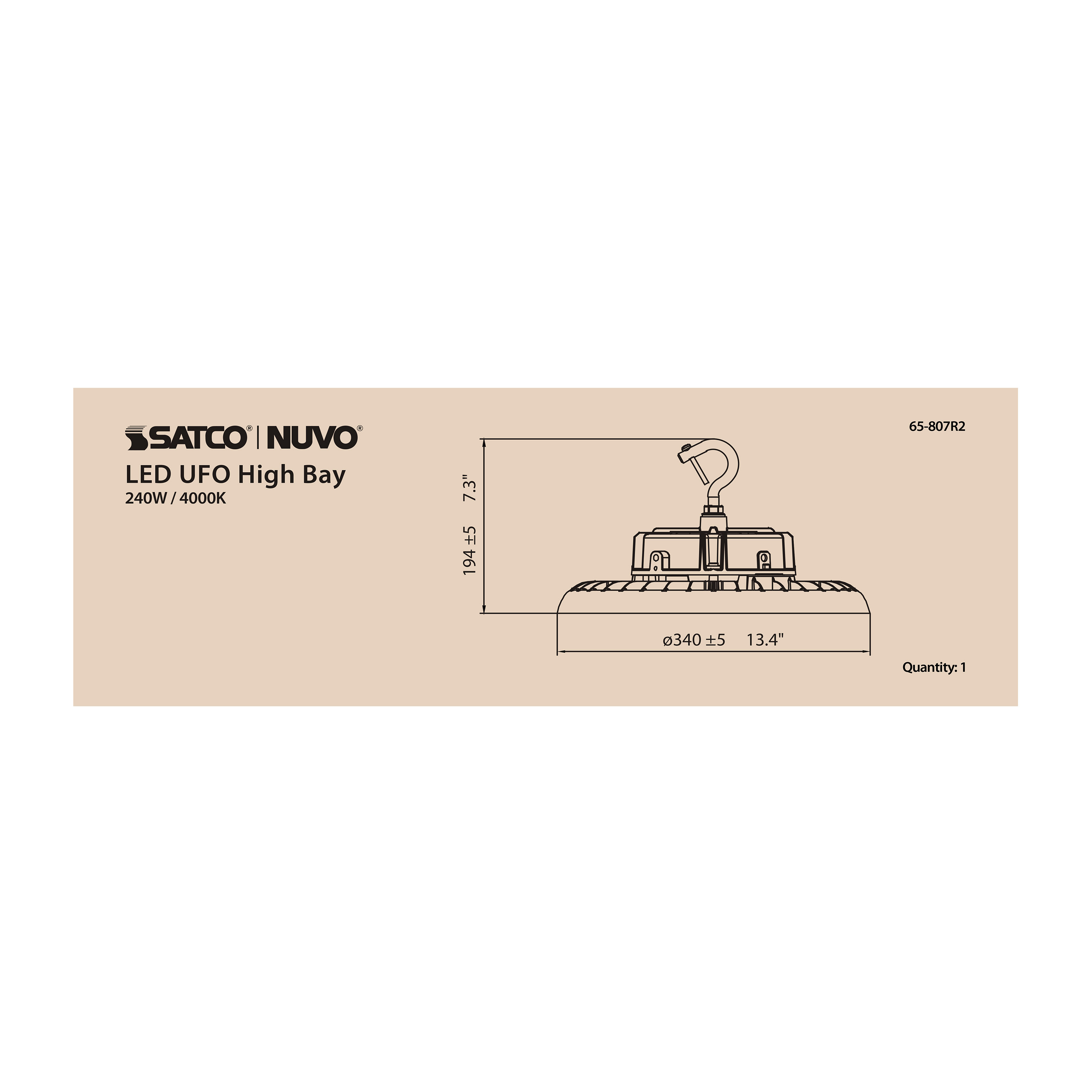

| Diameter | 13.39 |

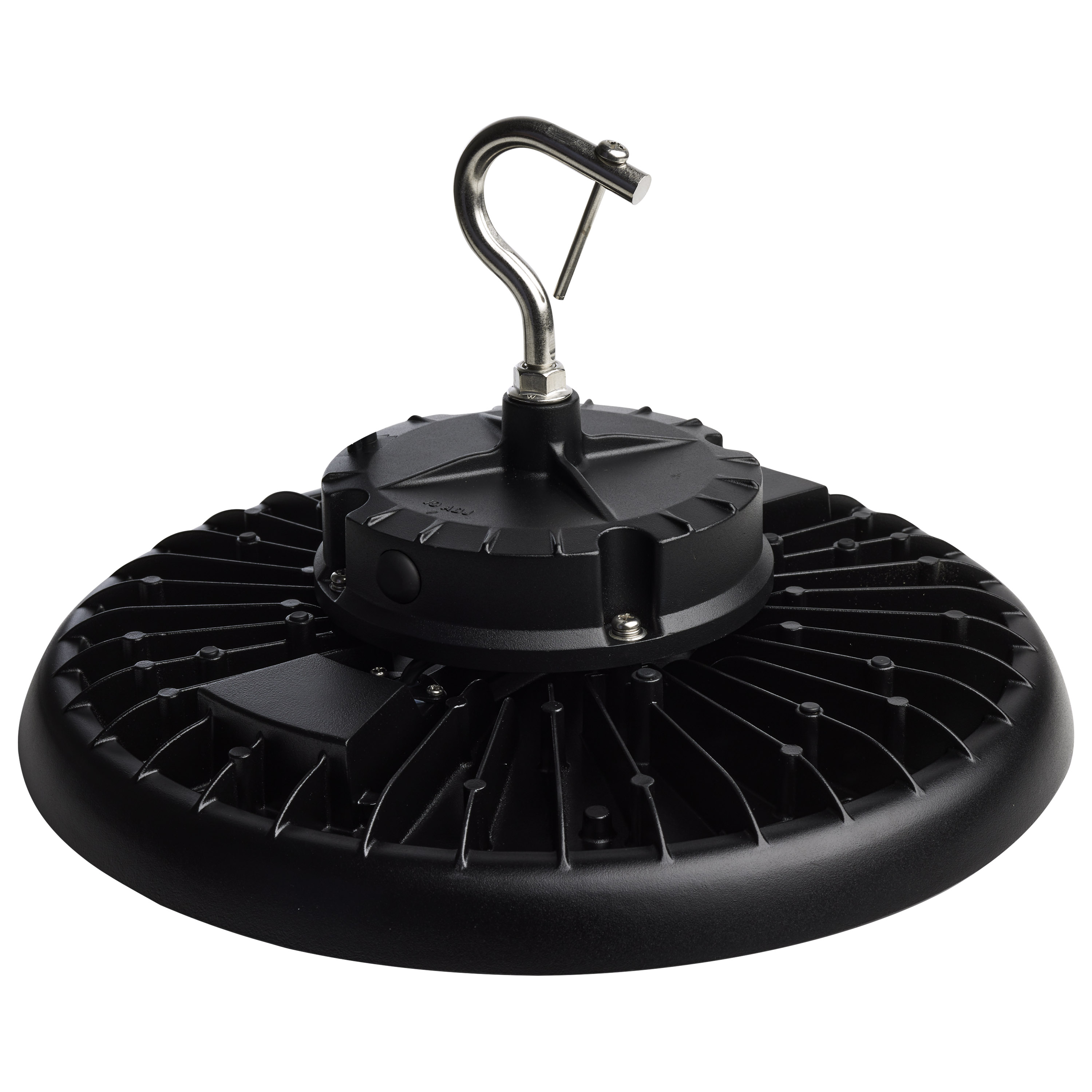

| Material | Die-cast Aluminum |

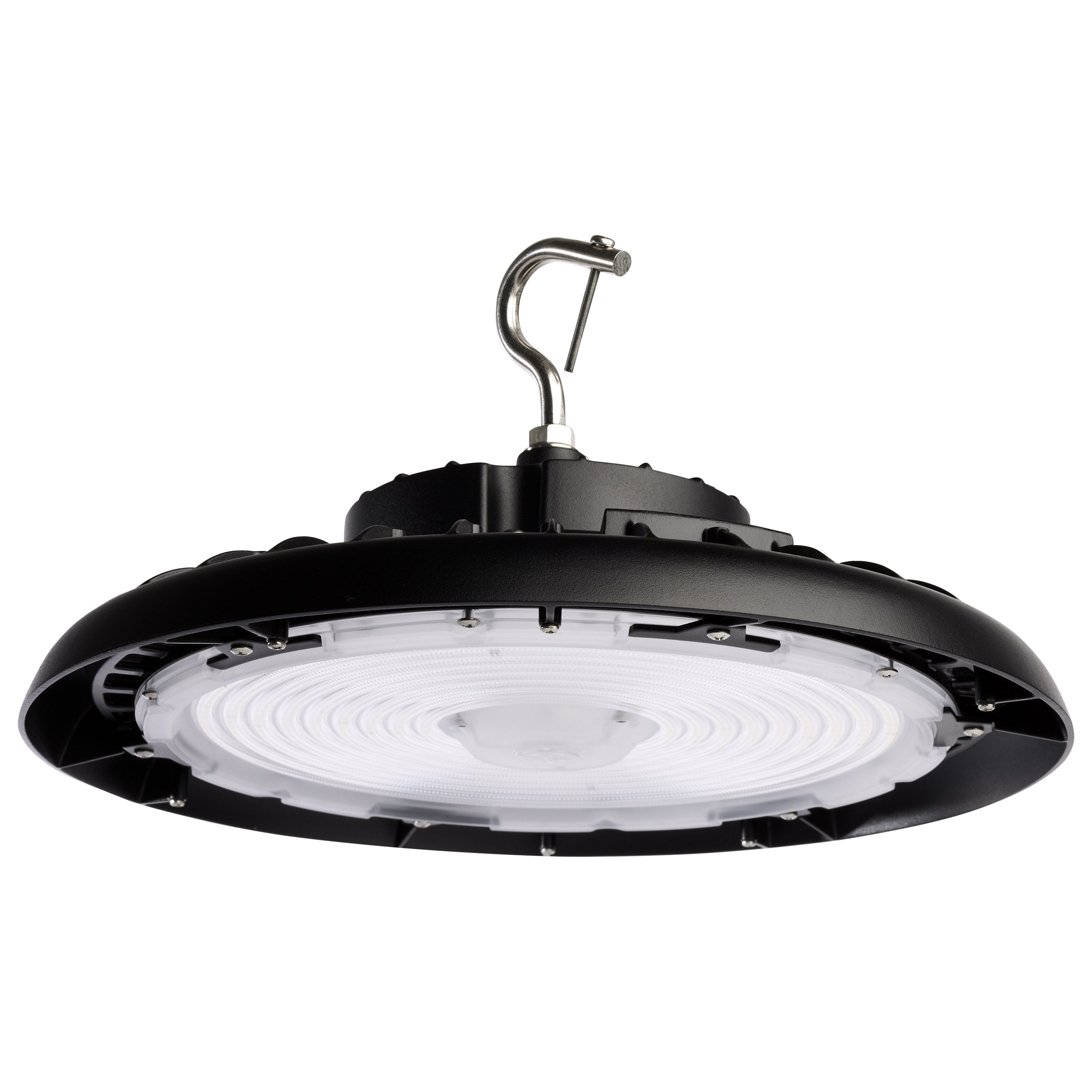

| Fixture Type | UFO Hi-Bay |

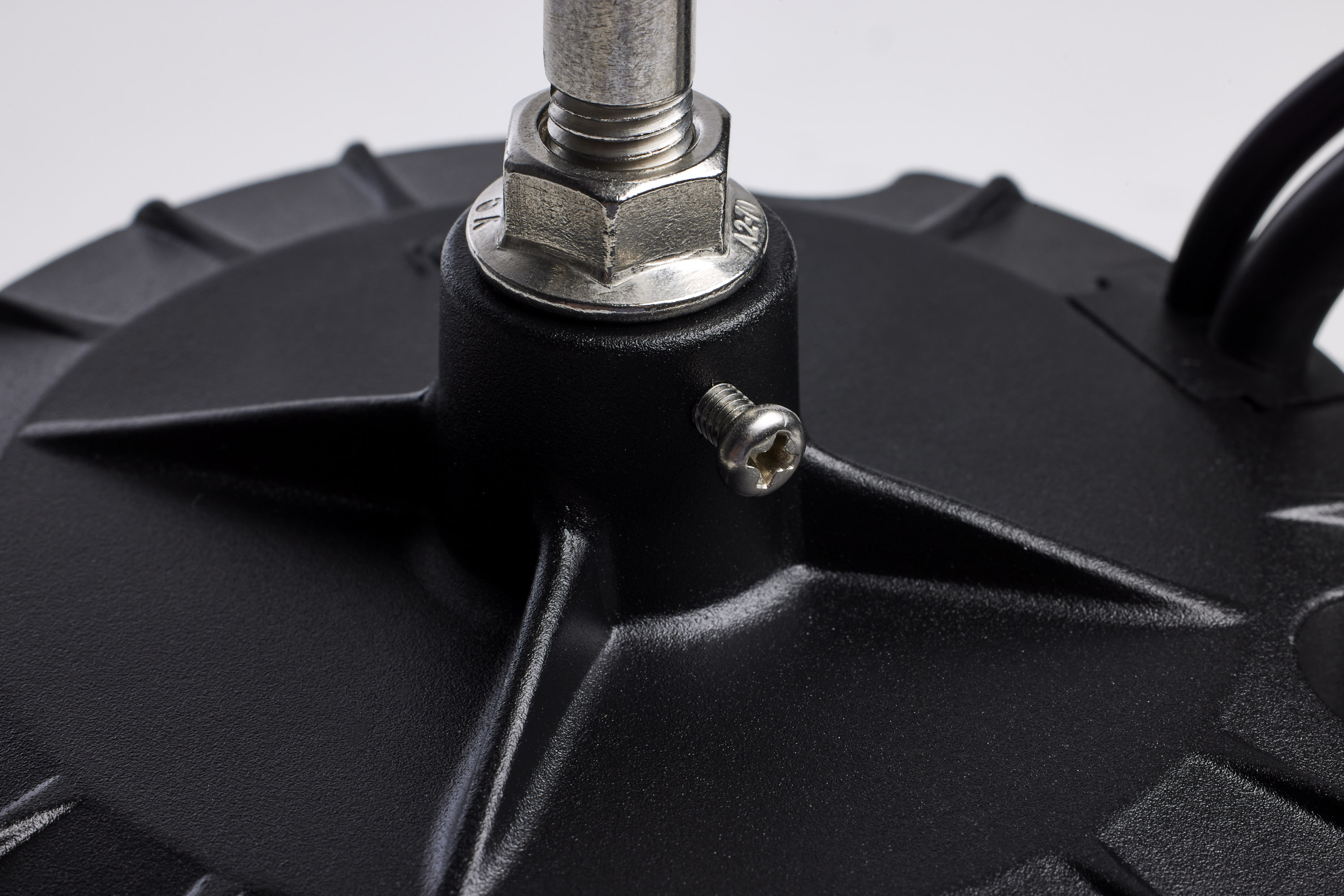

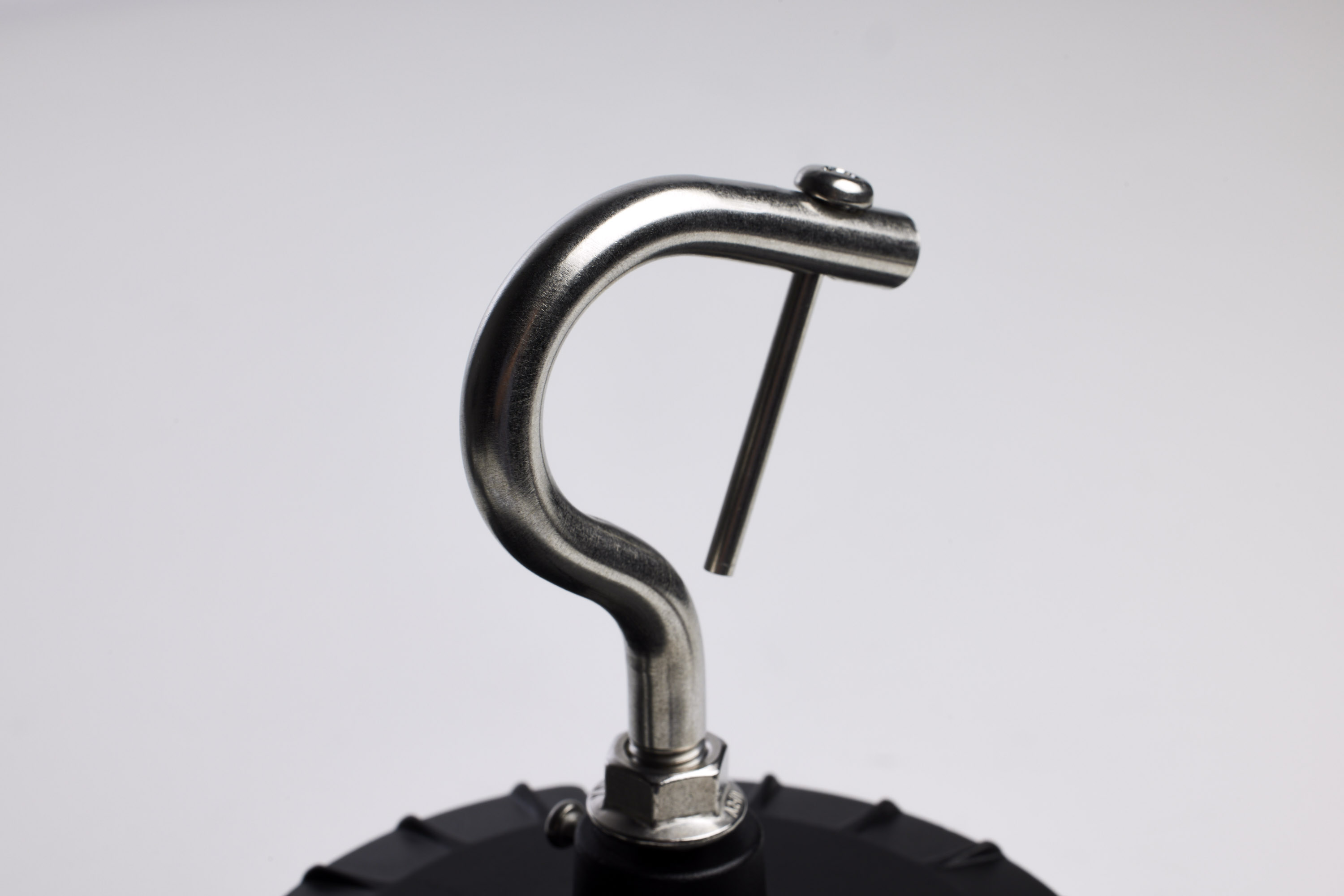

| Includes | Locking Hanging Hook; 6 Foot Whip |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | 15% |
| Wire Length | 72.0 |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | Black |
| Amps | 0.866-0.500A |
| Has Camera | No |

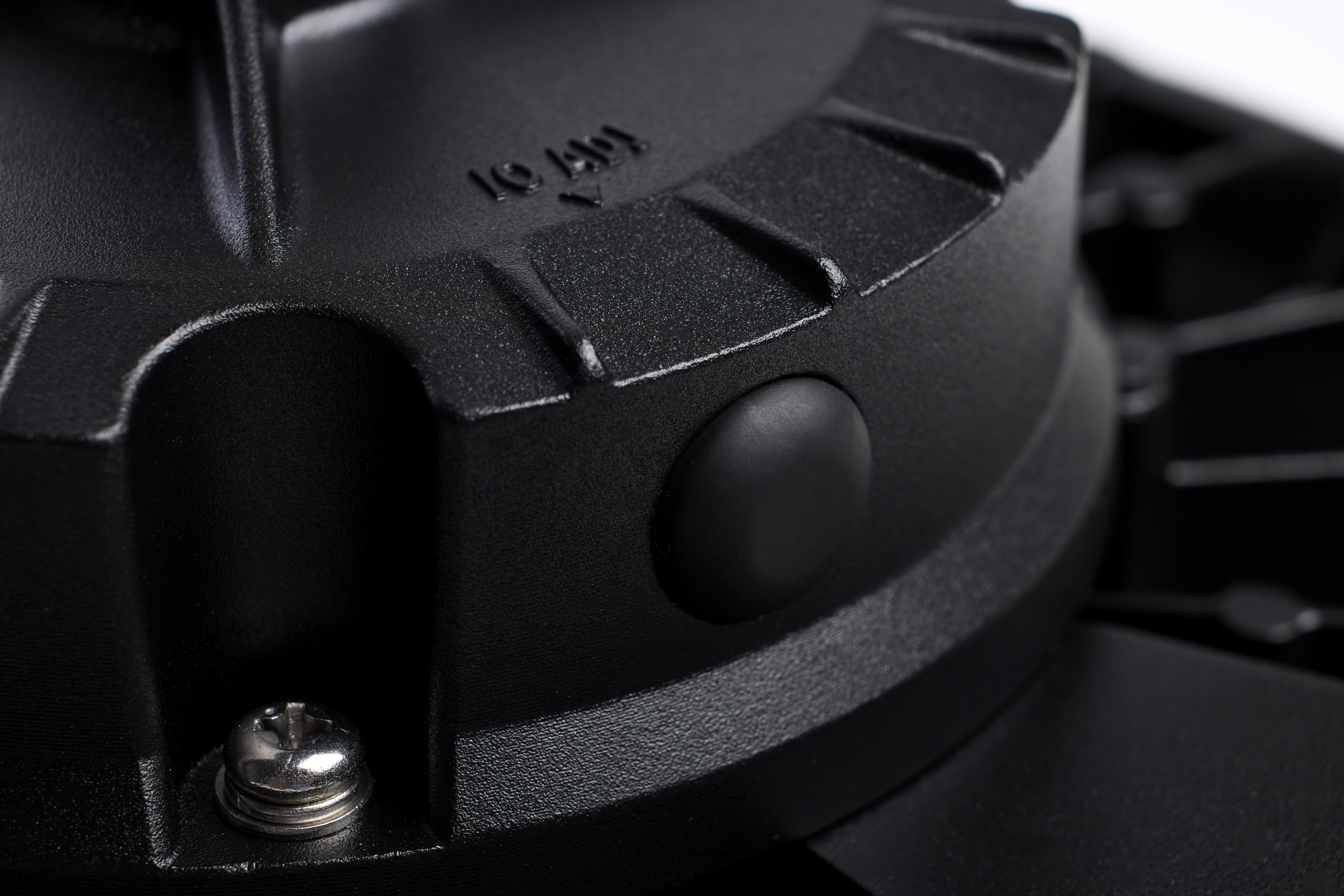

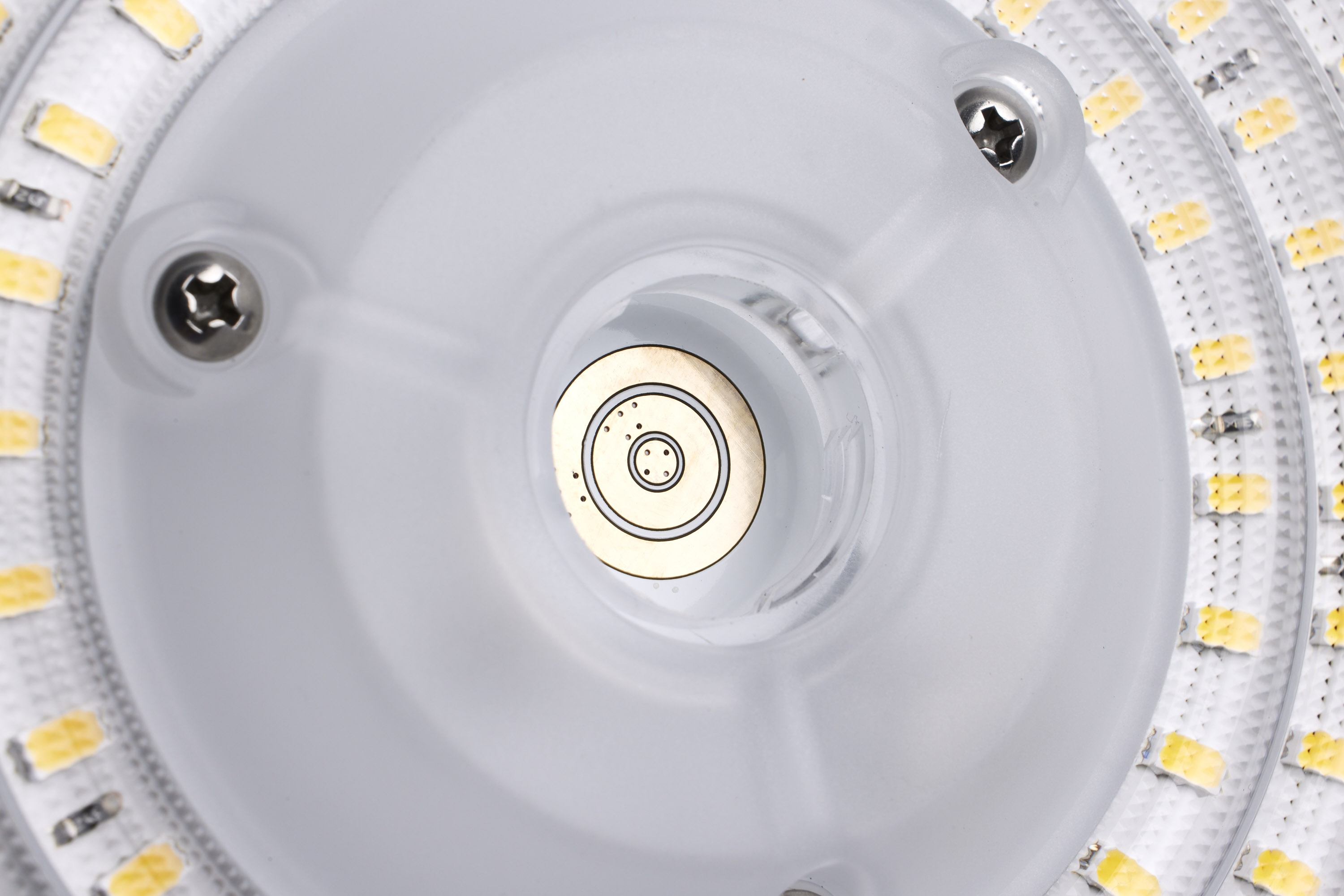

| Integrated Features | Integrated Sensor Port |
| IOT Enabled | No |

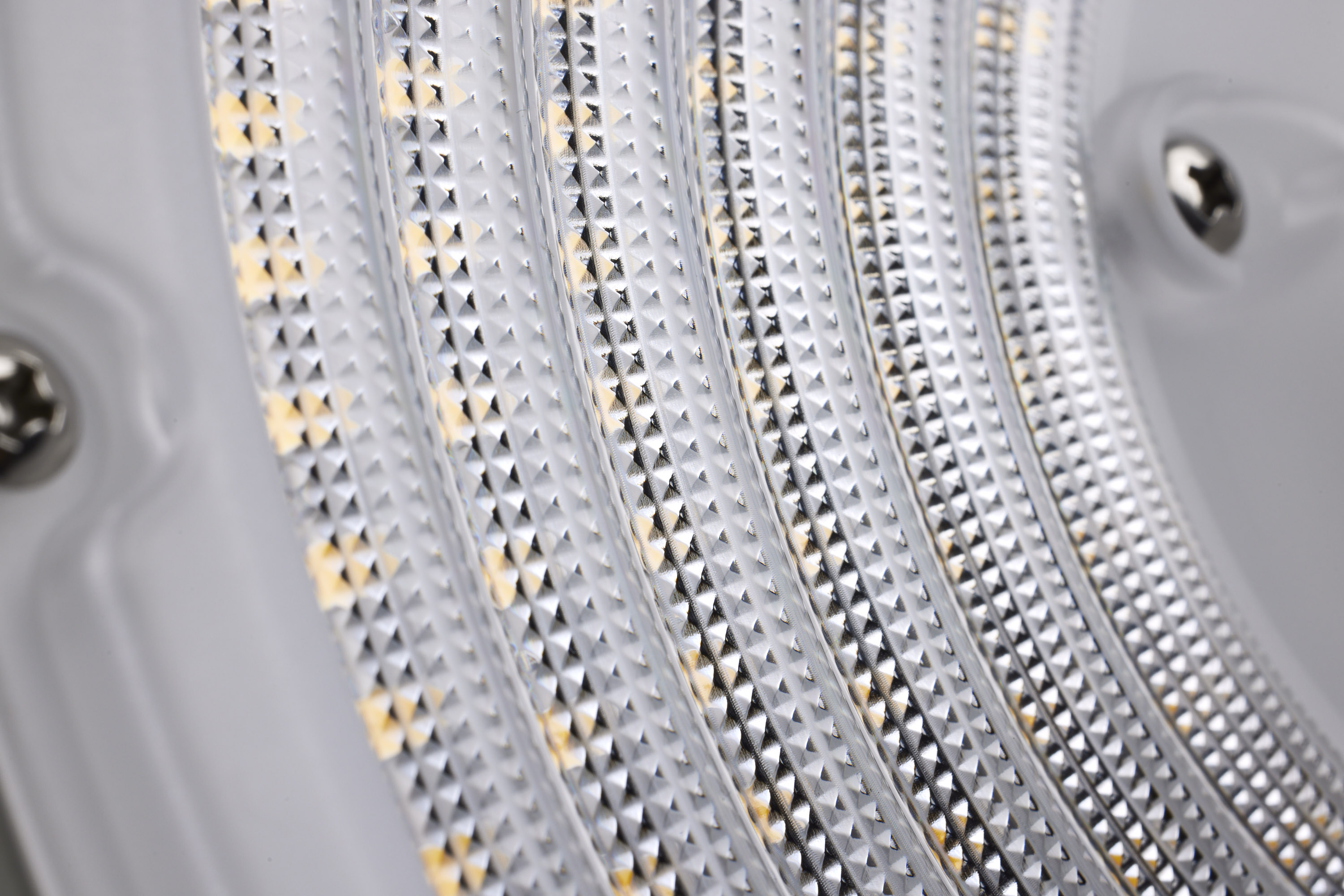

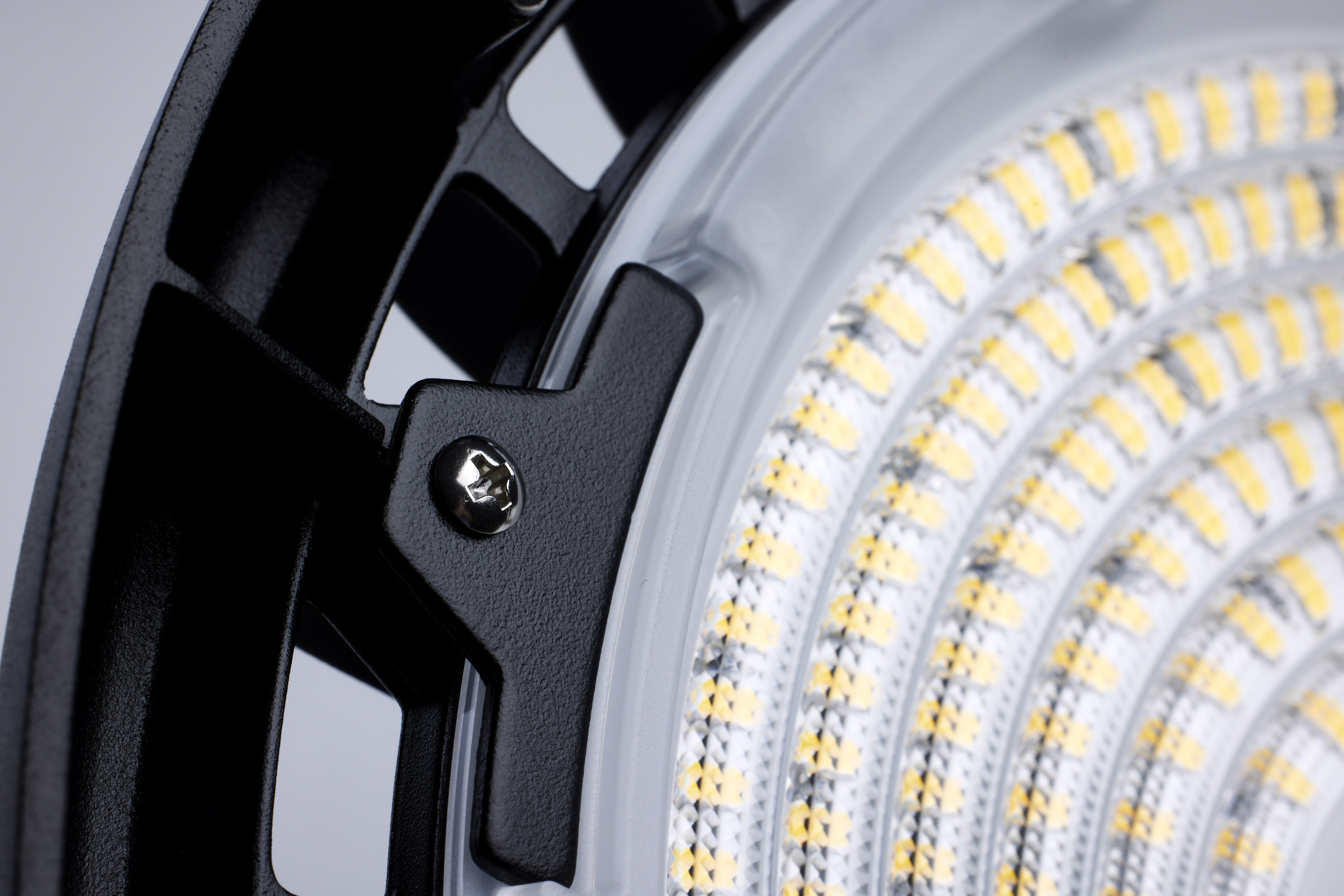

| Lens Material | Polycarbonate (PC) |
| Photo Cell | Optional Add-On |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |

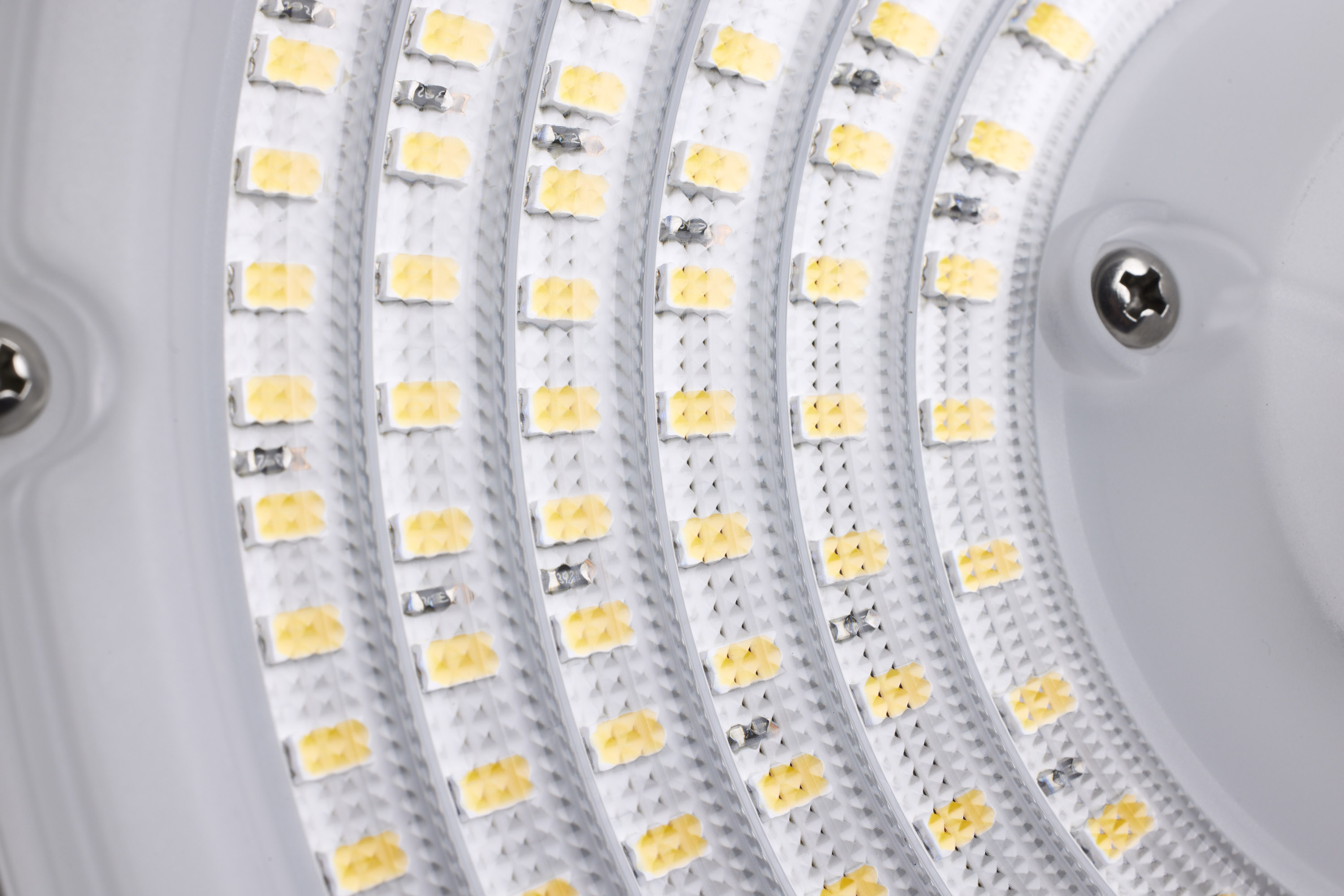

| Product Technology | LED |
| Incandescent Equivalent | 2000W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90 |
| Color Temp | Cool White |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40F to +113F (-40C to +45C) |
| HID Equivalent | 700W |
| Lumens | 33840L |
| Volts | 277V-480V |
| Watts | 240W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |

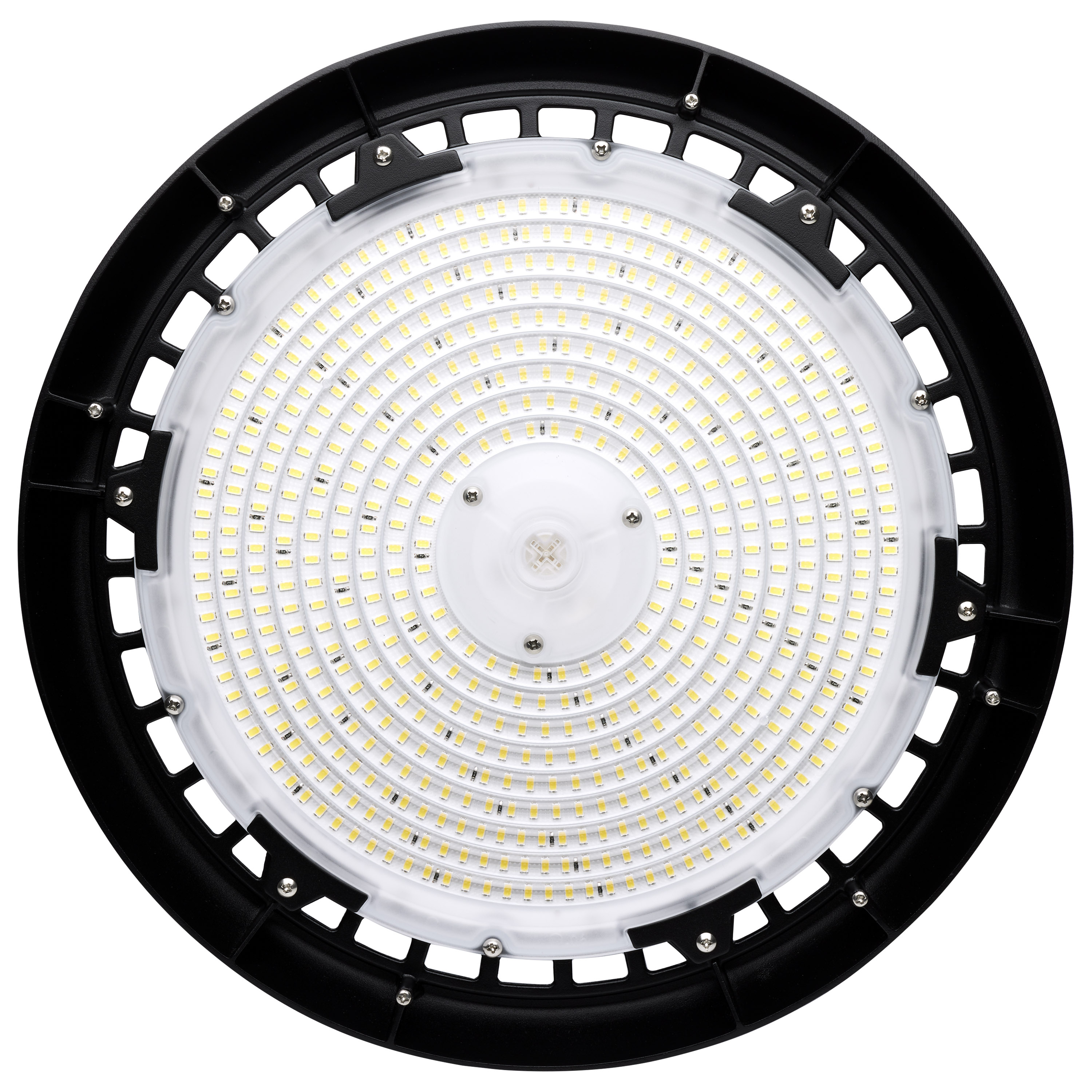

| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Mounting Height: Up to 35 feet |
| CA Prop 65 | Lead |
|---|---|
| DLC ID | S-XMQ3SW |
| FCC Compliant | Yes |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923648199 |
|---|---|
| Case Cube | 0.5717 |
| Case Height | 4.92 |
| Case Length | 14.17 |
| Case Quantity | 1 |
| Case UPC | 10045923648196 |
| Case Weight | 10.36 |
| Case Width | 14.17 |
| EA Cube | 0.5717 |
| EA Height | 4.92 |
| EA Length | 14.17 |
| EA Quantity | 1 |
| EA Weight | 10.36 |
| EA Width | 14.17 |
| Pack Type | Brown Box |

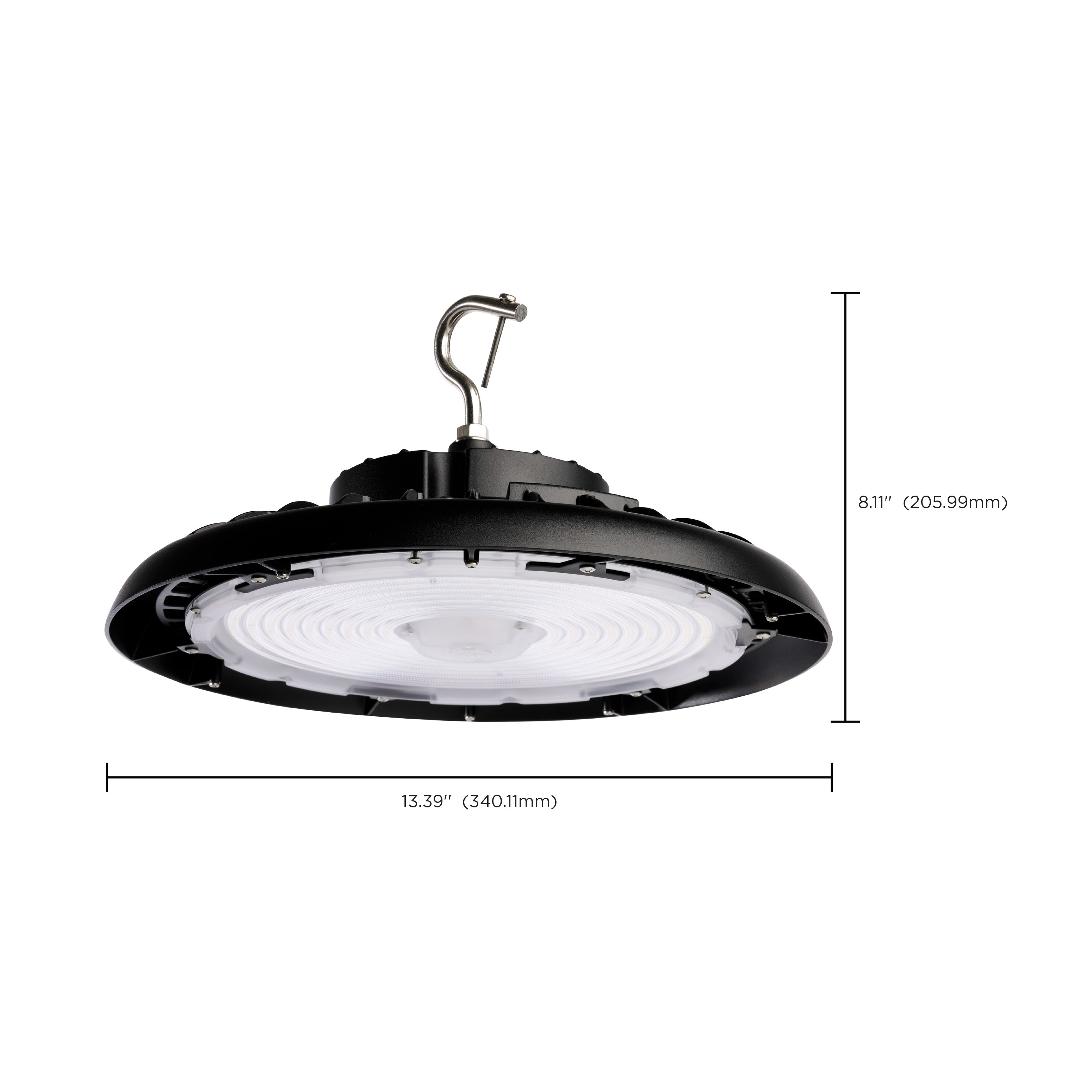

| Web Height | 8.11 |
| Web Width | 13.39 |
