65-808R2

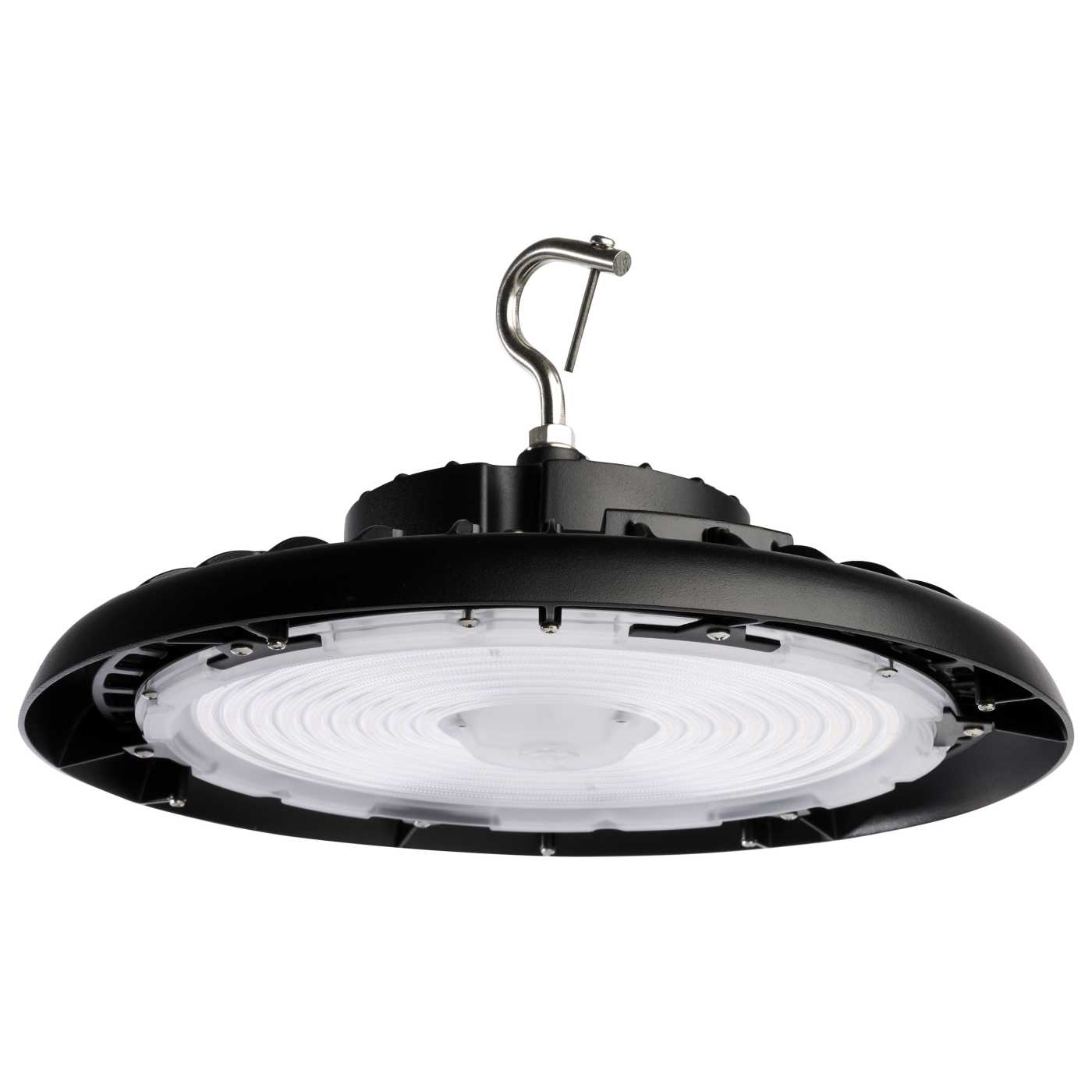

LED UFO HIGHBAY 240W/5000K

240 Watt UFO LED High Bay; 5000K; 34800 Lumens; 277-480 Volt; Black Finish

Introducing SATCO|NUVO's newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated, sensor port for easy field installation of an add on microwave sensor. They have a 90 degree beam angle, a locking hook, are IP65, 0-10V dimmable, and feature 6KV surge Protection. They are rated for 50,000 hours and carry a 5-year warranty. Offered with these is a full suite of accessories including yoke mounts, pendant adapters, protective cages, anti-glare shields, a sensor and remote and an add on EM.

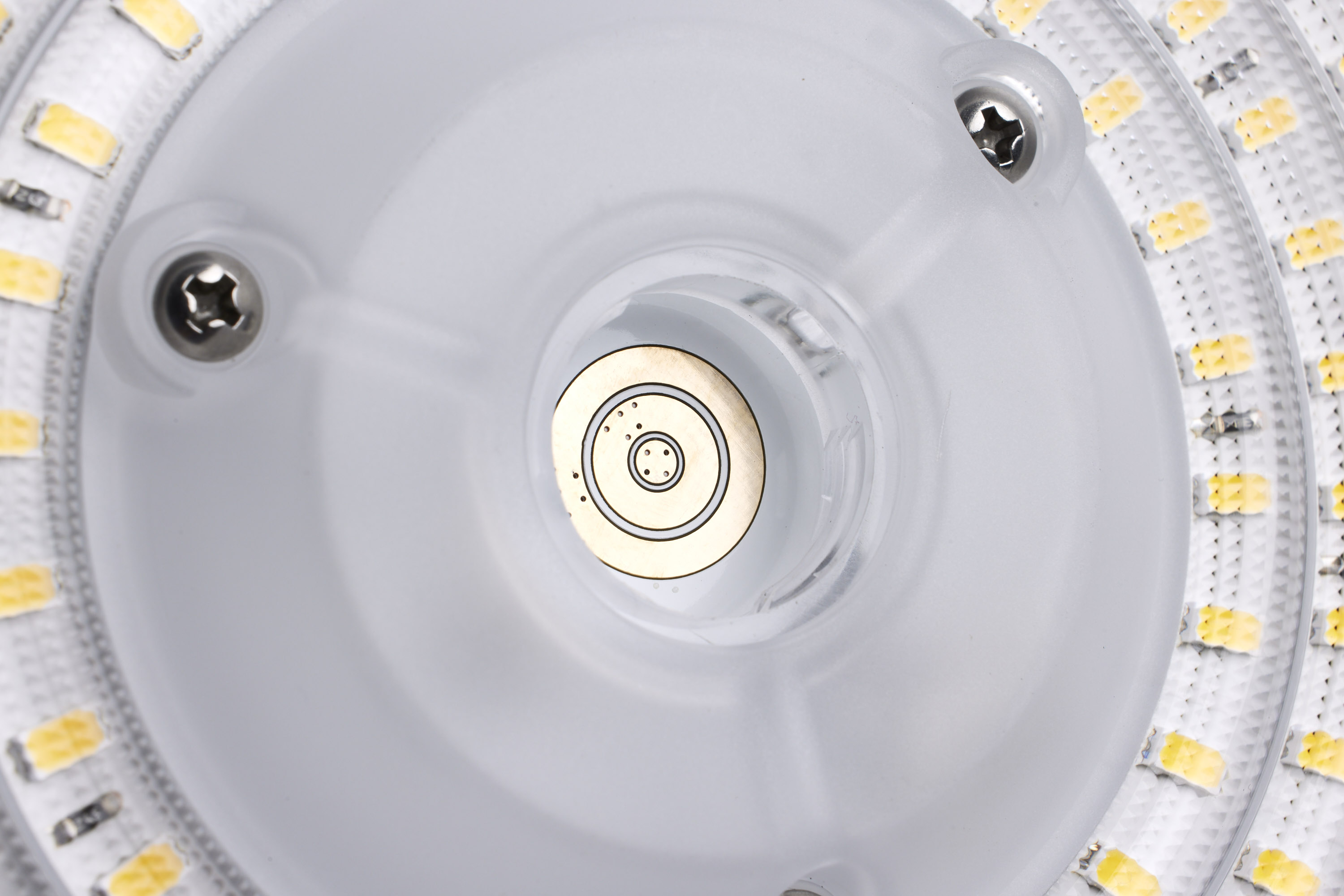

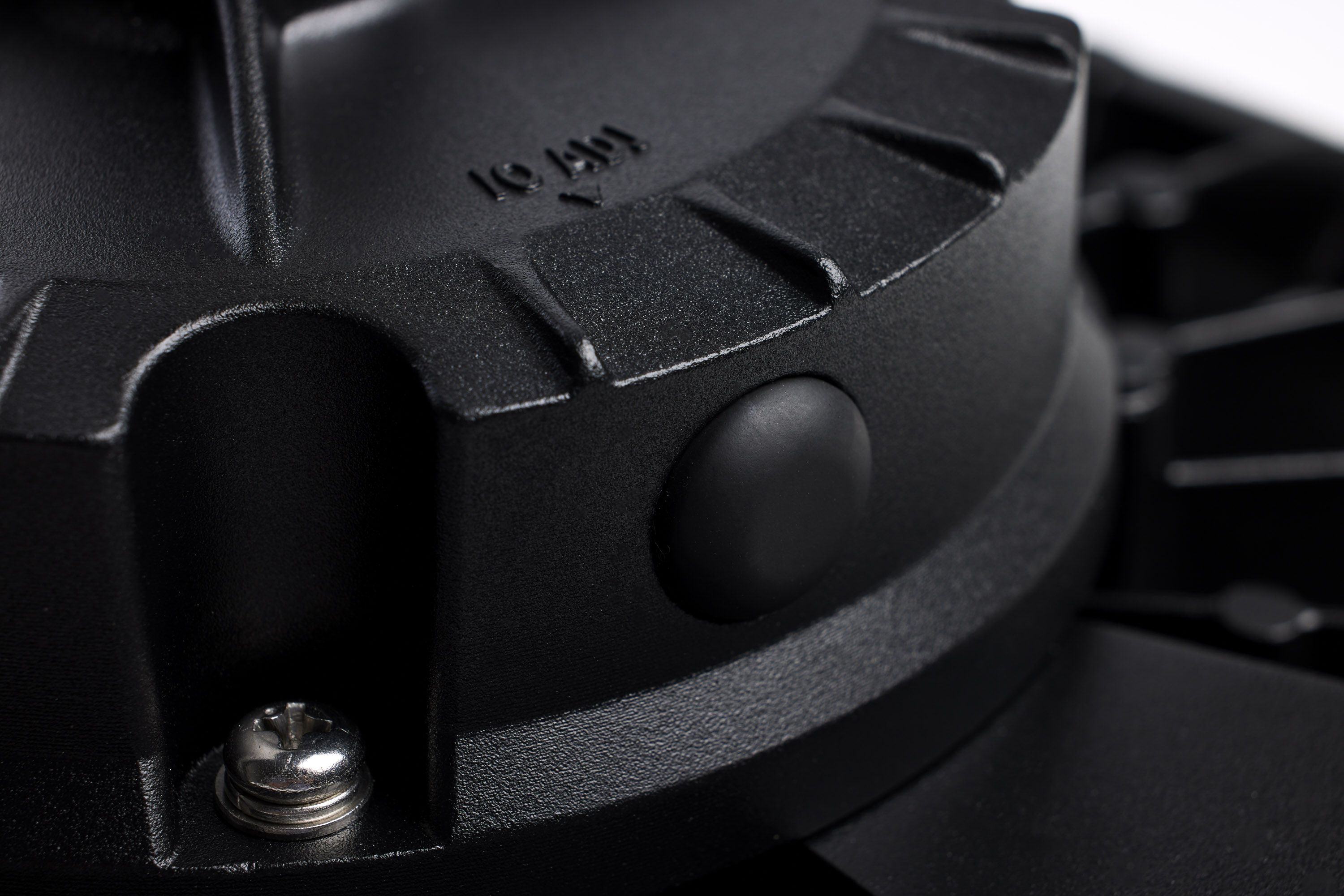

Integrated Sensor Port
IP65
6KV Surge Protection
6 Foot Whip
90 degree Beam Angle
50,000 hours
5 Year Warranty

65-808R2

LED UFO HIGHBAY 240W/5000K

240 Watt UFO LED High Bay; 5000K; 34800 Lumens; 277-480 Volt; Black Finish

Integrated Sensor Port
IP65
6KV Surge Protection
6 Foot Whip
90 degree Beam Angle
50,000 hours
5 Year Warranty

LED UFO High Bay Fixtures

Specifications

Minimize

General

Status	Active
Fixture Type	UFO Hi-Bay
Finish	Black
Wattage	240W
Lumen Output	34800L
CCT (Kelvin)	5000K
IP Rating	IP65
Indoor or Outdoor Fixture	Indoor

Specifications

Technology	LED
Wattage	240W
Lumen Output	34800L
CCT (Kelvin)	5000K
Color Temperature	Natural Light
CRI	80
Voltage	277V-480V
Beam Angle	90
Rated Hours	50000
Operating Temperature	-40C (-40F) to +45C (+113F)
Dimmable	Yes-Dimmable
Dimming Note	0-10V Dimming Only
Photocell or Sensor	Optional Add-On
Lens Material	Polycarbonate (PC)
Surge Protection	Built-in surge protection - 6KV
Weight (lb.)	10.11
IP Rating	IP65
Material	Die-Cast Aluminum

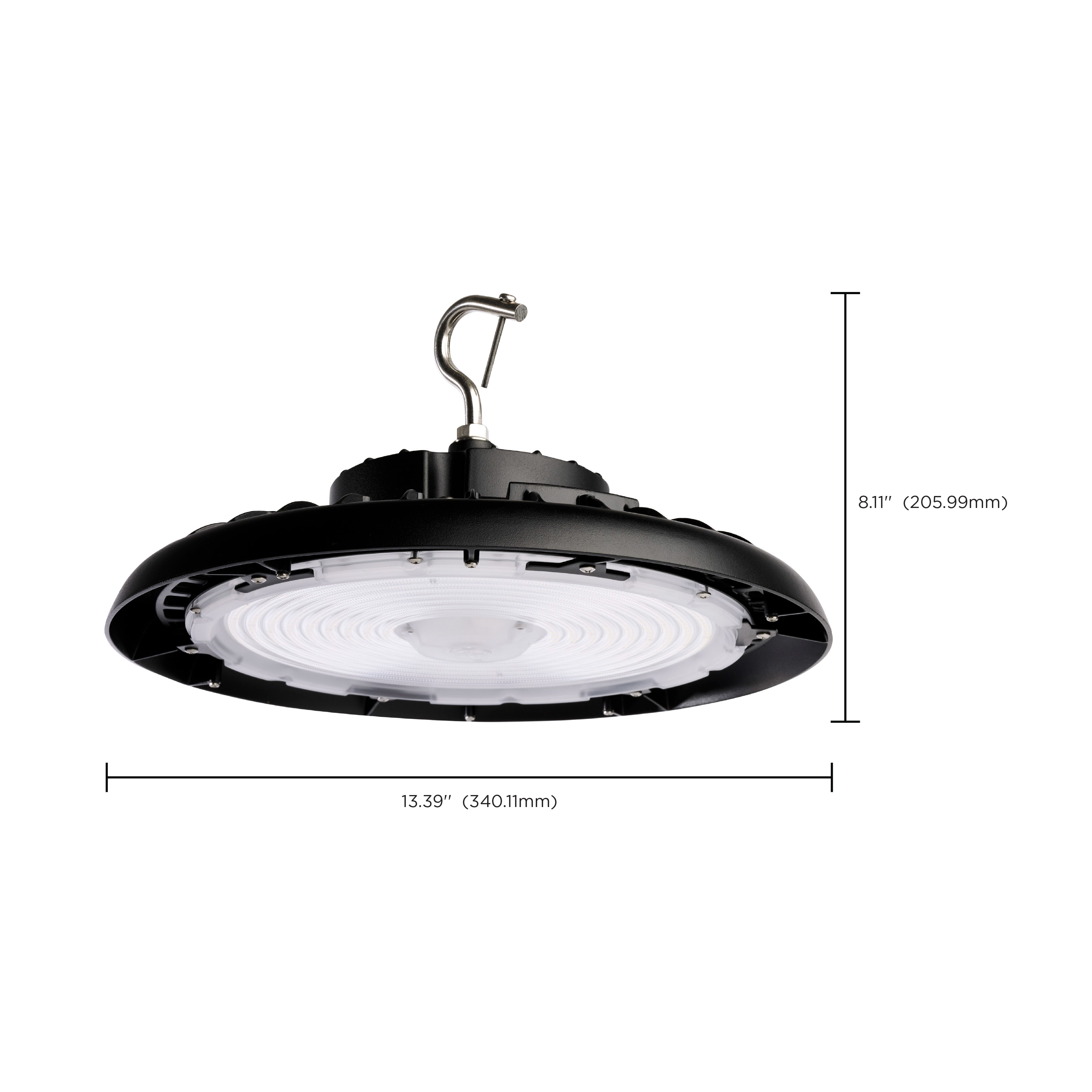

Dimensions

Height (in.)	8.11
Width (in.)	13.39

Compliance

Safety Listing	cULus - Listed
Location Rating	Wet
Energy Star	No
DLC Approved	Yes
DLC ID	S-LNAWD2
NSF Approved	Yes
CA T20 / T24 Rationale	T20 Exempt - Fixtures Not Regulated
California Prop 65	Lead
RoHS Compliant	Yes
FCC Compliant	Yes
SDS Sheet	LED Fixture

Additional Information

Installation Notes	Mounting Height: Up to 35 feet

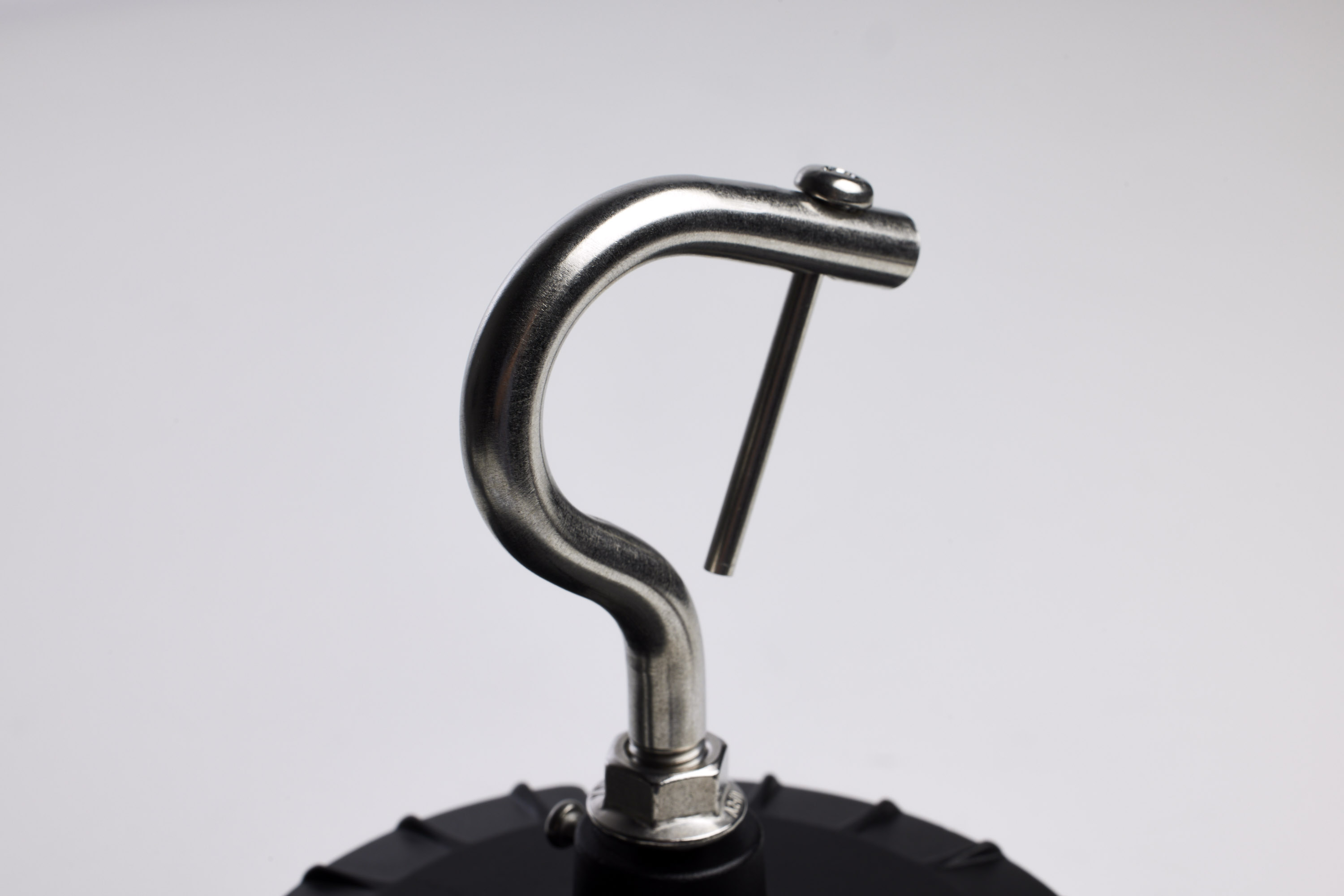

Includes	Locking Hanging Hook; 6 Foot Whip
Warranty	5 Year Limited - Fixtures

Packaging

Each UPC	045923648205
Each Quantity	1
Each Length (in.)	14.17
Each Width (in.)	14.17
Each Height (in.)	4.92
Each Weight (lb.)	10.36
Each Cube (CuFt.)	0.5717
Pack Type	Kraft Box
Inner Quantity	0
Inner Length (in.)	0.00
Inner Width (in.)	0.00
Inner Height (in.)	0.00
Inner Weight (lb.)	0.00
Inner Cube (CuFt.)	0.0000
Case UPC	10045923648202
Case Quantity	1
Case Length (in.)	14.17
Case Width (in.)	14.17
Case Height (in.)	4.92
Case Weight (lb.)	10.36
Case Cube (CuFt.)	0.5717
