65-822R1

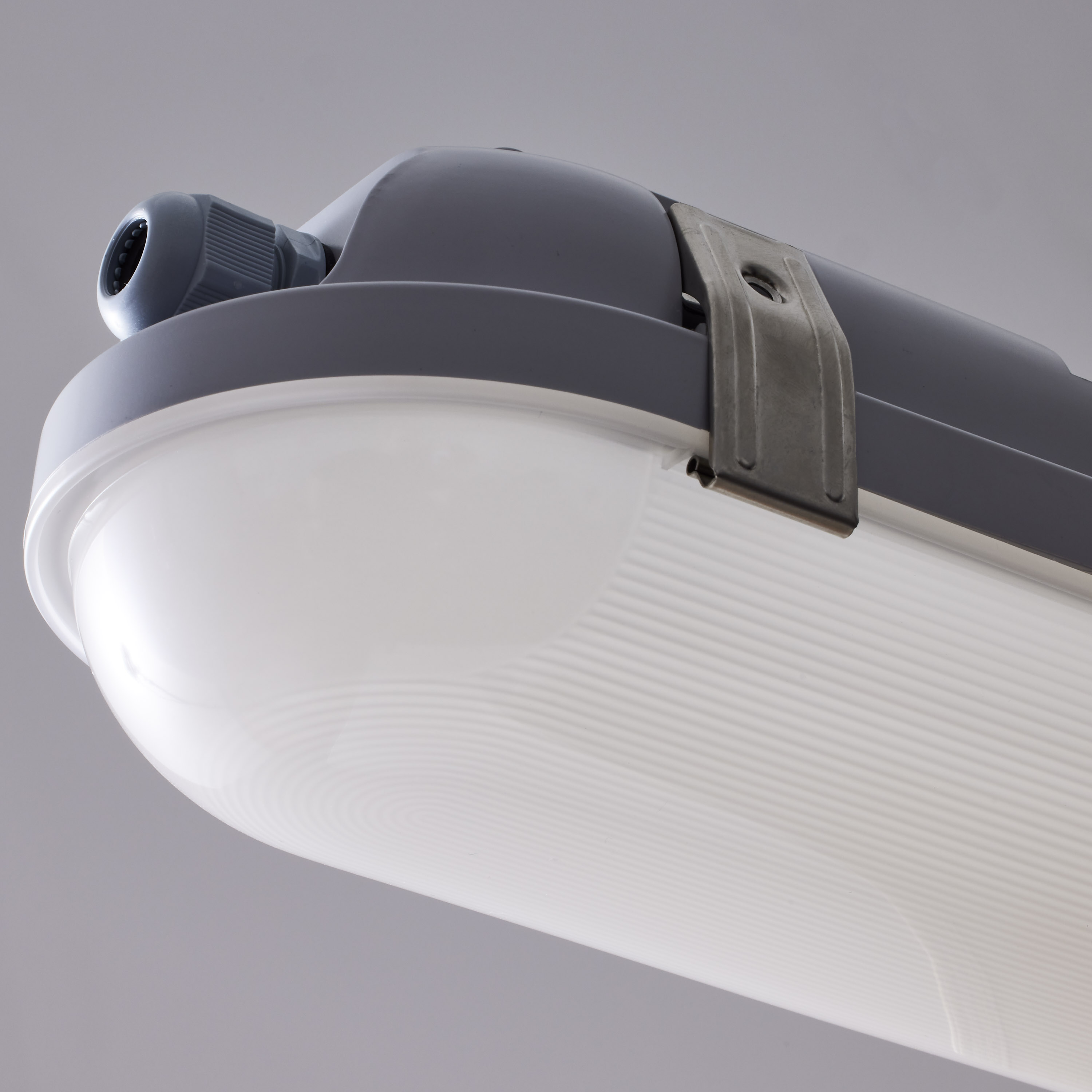

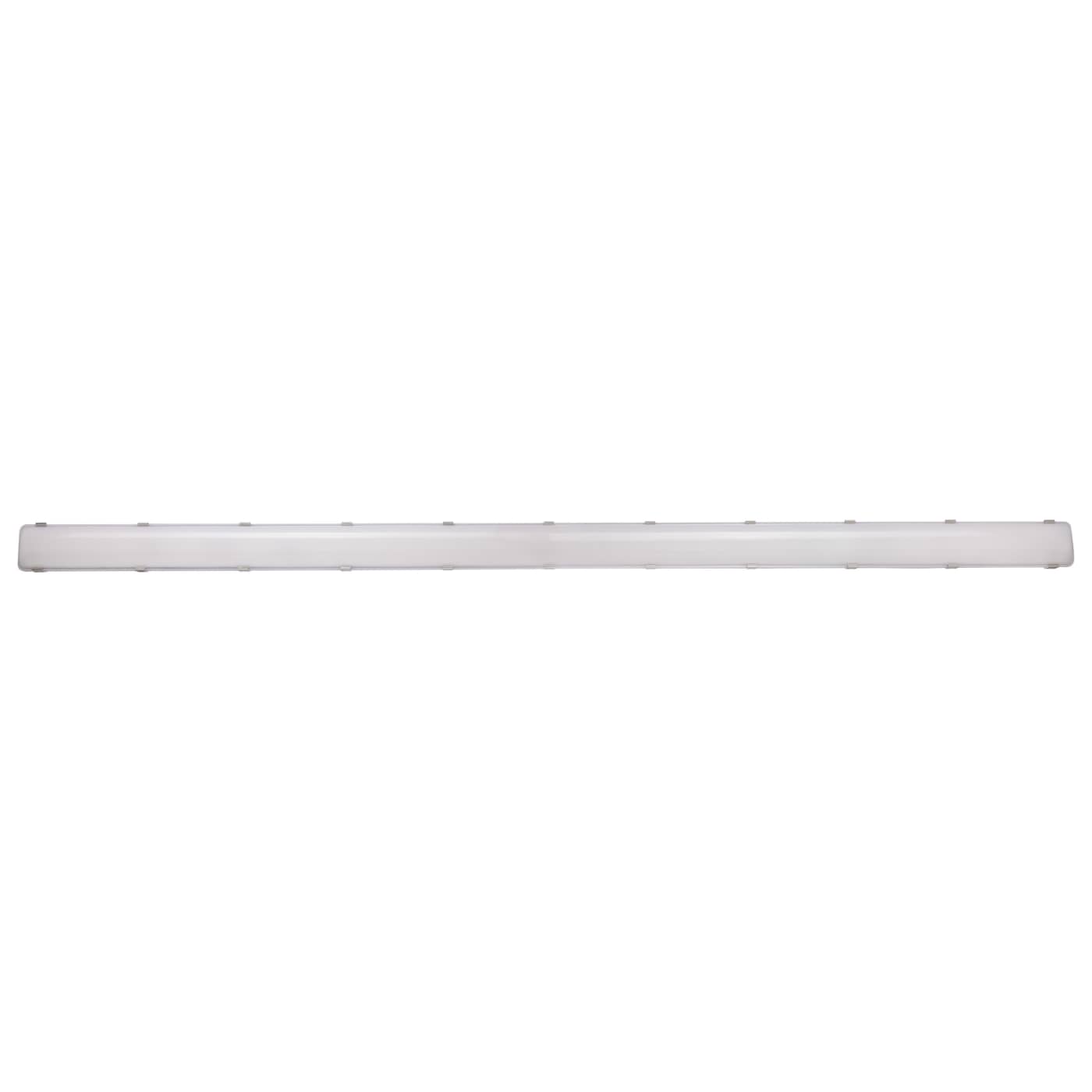

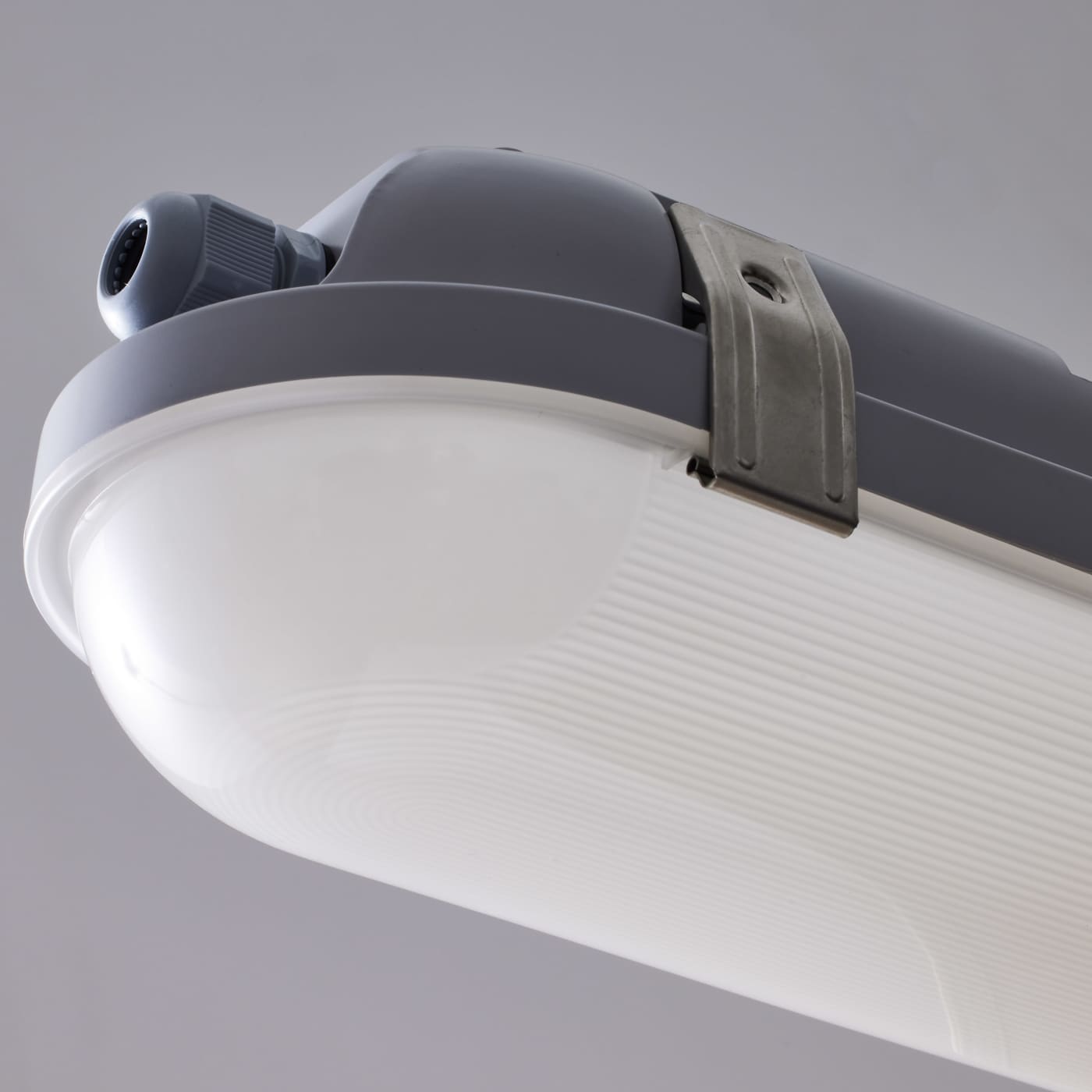

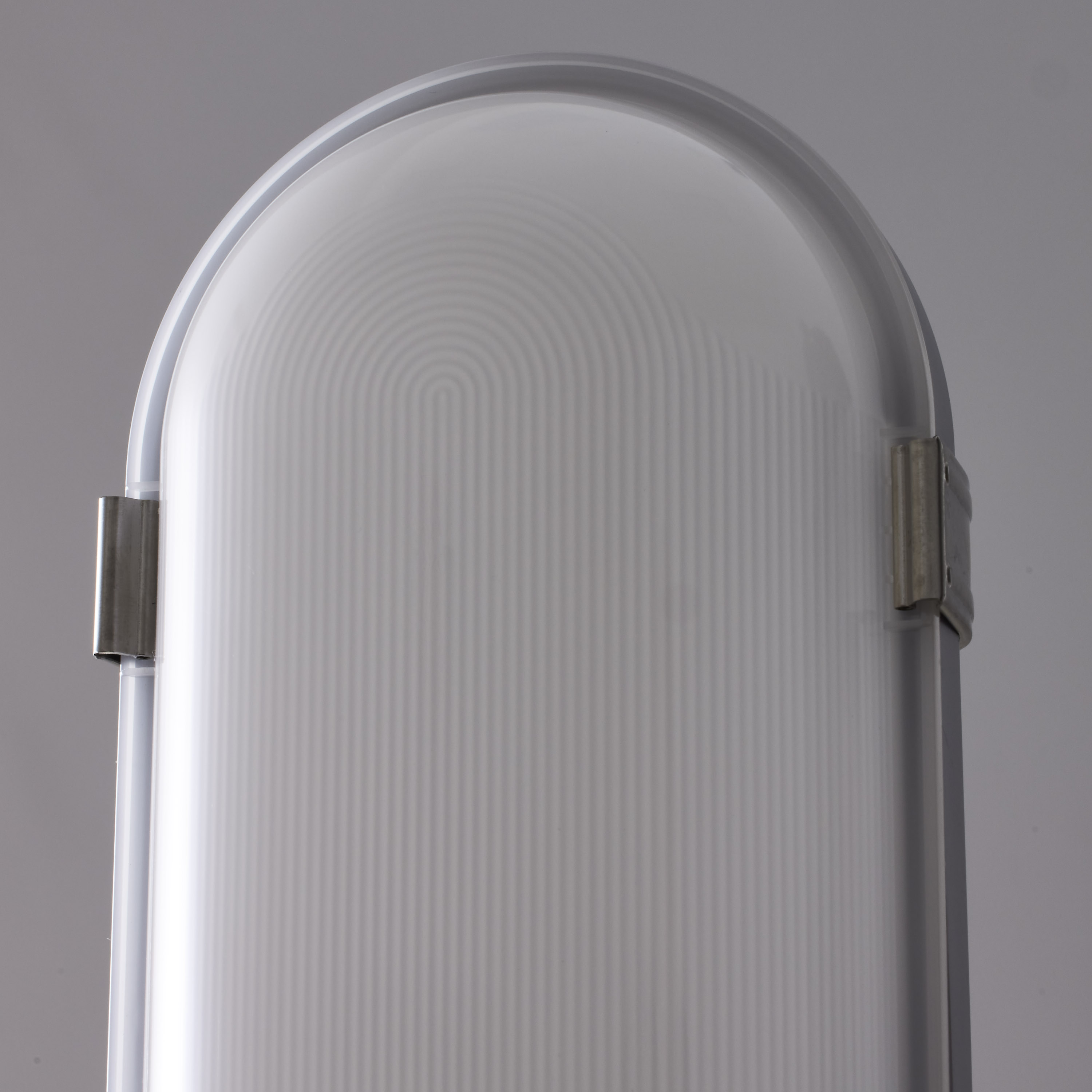

8' LINEAR VAPOR PROOF

  • 8 Foot
  • Vapor Proof Linear Fixture
  • CCT & Wattage Selectable
  • IP65 and IK08 Rated
  • 0-10V Dimming
  • 120V-347V
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-822R1 Specifications65-822R1 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-822R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming
MaterialPolycarbonate (PC)
Fixture TypeVapor Tight
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion14.20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyGray
Amps0.417-0.144/0.500-0.173/0.600-0.207A
Has CameraFalse
IOT EnabledFalse
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Power Factor>0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent400W-500W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent150W-200W
Lumens6400L-9360L
Volts120V-347V
Watts50W/60W/72W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-7CYJVN; S-WL573C
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923650970
Case Cube1.2375
Case Height4.33
Case Length96.46
Case Quantity1
Case UPC10045923650977
Case Weight12.35
Case Width5.12
EA Cube1.2375
EA Height4.33
EA Length96.46
EA Quantity1
EA Weight12.35
EA Width5.12
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.46
Web Length94.49
Web Width4.33
