65-831R1

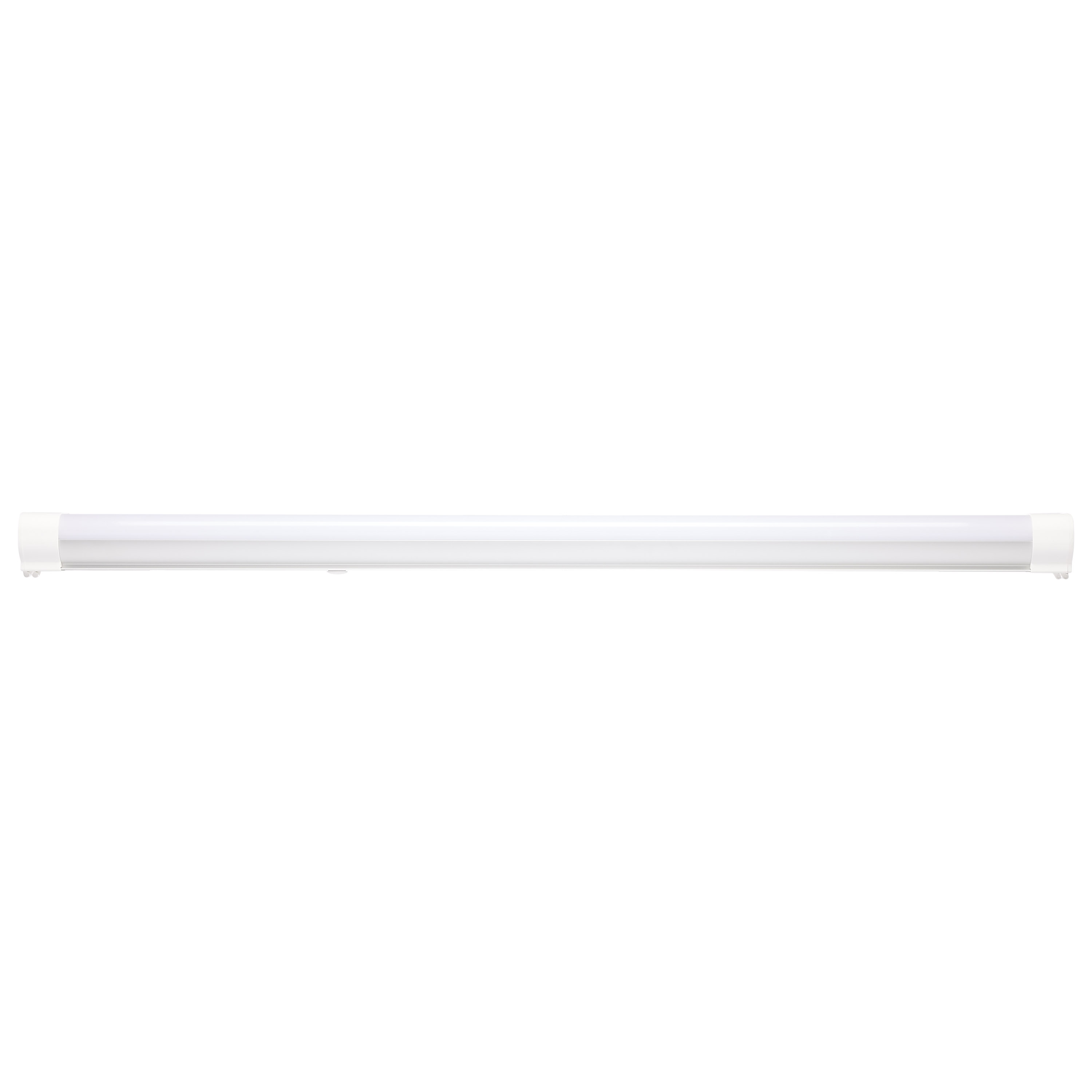

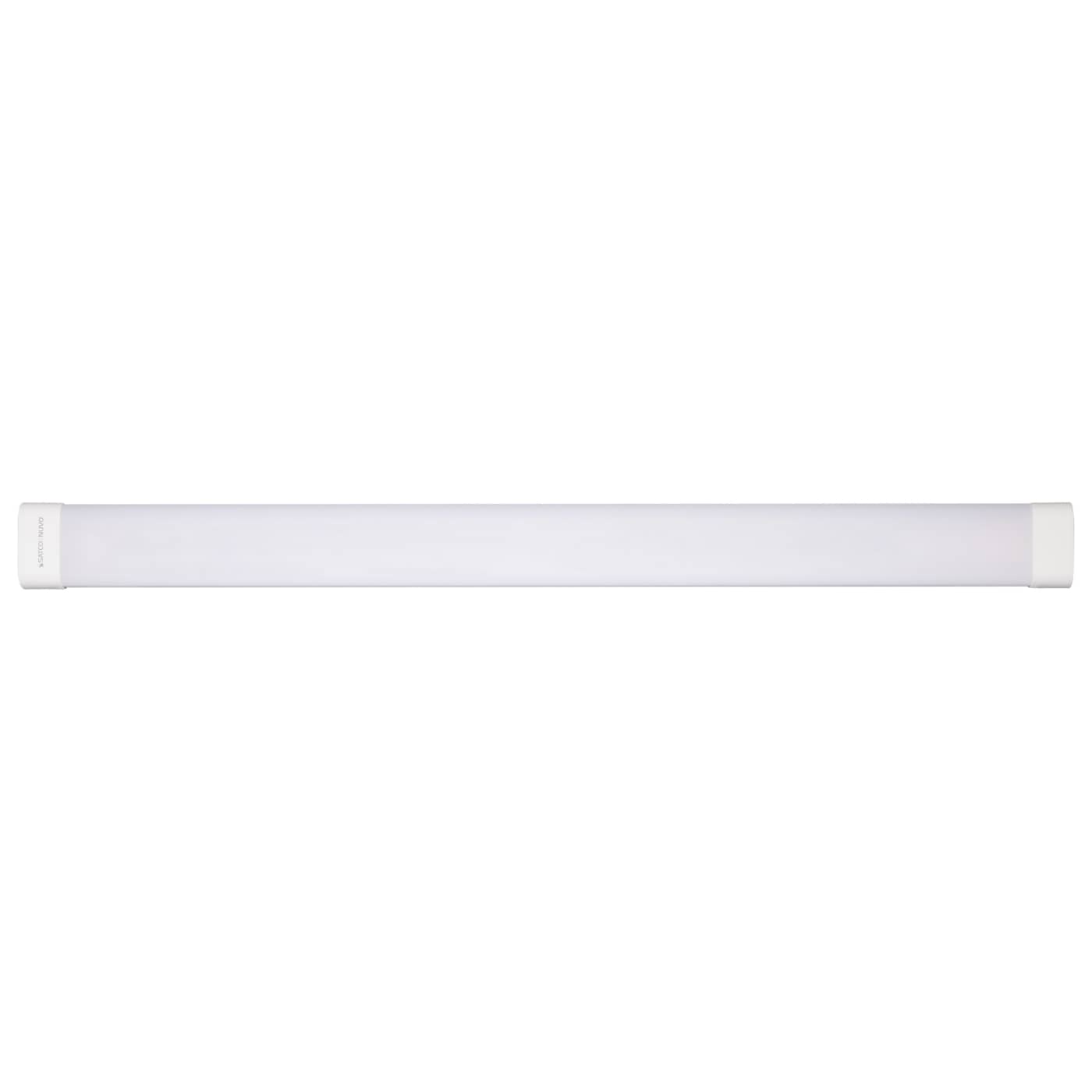

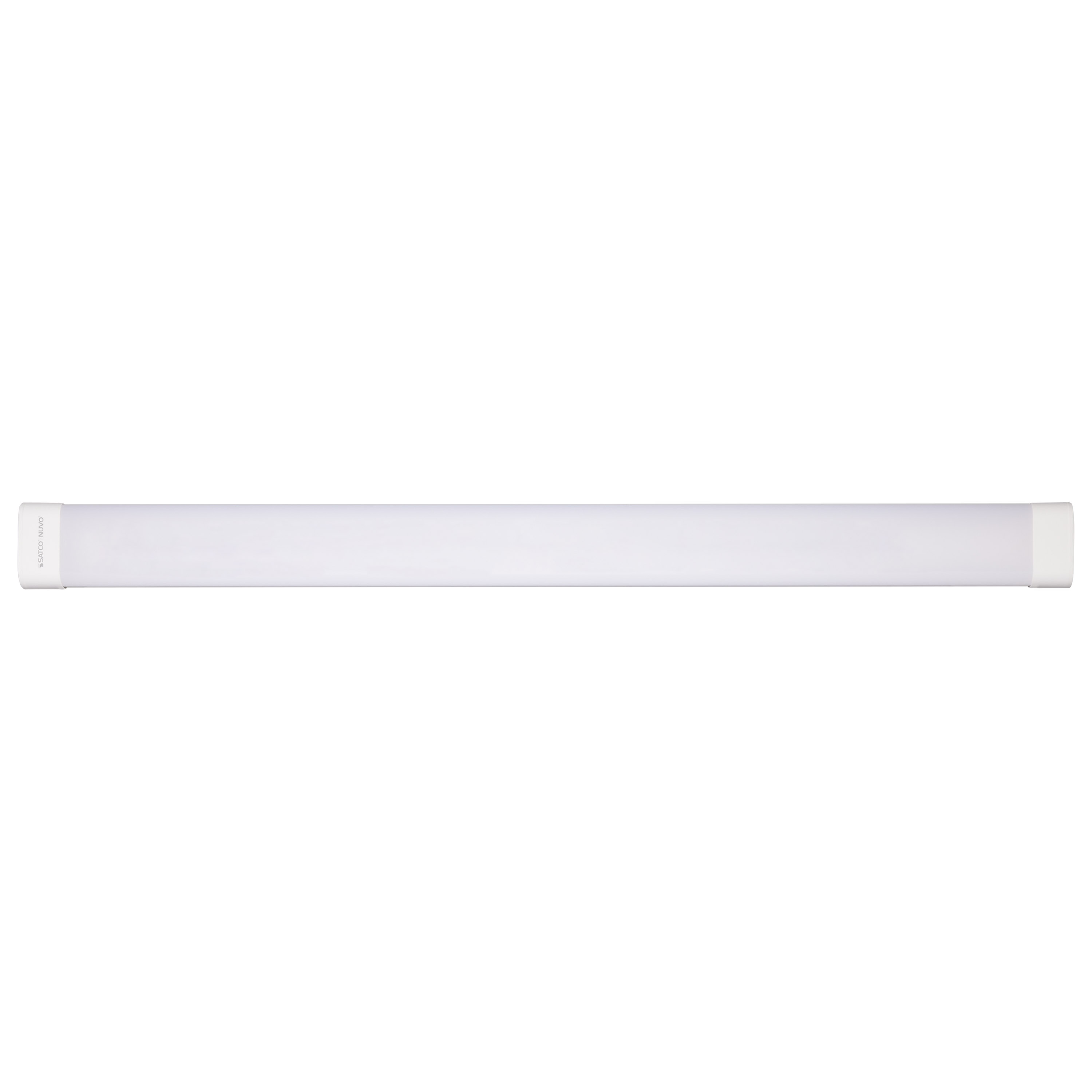

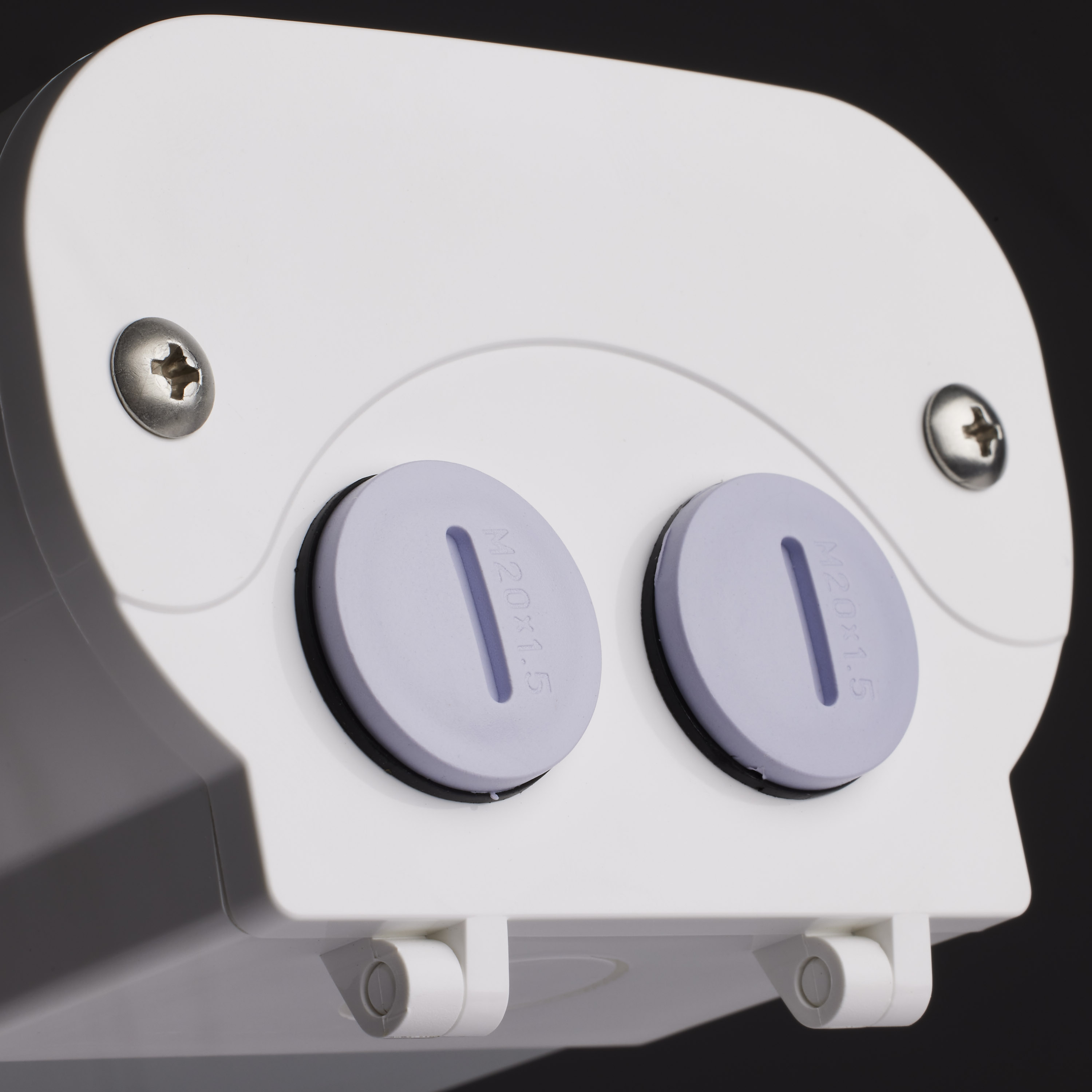

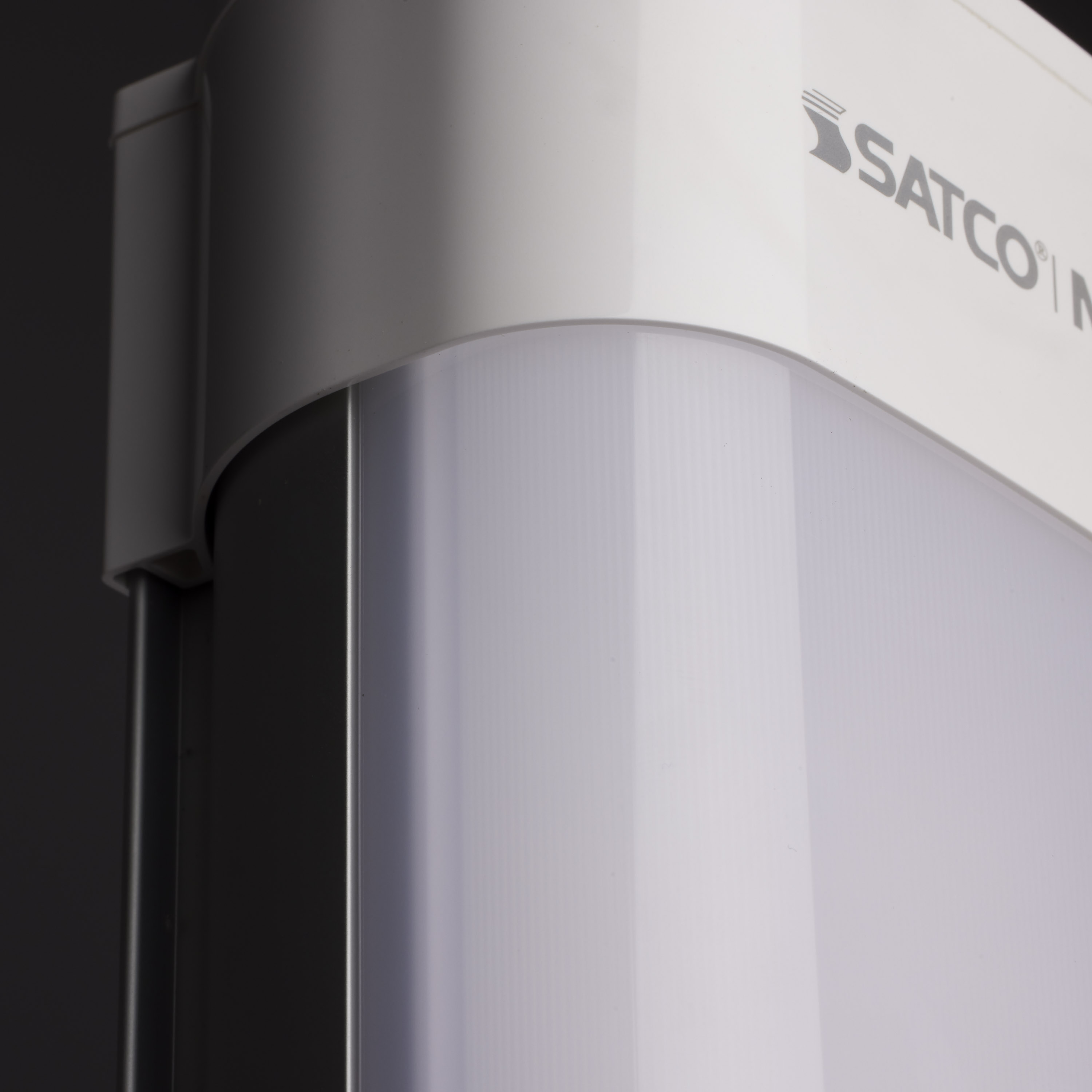

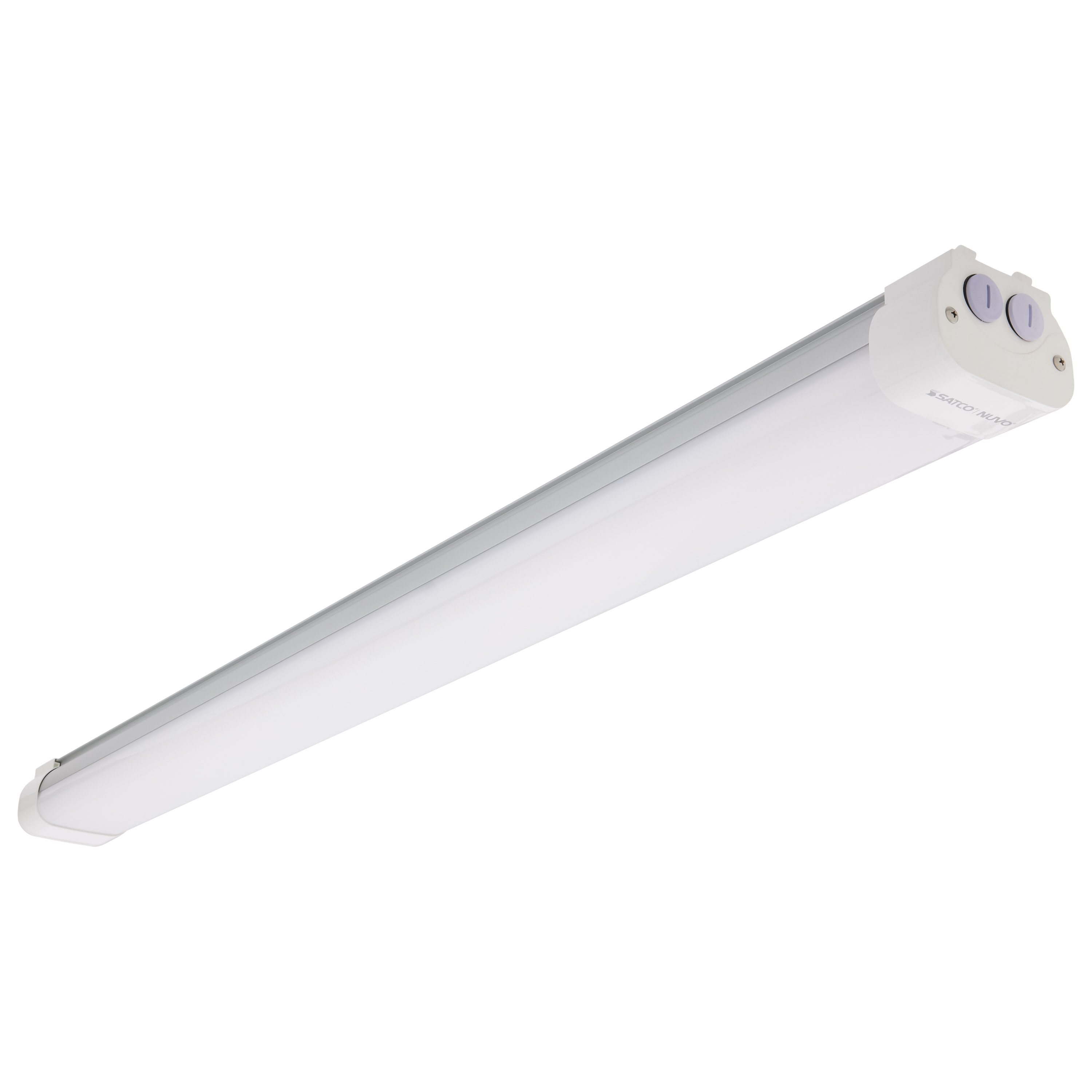

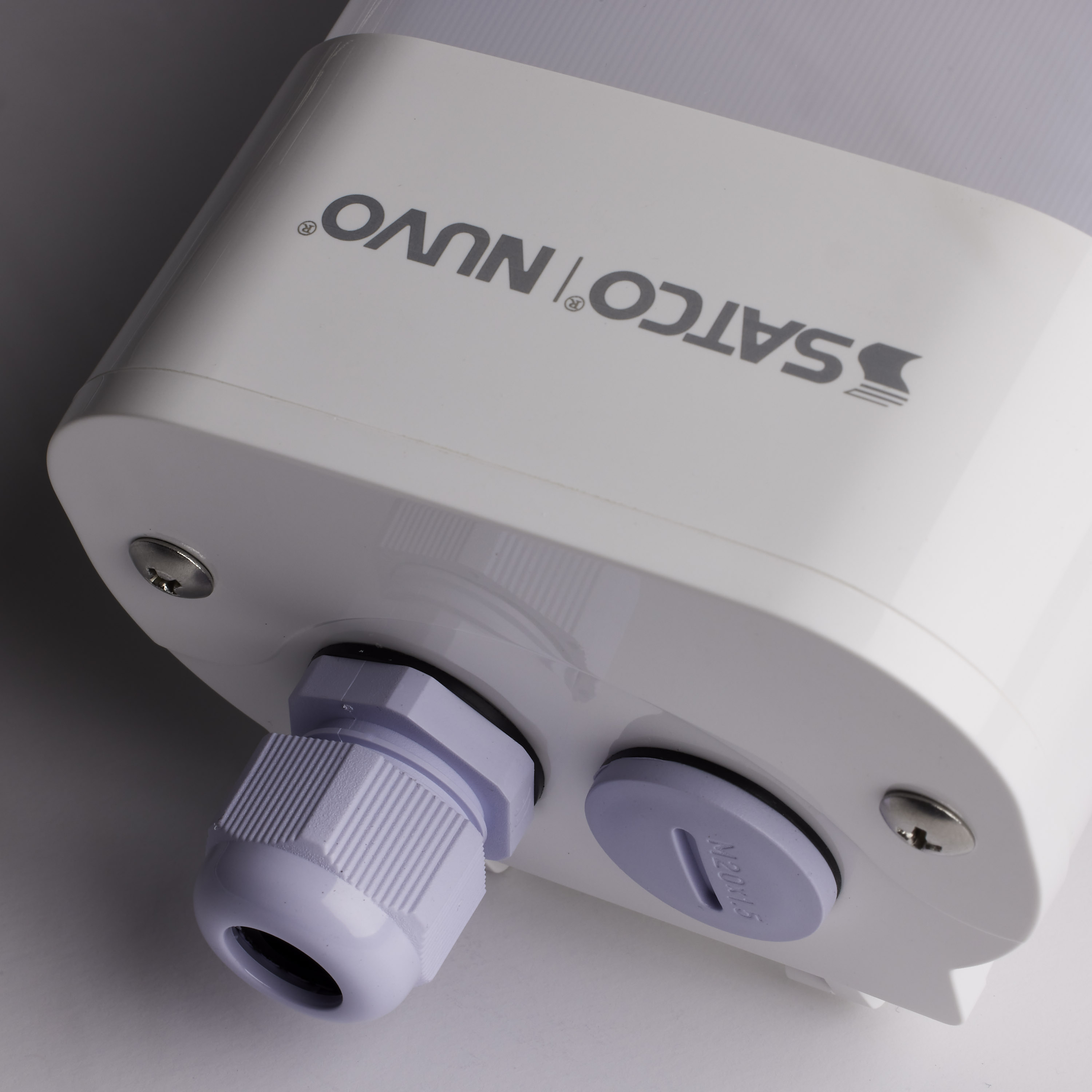

4' LED TRI-PROOF LINEAR

  • 4 Foot
  • LED Tri-Proof Linear Fixture

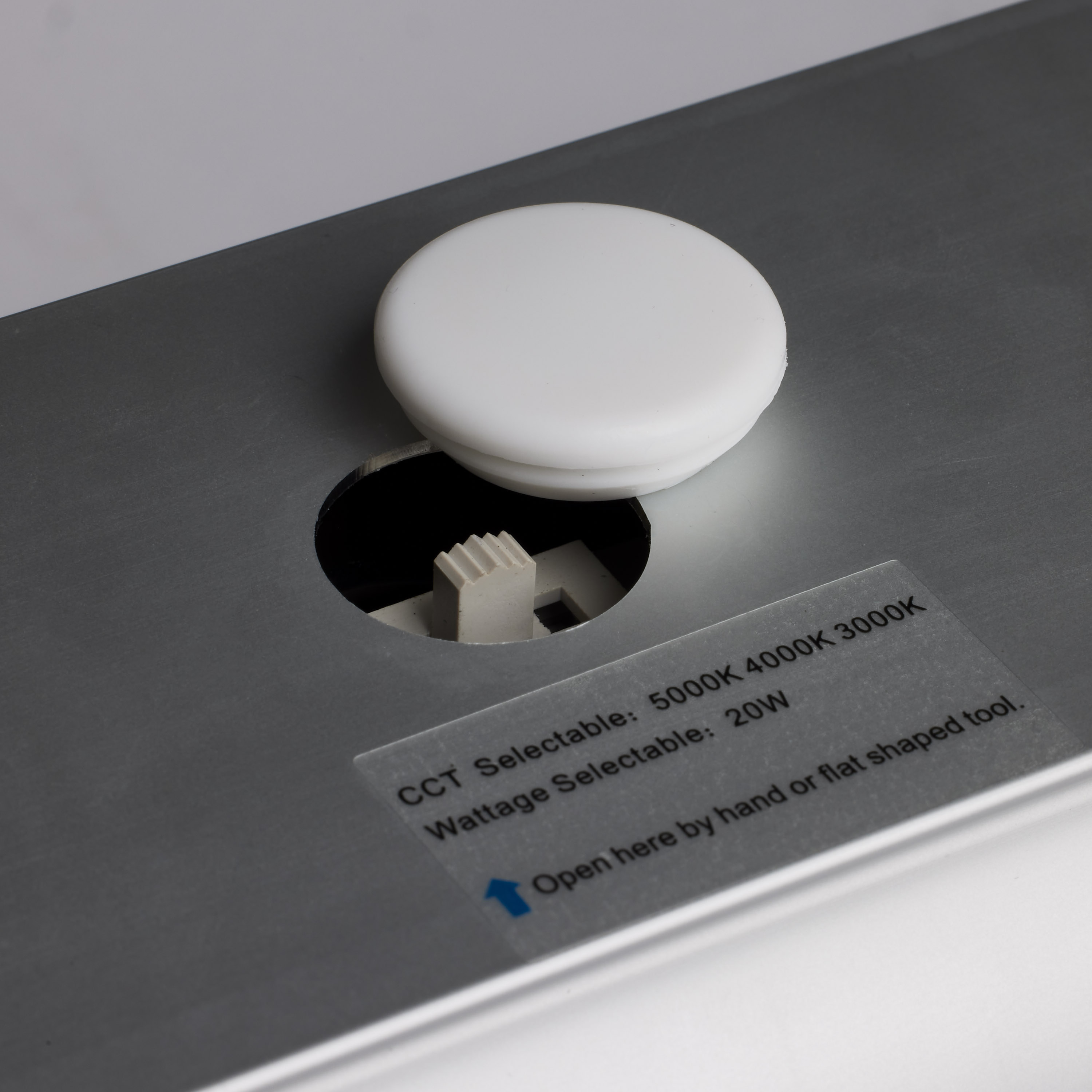

  • CCT & Wattage Selectable
  • IP65 and IK08 Rated
  • 0-10V Dimming
  • 120V-347V
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-831R1 Specifications65-831R1 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-831R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Foot; LED Tri-Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming
MaterialPlastic
Fixture TypeVapor Tight
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion16.20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.333-0.115/0.417-0.144/0.500-0.173A
Has CameraFalse
IOT EnabledFalse
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Power Factor>0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent300W-400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)115
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent125W-150W
Lumens5040L-7669L
Volts120V-347V
Watts40W/50W/60W
Physical
Lamp BaseIntegrated
FinishWhite / Gray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-9ZKTYA; S-CAOZIN
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923651205
Case Cube5.1391
Case Height12.99
Case Length49.61
Case Quantity6
Case UPC10045923651202
Case Weight30.86
Case Width13.78
EA Cube0.8565
EA Height4.33
EA Length49.61
EA Quantity1
EA Weight5.14
EA Width6.89
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

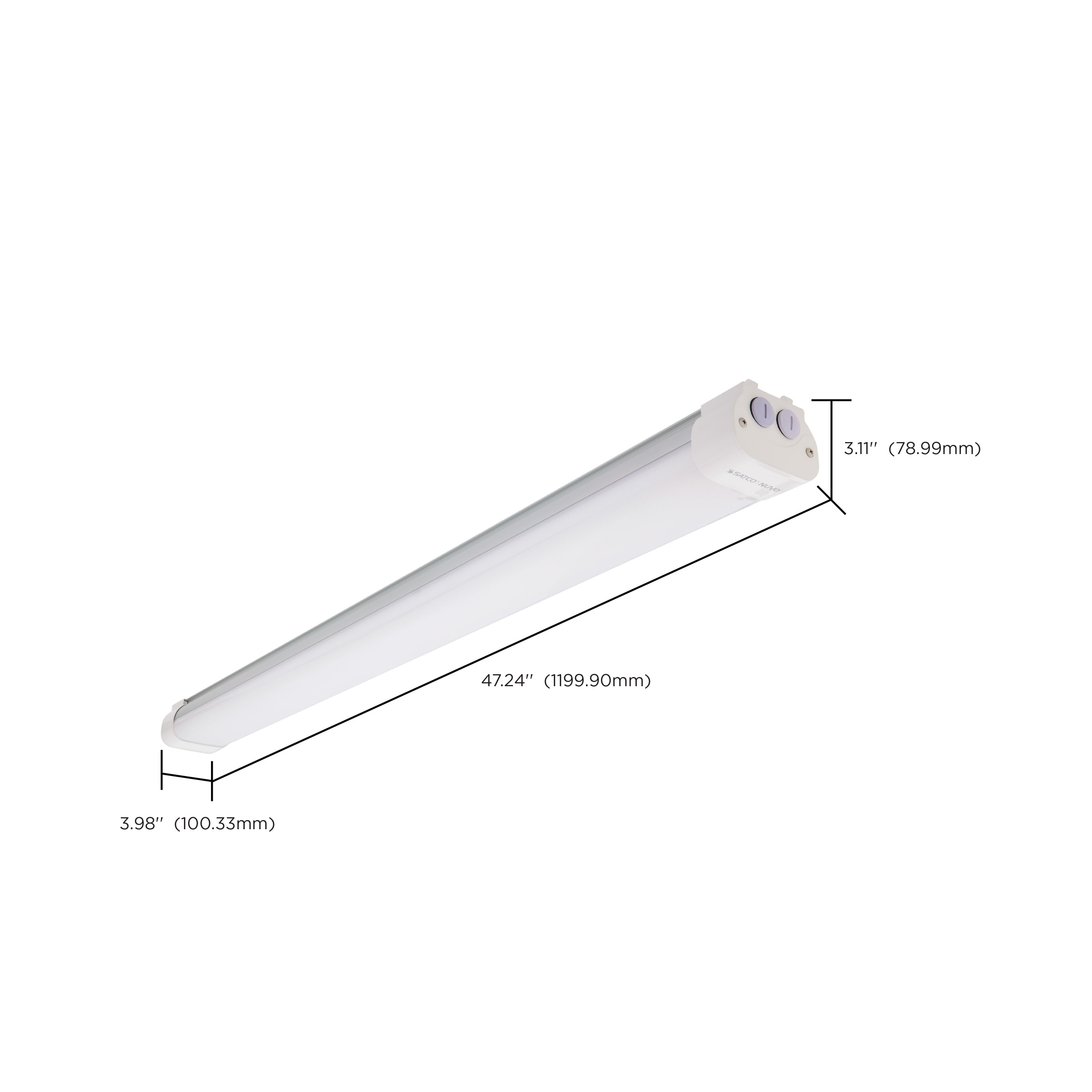

Web Height3.11
Web Length47.24
Web Width3.98
