65-839

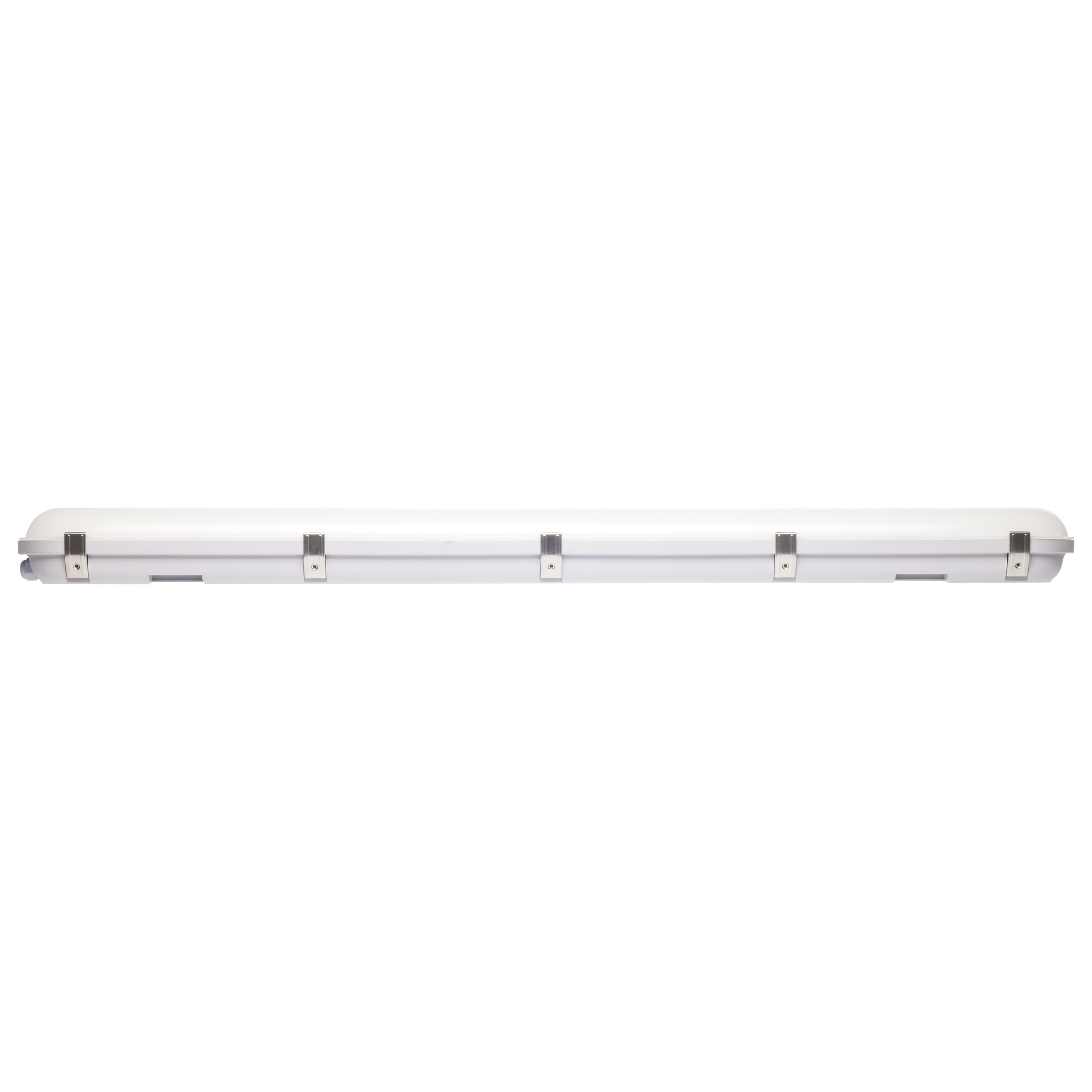

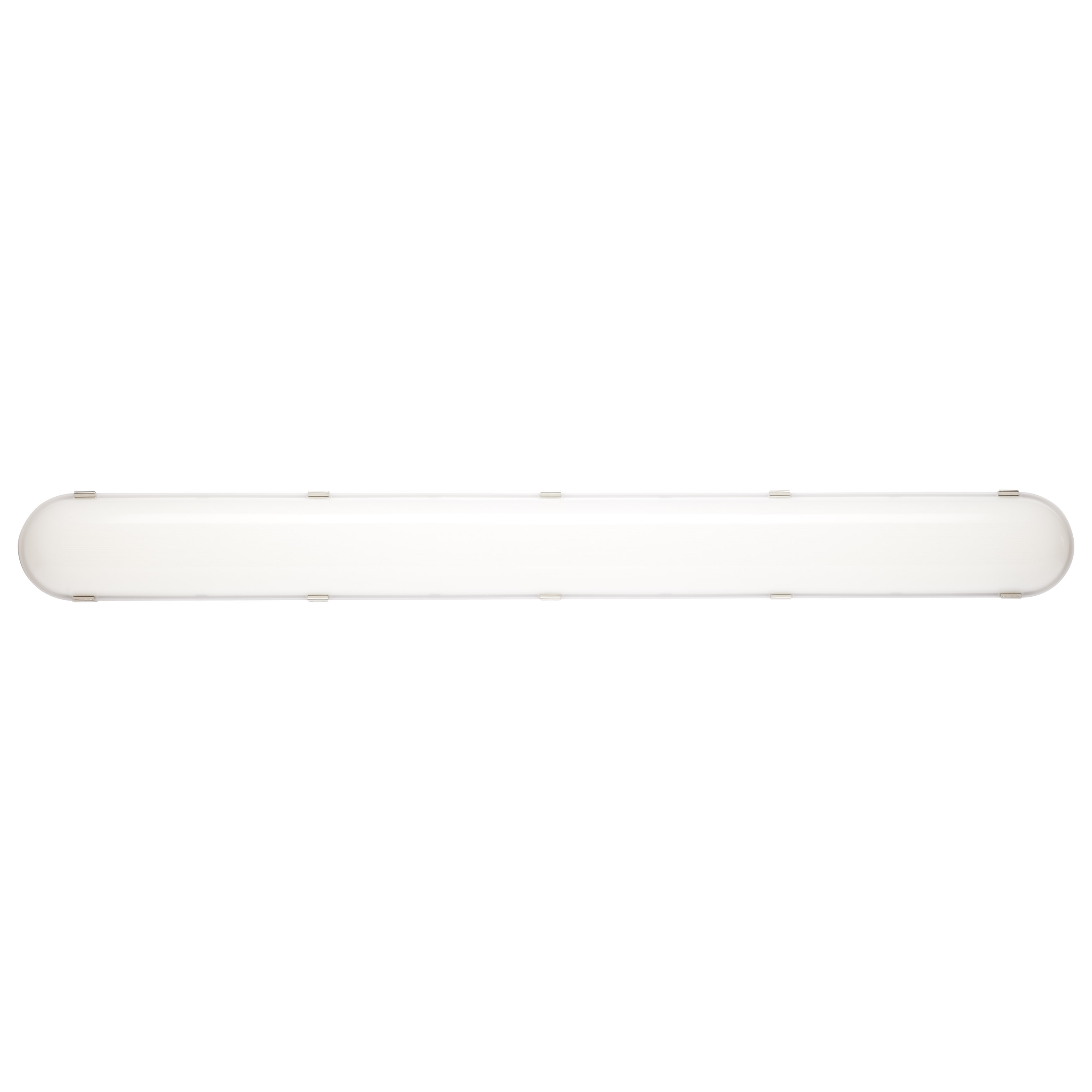

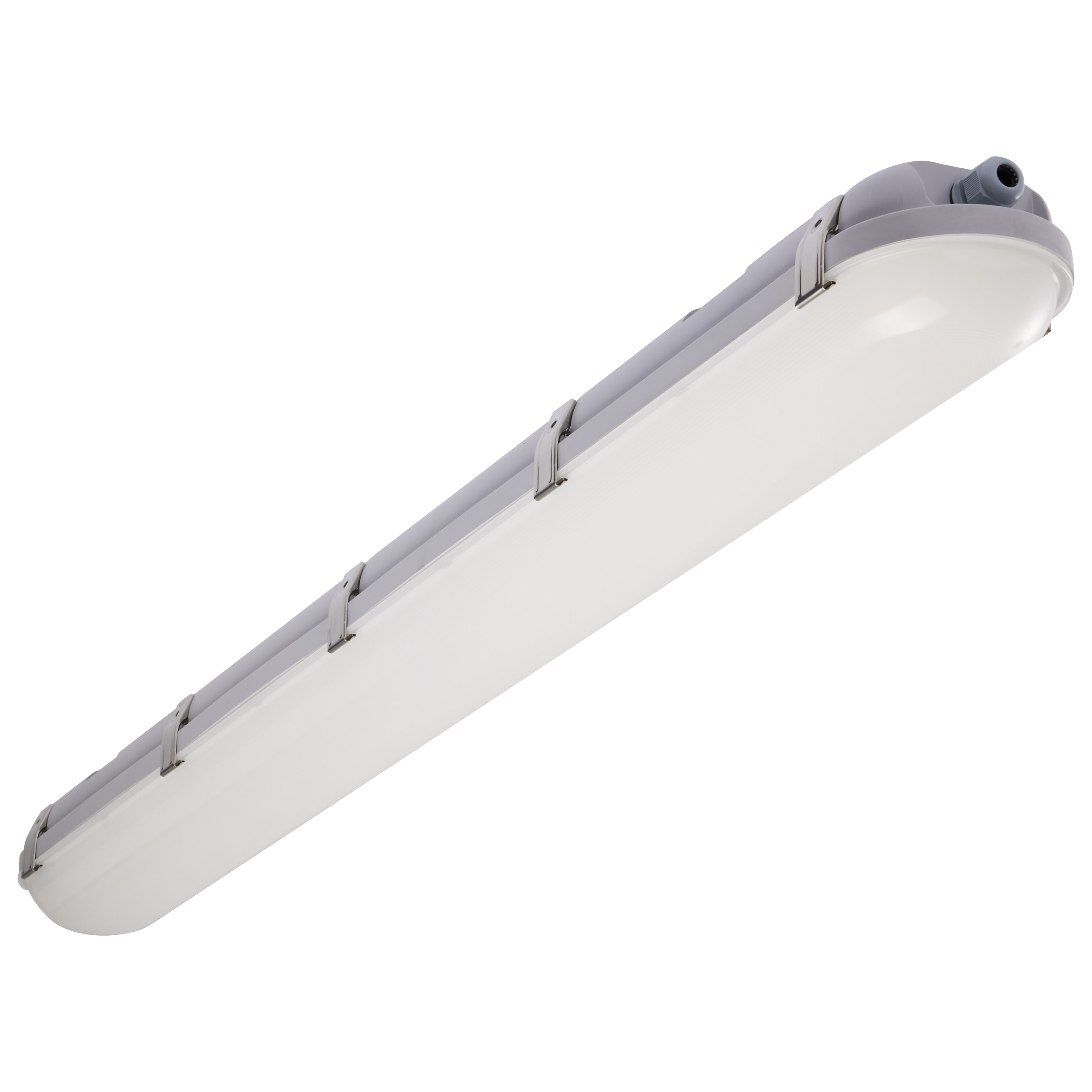

4' VAPOR PROOF W/EM & SENSOR

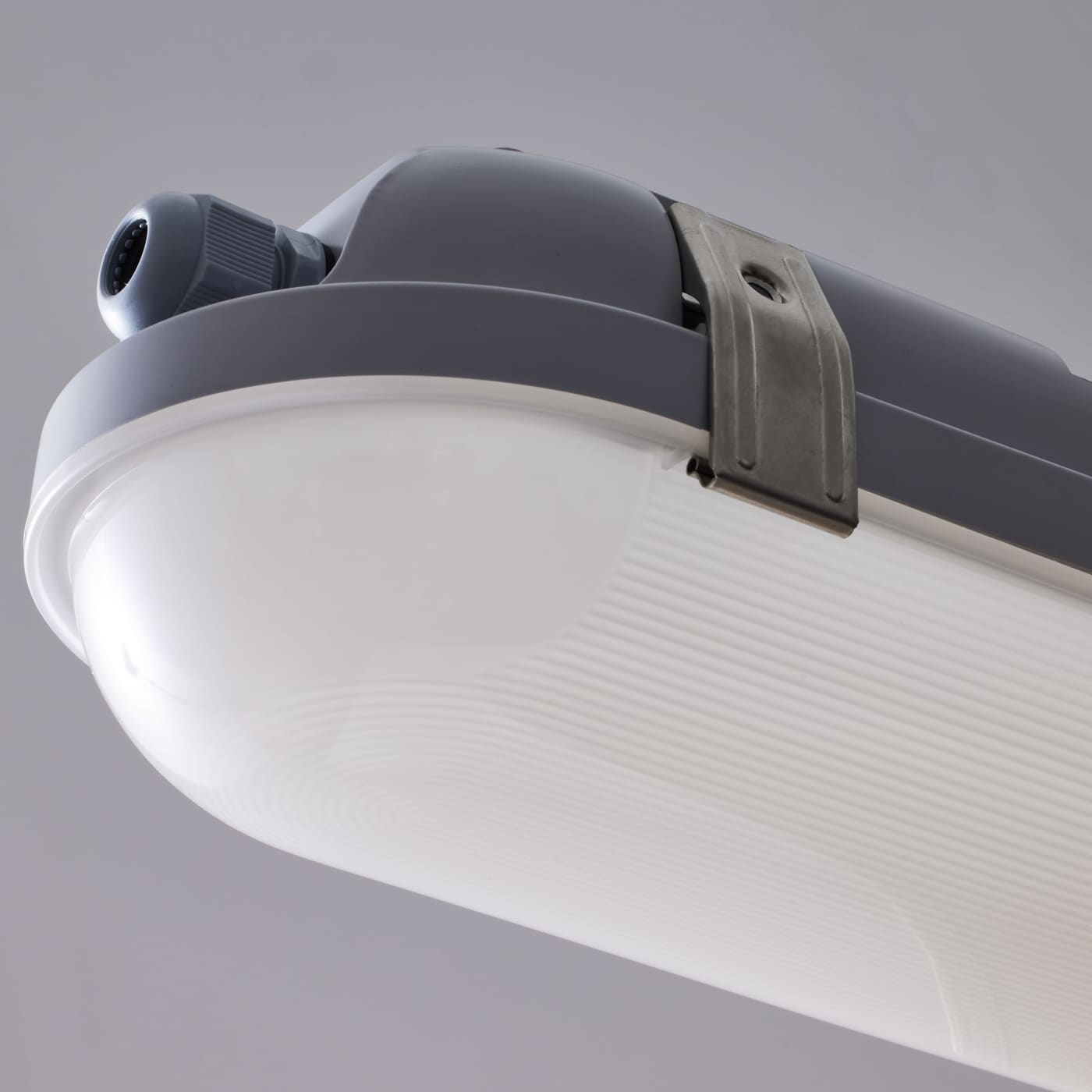

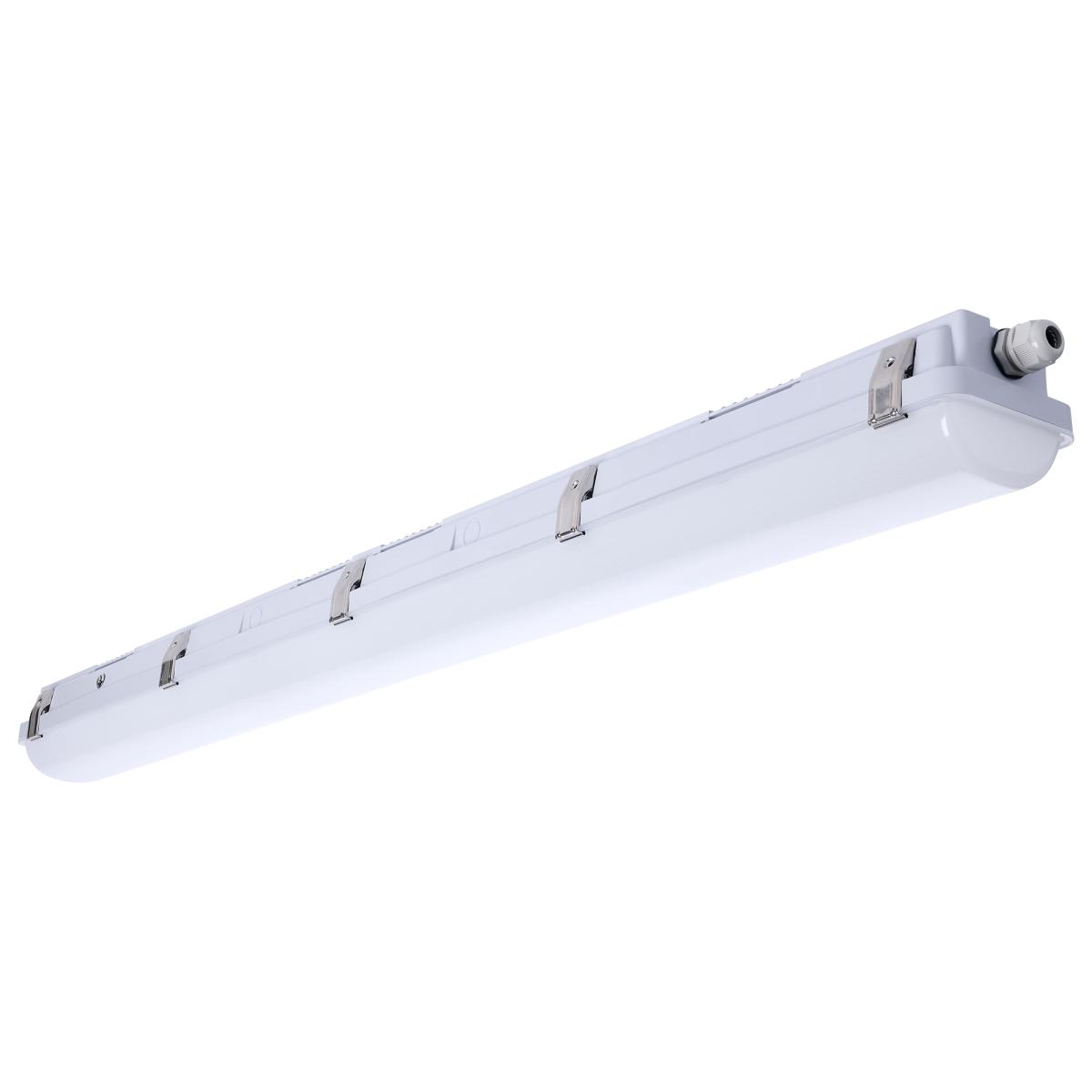

  • 40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture
  • Emergency Battery

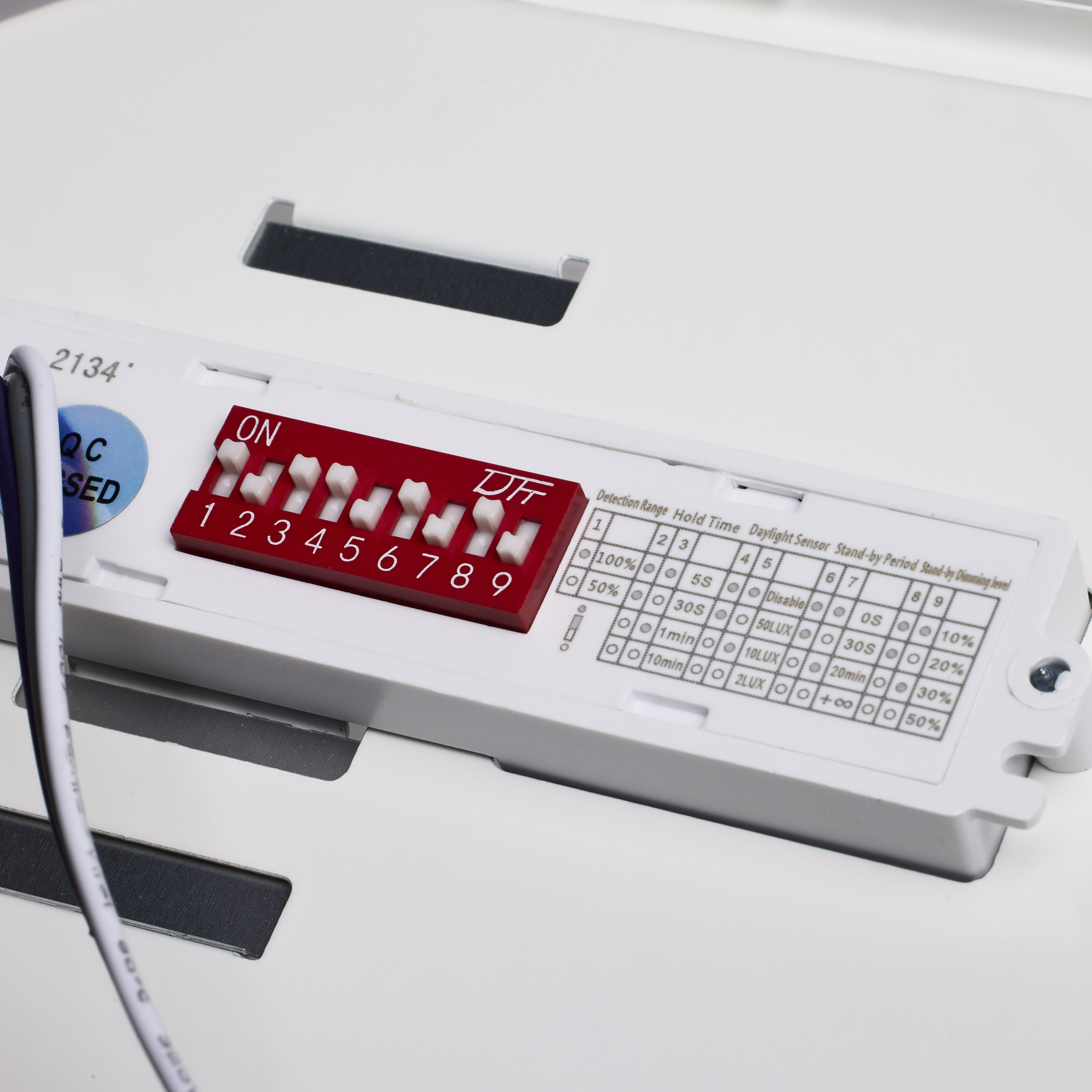

  • Integrated Microwave Sensor
  • 3K/4K/5K CCT Selectable
  • 120-347 Range Voltage
  • Gray Finish
cc_selectable^y^1
ip_rating^IP65^1
title_20^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-839 Specifications65-839 Instructions.pdf
Tools
Lighting Layout Analysis For 65-839
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor; 3K/4K/5K CCT Selectable; 120-347 Range Voltage; Gray Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V; Integrated Sensor
MaterialPolycarbonate (PC)
Fixture TypeVapor Tight

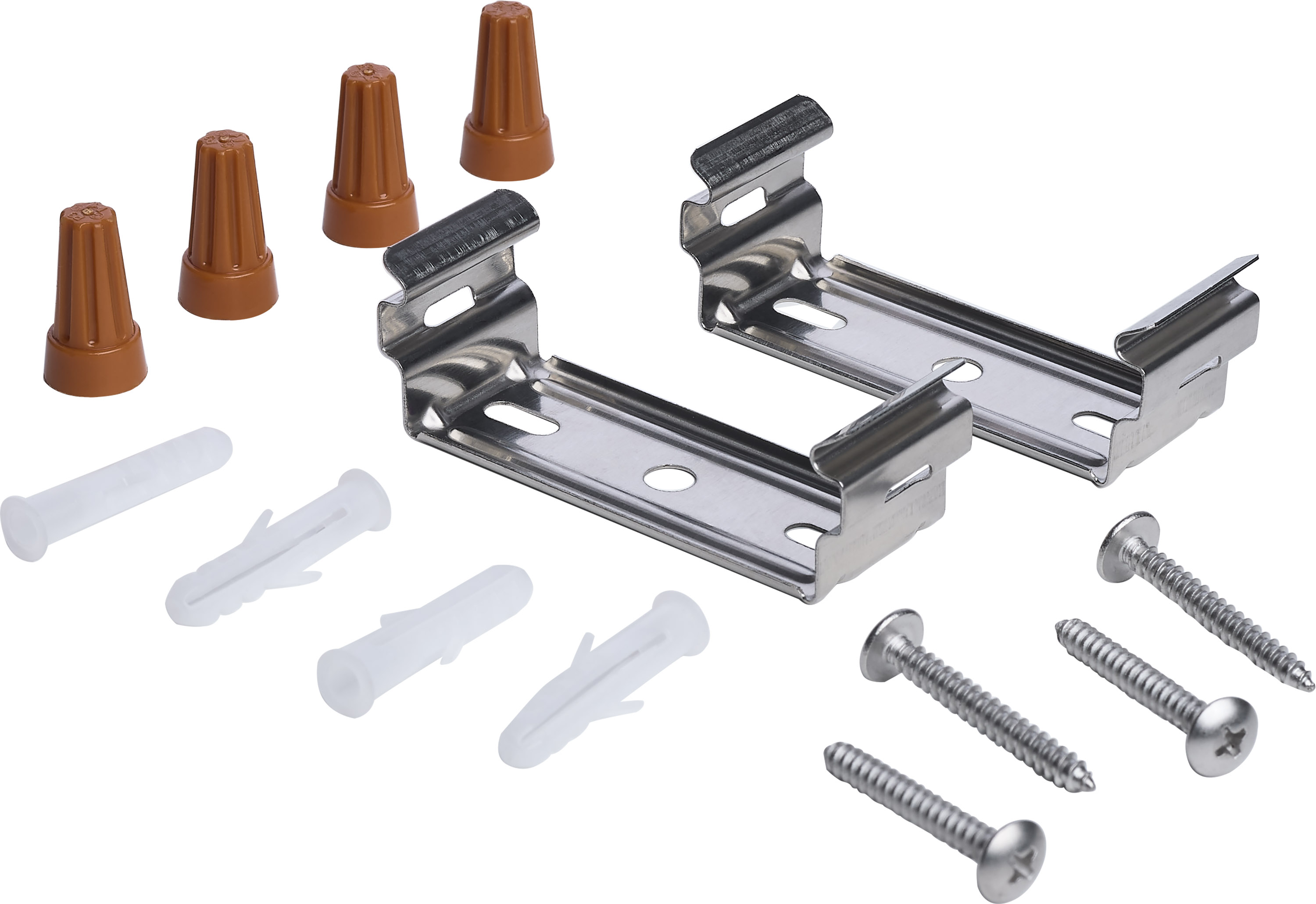

IncludesMounting Hardware
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion17.60%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyGray
Additional Info90 Minute Battery Backup Runtime
Amps0.333-0.115/0.417-0.144/0.500-0.173A
Has CameraNo
IOT EnabledNo
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Photo CellIntegrated Microwave Sensor
Power Factor>0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Incandescent Equivalent300W-400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V, Integrated Sensor
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent125W-150W

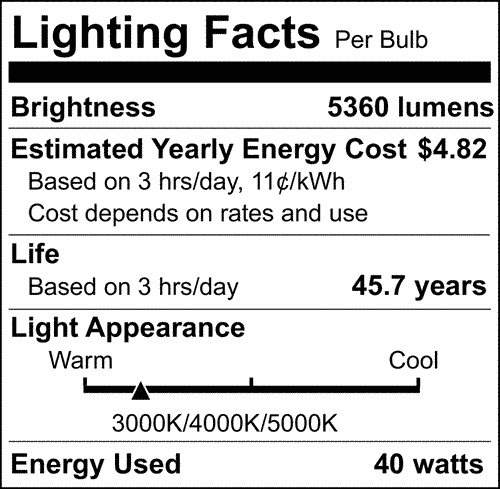

Lumens5360L-7991L
Volts120V-347V
Watts40W/50W/60W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeNo
Compliance
DLC IDS-BTQHY5;S-6GVPJL
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Yes
T24 CompliantNo
Packaging
UPC045923409684
Case Cube3.8598
Case Height12.2
Case Length49.61
Case Quantity6
Case UPC10045923409681
Case Weight39.24
Case Width11.02
EA Cube0.541
EA Height3.74
EA Length48.82
EA Quantity1
EA Weight6.54
EA Width5.12
Pack TypeKraft Box

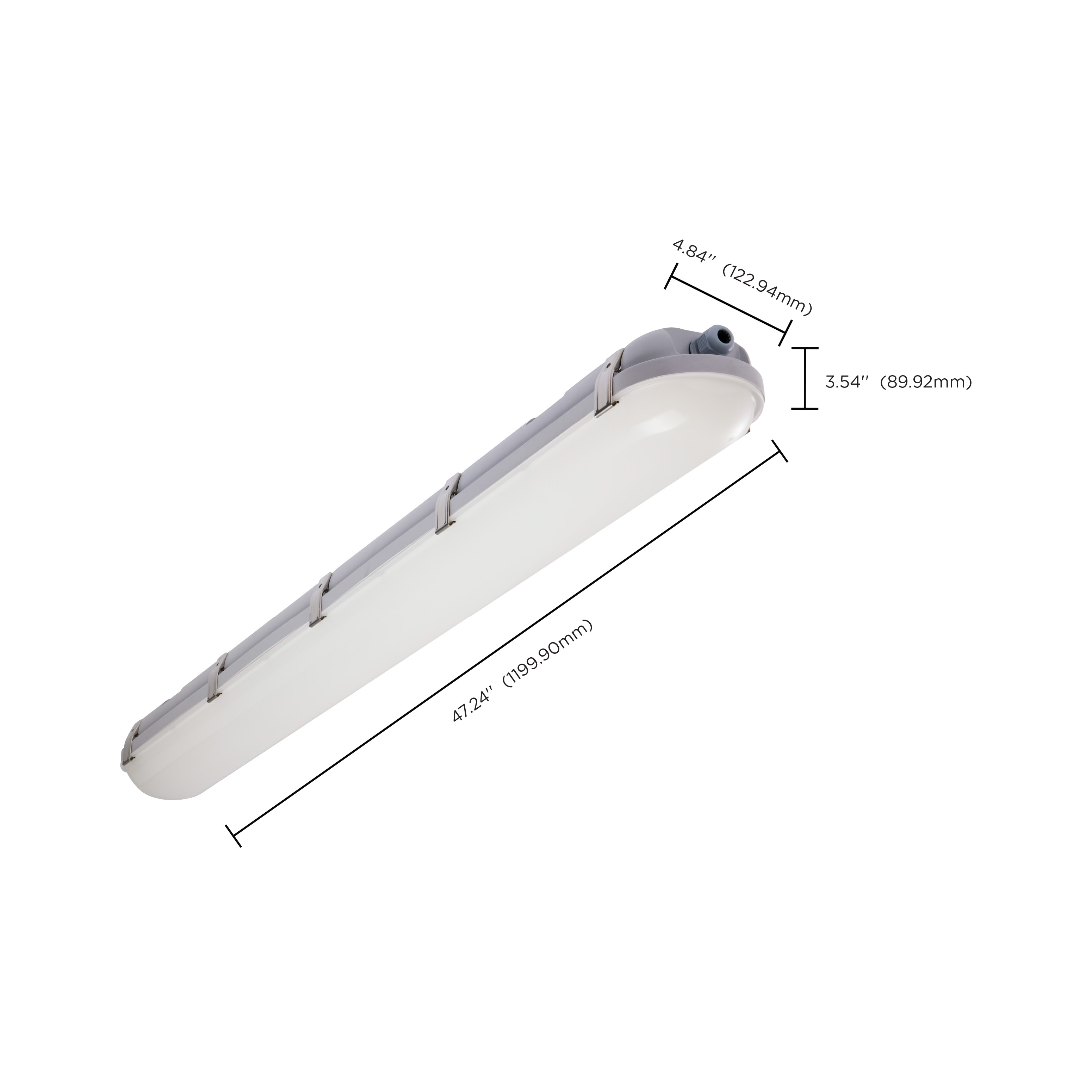

Web Height3.54
Web Length47.24
Web Width4.84
