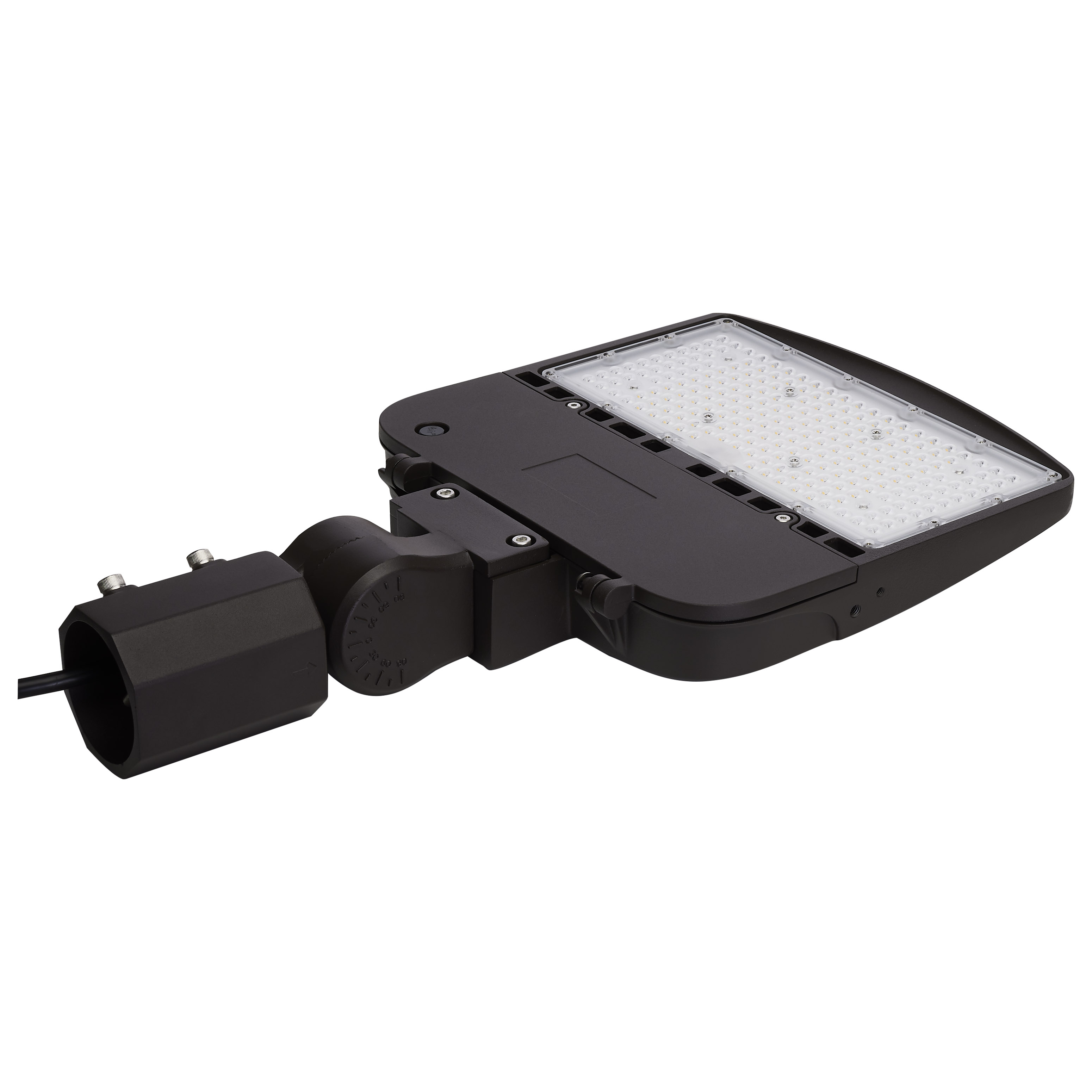

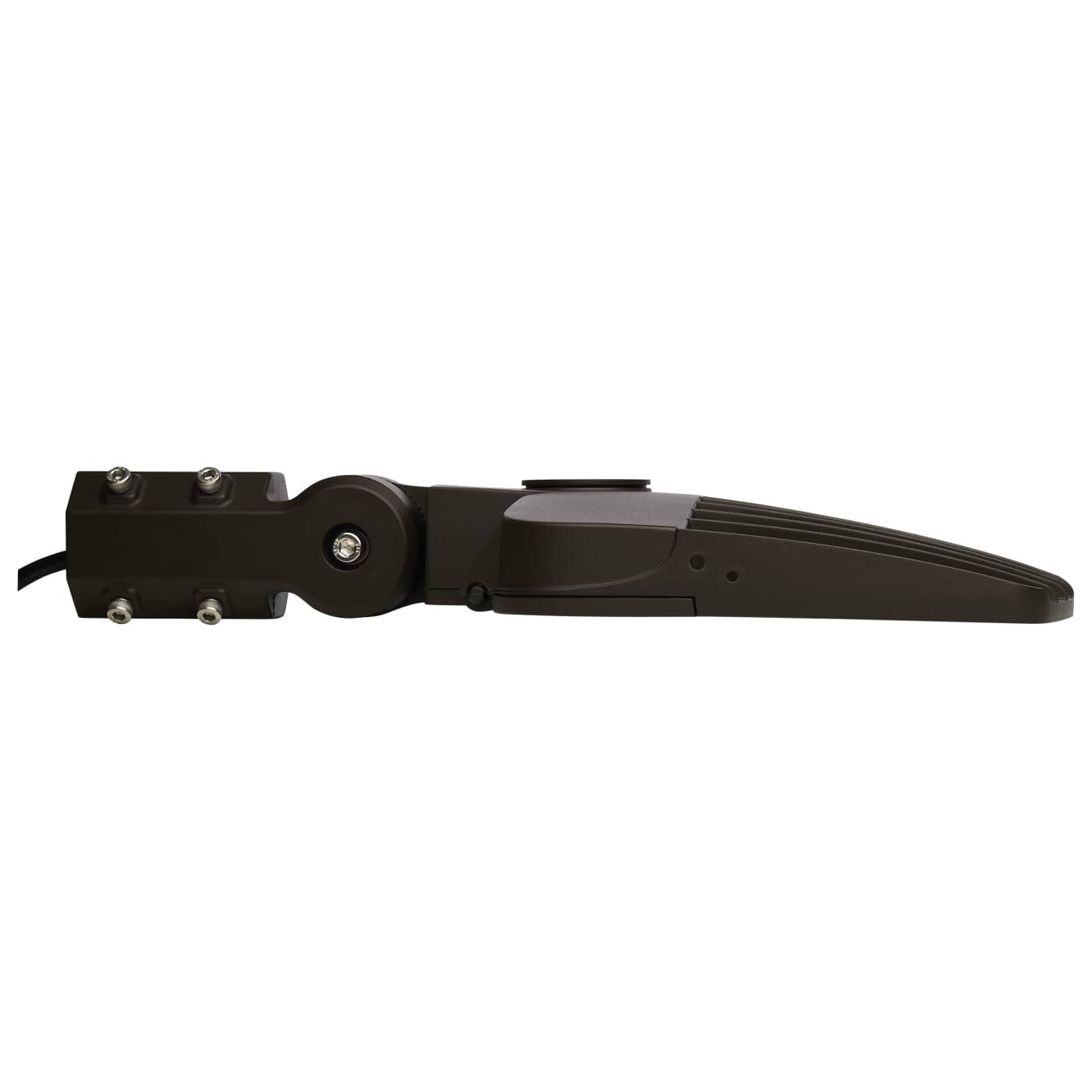

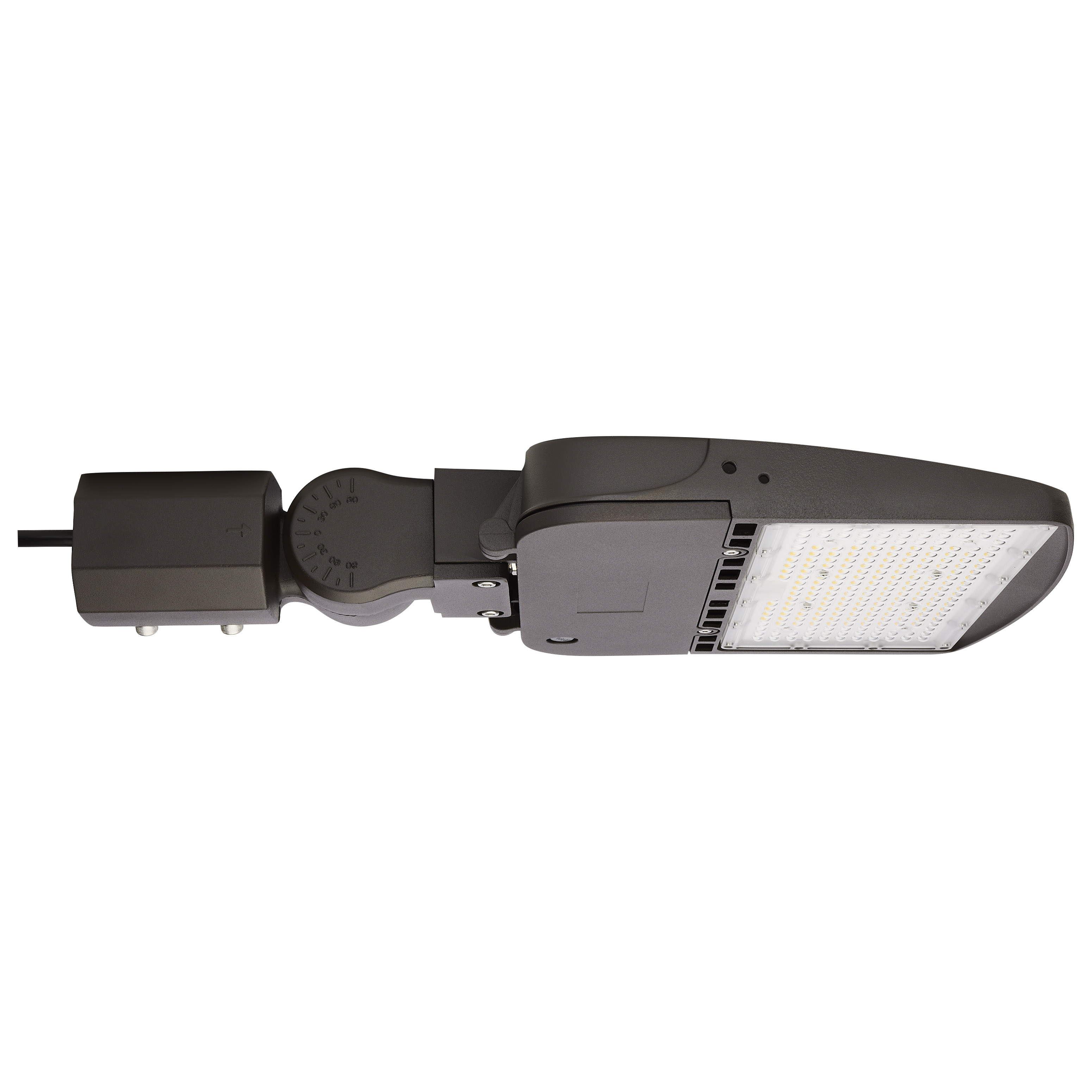

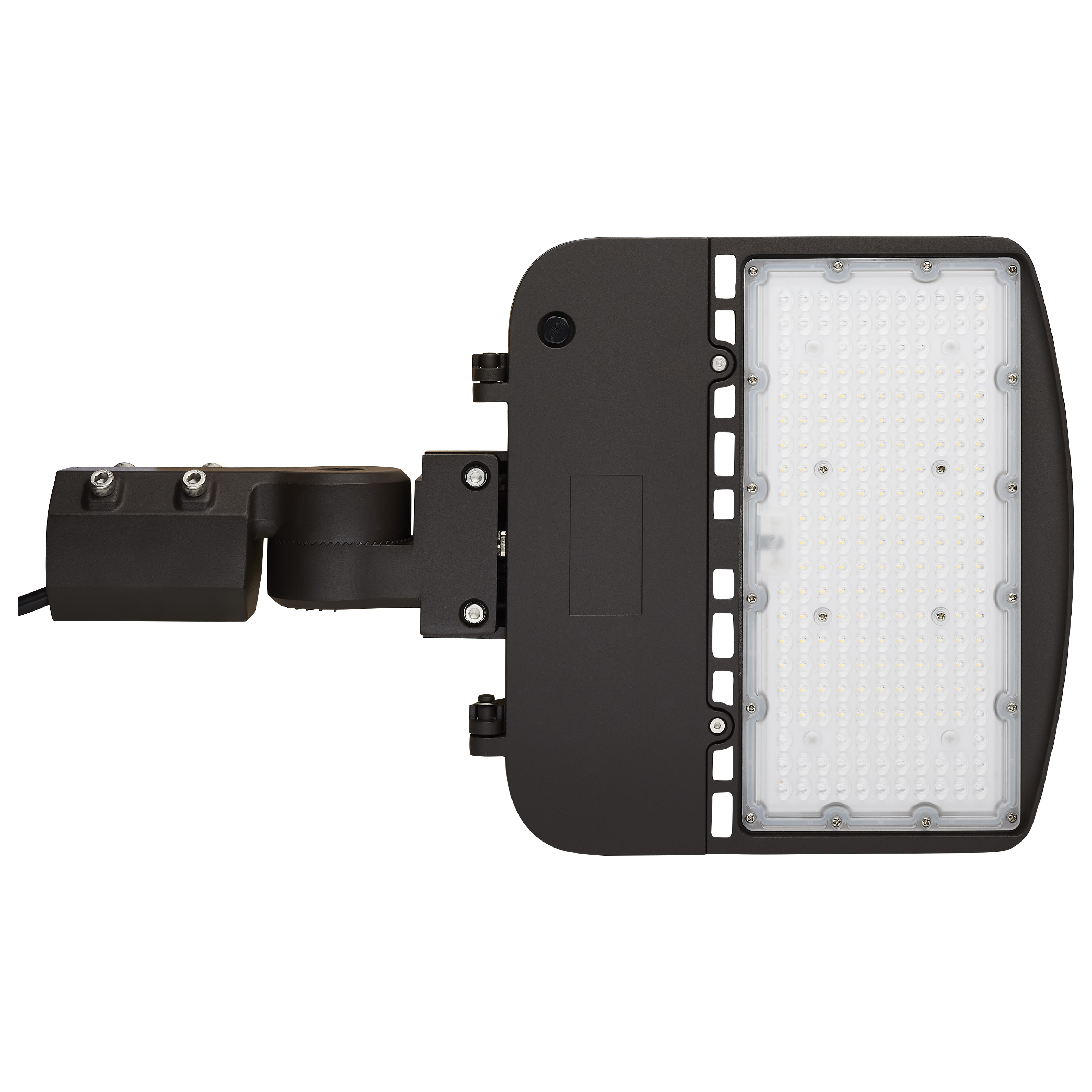

65-842-4 150W LED AREA LIGHT TYPE IV

65-842-4

150W LED AREA LIGHT TYPE IV

LED Area Light Type IV; 150W; Bronze Finish; 4000K; 120-277V

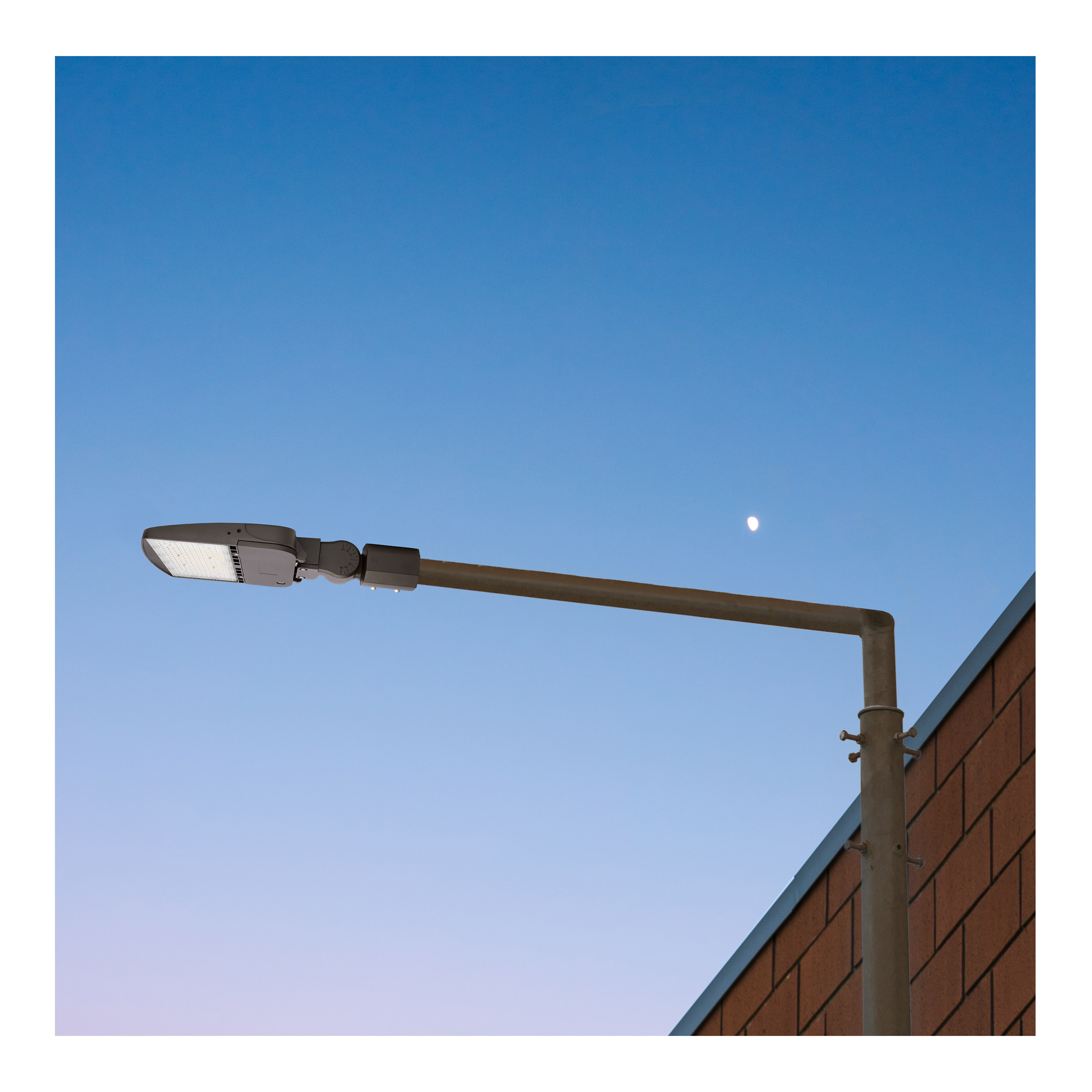

SATCO|NUVO's LED Area Light Type IV provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.
  • Maintenance free - no bulb to change

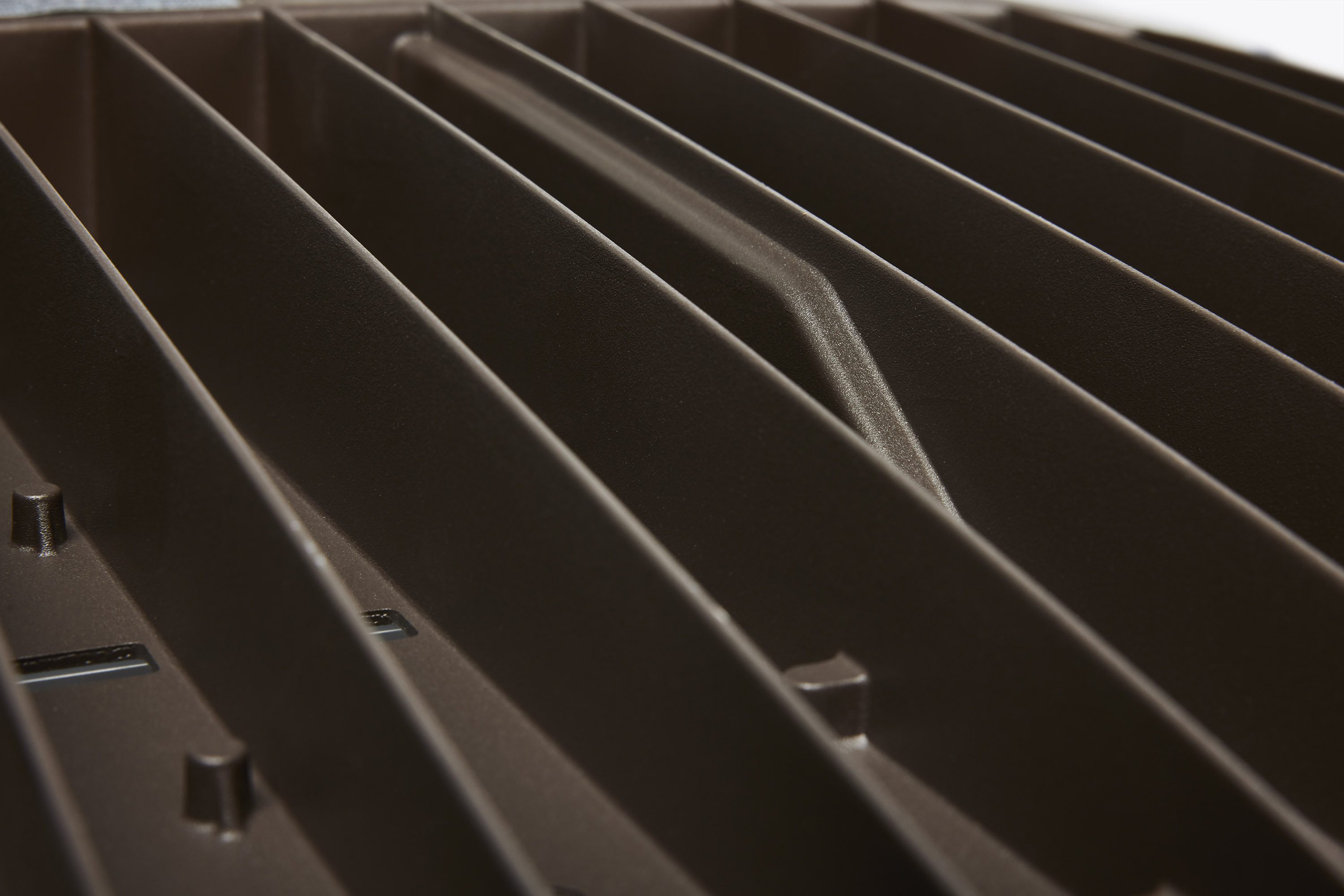

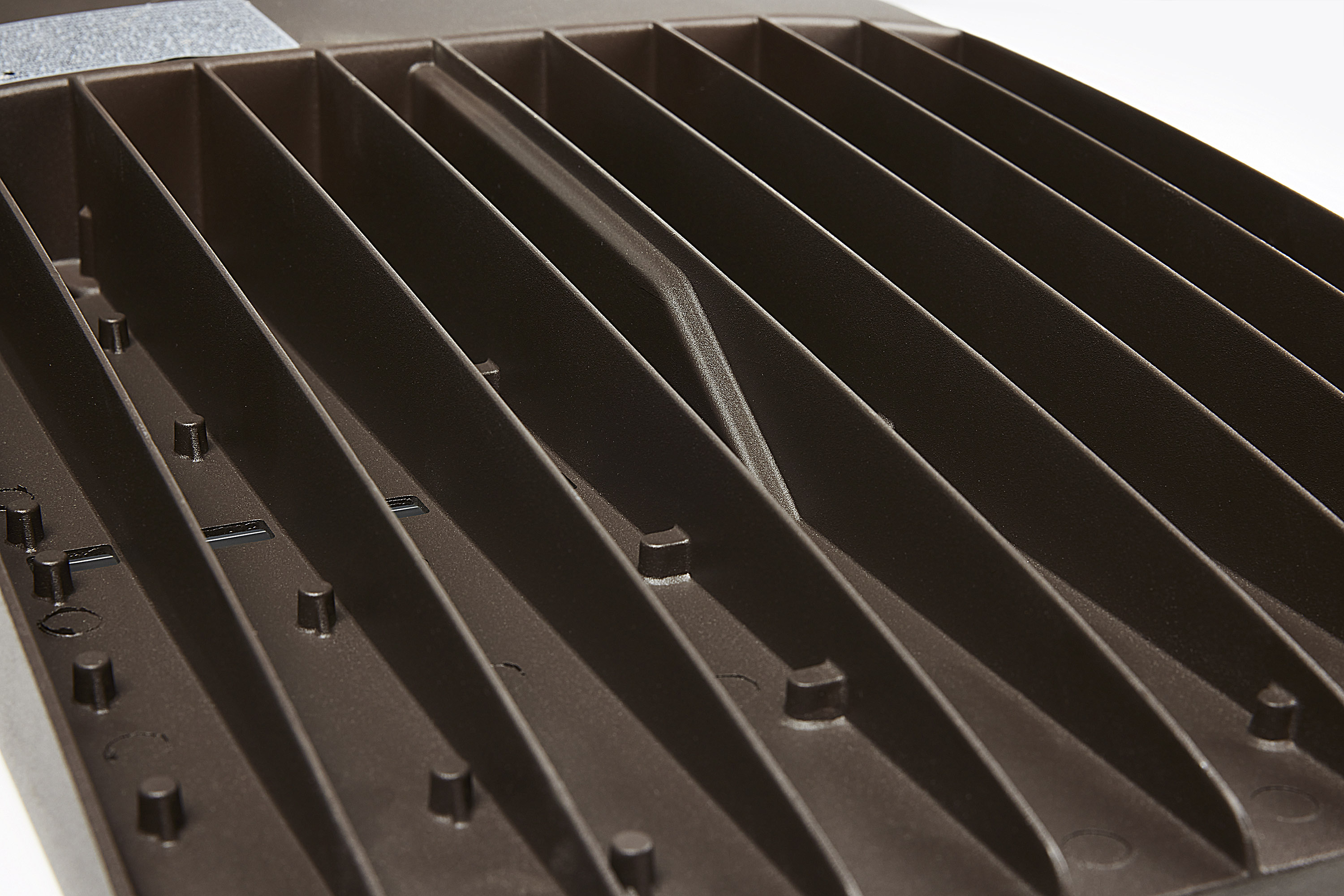

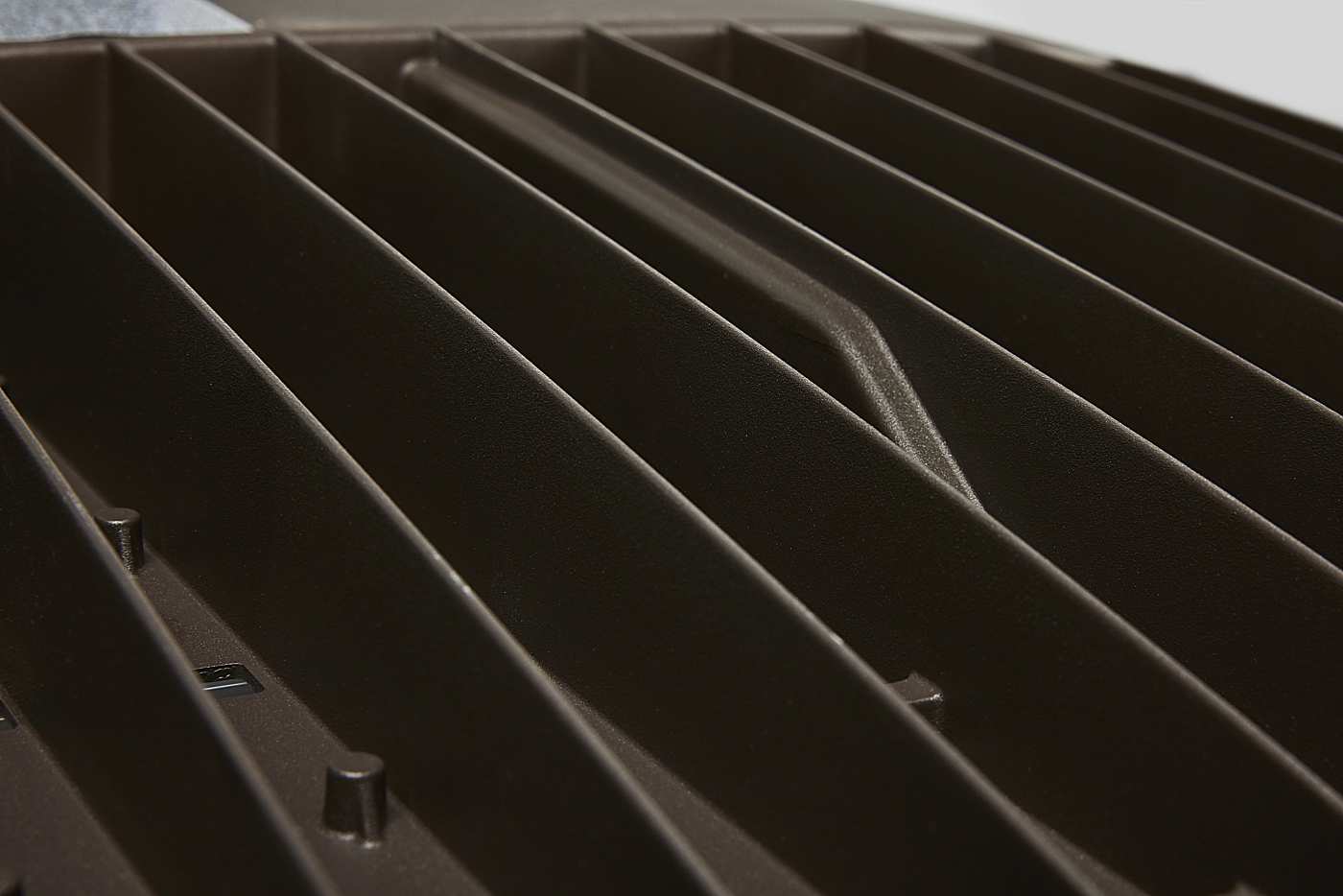

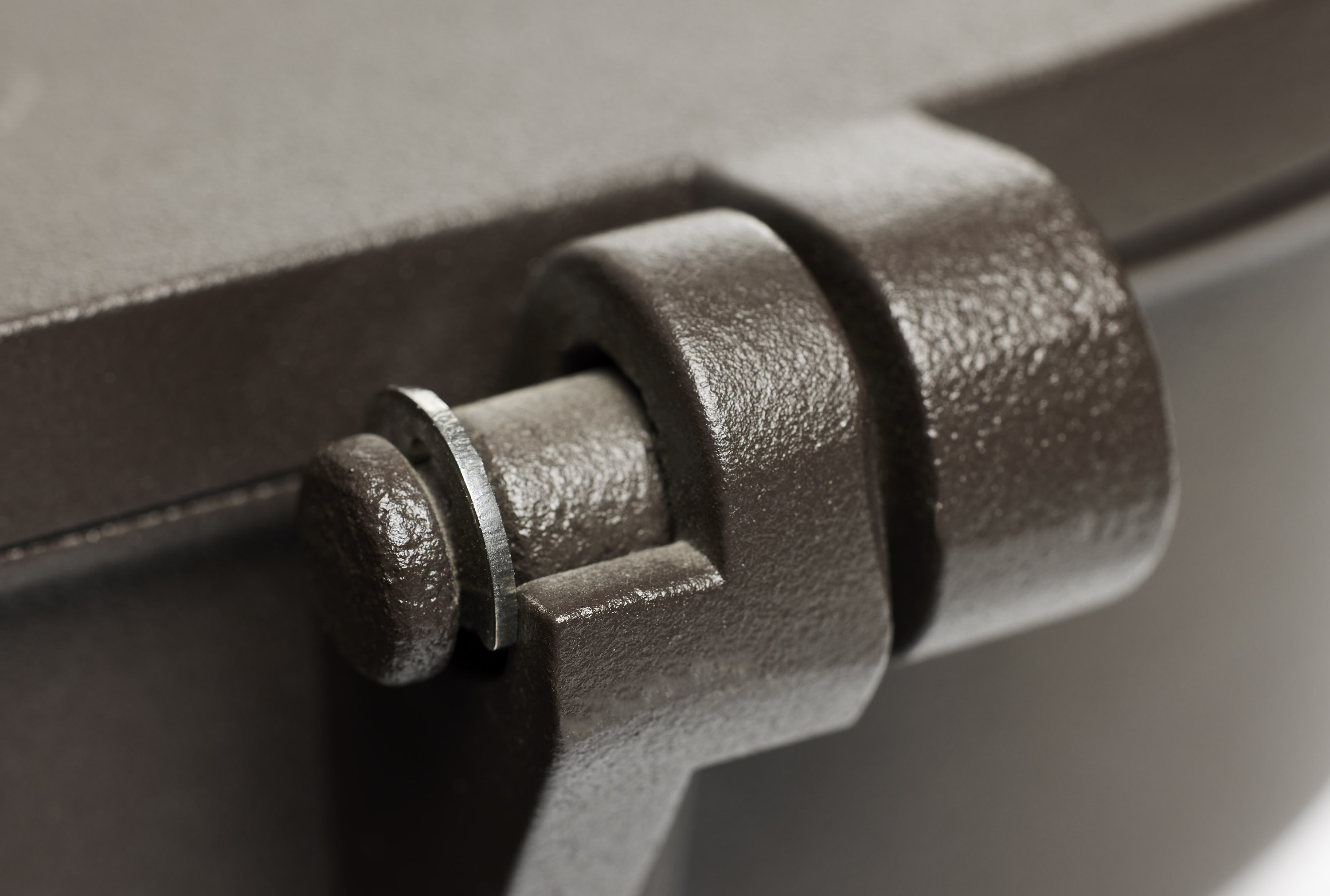

  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish

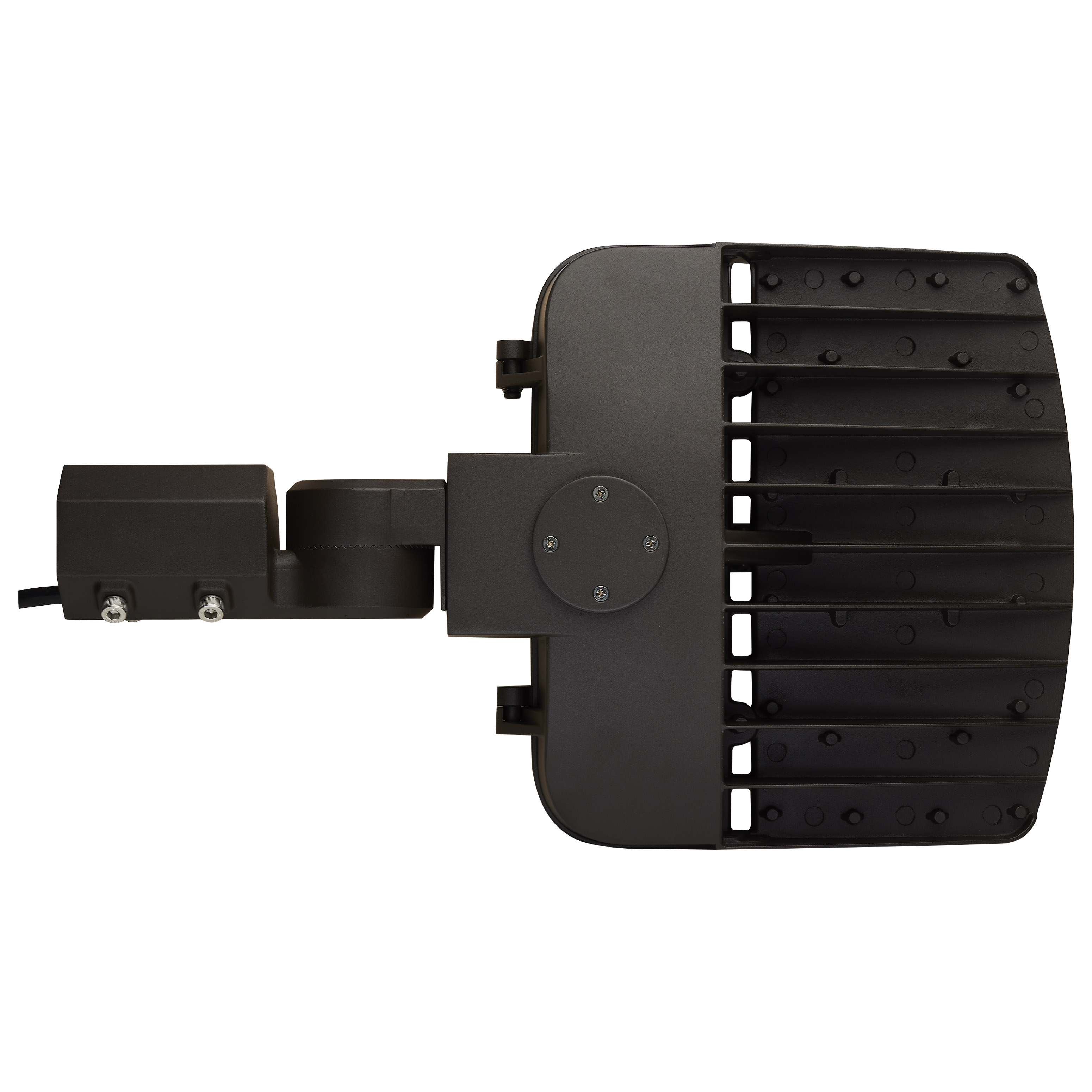

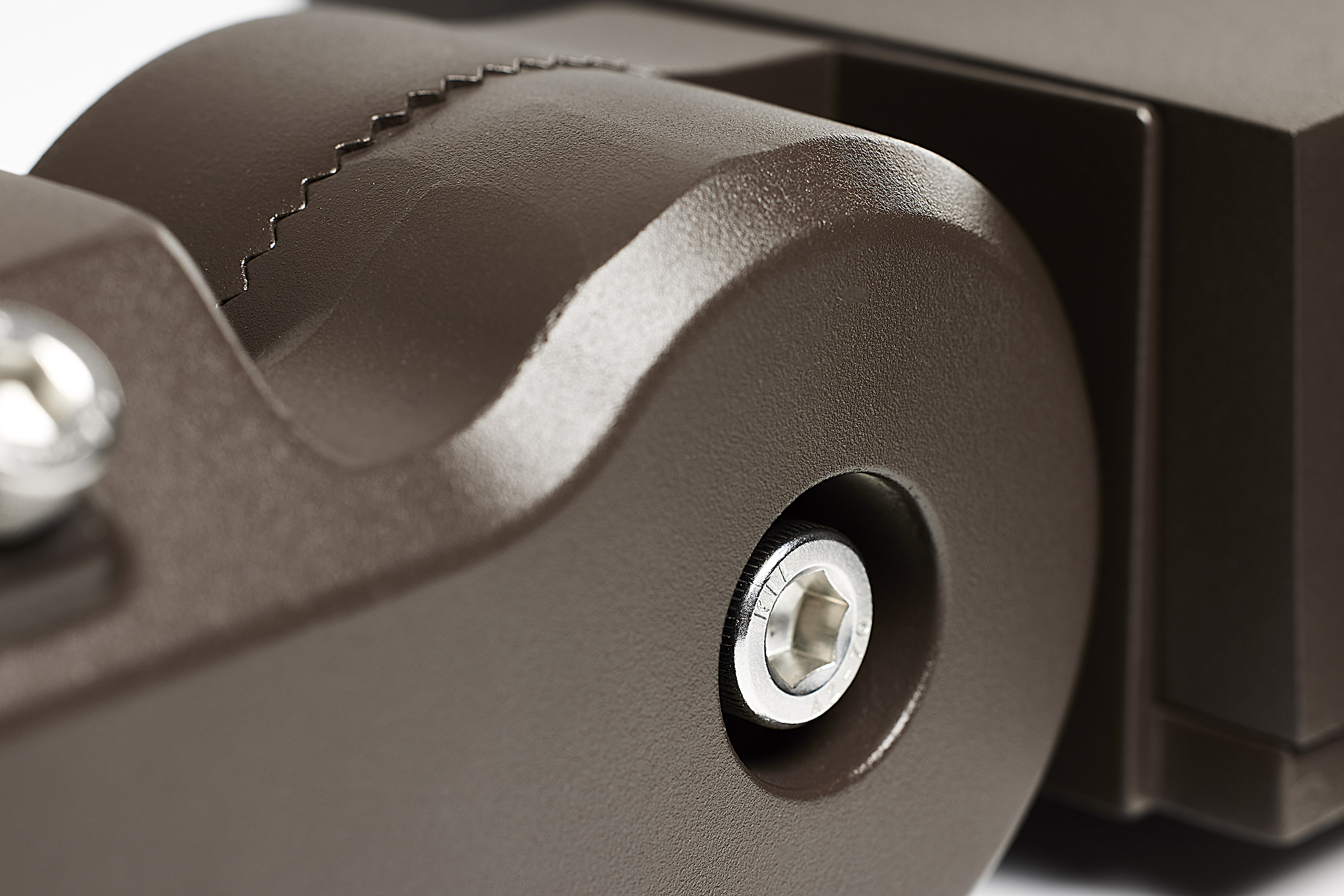

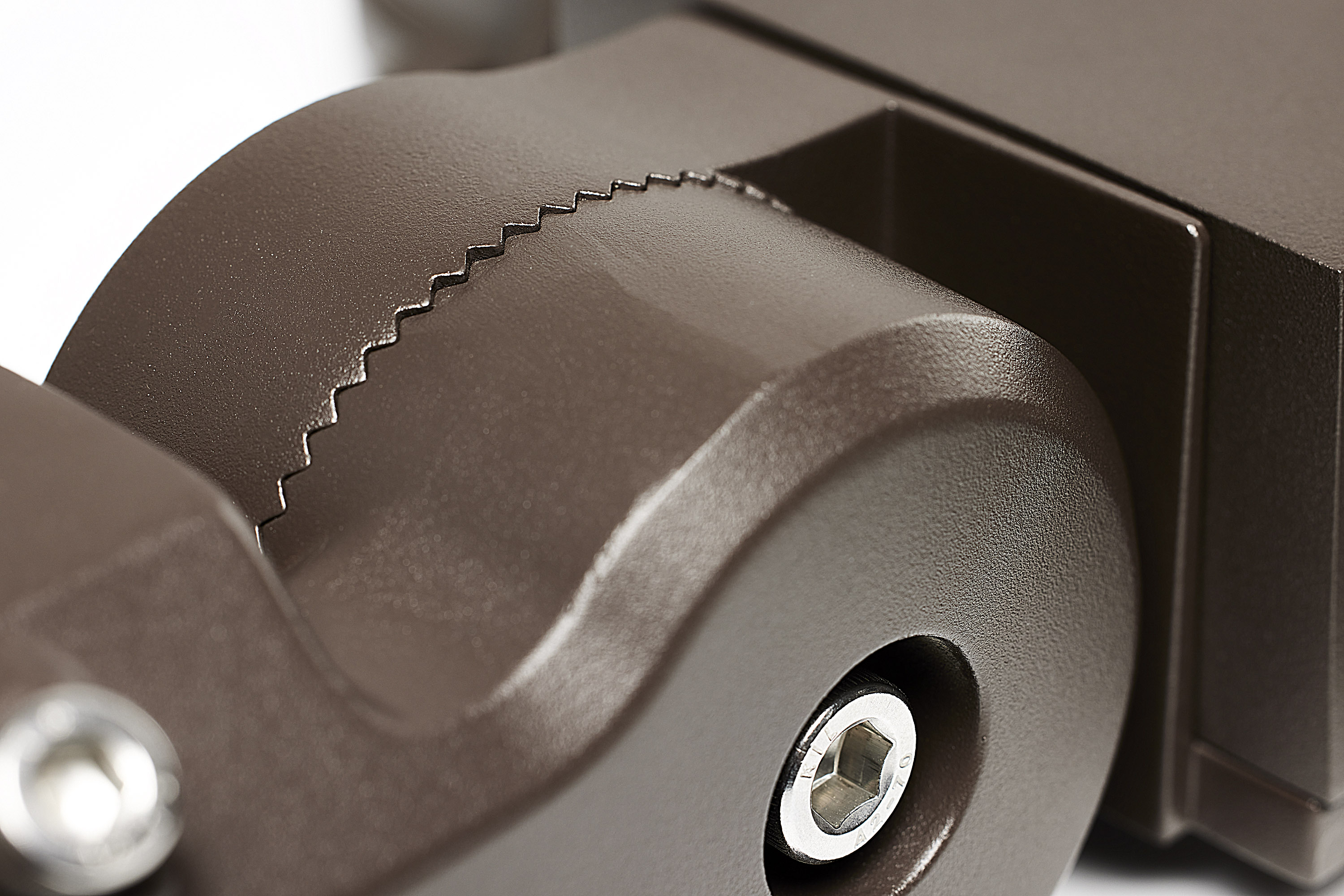

  • Slip-fitter mount included
  • IP65 Rated
  • Multiple mounting options available

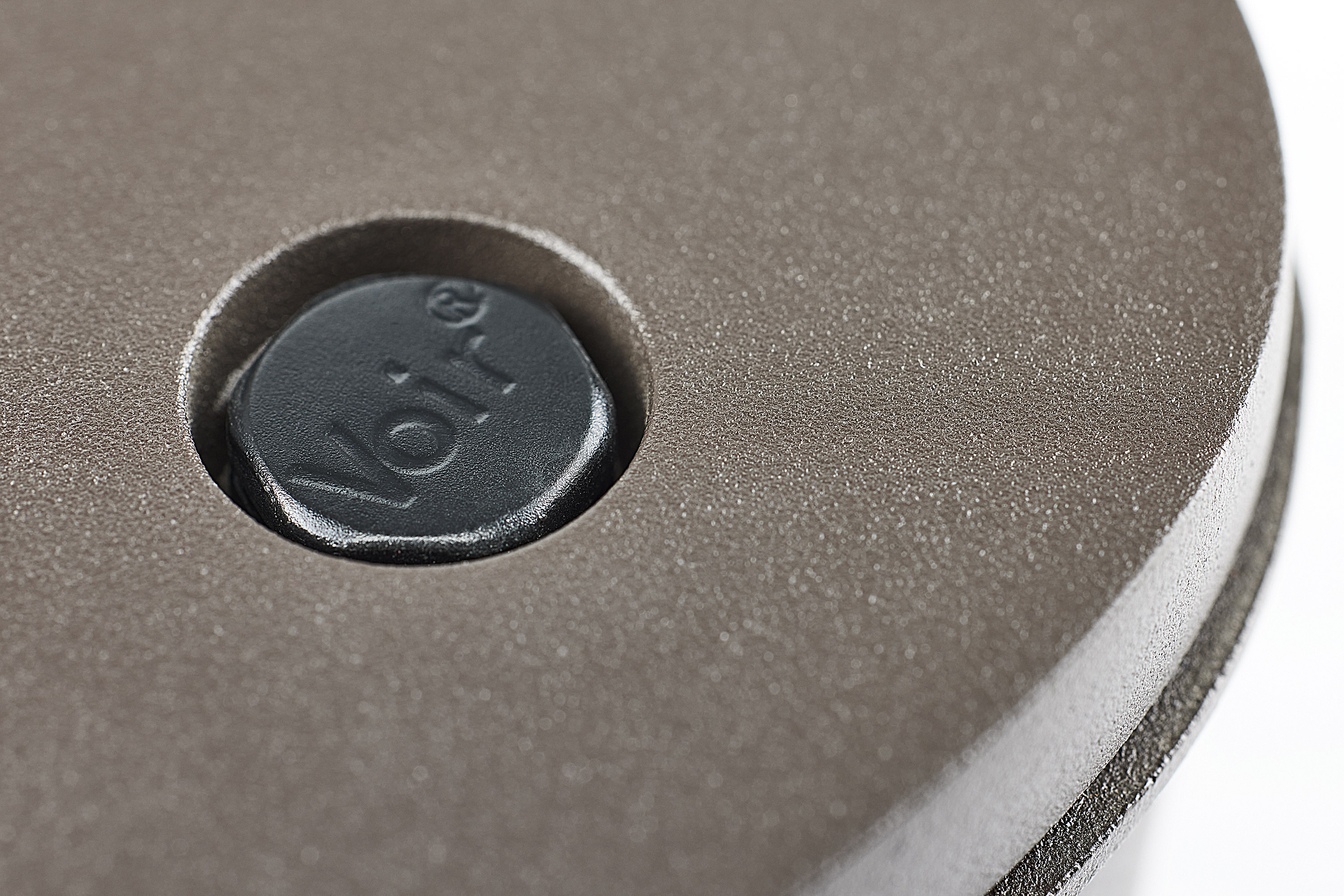

  • Add-on sensors available

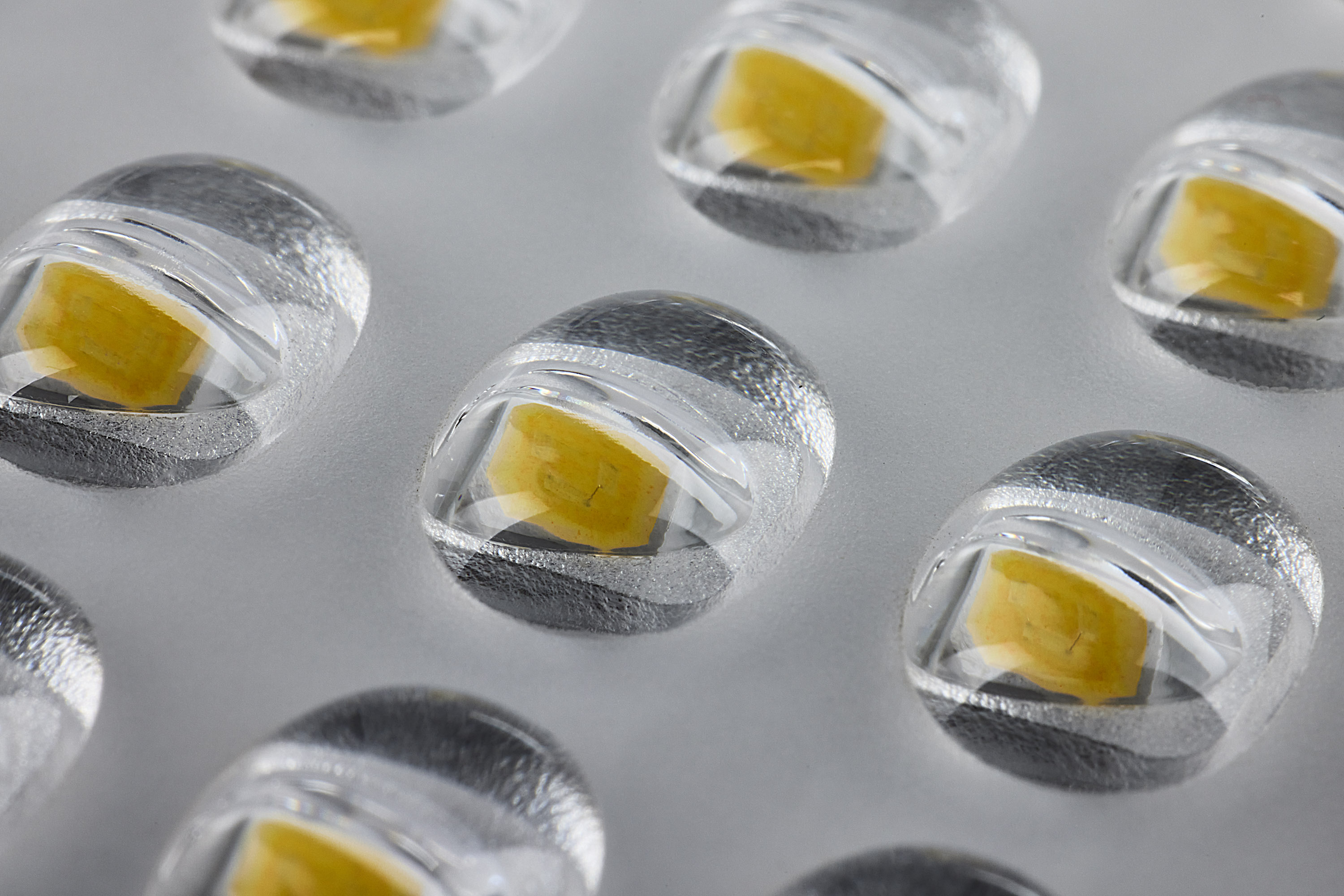

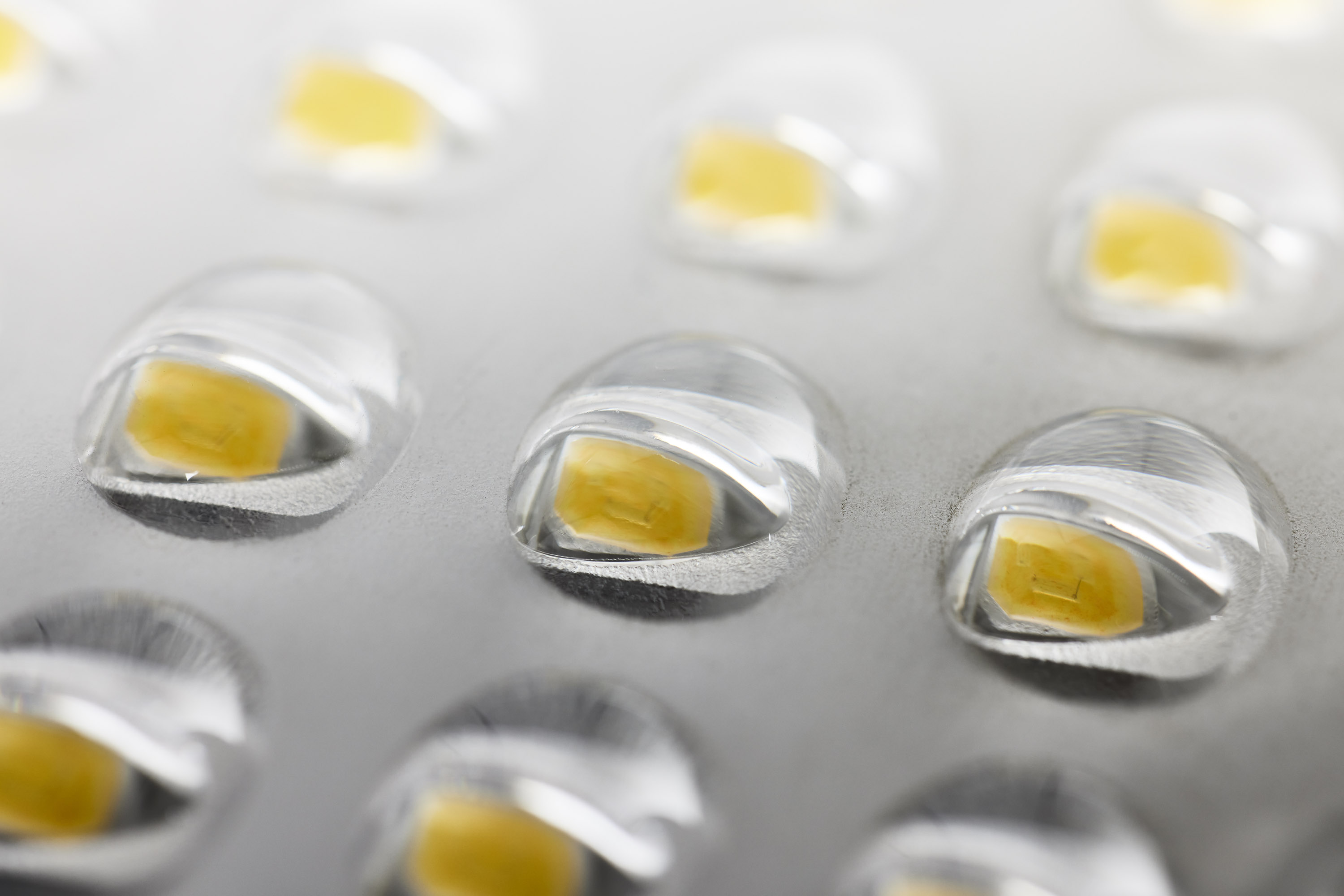

  • TYPE IV Lighting Distribution
  • 4KV
Lights

65-842-4

150W LED AREA LIGHT TYPE IV

LED Area Light Type IV; 150W; Bronze Finish; 4000K; 120-277V

SATCO|NUVO's LED Area Light Type IV provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast aluminum and impact resistant lenses and featuring an IP65 rating, provide ample lighting for both indoor and outdoor events. The lamps offer 50,000 hours of life and built in 4KV surge protection.
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • UV Stabilized powder coasted bronze finish
  • Slip-fitter mount included
  • IP65 Rated

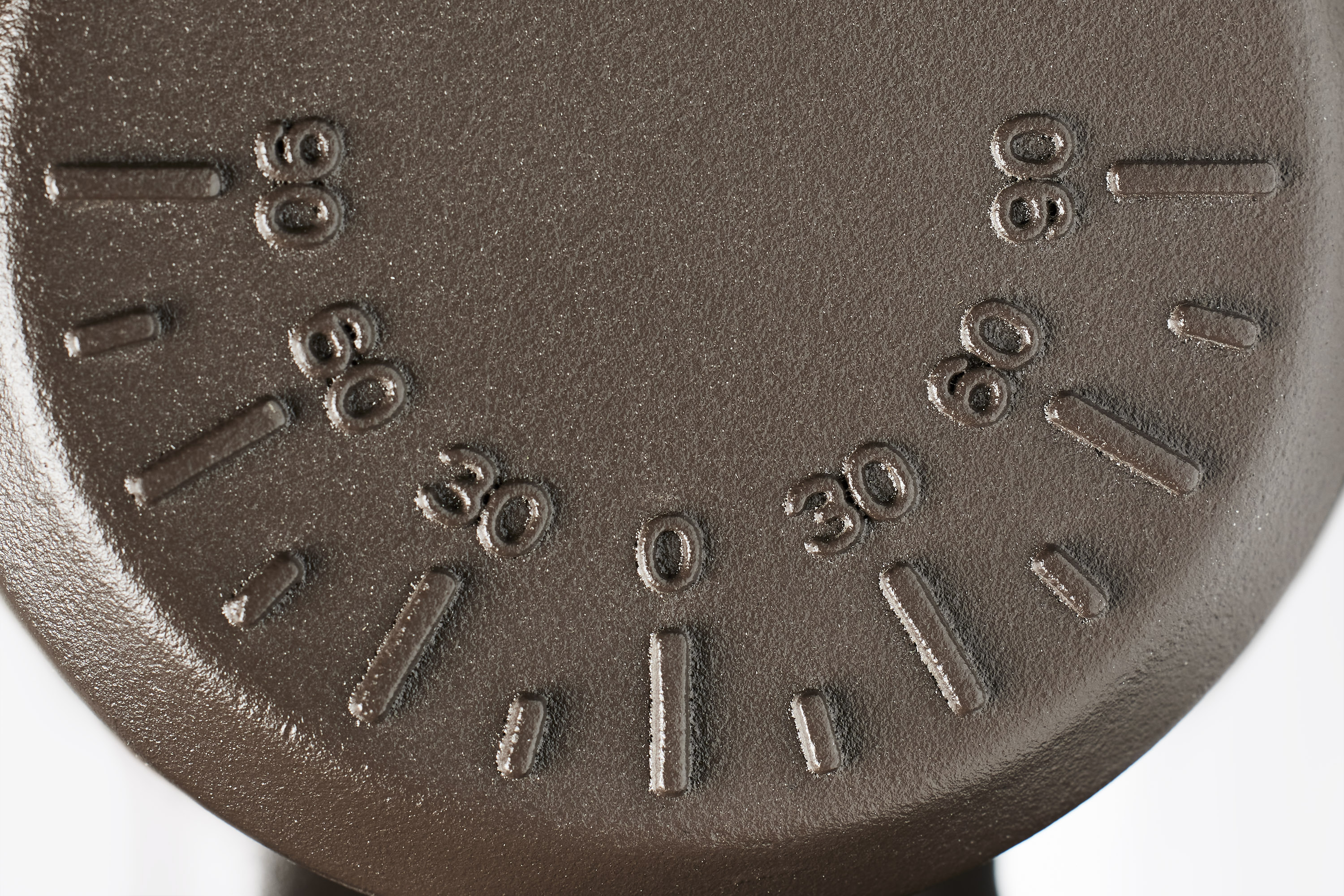

  • Multiple mounting options available

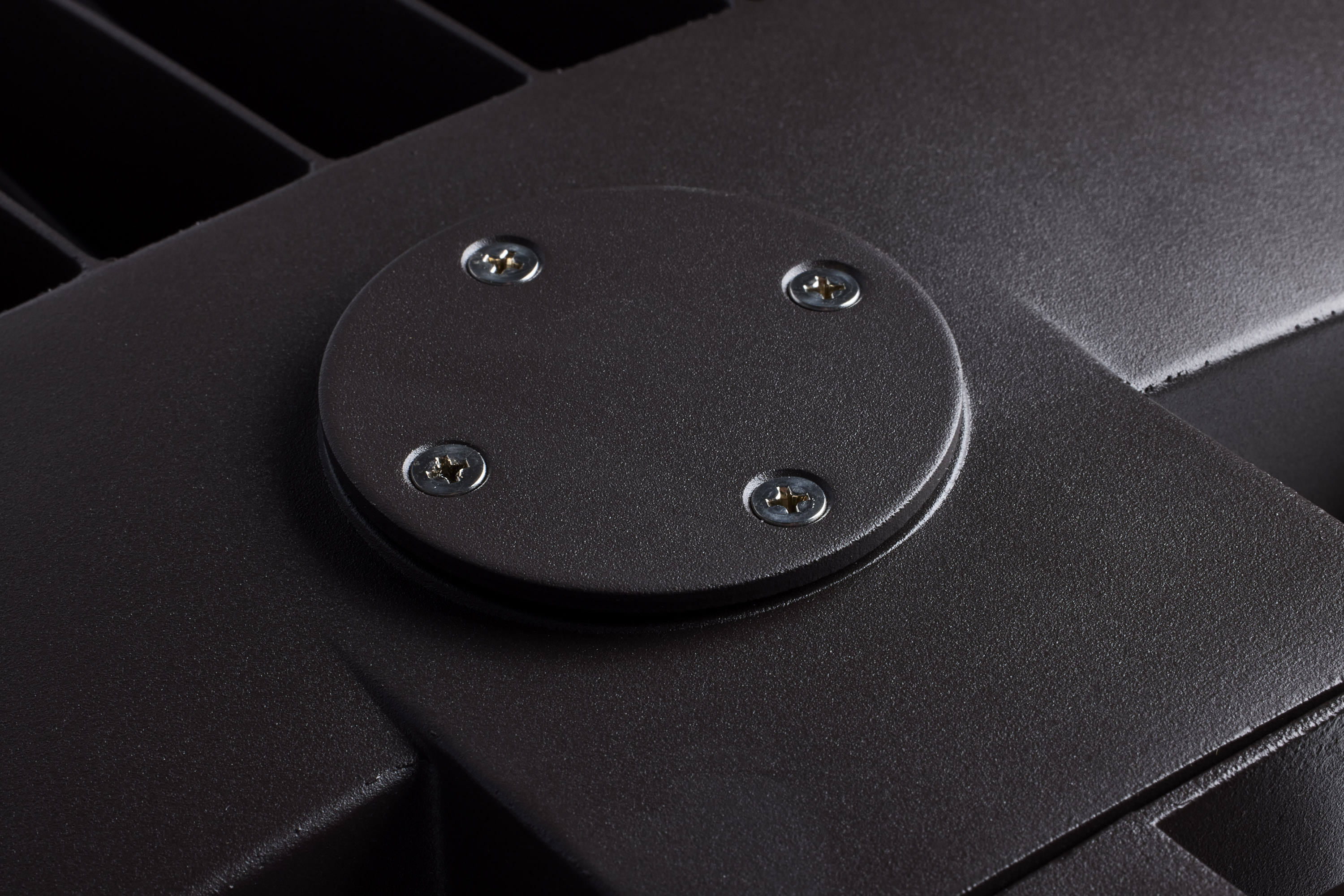

  • Add-on sensors available
  • TYPE IV Lighting Distribution
  • 4KV

Specifications

General
StatusActive
Fixture TypeArea Light
FinishBronze
Wattage150W

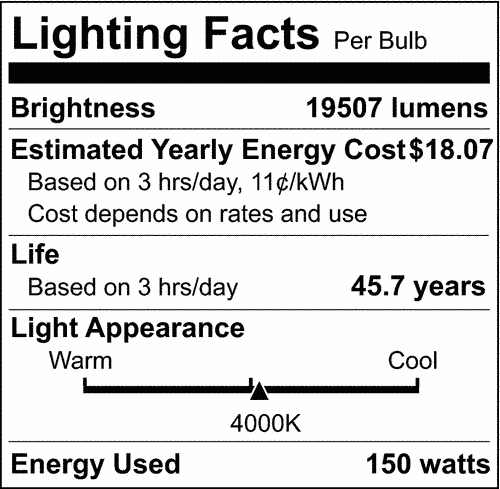

Lumen Output19507L
CCT (Kelvin)4000K
TemperatureCool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage150W
Lumen Output19507L
CCT (Kelvin)4000K
Color TemperatureCool White
CRI80
Voltage120V-277V
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming

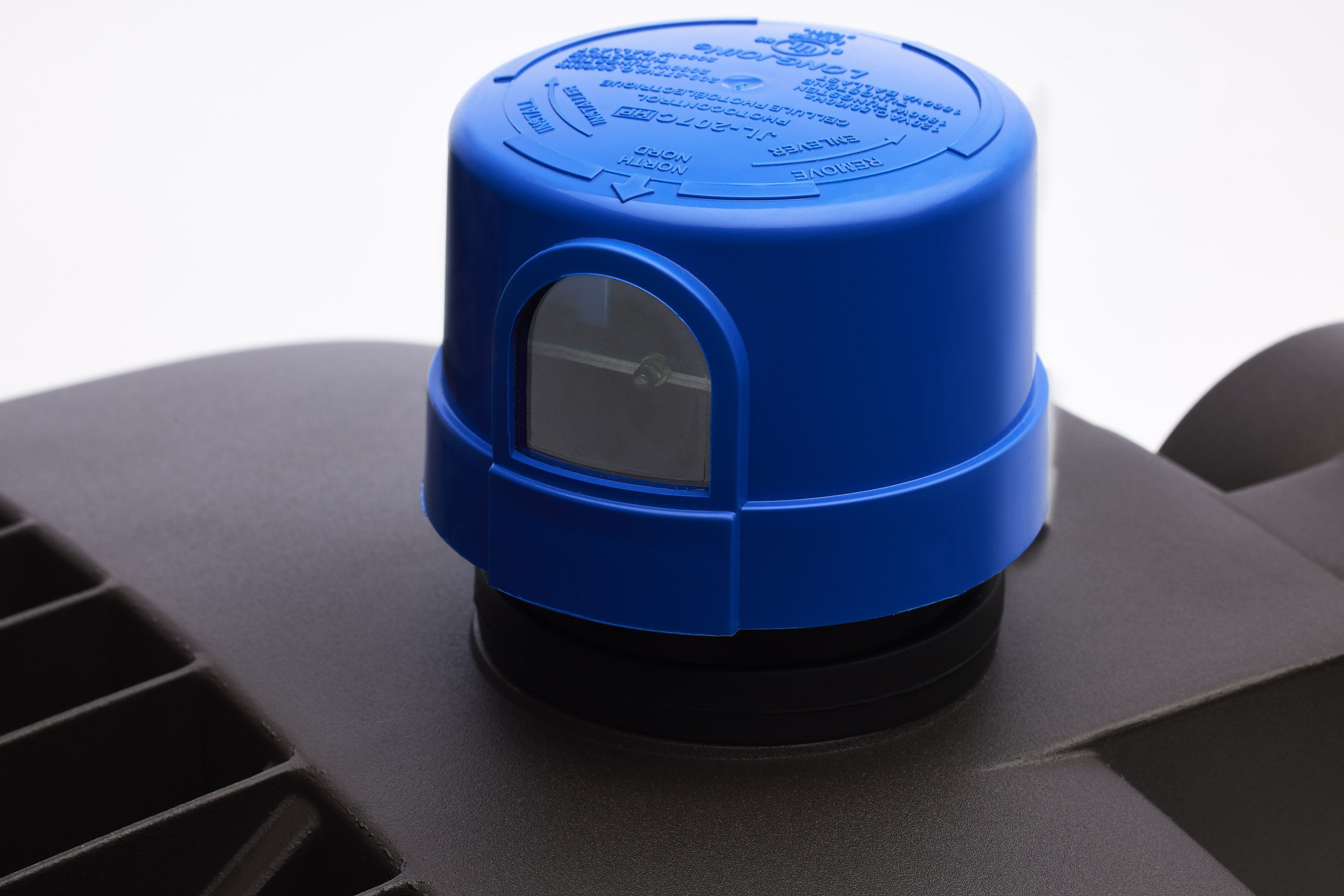

Photocell or SensorOptional

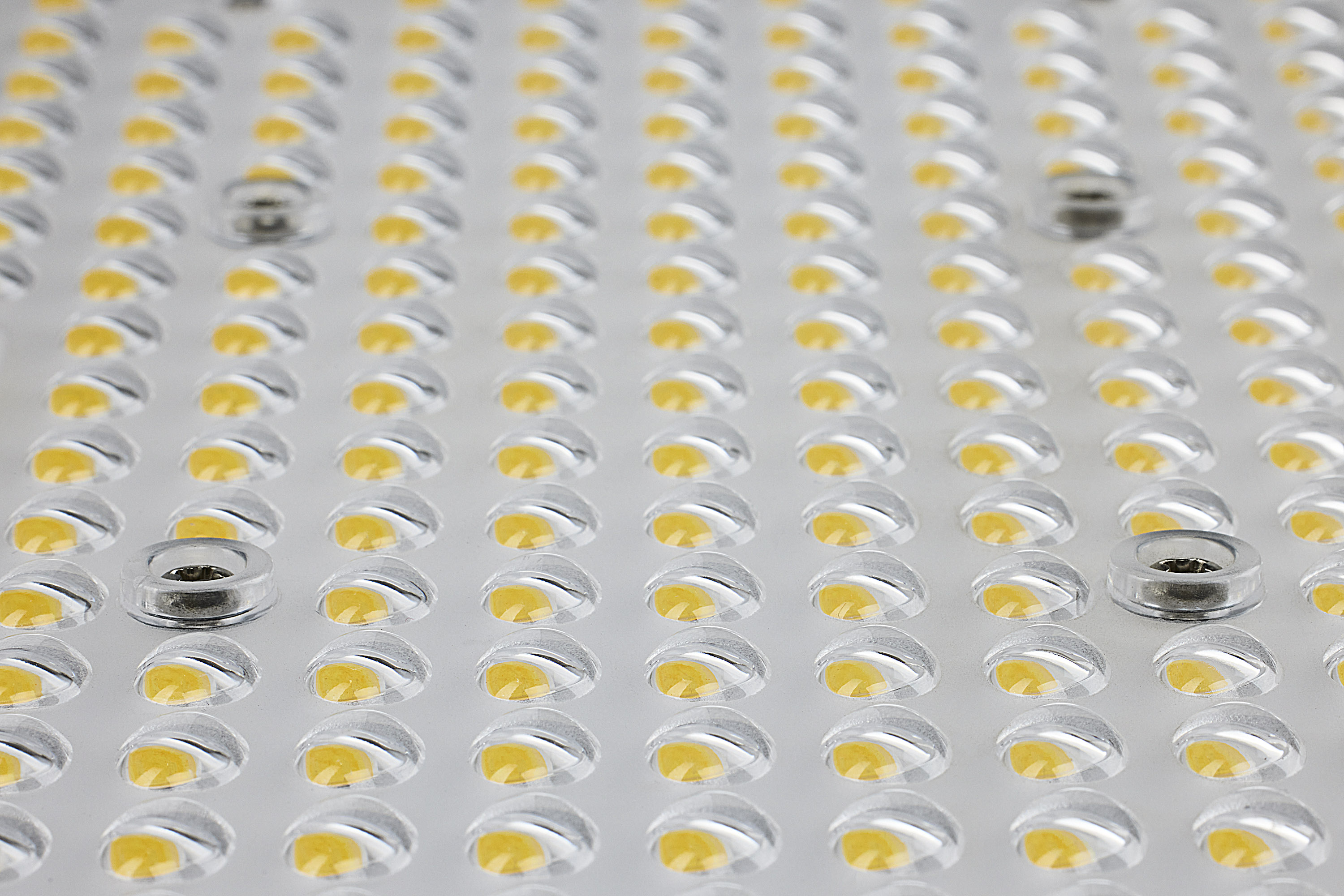

Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)8.08
IP RatingIP65
MaterialDie-cast Aluminum

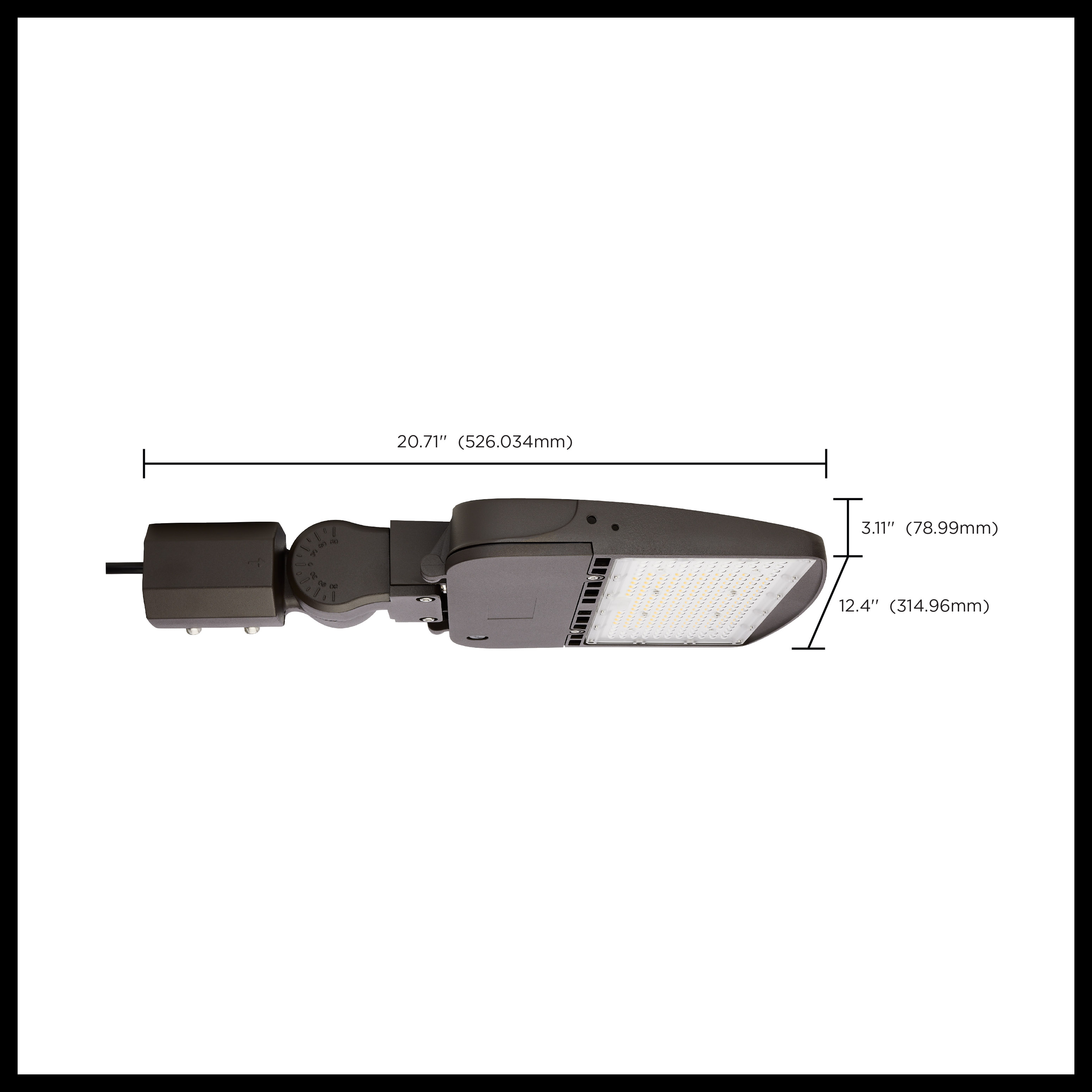

Dimensions
Height (in.)3.11
Width (in.)12.4
Length (in.)20.71
Compliance
Safety ListingcULus - Certified
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-YGC03W
B.U.G. RatingB3-U3-G3
Dark Sky CompliantNo
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Additional InformationPowder Coated
Specification NoteType IV Light Distribution
IncludesSlip-fitter Mount
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923684241
Each Quantity1
Each Length (in.)23.23
Each Width (in.)14.37
Each Height (in.)5.71
Each Weight (lb.)8.50
Each Cube (CuFt.)1.1031
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923684248
Case Quantity1
Case Length (in.)23.23
Case Width (in.)14.37
Case Height (in.)5.71
Case Weight (lb.)8.50
Case Cube (CuFt.)1.1031
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer LeGrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
Dimmer Eaton SF10P Visit
×
×
×

Precautions

No precautions available at this time.

×
